Ediseja 21 CMU 100 Series User manual
CMU 100 / 2.5.1.1.1.1.1.1.1 – 12, CMU 100 / 8.5.1.1.1.1.1.1.1 – 12 ,
CMU 100 / 2.5.1.1.1.1.1.1 – 12, CMU 100 / 8.5.1.1.1.1.1.1 – 12,
CMU 100 / 2.5.1.1.1.1.1 – 12, CMU 100 / 8.5.1.1.1.1.1 – 12,
CMU 100 / 2.5.1.1.1.1 – 12, CMU 100 / 8.5.1.1.1.1 – 12
Company: Device: Document: Code: Date:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
CMU 100
RS485 to 7x, 6x, 5x, 4x
RS232 Converter &
Star Coupler
U er Manual
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
Content
1 PREFACE.......................................................................................................3
2 CMU 100 SYSTEM.........................................................................................5
2.1 DESCRIPTION..................................................................................................................... 5
2.1.1 SOFTWARE...................................................................................................................... 5
2.1.2 HARDWARE...................................................................................................................... 5
3 RS485 TO 7x RS232 CONVERTER STAR COUPLER.............................7
3.1 DESCRIPTION..................................................................................................................... 7
3.2 TYPICAL APPLICATIONS....................................................................................................7
3.3 APPEARANCE..................................................................................................................... 9
3.4 HARDWARE DESCRIPTION................................................................................................9
3.4.1 MAIN BOARD.................................................................................................................... 9
3.4.2 RS485 INTERFACE BOARD...........................................................................................10
3.4.3 RS232 INTERFACE BOARD...........................................................................................12
4 SCHEMATIC.................................................................................................14
5 INSTALLATION............................................................................................15
5.1 INSTALLATION.................................................................................................................. 15
6 COMMISSIONING MAINTENACE..........................................................17
6.1 COMMISSIONING.............................................................................................................. 17
6.2 MAINTENANCE................................................................................................................. 17
7 TECHNICAL DATA.......................................................................................18
8 DIMENSIONS...............................................................................................20
9 ORDERING...................................................................................................21
Page: Company: Device: Document: Code: Date:
2 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
PREFACE
1 PREFACE
Liability statement
We have checked the contents of this manual to ensure that the descriptions of both hardware
and software are as accurate as possible. However, deviations may occur so that no liability can
be accepted for any errors or omissions contained in the information given.
The contents of this manual will be checked in periodical intervals, corrections will be made in
the following editions.
We reserve the right to make technical improvements without notice.
Contact
If you have any questions or comments related to this product please contact us on:
Ediseja 21 d.o.o.
Stegne 21C
1000 Ljubljana
Slovenia – EU
Tel: 00 386 51 643 411, 051 643 411
Email: grega.flander@ediseja21.com
www.ediseja21.com
Copyright
Copyright © Ediseja 21, 2019. All rights reserved.
Explanation of the symbols
Read the instructions!
Device was tested with 2,5 kV AC voltage to check the device insulation.
Device ground terminal.
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC; the affixed
product label indicates that you must not discard this electrical/electronic product in
domestic household waste.
Warnings
In this paper the following terms are used:
Danger
indicates that death, severe personal injury or substantial property damage will result if proper
precautions are not taken.
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 3
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
Warning
indicates that death, severe personal injury or substantial property damage can result if proper
precautions are not taken.
Caution
indicates that minor personal injury or property damage can result if proper precautions are not
taken. This particularly applies to damage on or in the device itself.
General information
These paper contain the information that is necessary for the proper and safe operation of the
described devices. This paper is intended for technically qualified personnel.
Warning!
Hazardous voltage is present inside the device during operation. Disregarding of safety
rules can result in severe personal injury or property damage.
Only qualified personnel may work with described devices after being familiar with warnings and
safety notices in this paper and other safety regulations.
Warning!
Device must operate completely assembled! Device must be used as described. No
modifications of the device should be made.
Warning!
Do not open device while it is energized! Hazardous voltage is present inside the
device. Disconnect all connectors before opening!
Warning!
If device is damaged disconnect it from power supply! Send it to the manufacturer for
inspection.
Warning!
Connect to earth before attaching power supply!
Page: Company: Device: Document: Code: Date:
4 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
CMU 100 SYSTEM
2 CMU 100 SYSTEM
2.1 DESCRIPTION
Communication unit (CMU 100) is modular system of communication devices that can be used
for various of tasks such as:
communication converter (for example RS232 to RS485)
star coupler (for example 1 fiber optic to fiber optics)
repeater (for example RS485/485)
communication isolator (for example for preventing ground loops)
communication listener - debugger
PC serial com port extender (for example USB to 4 serial com)
CMU 100 device is a couple of software and hardware. For different purposes, different software
versions and different hardware configuration have been developed.
2.1.1 SOFTWARE
Software is application dependent and allows different hardware configurations. Software's task
is switching between communication ports and allows almost any combination between them.
2.1.2 HARDWARE
Hardware is based on main board with power supply and port switching logic. On that board,
interface boards are attached. CMU 100 can handle up to 8 different interface boards. Currently
available interface boards:
RS232
isolated RS485
Multimode Fiber Optic with ST and SMA connectors
Singlemode Fiber Optic with SC connectors
Versatile Link Fiber Optic
USB
ethernet (with one virtual com port)
Housing is aluminium and intended for mount on standard DIN 35 rail (acc. to DIN EN 50022). 3
different housings have been made. Depends on how many interfaces device has, appropriate
housing is used.
Hardware settings
All settings on the device can be made from outside by a DIL switch. It is not necessary to open
the housing.
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 5
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
Due to similarity among stated types, only type with 7 RS232 ports will be described.
Page: Company: Device: Document: Code: Date:
6 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
Picture 1: CMU 100 system general diagram
RS485 TO x RS232 CONVERTER & STAR COUPLER
3 RS485 TO 7x RS232 CONVERTER STAR
COUPLER
3.1 DESCRIPTION
Star coupler is communication device that transfer data from one (master) to more than one
(slave) port. Example is when we need access to one device with several PCs. It can also be
used when communication from PC to multiple devices is needed.
This device contains one half duplex RS485 interface (master) and seven RS232 (slaves) ports.
Data is send from master port to all slave ports. On the other hand, data from either slave port is
send to master port only.
Wide power supply voltage allows connection to all common station batteries. Additionaly it can
be also connected to standard AC voltages.
This device is intended for use in cubicles and cabinets in all kinds of power production,
transmission and distribution stations. It requires no maintenace. All normaly used connectors,
switches and light indicators are accessed at the front side of the device. One light indicator
indicates power supply voltage, others indicate communication transfer.
RS485 interface can be connected to the RS485 bus with up to 32 devices. Speed of
communication can be set with switches on that interface.
3.2 TYPICAL APPLICATIONS
Typical application is communication with PC with SCADA application, in control room and
protection relays, power meters, etc with RS485 interfaces, in switchgear, without
electromagnetic disturbances.
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
TYPICAL APPLICATIONS
3.3 APPEARANCE
3.4 HARDWARE DESCRIPTION
This configuration of device is made from main board (power supply, LEDs, switches and logic
switch), one RS485 interface board and seven RS232 boards.
3.4.1 MAIN BOARD
Power LED indicates that device is turned on. The right LEDs of one port shows activity on
receive (Rx) line and the left one shows activity on transmit (Tx) line.
On the bottom side of device are switches and JTAG connector which is intended for
downloading necessary software. Do not connect anything to that connector.
Additional switches allows echo on each port. Echo can be set on or off for each port.
Switches
Switch 1 2 3 4
Description Echo port 1 Echo port 2 Echo port 3 Echo port 4
Position OFF Echo off Echo off Echo off Echo off
Position ON Echo on* Echo on Echo on Echo on
Default position OFF OFF OFF OFF
Switch 5 6 7 8
Description Echo port 5 Echo port 6 Echo port Echo port 8
Position OFF Echo off Echo off Echo off Echo off
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 9

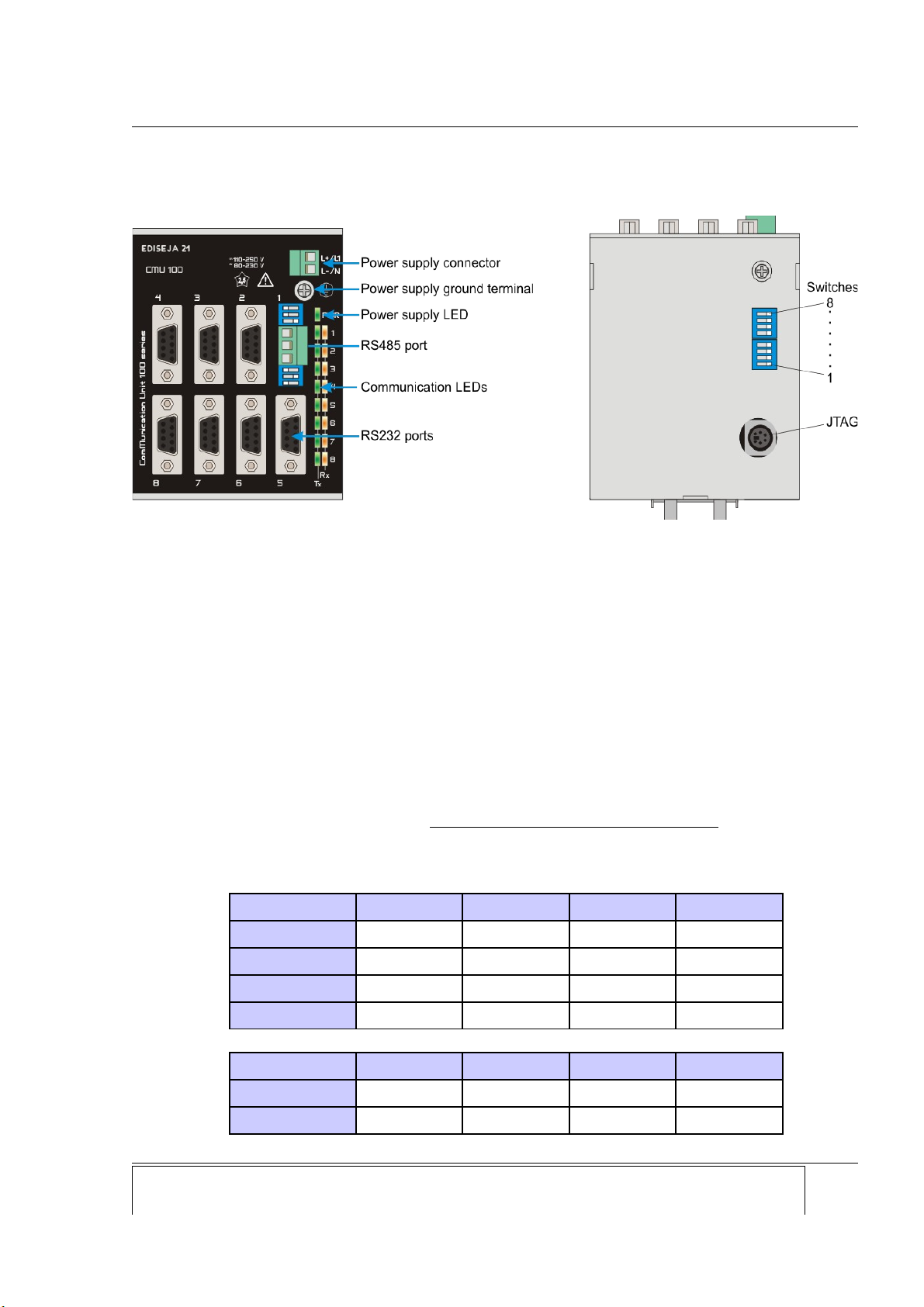

Picture 3: Front view left) & bottom view right)
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
Switch 5 6 7 8
Position ON Echo on Echo on Echo on Echo on
Default position OFF OFF OFF OFF
* Echo does not work on half duplex interfaces like RS485!
Configuration of ports
Port 1 2 3 4 5 6 7 8
Interface RS485 RS232 RS232 RS232 RS232 RS232 RS232 RS232
3.4.2 RS485 INTERFACE BOARD
Description
Single, galvanically isolated, half duplex, RS485 port with Phoenix 3 pin screw connector, with
automatic switch to receive after end of transmission and with additional terminating and
stabilizating resistors.
Hardware settings
For proper functioning of that board some settings must be done:
RS485 bus termination and stabilisation
baud rate
RS485 bus termination and stabilisation
TERMINATION
At high transmission rates or long distance, RS485 bus termination is necessary.
The termination on RS485 bus must be set on both ends of the RS485 bus.
STABILISATION
Some device, to work properly, demands that RS485 must always be in known and valid state.
That is, when + (positive) pin is more than 200 mV positive than – (negative) pin. Pins + and –
are sometimes marked as A and B. In case that no device on RS485 bus is transmitting or in
case of short circuit, there is no voltage difference between those pins and some device do not
work correctly.
On this port board so called „true fail-safe“ RS485 chip is used so board works correctly without
stabilisation at invalid RS485 bus state. But still switches for stabilisation are provided on port
board. The stabilization on RS485 bus may be set on one device only!
Page: Company: Device: Document: Code: Date:
10 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
HARDWARE DESCRIPTION
Switches at the lower side of connector:
Switch 4 5 6
Description RS485 stabilisation RS485 termination RS485 stabilisation
Switches at the upper side of connector:
BAUD rate
bit/s Switch
Interface 5 Interface M Interface L 1 2 3
19200 4800 300 OFF OFF OFF
38400 9600 600 OFF OFF ON
5 600 19200 1200 OFF ON OFF
115200 38400 2400 ON OFF OFF
BAUD rate setting 19,2 kbit/s is valid for all standard communication protocols, that do not
request special timings. If special protocols (small request-respond time required) are used
please note it in order.
NOTE! If there are problems with communication, try using higher speed setting. Some
manufacturer have different markings for B and A line. Try to switch A and B wires. See
http://en.wikipedia.org/wiki/RS-485 for detailed information.

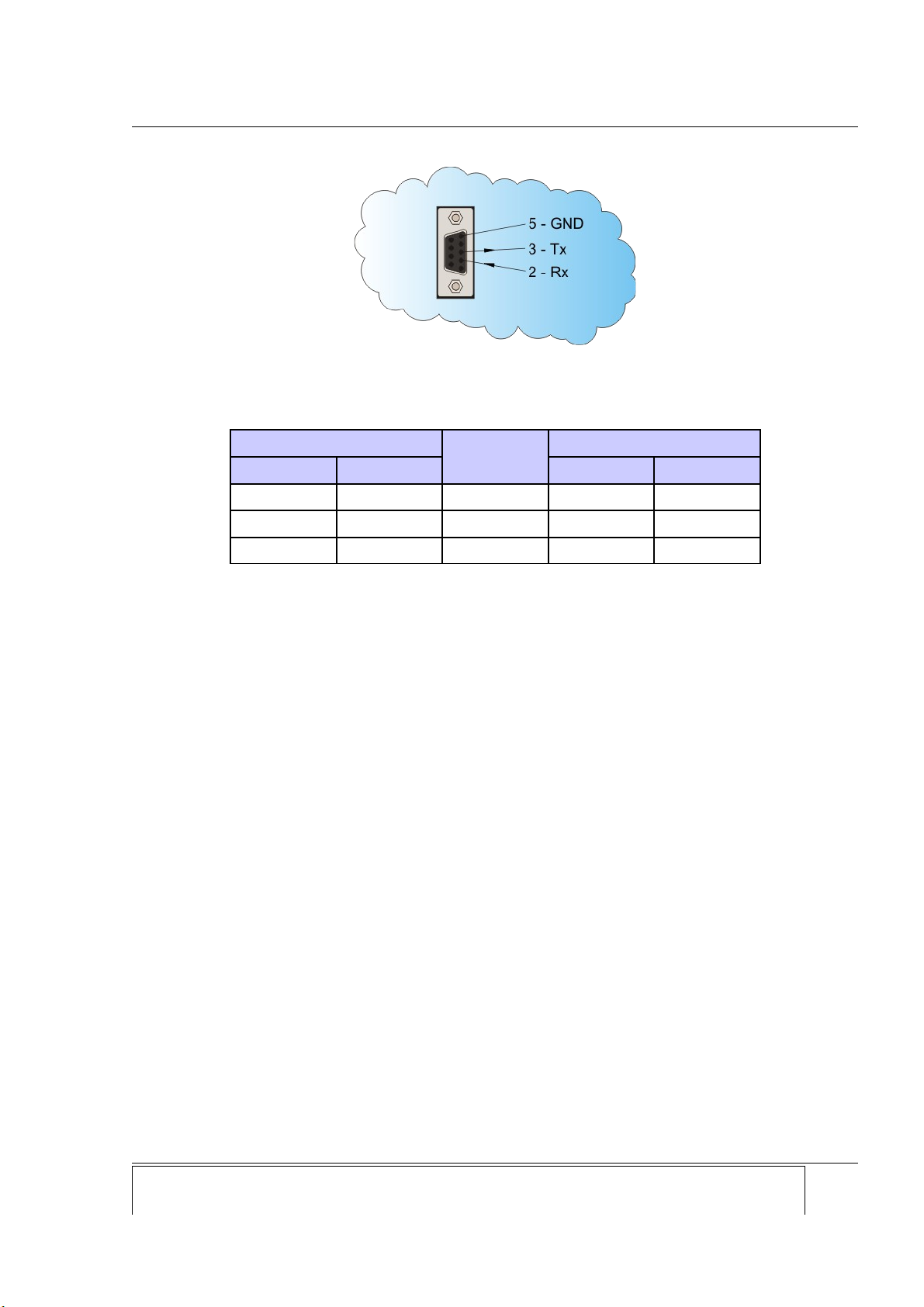

Connector pin table
MSTB 1 2 3
Description GND - (B) + (A)
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 11
Picture 4: RS485 BUS schematic
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
3.4.3 RS232 INTERFACE BOARD
Description
Single, nonisolated, full duplex, RS232 port with DB9 female connector. Supported Rx, Tx and
GND pins.
Connector pin table
DB9 F 2 3 5
Description RX TX GND
Direction IN OUT -
Page: Company: Device: Document: Code: Date:
12 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
Picture 6: Standard data rate vs cable lenght
Picture 5: RS485 interface board appearance with switch settings
HARDWARE DESCRIPTION
Cable for connection to PC
CMU 100
DB9 M pin Signal
Direction PC
Signal DB9 F pin
2 RX <------- TX 3
3 TX -------> RX 2
5 GND <-------> GND 5
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 13
Picture 7: DB9 Female connector
INSTALLATION
5 INSTALLATION
5.1 INSTALLATION
Warning!
Hazardous voltage is present inside the device during operation. Disregarding of safety rules can
result in severe personal injury or property damage.
Only qualified personnel may work with described devices after being familiar with warnings and
safety notices in this paper and other safety regulations.
Following instruction must be taken into consideration:
The device must be accessible to qualified personnel only.
The device is permitted to operate in enclosed housing or cabinet only.
The device location must be vibration-free.
The admisible operating temperature must be observed.
Check the device for damage at unpacking. If device is damaged it must not be installed
but it should be send to the manufacturer for repair.
The device should not be opened.
The device should be mounted on a 35 mm rail (acc to EN 50022).
Attach ground wire before attaching power supply. Device must be grounded during
operation!
Single core or stranded wire 0,5 – 2,5 mm2 must be used for power supply connection. If
stranded wire is used, ferrules must be used to prevent fraying. Recommended stripping
lenght is 5 mm.
Protective earthing wire must be terminated with tinned copper ear terminal.
The prescribed bending radius of the optical fibre cables must be observed.
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 15
COMMISSIONING & MAINTENACE
6 COMMISSIONING MAINTENACE
6.1 COMMISSIONING
Warning!
Hazardous voltage is present inside the device during operation. Disregarding of safety
rules can result in severe personal injury or property damage.
Only qualified personnel may work with described device after being familiar with warnings and
safety notices in this paper and other safety regulations.
Following instruction must be taken into consideration:
Device must operate completely assembled! Device must be used as described. No
modifications of the device should be made.
Attach ground wire before attaching power supply. Device must be grounded during
operation!
Check if the power supply voltage complies with device operation voltage.
Do not open device while it is energized! Hazardous voltage is present inside the device.
If single mode fiber optic interface is used, do not look into the laser beam.
6.2 MAINTENANCE
The device is maintenance-free. Disconnect power supply before cleaning it. Use moist cloth.
Do not use liquids.
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 1
CMU 100 - RS485 to x, 6x, 5x, 4x RS232 Converter & Star
7 TECHNICAL DATA
Power supply
CMU 100 / 2... CMU 100 / 8...
Rated voltage DC 110 - 250 V 48 - 60 V
AC 230 V 48 V
Permissible voltage range DC 88 - 350 V 38 - 2 V
AC 0 - 264 V 30 - 50 V
Input current DC 13 - mA 68 - 60 mA
AC 44 mA 106 mA
Fuse (internal) 2 A T
Power supply indicator green LED marked PWR
Voltage dips 20 ms
Connector type screw type „MSTB“ Phoenix 2pin
Power Supply Wire
crossection 0,5 – 2,5 mm2
type single or stranded wire
voltage rating 500 V
colour see valid standard
Ground wire crossection Cu, 2,5 mm2
colour see valid standard
Communication port RS485 (interface type 5, M L)
Type RS485
Direction half duplex
Speed*
Interface type 5 19,2 - 115,2 kbit/s
Interface type M 4,8 - 38,4 kbit/s
Interface type L 300 - 2400 bit/s
Distance up to 1200 m
Isolation 1000 V DC
Connector type „MSTB“ Phoenix 3pin
Termination 120 Ohm
Max number of devices
on RS485 bus 32
Page: Company: Device: Document: Code: Date:
18 Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019
TECHNICAL DATA
Communication port RS232 (interface type 1)
Type RS232
Direction full duplex
Speed* up to 230 kbit/s
Distance up to 15 m
Isolation none; (GND earthed)
Connector type DB9 female
Lines in 1 (Rx)
Lines out 1 (Tx)
* slowest interface defines device's maximum speed
Other data
Weight approx. 0,55 kg
Dimensions
(see picture)
(H) (D) (W)
105 mm 111 mm + connectors 85 mm
Temperature range 0 °C to +55 °C
Humidity operating up to 95 % (noncondensing)
Enclosure Material Al
IP 20
Mount type standard DIN 35 rail (acc. to DIN EN 50022)
Class I
Overvoltage category II
Company: Device: Document: Code: Date: Page:
Ediseja 21 CMU 100 / 2.5.1.1.1.1.1.1.1 – 12 User manual CMUMU251 01.09.2019 19
Other manuals for CMU 100 Series
4
This manual suits for next models
8
Table of contents
Other Ediseja 21 Media Converter manuals
