Bang & Olufsen DVB-HD User manual

DVB-HD
Guide

Introducing the module and remote control, 3
Find out how to use your remote control with the DVB Module.
Daily use, 6
How to bring up and use the menus on the screen.
See programme information, 8
How to bring up and use the Programme Guide and information display,
which options are available from the Programme Guide and information
display on the screen.
Timer recording, 10
How to program a recording directly from the Programme Guide.
Setup menu, 11
Find out details about the SETUP menu; how to make your preference
settings such as language, check for new software, and set a parental
lock and maturity rating. You can also find out how to tune in and edit
channels and stations, and change your setup.
First-time setup, 17
See what the first-time setup sequence consists of.
Connections, 18
How to connect the Conditional Access Module and insert Smart Cards.
What to do if …, 20
Find answers to frequently asked questions, such as how to find new
channels or stations, how to check the signal strength and more.
Glossary, 22
Find a list of commonly used DVB terms.
Contents
2

Introducing the module and remote control
Your Beo5 must be configured on the base
of a favourite list created in the DVB Module.
If the channels in the favourite list are
rearranged, your Beo5 must be reconfigured

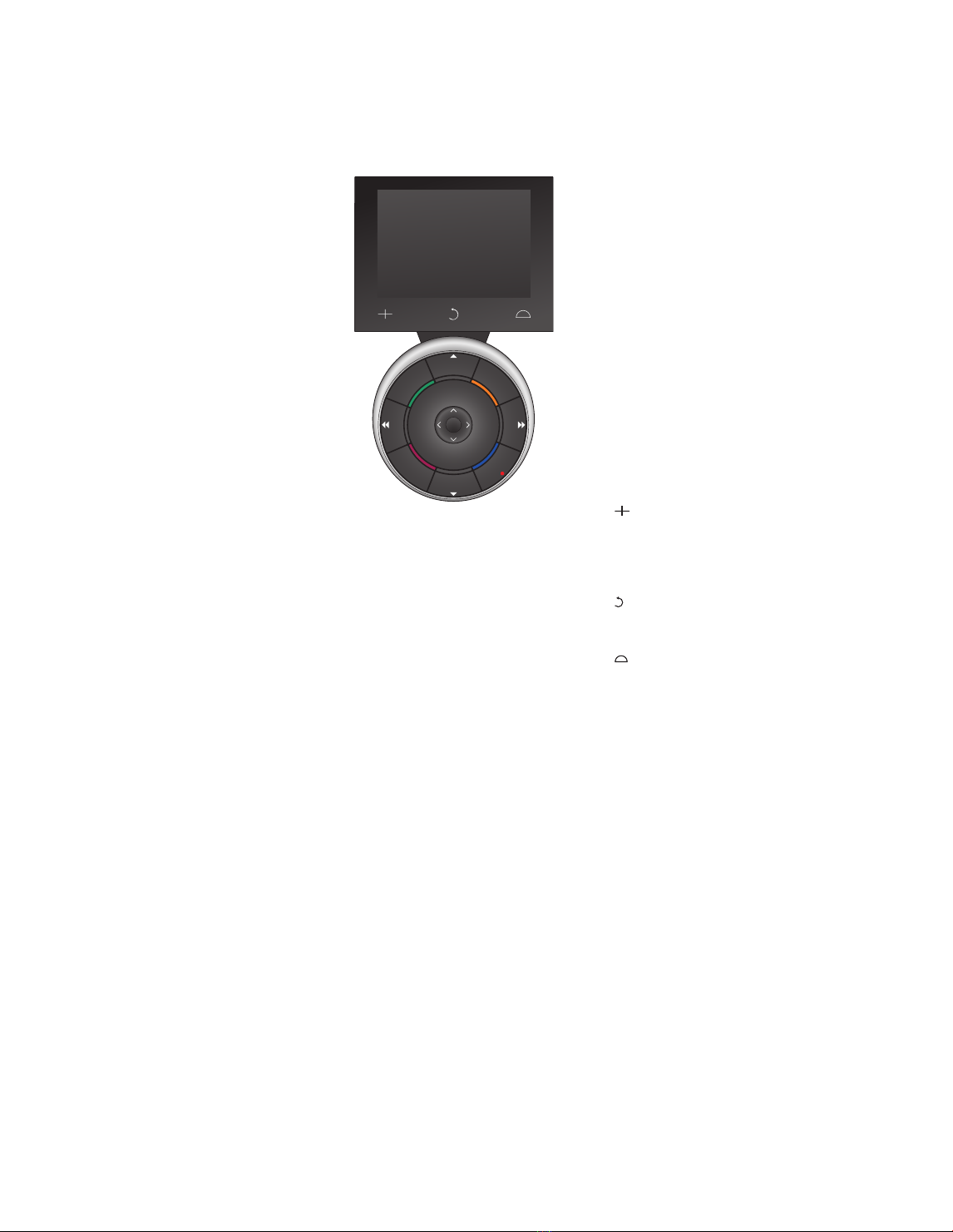

Beo5 sources and functions
Select zone …
In the Zones screen you select the area in
which your television is placed.
View your sources …
When you have selected a zone, the audio
and video sources available in this zone
appear as buttons on the screen. Select a
source and activate it by a press.
Activate source controls …
Once a source is activated, the functions
related to this source appear as buttons on
the screen. If you select TV for example,
you will be able to activate functions such as
Text or Menu.
Displays digits to select, for example, a
television channel. Press again to return to
the previous Beo5 screen.
Backs up through Beo5 display screens.
Accesses buttons to ‘set the scene’ around
your Bang & Olufsen setup, for example to
control speakers and stand positions - and
to select zone. Press again to return to the
previous Beo5 screen.
To use the coloured buttons press the
volume wheel next to the specific colours.
When your television is equipped
with the DVB Module, you can
receive digital terrestrial, cable
and satellite programmes
depending on your module
options.
This Guide may contain features
and functions that are not
available in your product yet.
You will have access to new
functions when new software is
available. Also the Guide
contains information which may
not be supported by your
module. Contact your Bang&
Olufsen retailer for further
information.
The instructions in this Guide are
based on the Beo5 remote
control with the navigation
button enabled. To ease
operation of the module with a
Beo4 remote control, Beo4
based instructions are inserted in
parentheses when needed.
For information about the navigation
button, see the guide enclosed with
your television. For general
information about remote control
operation, refer to the guide
enclosed with your remote control.

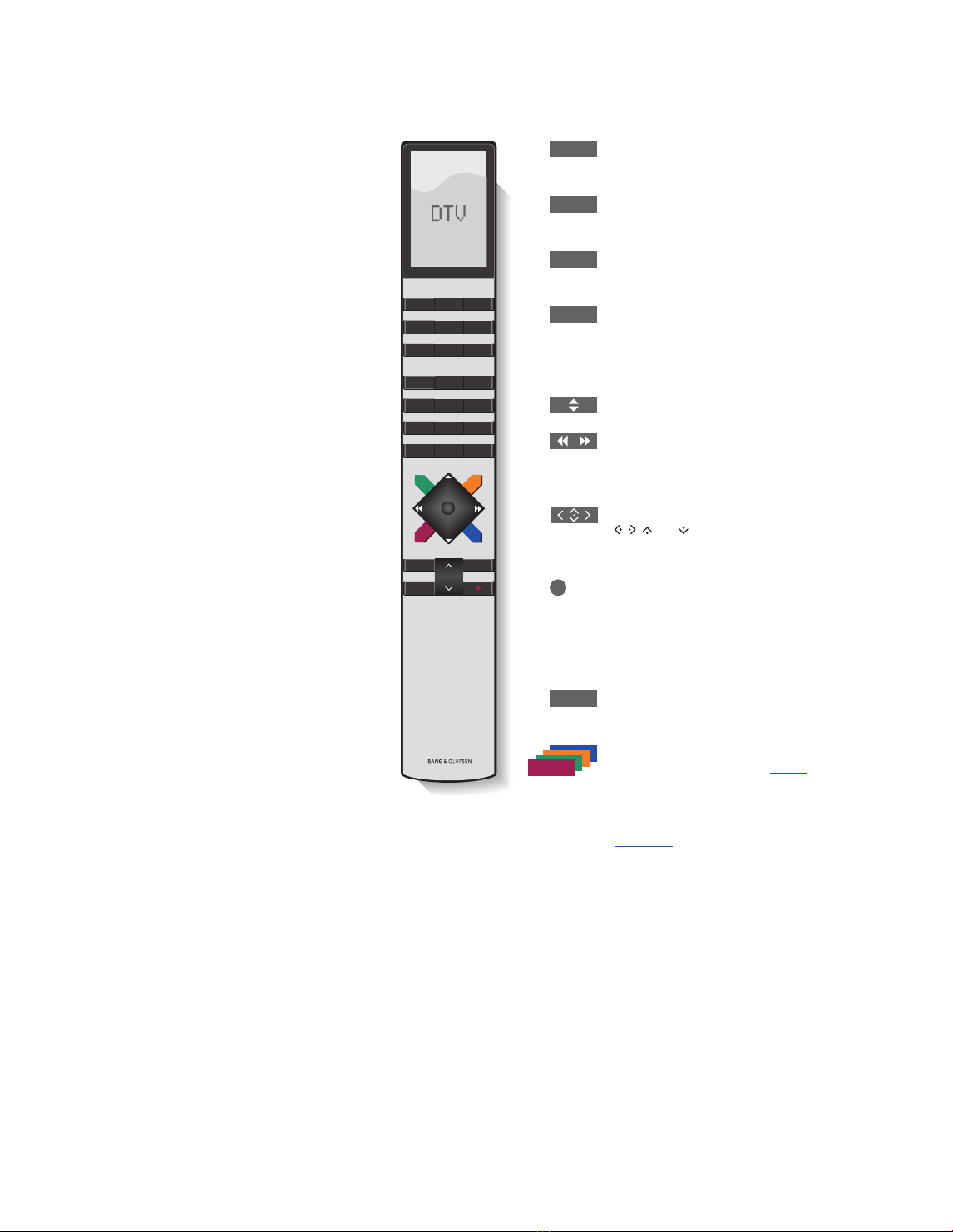

Remote control
STOP
PLAY
BACK
3

TV LIGHT RADIO
DTV DVD CD
V.MEM TEXT A.MEM
7 8 9
4 5 6
LIST 0 MENU
1 2 3
STOP PLAY
BACK
Switch on your television and activate the
DVB Module
Select channel or station numbers or menus,
or enter numbers in menus
Bring up teletext, if provided by the channel
you are currently watching
Bring up the DVB menu overlay as described
on page6. Press twice to bring up the TV
menu. You can also bring up the menu
overlay with the yellow button
Step between channels or stations
While DTV is selected as source, you can use
the buttons to step between your Channel/
Station Groups and the Channel/Station Lists
Navigation button left, right, up and down
, , and – move in menus by pressing
the button in the direction you need
Centre button – select and activate a
function or conrm a choice in a menu.
Press and hold while watching television via
the DVB Module to bring up a Channel/
Station List
Move backwards through menus. Long press
to exit menus completely
The coloured buttons are used as “shortcuts”
to functions as described on page6, or used
as indicated in the DVB menus
For special Digital Text/MHEG operation,
see page5.
Beo4 sources and functions
Source buttons …
The source buttons are used for switching on
your Bang & Olufsen audio and video products,
other audio/video integrated systems and
the Bang & Olufsen light control. Some
externally connected products may have to
be switched on via the LIST button. Pressing
LIST repeatedly displays extra “buttons”
for functions or sources in the Beo4 display.
Press the centre button to activate the
chosen functions.
Control buttons within the star-shaped
button …
The arrow buttons, the navigation button,
the centre button and the coloured buttons
are used for generic source operation and
menu operation.
>> Introducing the module and remote control
DTV
0 – 9
MENU
BACK
TEXT
4

IMPORTANT – Digital Text/MHEG
operation!
Your DVB module supports Digital Text/
MHEG, which is required by some countries
and CAmodules. Digital Text can be
enabled in the SETUP menu, see page14.
When Digital Text is enabled, operation of
the DVB module with a Beo4 will differ in
some aspects from otherwise described in
this Guide:
> When no menu is shown on the screen,
you must press MENU before a coloured
button. If you are in a link room, you must
press and hold BACK before a coloured
button.
> If you are in a link room, you must press
and hold BACK immediately followed by 0
instead of TEXT.
> If you have a Beo4 without a navigation
button, or if the navigation button is
disabled, you may need to press EXIT or
BACK before and .
>> Introducing the module and remote control
5

Display or menu overlay
Daily use
In the Beo5 source display for
the DVB Module you can access
all the main functions of the
module.
If you have a Beo4, a menu
overlay gives access to all the
main functions of the DVB
Module. Bring up the overlay
with the MENU button. The
overlay contains sub-menus
which can be accessed directly
by means of the coloured
buttons or the number
buttons.*1
In a link room, it is only possible
to bring up the menu overlay by
means of the yellow button.*2
*1 If Digital Text is enabled, you must press
MENU before a coloured button on Beo4.
*2 If Digital Text is enabled and you are in
a link room, press and hold BACK then
the yellow button on Beo4 to bring up
the menu overlay. To access the functions
without bringing up the overlay, press
and hold BACK then a coloured button.
To use functions associated with number
buttons, you must bring up the menu
overlay first.
The Beo4 menu overlay …
Press to switch between Radio
and TV mode
Press to bring up the
Programme Guide with
information on current and
next programmes
Press to bring up or remove
the DVB menu overlay
Press to bring up information
on the programme you are
currently watching or on a
highlighted programme
Press to bring up your Channel
or Station Groups
Press to bring up the menu for
selecting subtitles language
for the current channel
Press to bring up the menu for
selecting audio language for
the current channel
Press to bring up the SETUP
menu. The SETUP menu is
described in more details on
pages 11-16
Press to bring up a list of
Channels or Stations
Press to bring up the CA menu
Press to bring up the
MULTIFEED menu*3
*3 MULTIFEED is only available
if supported by your
programme provider.

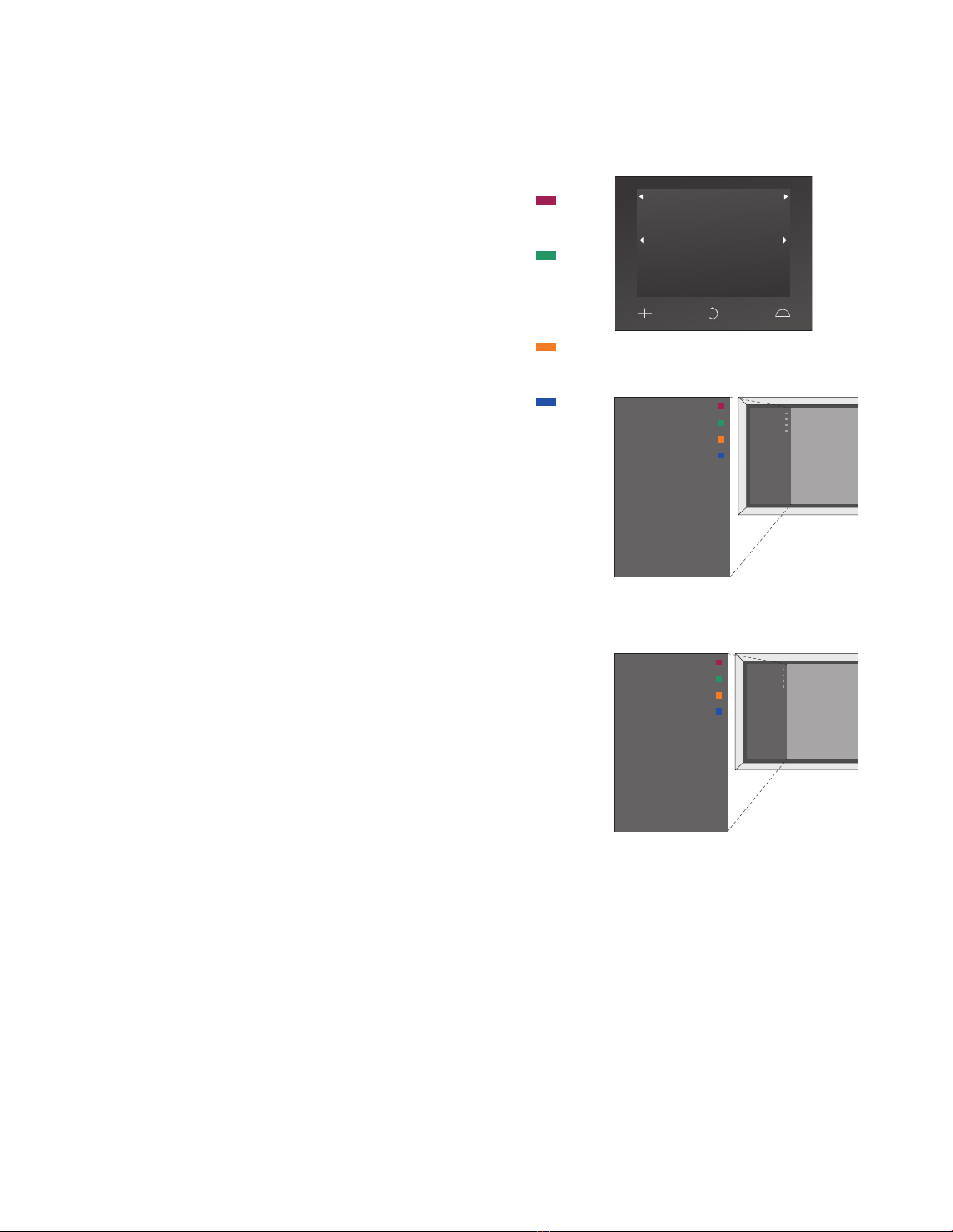

The Beo5 source display.
The DVB menu overlay in TV mode.
The DVB menu overlay in Radio mode.
1
2
3
4
5
6
7
RADIO
PROGRAMME GUIDE
MENU
INFORMATION
CHANNEL GROUPS
SUBTITLES LANGUAGE
AUDIO LANGUAGE
SETUP
CHANNEL LIST
CA
MULTIFEED
1
2
3
4
5
6
7
1
2
3
4
5
6
7
RADIO
PROGRAMME GUIDE
MENU
INFORM ATION
CHANNEL GROUPS
SUBTITLES L A NGUAGE
AUDIO L ANGUAGE
SETUP
CHANNEL LIST
CA
MULTIFEED
TV
PROGRAMME GUIDE
MENU
INFORMATION
STATION GROUPS
SUBTITLES LANGUAGE
AUDIO LANGUAGE
SETUP
STATION LIST
CA
MULTIFEED
1
2
3
4
5
6
7
1
2
3
4
5
6
7
TV
PROGRAMME GUIDE
MENU
INFORMATION
STATION GROUPS
SUBTITLES L ANGUAGE
AUDIO L ANGUAGE
SETUP
STATION LIST
CA
MULTIFEED
DTV
Text Multifeed Setup
Group Groups Group
Guide Audio Ch List
Radio/TV Subtitles Information
6

Channel and station groups
Select a channel group. Channel groups
can be groups that you have made
yourself or programme list. Programme
lists are sent out by some programme
providers. They appear and function in
much the same way as groups and can
be brought up and seen just like groups.
> While watching television, press or to
step between groups. The last activated
channel in the group is shown, or …
> … press Groups to bring up an overview
of the channel groups. (Beo4: Press MENU
then 1).
> Use the navigation button up and down to
step through the groups.
> Press the yellow button to show or hide
the high lighted group.
> Press the centre button to bring up the
high lighted group.
Add a channel or station to a group…
> Select an empty group in the menu, or …
> … select an existing group.
> Press the yellow button to open the
COPY FROM menu.
> Select a channel from the list using the
navigation button up or down.
> Press the yellow button to copy the
selected channel to the group.
> Continue to add other channels if you
wish, or…
> … press the centre button to store the
selection.
Channel and station lists
Bring up a channel list and select a
channel.
> Press ChList to bring up a list of channels
in the current group. (Beo4: Press and
hold the centre button).
> Use the navigation button up or down to
highlight the desired channel in the group
or press a number button to bring up the
channel positioned at the chosen number
in the group.
> Use the navigation button left or right to
go to the previous or next page of the
channel list.
> Press Group or Group on Beo5 to step
between groups including the main list.*1
> Press the centre button to bring up the
high lighted channel.
> Press BACK to exit the list.
Press the green button to switch between
alphabetical and numerical sorting of the
channels.
*1 To go to another group’s list with Beo4,
you must press the yellow button.
Remove or restore channels
Remove selected channels that you do
not want in your channel list or restore
selected channels that you have
removed from your channels list.
Remove channels…
> From the channel list, use the navigation
button up or down to highlight the
channel you wish to remove.
> Use the navigation button left or right to
go to the previous or next page of the
channel list.
> Press the yellow button twice to remove
the selected channel from the list.
Restore channels…
> Press Setup to bring up the DVB SETUP
menu. (Beo4: Press MENU then 4).
> Press the centre button to bring up the
CHANNELS/STATIONS menu.
> Use the navigation button down to
highlight EDIT and press the centre
button.
> Use the navigation button down to
highlight the REMOVED CHANNELS menu
and press the centre button.
> Enter your access code. Refer to page 16.
> Use the navigation button up or down to
highlight the channel you wish to restore.
> Use the navigation button left or right to
go to the previous or next page of the
removed channels list.
> Press the yellow button to restore the
selected channel. The channel is added to
the channel list.
>> Daily use
7

See programme information
An information display appears
briefly on the screen every time
you change channels or stations.
You can specify how long the
information display remains on
the screen, for further
information, see page 14.
You can bring up a display on the
screen with the blue button to
see programme information.*1
*1 If Digital Text is enabled, you must
press MENU before the blue button on
Beo4.
To see further programme information, press Information while the display is shown. (Beo4:
Press the blue button)*1. Press BACK to leave programme information.
When the extended display is shown on the screen and the information exceeds one page,
you can scroll down the page using the navigation button down.
Subtitles and additional Audio options are shown by the icons at the top. Note: This service is
not offered by all channels.
*2 Maturity rating is only visible if available from your programme provider.
HBO 23 | MY GROUP
Happy Family (RATING 6) 22:30 - 23:00
23:00 - 23:45
(DRAMA) Since Laura was a little girl she had lived in the little house on the
prairie. It was the one place where she felt safe, close to her mother, her
father, and her siblings.
This episode: Fools Gold
12:48Wednesday, August 29 2008
M.A.S.H. (RATING 6)
info offnext record
HBO 23 | MY GROUP
Happy Family (RATING 6) 22:30 - 23:00
M.A.S.H. (RATING 6) 23:00 - 23:45
more info record
12:48Wednesday, August 29 2008
8
Programme
information
Channel name and
number
Programme start
and stop time
Time bar to show
elapsed time
Chosen Group Coded Programme
Programme name
(Current -
Following)
Additional audio options
Multichannel audio
Theme
Subtitles
Maturity rating*2
Programme shown in HD

You can bring up a Programme Guide
that contains information about current
and following programmes on all available
channels. You can also change to a
different channel via the Programme
Guide.
> Press Guide to bring up the Programme
Guide. (Beo4: Press the green button).*1
> Use the navigation button up and down
to step between channels.
> Use the navigation button left and right to
step in time.
> Press the centre button to bring up
information on a specic programme.
> Press the centre button twice to select a
highlighted programme.
> Press the green button to switch between
the current page and the Channel
Programme Guide with programmes for
the selected channel.
> Press the blue button to update the
Programme Guide if information is
missing.*2
> Press BACK to remove the Programme
Guide from the screen.
*1 If Digital Text is enabled, you must press
MENU before the green button on Beo4.
*2 Note that sound may be muted while the
Programme Guide is updated.
From the Channel Programme Guide …
> Press the centre button to bring up
information on a specic programme.
> Press the centre button twice to select a
highlighted programme.
> Press BACK to remove information from
the screen.
> Press the green button to return to the
Programme Guide – Overview.
From the specific programme
information …
> Press the centre button to select the
channel.
> Press BACK to return to the previous level.
> Press and hold BACK to remove information
from the screen.
Pressing the yellow button while a channel
is highlighted in the Programme Guide
brings up the Programme Guide for the
next group.
Pressing the red button while a channel is
highlighted in the Programme Guide allows
you to set a Timer recording.
>> See programme information
Programme Guide Subtitles and Audio
The icons and indicate that either
additional audio or subtitle options are
available.
When no menu is shown on the screen …
> Press Subtitles to bring up the Subtitles
menu. (Beo4: Press the MENU button
then 2), or …
> … press Audio to bring up the Audio
menu. (Beo4: Press the MENU button
then 3).
Also the audio options may have the
extension AC3 or AAC, for example, English
AC3, which indicates different sound systems.
AUDIO LEFT and AUDIO RIGHT allow you to
direct left or right audio to the front speaker.
9

Timer recording
When the Programme Guide is
shown on the screen, you can
program a recording directly if a
recorder is connected to your
television.
Timer recording …
> When the programme information of the
programme you want to record is shown
on the screen or the programme is
highlighted, follow on-screen instructions.
> When the recording information is shown
in the menu, you can change the start and
stop time or date, if you want to.
> Follow on-screen instructions to accept
your recording settings and leave the
menu.
The channel number and name indicated in
the Timer index in both HDR 2 and HDR 1
are the number and name from the TV list.
It is not possible to program a Timer
recording for radio stations.
HBO 23 | MY GROUP
Happy Family (RATING 6) 22:30 - 23:00
store 12:48Wednesday, August 29 2008
(DRAMA) Since Laura was a little girl she had lived in the little house on the
prairie. It was the one place where she felt safe, close to her mother, her
father, and her siblings.
TIMER RECORDING
START TIME 12:00
STOP TIME 12:30
DATE FRI 29 MAY
M.A.S.H. 23:00 - 23:45
10

The SETUP menu is part of the
complete menu system of the
DVB Module. The SETUP menu
contains sub-menus that you can
use to make your own settings,
enter information on your
current setup and make channel
tuning.
The ACCESS CONTROL menu
within the SETUP menu allows
you to restrict access to particular
channels and stations and set a
maturity rating.
Not all markets have the options
of both cable and terrestrial at
the same time.
Depending on the type of
module you have, the functions
will vary.
In order to bring up the SETUP menu
for TV channels, you must be in TV
mode, and in order to bring up the
SETUP menu for Radio stations, you
must be in Radio mode.
Depending on your programme
provider, some settings are made
automatically.
Setup menu
The Channels and Stations menus
You can store digital TV channels and
digital radio stations. Once you have
tuned in the channels and stations, you
can edit the Channel and Station Lists.
This means that you reduce the time you
spend looking for specic channels and
stations by creating favourite groups.
You can make up to ten different
Channel Groups and ten Station Groups
containing only the channels and
stations you choose, and you can name
each of these Groups.
TUNING…
TERRESTRIAL
> Press Setup to bring up the DVB SETUP
menu. (Beo4: Press MENU then 4).
> Press the centre button to bring up the
CHANNELS/STATIONS menu.
> Use the navigation button up or down to
highlight TUNING and press the centre
button.
> Select TERRESTRIAL and press the centre
button.
> ACTIVE ANTENNA is highlighted. Use the
navigation button left or right to indicate
active antenna. Options are ON and OFF.
> Use the navigation button down to
highlight SEARCH FILTER and left or right
to select which channels to search for.
Options are FREE (excludes pay-channels)
and ALL.
> Use the navigation button down to
highlight SEARCH MODE and left or right
to select automatic or manual search. If
you select manual search, see ‘If you have
chosen manual tuning’ under
‘TERRESTRIAL’. Otherwise…
> …press the centre button to start the
search.
> Press and hold BACK to leave the menu.
If you have chosen manual tuning …
> Use the navigation button down to
highlight FREQUENCY, if you have set
SEARCH MODE to MANUAL. Use the
number buttons to enter a frequency and
use the navigation button left or right to
step back and forth.
> Use the navigation button down to
highlight BANDWIDTH and left or right to
select the bandwidth.
> Use the navigation button down to
highlight CHANNEL NUMBER ID and left
or right to select a channel number ID.
> Use the navigation button down to
highlight CHANNEL NUMBER and left or
right to select a channel number.
> Press the centre button to start the
search.
> Press and hold BACK to leave the menu.
11

CABLE
> Press Setup to bring up the DVB SETUP
menu. (Beo4: Press MENU then 4).
> Press the centre button to bring up the
CHANNELS/STATIONS menu.
> Use the navigation button up or down to
highlight TUNING and press the centre
button.
> Select CABLE and press the centre
button.*1
> SEARCH FILTER is highlighted. Use the
navigation button left or right to select
which channels to search for. Options are
FREE (excludes pay-channels) and ALL.
> Use the navigation button down to
highlight NETWORK ID and use the
number buttons or the navigation button
left or right to enter the net identication
number.*2
> Use the navigation button down to highlight
SEARCH MODE and left and right to select
automatic search or search via homing
channel. If you select SEARCH VIA HOMING
CHANNEL, see ‘If you have chosen SEARCH
VIA HOMING CHANNEL mode’ under
‘CABLE’. Otherwise ...
> …press the centre button to start the
search.
> Press and hold BACK to leave the menu.
If you have chosen SEARCH VIA HOMING
CHANNEL...
> Use the navigation button down to
highlight FREQUENCY. Use the number
buttons to enter a frequency and use the
navigation button left or right to step back
and forth.
> Press the centre button to start the
search.
> When the search is completed, CHANNELS
AND STATIONS STORED appears in the
display.
> Press and hold BACK to leave the menu.
*1 In some countries a PROVIDER menu may
be brought up. Here, you must select a
programme provider. The following menu
and the first-time setup menu may be
adapted to the selected provider.
*2 If you cannot find your NETWORK ID, you
can select 0 which will tune in all available
channels. Note that using this solution may
result in poor quality and signal strength.
If you have enabled both TERRESTRIAL and
CABLE in the INPUTS menu and set ACTIVE
ANTENNA to ON, you may not be able to
see cable channels. In this case you must set
ACTIVE ANTENNA in the EDIT TERRESTRIAL
menu to OFF.
SATELLITE
> Press Setup to bring up the DVB SETUP
menu. (Beo4: Press MENU then 4).
> Press the centre button to bring up the
CHANNELS/STATIONS menu.
> Use the navigation button up or down to
highlight TUNING and press the centre
button.
> Select SATELLITE and press the centre
button.
> Use the navigation button up or down to
select which satellite position to set up.
Each satellite can be given a DiSEqC
address and activated using the green
and yellow button. Press the centre
button to accept.
> SEARCH FILTER is highlighted. Use the
navigation button left or right to select
which channels to search for. Options are
FREE (excludes pay-channels) and ALL.
> Use the navigation button down to
highlight SEARCH MODE and left or right
to select automatic or manual search. If
you select manual search, see ‘If you have
chosen manual tuning’ under ‘SATELLITE’.
Otherwise…
> …press the centre button to start the
search.
> Press and hold BACK to leave the menu.
If you have chosen manual tuning*3 …
> Use the navigation button down to
highlight FREQUENCY. Use the number
buttons to enter a frequency and use the
navigation button left or right to step back
and forth.
> Use the navigation button down to
highlight POLARITY and left or right to
select reception of horizontal or vertical
polarity.
> Use the navigation button down to
highlight SYMBOL RATE and left or right
to specify the number of symbols that are
carried across the channel.
> Use the navigation button down to
highlight NET SEARCH and left or right to
search for a frequency. Options are ON
and OFF.
> Use the navigation button down to
highlight SYSTEM and left or right to
select a system. Options are S and S2.
> Press the centre button to start the
search.
> Press and hold BACK to leave the menu.
*3 When tuning channels manually you must
enter detailed information for the selected
service. This includes FREQUENCY, SYMBOL
RATE, POLARITY, NET SEARCH and SYSTEM
(S or S2). Contact your programme provider
for further information.
>> SETUP menu
12

INPUTS
Enable or disable the terrestrial, cable or
satellite inputs.
REINSTALL ALL
In this menu you can reinstall all channels.
Note that this will delete the settings you
have made for CHANNEL and STATION LISTS
and GROUPS. To access this menu, you are
asked to enter your access code. Refer to
page 16.
EDIT…
CHANNEL or STATION LIST
Shows channels or stations in the list.
Refer to page 7.
REMOVED CHANNELS
Shows removed channels or stations.
Refer to page 7. To access this menu,
you are asked to enter your access code.
Refer to page 16.
CHANNEL or STATION GROUPS
Add to or remove channels from Groups,
rearrange the order of channels, and name
your Groups. You can also copy channels to
a group. Refer to page 7.
PREFERRED LIST
Arrange your channels NUMERICAL or by
NETWORK. Only available with terrestrial
channels.
NETWORK LIST
Switch to a different network. The channels
in your lists may change as well. Only
possible if several networks are available
when tuning terrestrial channels.
SIGNAL INFORMATION…
In the SIGNAL INFORMATION menu you can
see various information about the signal
received from the provider. This may be
useful if you have a poor signal and want to
check it.
>> SETUP menu
13

>> SETUP menu
The OPTIONS menu
In the OPTIONS menu, you set up your
personal preferences for the DVB
Module. You can select a menu
language to be used in the module
menus. When you select a preferred
language for audio and subtitles, this
language will be used when available
from the programme provider.
Settings performed here are permanent
until you change them again as opposed
to changes made via the Beo5 display or
the menu overlay, which are
remembered only until you switch to
another channel or the tele vision is
switched to standby.
LANGUAGE…
MENU … Select the language to be used in
the menus.
AUDIO (1. PRIORITY) … Select the preferred
audio language to be used, if available
from the programme provider.
AUDIO (2. PRIORITY) … Select the audio
language to be used if your rst choice is
not available.
SUBTITLE (1. PRIORITY) … Select the
preferred subtitle language to be used, if
available from the programme provider.
SUBTITLE (2. PRIORITY) … Select the subtitle
language to be used if your rst choice is
not available.
HEARING IMPAIRED … Enable or disable a
help function for hearing impaired.
COUNTRY…
Select your country from the list of available
countries, for example if you have moved. Be
aware that if you choose a different country,
all your DVB settings are reset to default. All
your settings will be deleted and rst-time
setup is necessary. Refer to page 17.
DISPLAY DURATION…
Select how long the information display
should remain on the screen.
MULTICHANNEL AUDIO…
Choose whether the module should
automatically select multichannel audio.
The default setting from the factory is
AUTOMATIC. You can select MANUAL to
listen to stereo instead. Look for the icon in
the information display, see page 8.
CLOCK SETTINGS…
TIME ZONE … Set the time zone you are in.
DAYLIGHT SAVING TIME … Select the
daylight saving time or set it to change
automatically. You can also deactivate
daylight saving time.
HDMI…
In this menu you can disable HDCP (High-
bandwidth Digital Content Protection).
This can be useful if you have connected a
projector or an external television screen.
HDCP encrypts the signal from a source to
protect the content from being copied.
DIGITAL TEXT…
In this menu you can enable or disable
Digital Text/MHEG operation, which is
required by some countries and CAmodules.
When Digital Text is enabled, operation of
the DVB module with a Beo4 will differ in
some aspects from otherwise described in
this Guide. For more information, refer to
page5.
REINSTALL ALL…
In this menu you can reinstall all channels.
Note that this will delete the settings you
have made for CHANNEL and STATION LISTS
and the contents of GROUPS. To access this
menu, you are asked to enter your access
code. Refer to page 16.
MODULE INFORMATION…
Use this menu to see the current version and
release date.
14

>> SETUP menu
SOFTWARE UPDATE…
You can download available software
updates from www.bang-olufsen.com onto
a USB memory stick. Connect the USB
memory stick to the USB port placed next to
the slot for Smart Card and CA module on
your television, then open the SOFTWARE
UPDATE menu. On some markets it is also
possible to update the software via the
antenna signal (OAD). In this case the
module automatically checks for new
software every time it is switched on. If new
software is available, press the green button
to start the update. To cancel the download,
press the red button. When updating via
the antenna signal, some updates are
required and not possible to cancel. Contact
your Bang& Olufsen retailer for further
information about software updates.
15

The ACCESS CONTROL and CA menus
The ACCESS CONTROL menu*1 allows
you to activate a parental lock for you to
be able to lock specic channels. You
can also set a maturity rating that
determines which programmes require
the entering of an access code.
When you enter the EDIT CHANNEL/
STATION LIST menus or bring up a
channel/station list, you can lock
(and later unlock) channels in the lists to
avoid others from watching these
channels. Select the channels you wish
to lock. If a channel is present in, for
example, more than one GROUP and
you lock it in the CHANNEL LIST, it will
be locked in all groups automatically.
Whenever you try to access locked
channels, you are asked to enter your
access code.
From the factory parental lock is not
activated. In order to use the parental
lock function, you must enable the
access code. You can then select the
specic channels that should be locked.
The access code system of the DVB
Module is not the same as the pincode
system for your television, but it may be
easier for you if you choose to use the
same code for both systems.
*1 The first time you enter the ACCESS
CONTROL menu, you are asked to select a
new access code.
Contents of the ACCESS CONTROL menu …
PARENTAL LOCK … Enable the access code.
You can lock the channels you wish to be
locked when you bring up the EDIT
CHANNEL/STATION LIST menus or a
channel/station list and bring up
information on the chosen channel by
means of the blue button. When you lock
the channel, you can also set the time
period you want the lock function to be
activated. If you do not change the time
period, it is locked all the time.
RATING (YEARS) … Set a maturity rating for
the TV programmes. This means that
programmes exceeding the maturity rating
chosen by you can only be watched when
the access code is entered. Only if
available from your programme provider.
When the access code is activated and a
channel is locked due to maturity rating,
some programme providers require you to
enter the access code each time you select
the channel, and not just the first time the
channel is selected after the television has
been in standby mode.
Should you forget your code …
If you forget your access code, enter the
ACCESS CONTROL menu and key in ‘9999’
three times. The parental lock is then
disabled and you must enable the code
again and enter a new personal code.
Note: The access code described here is not
the same as the pincode you may receive
with your Smart Card. For information about
Smart Card pincode, consult your
programme provider.
Contents of the CA menu …
CA … Use this menu to access the inserted
CA Module or card. The contents of the
menu depend on your programme
provider. You can also access the CA
Module or card via the Beo5 display or the
menu overlay.
CAM ACTIVE… Use this menu to activate or
deactivate the CAmodule for terrestrial,
cable or satellite. In some countries, it may
be useful to disable the CAmodule for
satellite to get an optimal performance
from the terrestrial CA module.
>> SETUP menu
ACCESS CONTROL
PARENTAL LOCK ON
RATING 7
NEW ACCESS CODE
16

First-time setup
When your television is equipped
with the DVB Module and you
switch on the module for the
very first time, you are guided
through the first-time setup
sequence. Some menus may not
appear depending on your setup.
If your programme provider supports
Digital Text/MHEG, switch off the
television after rst-time setup is
completed, then switch it on again.
The sequence of menus in first-time setup:
COUNTRY … Select your country from the
list of available countries.*1
LANGUAGE … Select your preferred
language for the menus shown on the
screen and select your rst and second
preferred language for audio and subtitles
from the list of available languages. Press
the centre button to store the setting.
INPUTS … Enable or disable the terrestrial,
cable or satellite inputs.
EDIT TERRESTRIAL … Here you can select
the type of antenna to use and which
terrestrial channels to search for. Only
available if enabled in INPUTS.
ACTIVE ANTENNA.
SEARCH FILTER.
LIST SORTING.
EDIT CABLE … Here you can select the cable
network provider. Only available if enabled
in INPUTS.
SEARCH FILTER.
NETWORK ID … Default 0. All available
channels will be tuned in.
SATELLITE POSITIONS … Enable or disable a
satellite position. Only available if enabled
in INPUTS.
EDIT LNB … Here you set the DiSEqC address.
... Now you can make an automatic search
by pressing the centre button.
*1 If AUSTRALIA is selected, a submenu with
regions appears.
All settings you make during first-time setup
can be changed via the menus at any time.
However, if you select another country,
you have to reset to default. Contact your
Bang& Olufsen retailer for further
information.
Depending on country and provider, the
integrated DVB receiver supports High
Definition (HD) and/or Standard Definition
(SD) signals. Contact your local Bang&
Olufsen retailer to clarify if the DVB SD and
HD signals in your area are supported by the
integrated DVB receiver.
17

Connections
The installation of satellite dishes,
terrestrial antenna and cables is
not described in this Guide as we
expect this to be done by an
installer.
The Conditional Access (CA)
Module is the module you can
insert in the slot on your
television. For information on the
placement of the slot, refer to
your television’s own Guide. The
module acts as ‘card reader’ for
your Smart Card which decodes
the encoded signals sent out by
the programme provider.
The DVB Module is equipped
with CONAX CA software. You
can insert a CONAX Smart Card
directly into the built-in Smart
Card reader. CA module pairing
is not supported.
LNB and antenna
The illustration to the right shows how
to connect your SAT antenna, the cable
input and the terrestrial antenna to your
tele vision.
Only uncoded digital channels, also
known as ‘free-to-air’ channels, are
available without Smart Cards or CA
Modules.
Connect your LNB and terrestrial antenna to
the available aerial sockets on your television.
The number and type of sockets vary
depending on your module.
Analogue
DVB-S
DVB-T/C
ANT
Terrestrial / Cable
Terrestrial / Cable
Satellite
18

About Smart Cards …
If you want to watch coded channels,
contact your programme provider. The
programme provider will register you as
an authorised viewer, usually requiring
payment. You will then be provided
with a Smart Card. Note that a Smart
Card is only valid for one programme
provider and therefore only works with
certain channels.
Smart Cards and CA Modules may also
give access to special menus which are
not described here. If this is the case,
follow the instructions from your
programme provider.
In order to view a coded service, you
need to have a valid Smart Card.
Insert a Smart Card carefully into the
CA Module.
You can insert a CONAX Smart Card
directly into the built-in Smart Card
reader.
Contact your Bang & Olufsen retailer for
information about compatible CA Modules.
To place the CA Module and the Smart Card
correctly, refer to the Guides enclosed with
your television.
Smart Cards or CA Modules are distributed
from your programme provider. The cards
must remain in the CA Modules, unless your
programme provider asks you to remove it.
This is important in case your programme
provider wishes to send new information to
your Smart Card.
>> Connections
19

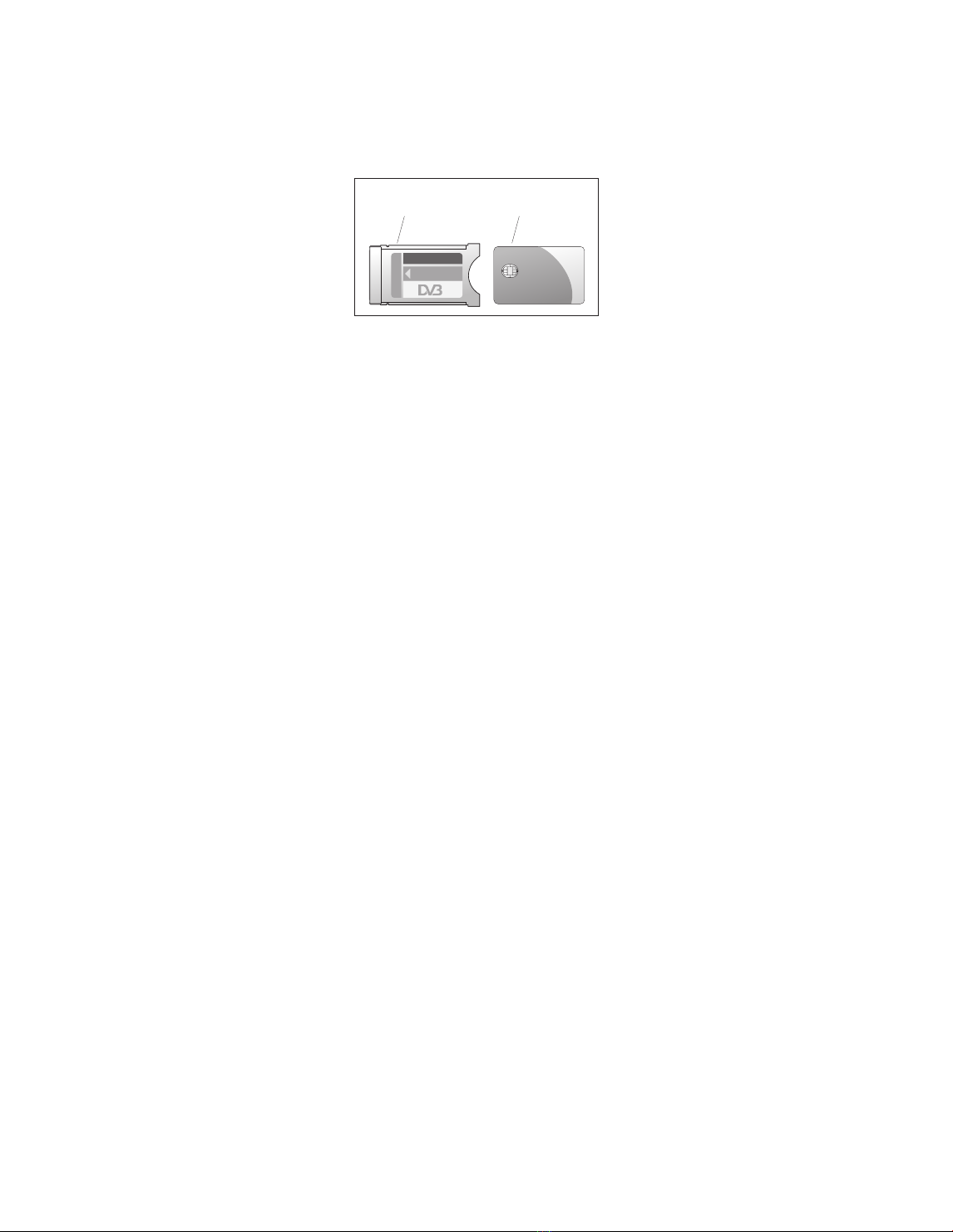

CA Module Smart Card

What to do if …
The table to the right describes
some of the situations you may
experience with the DVB Module,
and what to do to resolve these
situations.
On the Bang& Olufsen website,
www.bang-olufsen.com, you
can find further information and
FAQs about your product.
If … Then …
Check to see if the channel should be at the bottom of
the Channel list. If it is not, check for information from
the programme provider and make a channel search.
Bring up the DVB SETUP menu > CHANNELS > TUNING.
Note that when you nd new channels, they will be
placed under the relevant programme provider.
a) The programme provider has probably moved the
channel. Check for information from the programme
provider and do a manual search for a specic channel if
you have information about, for example, a new
frequency. Otherwise make an automatic channel search.
Bring up the DVB SETUP menu > CHANNELS > TUNING.
Note that when you nd new channels, they will be
placed under the relevant programme provider.
b) If an error message appears, your subscription is most
likely outdated. Check that your Smart Card is still valid
and updated.
It could be that you have selected a channel that does not
broadcast around the clock. When no programme is
broadcast, the information display will show “CHANNEL
NOT FOUND”.
Follow the procedure described in the Guide for your tele-
vision. Choose DTV or DTV-RADIO as the source of your
Timer Play.
Bring up the DVB SETUP menu > ACCESS CONTROL and
enter ‘9999’ three times (for further information, see
page 16).
Bring up the DVB SETUP menu > ACCESS CONTROL.
Set the access code. In the channel lists you select the
channels that should be ‘locked’ (for further information,
see page 16).
Check the signal strength and quality in the DVB SETUP
menu > SIGNAL INFORMATION. If the strength and
quality is too poor, that is a Bit Error Rate less than E-6,
check your installation or contact your installer.
20
You hear of a new channel
and wish to nd it…
When you choose a
channel number, the screen
is black…
When you choose a
channel number, the
information display shows
“CHANNEL NOT FOUND”…
You want to use DTV as the
source in a Timer Play…
You have forgotten your
code for the parental lock
function…
You want to restrict the
access to certain channels,
(ACCESS CONTROL)…
There is no signal, the
picture is poor, or several
channels are missing…
