With the BeoLink Video kit and an
extra Bang & Olufsen TV set, your
main Bang & Olufsen system gets an
extra dimension.
Of course, you still have the benefit of
an extra TV set which you can use
quite independently of the TV in your
main system.
But now you can also play any source
you like in your main system, and – via
your BeoLink installation – you can
see and hear it in the room with the
BeoLink Video kit and your extra TV.
This guide explains how...
User’s guide

2

CONTENTS 3
4 Nice to know about...
Sound and pictures in other rooms
5 Remote operation
Using the Beo4 remote control
6 Controlling your main system
7 Also nice to know
8 Using the Beolink 1000 remote
control
9 Controlling your main system
10 Also nice to know
11 Tmer Play control
This guide describes how to operate your main
Bang & Olufsen system from the room with your
BeoLink Video kit and your extra Bang & Olufsen
TV.
For information about operation of your extra
Bang & Olufsen TV, please refer to the User’s
guide enclosed with the TV.
The separate Setting-up guide enclosed with the
BeoLink Video kit describes in detail how to install
the BeoLink Video with your extra TV, and it
describes how to make your BeoLink Video setup
ready for use.
Note: Your BeoLink Video setup and your main
Bang & Olufsen system must be interconnected by
a Bang & Olufsen BeoLink installation.

NICE TO KNOW ABOUT…
4

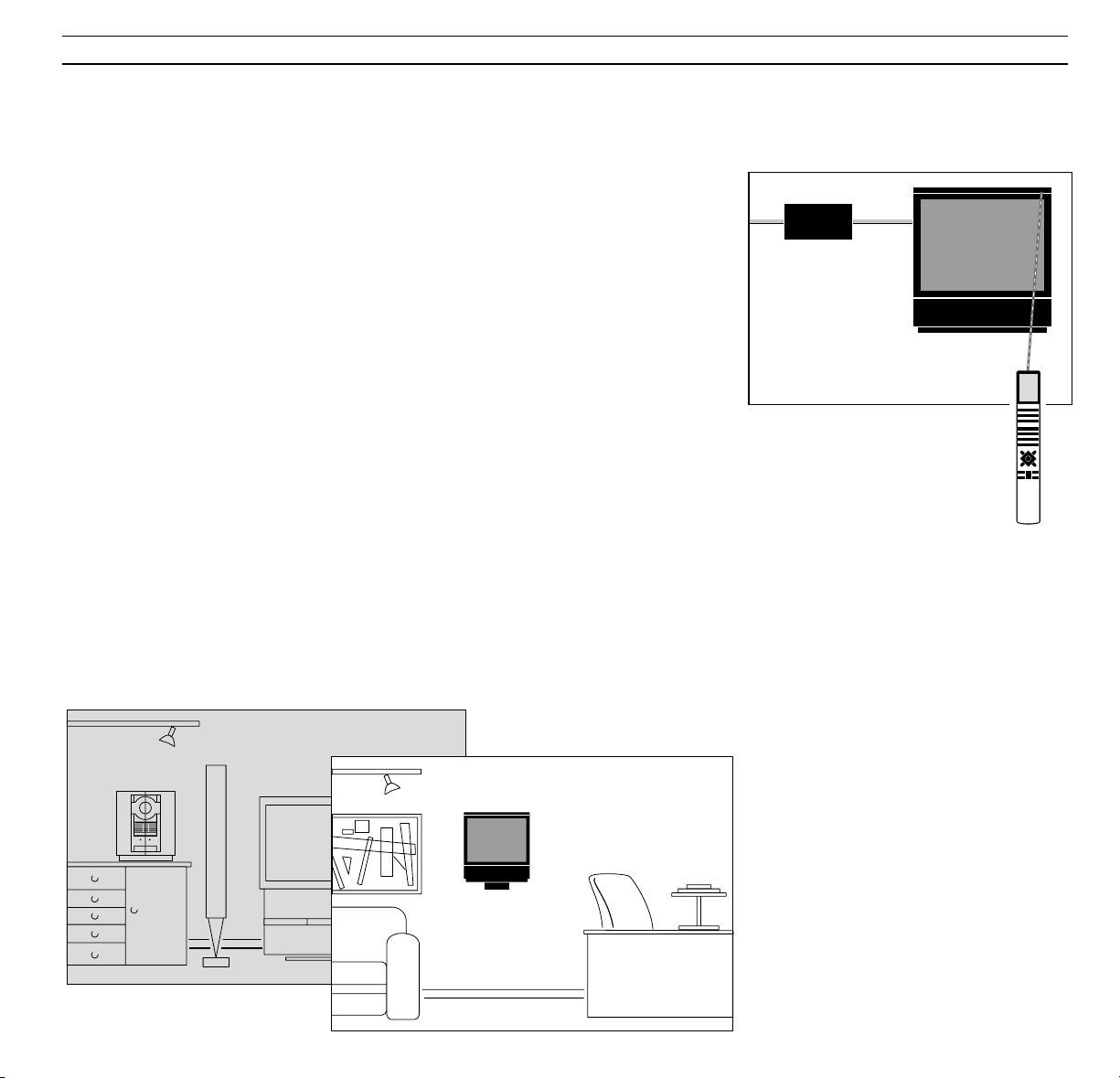

..Sound and pictures in other rooms
Your main Bang & Olufsen audio-, video-, or AV
system and your BeoLink Video setup must be
interconnected by a BeoLink installation.
Together the BeoLink Video kit and
your extra Bang & Olufsen TV give your
main Bang & Olufsen system an extra
dimension:
• On your extra TV, you can watch any
video source you like from your main
system.
• Via the speakers in your extra TV, you
can listen to any audio source you
like from your main system.
• You can control a number of daily
functions in your main system from
the room with your extra TV.
• And, of course, you can use your
extra TV on its own.
All you need is the Beo4 remote
control for the TV, and your main
system can be used in your BeoLink
Video room as well.
But your extra TV is also your interface with your
main system: Your remote control commands are
received by the TV, and – via the BeoLink Video
kit and your BeoLink installation – the TV
communicates your instructions to your main
Bang & Olufsen system.
You can operate your extra TV
as usual using the Beo4
remote control.

REMOTE OPERATION 5
Using the Beo4 remote control
The Beo4 remote control is the key to
your BeoLink Video setup.
Apart from operating your extra TV,
Beo4 also enables you to switch on any
source you like (audio/video) in your
main Bang & Olufsen system in order
to watch or listen to it on your extra
TV.
You can then control the daily
playback functions for the source – just
as if you were operating your main
system directly, using the Beo4 remote
control.
You will find that Beo4 and your
BeoLink Video setup both respond
readily to your instructions – giving you
sound and pictures from your main
system within seconds after pressing
the button.
See how on the next few pages...
Using the Beo4 remote control, you can:
• Operate your extra Bang & Olufsen TV as
usual (see how in your TV User’s guide).
• Watch any video source you like (a video
tape, a satellite program, etc.) from your
main system on your extra TV (see how on
page 6).
• Listen to any audio source you like (a radio
program, a CD, a tape, etc.) from your main
system via the speakers in your extra TV (see
how on page 6).
• Operate a number of daily playback func-
tions for the audio or video source that is
currently playing (see how on page 6).
• Include your extra TV speakers in a Timer
Play programming of your main system (see
page 11).
The Beo4 remote control is enclosed with all
recent Bang & Olufsen TVs.
TV LUCI RADIO
SAT DVD CD
V. REG. REGISTR. A. REG.
789
456
TELEV. 0MENU
123
LISTA ESCI
STOP
RIPR.

>Remote operation
6

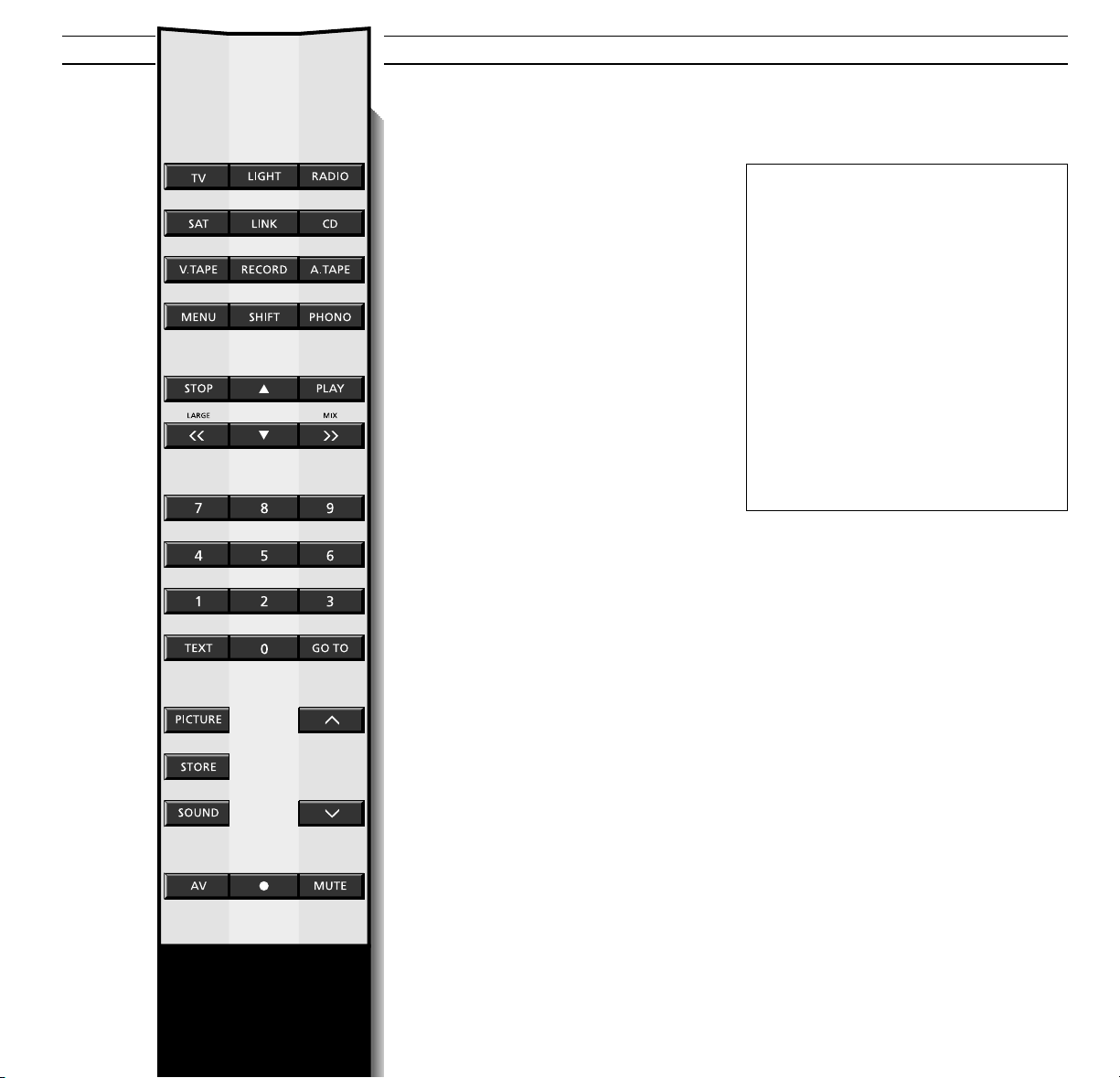

Controlling your main system
You can switch on any source you like
(audio/video) from your main Bang &
Olufsen system and watch it on your
extra TV, or listen to it via the speakers
in your extra TV.
To do so, simply press the appropriate
source button on the Beo4 remote
control.
While the source is playing, you can
switch programs, listen to specific
tracks, stop and resume playing, search
and wind, etc.
The button sequences to the left on
this page show you how...
Note: For information about how to
operate your extra TV, please refer to
your TV User’s guide.
Note: While you are watching or listening to a
source from your main system on your extra TV,
you can adjust the sound in your extra TV
speakers, without interfering with your main
system:
•∧or ∨raises or lowers the volume level
•Press the volume button right on the middle to
silence the speakers immediately.
Press again to recall the sound.
To make any further adjustments to the sound (or
to the picture) in your extra TV, please refer to
the User’s guide for the TV.
Note: The functions mentioned on these pages
are only available on your extra TV in so far as
they are supported by your main Bang & Olufsen
system. Please refer to the User’s guide for your
main system.
Switches on your extra TV
Then operate the TV as usual
Main video sources...
Switches on to satellite TV
Starts the video tape recorder
Main audio sources...
Switches on the radio
Starts the CD player
Starts the tape recorder
Press to step through your programs;
or to step from track to track on a
CD, a video- or an audio tape
Alternatively, key in the exact
program or track number you want
Press to pause your CD player, or
your audio or video tape recorder
(Press STOP twice to stop your VTR
completely before winding)
Rewinds a video or audio tape;
searches backwards on a CD
Fast forwards a video or audio tape;
searches forwards on a CD
Press to resume playing
Press to switch off your extra TV
Press for 2 seconds to switch off your
main system as well
TV
SAT
V TAPE
RADIO
CD
A TAPE
0
9
STOP
●
or
or
tt
ss
GO
through

BEOCENTER 9300 7
Also nice to know...
•If your main Bang & Olufsen system
is in stand-by when you switch it on
via your extra TV, you will only get
sound and pictures on your extra
TV –neither the speakers, nor the
TV screen in your main system will
be cut in.
•If you try to switch on a source in
your main Bang & Olufsen system,
and you get the pictures and/or the
sound from a different source on
your extra TV, it may be because a
recording (audio or video) is
progressing in your main system.
•When you watch a video source
from your main system, for
example a satellite program, you
will get pictures and mono sound
on your extra TV. To obtain pictures
and stereo sound (if any), you must
use the AV* LIST button: Switch the
entire system to stand-by; then
press, for example, SAT, LIST until
AV* is displayed, then SAT. (To
obtain the stereo sound alone, just
press LIST until AV* is displayed,
then SAT.)
•If, for some reason, you want to
watch a TV program from your
main TV (for example to watch a
decoded program), press LIST to
display LINK* then TV.
•To switch mono/stereo sound on a
radio program; to switch language
on a TV or satellite program; or to
switch sound track on a video tape
–press LIST to display SOUND* then
GO repeatedly.
•To start playback on a Bang &
Olufsen record player in your main
system, press LIST to display
PHONO* then GO. Pressing ▲or ▼
while you are listening to a record
makes the record player step
through the music in 8 mm steps.
•To start playback on a secondary
Bang & Olufsen audio- or video
tape recorder in your main system,
press LIST to display either
A.TAPE2* or V.TAPE2* then GO.
•To switch on a DVD or CDV player
connected to your main video
system, press DVD on Beo4.
*Note: In order to display AV, LINK, SOUND, PHONO,
A.TAPE2 or V.TAPE2 on Beo4, you must add the
function to Beo4. Please refer to Beo4’s own User’s
guide and the chapter, Customising your Beo4,
for further instruction.

REMOTE OPERATION
8
Using the Beolink 1000 remote control
You may also use the Beolink 1000
remote control as the key to your
BeoLink Video setup.
Apart from operating your extra TV,
Beolink 1000 also enables you to switch
on any source you like (audio/video) in
your main Bang & Olufsen system in
order to watch or listen to it on your
extra TV.
You can then control the daily play-
back functions for the source –just as if
you were operating your main system
directly, using the Beolink 1000 remote
control.
You will find that Beolink 1000 and
your BeoLink Video setup both respond
readily to your instructions –giving you
sound and pictures from your main
system within seconds after pressing
the button.
See how on the next few pages...
Using the Beolink 1000 remote control,
you can:
•Operate your extra Bang & Olufsen TV as
usual (see how in your TV User’s guide).
•Watch any video source you like (a video
tape, a satellite program, etc.) from your
main system on your extra TV (see how on
page 9).
•Listen to any audio source you like (a radio
program, a CD, a tape, etc.) from your main
system via the speakers in your extra TV (see
how on page 9).
•Operate a number of daily playback func-
tions for the audio or video source that is
currently playing (see how on page 9).
•Include your extra TV speakers in a Timer
Play programming of your main system (see
page 11).

9
Switches on your extra TV
Then operate the TV as usual
Main video sources...
Switches on to satellite TV
Starts the video tape recorder
Main audio sources...
Switches on the radio
Starts the CD player
Starts the tape recorder
To “turn”the tape to play the
otherside, press SHIFT then SOUND
Press to step through your programs;
or to step from track to track on a
CD, a video- or an audio tape
Alternatively, key in the exact
program or track number you want
Press to pause your CD player, or your
audio or video tape recorder
(Press STOP twice to stop your VTR
completely before winding)
Rewinds a video or audio tape;
searches backwards on a CD
Fast forwards a video or audio tape;
searches forwards on a CD
Press to resume playing
Press to switch off your extra TV
Press for 2 seconds to switch off your
main system as well
TV
SAT
V.TAPE
RADIO
CD
A.TAPE
0
9
STOP
PLAY
●
or
through
or
Controlling your main system
You can switch on any source you like
(audio/video) from your main Bang &
Olufsen system and watch it on your
extra TV, or listen to it via the speakers
in your extra TV.
To do so, simply press the appropriate
source button on the Beolink 1000
remote control.
While the source is playing, you can
switch programs, listen to specific
tracks, stop and resume playing, “turn”
a tape, search and wind, etc.
The button sequences to the left on
this page show you how...
Note: For information about how to operate your
extra TV, please refer to your TV User’s guide.
Note: While you are watching or listening to a
source from your main system on your extra TV,
you can adjust the sound in your extra TV
speakers, without interfering with your main
system:
•∧or ∨raises or lowers the volume level
•MUTE silences the speakers immediately
Press MUTE again to recall the sound.
To make any further adjustments to the sound (or
to the picture) in your extra TV, please refer to
the User’s guide for the TV.
Note: The functions mentioned on these pages
are only available on your extra TV in so far as
they are supported by your main Bang & Olufsen
system. Please refer to the User’s guide for your
main system.

10
•If your main Bang & Olufsen system
is in stand-by when you switch it on
via your extra TV, you will only get
sound and pictures on your extra
TV –neither the speakers, nor the
TV screen in your main system will
be cut in.
•If you try to switch on a source in
your main Bang & Olufsen system,
and you get the pictures and/or the
sound from a different source on
your extra TV, it may be because a
recording (audio or video) is
progressing in your main system.
•When you watch a video source
from your main system, for
example a satellite program, you
will get pictures and mono sound
on your extra TV. To obtain pictures
and stereo sound (if any), you must
use the AV button: Switch the
entire system to stand-by; then
press, for example, SAT, AV, SAT.
(To obtain the stereo sound alone,
just press AV, SAT.)
•If, for some reason, you want to
watch a TV program from your
main TV (for example to watch a
decoded program), press LINK then
TV.
•To switch mono/stereo sound on a
radio program; to switch language
on a TV or satellite program; or to
switch sound track on a video tape
–press SHIFT then SOUND
repeatedly.
•To start playback on a Bang &
Olufsen record player in your main
system, press LIST to display PHONO
then GO. Pressing ▲or ▼ while you
are listening to a record makes the
record player step through the
music in 8 mm steps.
•To start playback on a secondary
Bang & Olufsen audio- or video
tape recorder in your main system,
press SHIFT then A.TAPE or V.TAPE.
•To switch on a DVD or CDV player
connected to your main video
system, press SHIFT then SAT.
>Remote operation
Also nice to know...

TIMER PLAY CONTROL 11
If you have programmed your main
Bang & Olufsen system to start playing
automatically (Timer Play) –for
example to wake you up in the
morning –the speakers in your extra
TV can be included as well*.
To do so, you must call up the Setup
menu in your extra TV, and set the
item Timer sound (or Timer) to On –
see how in the User’s guide for your
TV.
Your extra TV speakers will then be
included whenever your main system
starts playing a Timer Play
programming.
* Note: Not all types of Bang & Olufsen TVs have
this feature.

NOTES
12
Date purchased
Contact person
Dealer
Telephone
Address
Record your serial numbers here:
BeoLink Video kit
BeoVision TV
Beo4
Dear Customer,
Your needs as the user of our products are always given careful
consideration during the design and development process, and we strive to
make our products easy and comfortable to operate.
We therefore hope that you will take time to drop us a line, telling us about
your experiences with your Bang & Olufsen system. Anything which you
consider important – positive or negative – may help us in our constant
efforts to refine our products.
Thank you!
Please write to:
Customer information dept. 7240
Bang & Olufsen a/s
DK-7600 Struer
Denmark
3501577 0996
Printed in Denmark by
Bogtrykkergården a-s, Struer
