banks Derringer User manual

Banks
Derringer®
Tuner
All Derringer Applications
THIS MANUAL IS FOR USE WITH SYSTEM P/N:
66575, 66545, 66577, 66547, 66571, 66541, 66572, 66582, 66552
Gale Banks Engineering
546 Duggan Avenue • Azusa, CA 91702
[phone] • Fax [phone]
Product Information & Sales: [phone]
Customer Support: [phone]
Installation Support: [phone]
bankspower.com
8/06/2018 PN 97671 v.1.1
©2018 Gale Banks Engineering
Owner’sManual
with Installation Instructions

297671 v.1.1
General Installation Practice
Dear Customer,
If you have any questions
concerning the installation
of your Banks Techni-Cooler,
please call our Technical Ser-
vice Hotline at [phone]
between 7:00 am and 4:00 pm
(PT). If you have any questions
relating to shipping or billing,
please contact our Customer
Service Department at (888)
839-5600.
Thank you.
1. Before starting work, familiarize
yourself with the installation procedure
by reading all of the instructions.
2. The exploded views (Pages 8-11)
provides only general guidance. Refer
to each step and section diagram in
this manual for proper instruction.
3. Throughout this manual, the left
side of the vehicle refers to the driver’s
side, and the right side to the passen-
ger’s side.
4. Disconnect the negative (ground)
cable from the battery (or batteries, if
there are more than one) before begin-
ning work. The OEM battery clamp can
be removed using a 10mm socket or
wrench.
5. Route and tie wires and hoses a
minimum of 6" away from exhaust
heat, moving parts and sharp edges.
Clearance of 8" or more is recom-
mended where possible.
6. During installation, keep the work
area clean. Do not allow anything to
be dropped into intake, exhaust, or
lubrication system components while
performing the installation, as foreign
objects will cause immediate engine
damage upon start-up.
CAUTION! Do not use floor jacks
to support the vehicle while
working under it. Do not raise
the vehicle onto concrete blocks,
masonry or any other item not
intended specifically for this use.
7. During installation, keep the work
area clean. Do not allow anything to
be dropped into intake, exhaust, or
lubrication system components while
performing the installation, as foreign
objects will cause immediate engine
damage upon start-up.
TOOLS REQUIRED:
• Metric sockets and wrenches
• Diagonal (side cutter) Pliers
• Exacto knife or other
small bladed knife
• Drill motor*
• #31 (.1200 dia.) Drill bit*
• #1 or 7/32 (.228 dia.) Drill bit*
*Required only if mounting switch in dash
Highly recommended
tools and supplies:
• Standard and Phillips screwdrivers
• Silicon sealer (black or
clear recommended)
• Metal coat hanger
• Clip/Fastener Removal Tool

97671 v.1.1 3
THIS IS A HIGH PERFORMANCE
PRODUCT. USE AT YOUR OWN
RISK. Do not use this product
until you have carefully read
the following agreement.
This sets forth the terms and
conditions for the use of this
product. The installation of
this product indicates that the
BUYER has read and under-
stands this agreement and
accepts its terms and condi-
tions.
Disclaimer of Liability
Gale Banks Engineering Inc., and its
distributors, employees, and dealers
(hereafter “SELLER”) shall in no way
be responsible for the product’s proper
use and service. The BUYER hereby
waives all liability claims.
The BUYER acknowledges that he/ she
is not relying on the SELLER’s skill or
judgment to select or furnish goods
suitable for any particular purpose
and that there are no liabilities which
extended beyond the description on
the face hereof and the BUYER hereby
waives all remedies or liabilities,
expressed or implied, arising by law
or otherwise, (including without
any obligations of the SELLER with
respect to fitness, merchantability,
and consequential damages) whether
or not occasioned by the SELLER’s
negligence.
The BUYER is responsible to fully
understand the capability and
limitations of his/her vehicle according
to manufacturer specifications and
agrees to hold the SELLER harmless
from any damage resulting from the
failure to adhere to such specifications.
The SELLER disclaims any warranty
and expressly disclaims any liability
for personal injury or damages. The
BUYER acknowledges and agrees
that the disclaimer of any liability for
personal injury is a material term for
this agreement and the BUYER agrees
to indemnify the SELLER and to hold
the SELLER harmless from any claim
related to the item of the equipment
purchased. Under no circumstances
will the SELLER be liable for any
damages or expenses by reason of the
use or sale of any such equipment.
The BUYER is responsible to obey
all applicable federal, state, and
local laws, statutes, and ordinances
when operating his/her vehicle, and
the BUYER agrees to hold SELLER
harmless from any violation thereof.
The SELLER assumes no liability
regarding the improper installation
or misapplication of its products. It is
the installer’s responsibility to check
for proper installation and if in doubt,
contact the manufacturer.
The BUYER is solely responsible for all
warranty issues from the automotive
manufacturer.
Disclaimers

497671 v.1.1
Limitation of Warranty
Gale Banks Engineering Inc. (hereafter
“SELLER”), gives Limited Warranty as
to description, quality, merchantability,
fitness for any particular purpose,
productiveness, or any other matter of
SELLER’s product sold herewith. The
SELLER shall be in no way responsible
for the product’s open use and service
and the BUYER hereby waives all rights
except those expressly written herein.
This Warranty shall not be extended or
varied except by written instrument
signed by SELLER and BUYER. Please
see enclosed warranty information
card, or go to www.bankspower.com/
warranty, for warranty information
regarding your product. All products
that are in question of Warranty must be
returned shipping prepaid to the SELLER
and must be accompanied by a dated
proof of purchase receipt. All Warranty
claims are subject to approval by Gale
Banks Engineering Inc.
Under no circumstance shall the
SELLER be liable for any labor charged
or travel time incurred in diagnosis for
defects, removal, or reinstallation of
this product, or any other contingent
expense. Under no circumstances will
the SELLER be liable for any damage or
expenses incurred by reason of the use
or sale of any such equipment.
IN THE EVENT THAT THE BUYER
DOES NOT AGREE WITH THIS
AGREEMENT:
The BUYER may promptly return this
product, in a new and unused condition,
with a dated proof-of-purchase, to the
placeof-purchase within thirty (30) days
from date-of-purchase for a full refund,
less shipping and/or restocking fee.
The installation of this product
indicates that the BUYER has read
and understands this agreement and
accepts its terms and conditions.
Disclaimers, cont'd...

97671 v.1.1 5
Table of Contents
1. Installation of Wire Harness and Derringer Tuner ..............................7
1.1 Derringer Tuner System Configuration .........................................................8
1.1.1 Stand Alone/Switch Configuration .........................................................8
1.1.2 iDash 1.8 Configuration ........................................................................10
1.2 Derringer Sensor Harness Installation........................................................12
1.3 Derringer Tuner Installation ........................................................................14
1.4 Vehicle Specific Instructions.......................................................................21
1.4.1 2011-2016 F150 EcoBoost....................................................................22
1.4.2 2017-2018 GM 6.6 L5P..........................................................................24
1.4.3 2014-2017 EcoDiesel Ram/Jeep............................................................27
2. Derringer Tuner Operations ............................................................... 34
3. Troubleshooting.........................................................................................37
3.1 General troubleshooting info......................................................................38
3.2 2011-2016 F150 EcoBoost..........................................................................39
3.3 2017-2018 GM 6.6 L5P ...............................................................................40
3.4 2014-2017 EcoDiesel Ram/Jeep .................................................................42
4. Banks Power Decal ...................................................................................44
4.1 2011-2016 F150 EcoBoost..........................................................................45
4.2 2017-2018 GM 6.6 L5P................................................................................46
4.3 2014-2017 EcoDiesel Ram/Jeep .................................................................47

697671 v.1.1
This page is left blank purposely...

97671 v.1.1 7
SECTION 1
Installation of Wire Harness
and Derringer Tuner

897671 v.1.1
Bypass Plug
OR
Application
Specific Harness
PN:
*Varies based
on application

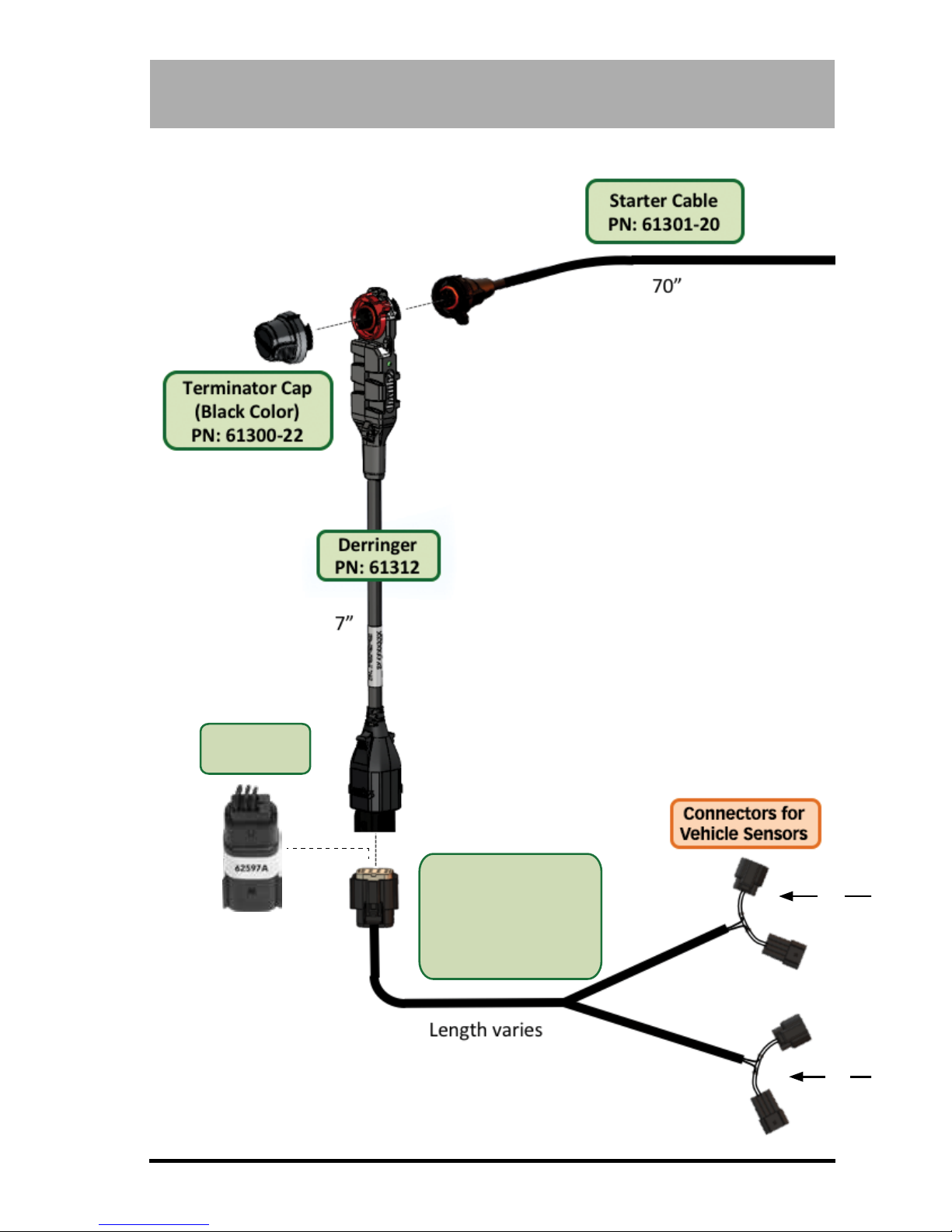

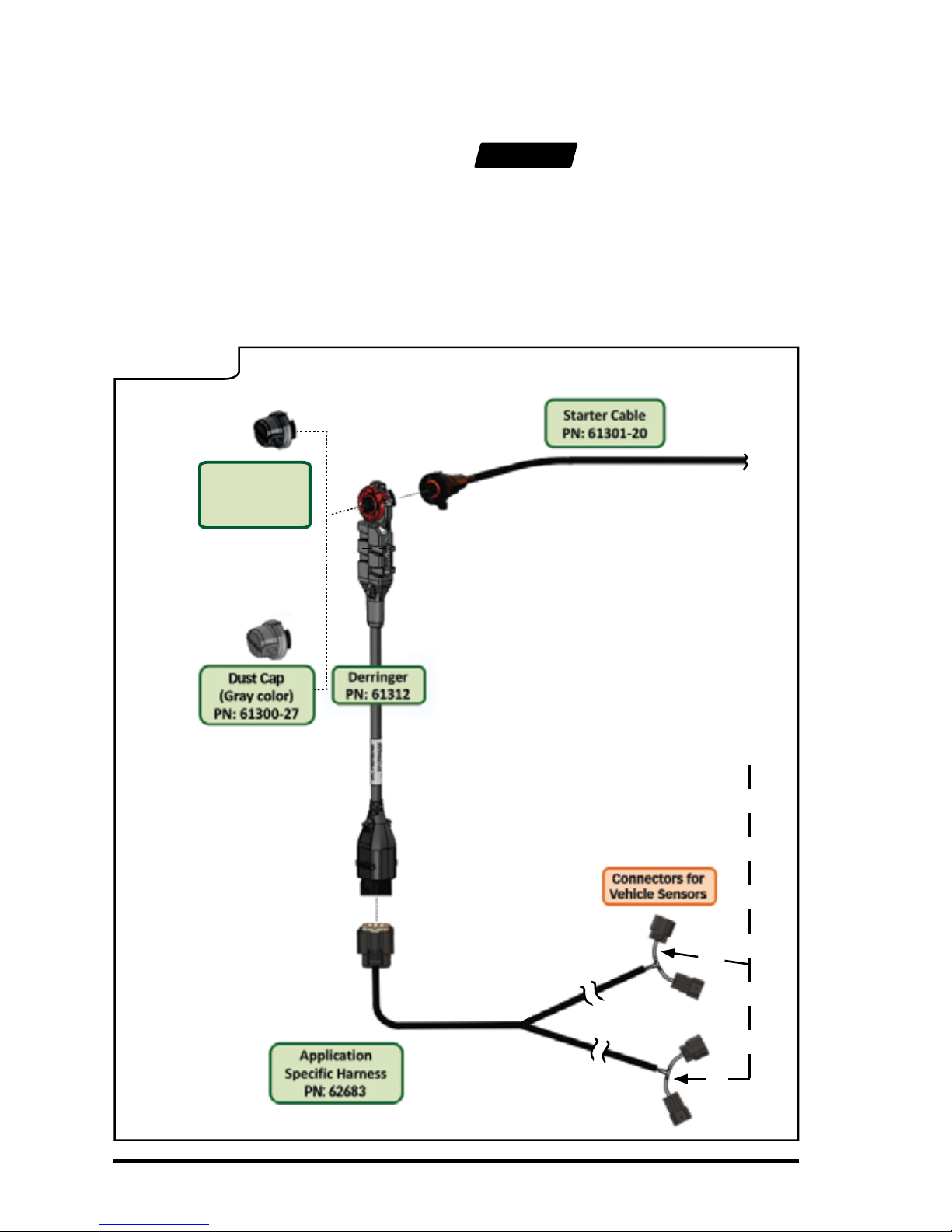

SECTION 1.1 DERRINGER TUNER SYSTEM CONFIGURATION
1.1.1: Stand Alone/Switch Config.
(Optional)

97671 v.1.1 9
(Ex: MAP, FRP, TIP, MAF,EGT..etc)

10 97671 v.1.1
Bypass Plug
OR
Application
Specific Harness
PN:
*Varies based
on application
(Optional)
SECTION 1.1 DERRINGER TUNER SYSTEM CONFIGURATION

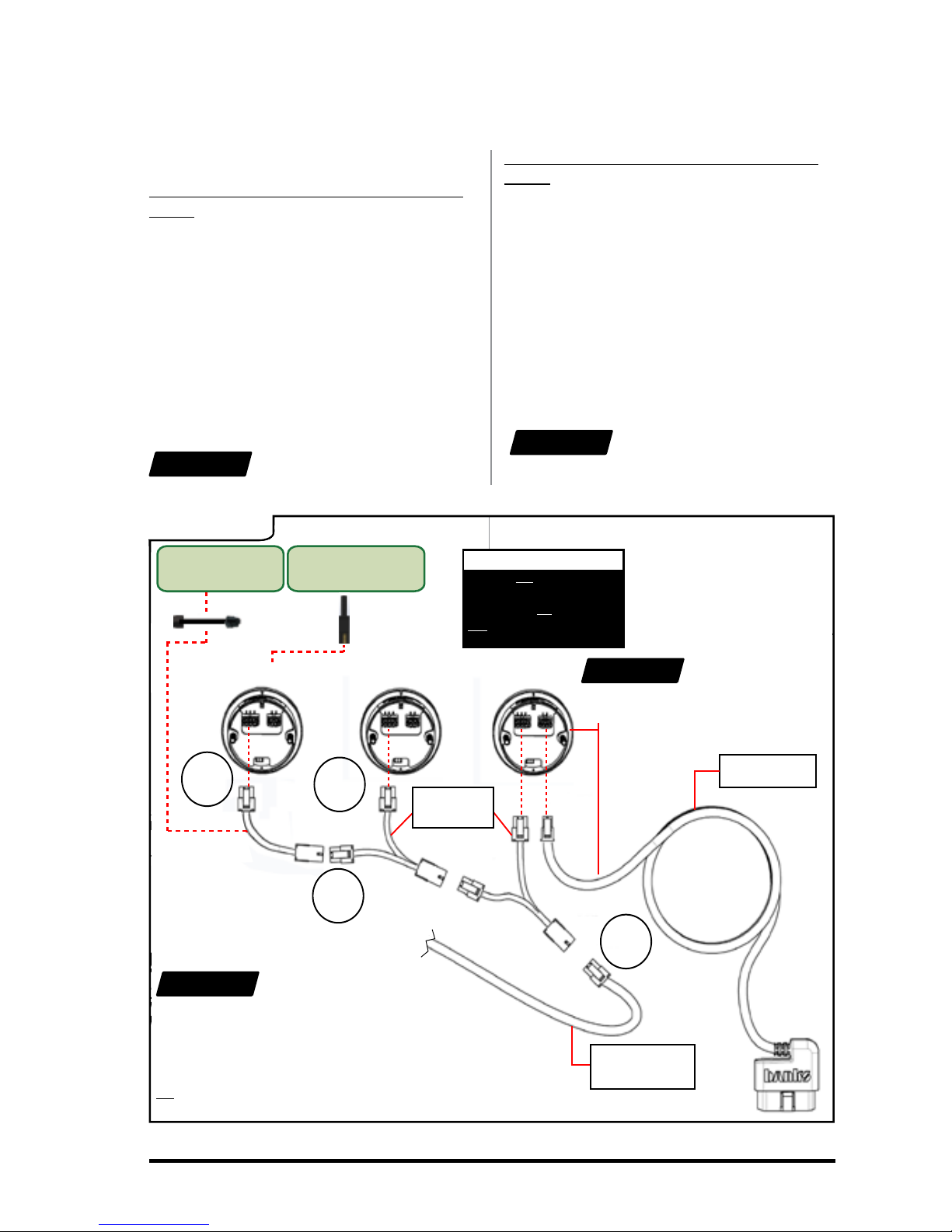

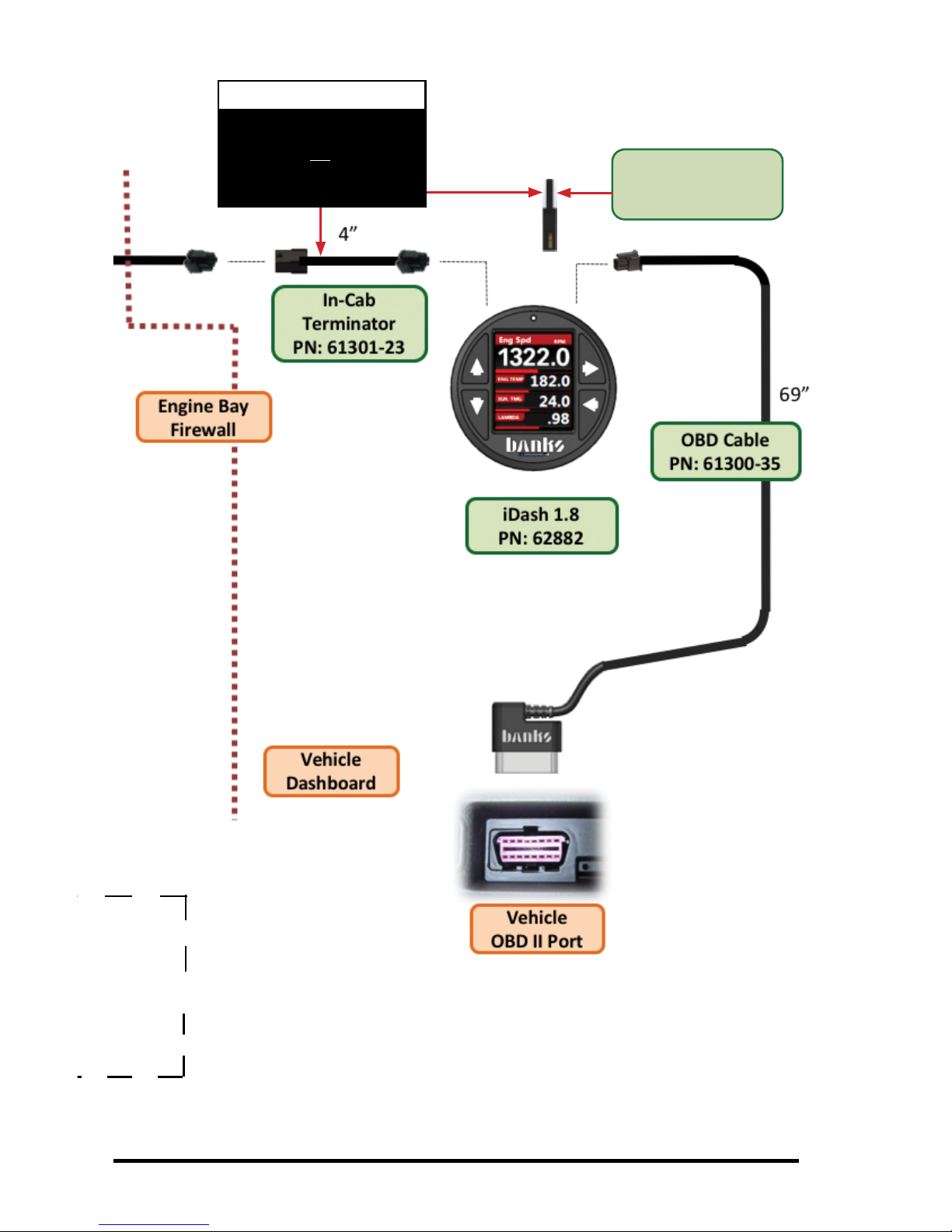

1.1.2: iDash 1.8 Config.

97671 v.1.1 11

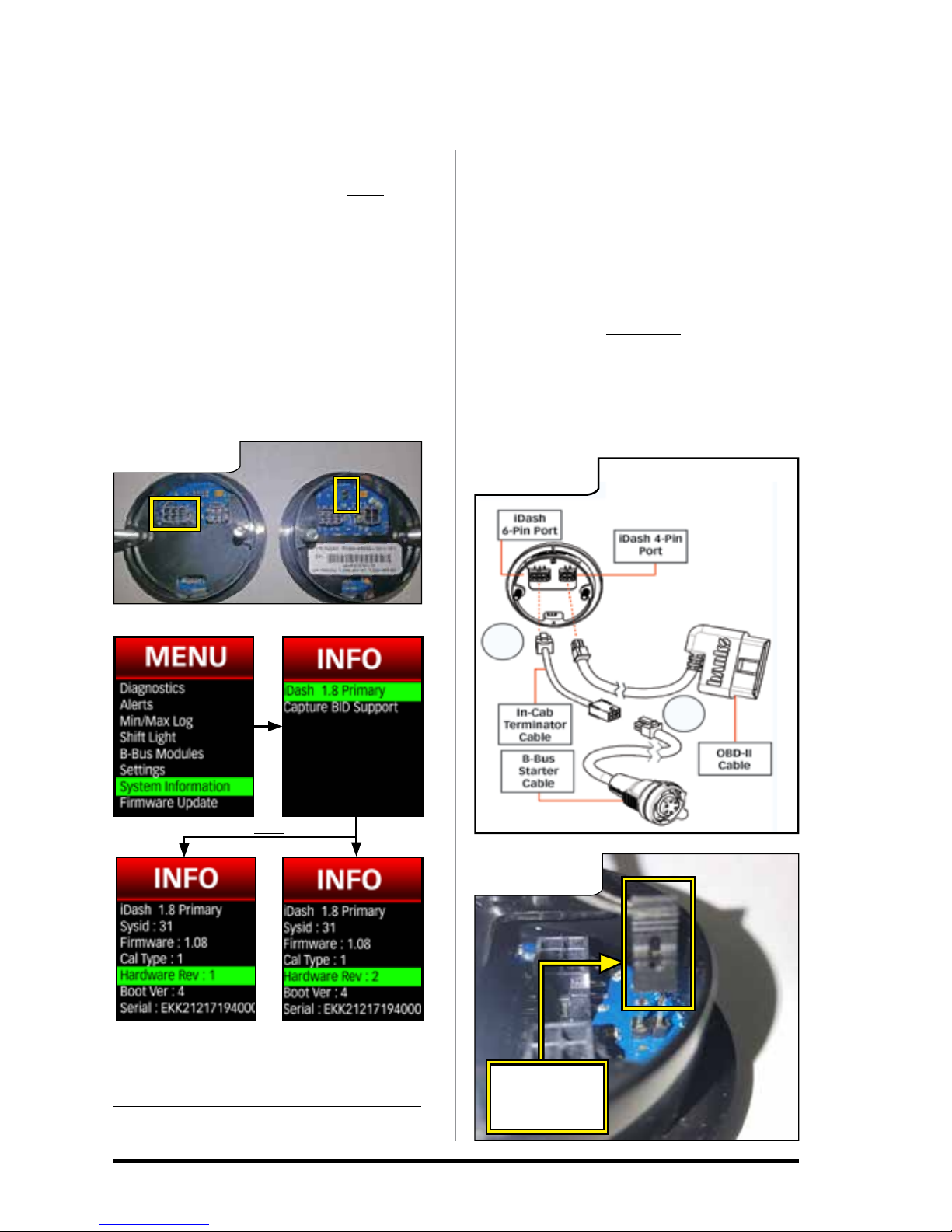

Only use one In-Cab Term. for
iDash 1.8 Hardware Rev 1
OR
Jumper Block for iDash 1.8
Hardware Rev 2
NOTICE:
Terminator Jumper
(HW Rev 2 only)
(Ex: MAP, FRP, TIP, MAF,EGT..etc)

12 97671 v.1.1

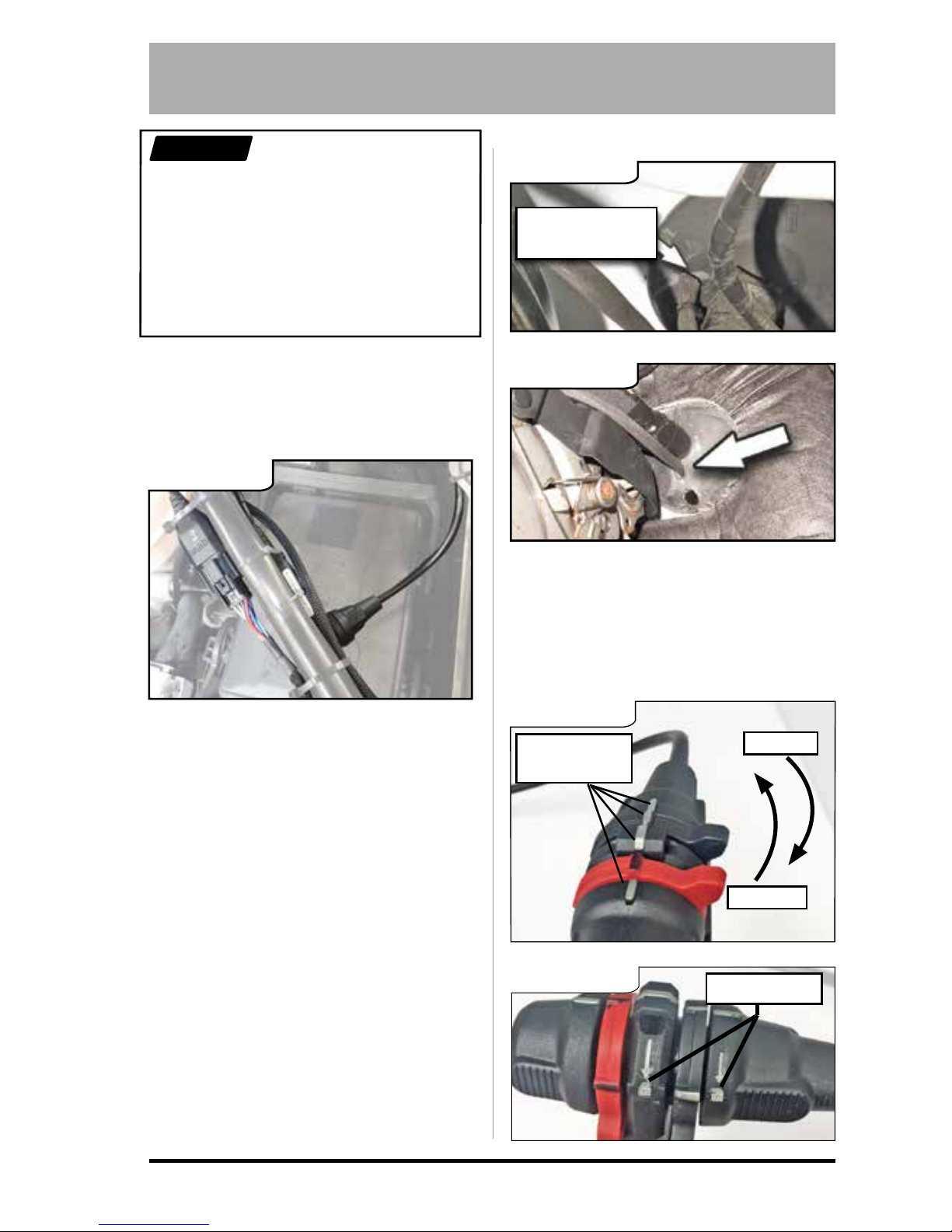

The following procedure
and images are for demonstration
purposes only. Please refer to section
"1.4 Vehicle Specific Instructions"
of the manual for further guidance on
locating sensor, routing and mounting
Derringer application specific harness.
However, installation process should
be similar.

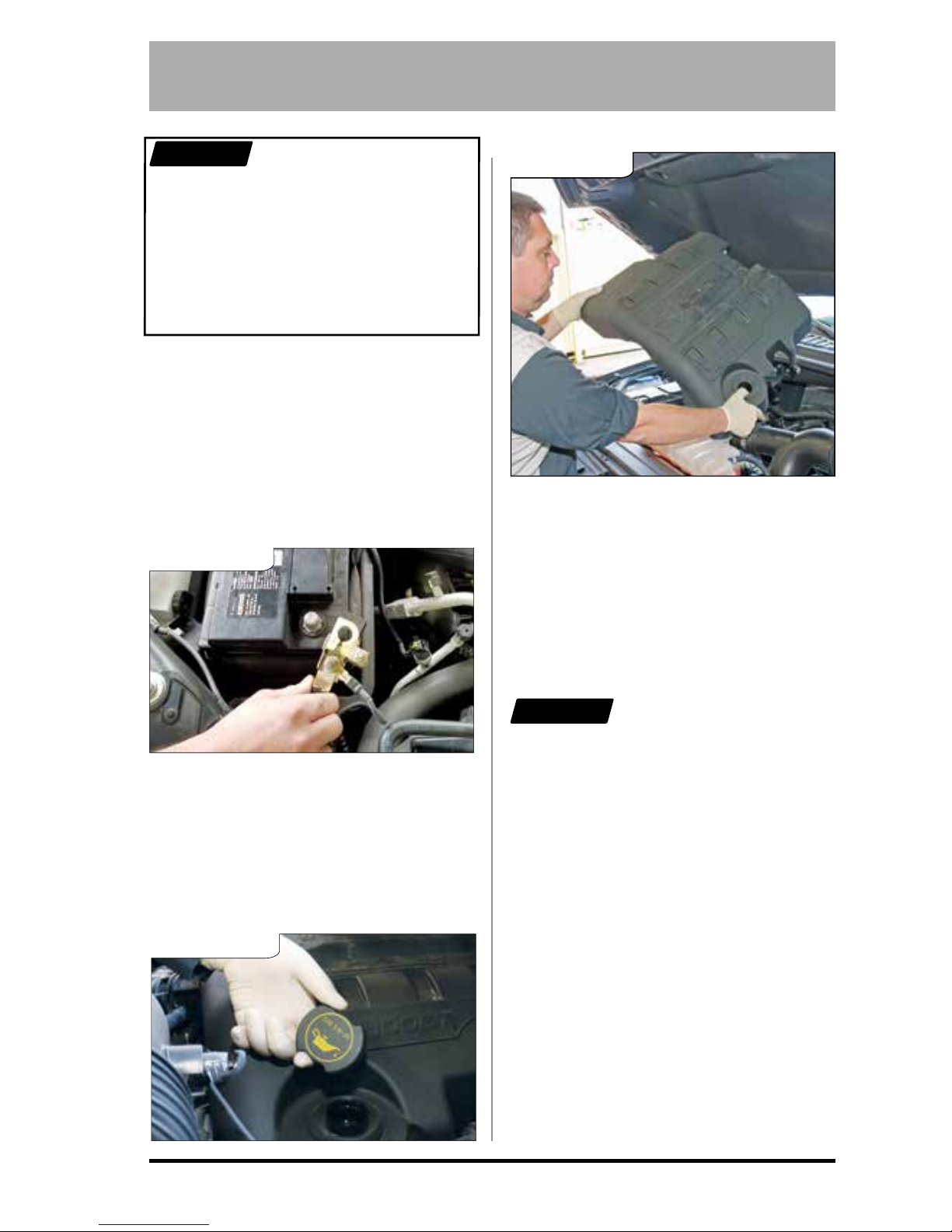

1. Disconnect the battery ground
cable from the battery (If equipped with
more than one battery, disconnect all
negative cables). Secure the cable(s) so
that they do not come in contact with
the battery posts during the installation
See Figure 1.2-1.
2. If required, remove the engine
cover. In some vehicles it is necessary
to remove oil cap and loosen one or
more fasteners before removing the
engine cover. See Figure 1.2-2 &
1.2-3.
3. Locate the desired sensors
(MAP,FRP, TIP, MAF, EGR...Etc.) that
your specific harness will connect
to. Please refer to section "1.4
Vehicle Specific Instructions" of
this manual for pictures/ assistance
locating sensor and firewall for your
specific vehicle.
Depending on the vehicle
year/ make/ model, you may need to
remove sub assembly components
(throttle body, air intake ducts, air
box...etc.) to access desired sensor.
Section 1.2
DERRINGER SENSOR HARNESS INSTALLATION
Figure 1.2-3
Figure 1.2-1
NOTE:
NOTE:
Figure 1.2-2

97671 v.1.1 13
NOTE:

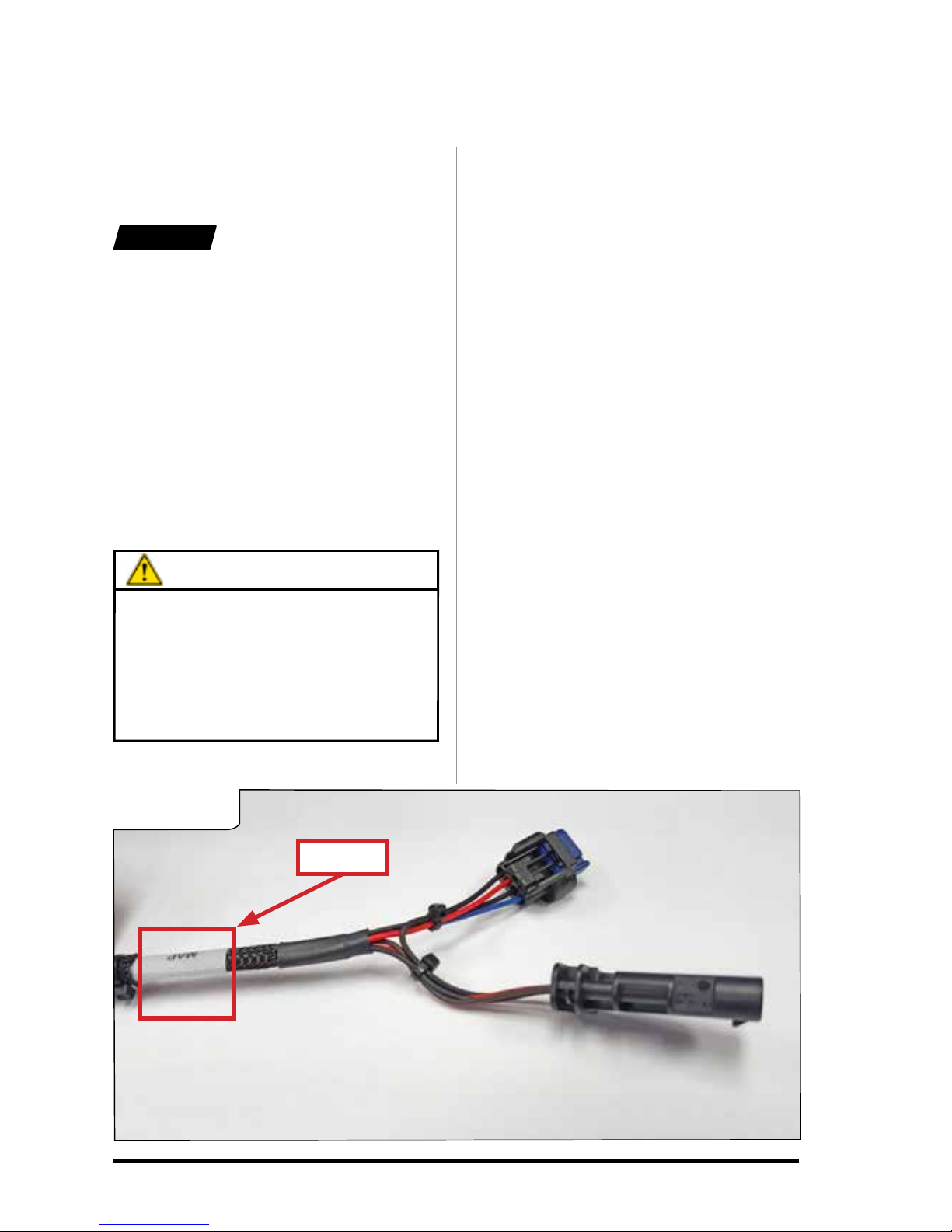

4. Disconnect the OEM harness from
the sensor.
Depending on the
vehicle year/ make/ model as well as
sensor type, each sensor has different
connecting variations. (Push/Pull tabs,
lock tabs, wedge tabs...etc) Please
refer to section “1.4 Vehicle Specific
Instructions” of this manual for
pictures/assistance disconnecting OEM
harness from sensor.
5. Now connect the end of the
Derringer harness to the disconnected
OEM connector and the other end to
the sensor.
6. Route the Derringer harness along
suitable path. It is recommended to
route the Derringer harness along
an existing OEM harness path. See
Section 1.4 for further assistance in
routing harness for specific vehicle.
7. Repeat steps 3-6 for all necessary or
desired sensors that will connect to the
Derringer harness.
Figure 1.2-4
“MAP”
Damage can result with improper
connection. Ensure you are using
the designated connectors for each
sensor by checking the Derringer
harness label location. See Figure
1.2-4 to see example of label
location.
CAUTION
Section 1.2
DERRINGER SENSOR HARNESS INSTALLATION, cont'd...

14 97671 v.1.1
The following procedure
and images are for demonstration
purposes only. Please refer to section
“1.4 Vehicle Specific Instructions”
of the manual for further guidance on
locating sensor, routing and mounting
Derringer application specific harness.
However, installation process should
be similar.
1. Connect the Derringer module to
the Derringer harness and mount it in
a secure location with provided zip tie.
See Figures 1.3-1
Tip: Mount the Derringer module
closest to the side your vehicles’
firewall wiring harness gasket is
located. This will be helpful when
connecting the starter cable and
running it to the OBDII connector
inside the vehicle.
2. To route the Derringer starter
cable through the firewall wiring
harness grommet, and into the driver
compartment start by feeding the
6-pin end of the Derringer starter
cable through firewall gasket.
See Figures 1.3-2 & 1.3-3. A wire
coat hanger is helpful for pulling the
harness through the two sides of the
firewall wire harness grommet. Take
care not to damage the factory wire
harness nor the starter cable.
3. Plug the round connector end of the
Banks starter cable into the Derringer
and secure it by rotating the locking ring
clockwise towards its locking position.
See Figures 1.3-4 & 1.3-5 & 1.3-6.
Figure 1.3-2
Figure 1.3-5
Figure 1.3-4
NOTE:
Figure 1.3-3
Figure 1.3-1
Alignment
MARK
Section 1.3
DERRINGER TUNER INSTALLATION
"LOCK" ICON
LOCK
UNLOCK
NEW DERRINGER
CABLE ADDITION
LOCATION

97671 v.1.1 15
4. If using Switch Configuration
install gray dust cap and if using iDash
Configuration install black terminator
cap to the other side of the Derringer
module. See Figures 1.3-6. Secure it
by rotating locking ring clockwise. See
Figures 1.3-4 1.3-5.
Jeep Grand Cherokee
requires the use of black Terminator
Cap at all times.
Terminator
Cap
(Black Color)
PN: 61300-22
Figure 1.3-6
NOTE:
(Ex: MAP, FRP, TIP,
MAF,EGT..etc)
With iDash
With Switch
Firewall
Section 1.3
DERRINGER TUNER INSTALLATION, cont'd...

16 97671 v.1.1

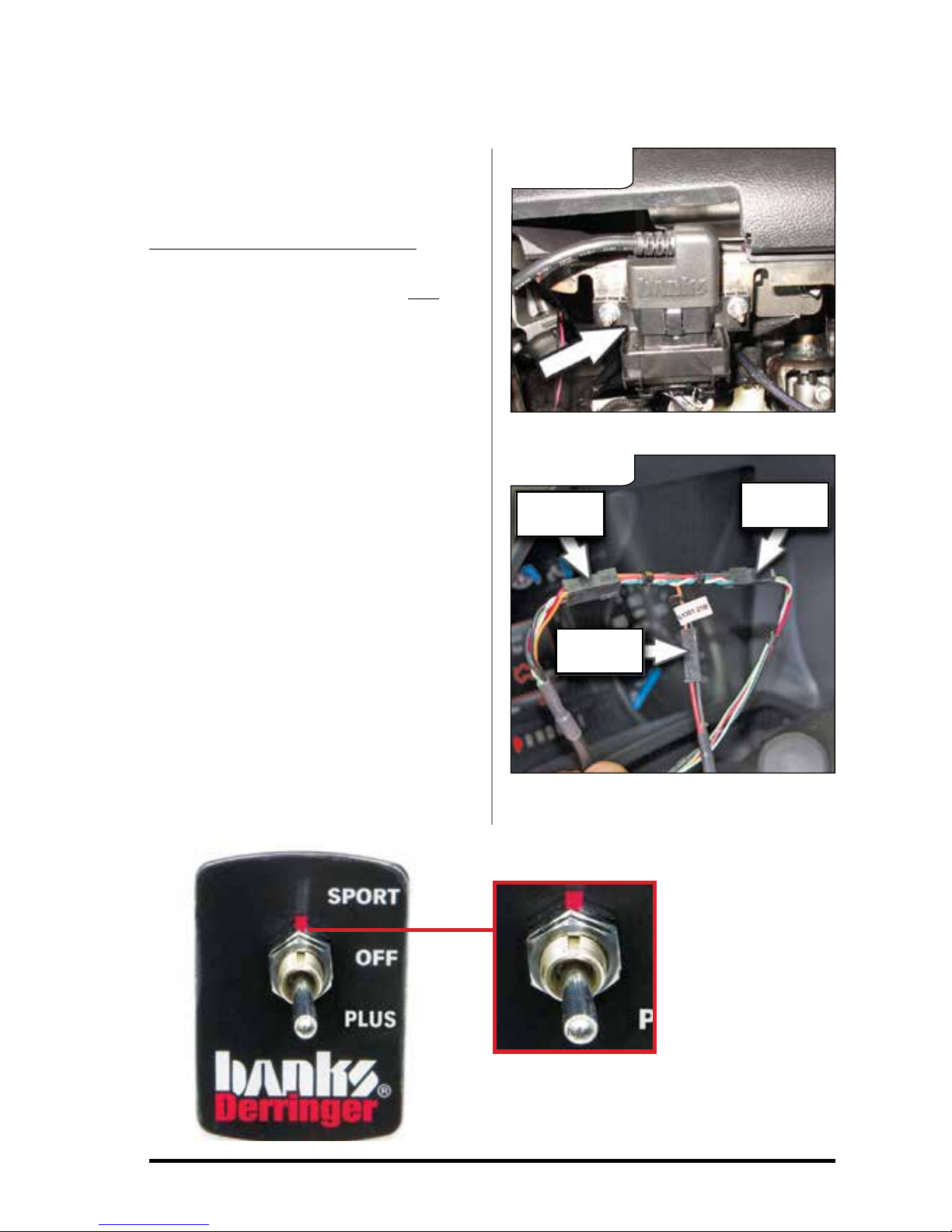

5. Plug the OBDII cable into the OBDII
port under the dash. See Figures 1.3-7
For Switch Configuration:
NOTE: If using the Switch
configuration, perform steps 6-8. If
using iDash 1.8” Gauge configuration,
skip to step 9.
6. Plug the 4-pin connector from
the OBDII cable, the 6-pin connector
from the starter cable, and the 2-pin
connector from the switch cable into
the Y-harness. See Figures 1.3-8
7. Install the power level plate to the
switch. Make sure to align the slot of
the switch with the red line on the plate
towards Sport. See Figures 1.3-9
8. OPTIONAL: Mount switch in
dashboard by drilling two holes using
the supplied template See page 44.
Be careful to not damage factory wiring
behind the dashboard. To keep the
switch from rotating, it is necessary to
install the locking tab washer behind
the dash, with the locking tab facing the
backside of the dash face. Alternatively,
Zip tie the switch in any easy to access
location for power level adjustment.
Section 1.3
DERRINGER TUNER INSTALLATION, cont'd...
Figure 1.3-8
Figure 1.3-7
Figure 1.3-9
STARTER
6-PIN
OBD-II
4-PIN
SWITCH
2-PIN

97671 v.1.1 17
For iDash Configuration:
NOTE: Only perform steps 9-11 if
using iDash gauge configuration. If
using the switch configuration skip
to step 12.
9. Check which iDash 1.8
Hardware Revision you have.
Look behind the iDash 1.8 as shown
in Figure 1.3-10 to check for pins.
Alternatively you can check the
“Hardware Rev:” in the “System
Information” menu, as shown in
Figure 1.3-11.
10. If using a single iDash Gauge:
(If using multiple, skip to step 11)
If you have a HW Rev 1 iDash 1.8:
A. Connect the Starter Cable to the
In-Cab Terminator. See Figures 1.3-12,
Step 2A.
B. Connect the In-Cab Terminator to the
iDash 6-Pin Port. See Figures 1.3-12.,
Step 2B.
If you have a HW Rev 2 iDash 1.8:
A. Connect the Starter Cable to the
iDash 6-Pin Port (Without the In-Cab-
Terminator). See Figures 1.3-12
B. Check for the pre-installed Jumper
Block to the iDash 2-Pin termination. See
Figures 1.3-13.
Figure 1.3-10
OR
Figure 1.3-11
Section 1.3
DERRINGER TUNER INSTALLATION, cont'd...
Figure 1.3-12
Figure 1.3-13
Step 2B
Step 2A
2-Pin
Termination
(HW Rev 2 Only)

18 97671 v.1.1
11. If using multiple iDash Gauges:
If you ONLY have HW Rev 1 iDash
1.8’s:
A. Connect the In-Cab Terminator to the
iDash 6-pin port. See Figures 1.3-14,
Step 3A.
B. Connect the Y-Cable to the In-Cab
Terminator and the second iDash. See
Figures 1.3-14, Step 3B.
C. Connect the Starter Cable to the
Y-Cable. See Figures 1.3-14, Step 3C.
Only one In-Cab or Jumper
Block Terminator is required.
If you ONLY have HW Rev 2 iDash
1.8’s:
A. Connect the Y-Cable to the 6-pin
port of the first and second iDash 1.8
(without the In-Cab Terminator).
See Figures 1.3-14.
B. Connect the Starter Cable to the
Y-Cable. See Figures 1.3-14, Step 3C.
C. Remove extra Jumper Blocks from
the secondary iDash 2-Pin terminations.
See Figures 1.3-13.
For each additional iDash
1.8, a Y-Cable is used. See Figures 1.3-
14.
12 97660 v.1.0
B-Bus Documentation
Install Configuration Intro
AAD Module
Troubleshooting Tech Specs Install Intro
B-Bus Operation
General Diagnostics Firmware Updates
General Information
End User Agreement Disclaimer Safety
AAD Module
Diagnostics Tech Specs Install Intro
5. If using multiple iDash Gauges:
A. Connect the In-Cab Terminator
to the iDash 6-pin port.
B. Connect the Y-Cable to the
second iDash and the
In-Cab Terminator.
For each additional iDash
Gauge, a Y-Cable is used. See Figure 1-8.
C. Connect the Starter Cable to the
Y-Cable. See Figure 1-8.
NOTE:
Figure 1-8
Y-Cable
OBD-II CONNECTION
DETERMINES PRIMARY iDash.
NOTE:
OBD-II Cable
ONLY ONE IN-CAB
TERMINATOR IS REQUIRED
FOR THE B-BUS NETWORK.
NOTE:
In-Cab
Terminator
Step
3A
FIREWALL
B-Bus Starter
Cable
Step
3B
Step
3C
Step
3B
Secondary Secondary Primary
ONLY TWO TERMINATORS
ARE REQUIRED FOR THE
B-BUS NETWORK (BLACK
TERMINATION CAP IN THE
ENGINE BAY AND EITHER
AN IN-CAB TERMINATOR
OR A JUMPER BLOCK
TERMINATOR).
NOTE:
Terminator Jumper
(HW Rev 2 only)
In-Cab Terminator
(HW Rev 1 only)
or
NOTICE:
Only use one In-Cab Term. for
iDash 1.8 Hardware Rev 1
OR
one Jumper Block for iDash 1.8
Hardware Rev 2
Figure 1.3-14
NOTE:
NOTE:
Section 1.3
DERRINGER TUNER INSTALLATION, cont'd...
NOTE:
OBD-II CONNECTION DETERMINES
PRIMARY iDASH

97671 v.1.1 19
If you have HW Rev 1 AND Rev 2
iDash 1.8’s:
Follow either of the instructions for
Rev 1 or Rev 2, but only use a single
terminator.
All installs follow steps 12-15
12. Install the iDash 1.8 in an A-pillar
mount or a suction cup windshield-
mount gauge-pod.
13. Double-check all wire harness
routing under the hood and the dash
for proper clearance around moving
parts and sharp objects as well as heat
sources, then use the supplied nylon
tie straps to secure the wire harnesses
safely away from any control linkages
and the operator’s feet underneath
the dashboard. Be sure to step on the
brake and E-brake pedals and move
the tilt column and adjustable peddles,
if equipped, when checking for proper
harness clearance. Also turn the steer-
ing wheel lock to lock to ensure that
the harness does not hit, pull or other-
wise interfere with any moving or hot
parts of the truck.
14. Re-attach any previously removed
interior trim panels, reinstall the acous-
tic foam engine intake cover and oil fill
cap and lower the vehicle. Re-connect
the negative battery cable.
15. Start the vehicle, checking for
normal engine operation.
Section 1.3
DERRINGER TUNER INSTALLATION, cont'd...
Go over the entire
installation as a precautionary check
to ensure that all clamps are tight,
wiring and hoses are properly rout-
ed, and connections are correct and
tight. Make sure that the Derringer
wire harness is not lying in the way
of the brake and gas pedals, or any
moving parts.
If vehicle is equipped with adjust-
able pedals and/or column, ensure
that the harness is clear through the
full range of adjustments.

20 97671 v.1.1
This page is left blank purposely...
