SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 77481 BWA-9O6-A Antenna, Omni, 902–928 MHz, 6 dBd, 6 ft Fiberglass, N-Type FEMALE, with mounting
hardware
2 1 77490 BWC-4MNFN6 LMR400, N-Type Male to N-Type Female, 6 m
3 1 12477 BWC-LFNBMN-DC Surge Suppressor, Bulkhead, N-Type Female to N-Type Male, dc blocking
4 1 77486 BWC-1MRSMN05 LMR200, RP-SMA to N-Type Male, 0.5 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7
1

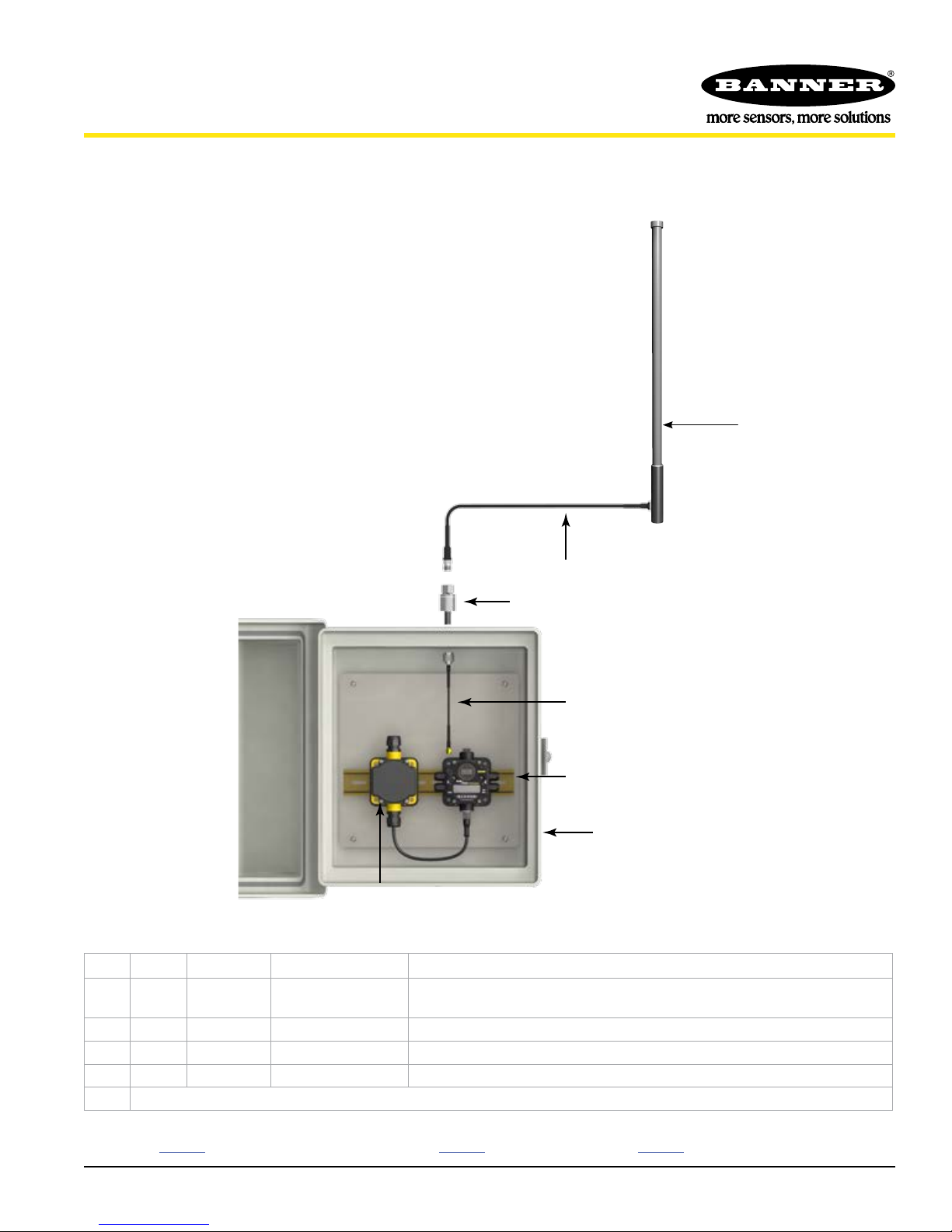

Antenna Kit BWA-ANTKIT-001
The high-gain omni-directional antenna kit includes a 6 dBd fiberglass antenna.
Part No: 18951
Antenna Kits for 900 MHz

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
2P/N 159279 Rev. C
SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 17721 BWA-9O5-C Antenna, Omni, 902–928 MHz, 5 dBi, Rubber swivel, RP-SMA Male
2 1 77488 BWC-1MRSFRSB4 RG58, RP-SMA to RP-SMA Female, Bulkhead, 4 m
3 1 79296 BWC-LMRSFRPB Surge Suppressor, Bulkhead, RP-SMA
4 1 78544 BWC-1MRSFRSB02 RG58, RP-SMA to RP-SMA Female, Bulkhead, 0.2 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7
1

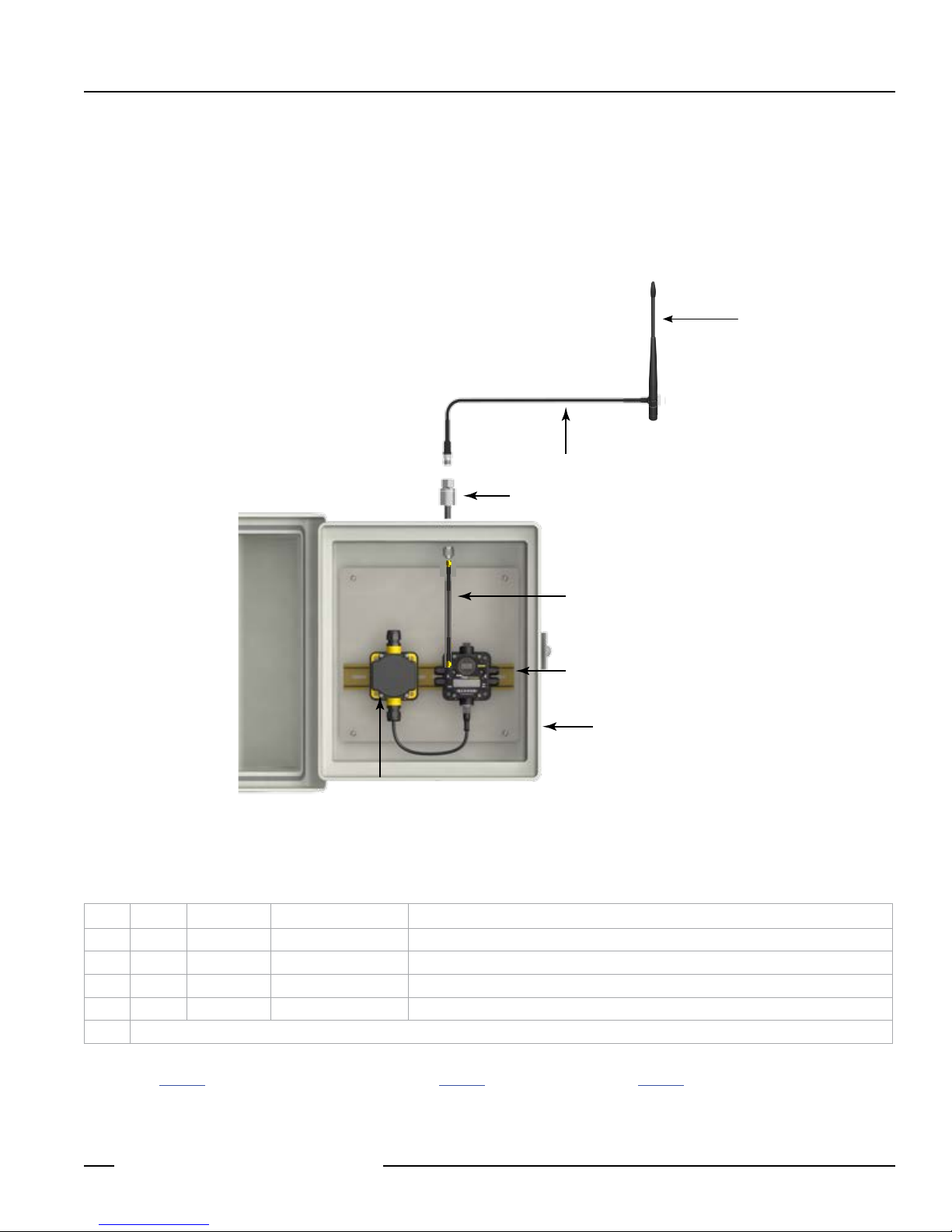

Antenna Kit BWA-ANTKIT-002
The mid-range gain omni-directional antenna kit includes a 5 dBi rubber swivel antenna.
Part No: 18954

P/N 159279 Rev. C 3
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 76908 BWA-9O2-C Antenna, Omni, 902–928 MHz, 2 dBi, Rubber swivel, RP-SMA Male
2 1 77488 BWC-1MRSFRSB4 RG58, RP-SMA to RP-SMA Female, Bulkhead, 4 m
3 1 79296 BWC-LMRSFRPB Surge Suppressor, Bulkhead, RP-SMA
4 1 78544 BWC-1MRSFRSB02 RG58, RP-SMA to RP-SMA Female, Bulkhead, 0.2 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7
1
Antenna Kit BWA-ANTKIT-003
The low-gain omni-directional antenna kit includes a 2 dBi rubber swivel antenna.
Part No: 18955

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
4P/N 159279 Rev. C
SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 77479 BWA-9Y6-A Antenna, Yagi, 890–960 MHz, 6.5 dBd, N-Type Female
2 1 77490 BWC-4MNFN6 LMR400, N-Type Male to N-Type Female, 6 m
3 1 12477 BWC-LFNBMN-DC Surge Suppressor, Bulkhead, N-Type Female to N-Type Male, dc Blocking
4 1 77486 BWC-1MRSMN05 LMR200, RP-SMA to N-Type Male, 0.5 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7

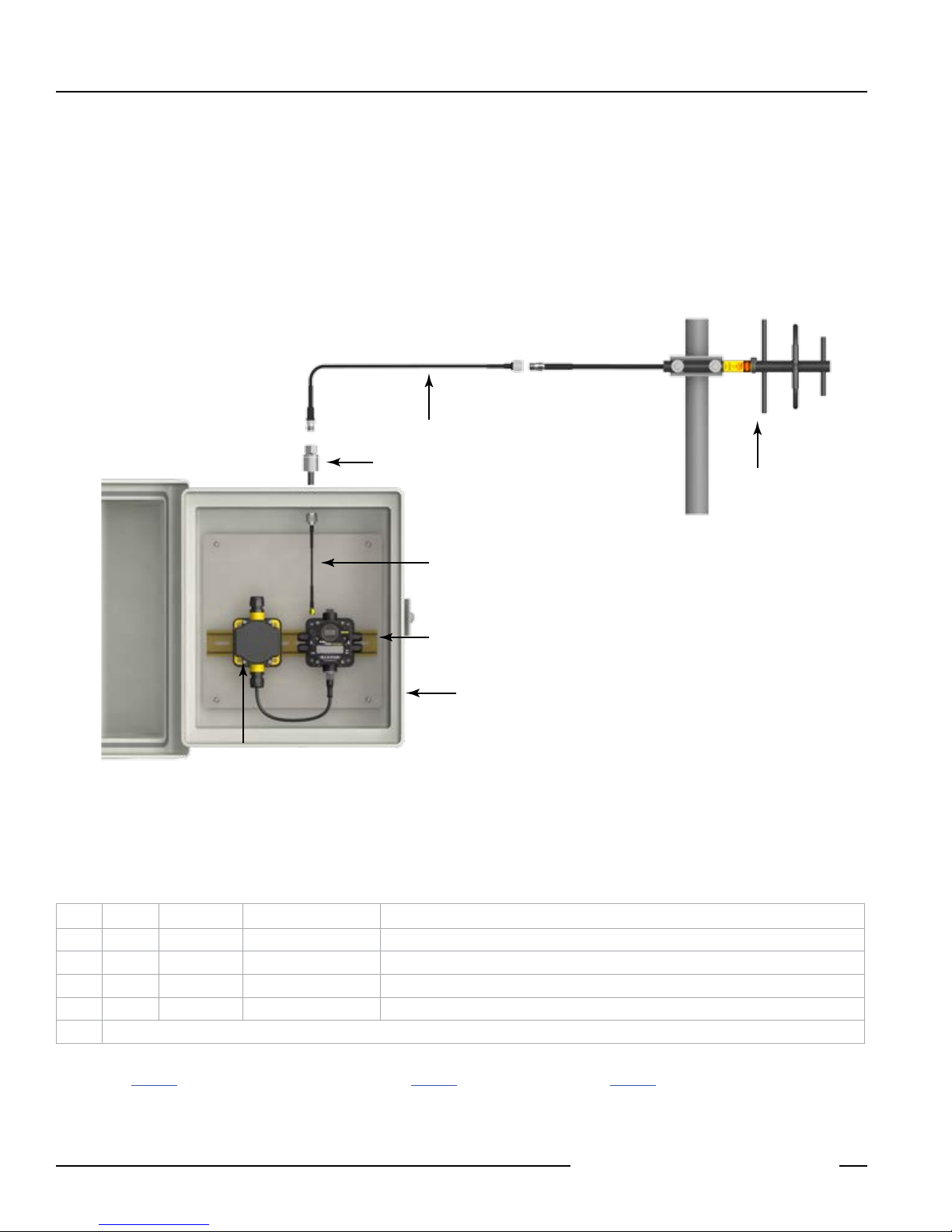

Antenna Kit BWA-ANTKIT-004
The low-gain Yagi antenna kit includes a 6.5 dBd Yagi antenna.
Part No: 18957

P/N 159279 Rev. C 5
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 77818 BWA-2O7-C Antenna, Omni, 2.4 GHz, 7 dBi, Rubber swivel, RP-SMA Male
2 1 77488 BWC-1MRSFRSB4 RG58, RP-SMA to RP-SMA Female, Bulkhead, 4 m
3 1 79296 BWC-LMRSFRPB Surge Suppressor, Bulkhead, RP-SMA
4 1 78544 BWC-1MRSFRSB02 RG58, RP-SMA to RP-SMA Female, Bulkhead, 0.2 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7
1
Antenna Kit BWA-ANTKIT-005
The mid-range gain omni-directional antenna kit includes a 7 dBi 2.4 GHz rubber swivel antenna.
Part No: 20499
Antenna Kits for 2.4 GHz

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
6P/N 159279 Rev. C
SureCross® Antenna and Enclosure Kits
Antenna Kit Parts List
No. Qty Part No. Model No. Description
1 1 81080 BWA-2O8-A Antenna, Omni, 2.4 GHz, 8.5 dBi, 24-inch Fiberglass, N-Type FEMALE, with mounting
hardware
2 1 77490 BWC-4MNFN6 LMR400, N-Type Male to N-Type Female, 6 m
3 1 12477 BWC-LFNBMN-DC Surge Suppressor, Bulkhead, N-Type Female to N-Type Male, dc blocking
4 1 77486 BWC-1MRSMN05 LMR200, RP-SMA to N-Type Male, 0.5 m
5-9 Sold separately. Antenna kits do not include the radio, power supply, or enclosure components.
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
1
3
4
5, 6
2
8, 9
7
1
Antenna Kit BWA-ANTKIT-006
The high-gain omni-directional antenna kit includes a 24” 8.5 dBi 2.4 GHz fiberglass antenna.
Part No: 20539

P/N 159279 Rev. C 7
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
SureCross® Antenna and Enclosure Kits
Enclosure Box Kit Parts List
No. Qty Part No. Model No. Description
4See previously listed Antenna Kits
5 1 26605 DIN-35-140 DIN Rail Section, 140 mm long, 35 mm design (not shown)
6 1 77161 SMBDX80DIN Bracket Assembly, DIN Rail, for DX80 (not shown)
7 1 11320 BWA-EF14128 Enclosure, Fiberglass, Hinged, 14” x 12” x 8”
8 1 11326 BWA-PA1412 Panel, 14” x 12”
9 1 26008 PSDINM-24-10 Power Supply, 24V dc, 1 Amp, with DIN-Rail Mount
10 179438 BWA-CG.5-10 Cable gland, 1/2-inch NPT, 10 pack

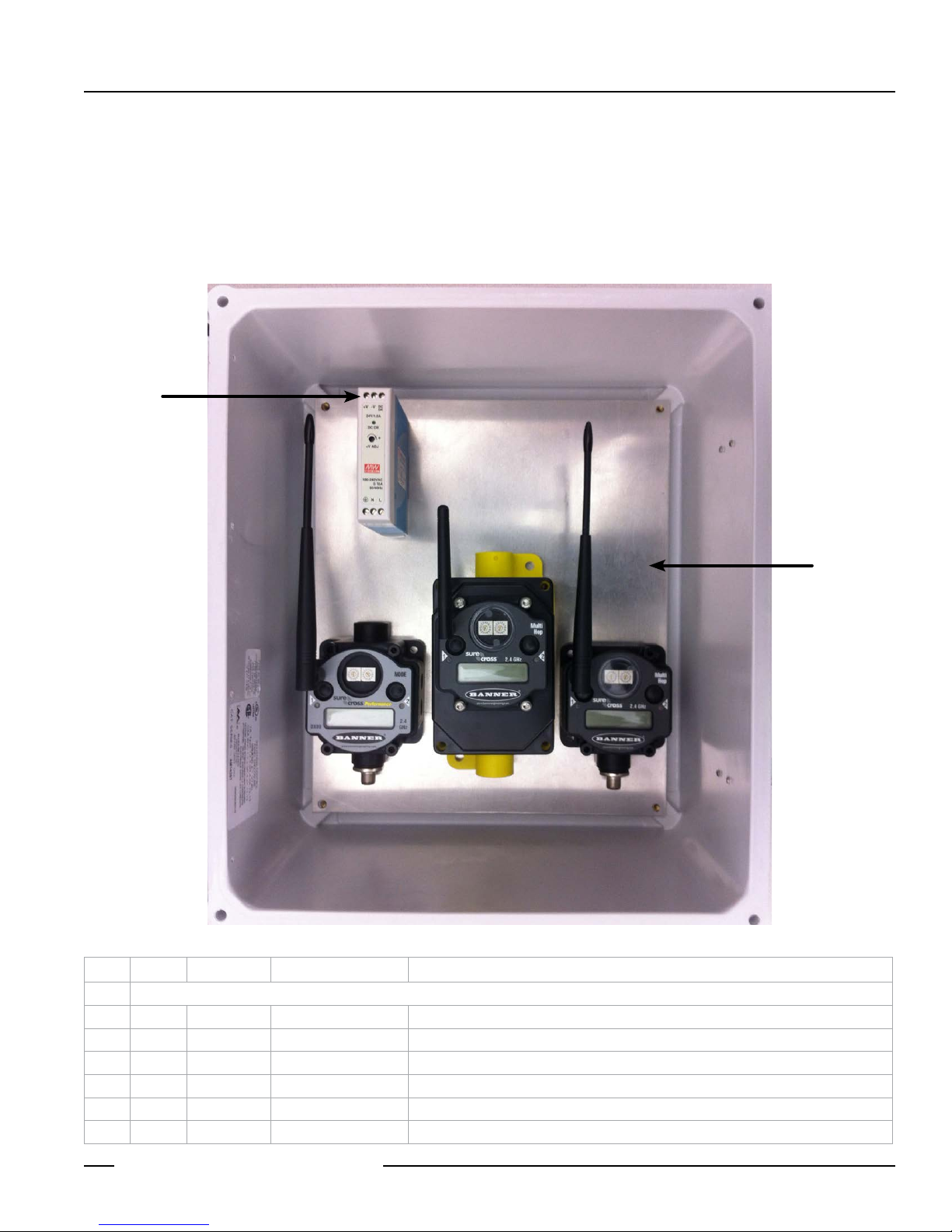

Large Fiberglass Enclosure Kit BWA-EF14128KIT
This enclosure kit includes the 14” × 12” × 8” Fiberglass enclosure. This larger enclosure is ideal for multiple radios, a power supply,
and any additional equipment that may be necessary to solve your application.
Part No: 30410
7, 8
9
All other items
shown in photo
are not included in
the kit and are only
shown for scale.
Enclosure Kits

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
8P/N 159279 Rev. C
SureCross® Antenna and Enclosure Kits
Enclosure Box Kit Parts List
No. Qty Part No. Model No. Description
4See previously listed Antenna Kits
5 1 26605 DIN-35-140 DIN Rail Section, 140 mm long, 35 mm design (not shown)
6 1 77161 SMBDX80DIN Bracket Assembly, DIN Rail, for DX80 (not shown)
7 1 11321 BWA-EF1086 Enclosure, Fiberglass, Hinged, 10” x 8” x 6”
8 1 11327 BWA-PA108 Panel, 10” x 8”
9 1 26008 PSDINM-24-10 Power Supply, 24V dc, 1 Amp, with DIN Rail Mount
10 179438 BWA-CG.5-10 Cable gland, 1/2-inch NPT, 10 pack
7, 8
9

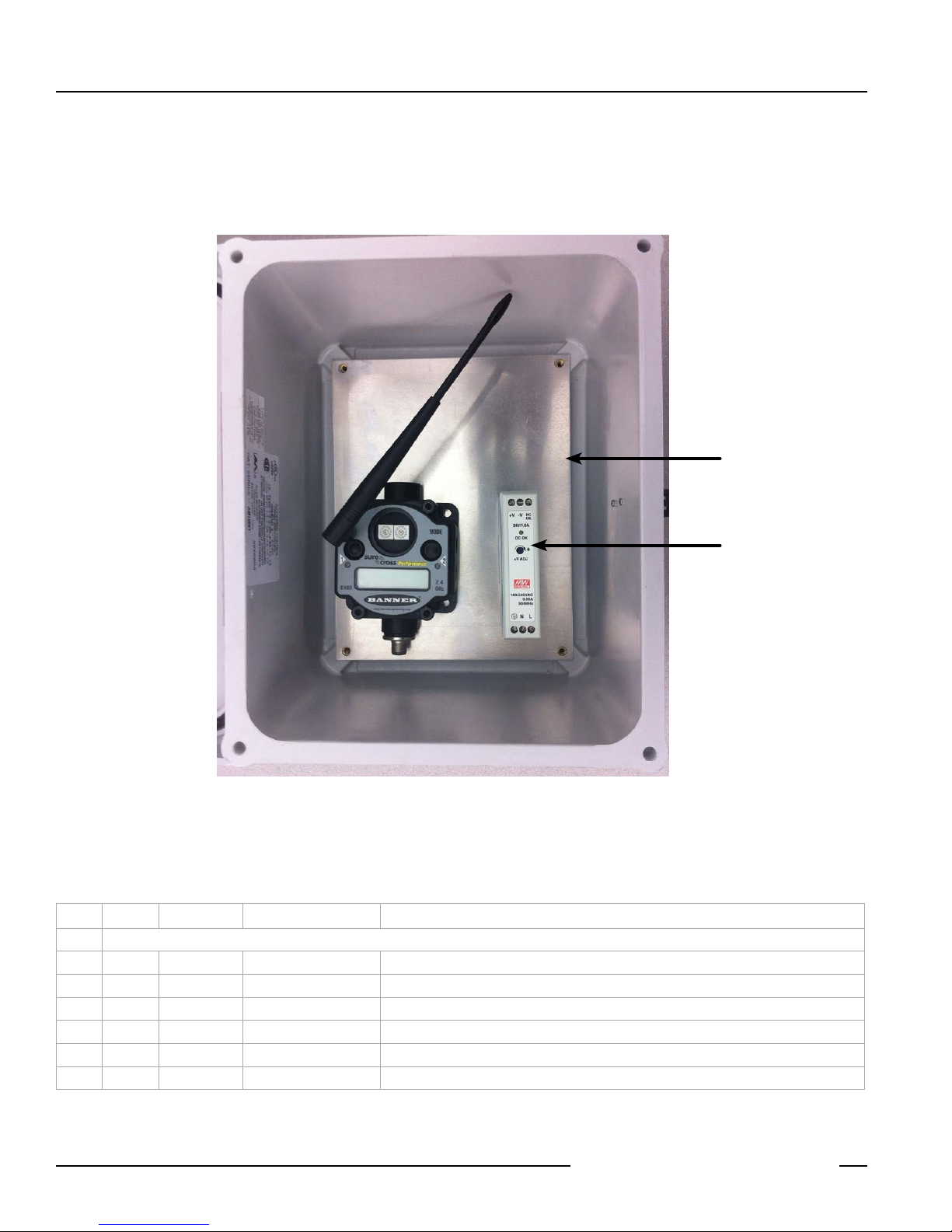

Medium Fiberglass Enclosure Kit BWA-EF1086KIT
This medium-sized enclosure kit includes the 10” × 8” × 6” Fiberglass enclosure and is ideal for a power supply and single radio.
Part No: 30411

P/N 159279 Rev. C 9
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
SureCross® Antenna and Enclosure Kits
Enclosure Box Kit Parts List
No. Qty Part No. Model No. Description
4See previously listed Antenna Kits
5 1 26605 DIN-35-140 DIN Rail Section, 140 mm long, 35 mm design
6 1 77161 SMBDX80DIN Bracket Assembly, DIN Rail, for DX80 (not shown)
7 1 11322 BWA-EF866 Enclosure, Fiberglass, Hinged, 8” x 6” x 6”
8 1 11328 BWA-PA86 Panel, 8” x 6”
9 1 26008 PSDINM-24-10 Power Supply, 24V dc, 1 Amp, with DIN Rail Mount
10 179438 BWA-CG.5-10 Cable gland, 1/2-inch NPT, 10 pack
5
7, 8
9
Small Fiberglass Enclosure Kit BWA-EF866KIT
This small enclosure kit includes the 8” × 6” × 6” Fiberglass enclosure and is ideal for a power supply and a radio board module.
Part No: 30412
10

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: [phone]
10 P/N 159279 Rev. C
SureCross® Antenna and Enclosure Kits
Additional Antenna Cables
For specific instructions describing how to create a weatherproof antenna connection, refer to either the SureCross Wireless I/O Product
Manual (p/n 132607), the SureCross Installation Guide (p/n 151514), or Antenna Basics (p/n 132113).
Part No Model No Description
77486 BWC-1MRSMN05 LMR100 RP-SMA to N Male, 0.5M
77820 BWC-1MRSMN2 LMR100 RP-SMA to N Male, 2M
Use these cables to connect a Gateway or Node to an N-type antenna, N-type antenna
extension cable, or N-type surge suppressor.
These cables are typically used either inside an enclosure to connect the radio to an
external antenna or to extend an external antenna outside the enclosure. They can also be
used with a radio not mounted in an enclosure.
Part No Model No Description
78544 BWC-1MRSFRSB0.2 RG58, RP-SMA to RP-SMAF Bulkhead, 0.2M
78337 BWC-1MRSFRSB1 RG58, RP-SMA to RP-SMAF Bulkhead, 1M
78338 BWC-1MRSFRSB2 RG58, RP-SMA to RP-SMAF Bulkhead, 2M
77488 BWC-1MRSFRSB4 RG58, RP-SMA to RP-SMAF Bulkhead, 4M
Use these cables to connect a Gateway or Node to a bulkhead surge suppressor or a
bulkhead surge suppressor to an RP-SMA antenna.
These cables are typically used either inside an enclosure to connect the radio to an
external antenna or to extend an external antenna outside the enclosure. They can also be
used with a radio not mounted in an enclosure.
Part No Model No Description
77489 BWC-4MNFN3 LMR400 N Male to N Female, 3M
77490 BWC-4MNFN6 LMR400 N Male to N Female, 6M
77821 BWC-4MNFN15 LMR400 N Male to N Female, 15M
77822 BWC-4MNFN30 LMR400 N Male to N Female, 30M
These cables are antenna extension cables, connecting an N-type antenna, N-type surge
suppressor, or to another N-type antenna cable.
These cables are usually used outside the enclosure to extend the distance between the
radio and the antenna.
