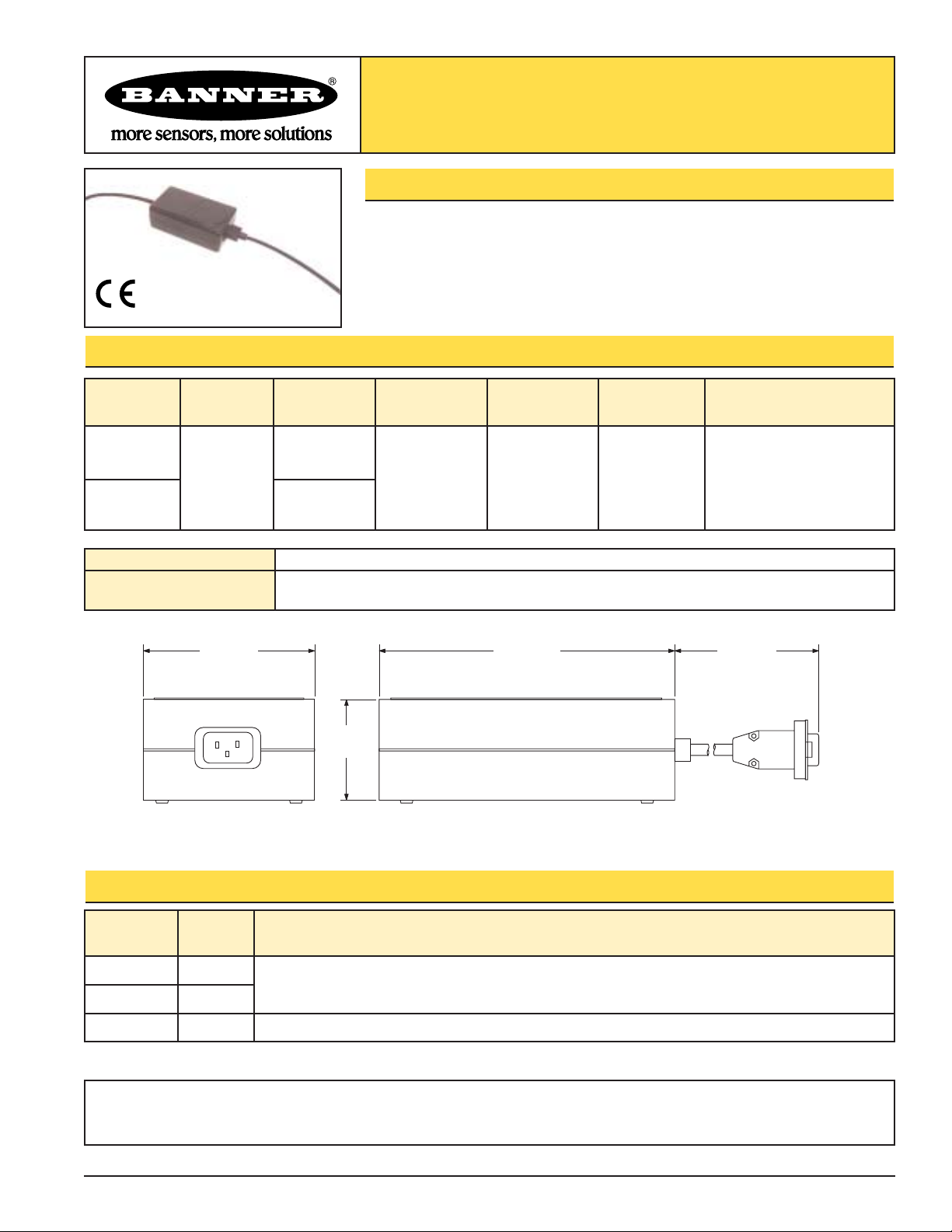

Banner PSA-12 User manual

Accessory Extension Cables
PSA-12 Power Supplies (12 Volt)
Printed in USA 05/01 P/N 67445
PSA-12 Models
86.4 mm
(3.40")
149.1 mm
(5.87")
1.8 m
(6.0')
50.8 mm
(2.00")
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering Corp. will repair or replace, free of
charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty period. This warranty does not cover
damage or liability for the improper application of Banner products. This warranty is in lieu of any other warranty either expressed or implied.
Features
•12V dc power supply delivers up to 3.5 amps to power Banner 12V continuous LED
lights
• Choose model with 120V ac North American power cord, or with 220V ac Euro
power cord
• Includes pre-wired 9-pin D-sub connector for direct connection to LED lights
• Tough ABS housing
Environmental Rating IEC IP20; NEMA 1
Operating Conditions Temperature: 0° to 50°C (+32° to 122°F)
Maximum relative humidity: 95% at 40°C (non-condensing)
Models Input
Input
Cord Output
Output
Cable Used with
PSA-12E
PSA-12 100-250V ac
50/60 Hz
1.1 A max @
100V ac
North America
(NEMA 5-15) 12V dc ±5%
with voltage
regulation of ±1%
3.5 A max.
1.8 m (6')
Terminated with
9-pin D-sub
connector
(female pins)
Continuous
LED lights
Cont. Europe
(Schuko CEE 7)
Connections
Pin 1 = +V
Pin 2 = dc common
Pin 3 = dc common
Pin 4 = +V
Pin 5 = +V
Models Length Configuration
DB910†3.0 m (10')
DB906†1.8 m (6') Terminated both ends with 9-pin D-sub connector, for continuous lights
(one end male pins and opposite end female pins)
DB9Y†1.8 m (6') Ycable for powering 2 lights from one supply, for continuous lights
†These models are not stocked and are non-returnable.
Banner Engineering Corp., 9714 Tenth Ave. No., Mpls., MN 55441 • Ph: 763.544.3164 • www.bannerengineering.com • Email: [e-mail]
