Hydraulic Crimping Tool YQK Series
Instruction Manual
Due to continuing improvements, actual product may differ
slightly from the product described herein.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the month and year of
purchase. Keep this manual and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY INFORMATION
In this manual, on the labeling, and all other information provided with this
product:
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.

BaolifengToolsCo.,LTD
www.blftools.com
DANGER indicates a hazardous situation which,
ous injury.
ous injury.
if not avoided, will result in death or seri
WARNING indicates a hazardous situation which,
if not avoided, could result in death or seri
CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.

GENERAL SAFETY RULE
TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS IMPERATIVE TO READ CAREFULLY
THE DIRECTIONS FOR USE AND TO FOLLOW THE INSTRUCTIONS IT CONTAINS. IF YOU DO NOT
RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION MANUAL THE WARRANTY WILL
BE CANCELLED.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. This tool is not insulated; please do not use it on live conductor.
c. Keep children and bystander away while operating the hydraulic crimping tool. Distractions will cause
you to lose control.
d. Please do not use or store this tool under high temperature, or one surrounding filling with corrosive
fluid. Pay attention to the sealing kits becoming aging.
2. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the
tool while you are tired or still under the influence of drugs, alcohol or medication. A moment of
inattention may result in series personal injury.
b. Use safety equipment. Always use safety equipment such as mask, helmet, safety cap, insulating shoes
and etc to reduce the risk of personal injury.
c. Please use the tool properly, the tool with correct power will do the job better and safer at the rate for
which it was designed.
d. Do not put your fingers in the head of the hydraulic crimping tool during operating. Your fingers could
be pinched very severely.
3. Service
Have your Hydraulic Crimping Tool serviced by a qualified service technician using only identical

BaolifengToolsCo.,LTD
www.blftools.com
replacement parts. This will ensure that the safety of the Hydraulic Crimping Tool Kit is maintained.
Hydraulic Crimping Tool YQK Series
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the tool which carry important safety information. If unreadable or
missing, contact the agent to replace.
2. This product is not a toy, keep it out of reach of children.
3. Do not slide your fingers in the dies profile.
4. Do not put your fingers in the head of the hydraulic crimping tool when you slide the dies inside it. Your
fingers could be pinched very severely.
5. Do not use the tool without die.
6. Do not crimp on live cables or conductors
7. Do only crimp cooper or Al conducting material
8. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator.

SAVE THIS INSTRUCTIONS
UNDERSTAND YOUR TOOL of Hydraulic Crimping Tool YQK Series
YQK series are the tools for connecting lugs and cable. It carries many advantages of good design, easy operation,
high pressure, high efficiency etc. They are the perfect tool to be used in electric construction site.
1．Specification
Item YQK-240 YQK-300
Crimping range: Cu 16-240mm2Cu 16-300mm2
Crimping force: 100KN 100KN
Crimping type: hexagon crimping hexagon crimping
Stroke: 22mm 22mm
Length: approx 480mm approx 500mm
Weight: approx3.60kg approx3.60kg
Package: plastic box plastic box
Weight of box: approx1.20kg approx1.20kg
Accessories
crimping die 16.25.35.50.70.95.120.150.185.240
mm2
16.25.35.50.70.95.120.150.185.240.
300 mm2
Sealing O-ring: one set one set


BaolifengToolsCo.,LTD
www.blftools.com
Hydraulic Crimping Tool YQK Series


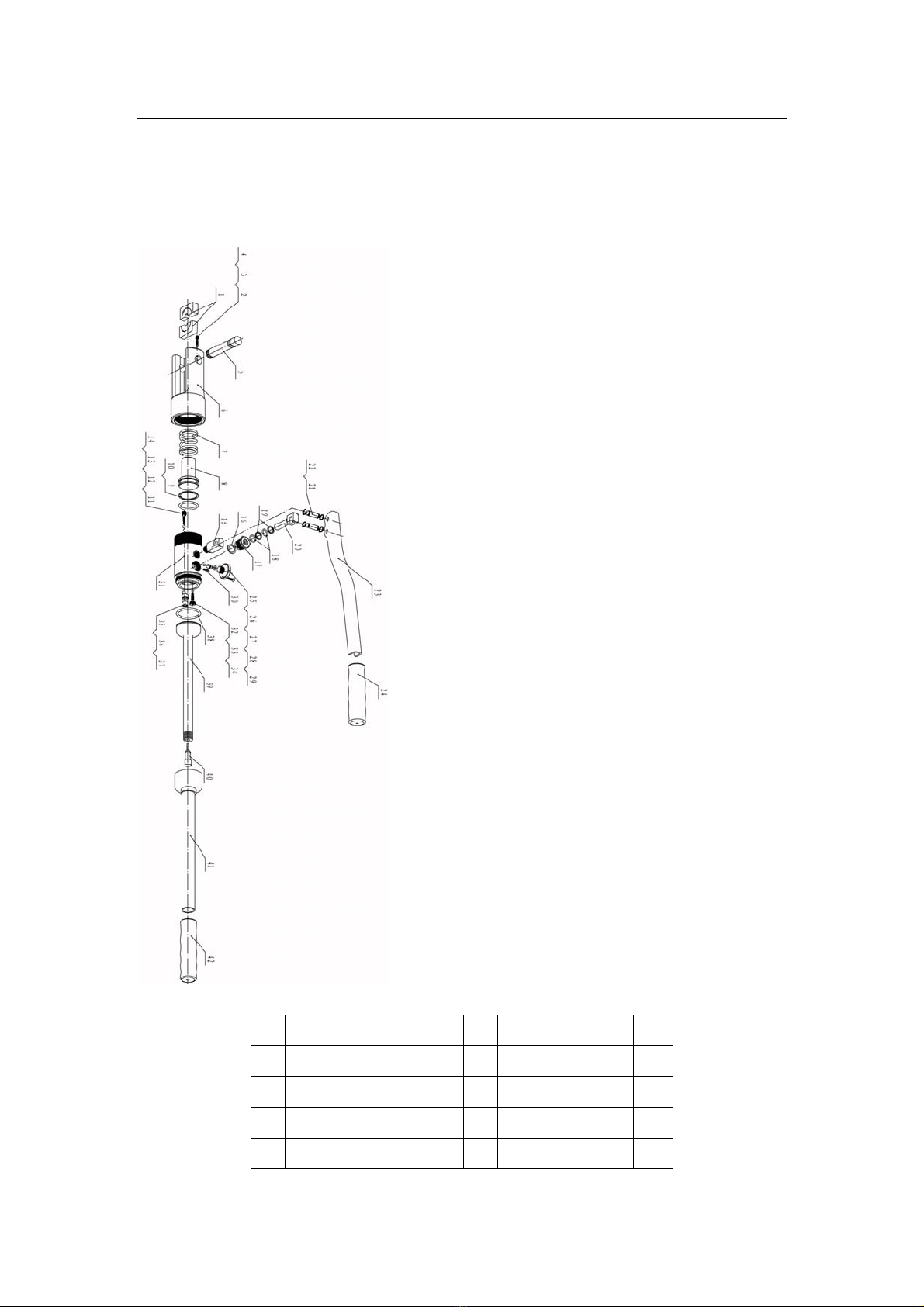

Parts list


No Description Qty No Description Qty
1 die 1 set 22 A type retainer ring 4
2 bolt 1 23 active handle 1
3 spring 1 24 handle cover 1
4 pin 1 25 H type bolt M3x10 1

BaolifengToolsCo.,LTD
www.blftools.com
5 latch 1 26 screw 1
6 head 1 27 O-ring 4x2 1
7 Piston spring 1 28 plunger 1
8 piston 1 29 steel ball C5 1
9 plastic retainer ring 1 30 Pin 3x10 1
10 O-ring 1 31 cylinder 1
11 steel ball C4 1 32 valve 1
12 steel ball C6 1 33 Conical spring 1
13 spring 1 34 steel ball C4 1
14 valve 1 35 Oil cup 1
15 stander 1 36 fliter sieve 1
16 copper gasket 1 37 plastic retainer ring 1
17 bolt 1 38 O-ring 29.8x3.1 1
18 O-ring 10x2 2 39 oil sac 1
19 plastic retainer ring 2 40 Plug cock 1
20 plunger 1 41 fixed handle 1
21 pin 1 42 handle cover 1

2．Description of the components.

Code Name Function
1 Latch for fixing upper die
2 Die for crimping, interchangeable crimping
die
3 Down die holder for fixing down die
4 Screw for releasing pressure and retracting
piston
5 Active handle for operating
6 Fixed handle for storing oil

BaolifengToolsCo.,LTD
www.blftools.com

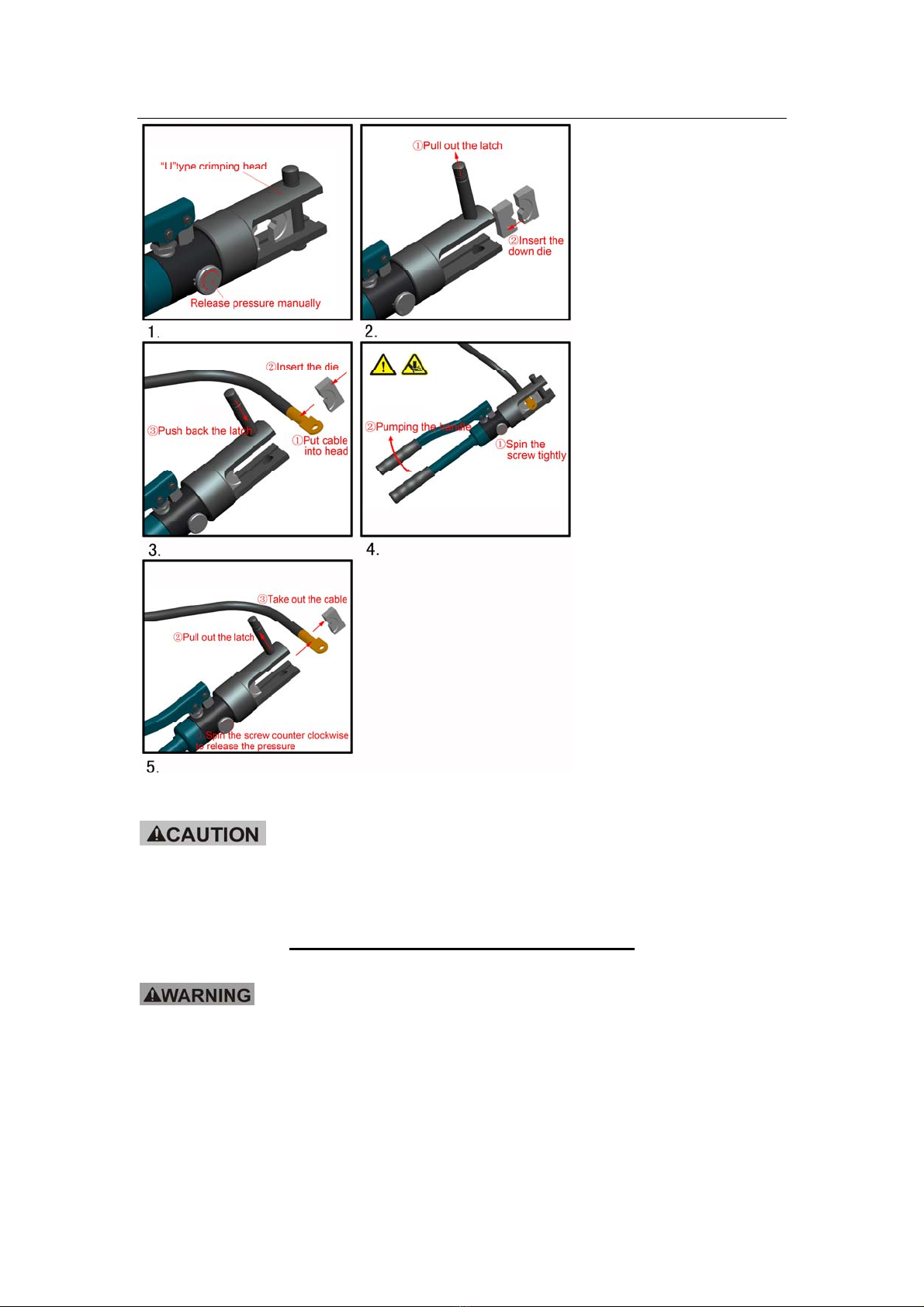

OPERATING INSTRUCTIONS.
Read the entire SAFETY INFORMATION section at the beginning of this manual including all text under
subheadings therein before using this product.


Please do not knock any parts of the tool, otherwise it is dangerous for operator.
1. Select the appropriate die set. Ask an authorized facility or distributor to choose proper compression die set
for the connector and cable being used.
Don’t operate the tool without dies.
2. Insert the upper and down crimping die to match the die holder when both die halves are in place.
3. Make sure both dies halves are secured before operating the tool.
4. Fully insert the cable into the barrel of the connector.
5. Place the connector between the dies, Pump the handle until reach to the maximum pressure, then spin the
screw to release the pressure manually.
6. The piston will retract, take out the connector, the tool is ready for its next cycle.


Do not put your fingers into the head of the tool during operating. Your fingers could be pinched very
severely.

BaolifengToolsCo.,LTD
www.blftools.com

The tool is not insulated, please do not use it on the live conductor to avoid injury occurring.
MAINTENANCE AND SERVICING
Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise
or vibration occurs, have the problem corrected before further using.
1. Before each using, inspect the general condition of the tool. Check for loose screws, misalignment or binding
of moving parts, cracked or broken parts, or any other condition that may affect its safe operation.
2. After using, clean external surfaces of the tool with clean, moist, smear the rust preventing oil on the metal
surface of the tool and the dies to avoid rusty. Store the tool in the dry environment.

BaolifengToolsCo.,LTD
www.blftools.com
3. Service to the tool should only be done by a qualified Service Technician.
4. After a long time using, the sealing kits will be damaged, if there is leakage please contact with the
manufacturer and/or the distributor to change the sealing kits.
How to change the oil.

