Introduction
Welcome to your new BAOTIAN BT49QT-12 (Tanco), which has been developed by BAOTIAN
OTORCYCLE INDUSTRIAL CO. LTD. We hope you enjoy your new Baotian BT49QT-12 (Tanco).
This owner’s handbook contains information necessary:
• to enable you to get to know your Baotian BT49QT-12 (Tanco), to use it to the best advantage and to
benefit from all the latest developments which it incorporates.
• to ensure that it always give the best performance by following the simple, but strict, advice concerning
regular maintenance.
• to enable you to deal quickly with minor faults not requiring specialist attention.
It is well worth taking a few minutes to read this handbook to familiarise yourself with the information and
guidelines it contains about the BT49QT-12 (Tanco) and its features. If certain points are still unclear, the
technicians at your local Baotian dealer will be only too pleased to provide you with any additional information
you require.
I PORTANT
Please make sure that an initial inspection is conducted after the first 300 km
and thereafter in accordance with service schedule.
This motorcycle has been designed and manufactured in full compliance with EU Safety Standards.
The maximum speed is 45km/h. Do not change any parts without professional advice.

CONTENTS
Guidance............................................................................................................................................................1
Position of parts .................................................................................................................................................3
Controlling parts.................................................................................................................................................4
Fuel tank ............................................................................................................................................................6
Fuel and engine oil ............................................................................................................................................6
Starting pedal.....................................................................................................................................................6
Pre-riding inspection ..........................................................................................................................................7
Engine starting .................................................................................................................................................. 8
Running-in..........................................................................................................................................................9
Regular maintenance.......................................................................................................................................10
Technical Parameters .....................................................................................................................................15
Electrical Circuit Chart .....................................................................................................................................17

1
1. Pre-riding inspection
Please read the details in the relevant chapter for
your safety.
2. Helmet
Do wear a helmet at all times while riding the
motorcycle.
3. Being familiar with motorcycle operation
It is of great importance to ensure your safety at
all times, especially whilst becoming familiar with
your motorcycle .
4. Speed limitation
Drive at appropriate speed for the road
conditions, the weather and your driving skill.
Guidance
Please keep safety in mind and observe the regulations of transportation while enjoying your ride.
Pay attention to the following rules:
I PORTANT
It is dangerous to drive on wet roads.
Do not make any abrupt turning while
accelerating and keep a safe distance from
other vehicles on the road.

5. Positions of the numbers
When your motorcycle needs to be inspected,
repaired or undertake any service, these
numbers will assist your Baotian Dealer when
servicing your motorcycle. Please note down
your numbers here:
The frame number: ................................................
The engine number: .............................................
2

3
1 Front signal light
2 Left front turning light
3 Head light
4 Rear brake lever
5 Rear-view mirrors
6 Left switches
7 Seat lock
8 Left rear turning light
9 Starting pedal
10 Muffler
11 Right rear turning light
12 Rear light
14 Main stand
15 Helmet hook
16 Throttle control lever
17 Meters
18 Light switches
19 Front brake lever
20 Ignition switch
21 Right front turning light
22 Brake assembly
23 Brake disc
24 Hand hold

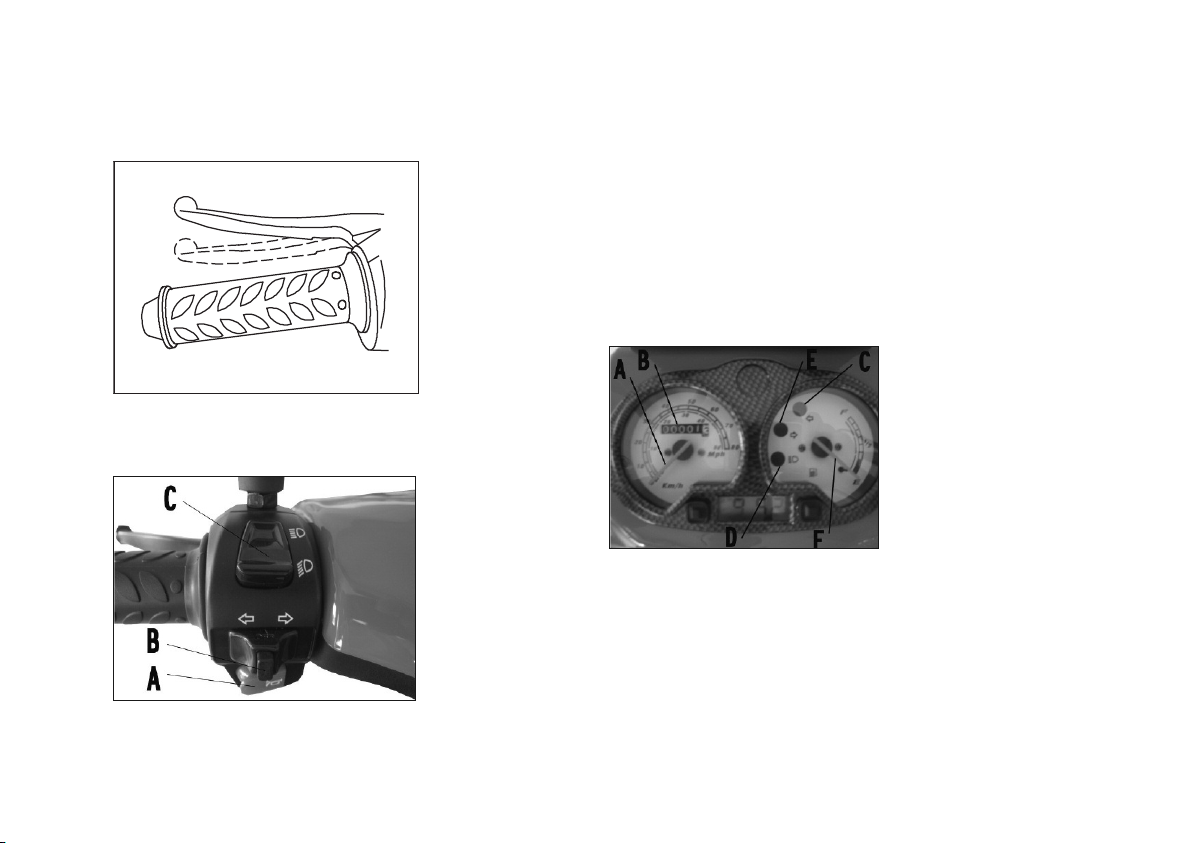

1. Rear brake lever
Hold it tight and the rear brake works
2. Switches on the left handle
A. Horn button
B. Turning signal switch
Left turning light
right turning light
C. Switch for high/low beam lights
3. eters and indicating lights
A. Indicates the speed in m/h and Mph
B. Indicates total distance the motorcycle has run
C. Left turning light indicator
D. High beam indicator
E. Right turning light indicator
F. Fuel gauge
➯
➯
4

4. Front brake lever
Press it tightly and the front brake works.
5. Switches on the right
A. Head light switch
B. Electric starting button
C. Off switch
When the ignition switch is at ON position, hold
the brake and press the electric starting button
and then the engine starts.
6. Ignition switch
ON Engine can be started and all the lights can
be operated. The key cannot be taken out.
OFF The whole circuit is cut. Engine and lights
cannot be operated and the key can be
taken out.
LOCK Turn the steering handle fully to the left,
slightly press the key and turn it to the
position lock . Then the key can be taken
out.
5
---ON
---OFF
---LOCK

15w/40-15w/50
10w/40
10w/30
-10 010 20 30 40 C
20 40 60 80 100 F
T
20w/40-20w/50
Fuel tank

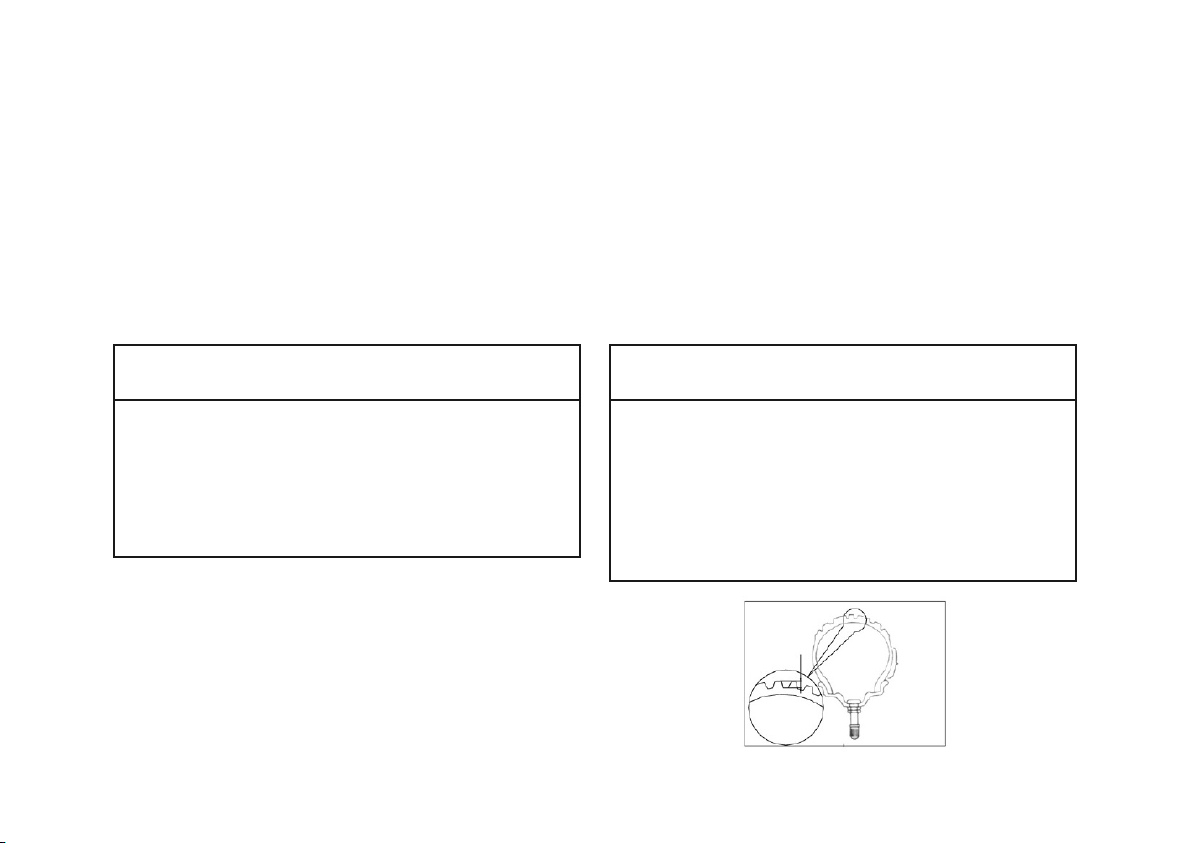

Usage of the fuel tank lock:
1. Turn the little cap on the fuel cap clockwise.
Insert the key and turn the key clockwise and
take out the fuel cap.
2. Align the lock tongue on fuel cap with the notch on
fuel tank, press the fuel cap and lock it.
6
Warning:
◆Turn off the engine when refilling the tank.
◆Turn off the cap slowly.
◆Don’t overfill the fuel over the designated scale
◆Do not add anything into the petrol.
Fuel and engine oil
A. Petrol
Ensure unleaded petrol is used at all times.7
B. Engine oil
SAE-15w/40 SF
Starting lever
Starting lever is for kick starting the engine.

Pre-riding inspection
Please check the following parts before you drive.
7
No. Items Inspection content
1 Steering handle bar 1.Flexibility. 2. No gap or loose appearance
2 Brake system 1.Travel of the front brake and the rear brake. 2. No damage to the cable
2. Flexible function
3 Tyres 1. Correct pressure. 2. No splits in rubber
4 Fuel Sufficient fuel
5 Engine oil Sufficient engine oil
6 Lights Workable
7 Horn Workable
8 Gear oil Sufficient oil
9 Throttle 1. Proper gap 2. Flexible function 3. Smooth throttle control function.
10 All the bolts and nuts Not loose.
