Baotian BT49QT-7 User manual

BAOTIAN SVERIGE AB

BAOTIAN SVERIGE AB
1
Preface
Thank you very much for purchasing ‘BAOTIAN’ brand motorcycle of model BT49QT-7, which developed by BAOTIAN
MOTORCYCLE INDUSTRIAL CO., LTD.And welcome to join the driver’s line of BAOTIAN motorcycle.
With its extraordinary advantages of excellent quality, smart appearance and shape of legerity, our product will surely
bring the utmost pleasure andconvenience to your life.
This manual gives you information about the general structure, function, operation and maintenance methods of
BT49QT-7. In order to enable your beloved motorcycle to render a best performance and a longer life, please read this
manual carefully, pay particular attention to the running-in part in it and follow all the operating instruction. It is of great
importance to make your riding safer and more comfortable. Experienced staffs in our sale agency and the maintenance
shop will also offer excellent service for you.
●Please take an initial examination of your motorcycle after the first 300km running in our designated maintenance
shop, and take regular examination in every 1000km thereafter.
●All the direction, illustration and specification included in this manual are based on the latest product information.
Please be noted that they may be different from the actual status of the motorcycle if there is new revision on its
specification, and no further advice will be given.
●This motorcycle was designed and manufactured which complied with e-mark, the safety standard of Europe Union,
the maximum speed is 45 km/h. Please do NOT change any parts without professional advice and use non-original
parts in case of avoidingdanger to driver and the broken of traffic laws.

BAOTIAN SVERIGE AB
2
CONTENTS
Guidance …………………………………………………………………………………………… 3
Names of parts ……………………………………………………………………………………… 5
Controlling parts …………………………………………………………………………………… 6
Starting lever ……………………………………………………………………………………… 8
Fueltank …………………………………………………………………………………….. 8
Fuel and engine oil …………………………………………………………………………………… 8
Pre-riding inspection ………………………………………………………………………………… 9
Engine starting ……………………………………………………………………………………… 10
Running-in ……………………………………………………………………………………….11
Regular maintenance ………………………………………………………………………………….12
Tools …………………………………………………………………………………………….18
Technical Parameters ……………………………………………………………………………….19
Electrical Circuit Chart ………………………………………………………………………………… 21

BAOTIAN SVERIGE AB
3
Guidance
Please keep safety in your mind and observe the regulationsof transportation while enjoying your riding. Pay attention to
the following rules:
1. Pre-riding inspection
Please read the details in the relevant chapterfor your safety.
2. Helmet
Do remember to wearhelmet while riding.
3. Being familiar with motorcycle operation
It is of great importanceto ensure your safety getting familiar
with motorcycle operation.
4. Speed limitation
Drive at proper speed inaccordance with the road condition,
the weather and your driving skill.
5. Position of the label
WARNING
It is dangerous to driveon the wet road. Do
not make an abrupt turning while
accelerating and keep proper distance
from other vehicles.

BAOTIAN SVERIGE AB
4
139QMB
¡îX XXXXXXXX¡î
G
U
O
C
H
IM
O
TO
R
C
YC
LEIN
D
U
S
T
R
IA
LC
o.,LT
D
e4*2002/24*abcd
80dB(A)-3750r/m
in
¡îLZP
TC
AP
7443000268¡î
6. Positions of the numbers
The frame number and the engine number are
for the purpose of registering the motorcycle. When
your motorcycle needs inspection, repair or other
special service, the number will enable you to get
good service from oursale agency. Please note
.down your number here:
□Theframenumber:
□Theenginenumber:

BAOTIAN SVERIGE AB
5

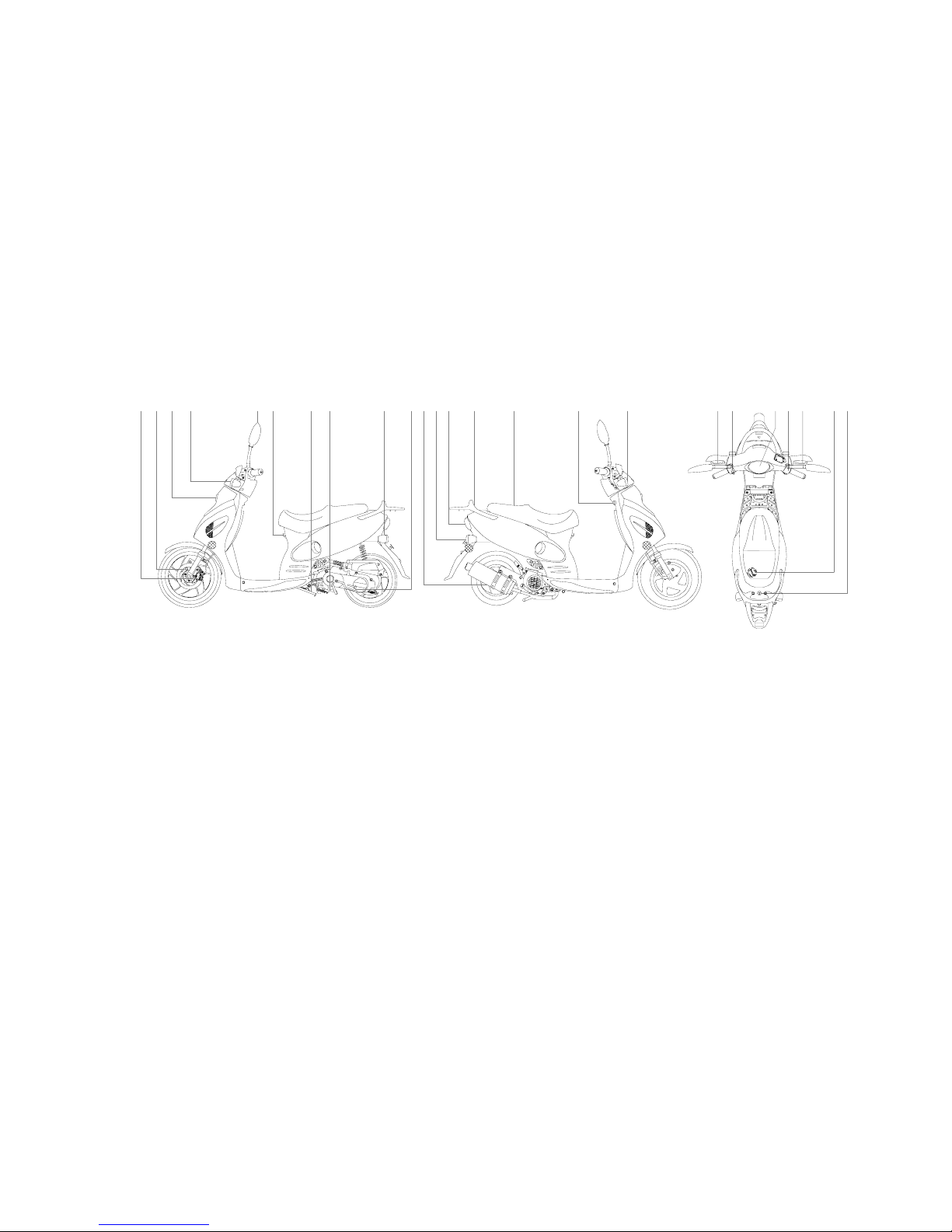

Names of parts
1 2 3 4 5 6 7 8 9 10111213 14 15 16 17 18 19 20 2122 23 24
BTAOTI AN
(1) brake assy.
(2) brake Disk
(3) Head light & front signallight
(4) Left front turning light
(5) Rear-view mirrors
(6) Helmet hook
(7) Prop stand
(8) Center stand
(9) Left rear turning light
(10) Starting pedal
(11) Muffler
(12) Right rear turning light
(13) Rear signal light & rear light
(14) hand-hold
(15) Seat
(16) Ignition switch
(17) Right front turning light
(18) Rear brake lever
(19) left switches
(20) Meters
(21) light switches
(22) Front brake lever
(23) Fuel tank cap
(24) Seat lock

BAOTIAN SVERIGE AB
6
Controlling parts
1. Rear brake lever
Hold it tight and the rear brake functions
2. Switches on the left handle
A
B
C
A. Horn button
B. Turning signal switch
3. Meters and indicating lights
0
10
20
30
40
50
60
70
80
Km/h
Mph
0
10
20 30
40
50
ABD
CEF
00000
A. Left turning lights indicator
B. High beam indicator
C. Right turning lights indicator
D. Speedometer indicates thespeed in km/ hour
E. Odometer indicates the total distance the motor-
cycle has run
F.Fuel gauge.
Right turning light
Left turning light
C. Switch for high/low beamlights

BAOTIAN SVERIGE AB
7
U
S
H
P
L
O
C
K
4. Front brake lever
Press it tightly and the front brake functions.
5. Switches on the right handle
A
B
A.Head light switch
B. Ignition button
When the ignition switch is at ON position, hold
the brake and push the button and then the
engine works.
6. Ignition switch
OFF The whole circuit is cut. Engine and lights
cannot be operated and the key can be
withdrawn.
ON Engine cannot be started and all the lights
can be operated. The key cannot be
withdrawn.
LOCK Turn the steering handle fully to the left,
slightly press the key and turn it to the
position lock . Then the key can be taken
out.

BAOTIAN SVERIGE AB
8
Warning
¢Ù
15w/40-15w/50
10w/40
10w/30
-10 010 20 30 40C¡ã
20 40 60 80 100¡ãF
T
20w/40-20w/50

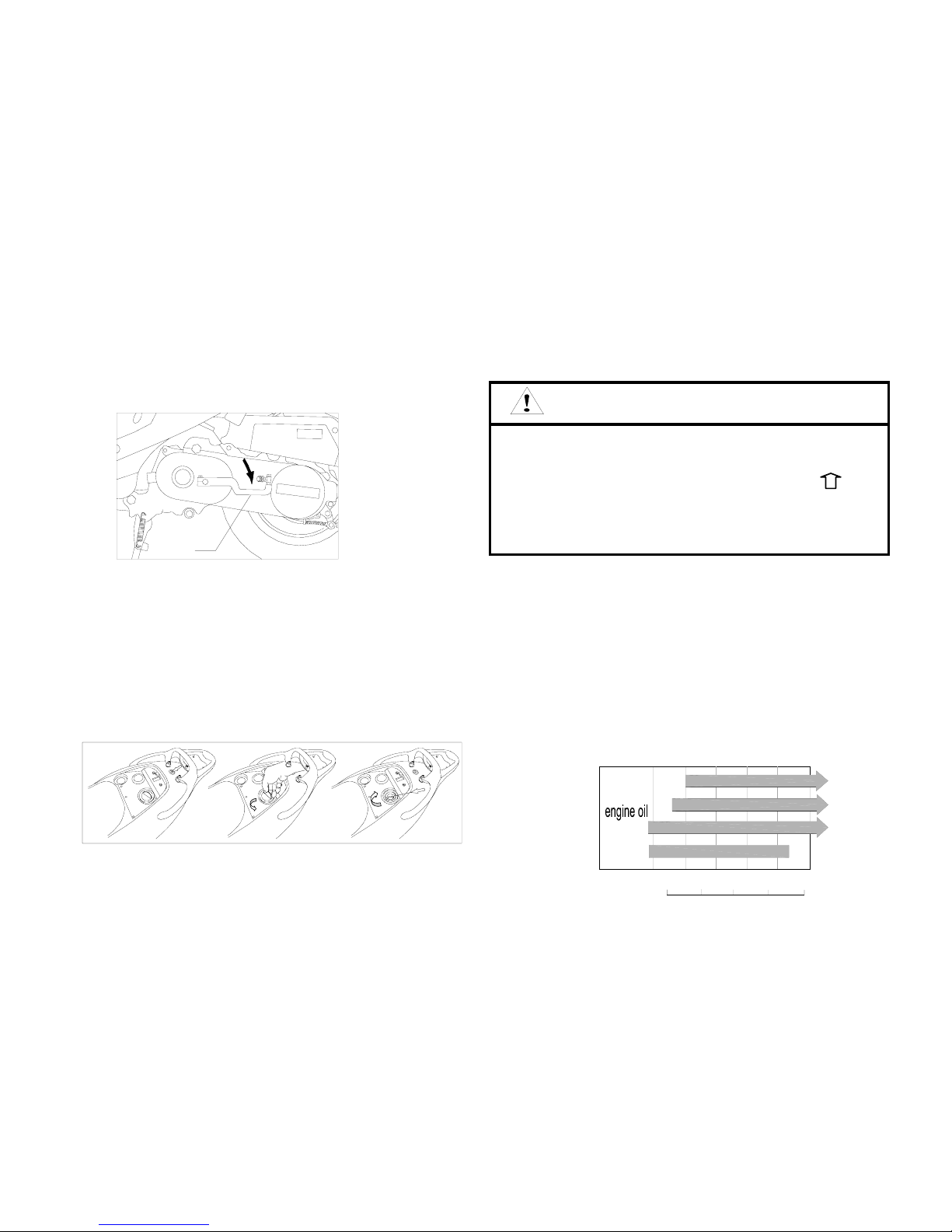

Starting lever
Starting lever is for kicking start of the engine.
Fuel tank
Usage of the cap:
1.Insert the key and open the seat.
2.Turn the cap unclockwise and take off it.
3.Fix the notch, turn the cap clockwise, you can
tighten it.
`
Fuel and engine oil
A. Gasoline
High-quality fuel is essential to the engine.
Any sand in the fuel is absolutely prohibited.
93# gasoline and unleaded gasoline is preferred.
B. Engine oil
SAE-15w/40#
Turn of
f
the engine when refilling the tank.
Turn off the cap slowly.
Align the mark “” on the cap to the mark “ ”
on the tank.
Don’t overfill the gasoline over the designated scale
Do not add an
y
thin
g
into the
g
asoline.

BAOTIAN SVERIGE AB
9
Pre-riding inspection
Please check the following parts before you drive.
No. Items Inspection content
1 Steering bar 1.Flexibility 2.No gap or loosing appearance
2 Brake system 1.Interval between front brake and rear brake 2.No break on the cable
3.Flexible function
3 Tires 1.Proper pressure 2.No crack or cutting
4 Fuel Sufficientfuel
5 Engine oil Sufficient engine oil
6 Lights Workable
7 Horn Workable
8 Gear oil With normal stock
9 Throttle 1. Proper gap 2.Flexible function 3.Proper control lever returning
10 All the bolts and nuts No loosing appearance.

BAOTIAN SVERIGE AB
10

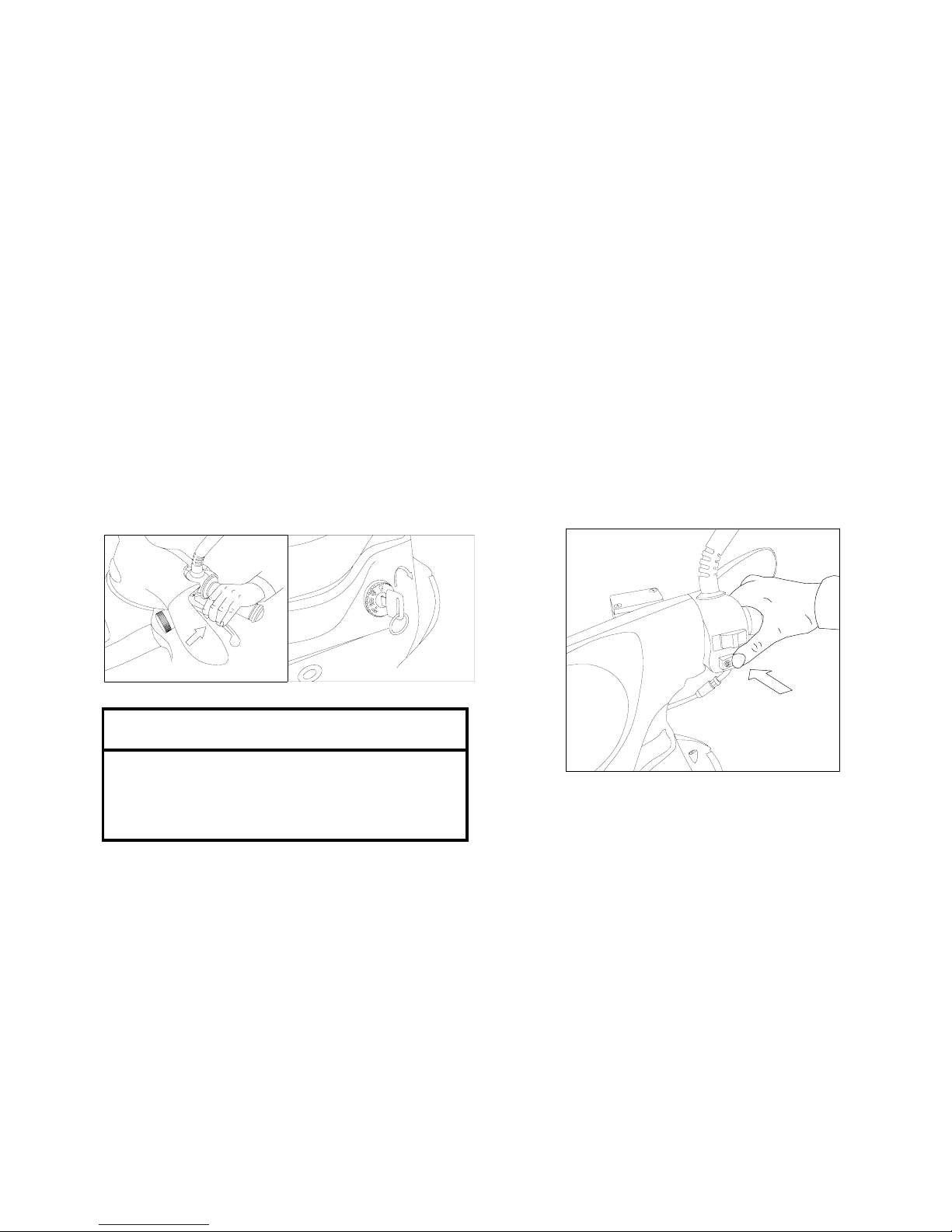

Engine starting
1. Please check the volume of machine oil and
gasoline before starting. The main stand should
be stood up while starting the engine.
2. Turn the ignition switch to the “ON” position.
¢ÙPr ess t he r ear br ake l ever ¢ Ú"ON" p o s i t i o n
3 . Engine Starting
Push the starting button and then the engine
starts.
Press the rear brake lever in case that the
motorcycle rushes forwards abruptly.
Warning

BAOTIAN SVERIGE AB
11
4.Kick Starting
Press the brake handle, tread the starting grip
heavily and then the engine will start.
Running in
To maintain your motorcycle running in a good
condition, please follow the below rules during the
new running-in period.
Distance(km) Speed limitation (km/h)
0-200 25
200-1000 35
1000----- ≤45
5 seconds is the maximum limit for each startingg
and10 seconds is the minimuminterval.
Stop pressing the starting button immediately
after the engine starts.
Do not press the starting button while the engine
is running , or the startmotor will be damaged.
When using electric starting, please press the
rear brake lever in advance to get through the
circuit and s tart the motor.
When using electric starting, don’t operate the
starting motor continually, or it may cause
damage to the starting motor and the battery.
Warm up the engine after cold starting,(about 3
minutes).
Warning

A
fter the engine starts, the starting grip should
be turned to its original position. Otherwise, it
will affect the driver’s safety.
Please don’t start the engine in malventilated
places because the wasted gas with CO is
harmful to human beings.
Warning

BAOTIAN SVERIGE AB
12
Regular maintenance
Km 300 1000 3000 6000 12000
Interval
Item Month New motor 1 3 6 12
Battery I I I I I
Nuts on tank cap and exhausting tub* I F F f F
Cylinder cap, cylinder and muffler* -- C C C C
Carburetor I I -- -- I
Air cleaner Clean it between every 2000km
Spark plug I -- I
Fuel line Replace every four years
Clutch * -- -- -- I I
V-strap -- -- -- I I
Engine oil R R Replace every 3000km
Brake * I I I I I
Front fork and steering* I I -- I I
Rear suspension I I -- I I
Tires I I I I I
Fastening nuts and bolts I F -- F F
Gear oil R Replace every 5000km / 5Month
Start motor -- -- -- -- I
NOTE: I=Inspect and cleanadjustreplace or lubricate as necessaryC=Clear, R=Replace, F=fastened
Service more frequently when riding in dusty areas.

BAOTIAN SVERIGE AB
13

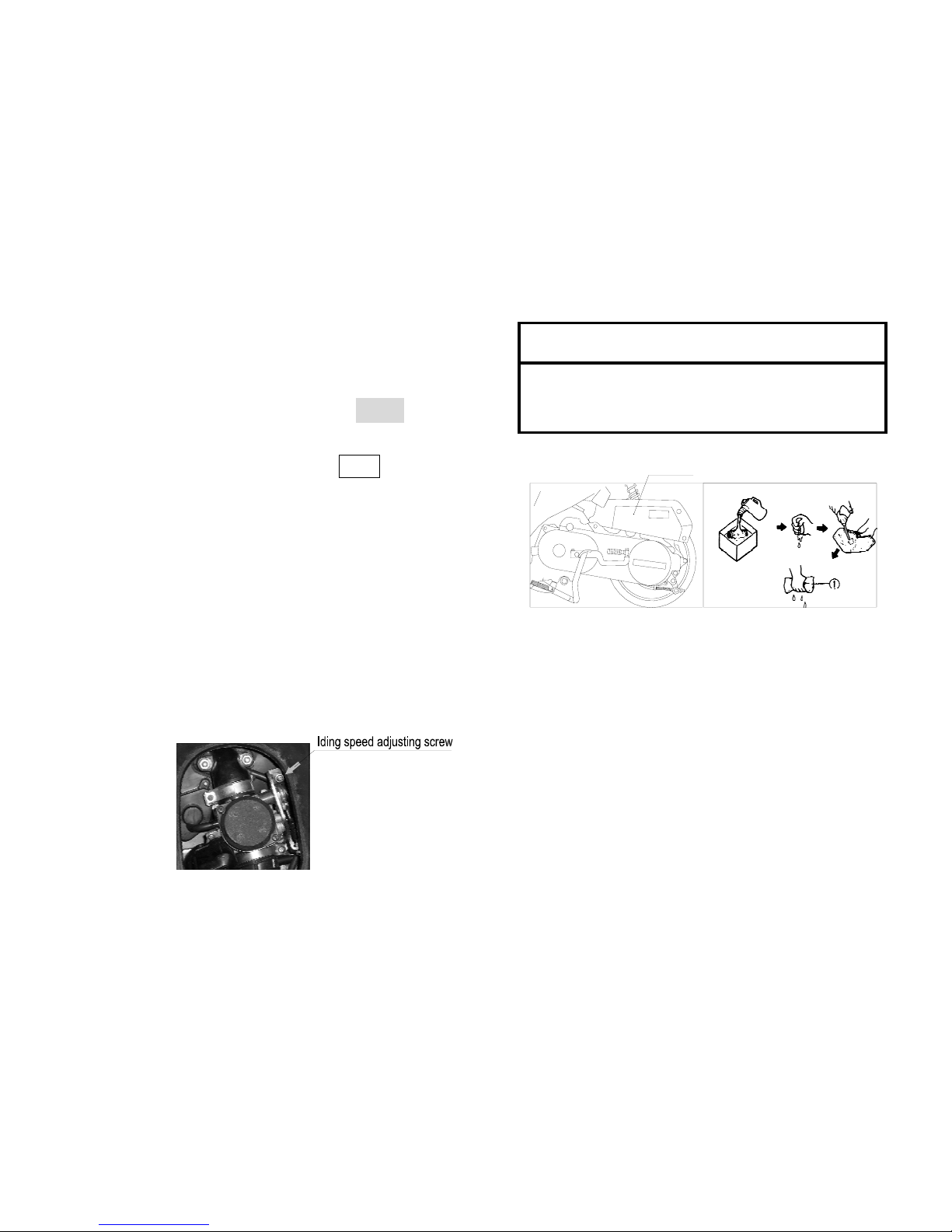

Air-cleaner
1. Battery
12V/5Ah battery
When the voltage is less than 11.5V, please
use kicking start in stead of electric starting
Place the ignition switch to OFF position
before battery replacement.
Electrode identification: “+”—red line,
“-”—black line.
Change a new battery every 4 years.
2. Carburetor and idle speed adjustment
Keep the engine warmed up for 2-3 minutes.
 Adjust the idling speed screw to set the engine
at speed lf abort 1800 rpm. The idle speed
adjusting screw.
3.Air cleaner
Pour the non-inflammable detergent into a
basin and immerse the core of air cleaner Into
the detergent for cleaning.
Press the core to squeeze the detergent out of
it by the palms.
Never twist it in case that it is broken.
Immerse the core into engine oil.
Squeeze the excessive oil out but keep it lightly
oil immersed
Warning
It has been fully adjusted to the highest position
when manufactured.

BAOTIAN SVERIGE AB
14
TOP
LOW
4. Spark plug
Clean the carbon deposit on the spark plug with
a piece of hard wire or steel needle.
Adjust the gap to 0.6-0.7mm with a thickness
gauge.
Use (NGK) C7HSA when replacement is
needed.
5.Fuel
Refill the recommended unleaded gasoline with
an octane number of 93# or higher when the
indicating needle points to the red area in the fuel
gauge.
NOTE: Unleaded gasoline will extend spark plug
and catalytic converter life.
6.Engine oil
Replace the engine oil with the engine warmed up.
Remove the oil dipstick.
Remove the oil plug to drain the used oil.
Reinstall the oil plug, paying attention to the
tightness .
Refill 0.8 Lrecommended fresh oil
Fasten all the nuts and screws.

BAOTIAN SVERIGE AB
15
7.Brake system
Normal free stroke of the brake lever is about
10-20mm.
The front brake
a
a=10~20mm
The rear brake
Turn the adjusting nut to get a proper stroke.
FREE STROKE means the distance between
the positions from free status to the beginning
performance of the brake.
Pay attention to the sensitivity of the brake.
Warning

BAOTIAN SVERIGE AB
16
¢
ÙMinimum leverl
Front brake
Grip the brake handle and check the wear & tear
indicator . If the indicator nearly touched the brake
disk, please ask the appointed maintainer to
change the brake shoes
Check the following items of brake system before
driving the motorcycle:
Check if there is any leakage ;
Check if there is any leakage or crack on the
oil pressed hose;
The brake handlebar should be kept with a
certain free swing distance from 1020mm,
and kept a certain re-grip power;
Abrasion situation of the brake shoes.

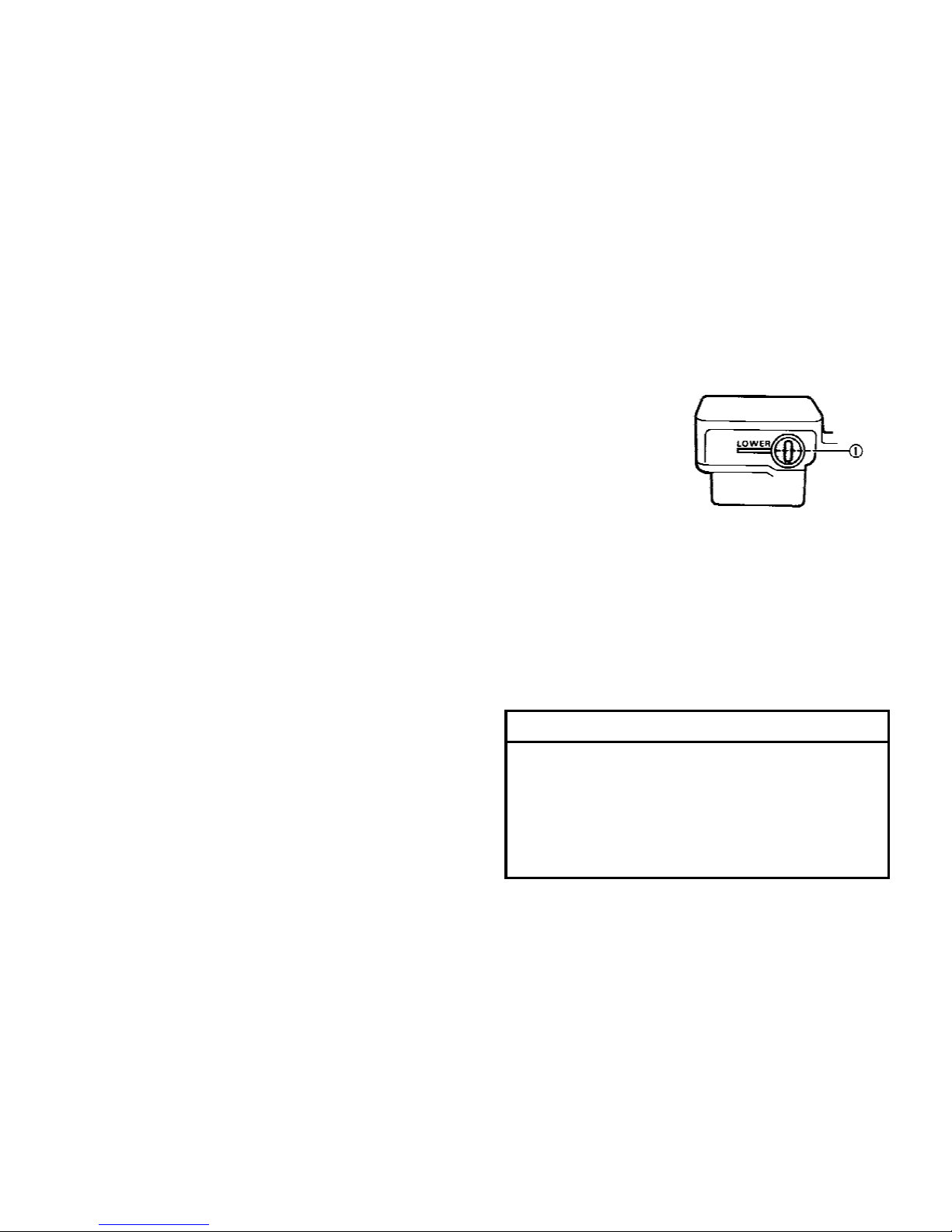

Brake oil level
It has been filled
with the special
brake oil before the
motorcycle leaves
the factory. User
should fill or change
the qualified brake oil (such as No.DOT3 & DOT4
brake oil) from the appointed maintenance station.
Never change or mix other oil, otherwise it would
damage the brake system.
If the brake oil is insufficient, it might be possible
for the air to come into the brake system, and
result in the failure of the system
W
arn
i
n
g
Brake oil is corrosive material .It would
damage and corrupt the painting of the part .
It should be cleanout if the oil splash on the
part .If the oil sprayed on the skin or eyes ,it
should be cleaning quickly with a lot of water.

BAOTIAN SVERIGE AB
17
1mm
8.Tires
Insufficient tire pressure hastens wear of them
and affects the riding stability. Please check the
tire pressure and tread depth when applying
regular maintenance.
Tire pressure: front 250 KPa ,rear 250 KPa.
Tread depth: It is suggested to replace a new
tire when the tread depth is less than l mm.
9. Starting motor
Check the fastening bolts and the carbon brush,
and replace them if necessary.
10. Fuse
Fuse is linked with the outer line of the battery.
When a light or circuit fails suddenly, check the
fuse first.
The standard tire is 3.5-10-51J for rear and
120/70-12-56J for front. The use of tire other
than standard may cause trouble.
Tire inflation pressures and the general tire
condition are extremely important to the pro-
per performance and safety ofthe vehicle.
Warning:
The fuse cannot be replaced by any iron or
aluminum wire.
Warning:

BAOTIAN SVERIGE AB
18
11.Gear oil
Please use the recommended gear oil:
SE85W/90
Total capacity :110ml
Replacing capacity :100ml

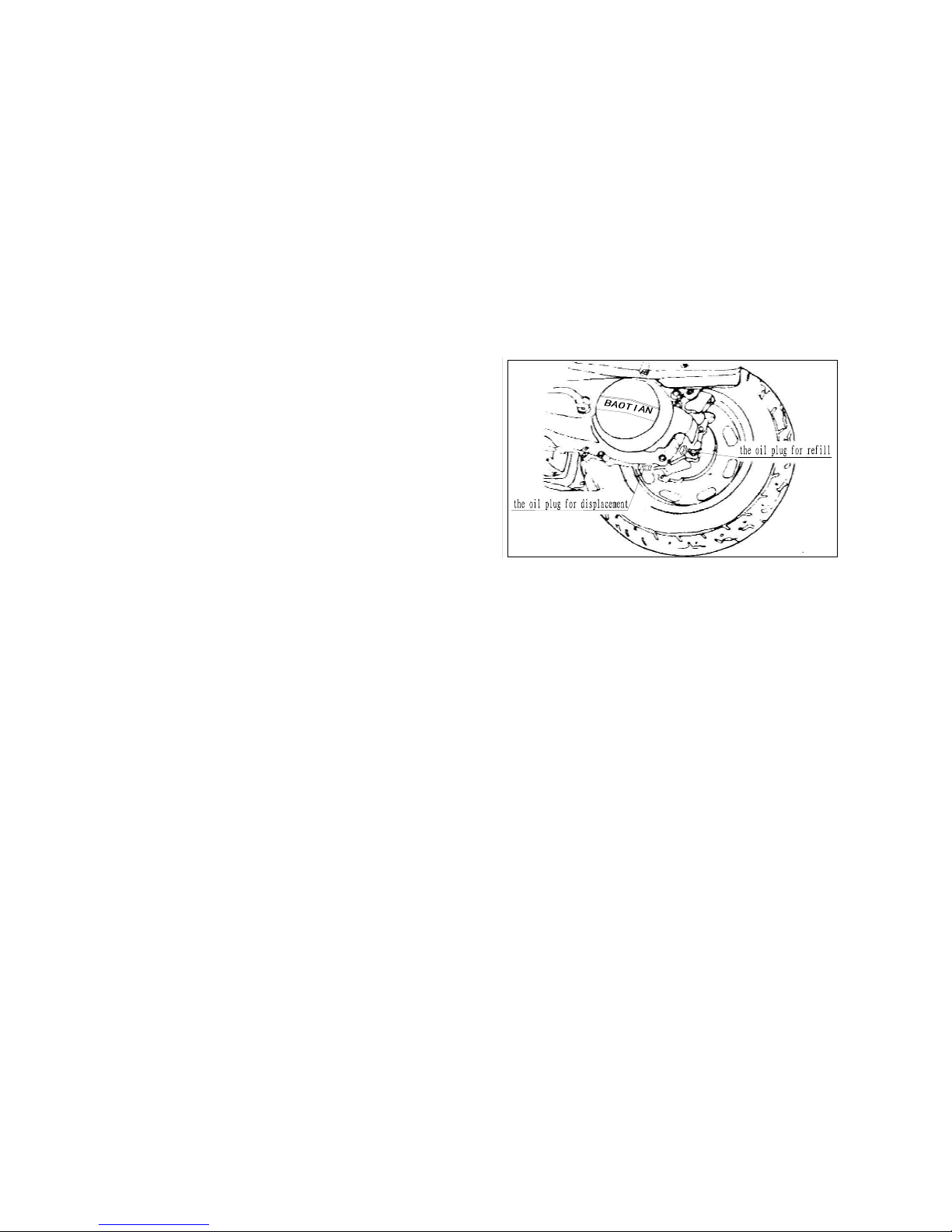

How to change gear oil
zStand the scooter
zTake off the oil plug on the gear oil sprue
zTake off the oil plug for displacement, let off all the
oil
zTightenthe oil plug for displacement
zrefill the oil from gear oil sprue, tighten the oil plug
After refilling
After supplement, please make sure you have locked the
oil plug and check screw
□Tools
Afull set of tools is offered for your daily use.

BAOTIAN SVERIGE AB
19
Technical Parameters
Items Specifications
Size
Length
Width
Height
Wheel base
Min. distance above ground
1895mm
755mm
1045mm
1285mm
80mm
Weight
Unloaded weight
Loaded weight
Mass weight
92kg
95kg
170kg
Capacity
Max. Speed
Min. Speed
Slope
Turning Conner
Diameter of turning Conner
45km/h (e-mark)
≤1.8km/h
≥16.8°
≥25°
≤3200mm
Circuit system
Spark plug
Battery
Fuse
Headlight
Tuning lights
Brake light
Position lights
A7RC
12V/5AH
10A
12V 35W
12V 10W
12V 21W/5W
12V 5W
