Baotian BT49QT-9O3 User manual

BT49QT-9O3
User’s Manual

Preface
Thank you very much for purchasing ‘BAOTIAN’ brand motorcycle of model BT49QT-9O , which developed by
BAOTIAN MOTORCYCLE INDUSTRIAL CO., LTD. And welcome to join the driver’s line of BAOTIAN motorcycle.
With its extraordinary advantages of excellent quality, smart appearance and shape of legerity, our product will surely
bring the utmost pleasure and convenience to your life.
This manual gives you information about the general structure, function, operation and maintenance methods of
BT49QT-9O . In order to enable your beloved motorcycle to render a best performance and a longer life, please read
this manual carefully, pay particular attention to the running-in part in it and follow all the operating instruction. It is of
great importance to make your riding safer and more comfortable. Experienced staffs in our sale agency and the
maintenance shop will also offer excellent service for you.
● Please take an initial examination of your motorcycle after the first 00km running in our designated maintenance
shop, and take regular examination in every 1000km thereafter.
● All the direction, illustration and specification included in this manual are based on the latest product information.
Please be noted that they may be different from the actual status of the motorcycle if there is new revision on its
specification, and no further advice will be given.
● This motorcycle was designed and manufactured which complied with e-mark, the safety standard of Europe Union.
The maximum speed is 45 or 25 or 0km/h. Please do NOT change any parts without professional advice and use
non-original parts in case of avoiding danger to driver and the broken of traffic laws.

CONTENTS
Guidance …………………………………………………………………………………………… 1
Position of parts ……………………………………………………………………………………
Controlling parts ……………………………………………………………………………………… 4
Fuel tank …………………………………………………………………………………………… 6
Fuel and engine oil …………………………………………………………………………………… 6
Starting pedal ………………………………………………………………………………………… 6
Pre-riding inspection ………………………………………………………………………………… 7
Engine starting ……………………………………………………………………………………… 8
Running-in …………………………………………………………………………………………… 9
Regular maintenance ………………………………………………………………………………… 10
Tools ………………………………………………………………………………………………… 16
Technical Parameters ………………………………………………………………………………… 17
Electrical Circuit Chart ………………………………………………………………………………… 19

1
□
□□
□Guidance
Please keep safety in your mind and observe the regulations of transportation while enjoying your riding. Pay attention to
the following rules:
1. Pre-riding in pection
Please read the details in the relevant chapter for your safety.
2. Helmet
Do remember to wear helmet while riding.
3. Being familiar with motorcycle operation
It is of great importance to ensure your safety getting familiar
with motorcycle operation.
4. Speed limitation
Drive at proper speed in accordance with the road condition,
the weather and your driving skill.
WARNING
It is dangerous to drive on the wet road.
Do not make an abrupt turning while
accelerating and keep proper distance
from other vehicles.

2
5. Po ition of the number

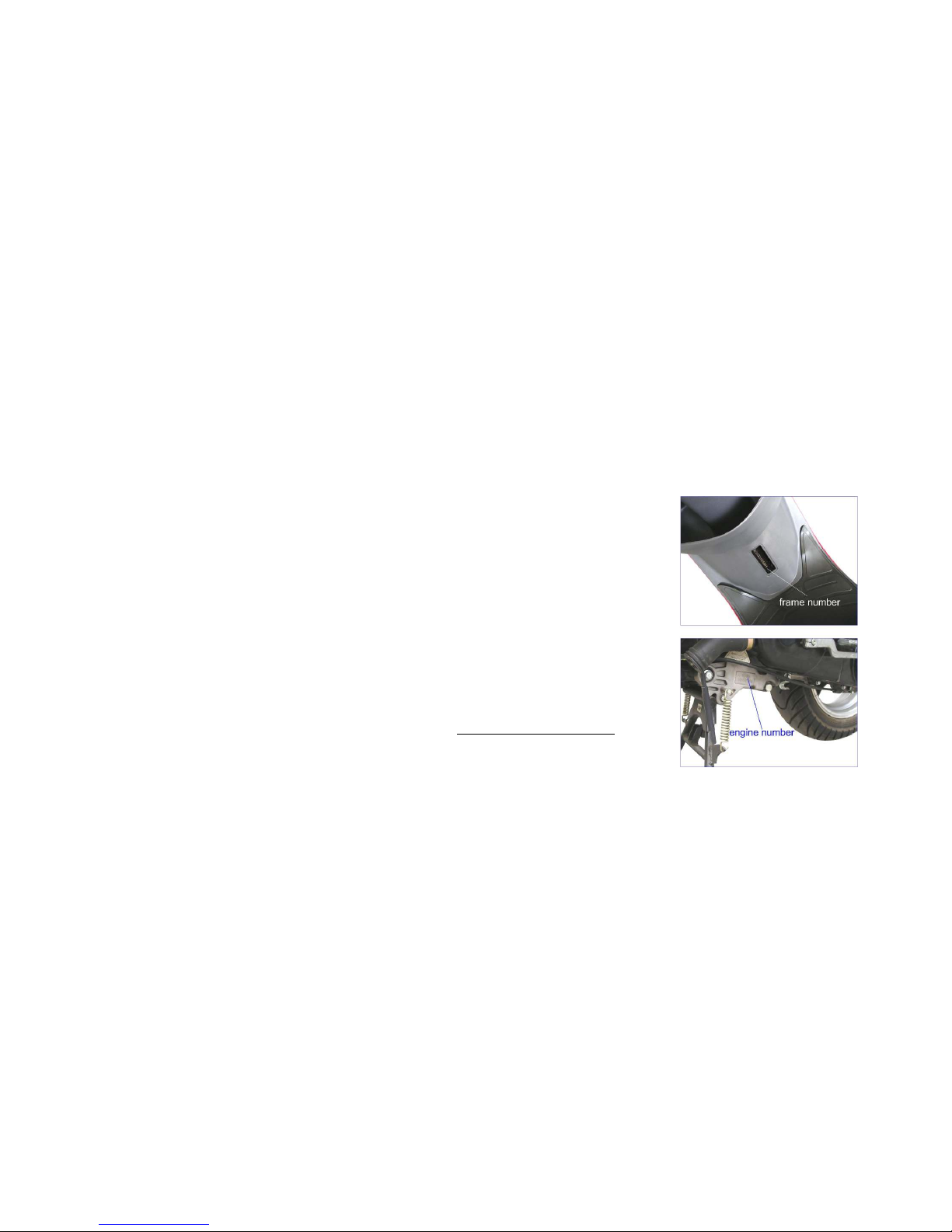

The frame number and the engine number are for the purpose of
registering the motorcycle. When your motorcycle needs
inspection, repair or other special service, the number will enable
you to get good service from our sale agency. Please note down
your number here:
□
□□
□ The frame number:

3
□
□□
□ The engine number:
□
□□

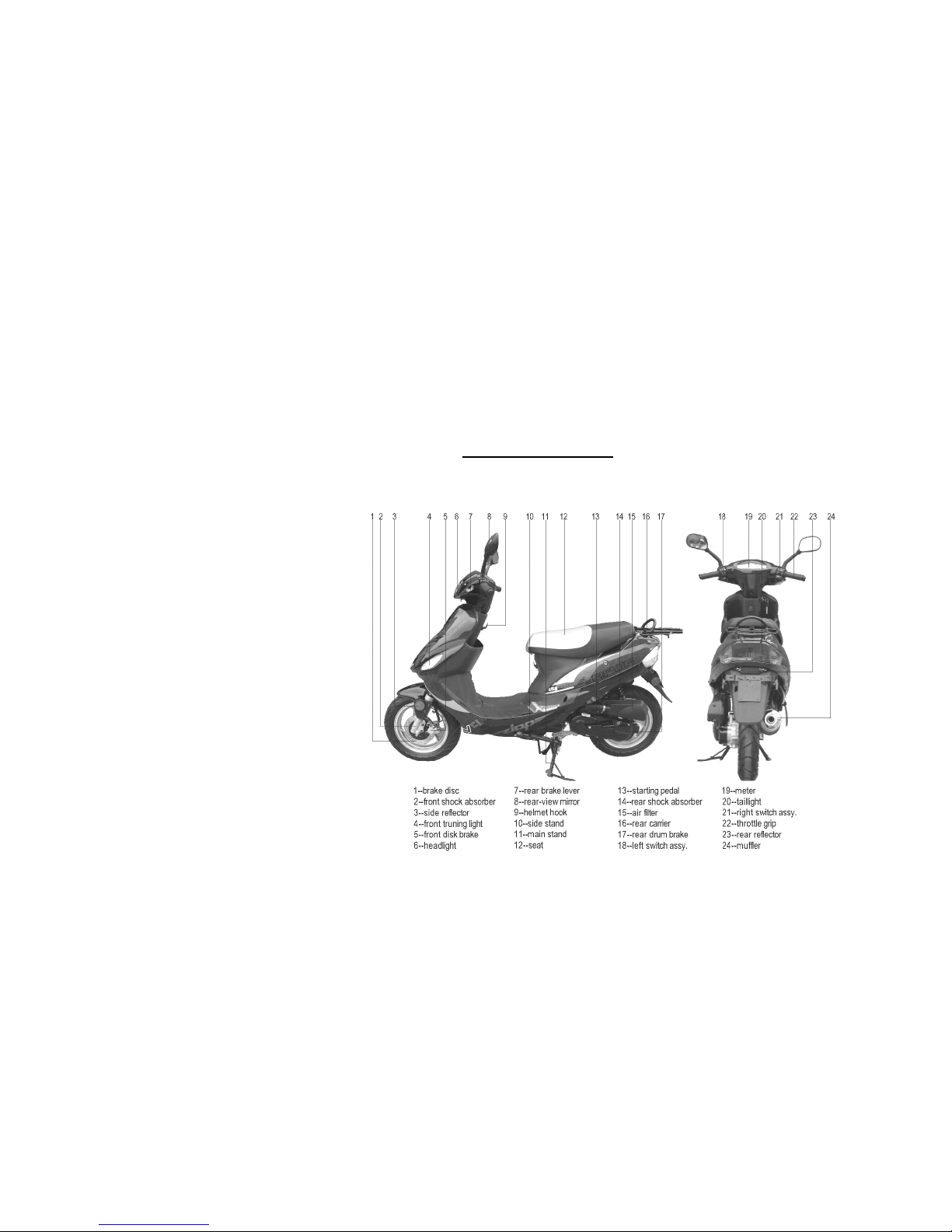

□ Po ition of part

4
□ Controlling part
1. Rear brake lever
Hold it tightly and the rear brake works.
2. Switche on the left
A. Switch for high/low beam lights
B. Turning signal switch
Left turning light
Right turning light
C. Horn button
3. Meter and indicating light

5
A. Indicates the speed in km/h and Mph
B. Indicates total distance the motorcycle has run
C. High beam indicator
D. Fuel gauge
E. Left turning light indicator
F. Right turning light indicator
4. Front brake lever
Hold it tightly and the front brake works.
5. Switche on the right
A. Head light switch
B. Electric starting button
When the ignition switch is at ON position, hold the
brake and press the electric starting button and then the
engine starts.
6. Ignition witch

6
Warning
15w/40-15w/50
10w/40
10w/ 0
-10 010 20 0 40C ¡ã
20 40 60 80 100 ¡ ãF
T
20w/40-20w/50
ON: Engine can be started and all the lights can be
operated. The key cannot be taken out.
OFF: The whole circuit is cut. Engine and lights cannot
be operated and the key can be taken out.
LOCK: Turn the steering handlebar fully to the left, press
the key and turn it to the position lock. Then the
key can be taken out.
□
□□
□Fuel tank
U age of the fuel tank lock:
1. Open the little cap on the fuel cap. Insert the key and
turn the key clockwise and take out the fuel cap.
2. Align the lock tongue on fuel cap with the notch on
fuel tank, press the fuel cap and lock it.
□
□□
□Fuel and engine oil
A. Ga oline
High quality fuel is essential to the engine.
Any sand in the fuel is absolutely prohibited.
90# or higher quality lead-free gasoline is preferred.
B. Engine oil
SAE15w/40 SF
□
□□
□Starting pedal
Starting pedal is for kicking start of the engine.
◆
Turn off
the engine when refilling the tank.
◆Turn off the cap slowly.
◆Don’t overfill the gasoline over the designated scale.
◆Do not add anything into the gasoline.

7
□
□□
□Pre-riding in pection
Please check the following parts before you drive.
No. Items Inspection content
1 Steering handlebar 1.Flexibility 2.No gap or loosing appearance
2 Brake system 1.Travel of the front brake and the rear brake 2.No break on the cable
.Flexible function
Tires 1.Proper pressure 2.No crack or cutting
4 Fuel Sufficient fuel
5 Engine oil Sufficient engine oil
6 Lights Workable
7 Horn Workable
8 Gear oil With normal stock
