Baotian BT49QT-9 User manual

BT49QT-9 – User Manual, Service Schedule & History

Introduction
Welcome to your new BA TIAN BT49QT-9, which has been developed by BA TIAN M T RCYCLE
INDUSTRIAL C . LTD. We hope you enjoy your new Baotian BT49QT-9.
This owner’s handbook contains information necessary:
• to enable you to get to know your Baotian BT49QT-9, to use it to the best advantage and to benefit from
all the latest developments which it incorporates.
• to ensure that it always give the best performance by following the simple, but strict, advice concerning
regular maintenance.
• to enable you to deal quickly with minor faults not requiring specialist attention.
It is well worth taking a few minutes to read this handbook to familiarise yourself with the information and
guidelines it contains about the BT49QT-9 and its features. If certain points are still unclear, the technicians at
your local Baotian dealer will be only too pleased to provide you with any additional information you require.
IMP RTANT
Please make sure that an initial inspection is conducted after the first 300 km
and thereafter in accordance with service schedule.
This motorcycle has been designed and manufactured in full compliance with EU Safety Standards.
The maximum speed is 45km/h. Do not change any parts without professional advice.

C NTENTS
Guidance............................................................................................................................................................1
Names of parts...................................................................................................................................................4
Controlling parts.................................................................................................................................................5
Starting lever......................................................................................................................................................6
Fuel tank ............................................................................................................................................................6
Fuel and oil .......................................................................................................................................................6
Pre-riding inspection ..........................................................................................................................................7
Engine starting .................................................................................................................................................. 8
Running-in..........................................................................................................................................................9
Regular maintenance.......................................................................................................................................10
Technical Parameters .....................................................................................................................................15

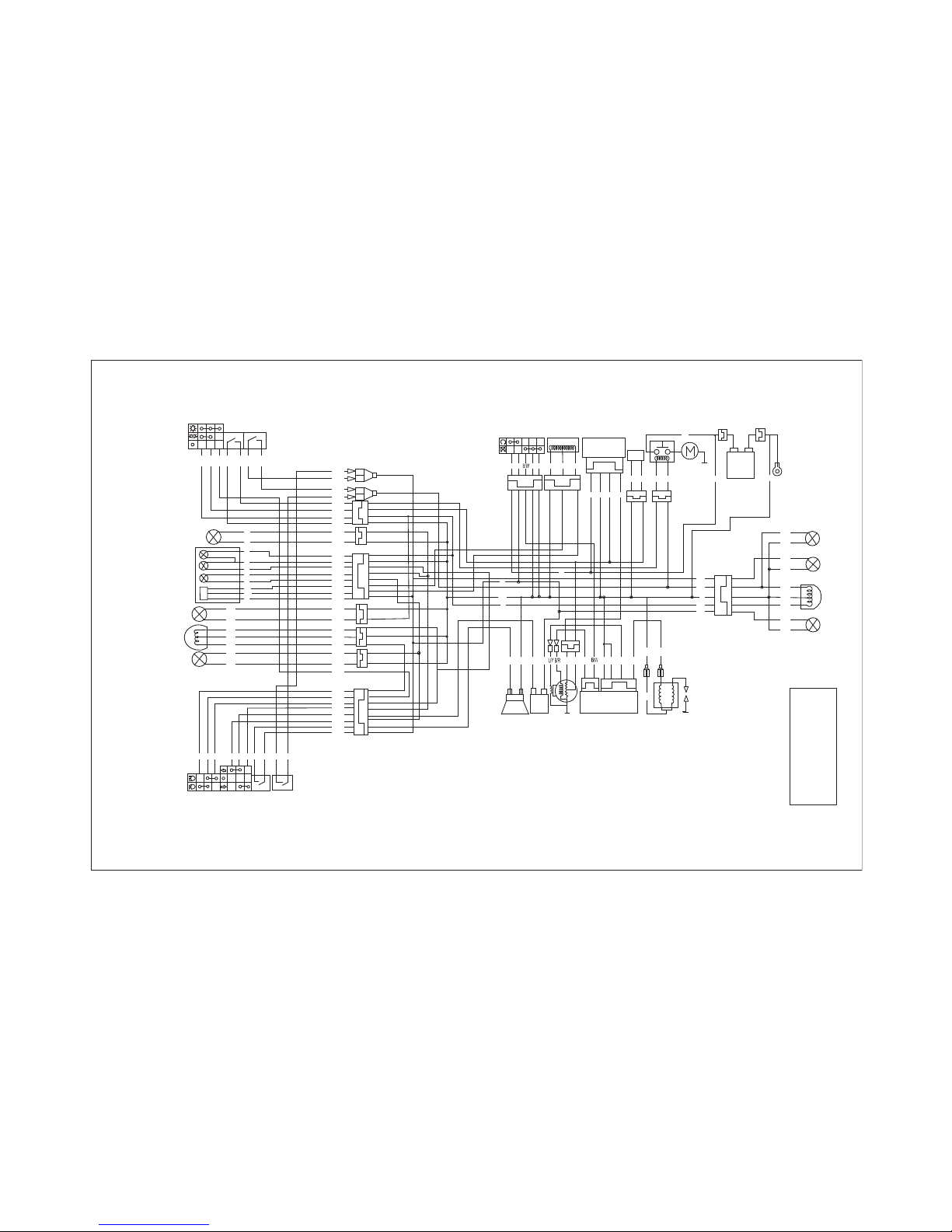

Electrical Circuit Chart .....................................................................................................................................17

1
1. Pre-riding inspection
Please read the details in the relevant chapter for
your safety.
2. Helmet
Do wear a helmet at all times while riding the
motorcycle.
3. Being familiar with motorcycle operation
It is of great importance to ensure your safety at
all times, especially whilst becoming familiar with
your motorcycle .
4. Speed limitation
Drive at appropriate speed for the road
conditions, the weather and your driving skill.
Guidance
Please keep safety in mind and observe the regulations of transportation while enjoying your ride.
Pay attention to the following rules:
IMP RTANT
It is dangerous to drive on wet roads.
Do not make any abrupt turning while
accelerating and keep a safe distance from
other vehicles on the road.

5. Positions of the numbers
When your motorcycle needs to be inspected,
repaired or undertake any service, these
numbers will assist your Baotian Dealer when
servicing your motorcycle. Please note down
your numbers here:
The frame number: ................................................
The engine number: .............................................
2
139QMB
¡î
XXXXXXXXX¡î
Frame
number

3
(1) Front signal light (7) Seat lock (13 Rear signal light)
(2) Left front turning light (8) Left rear turning light (14) Stand
(3) Head light (9) Starting pedal (15) Helmet hook
(4) Rear brake lever (10) Silencer (16) Throttle control
(5) Rear-view mirrors (11) Right rear turning light (17) Instruments
(6) Left switches (12) Rear light (18) Light switches
(19) Front brake lever (20) Ignition switch (21) Right front turning light
(22) Brake assy. (23) Brake disk. (24) Hand-hold
19
18
17
1615
1413
12
24 10
9
123456781123
22
(Disk brake/2 seat) drum brake/1 seat)

1. Rear brake lever
Hold it tight and the rear brake functions
2. Switches on the left handle
A. Horn button
B. Turning signal switch
Left turning light
Right turning light
C. Switch for high/low beam lights
3 Instruments and indicating lights
A. Fuel gauge.
B. Speedometer indicates the speed in M/H.
C. Odometer indicates the total distance the
motorcycle has run.
D. Turning lights indicator.
E. High beam indicator.
➯
➯
4
C
B
A
E
D
C
B
A
F
Ekm/h
Mph
10 10
20
30
40
50
20
30
40 50 60
70
80
0

4. Front brake lever
Press it tightly and the front brake functions.

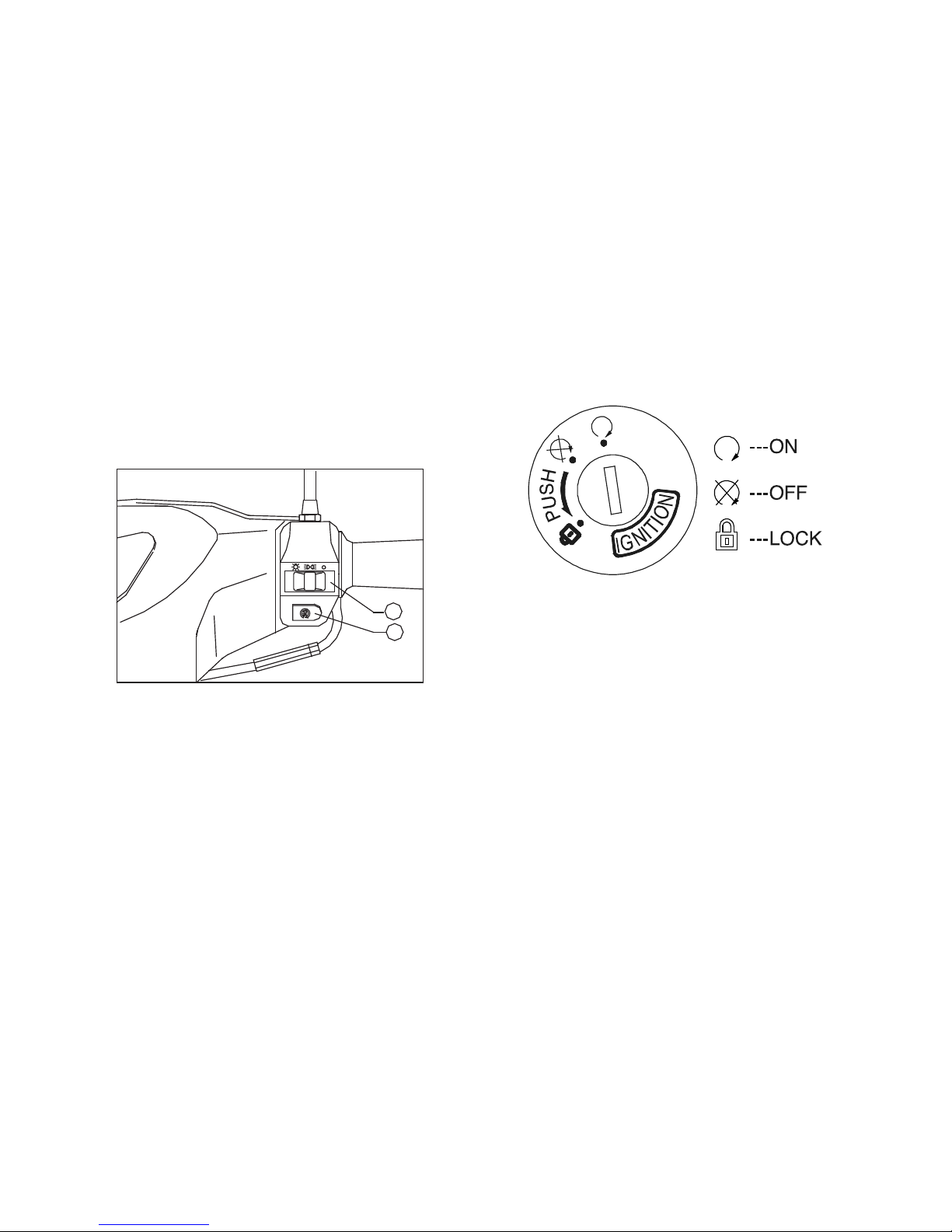

5. Switches on the right handle
A. Head light switch
B. Ignition button
When the ignition switch is at ON position, hold
the brake and push the button ,and then the
engine starts.
6. Ignition switch
FF The whole circuit is cut. Engine and lights
cannot be operated and the key can be
withdrawn.
N Engine can be started and all the lights can
be operated. The key cannot be withdrawn.
L CK Turn the steering handle fully to the left,
slightly press the key and turn it to the
position lock . Then the key can be taken
out.
5
A
B

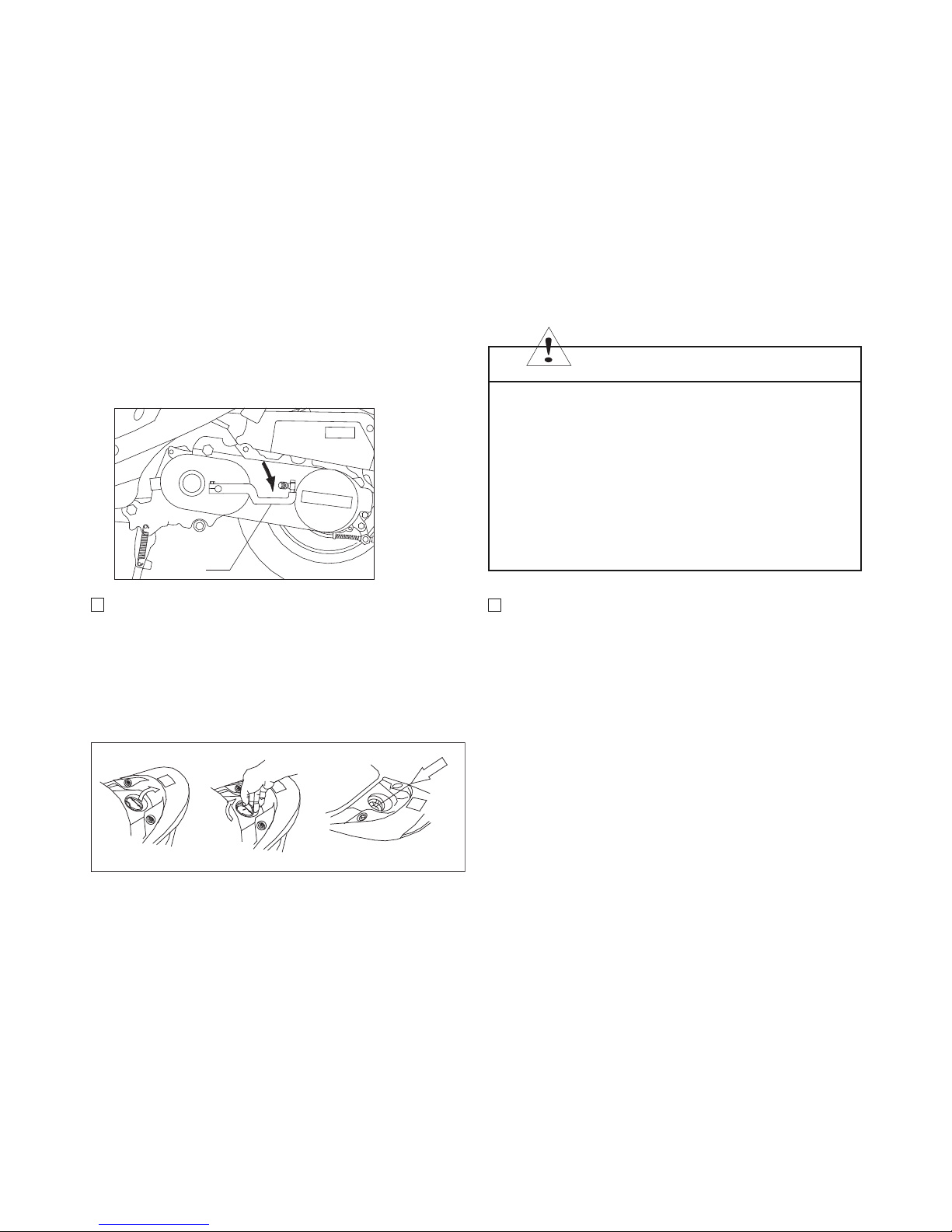

Starting lever
Starting lever is for kick starting the engine.
Fuel tank
Usage of the cap:
1. Insert the key.
2. Turn it clockwise and take off the cap.
3. Fix the notch and then press the cap on.
6
①
Warning:
◆Turn off the engine when refilling the tank.
◆Turn off the cap slowly.
◆Align the mark “△” on the cap to the , mark“ ”
on the fuel tank.
◆Don’t overfill the fuel over the designated
scale
◆Do not add anything into the petrol.
Fuel and engine oil
A. Petrol
Ensure unleaded petrol is used at all times.
B. Engine oil
SAE-15w/40

Pre-riding inspection
Please check the following parts before you drive.
7
No. Items Inspection content
1 Handle bar 1.Easy movement. 2. No loose appearance
2 Brake system 1.Check for fraying of cables. 2. Easy function
3 Tyres 1. Correct pressure. 2. No splits in rubber
4 Fuel Sufficient fuel
5 Engine oil Sufficient engine oil
6 Lights Workable
7 Horn Workable
8 Gear oil Sufficient oil
9 Throttle 1. Proper gap 2. Flexible function 3. Smooth throttle control function.
10 All the bolts and nuts Not loose.
