Bar Maid JUC-100 User manual

INSTRUCTION MANUAL
COMMERCIAL CITRUS JUICER JUC-100

JUICER SAFETY
DANGER Electricity GENERAL Caution
DANGER Risk of Electrical Schock DANGER Keep Hands Clear
IMPORTANT: Please adhere to all safety guidelines contained in it’s manual.
DANGER: You can be seriously injured if you do not follow these instructions.
JUICING CONES ROTATE WITH SUBSTANTIAL FORCE. USE EXTREME CAUTION WHEN
PRESSING FRUIT ON TO CONES. NEVER CONTACT MOVING PARTS DIRECTLY WITH HANDS.
WARNING
WARNING
WARNING
Electrical Shock Hazard Moving Parts!
Plug into a grounded outlet.
Do not remove ground.
Do not use an adapter.
Do not use an extension cord, except as
recommended.
Failure to follow these instructions can
result in death, fire or electrical shock.
Always leave splashguard in place when
juicing.
Avoid direct hand contact with juicing cone.
Failure to follow these instructions can result
in broken bones, cuts or other injuries.
FAILURE TO ADHERE TO THESE WARNINGS CAN RESULT IN FIRE,
SERIOUS INJURY, ELECTRICAL SHOCK AND/OR DEATH
For Warranty Assistance:
1-866-531-6243
For Parts or Technical Assistance:
[phone]
1-800-526-5278
1

IMPORTANT SAFEGUARDS
When using electrical appliances, basic
safety precautions should always be
followed, including the following:
1. Read all the instructions.
2. To protect against risk of electrical shock,
do not put the blender in water or other
liquid.
3. Close supervision is necessary when any
appliance is used near Children.
4. Unplug from outlet when not in use, before
putting on or taking off parts, and before
cleaning.
5. Avoid contact with moving parts, especially
blades.
6. Do not operate any appliance with a
damaged cord or plug or after the
appliance malfunctions, or is dropped or
damaged in any manner. Retum
appliance to the nearest authorized
service facility for examination/repair
/electrical or mechanical adjustment, or
contact your distributor.
7. The use of attachments not recommended
or sold byt the manufacturer may cause
fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or
counter.
10. Always make sure the juicing cones are
free of obstructions before turning the
unit on.
11. Be sure to turn switch to OFF position
after each use. Make sure the motor
stops completely before disassembling.
12. Do not put your fingers or other objects
on the juicer cone while it operation.
Turn the motor off and disassemble
juicer to remove any pulp.
13. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory ot mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety. Children should be
supervised to ensure that they do not
play with the appliance.
GROUNDING INSTRUCTIONS
This appliance should be grounded while in
use to protect the operator from electrical
shock. The appliance is equipped with a
3-conductor cord and a 3-prong grounding-
type plug to fit the proper GFCI protected,
grounding-type receptacle.
EXTENSION CORDS
Use only 3-wire extension cords which have
3-prong grounding-type plugs and 3-pole cord
connectors that accept the plug from the
appliance. Use only extensions cords having
an electricalrating no less than the rating of the
appliance. Do not use damaged extension
cords. examine extension cord beofre using
and replace if damaged. Do not abuse
extension cord and do not yank on any cord to
disconnect. Keep cord away from heat and
sharp edges.
2

To operate the juicer, proceed as follows
JUICER OPERATION
Step 1. Ensure the commercial citrus juicer is cleaned
thoroughly and correctly assembled with a container
placed under the juice spout before juicing.
Step 2. Cut the citrus fruit in half by cutting across the
diameter, and not tip to tip, to ensure more efficient juicing.
For the best contact with the fruit cone, smooth the outside
of the fruit by trimming any tip ends such as the ends of a
lemon or tangelo .
Step 3. Plug the power cord into a properly grounded
power outlet and then switch the on/off button to ON. This
begins operation of the citrus juicer. The motor will start
and juicing cones will rotate.
Step 4. Place citrus fruit half with the cut side down onto
the juice cone. Be careful not to press too hard. Use
caution not to contact moving parts with your hands.
Step 5. The juice will be extracted from the fruit and flow
through the juice spout into the container. The pulp and
seeds will collect in the stainless steel filter.
Step 6. The Bar Maid commercial citrus juicer juices very
quickly so fruit halves will be juiced in a few seconds. To
stop the motor, turn switch to off.
Step 7. Remove the used fruit from the juicing cone.
Empty excess pulp and seeds from stainless steel filter as
required. Repeat steps 4-7 to continue juicing.
NOTE: The stainless steel filter should be emptied
when full with pulp and seeds. The filter can be
emptied during juicing by switching the citrus juicer
"OFF" and carefully removing the juicing cone and
filter. Clean and replace stainless steel filter and
juicing cone before continuing to juice. Do not allow
the stainless steel filter to overfill as this may prevent
correct operation or damage the unit.
3

Replacement Parts
For replacement parts, call toll free: 1-800-526-5278
CARE, CLEANING AND STORAGE
TROUBLESHOOTING
• Always ensure that the juicer is switched OFF and the plug is removed from the
power outlet before cleaning, disassembling, assembling and storing the appliance .
• Follow these instructions to clean all surfaces or parts that come into contact with
food during juicing:
1. Immediately after each use rinse removable parts under warm water
to remove wet pulp. Allow parts to air dry before reassembling.
2. For thorough cleaning after disassembling the appliance, all removable parts should
be washed in tepid soapy water or on the top shelf of the dishwasher. The motor base
should be wiped with a soft, damp cloth. All parts should be dried thoroughly before
reassembling. Do not place base of unit in the dishwasher.
3. Store the cleaned and reassembled citrus juicer in an upright position in a cool, dry
place.
Never place any items on the top of the citrus juicer.
4. Any other servicing should be performed by an authorized service representative.
NOTES: 1. Rinse or wash all removable parts immediately after use. Dried citrus
pulp is difficult to remove and may stain. If any staining does occur, wipe the
affected parts with undiluted dishwashing liquid, rinse and dry thoroughly.
2. Do not soak the stainless steel filter or other removable parts in bleach. Never
immerse the motor base in water or any other liquid. Do not use harsh
abrasives.
Possible Problem Easy Solution
Machine will not work Switch not "ON"
Machine will not work Breaker switched off
The juicing cone will not spin Juicing cone damaged. Replace.
4

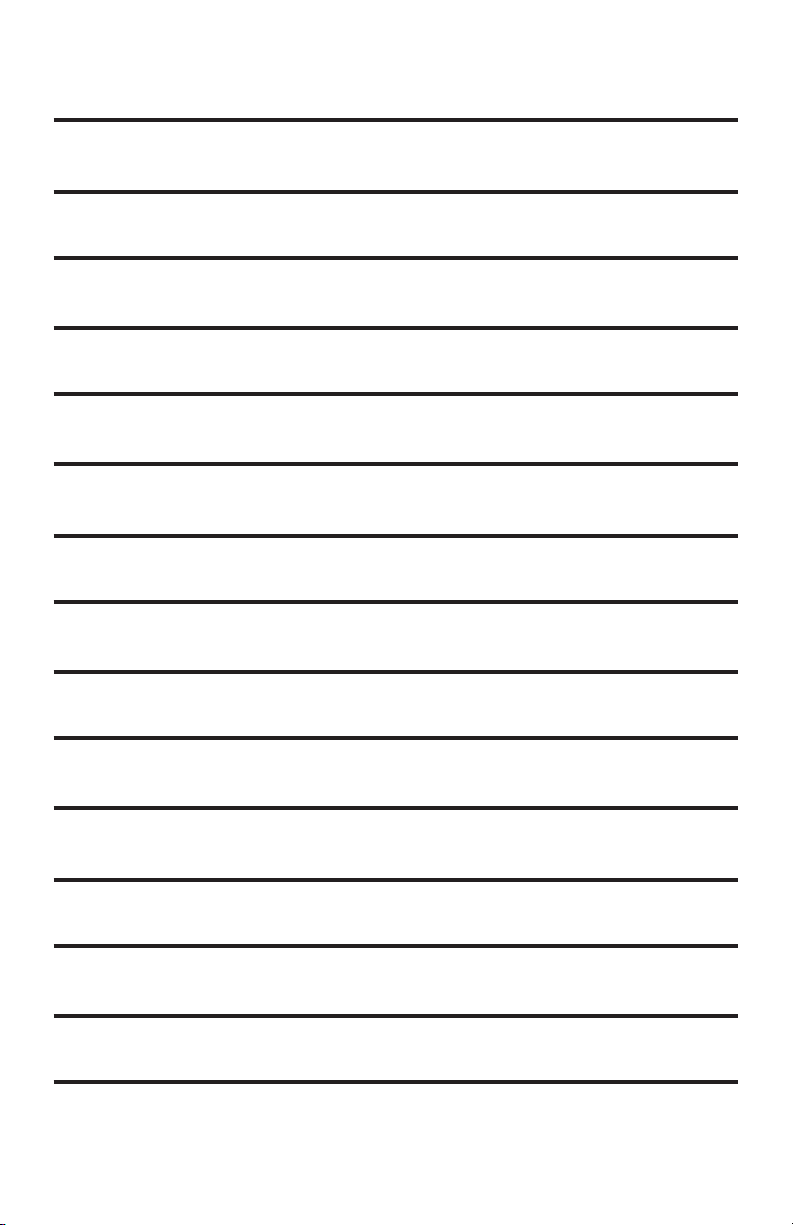

NOTES
5

NOTES
6

BAR MAID CORPORATION
2950 NW 22nd Terrace,
Pompano Beach, FL 33069
www.barmaidwashers.com
