HUROM HL Series User manual

HL Series
Terms of parts How to assemble How to use
Instructions of lever Precautions for safe use Cautions during operation
When auger stops during
operation
Before requesting for repair Product Specifications /
Warranty
01 02 04
05 06 08
09 10 11
Hurom Juicer Household Use (Warranty Included)
1. Read ‘Precautions for safe use’ (Page 6) and use the appliance properly.
2. After finish reading the manual, keep it in a convenient location for future reference.
3. Do not use it abroad which has different power supply and voltage.
4. Any quality improvements are subject to change without notice.
TM

20
15
16
11
5
7
Pusher
Hopper
Auger
Strainer
Smoothie Strainer
Spinning Brush
Silicon Brush
Chamber
Pulp Outlet
Juice Outlet
Lever
Juice Cap
Pulp Container
Juice Container Lid
Base
Juice Cup
Small Cleaning Brush
Cleaning Brush
Hopper Lid
Operating Switch
Power Cord
Chamber set stand
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
8-1
8-2
9
10
1
2
3
4
6
8
8-1
9
10
12
14
19
18
Terms of parts
Terms of parts
8-2
17
13

02
How to assemble
Assemble the strainer under the groove of spinning brush
just like from the picture.
Put the assembled part in proper place by
moving left and right in the chamber just
like the picture no.1.
If they are not completely assembled, the chamber set will not be closed.
12
Spinning brush groove
!
* If the strainer is not placed
below the groove, the hopper
will not be locked.
The packing can be detached and
cleaned.

How to assemble
Put the assembled part in proper place by
moving left and right in the chamber just
like the picture no.1.
Assemble the auger like the picture.
After putting the hopper on the chamber, turn it clockwise
until it is locked completely.
!
Make sure the lever is placed in position.
Put the auger by turning it to fit in the spinning
brush grooves.
3 4
Auger wings
Spinning
brush
grooves
Lever
The chamber set will not fit in to the base if the lever is placed in position.
!
!
!

03
How to assemble
After putting the hopper on the chamber, turn it clockwise
until it is locked completely.
!Make sure the lever is placed in
position.
Mount the chamber set on the base.
Even if it is assembled
in opposite direction, it
is operable.
5
The chamber set will not fit in to the base if the lever is placed in
position.
TIP

04
정회전
역회전
정지상태
작동스위치 정회전
역회전
off(정지) 정지
Put ingredients gradually in the hopper
chute and press with the pusher.
Press [ON] button to start.
After extraction is completed, place the
switch in stop position to stop.
1
3
5
2
4
Place the lever position
before operating.
Put the lever in half-closed ( ) position
before putting the last ingredients.
누름
정회전
역회전
작동스위치 정회전
역회전
The hopper will be opened easily as long as the
residues in the strainer are released.
[On]
On
[Rev]
Reverse
Press
Stop
How to use
[On]
On
[Rev]
Reverse When using [ON] or [Rev] button, make sure that
the auger stops completely.

05
You can open and close the extraction packing easily.
How to use lever
Release the residues in half-closed ( ) position
of the lever when putting in the last ingredients.
The hopper will be opened easily as long as the
extracted residues are released.
For Simple Cleaning Mode, put the lever in half-
closed ( ) position and release the residues.
Instructions of lever
When detatching and cleaning the chamber, put
the lever completely in ( ) position.
You can easily and conveniently clean the chamber.
For general ingredients, the extraction rate is good
when you close ( ) the lever during
operation.
However, for fruits which have hard seeds such
grapes, rubus coreanus, pomegranate you close
the lever during operation and then change it to
half-closed ( ) position when juice begins to come
out.
When it is hard to open Hopper after operation.
Put the lever in half-closed ( ) position and press Reverse button for 3~4 seconds.
Repeat this for 2~3 time and the hopper will be opened easily.
Preparation, Extraction Mode
Completion, Simple Cleaning Mode
Cleaning Mode
!

06
1. You should read <Precautions for safe use>
2. You should follow <Precautions for safe use>
3. Precautions are classified as follows.
Warning When violating the labeling requirement, it may cause serious injury or death.
Do not plug in nor unplug with wet hanDs. It may cause electric shock or injury.
Do not use other than 230V - 240V aC. It may cause electric shock, fire or abnormal performance.
If the voltage is different, it may shorten the life of the motor or cause a failure.
plug the power CorD CorreCtly anD push it tight in a wall soCket.
It may cause an electric shock or a fire.
iF the supply CorD is DaMageD, it Must Be replaCeD By the ManuFaCturer
its serViCe or siMilarly QualiFieD persons in orDer to aVoiD a haZarD.
If the power cord is damaged, it may cause electric shock or fire.
neVer alter the applianCe. also, Do not DisasseMBle or repair By your-
selF. Do not insert Fingers, Foreign suBstanCes or oBjeCts suCh as pins
into gaps or holes in the Base.
It may cause a fire, electric shock or failure. For any technical support, contact the authorized local Customer Care Center.
when the power CorD, wire was Broken or DaMageD or the plug-in part
BeCaMe loose, Do not operate it.
It may cause electric shock, fire or injury.
Do not Moisten the Base or splash water on the Base.
Be careful not to let any liquids or other substances get into the switch on the appliance.
Do not operate the switCh with wet hanDs. It may cause an electric shock or fire.
For saFety, Must Do grounDing ConneCtion. also, Do not Do the grounD-
ing on gas pipe, plastiC water pipe, telephone wire, etC.
It could cause electric shock, fire, malfunction or explosion. Be sure to use the electrical outlet with ground connection.
neVer DisasseMBle the ChaMBer set During operation or insert Fingers,
Foreign oBjeCts suCh as Forks, spoons, etC. into hopper Chute or juiCe
outlet. It may cause injury, accident or failure.
applianCes Can Be useD By persons with reDuCeD physiCal, sensory or
Mental CapaBilities or laCk oF experienCe anD knowleDge iF they haVe
Been giVen superVision or instruCtion ConCerning use oF the applianCe in
a saFe way anD iF they unDerstanD the haZarDs inVolVeD. ChilDren shall
not play with the applianCe. Cleaning anD user MaintenanCe shall not Be
MaDe By ChilDren without superVision. this applianCe shall not Be useD
By ChilDren. keep the applianCe anD its CorD out oF reaCh oF ChilDren.
Precautions for safe use

07
1. You should read <Precautions for safe use>
2. You should follow <Precautions for safe use>
3. Precautions are classified as follows.
Caution When violating the labeling requirement, it may cause serious injury or damage to the appliance.
Do not operate without loCking the hopper properly. It may cause an injury or a failure.
when DeteCting a gas leak, Do not insert the power CorD into its slot.
open the winDow to Ventilate Fully anD iMMeDiately.
It may cause injury or failure.
neVer put a Finger, Fork or spoon, etC. into juiCe outlet. It may cause injury or failure.
iF auger rotation is stoppeD in norMal operation, press [reVerse/reV]
Button anD holD For 2~3 seConDs anD then aFter reVerse operation is
CoMpletely stoppeD, press [on] Button again.
If such a stop event continues during the oper-
ation, the parts may be damaged and performance may be deteriorated due to overheating in a motor.When the problem
continues, immediately stop the appliance and contact the local Customer Care Center.
During the operation, Do not atteMpt to MoVe the Base, DisasseMBle the
ChaMBer set or parts anD try to loCk theM.
It may cause an injury or a failure. Any act of event needed, switch off first and unplug the power cord.
when using the applianCe, Be CareFul For a neCktie, long neCklaCe, sCarF,
etC. not to Be entangleD into hopper Chute.
It may cause injury, failure or breakage.
plaCe the applianCe on a Flat anD staBle surFaCe. It may cause injury or failure.
Do not operate the applianCe For More than 30 Minutes at a tiMe.
It may cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes and operate it again.
when plaCing ingreDients into the hopper Chute, only use the pusher
proViDeD.
It may cause injury or failure.
Do not allow a seVere shoCk to the applianCe or Drop it. It may cause electric shock,
fire or damage.
iF the applianCe giVes oFF an unpleasant sMell or exCessiVe heating,
sMoke, stop using iMMeDiately anD ContaCt the loCal CustoMer Care
Center. When using a new appliance, it gives off a smell and the smell disappears naturally over time.
always unplug the applianCe aFter use. always DisConneCt the applianCe
FroM the supply iF it is leFt unattenDeD anD BeFore asseMBling, DisasseM-
Bling or Cleaning. when unplugging the power CorD, Make sure to holD
the power CorD.
Pulling on the wire to unplug may cause electric shock or fire.
Do not wash at high teMperatures oF 800C(1760F) or higher. Do not put the
applianCe in a Dishwasher, a Dryer or a MiCrowaVe etC.
It may cause a failure or parts deformation.
the applianCe weighs aBout 6kg (13lB). when MoVing the applianCe, en-
sure to MoVe it holDing grips tightly at the Base BottoM with Both hanDs.
If attempting to hold chamber or the edge of the base, the base falls causing an injury or failure.

08
Frozen fruit or withered ingredients that have been stored in the refrigerator for a long time
may give us less extracted amount or may even be impossible.
Ingredients which needs caution
- Fruits with hard seeds such as persimmon, Japanese apricot, lemon, plum, peach etc. that are
hard to chew with our teeth should be pitted before extraction.
- For stalk vegetables with strong fiber such as water parsleys, celery etc. cut them into small size
about 3~4cm before putting them into the hopper chute.
- Do not put in sesame, coffee beans, bark of the tree, Chinese pepper, etc. which cannot be
extracted.
- Do not put in sesame, coffee beans, bark of the tree, Chinese pepper, etc. which cannot be
extracted.
- Do put in fruits preserved in alcohol, sugar, honey, etc. (grapes, apricot, berries, etc) and en-
zymes (glasswort, houseleek, etc.). It may cause damage or failure.
We recommend you drink green vegetable juice and fruit juice immediately after extrac-
tion rather than keeping them for long time.
You may use for crushing spice (garlic, red pepper), but not for grinding grain.
It may cause damage or failure.
Do not re-squeeze reidues expelled through the pulp outlet.
Soft fruits can be re-squeezed.
Do not operate the appliance before putting in the ingredients.
Do not use the appliance for more than 30 minutes continuously.
- It may cause a failure due to overheating of the motor.
When using continuously, stop it and leave it 5 minutes of interval and then you may use it again.
Never insert finger, fork or spoon etc. into juice outlet during the operation.
- Inserting such as chopsticks etc. into Juice outlet during operation may stuck in the spinning
brush and may cause damage of parts.
Do not press the ingredients with anything except the pusher.
-It may stuck to the screw and cause injury and failure.
Do not operate the switch with wet hands.
- It may cause electric shock or fire. Do not put foreign objects near the switch.
Cautions during operation
Note

09
Cautions during operation
Even after following the directions above
and still doesn’t work, please unplug the
power cord and disassemble chamber
set, and clean it. And try it again.
1
2
Note
[Rev] is the button to push back the
ingredients upward.
[Rev] only works while pressing the
button, and the rotation of the auger
stops If you release the button.
Press [Rev] button on the operat-
ing switch for 3~5 seconds and
stop it. Repeat this 2~3times.
Press [On] button to operate af-
ter reverse operation completely
stops.
When using [ON] or [Rev] button,
make sure that the auger stops com-
pletely.
When the auger stops during the operation
<REV>
<ON>
In case of reversing during operation, press [Reverse] button short, then you press [Reverse]
button for operation.
From the feature of the product, even though you stop the operation, it doesn’t stop right away. It rotates
slowly then stops. If the rotation stops completely, you may press the button to any direction you want.
(Same as when pressing [Extract] during reverse operation)
Caution when using operation button
<ON>
<REV>
<STOP>

10
If you need additional information, please contact your local Customer Service Center or visit
www.hurom.com. When applying for after-sales service, please have the manufacturer’s serial
number or bar code available.
The Appliance does not work.
Make sure that the power cord is properly plugged in.
Check if the hopper is assembled properly. If the hopper has not been locked into place, the
appliance will not operate for safety reasons.
Check if the appliance is assembled according to the directions in the manual.
Refer to instructions for assembly in the manual or consult with your Customer Service Center for
additional assistance.
The hopper does not open.
There might be a lot of residues inside. Put Lever in half-closed position, and press [Extract] but-
ton to release residues. Press [Reverse] button for 3~4 seconds and stop it. Repeat this process
2~3times.
Have you placed any foreign substances or solid objects (hard seed such as persimmon seed) in
the juicer?
Press [Reverse] button and push the ingredients back up toward the hopper chute.
Do not attempt to open by force. Please contact your local Customer Service Center for assis-
tance.
The appliance stops during normal operation.
Have you in heavy loads or large pieces of ingredients into the appliance?
Refer to page 9 of the manual and follow the guideline for using [Reverse] button.
If the issue is not resolved after following the above process, please contact your local Customer
Service Center.
There are fine lines or scratch marks around the auger.
These are molding marks resulting from the normal manufacturing process.
This is a normal product and there is no problem for use.
Juice leaks over the base.
Have you inserted a lot of ingredients into the hopper chute?
If you insert a large amount of ingredients compared to the pulp outllet, the packing is slightly
pushed away, so the juice leaks out of the gap. Do not put too much ingredients by force and just
put gradually for extraction.
The Chamber shakes when squeezing.
Slight shaking may be caused by the motor.
Depending on the texture of the ingredient, there may be slight to more pronounced shaking of
This is a normal phenomenom as auger rotates and it is not a malfunction. Hard ingredients
(e.g carrot, potato, radish, beet, etc.) may cause more shaking than soft ingredients.
Chamber set does not fit into the base.
If Lever is in position, the chamber set does not fit in to the base. Before assembling the
chamber set, make sure that Lever is in position.
Please check the details below before contacting Technical Support for repair.

11
Product Specifications
Product Name
Model Name
Rated Voltage
Rated Frequency
Rated Power
Consumption
RPM
Hurom Slow Juicer
HL Series
230-240 V
50 Hz
150 W
43 rpm
Product name
Important: To better protect your purchase, fill out and mail this form to a local distributor where
you purchased the appliance and keep the original receipt.
This certifies that the Hurom Slow juicer is covered under warranty by to be free
from defects in material construction and workmanship.
Hurom provides warranty for ten (10) years for the motor and two (2) years for other parts from
the date of purchase by the original purchaser. Coverage is valid only with proof of purchase
from an Authorized Local Distributor. (No international warranty available)
This warranty does not apply to damages caused by accident, misuse, abuse, commercial
use, alteration, failure to follow operating instructions, or damage caused by parts or service
unauthorized by . Damages caused by transportation must be claimed with carrier.
disclaims all responsibilities for consequential damages from incidental losses
caused by use of this appliance.
For service and assistance with technical difficulty, please contact our local customer care
center.
Manufacture’s serial number
Supplier
Address
Model name
Date of purchase
Customer name
Warranty
Cord Length
Motor
Fuse
Weight
Outward
Dimension
Rated
Operating Hour
1.4 m
Single-phase induction motor
250 V 5 A
6.3 kg (13.9 lb)
Width 244 mm
Length 177 mm
Height 398 mm
Less than 30 minutes
Manufacture :
Hurom webpage : www.hurom.com

www.hurom.com
1544-7011
Copyright© All Rights Reserved by HUROM
Fine strainer has tiny and fine holes good to make clean juice.
Fine Strainer
Smoothie strainer has larger holes so is good to make thick juice
with flesh in it.
It is to make juice with soft fruits and thick juice like banana, strawberry, and
also useful for smoothie, latte, or soup.
Smoothie Strainer
4PJ140411A _V.01
Juice fruits like apple, pear, kiwi, oriental melon, etc. put them with
seeds and peels. However, apple seeds contain toxicity, so it better
to remove them.
Separate each grape from the cluster. Peel the pomegranate and use
flesh only.
Peel off the skin of watermelon, orange, grapefruit and cut them into
right size.
Fruits like mango, cherry, peach, or plum, etc. have hard seeds
which are hard to swallow. Those seeds might cause stoppage or
parts damage, so they must be removed before using it.
Put a handful of wheat or chives in not to be scattered.
Cut fibrous ingredients into small sized less than 3 cm.
Apple, pear, kiwi,
oriental melon

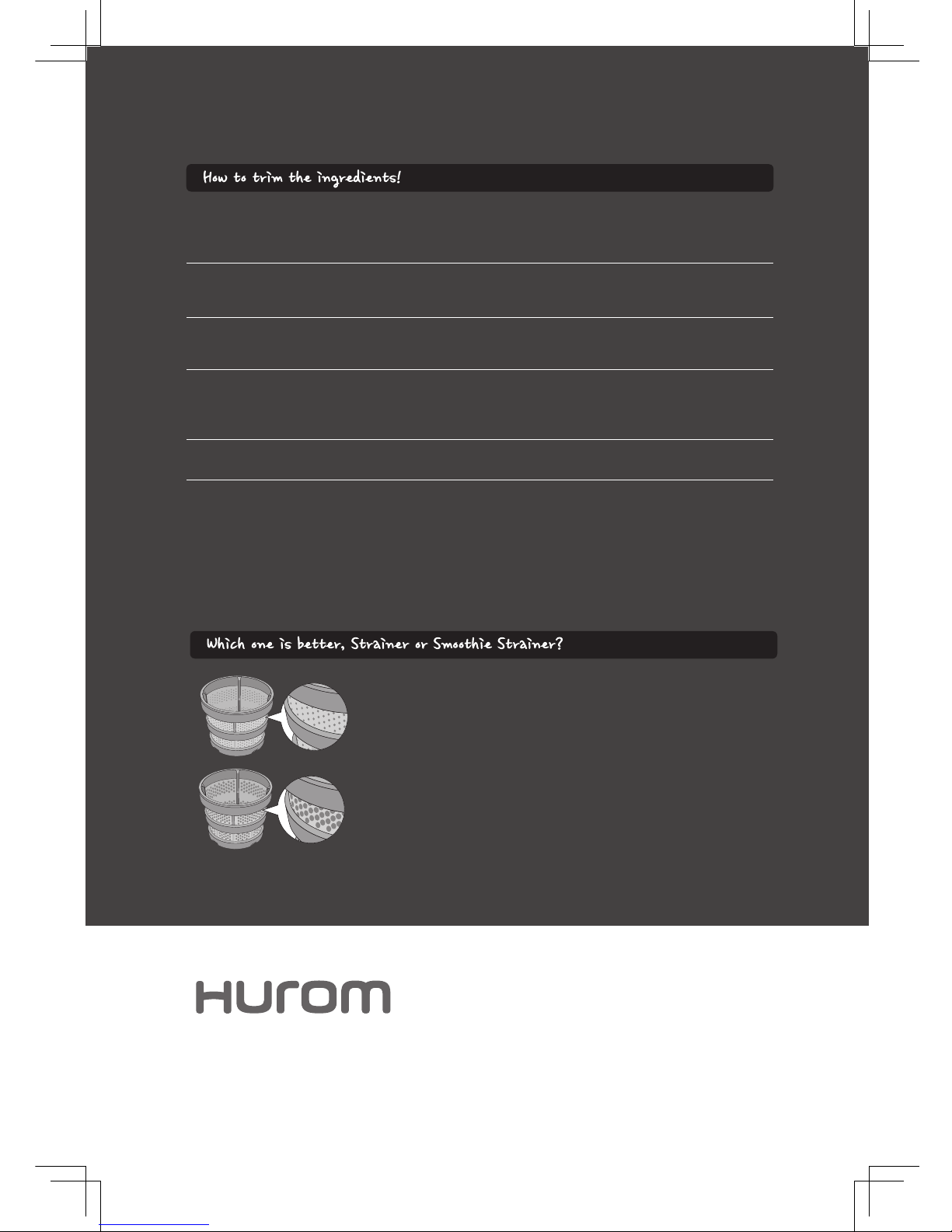

How to trim the ingredients!
Which one is better, Strainer or Smoothie Strainer?
Pomegranate,
grapes
Water melon,
orange, grapefruit
Mango, cherry,
peach
Wheat, chives
Water parsleys,
angelica, celery, kale
* This is a reference about how to trim the ingredients, so if you have allergy please choose your own proper
ingredients which agrees with you.
* Please refer to the recipe book for the product usage of each ingredient.
TM
