Barco R9001180 User manual

OWNER'S MANUAL
VISION
3200
R9001180

BARCO PROJECTION SYSTEMS
OWNER'S MANUAL
R9001180
VISION
3200
Art. No. :
R5975418
Date :
290997

Federal communication commission (FCC statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC ules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Instructions to the user :
if this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or more of the
following measures :
- e-orientation of the receiving antenna for the radio or television.
- elocate the equipment with respect to the receiver.
- Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.
- Fasten cables connectors to the equipment by mounting screws.
Note :
The use of shielded cables is required to comply within the limits of Part15 of FCC rules and EN55022
BARCO nv/Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Visite Barco at the web : http://www.barco.com
Printed in Belgium
Due to constant research, the information in this manual is subject to change without notice.
Produced by BA CO NV, September 1997.
All rights reserved.
Trademarks are the rights of their respective owners.

i-1
Table of Contents
5975418 BA COVISION 3200 290997
TABLE OF CONTENTS
i
TABLE OF CONTENTS .............................................................................................................................................................................. i-1
UNPACKING AND DIMENSIONS ............................................................................................................................................................... 1-1
Unpacking ...................................................................................................................................................................................... 1-1
Projector dimensions ..................................................................................................................................................................... 1-1
Battery installation in the CU. ...................................................................................................................................................... 1-2
INSTALLATION GUIDELINES ................................................................................................................................................................... 2-1
Environment ................................................................................................................................................................................... 2-1
What about ambient light ? ............................................................................................................................................................ 2-1
Which screen type? ...................................................................................................................................................................... 2-1
What image size? How big should the image be? ...................................................................................................................... 2-1
Where to install the projector? ...................................................................................................................................................... 2-2
How to install a projection lens? ................................................................................................................................................... 2-3
LOCATION AND FUCNTIONS OF CONT OL ........................................................................................................................................... 3-1
Front panel terminology ................................................................................................................................................................. 3-1
Control panel terminology ............................................................................................................................................................. 3-2
CONNECTIONS ........................................................................................................................................................................................ 4-1
Power (mains) cord connection ................................................................................................................................................... 4-1
Fuses ............................................................................................................................................................................................ 4-1
Switching on ................................................................................................................................................................................. 4-1
Switching to stand-by. .................................................................................................................................................................. 4-2
Switching off ................................................................................................................................................................................. 4-2
Signal input connection to the projector. ...................................................................................................................................... 4-2
Input module insertion into the projector ....................................................................................................................................... 4-2
Video/S-Video input module ......................................................................................................................................................... 4-3
GB analog input module .............................................................................................................................................................. 4-4
Component input module ............................................................................................................................................................... 4-5
GB3S/ G3sB input module ......................................................................................................................................................... 4-6
Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the S 232 input of the projector. .......................... 4-7
Set up of the baud rate for communication with a computer. .................................................................................................... 4-7
Connecting a CVDS 05 to the projector. .................................................................................................................................... 4-8
Connecting a VS05 to the projector ............................................................................................................................................. 4-8
Connecting an I emote eceiver 800 to the projector. ............................................................................................................ 4-8
CONT OLLING ........................................................................................................................................................................................ 5-1
How to use the CU? ................................................................................................................................................................... 5-1
Projector address ......................................................................................................................................................................... 5-1
How to display a projector address? ........................................................................................................................................... 5-2
How to program an address into the CU? ................................................................................................................................. 5-2
Picture controls with direct access. ............................................................................................................................................ 5-2
Sound controls with direct access .............................................................................................................................................. 5-2
The Pause key ............................................................................................................................................................................... 5-3
STA T UP OF THE ADJUSTMENT MODE ................................................................................................................................................ 6-1
Adjustment Mode .......................................................................................................................................................................... 6-1
ANDOM ACCESS ADJUSTMENT MODE ................................................................................................................................................ 7-1
Starting up the andom Access Adjustment Mode ..................................................................................................................... 7-1
File service .................................................................................................................................................................................... 7-2
Load file ......................................................................................................................................................................................... 7-2
Edit file ........................................................................................................................................................................................... 7-3
ename file .................................................................................................................................................................................... 7-5
Copy file ........................................................................................................................................................................................ 7-5
Delete file(s) .................................................................................................................................................................................. 7-6
File Options .................................................................................................................................................................................... 7-6
Picture Tuning ................................................................................................................................................................................ 7-6
Sync slow/fast ............................................................................................................................................................................. 7-7
Still Video ....................................................................................................................................................................................... 7-7
Color Balance ................................................................................................................................................................................ 7-7
Gamma .......................................................................................................................................................................................... 7-7
Audio Tuning ................................................................................................................................................................................. 7-8
Volume, Balance, Bass and Treble .............................................................................................................................................. 7-8
Mute ............................................................................................................................................................................................... 7-8

i-2
Table of Contents
5975418 BA COVISION 3200 290997
Lock ............................................................................................................................................................................................... 7-8
Fade ............................................................................................................................................................................................... 7-8
Geometry ....................................................................................................................................................................................... 7-9
Shift ............................................................................................................................................................................................... 7-9
Size ................................................................................................................................................................................................ 7-9
Side keystone .............................................................................................................................................................................. 7-10
Blanking ....................................................................................................................................................................................... 7-10
Scale[1:1] .................................................................................................................................................................................... 7-11
Options ........................................................................................................................................................................................ 7-12
INSTALLATION MODE ............................................................................................................................................................................. 8-1
Starting up the Installation Mode ................................................................................................................................................... 8-1
Configuration ................................................................................................................................................................................. 8-1
Internal Patterns ............................................................................................................................................................................ 8-1
How to use the built-in adjustable lensholder .............................................................................................................................. 8-2
SE VICE MODE ....................................................................................................................................................................................... 9-1
Starting up the Service Mode ....................................................................................................................................................... 9-1
Identification .................................................................................................................................................................................. 9-2
Change Password ........................................................................................................................................................................ 9-3
Change Language ......................................................................................................................................................................... 9-3
eset Lamp untime ..................................................................................................................................................................... 9-4
Lamp un Time History ................................................................................................................................................................. 9-4
Lamp drive mode ........................................................................................................................................................................... 9-4
Panel Adjustments ........................................................................................................................................................................ 9-5
Preset Input Balance ..................................................................................................................................................................... 9-5
I2C diagnosis. ................................................................................................................................................................................ 9-6
Appendix A : Standard Source Set Up Files ......................................................................................................................................... A-1
Appendix B : Lenses .............................................................................................................................................................................. B-1
Focusing the lens ......................................................................................................................................................................... B-1
Lens Cleaning Procedure ............................................................................................................................................................ B-1
Lenses ......................................................................................................................................................................................... B-2
Appendix C : Source numbers 90 - 99 .................................................................................................................................................. C-1

1-1
Unpacking & Dimensions
5975418 BA COVISION 3200 290997
Pull
To open
1 234 5
379

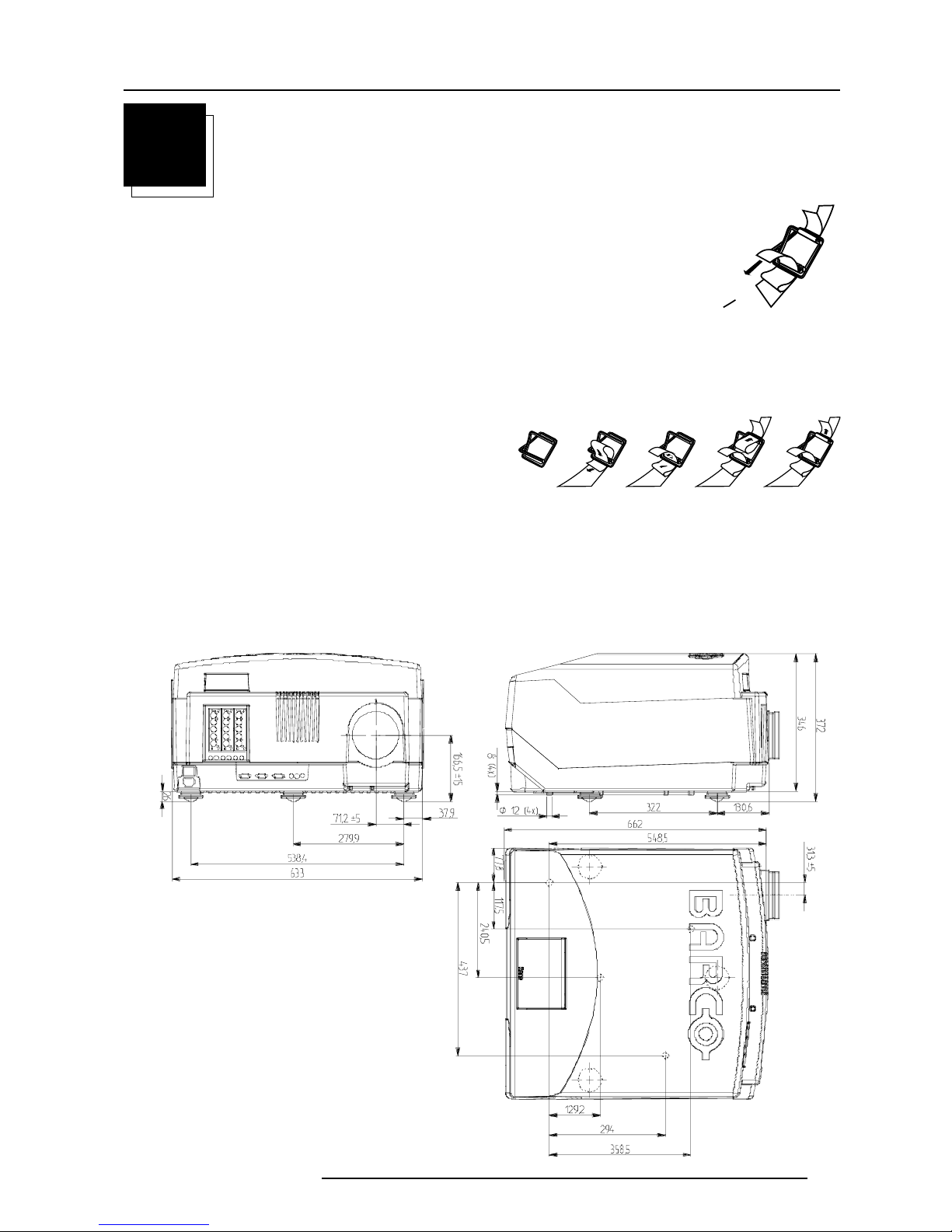

1UNPACKING & DIMENSIONS
Unpacking
To open the banding, pull on the clip as shown in the first drawing.
Take the projector out of its shipping carton and remove the foam rubber corners and place the projector
on a table.
Save the original shipping carton and packing material, they will come in handy if you ever have to ship your projector. For maximum protection,
repack your projector as it was originally packed at the factory.
Contents of the shipped box :
- 1 BA COVISION 3200
- 1 remote control unit CU + 9V battery
- 1 power cable with outlet plug type CEE7.
- 1 owners manual.
- 1 installation manual.
- 1 safety manual
- 3 plastic supporting feet.

1-2
Unpacking & Dimensions
5975418 BA COVISION 3200 290997
310a.DRW
Battery installation in the RCU.
A battery is delivered inside the plastic bag with the power cord. Before using the CU, first install the
battery.
emove the battery cover on the backside of the remote control by pushing the indicated handle a little
to the bottom of the CU. Lift up the top side of the cover at the same time (fig. 1).
Insert the new 9 V battery in the lower compartment and connect the battery to the contact plate.
Insert the battery into the lower compartment and put the cover back.
Note : projector address has to be programmed on the RCU before using the RCU (see chapter
'Controlling')
fig.1
fig.2
Insert here the 'Insert card
CU' which you can cut out
on the last page of this manual.
Contact
plate
Battery

2-1
Installation Guidelines
5975418 BA COVISION 3200 290997
2
6FUHHQZLGWK
INSTALLATION GUIDELINES
Installation gui elines
Careful consideration of things as image size, ambient light level,
projector placement and type of screen to use are critical to the
optimum use of the projection system.
* Environment
Do not install the projection system in a site near heat sources such
as radiators or air ducts, or in a place subject to direct sunlight,
excessive dust or humidity. Be aware that room heat rises to the
ceiling; check that temperature near the installation site is not
excessive.
* What about ambient light ?
The ambient light level of any room is made up of direct or indirect
sunlight and the light fixtures in the room. The amount of ambient light
will determine how bright the image will appear. So, avoid direct light
on the screen.
Windows that face the screen should be covered by opaque drapery
while the set is being viewed. It is desirable to install the projecting
system in a room whose walls and floor are of non-reflecting material.
The use of recessed ceiling lights and a method of dimming those
lights to an acceptable level is also important. Too much ambient light
results in a wash out of the projected image. That appears as less
contrast between the darkest and lightest parts of the image. With
bigger screens, the wash out becomes more important. As a general
rule, darken the room to the point where there is just sufficient light
to read or write comfortably. Spot lighting is desirable for illuminating
small areas so that interference with the screen is minimal.
* Which screen type?
There are two major categories of screens used for projection
equipment. Those used for front projected images and those for rear
projection applications.
Screens are rated by how much light they reflect (or transmit in the
case of rear projection systems) given a determined amount of light
projected toward them. The GAIN of a screen is the term used. Front
and rear screens are both rated in terms of gain. The gain of screens
range from a white matte screen with a gain of 1 (x1) to a brushed
aluminized screen with a gain of 10 (x10) or more. The choice
between higher and lower gain screens is largely a matter of
personal preference and another consideration called the Viewing
angle.
In considering the type of screen to choose, determine where the
viewers will be located and go for the highest gain screen possible.
A high gain screen will provide a brighter picture but reduce the
viewing angle.
For more information about screens, contact your local screen
supplier
* What image size? How big should the image be?
Max. ambient temperature : 40 °C.
Min. ambient temperature : 0 °C
The projector will not operate if ambient air temperature falls outside
this range (0 °C - 40 °C)
The BA COVISION 3200 is designed for projecting an image size
from 1.00m (3.3ft) to 10.00m (32,81ft) with a aspect ratio of 4 to 3.

2-2
Installation Guidelines
5975418 BA COVISION 3200 290997
* Where to install the projector?
Definitions of the Abbreviation on drawings
B = Distance between ceiling and top of the screen or
between floor and bottom of the screen.
A = Correction value, distance between bottom side of
projector (without feed) and middle of the lens. Value to be
subtracted from B to obtain the correct installation position. (A
value is a constant value for all screen widths and type of
lenses, A = 140.5 mm.)
CD = Total distance between projector and ceiling or projector
and floor.
SW = Screen width.
SH = Screen height (image height).
PD = Projector Distance, distance between screen and
projector.
Lens type selection.
a) determine the required screen width.
b) determine the approximate position of the projector in the projection
room with regard to the screen and measure the
projector-screen distance (PD).
c) use the lens formulas in appendix B to find the best corresponding
PD with regard to the measured projector-screen distance for the
required screen width.
The desired lens is determined (the order number is given in the tabel
in the same appendix B).
Start the installation procedure for the projector as described in
the manual.
Screen
PD
B
Floor
Projector
CD
A
CD = B- A
CD= height of table +supporting feet
SH
Optical axis projection lens
SH
SW
SIDE VIEW
BACK VIEW
Screen
BOTTOMVIEW
SW
Floor
* How to install a projection lens?
The projector is supplied without any lens. The following lenses are
available as an option (order numbers are given in appendix B) :
MD(1.2:1)
MD(2.3:1)
MD(3.4:1)
MD(5.0:1)
MD(6.0:1)
MD(7.0:1)
MD(1.7-3:1)
MD(3.0-6.0:1)
How to install the lens?
emove the foam rubber in the opening of the lens holder.
- Take the new lens out of its shipping carton and remove the lens
covers.
- Turn the lens into the lens holder by turning clockwise.
- Focus the lens (see appendix B, 'Lenses') and secure the
correct position with the fastener ring by turning this ring clockwise.
Screen
PD
B
Ceiling
Projector
CD
A
CD = B - A
SH
Optical axis projection lens
SH
SW
SIDE VIEW
BACKVIEW
Screen
BOTTOMVIEW
SW
Ceiling
Inputs and computer video format input compatibility :
Some examples :
VIDEO and S-VIDEO
COMPONENT VIDEO
GB ANALOG with STANDA D SYNC (SYNC ON G EEN or
SEPA ATE SYNC)
GB ANALOG with T I-LEVEL SYNC (SYNC ON G EEN or
SEPA ATE SYNC)
VGA : 640 x 480 pixels
MAC : 640 x 480 pixels
Super VGA : 800 x 600 pixels

3-1
Location and Functions of Control
5975418 BA COVISION 3200 290997
3
56,1
56287 &2003257
$ 8',2 287 &75/


   

   


Remote : emote input for wired remote control.
Loudspeaker : for use in small areas only.
IR-Acknowledged : I signals are recognized (green
led).
IR-Received : I signals are received but not recognized
by the projector (red led).
IR receiver : eceiver for control signals transmitted from
the CU.
Diagnostics code : a) Source number
b) Error code : A two digits error code is displayed when
something goes wrong inside the projector.
rojector mode indication : Indicates the status of the
projector.
No lighting up : Power switch is not pressed.
ed lighting up : Power switch is pressed, projector in
stand by mode.
Green lighting up : Projector in operational mode.
1ower switch : '1' = on, '0' = off
ower input : Autoranging from 90 to 250 Vac.
Audio input for Video signals only.
Input slots : The projector has modular input facilities.
3 input modules can be inserted. The sequence of
insertion has no importance.
The following modules can be inserted :
- Video, S-Video (PAL, SECAM, NTSC) input
- GBS/ GsB analog input
- GB3S/ G3sB input
- Component Video input
RS232 IN : To allow communication with external com-
puter, e.g. IBM PC or compatible, Macintosh ...
RS232 OUT : Used to connect to next projector, S232IN
plug (communication link for PC or MAC to the next
projector).
Communication port : Allows communication with the
800 peripherals.
Audio output.
3
2
4
5
6
7
8
9
10
11
12
13
14
15
LOCATION AND FUNCTION OF CONTROLS
Front panel terminology

3-2
Location and Functions of Control
5975418 BA COVISION 3200 290997





 




 





(17(5
3$86(


3+$6(
)5((=
7(;7
(;,7
$'-
$''5
6%<
6+$531 66
1
&2/25
%5,*+71(66
&21 5$6
087(


%$/$1&


75(%/(


92/80


%$66

















+/3
"
&2/253+$6(
6+$531 7,17 %5,*+71
67$1'%<
(17(5
7(;7
(;,7
3$86(









&2175$67











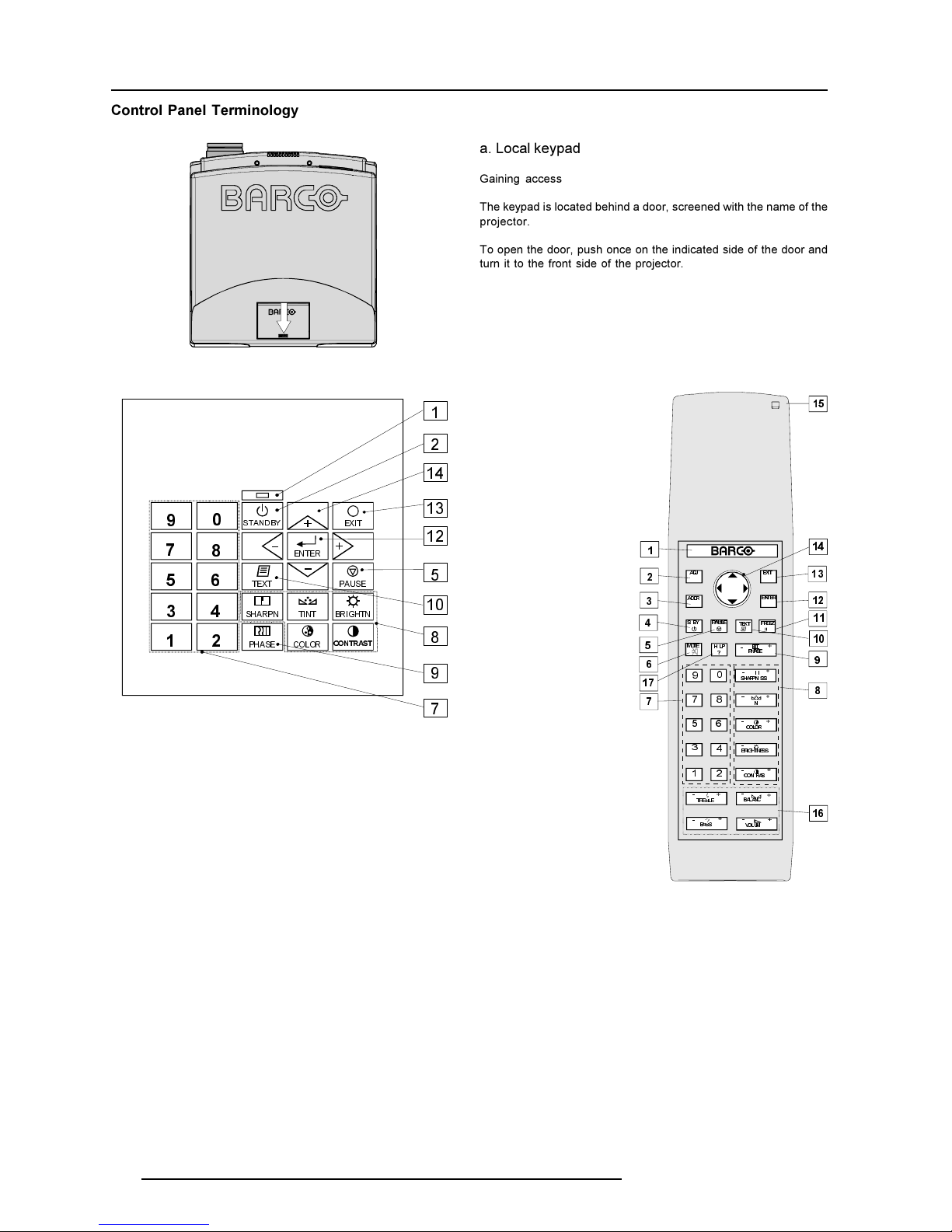

Control Panel Terminology
a. Local keypad
Gaining access
The keypad is located behind a door, screened with the name of the
projector.
To open the door, push once on the indicated side of the door and
turn it to the front side of the projector.
b. Remote control
This remote control includes a battery powered infrared (I ) trans-
mitter that allows the user to control the projector remotely.
This remote control is used for source selection, control,
adaptation and set up. It includes automatic storing of :
- Picture controls (Brightness, Sharpness...)
- Settings
Other functions of the remote control are :
- Switching between standby and operational mode.
- Switching to "pause" (blanked picture, full power for immediate
restarting)
- Direct access to all connected sources.
- Variable adjustment speed : when pushing continuously on the
control stick or the picture keys, the adjustment will be executed
in an accelerated fashion.
Local keypad
emote Control ( CU)

3-3
Location and Functions of Control
5975418 BA COVISION 3200 290997
11
12
13
14
Terminology
Back light key : When activated, all keys will be lighted up
and visible in the dark.
ADJ. : ADJUST key, to enter the adjustment mode or for
quick exit in the adjustment mode.
Address key (recessed key), to enter the address of the
projector (between 0 and 9). Press the sunk address key
with a pencil, followed by pressing one digit button between
0 and 9.
STBY : Stand by button - to start projection when
the power switch is switched on.
- to switch off the projector
without switching off the power switch.
AUSE : To stop projection for a short time, press 'PAUSE'.
The image disappears but full power is retained for imme-
diate restarting.
Mute : To stop audio reproduction. Press 'Mute' again to
restart audio reproduction.
Digit buttons : Direct input selection.
icture controls : Use these buttons to obtain the desired
picture analog level (see also 'Controlling').
HASE : Used to remove the instability of the image.
TEXT : When adjusting one of the image, e.g. controls during
a meeting, the displayed bar scale can be removed by
pressing 'TEXT' key first. To re-display the bar scale on the
screen, press 'TEXT' key again. 'TEXT' key only active in
operational mode.
1
2
3
4
5
6
7
8
9
10
FREEZ : Press to freeze the projected image.
ENTER : To start up the adjustment mode or to confirm an
adjustment or selection in the adjustment mode.
EXIT : To leave the adjustment mode or to scroll upwards
when in the adjustment mode.
Control disk (on CU) or '+' and '-' keys (cursor keys):
To make menu selections when in the adjustment mode.
The control disk can move up, down, to the right or to the left.
Comparision between control disk movement and the use of
the cursor keys on the local keypad :
CU = local keypad
control disk up = '+' key up
control disk down = '-' key down
control disk to the right = '+' key right
control disk to the left = '-' key left
Use the '+' and '-' keys (cursor keys) : to increase or
decrease the analog level of the image controls when they
are first selected.
RC operating indication : Lights up when a button on the
remote control is pressed. (This is a visual indicator to check
the operation of the remote control)
Audio controls : Use these buttons to obtain the desired
audio level (see also 'Controlling').
Help : On line help information
15
16
17

3-4
Location and Functions of Control
5975418 BA COVISION 3200 290997

4-1
Connections
5975418 BA COVISION 3200 290997
56,1 56287 &2003257 $8',2287
&7 5/
4
ADJ
EXIT
STBY
TEXT
BRIGHTNESS
-
+
-
+
-
+
-
+
SHARPNESS
-
+
TINT
COLOR
CONTRAST
)5((=
0
9
7
8
6
5
4
3
2
1
(17(5
3$86(
-
+
3+$6(
+(/ 3
CONTRAST COLOR
PHASE
SHARPN TINT BRIGHTN
STANDBY
ENTER
TEXT
EXIT
PAUSE










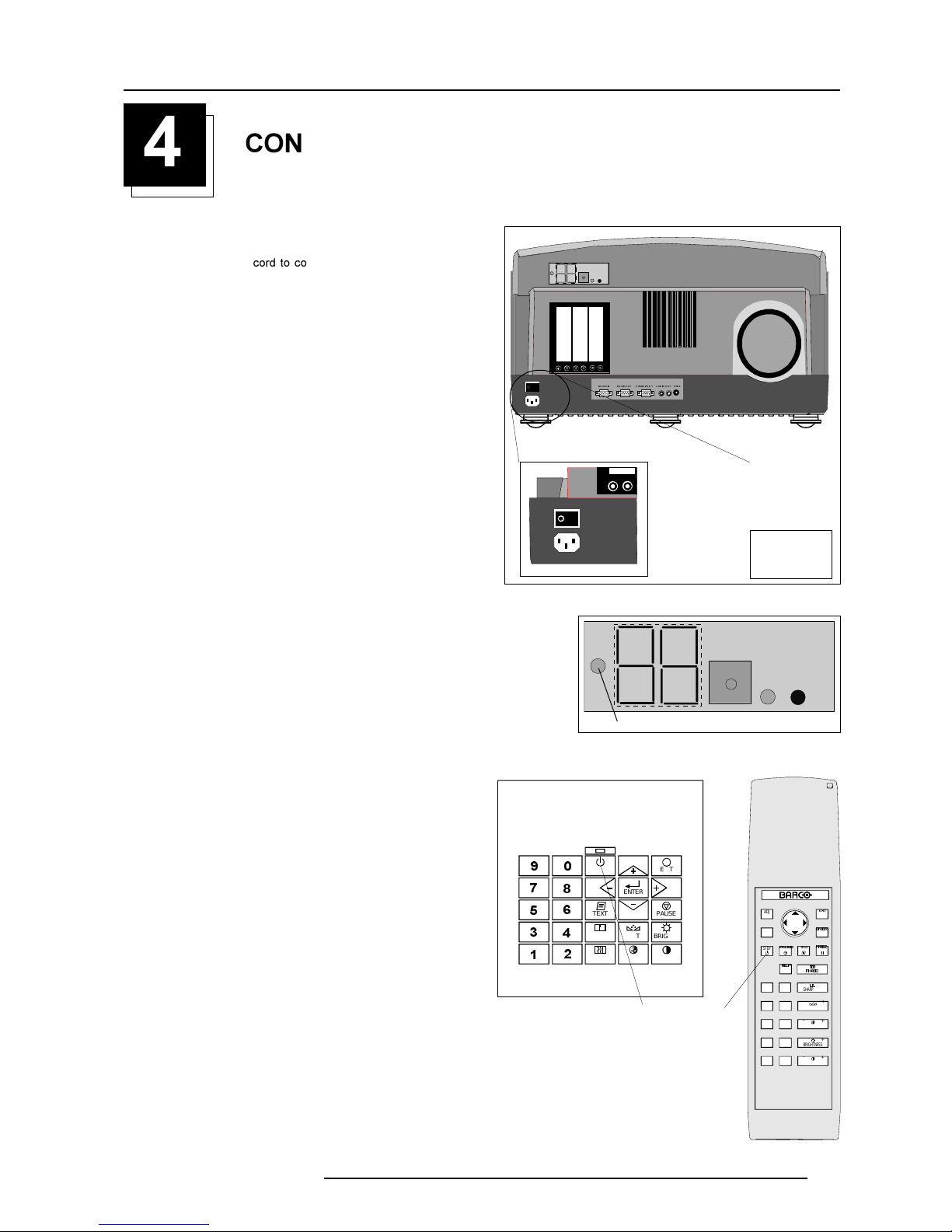

CONNECTIONS
Power (mains) cor connection
Use the supplied power cord to connect your projector to the wall
outlet. Plug the female power connector into the male connector at
the front of the projector.
Stand by button
Switching on
Use the power switch to switch on.
When '0' is visible, the projector is switched off.
When '1' is visible, the projector is switched on.
When switching on with the power switch, the projector starts in the
stand by mode. The projector mode indication lamp is red.
To start image projection :
a. press the 'Stand by' button on the local keypad or on the remote
control. The projector mode indication lamp will be green.
b. press a digit button to select an input source. The projector mode
indication lamp will be green.
This projector may be connected to an IT-power system.
Fuses
Warning
For continued protection against fire hazard :
- refer replacement to qualified service personnel
- ask to replace with the same type of fuse.
Fuse type : T16 AH/250V
Projector mode indication
100V - 240V
10 - 4 A
60 - 50 Hz
100V - 240V
10 - 4 A
60 - 50 Hz
The power input is autoranging from 90 to 250 VAC.

4-2
Connections
5975418 BA COVISION 3200 290997

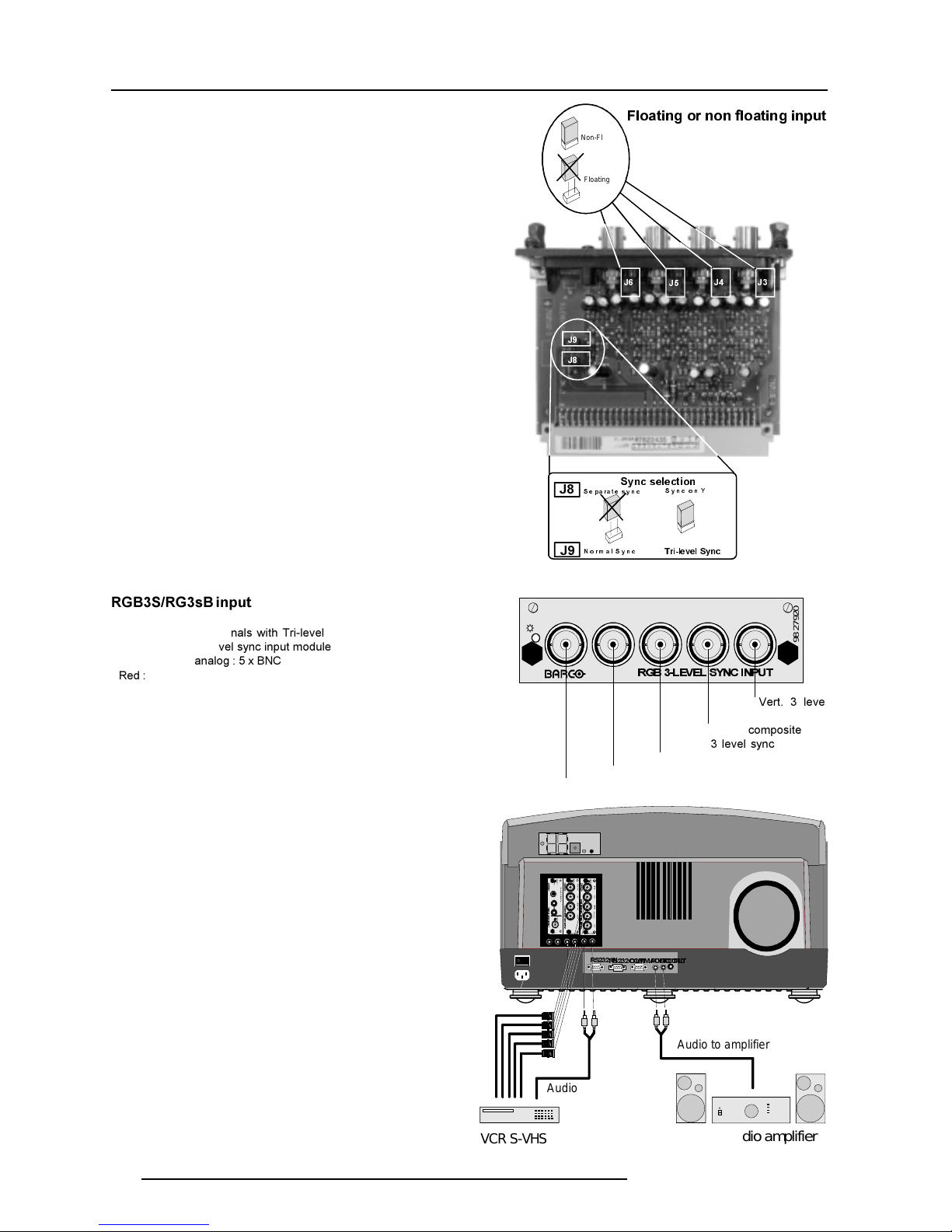

Input connections.
The projector has modular input facilities. The input slots can be
filled up with the following modules :
When the total run time of the lamp is 720 hours or more, the following message will be
displayed for 1 minute. This message will be repeated every 30 minutes. Press EXIT to
remove the message before the minute is over.
When the total run time of the lamp is 750 hours or more, the following message, with the
exact run time is displayed on the screen.
Lamp run time is 750 hours Operating the lamp longer than 750 hours may damage the
projector Please replace the lamp
When OK (ENTE ) is pressed to go on, the warning will be repeated every 30 min.
The total lifetime of the lamp for a safe operation is 750 hours max. (normal power mode).
Do not use it longer. eplace always with a same type of lamp. Call a BA CO authorized
service technician for lamp replacement.
Warning : Using a lamp for more than 750 hours is angerous, the
lamp coul explo e.
<ENTER> to continue
WARNING
Lamp run time is 750 hours
Operating the lamp longer
than 750 hours may damage
the projector.
lease replace the lamp
Lamp run time
720 h
Switching to stan -by.
When the projector is running and you want to go to stand-by, press
the stand-by key.
Switching off
To switch off:
- press first STANDBY key and let cool down until the fans
stop blowing ( or at least 15 min).
- switch off the projector with the power switch.
The sequence of insertion has no importance. It is even perfectly
possible to insert several input modules of one type.
Note : When using a CVDS05 or VS05, the input configuration of the
projector must be as follows:
Slot 1 : video input module
Slot 2 : GB analog input module
Slot 3 : Component input module
Input mo ule insertion into the projector :
- Power down the projector and disconnect the power cord from the
wall outlet.
- emove the dummy plate covering the chosen input slot by turning
out both screws.
- Slide the input module in the free slot. Insure the module is seated
correctly in the guide grooves.
- Press on both handles of the input module until the module plug seats
in the connector of the projector.
- Secure the input module by tightening both retaining screws.
- econnect the power cord to the wall outlet and switch on the
projector.
The new installed module can be selected with the digit buttons on
the CU or the local keypad.

4-3
Connections
5975418 BA COVISION 3200 290997
S-VIDEO
9827900
VIDEO
LR
AUDIO
9,'(269,'(2,1387
On On
Select with or
then <ENTER>
<EXIT> to return.
Select with or
then <ENTER>
<EXIT> to return.
TVtuner, e.g.
TVDM40 stereo
VCR
Audio amplifier
Composite
Video
VCR S-VHS
Luma/Chroma
56,1
56287&2003257 $8',2287 &75/
R-Y Y B-Y S
On
9827930
&
2
0
3
2
1
(
1
7

9
,
'
(
2

,
1
3
8
7
S-VIDEO
98 27900
VIDEO
L
R
AUDIO
9
,
'
(
2

6

9
,
'
(
2

,
1
3
8
7
On On
R
G
B
H / C
V
On
5
*
%

$
1
$
/
2
*

,
1
3
8
7
98 27910
Audio Audio
Audio to amplifier
)ORDWLQJ

RU

QRQ

IORDWLQJ

LQSXW
Floating
Non-Floating
-
-
-
INSTALLATION
INPUT SLOTS
CONVERGENCE
CONFIGURATION
INTERNAL ATTERNS
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
INPUT SLOTS
1. RGB-SS[CV]
2. RGB-SOG
3. Video/S-Video [Video]
Straps on module level.
Floating or non-floating input.
Video input :
J11 : strap "yes" : non floating strap "no" : floating
S-Video input :
J12 : strap "yes" : non floating strap "no" : floating
J13 : strap "yes" : non floating strap "no" : floating
Factory preset : strap on, input non floating.
Push the control disk up or down to highlight Installation and press
ENTER to display the 'Installation menu'.
EXIT returns to operational mode.
Use the control disk to select 'Input Slots' by pushing it up or down
and press ENTER. The internal system will scan the inputs and
displays the result in the 'Input Slots menu'.
Push the control disk up or down to select the corresponding (video
or S-video) input slot number.
To change the priority between Video and S-Video, press ENTER key
to toggle.
1 x 4 pins plug (mini DIN)
pin configuration :
1 ground luminance
2 ground chrominance
3 luminance 1.0 Vpp ± 3 dB
4 chrominance 282 mVpp ± 3 dB
Input selection :
Key in the corresponding slot number on the CU or the local
keypad. Depending on the priority setting in the Input slots
menu, Video or S-Video will be displayed. If the wrong source
type is displayed, start up the adjustment mode by pressing
ADJUST or ENTER.
Vi eo/S-vi eo input mo ule
To the Video input :
Composite video signals from a VC , OFF air signal decoder, etc...
1 x BNC 1.0Vpp ± 3 dB
To the S-Video input :
Separate Y-luma/C-chroma signals for higher quality playback of
Super VHS-signals.
Video input
Audio input for
S-Video
S-Video input

4-4
Connections
5975418 BA COVISION 3200 290997
RGBH / C V
On
5*%$1$/2*,1387
98 27910
21
2))
%
+
*
59
,13
,13
,1387
$1$/2*,17(5)$&(0+]
56,1
56287&2003257 $8',2287
&75/
S-VIDEO
9827900
VIDEO
L
R
AUDIO
9
,
'
(
2

6

9
,
'
(
2

,
1
3
8
7
On On
R
G
B
H /C
V
On
5
*
%

$
1
$
/
2
*

,
1
3
8
7
98 27910
R-Y
Y
B-Y
S
On
98 27930
&
2
0
3
2
1
(
1
7

9
,
'
(
2

,
1
3
8
7
RGB analog input mo ule.
GB analog input terminals with separate Horizontal and Vertical
sync inputs( GB-HV), with Composite sync input( GB-S) or with
Sync signals on green( GsB).
Always use an interface when a computer and local monitor have
to be connected to the projector. Interfaces to be applied :
Universal analog interface.
Order number : 9826100.
GB 120 MHz analog interface.
Order number : 9826570.
VGA interface
Order number 120V : 9828079.
Order number 230V : 9828070
MAC interface
Order number 120V : 9828059
Order number 230V : 9828050
MAGIK interface
Order number 120V : 9828129
Order number 230V : 9828120
GBS/ GsB analog : 5 x BNC
ed : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if sync on green
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync :
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
RGB input selection :
Key in the corresponding slot number on the CU or the local keypad.
Straps on module level :
Floating or non-floating input.
ed : J3 : strap "yes" : non floating strap "no" : floating
Green : J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection : strap on module level.
J8 : see drawing
Factory preset : separate sync.
Sync selection on the Input Slots menu.
The horizontal sync input can be set as separate sync input or as
separate sync + video input. To change this setting, press ADJUST
or ENTER key to start up the Adjustment mode..
)ORDWLQJ

RU

QRQ

IORDWLQJ

LQSXW
Floating
Non-Floating
-6\QFVHOHFWLRQ
6HSDUDWHV\QF 6\QFRQJUHHQ
-
-
-
-
-
Vert. sync
Hor. sync or Composite
sync
Blue
Green
ed

4-5
Connections
5975418 BA COVISION 3200 290997
Select with or
then <ENTER>
<EXIT> to return.
Select with or
then <ENTER>
<EXIT> to return.
R-Y Y B-Y S
On
9827930
&20321(179,'(2,1387
Audio amplifier
VCR S-VHS
56,1
56287&2003257$8',2287 &75/
S-VIDEO
98 27900
VIDEO
L
R
AUDIO
9
,
'
(
2

6

9
,
'
(
2

,
1
3
8
7
On On
R
G
B
H / C
V
On
5
*
%

$
1
$
/
2
*

,
1
3
8
7
9827910
Audio
Audio to amplifier
R-Y
Y
B-Y
S
On
9827930
&
2
0
3
2
1
(
1
7

9
,
'
(
2

,
1
3
8
7
Push the control disk up or down to select Installation and press
ENTER.
Use the control disk to select Input Slots by pushing up or down and
press ENTER. The internal system will scan the inputs and displays
the result in the Input Slots menu.
Push the control disk up or down to select the corresponding GB
input slot. To change the sync priority for Sync separate, press
ENTER key to toggle between CV and CS or HS&VS.
Possible indication :
RGB-SS [CV] = separate sync is composite video signal
on H/C input.
RGB-SS [CS or HS&VS] = separate sync is composite
sync or horizontal and vertical sync.
RGB-SOG = sync on green.
Component input mo ule.
Connect your component signals (Y-luma, -Y and B-Y), e.g. a
professional VC to the Component input module.
Component video : 4 x BNC
-Y : 0.7 Vpp ± 3 dB
B-Y : 0.7 Vpp ± 3 dB
Y : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Composite sync : 1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even if the module
is "not selected".
Component input selection :
Key in the corresponding slot number on the CU or the local keypad.
Indication on the input slot menu :
Component Video-SS = Component video with separate sync
Component Video-SOY = Component video with sync on Y
Component Video-3LSS = Component video with 3 level separate
sync
Component Video-3LSOY = Component video with 3 level sync on
Y
Sync
Blue - luma
Luma
ed - luma
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Source 01
INPUT SLOTS
1. RGB-SS [CV]
2. RGB-SOG
3. Video/S-Video [Video]
INSTALLATION
INPUT SLOTS
CONVERGENCE
CONFIGURATION
INTERNAL ATTERNS

4-6
Connections
5975418 BA COVISION 3200 290997
RGB
H/ C V
On
5*%/(9(/6<1&,1387
98 27920
)ORDWLQJRUQRQIORDWLQJLQSXW
Floating
Non-Floating
6\QFVHOHFWLRQ
6HSDUDWHV\QF 6\QFRQ<
--
-
-
-
-
1RUPDO6\QF
7ULOHYHO6\QF
-
-
Audioamplifier
VCRS-VHS
56,1
56287&2003257
$8',2287 &75/
S-VIDEO
98 27900
VIDEO
L
R
AUDIO
9
,
'
(
2

6

9
,
'
(
2

,
1
3
8
7
On On
Audio
Audio to amplifier
R-Y
Y
B-Y
S
On
98 27930
&
2
0
3
2
1
(
1
7

9
,
'
(
2

,
1
3
8
7
R
G
B
H / C
V
On
5
*
%



/
(
9
(
/

6
<
1
&

,
1
3
8
7
9827920
Vert. 3 level
sync
Blue
Green
ed
Hor. or composite
3 level sync
RGB3S/RG3sB input mo ule.
Connect your GB signals with Tri-level sync, e.g. a professional
VC to the GB 3 level sync input module.
GB3S/ G3sB analog : 5 x BNC
ed : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. Tri-level sync / Composite Tri-level sync:
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
Input selection :
Key in the corresponding slot number on the CU or the local
keypad.
Indication on the input slot menu :
GB3L-SS = GB with separate Tri level sync.
GB3L-SOG = GB with Tri level sync on green.
Straps on module level :
Floating or non-floating input.
-Y : J3 : strap "yes" : non floating strap "no" : floating
Y : J4 : strap "yes" : non floating strap "no" : floating
B-Y : J5 : strap "yes" : non floating strap "no" : floating
S : J6 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection.
J8 :
strap "no" : separate sync
strap "yes" : sync on Y.
J9 :
strap "yes" : Tri-level sync
strap "no" : normal sync.
Factory preset :
separate sync and
normal sync.
