TECHNICAL PARAMETERS
12
12
10
12
7
9
8
9
9
OPERATING INSTRUCTIONS BEFORE USE
INSTRUCTIONS FOR USE
MAINTENANCE AND CLEANING METHODS
FAQ
Replace the filter
Wind speed setting
Install the filters
Lamp button setting
Exteral power supply
3
2
Warning
Attention
4
4
Purification technologies
Air purification process
PRODUCT TECHNICAL FEATURES
6
5
5
Appearance diagram
Parameters
Filter parameters
IMPORTANT
PARTS TO INTRODUCE
Complete machine decomposition diagram
Operating unit
Position
The power setting
Maintenance and cleaning methods
FAQ
7
9
Smart air purifier
Health series
Build ecological home,
Build ecological home,
Declaring war on viruses
Declaring war on viruses
DIRECTORY

2
IMPORTANT
Please supervise your
children and avoid
them from touching
or using machine.
In order to prevent harm or damage happened to users or others, be sure to comply with the requirement as below:
It reminds that misusing or mishandling may cause death.
It reminds that misusing or mishandling may cause hurt.
Warning/Attention
Warning
Attention
FORBID FORCE
AVOID WET
It may cause electrical
shocking.
Do not connect or
disconnect the power
with wet hand
NO DISASSEMBLE
No disassembly,repair and
reconstruction.
It may cause fire or damage.
Please send it to the retailer
for repair.
Do plug the power into the socket
completely.
It may cause fire because of heating or
electrical shocking.
Do not use the damaged plug or loose
socket
If there is dust on the plug, it
may weaken the insulation,
even cause fire
Take out the plug and clean it with
dry cloth.
Please remove the plug from the
socket if not using for a long period.
AVOID WET
Avoid any water on
the surface of the
unit.
It may cause short
circuit or electrical
shocking.
DISCONNECT POWER
Do not insert any metal
objects into the unit.
It may cause hurt or electric
shocking
WARNING
FORBID
Do not use the over run socket or
wiring connector.Do use the rated
voltage.
It may cause fire
FORBID
Do not repair it when the cord
or plug is damaged..
It may cause short circuit, electric
shocking or fire.
Please send it to the retailer for
repair.
FORBID
IMPORTANT
The appliance must be
disconnected from the
supply mains before
cleaning or other
maintenance
Otherwise the unit may
start working in a sudden
which may cause
electrical shocking or
hurt.
1. Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.
The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable
material collection-service.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3.Children should be supervised to ensure that they do not play with the appliance Children should be supervised to ensure that they do not play
with the appliance.

FORBID
Do not use in the room with
lampblack such as kitchen.
It may cause hurt because the
machine is not a ventilator
Please ventilate timely when
used with fire in the room
Otherwise it may cause poisoning
of Co as the machine is not a
1
ventilator
Do not power the unit on when using
insecticide in the room
Otherwise the insecticide may be stored in
the unit and will blow out during the normal
working time.It is harmful to the health.
Please ventilate completely after having
used the insecticide before turn on the unit.
Do not use in the watery or high
temperature room such as the
bathroom etc.
Otherwise it may cause creepage,
electric shocking or fire.
● If all switches do not work
● If the power cord or plug hot
singularly
● If any peculiar smell, exceptional
noise or vibration
● Any other abnormality or failure
Please remove the plug from the
socket if any conditions as below:
If the power cord is damaged, please send it to the retailer or service center or technician for repairing. Do not change or repair it by yourself.
ATTENTION
ATTENTION
Please hold the plug instead of
the cord when unplug the power.
Otherwise it may cause short
circuit, breaking of the cord,
electric shocking or fire.
Keep away from alcohol,organic
impregnant or insecticide
It may cause cracking,short circuit, electric
shocking, hurt or fire
Do not blow in any combustible
or fired cigarette into the unit.
It may cause fire
3 4
PRODUCT TECHNICAL FEATURES
Purification technologies
*Pre-filter、HEPA filter、activated carbon filter can remove formaldehyde,benzene,xylene,toluene,TVOC and other harmful
gases effectively , low resistance HEPA filter could highly effictive filter out PM2.5 particles with a efficiency more than 99%.
*Negative ion is praised as "Air Vitamin" in Medical Field. It can improve human metabolism immunity if you live in high
negative ion environment 5 million negative ions will be generated per second to form a ion group.
Diagram of purification
Polluted air
Pre-filter HEPA filter Activated carbon filter
Cleaned air

PRODUCT APPEARANCE DIAGRAM/PART INTRODUCTION PART INTRODUCTION
5 6

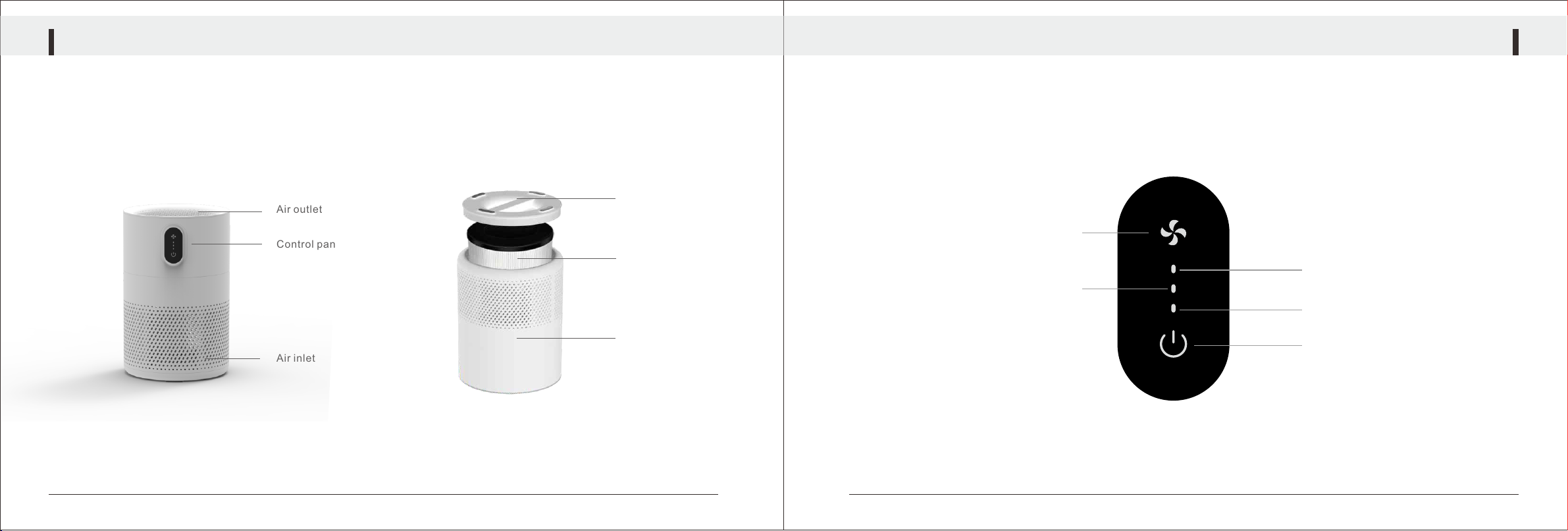

Appearance diagram decomposition diagram
Air outlet
Air inlet
Control panel
Main body
Filter
Base cover
◆ Diagram of Control Panel
Operating parts
ON/Off
Low speed
High speed
Fan speed icon
Medium speed

USE AND OPERATION USE AND OPERATION
7 8
◆ Please keep the machine air inlet and outlet 30cm or more far away from the wall and home furniture.
Do not use the machine in front of hot source outlet.◆
External power source
◆ DC Adapter
Machine socket Adapter
Replacement of the Filters
When using the machine for a certain period of time, The filter should replace when fan icon blink . After replacement , the fan
icon will stop blink when long press the light ON/OFF button.
◆ Filter Replacement reminder

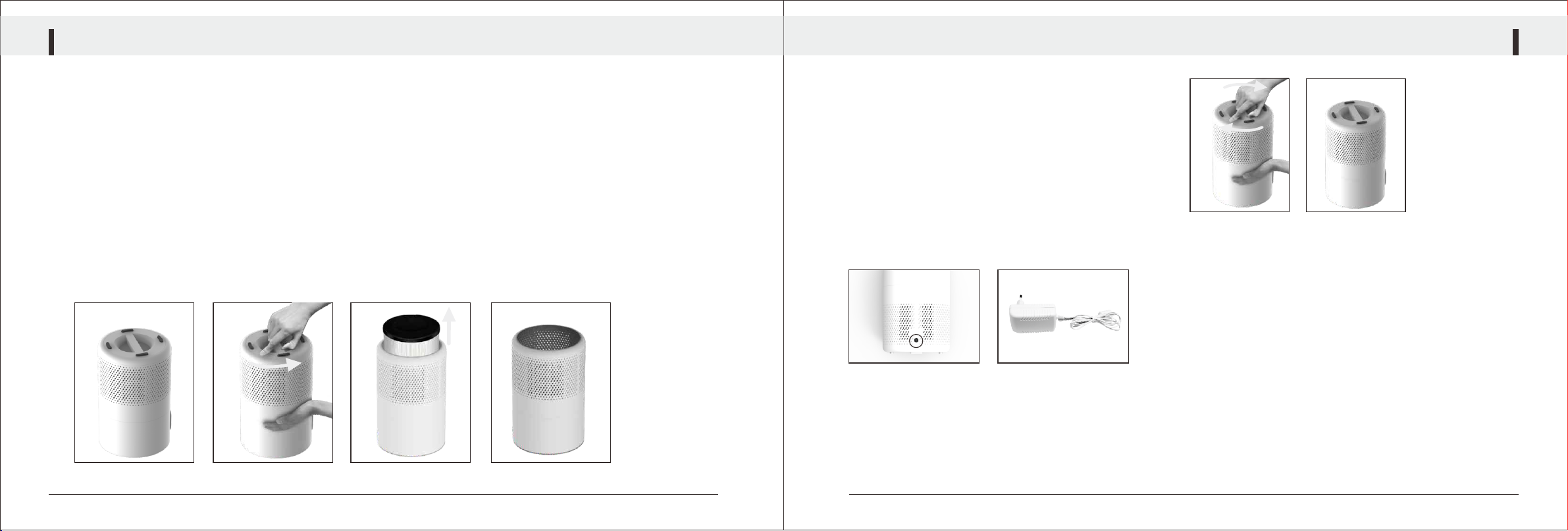

◆ Take out filter
◆ Install the filter
1. Turn it off first, then unplug it;
2. Put the machine upside down, one hand to hold tight the machine body, the other hand press down the cover while turning left,
can open the base cover;
3. Remove the filter.
1. Remove the protective film of the new filter,
and then install the new filter;
2. one hand to hold tight the machine body, the
other hand press down the cover while turning
right, can install the filter.
Placement
◆Please do not mistakenly connect the external power source different from the power adapter specification of this machine,
and firmly insert the plug into the power socket.
Connect the power, the power adapter's DC plug into the machine's DC socket, and then plug the power adapter into the ac socket.◆
When power is cut off, first unplug the ac plug of the power adapter, and then unplug the DC plug from the unit.◆
The product can only be powered from the following two arbitrary
adapters;
Switching Mode Power Supply (MX24W1-2401000V), Class II;
Input: 100 V - 240V ~; 50 Hz - 60Hz; 0,7 A; Output: 24 V˛ ; 1 A
Switching Mode Power Supply (R241-2401000E), Class II;
Input: 100 V - 240V ~; 50 Hz / 60Hz; 0,8 A; Output: 24 V˛ ; 1000 mA

USE AND OPERATION
Cleaning and care
CLEANING AND CARE
Please remove plug from the socket before
cleaning and maintenance .
● Cleaning the body for this device by damp cloth, then wipe it dry.
● If machine is too dirty, neutral detergent can be used for cleaning,
but please dilute the detergent before use.
● Do not clean the unit with the solvent listed on the right which may cause distortion or discolour.
● If the "Filter replacement indicator" is always flashing, it means the filters life time comes to the end,
please clean or replace new filters.
● After cleaning or replacing new filters, please press" Filter replacement indicator" icon,
then it will stop flashing, the machine starts to record the filters using time.
Decont ami nat ion
power
Alkalescence
Benzene Acohol
Scour
9 10
Power Setting Speed Setting
Nightlight setting
After power on, press light button to turn on or switch off
the light, the diagram as follows:
Note: when the machine is working and the indicator of speed turns
to flash , it means the filters life time comes to the end, please replace
new filters.
After the replacement,long press the light button and hold it for more
than 5 seconds until your hear the buzzer , the speed indicator turns
to long light, the machine starts to record the filters using time.
Child Lock: Hold the "Power" icon for 5 seconds
until the unit bleeps once. This will lock the
controls and prevent them from been adjusted.
The lock can be removed by holding the button
for another 5 seconds.
Press the "Power" icon to turn on or switch off the unit.
The diagram as follows:
Press the "Speed" icon you can cycle between maximum air
purification on high speed to lower air flow but quieter operation
mode with lower fan speed. The fan speed of the unit can be
adjusted when the unit is in operation (Low, Med, High ).
Each time that you press on the "Speed" icon,the speed is adjusted
from low to medium to high. The diagram as follows P1:
Sleep Mode: Hold the “Speed” icon for 3 seconds until the unit bleeps once,
the sleep mode will be on, if pressing any icons, the sleep mode will be cancelled.
The diagram as follows P2:
P1：Speed adjustmentPower setting figure
Nightlight figure
P2:sleep mode

Possible solution
Trouble shooting
● If the machine can't work properly,please kindly check as below before you send it out for repair.
Problem Checking methods
Do not work ● Please check if the plug is disconnected from the socket. Power plug should be plugged properly
● Does the using life time for filters come to the end?
● Is the PE bag for filter removed?
● Does the using life time for filter come to the end?
Please take out filter and tear off PE bag.
Pleasereplacenewfilter
Please replace new filter.
Odor can not be removed
● Please check if the base cover is installed completely Recover the base cover correctly
● Is there a very strong odor in the using environment?
(Notes:air should be purified continuously)
Suggesting to ventilate,then start up the
machine.
High noise
If the problem is still existed after above inspections, please disconnect the power and send it for repair.
B-D02A
24V˛
3
≥120m /h
1.6KGS
≤50dB(A)
16W
TECHNICAL PARAMETERS
Model No.:
Power supply:
3
Air flow volume(m /h):
Net Weight:
Noise level dB(A):
Power consumtion (W):
Applicable area：
Dimensions (wxdxh)：
Negative ions：
11 12
φ180xH282(mm)
6 3
≥5.0x10 ions/cm
2 2
16m (172ft )
Multi-function filter
Life time
φ135×H145 (mm)
About 12 months
Size
