AIR PURIFIER INSTRUCTION MANUAL B-626
Rev.E04
AIR PURIFIER
Instruction Manual
Thanks for purchasing the products which protected by intellectual property rights!
The products is covered by insurance company, with invention patent, new practical
licensed technology and design patent.
Air purifying expert
technology is changing the live
Attention:
- Children should be supervised to ensure that they do not play with the appliance.
Correct disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.

Make an ecotypic home to avoid viruses
Environment self cicatrization
It can generate 3,000,000 "air vitamin" every second which can improve
the home environment.
produces "air vitamin"
Anti bacteria
Restrain the breeding and activity of viruses
toxicity of viruses.
The catechol with UV can continuously kill bacteria and restrain the
Healthy air
Healthy air is the basis of health and life
adult needs water per day. So it is very important to the health to
improve the air environment of live.
A child needs 400kgs of air everyday, equal to 100 times of a
Clean air is the source of the life
AIR PURIFIER WARRANTY CARD
Model S/N Color
Maintenance
period
From to
Purchaser Name
Address
Tel
Tel
Dealer
Name
Address
Remark
1.)maintenance period is 1 year. We warranty the unit to be free from defects in materials
and workmanship in the maintenance period (personal misuse is an exception)
2.)after sales service telephone:
If the parameter and specification and other information maybe changed, we will not notice specially, please refer
to the actual machine.
The “optional” are optional configuration , please kindly check with the retailer if your machine with these function.

INDEX
Cuations
Warning
Attention
Function
Purification
Diagram of filters and UV lamp
Diagram of the ion generator
Technical Innovation
Technical innovation for purification
Technical innovation of humanity
Component Instruction
Diagram of outlook
Diagram of the operating parts
Cautions before use
Cautions of the working environment
Installation of the filers
Power setting-
Diagram of filters disassembly and installation
Operating Instruction
Power setting
Mode and time setting
Fan speed setting
Function setting
Maintain and cleaning instruction
Method for maintain and cleaning
Cautions for UV lamp replacement
F A Q
Technical parameters
Technical parameters of the unit
Technical parameters of UV lamp
Technical parameters of HEPA
Technical parameters of activated carbon and photo catalyst
Be sure to use a ground socket

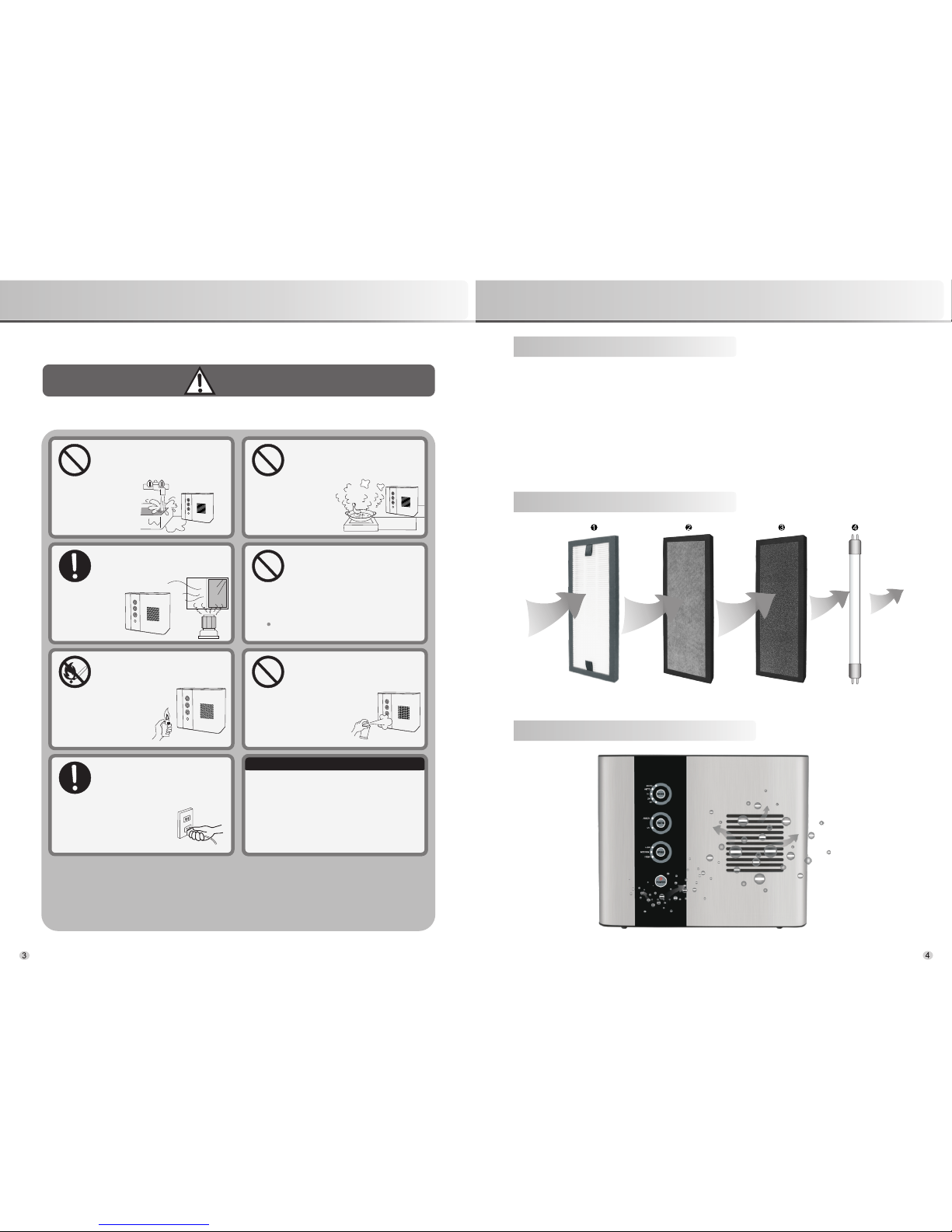

CAUTIONS
Warning It reminds that misusing or mishandling may cause death.
FORCE
FORBID
It reminds that misusing or mishandling may cause hurt.
Attention
WARNING
It may cause fire or damage.
Please send for repairing to
the retailer
No disassembly,
repairing and
reconstruction.
NO DISASSEMBLE
Do plug the power
into the socket
completely.
It may cause fire because of
heating or electrical shocking.
Do not use the damaged
plug or loose socket
Do not use the
over run socket
or wiring connector.
Do use the rated
voltage.
FORBID
It may cause fire
Do clean the
Plug termly
It there is dust on the plug, it
may weaken the insulation,
even cause fire
Take out the plug and clean
it with try
Please remove the plug from
the socket if not using for a
long period
It may cause
hurt or electric
shocking
FORBID
Do not insert any
metal objects into
the unit.
AVOID WET
It may cause electrical shocking.
Do not connect
or Disconnect
the power with
wet hand
Do disconnect
the power when
cleaning
DISCONNECT
POWER
Otherwise the unit may star working
in a sudden which may cause
electrical shocking or hurt.
is damaged..
Do not repair it when the cord or plug
FORBID
It may cause short circuit, electric shocking or fire.
Please send it to the retailer for repair.
Avoid any water
on the surface
of the unit.
AVOID WET
It may cause short circuit or
electrical shocking.
In order to prevent personnel harm or damage happened to users or others, be sure to
comply with requirement as below provided.

FUNCTION
Purification
HEPA: Inhale pollen ,smoke and some inhalant particles are easy to cause allergies, respiratory disease and
asthma. The HEPA filter could filter out particles at min. 0.3microns with a efficiency more than 99.9%
Activated carbon : Formaldehyde is colorless gas with a strong irritating smell which is widely used in
architecture and it is carcinogens .Activated carbon could purify formaldehyde at a rate of 87%, and benzene at a rate
of 69.9%.
Photo catalyst : It is highly effective to decompose the harmful &toxic gas in air and kill the viruses in air .The
sterilization rate and purification rate of TVOC are up to 97.6% and 95.3% respectively .
UV lamp : Air is the main media for the spreading of influenza. Air purification is an effective method to influenza
prevention .With UV sterilization technology ,the rate of sterilization of natural germs is up to 97.6%
Ion: Negative ion is praised as “Air vitamin” in Medical Field. It can improve human metabolism immunity if you
live in high negative ion environment . 3 million negative ions will be generated per second to form a ion group .
Diagram of filters and UV lamp
Diagram of ion generator
HEPA Activated carbon Photo catalyst UV lamp
Do not use in the watery or high
temperature room such as the
bathroom etc
ATTENTION
AVOID USING IN THE
WATERY ROOM
Otherwise it may
causecreepage,
electric shocking or fire.
Do not use in the room with
lampblack such as kitchen.
FORBID
It may cause hurt
because the machine
is not a ventilator
Please ventilate timely when
used with fire in the room
Otherwise it may
cause poisoning of
Co as the machine
1
is not a ventilator
Do not power the unit on when
using insecticide in the room
FORBID
Otherwise the insecticide may be stored in the unit
and will blow out during the normal working time.
It is harmful to the health.
Please ventilate completely after having used
the insecticide before turn on the unit.
AVOID FIRE
It may cause fire
Do not blow in any combustible
or fired cigarette into the unit
Keep away from alcohol,
organic impregnant or
insecticide
FORBID
It may cause cracking,
short circuit, electric
shocking, hurt or fire
Otherwise it may cause short
circuit, breaking of the cord,
electric shocking or fire.
Please hold the plug instead
of the cord when unplug the
power.
Attention
Please remove the plug from the socket if
any conditions as below:
.
.
.
.
If all switches do not work
If the power cord or plug hot singularly
If any peculiar smell, exceptional noise
or vibration
Any other abnormality or failure
If the power cord is damaged, please send to the retailer or service center
or technician for repairing. Do not change or repair it yourself.
Remark: HEPA, Activated carbon and photo catalyst are combined in one filter.

Diagram of control panel
TECHNICAL INNOVATION
Technical innovation and application for purification
UV lamp : Combing with the filter characteristics and the physical characters of the UV
sterilization ,we realize high effectivity virus elimination in the fast flowing air.
Photo catalyst filter : Adopt Nano TiO2 material which has a strong oxidation effect to
destroy the cell membrane, freeze the virus protein and inhibit the activity of the virus
captured by the filter screen. solidification virus proteins, inhibit viral activity.
HEPA filter : Apply the latest electrostatics glass fibre, it could capture particles which
are smaller than cells .
Activated carbon: Biosynthesized from walnut shell, the adsorption area of activated carbon
is high up to 300000 square meters.
Innovation and application of humanistic technology
Computer system: microcomputer automatic control, may need to be set according to
manual, automatic and time.
Safety Switch : The product will power off automatically when the front panel is opened .
LED color display ：It is more convenient to use LED color display .
INSTRUCTION OF OPERATING PARTS
Base
Control panel
Front cover
Air exit
Ion out
Front view Back view
Power cord hole
Handle
Back cover
Filter cover
Nameplate

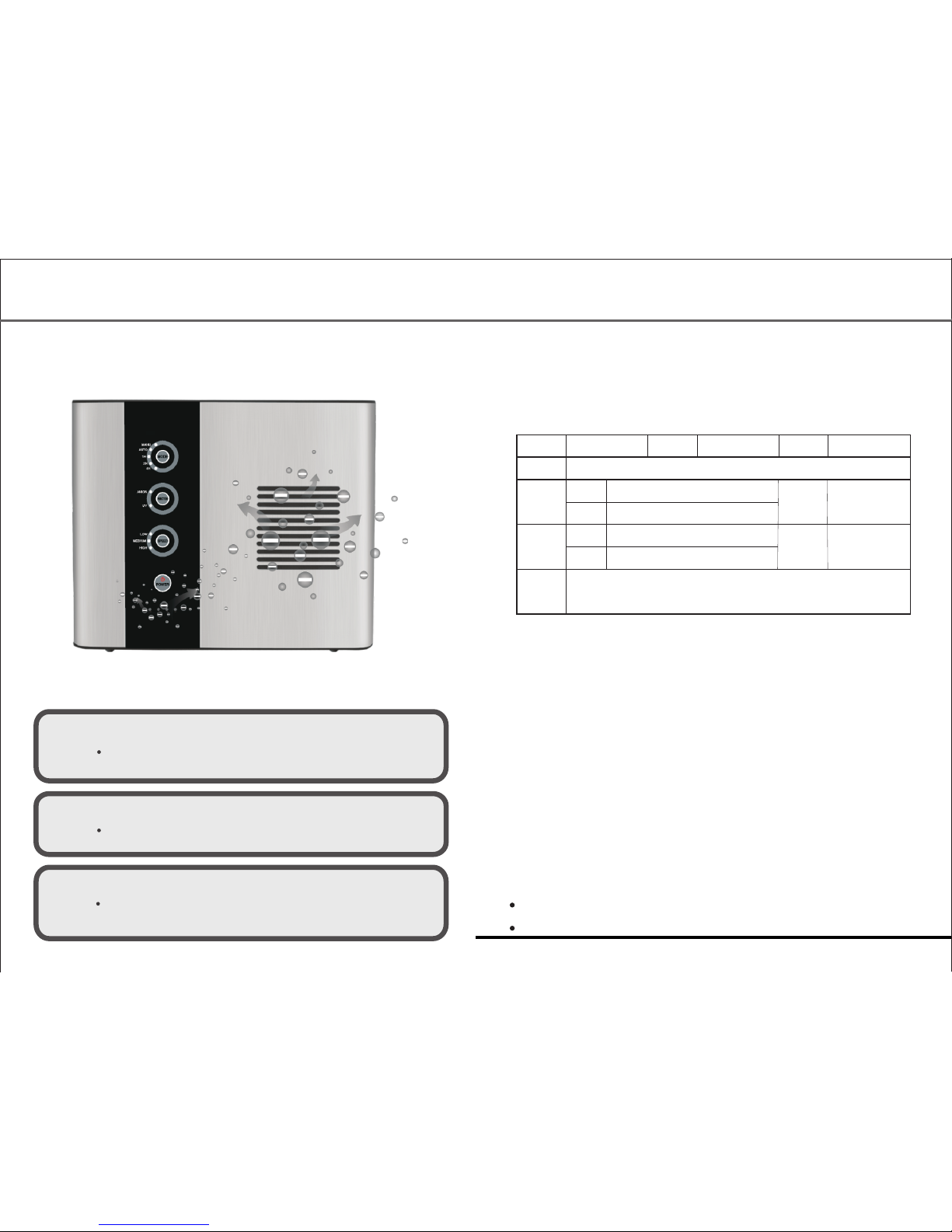

Diagram of the operating parts
Mode button, control manual and auto,
set 1 hour, 2 hours , 4 hours five working mode
Functon button: Anion/UV
Fan speed button, control Low/Medium/High
Power on/off button
Diagram of the unit
Right cover
Automatic alarm:
set up sensor to achieve the replacement of UV lamp automatic alarm.

(1)
. Pleas do not mistake it with other machine have different voltage external power supply,
put the plug firmly into the power socket.
CAUTIONS BEFORE USE
The working environment
·Keep the unit 30cm or more from the wall or funiture.
·Keep the unit 1 meter or more from the TV or computer.
Installation of the filters
(1) Take off cover on the back
(2) Take off the HEPA, activated carbon and photo catalyst filter, tear off plastic bag and install it.
Take off filter cover Install HEPA, activated
carbon and photo catalyst
Power setting
Be sure to
use ground
socket
Disassembly and installation of the cover
Diagram of disassembly:
Press the place of button on the
filter cover through thumb or first
finger, then open the cover.
Press place of button Disassembly cover of filter
Close filter cover
Fixing two slots
Diagram of installation:
Please let two fixing points of
filter botton into the fixing slot
of unit, then close the filter cover.
Installation is over when you
hear the clear voice”KA”.

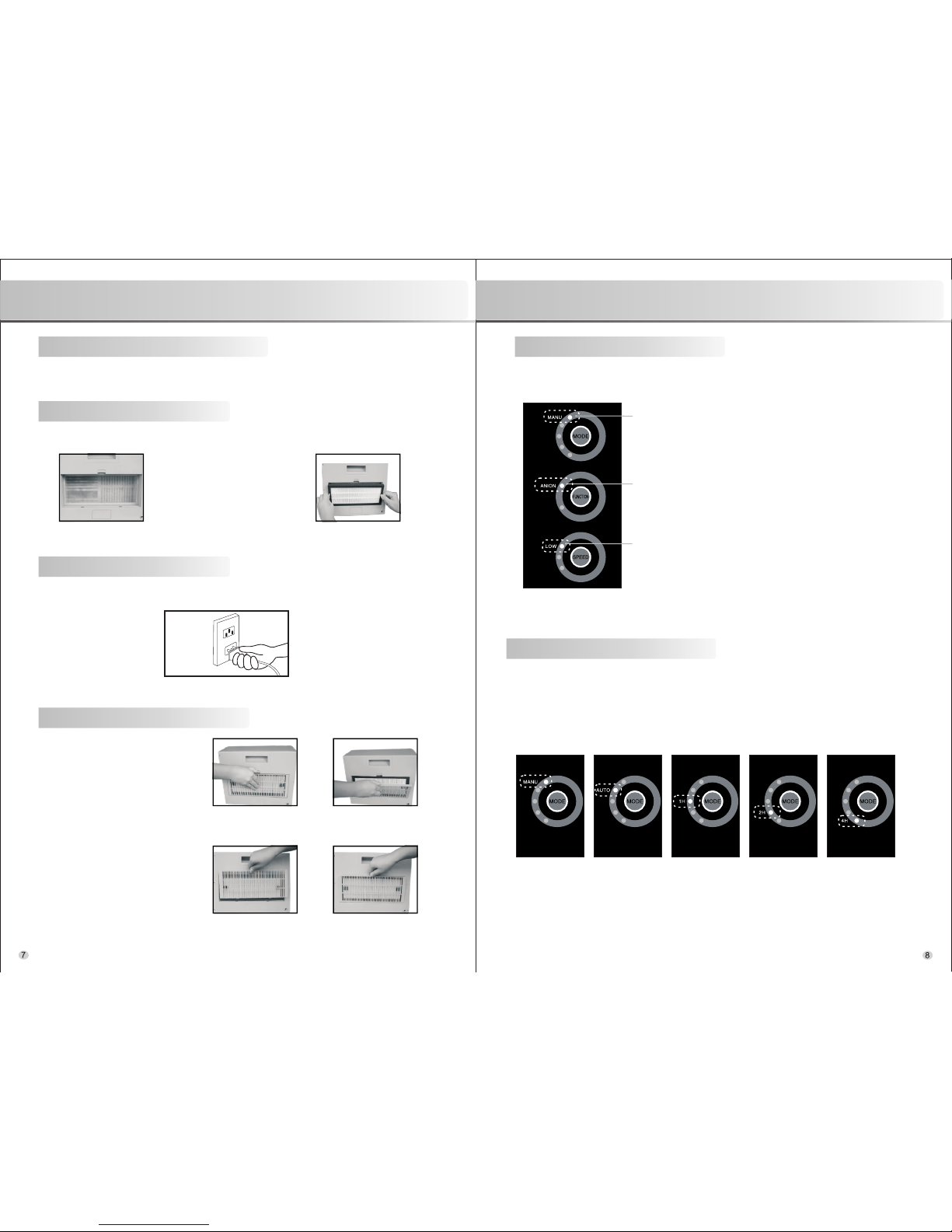

OPERATION INSTRUCTION
Power setting
Press the POWER button, the unit starts to work and LED screen display:
Maual
Anion
Low
Mode and time setting
press the MODE button successively to select MANU/AUTO/1H/2H/4H, LED shows:
Remark:
(1) Manu: The unit needs to turn off manually
(2)AUTO: The unit is set to alternate in 20 minutes on and 40 minutes off cycle.
(3)1H/2/H/4H means the unit will stop working after 1 hour/2 hours /4 hours
Manual 4H2 H 1 H Auto

Fan speed setting
Press SPEED button to select Low, Medium, High fan speed, LED shows:
Function setting
·
, diagram is as below:
Press FUNCTION button successively to select one or two functions between Anion and UV
Anion
UV

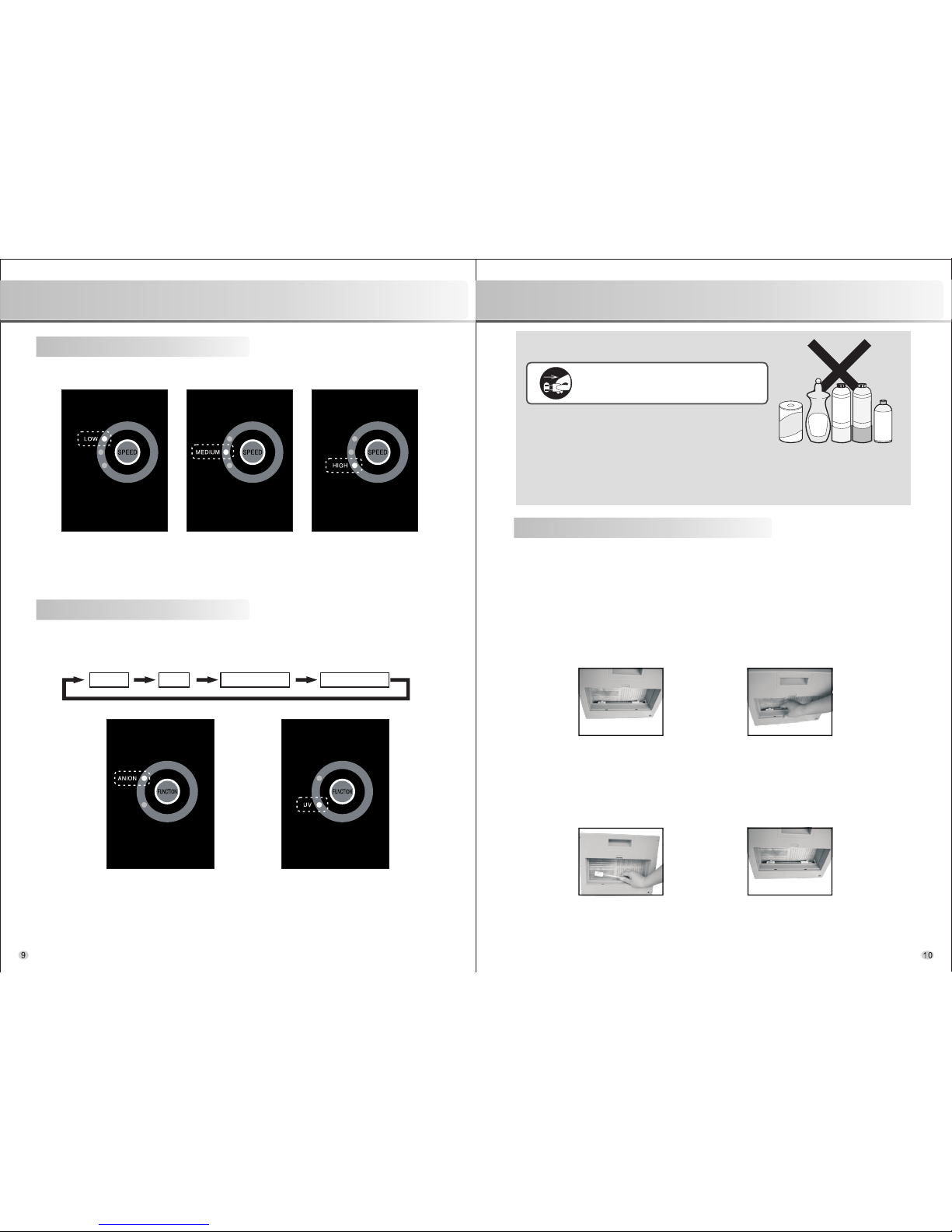

MAINTENANCE AND CLEANING INSTRUCTION
Maintenance and cleaning instruction
Please remove the plug from the
socket before cleaning and maintain.
·Do not clean the unit with water.
·If you are cleaning with scour, please dilute the
scour before use.
·Do not clean the unit with the solvent listed on the right which may cause distortion
or depigmentation.
·if clean with chemical solvent,please read its cautions carefully before use.
Cautions for replacement of UV lamp
·
(1) When the UV lamp is light, it reminds you to replace it.
(2) In order to avoid hurting eyes or skin, please power off the unit when you need to replace
filters or UV lamp.
Warning
·Diagram of disassembly
(1)
(2) Hold the UV lamp and rotate it for 90 clockwise or anticlockwise, then take it out.
.
Take off back cover, take out HEPA, activated carbon and photo catalyst filter.
Take off cover and filters
Install UV lamp
·Diagram of installation
(1) Install the UV lamp in same way after connecting it with its heads.
Install filter and cover
Anion UV Anion and UV None
Grasp UV lamp and take it out
Alkalescence
Benze ne Acoh ol
Scour
Decontamination
power
Low High Medium

F A Q
Please kindly check as blow before you send out for repair.
Abnormality Inspect ltems
If the problem still exist after the above inspection,please
disconnect the power and send it for repair.
Do not work
Continously working
and can not stop.
Odor can not be
removed
The dirt in the air
is not removed
and it is noisy
·Check if the plug has disconnected from the socket.
Connect the power again.
·Check if the front panel is installed completely.
Recover the front panel carefully.
·It mayb because of IC interference.
Unplug the power and restart the unit after 15
minutes later.
·The activated carbon filter or the unit may be polluted.
Or replace with a new activated carbon filter.
·The HEPA filter is dirty.
Clean the HEPA filter or replace with a new one.
TECHNICAL PARAMETERS
Technical parameters of the unit
Air Purifier
Description
Model No.:
Fan speed
B-626
Low Medium High
Noise level(db)
Power rating(W)
Ions
Length of power cord
Product size
Net weight
Voltage supply
180
100
140
3225 38
13
5X10 ions/cm
63
≥1.8m
L303*W111*H245(mm)
2.3 KG
Applicable area
22
161ft (15m )
Technical parameters of the UV lamp
Description
UV lamp T5 6W 254nm 6000 hours
Technical parameters of the HEPA
Technical parameters of the activated carbon & photo catalyst filter
Description
HEPA L245 102xH25(mm) ≥99.9% ≤0.0003mmxW
Description
Activated carbon
& photo catalyst
L245xW102xH6(mm) 300000m2 About 1 year
Air flow volume
Size
Power rating
Life time
Wave length
Dimension
Purification rate
Mini size of purification
Life time
About 1 year
Dimension
Purification area Life time
220V-240V, 50Hz
110V-120V, 60Hz
Raw material
walnut shell
