Barreto E13SGH User manual

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 1 of 11
THE
MODEL E13SGH-E16SGB CENTER PIVOT
MANUAL PIVOT STUMP GRINDER
OWNER’S MANUAL – ORIGINAL INSTRUCTIONS
CONGRATULATIONS!
You are now the proud owner of the BARRETO stump grinder. The OPERATOR’S MANUAL is
attached to the machine. Please study it and this manual to become familiar with the stump grinder,
its characteristics, and method of operation. Pay particular attention to the safety and operating
instructions to prevent personal injury or equipment damage.
If you have any questions or need any replacement parts in the future, please contact us at your
convenience. Our toll-free phone number, fax and email are listed below.
THANK YOU for your patronage and confidence in BARRETO equipment.
Barreto Manufacturing, Inc.
Innovative Equipment Engineered to Last
66498 Hwy 203, La Grande, OR 97850
[phone] [phone]
FAX [phone]
E-Mail: [email protected]
Web Site: http://www.barretomfg.com
Machine Identification Record
Machine model number ________________________
Machine serial number ________________________
Engine manufacturer ________________________
Engine model number ________________________
Engine serial number ________________________

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 2 of 11
TABLE OF CONTENTS
STUMP GRINDER INSTRUCTIONS UPON DELIVERY 3
SERVICE INFORMATION 3
HOUR METER 4
STUMP GRINDER INTENDED USE 5
LUBRICATION REQUIREMENTS 5
OPERATOR TRAINING 6
WARRANTY OF BARRETO MANUFACTURING EQUIPMENT 6
MAINTENANCE PREPARATION 6
ROUTINE MAINTENANCE 7
BRIGGS/VANGUARD MAINTENANCE SCHEDULE 8
CUTTER WHEEL TORQUE SPECS 9
ELECTRICAL SCHEMATIC – BRIGGS/VANGUARD 9
ELECTRICAL SCHEMATIC WITH HONDA 10
STUMP GRINDER TROUBLESHOOTING GUIDE 10
SPECIFICATIONS 11

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 3 of 11
STUMP GRINDER INSTRUCTIONS UPON DELIVERY
Upon delivery, check for freight damage and any missing items. If there is damage, notify the carrier
and Barreto Manufacturing immediately and make sure to document there was damage on the
delivery receipt. Please take pictures of any damage immediately if possible before unpacking crate.
Remove machine from shipping crate.
When documentation refers to “right side” or “left side”, it is relative to the operator’s position with
both hands on the controls.
SERVICE INFORMATION
BELT SYSTEM:
Your stump grinder arrives with a heavy duty belt drive system. This system will need periodical
inspection and service.
BRAKE SYSTEM:
Your stump grinder has a cable-operated parking brake system which may need to be adjusted as the
cables stretch with use.
NOTE: It is very important to move the fuel shutoff lever to the closed position after stopping
the engine. Failure to do so could cause fuel to leak down into the cylinder and crankcase.
Damage resulting from this will void your engine warranty and not be covered.
IMPORTANT - The engine on the Barreto stump grinder may or may not have been serviced prior
to shipping. Shipping regulations may prohibit shipping with fuel or oil in the engine. Check levels
and add oil and fuel as required before starting engine. Service the engine according to the engine
owner’s manual before starting.
NOTE: We recommend that the cutter teeth be tightened to 25 ft. lbs. after every use.

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 4 of 11
HOUR METER
The DGI®TACH/HOUR hour meter tracks the hours of machine operation in order for routine
maintenance to be performed on a timely basis.
Your DGI® hour meter is pre-set at the DGI® factory to go into Flash Alert mode at 25-hour
intervals. Although the engine manufacturer does not require changing engine oil this often, due
to heavy-duty use and extreme conditions inherent to tiller use, Barreto Manufacturing
strongly recommends frequent oil changes.
Refer to this manual for equipment service requirements and to the Engine Manual for other
engine service requirements.

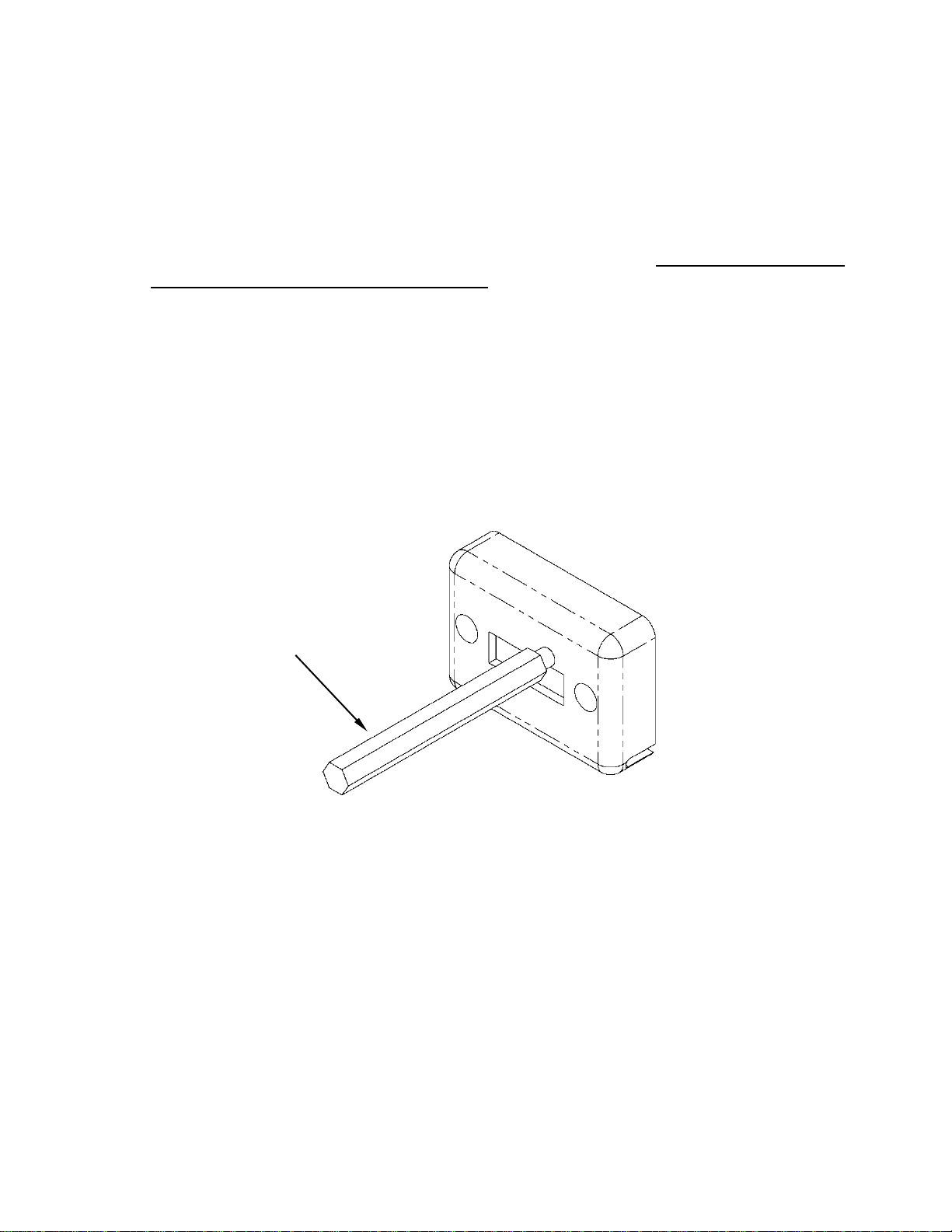

While Flash Alert is active, hold the tip of the RESET TOOL (Key Kancel Wand) against the
meter as shown. Within several seconds, the display will stop flashing indicating the Service
Interval has been reset. If the wand gets lost, a small mechanic’s pick-up magnet will work.
RESET TOOL

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 5 of 11
STUMP GRINDER INTENDED USE
The Barreto Stump Grinder is designed to remove in-ground tree stumps and exposed roots. It should
not be used to cut any material other than wood stumps and the surface soil around the stumps or
exposed roots.
LUBRICATION REQUIREMENTS

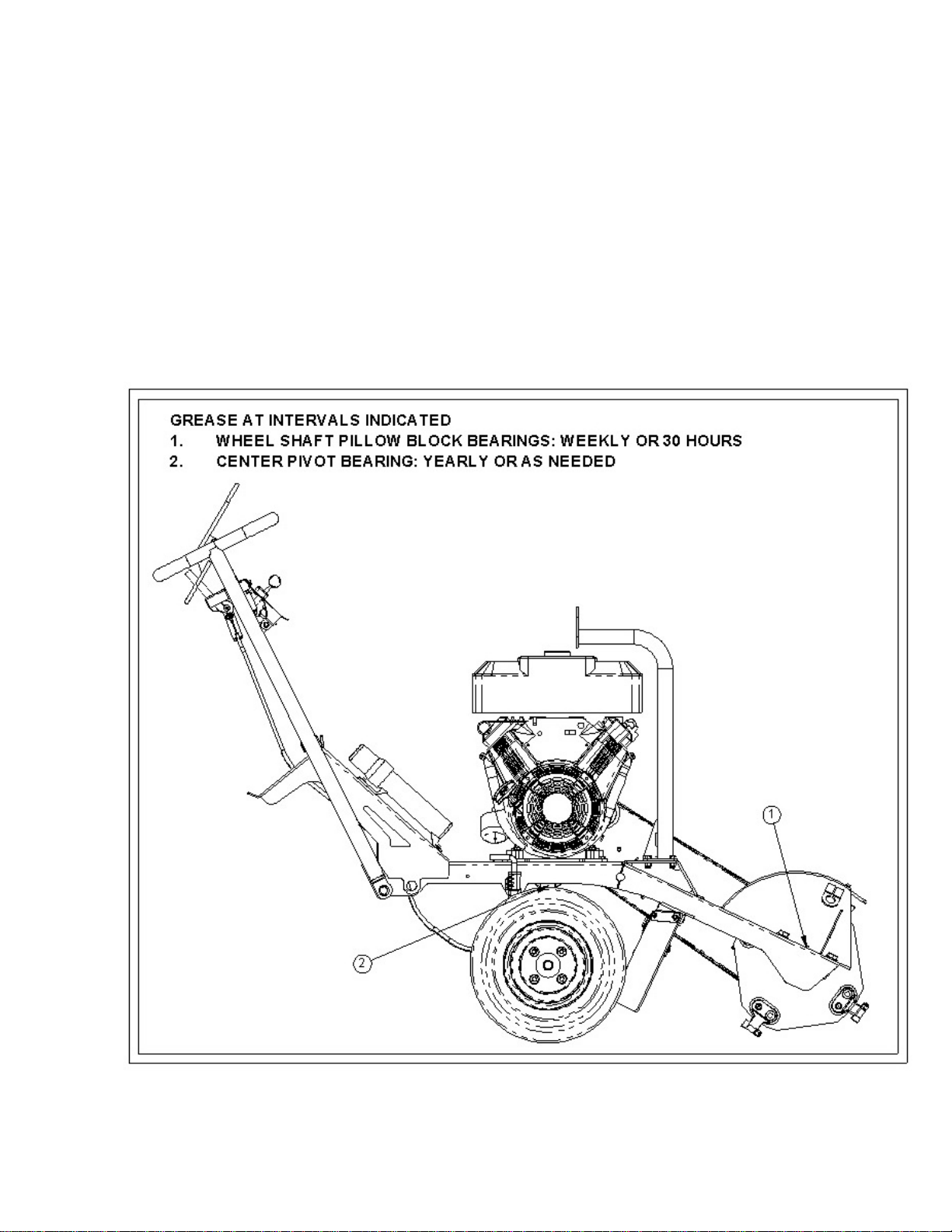

Grease at the intervals indicated per the illustration of grease lubrication points. There is also a grease
diagram decal on the machine.

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 6 of 11
OPERATOR TRAINING
Rental companies should demonstrate all of the machine operations to each rental customer
including:
•Starting up the engine.
•Loading the stump grinder onto the trailer and securing it for road transport.
•Unloading the stump grinder from the trailer.
•Grinding procedure - Operation of the stump grinder.
WARRANTY OF BARRETO MANUFACTURING EQUIPMENT
Barreto Manufacturing, Inc. warrants all BARRETOequipment to be free of defects in material and
workmanship for a period of one (1) year. All BARRETO fuel components, fuel tank, cap, lines &
fittings are warranted for two (2) years. Warranty period begins on date of delivery to the original
user.
This warranty is in lieu of all other warranties, whether written or implied, and is limited to:
1. Replacement of parts returned to the dealer and/or factory and determined defective upon
inspection. (Replacement for parts to dealers shall be at dealer cost plus shipping
charges.)
2. Time for pick-up and/or delivery, transportation of service calls by dealers is
excluded. Manufacturer reserves the right to determine reasonable time required
for repair.
Warranty does not apply to damage caused by abuse or neglect. Time and materials required
for normal maintenance and service are also excluded from warranty coverage.
Engines, engine attached fuel tanks, engine accessories, batteries and tires are warranted by the
original manufacturer and are not covered by the Barreto Equipment Warranty.
Wear parts such as cutter wheels and teeth, holders and bolts, dig chains, dig teeth, sprockets,
chain rollers, bearings, bushings etc. are excluded unless it can be determined that a defect has
contributed to premature wear.
MAINTENANCE PREPARATION
Only trained & qualified personnel should perform maintenance or repairs of the stump grinder.
Before performing any service, maintenance, adjustments, repairs, or off-season long-term storage,
follow the SHUT DOWN PROCEDURE in the OPERATOR’S MANUAL.
Do not touch the engine, muffler, or any of the belt components until cool.
WARNING: Muffler and engine get hot enough to cause serious burns. For
the safety of yourself and others, allow enough time for the engine, muffler,
and the hydraulic fluid to cool completely before performing any cleaning or
maintenance.

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 7 of 11
ROUTINE MAINTENANCE
Routinely check the condition, clean, tighten, repair, or replace as necessary the following:
•Muffler Guard
•Fuel Lines
•Fasteners
•Safety Decals
Barreto recommends using genuine Barreto spare parts to ensure not only quality but also the
health and safety of the operator.
Clean safety decals often using soap and water. Do not use abrasive cleaners or solvents such as
mineral spirits that may damage the decals. Replace any damaged (unreadable) or missing decals.
If you replace a machine part that has one or more decals affixed to it, replace the decals also.
Replacement parts and decals can be purchased from Barreto Manufacturing, Inc. When attaching
decals, the temperature of the mounting surface must be at least 40°F (5°C) and must be clean and
dry.
Service the engine according to the engine owner’s manual. Follow the directions for all aspects
of service including air filter change, oil level checking, filling, draining, disposal of engine oil,
disposal of petrol/gasoline, and off-season long-term storage.
Off-season long-term storage of the stump grinder can be at any ambient temperature.

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 8 of 11
BRIGGS/VANGUARD MAINTENANCE SCHEDULE
Please see your engine owner’s manual for specific procedures and products to use for proper
maintenance of your engine, as well as proper disposal of used parts/fluids.

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 9 of 11
CUTTER WHEEL TORQUE SPECS
We recommend that the teeth and holders be inspected after every use to maximize the usable
life of these high wear items.
•Cutter teeth have three sides and we recommend rotating them frequently to keep the cutting
edges sharp. A torque wrench should be used to torque these down to 25 ft. lbs. A worn and
unsharpened tooth will cause the holders to wear prematurely, resulting in poorer performance
and increased maintenance costs.
•The holders should be inspected and torqued to 180 ft. lbs. using a torque wrench as well.
•The nuts that fasten the axle and drive stubs on the cutter wheel together should be torqued to
55 ft. lbs. using a torque wrench.
ELECTRICAL SCHEMATIC- BRIGGS VANGUARD 16HP V-TWIN

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 10 of 11

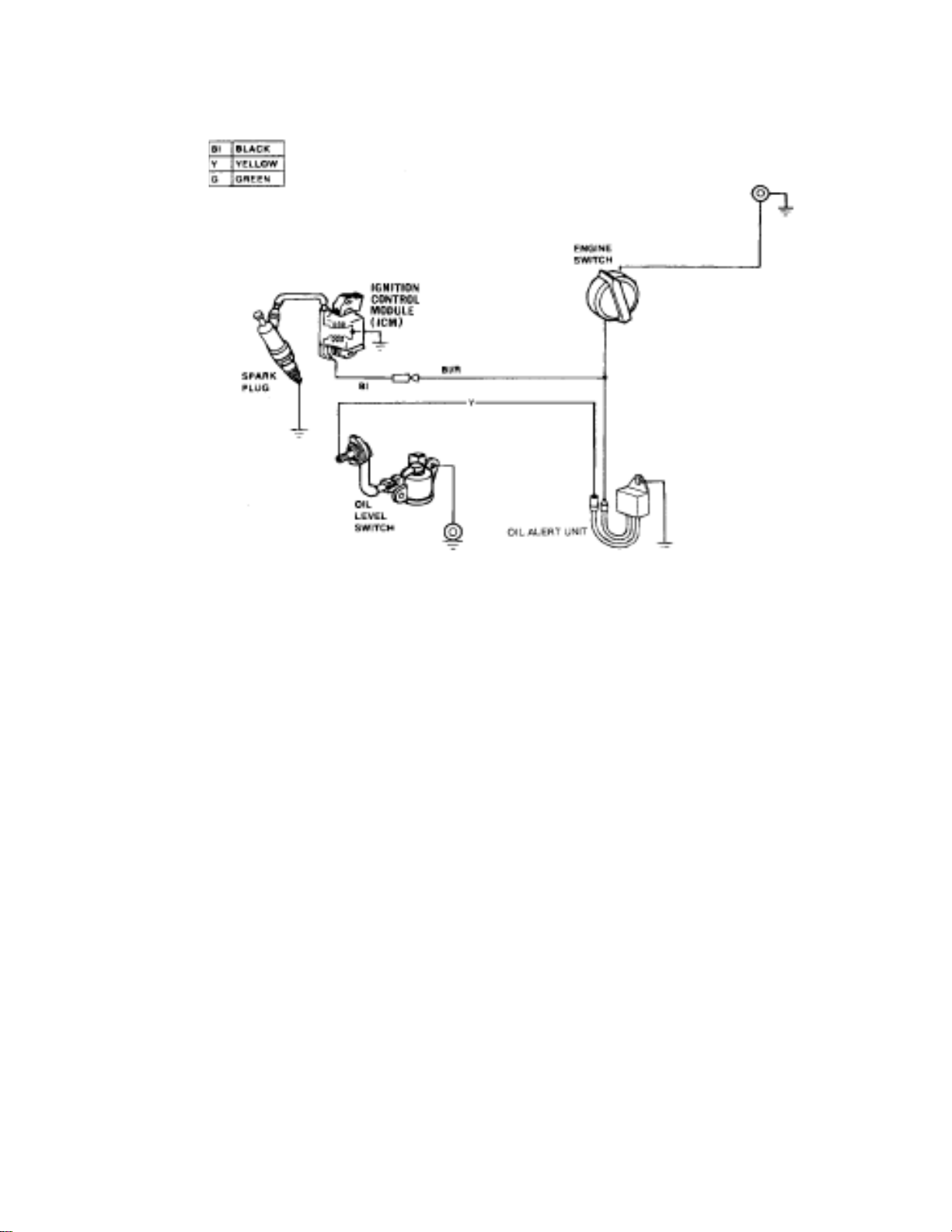

ELECTRICAL SCHEMATIC- HONDA GX390
STUMP GRINDER TROUBLESHOOTING GUIDE
CAUTION!! Always use extreme care when troubleshooting or making adjustments on stump
grinder. Stay clear of cutter wheel when engine is running. Stop engine before disassembling any
component.
Cutter Wheel Problem
1. Slow cutter wheel speed Check and adjust belts tension
2. Rough cutting or bouncing Check teeth for wear, rotate or replace as needed
Brake System Problems
1. Tire loose when brake engaged Check and adjust brake cable as needed

13SGH-16SGB OWNER’S MANUAL 8/29/18 Page 11 of 11
SPECIFICATIONS
MODEL NUMBER E16SGB E13SGH
DIMENSIONS BRIGGS/VANGUARD HONDA
Weight 406 lb. (184.55 kg) 406 lb. (184.55 kg)
Height 54.5” (1.39 m) 54.5” (1.39 m)
Length 74” (1.89 m) 74” (1.89 m)
Width 29” (744 mm) 29” (744 mm)
ENGINE
Engines Vanguard Honda GX390
Fuel Gasoline Gasoline
Power: hp (kW) at 3600 RPM 16 hp (11.93 kW) 11.7 hp (8.73 kW)
Fuel Capacity 1.72 U.S. gallons (6.5 liters) 1.75 U.S. gallons (7 liters)
Engine Oil Capacity 1.16 quarts (1.1 liters) 1.38 quarts (1.36 liters)
Electric Start Standard Standard
Hour Meter Standard Standard
