BARRON TRACE-LITE FXA Series User manual

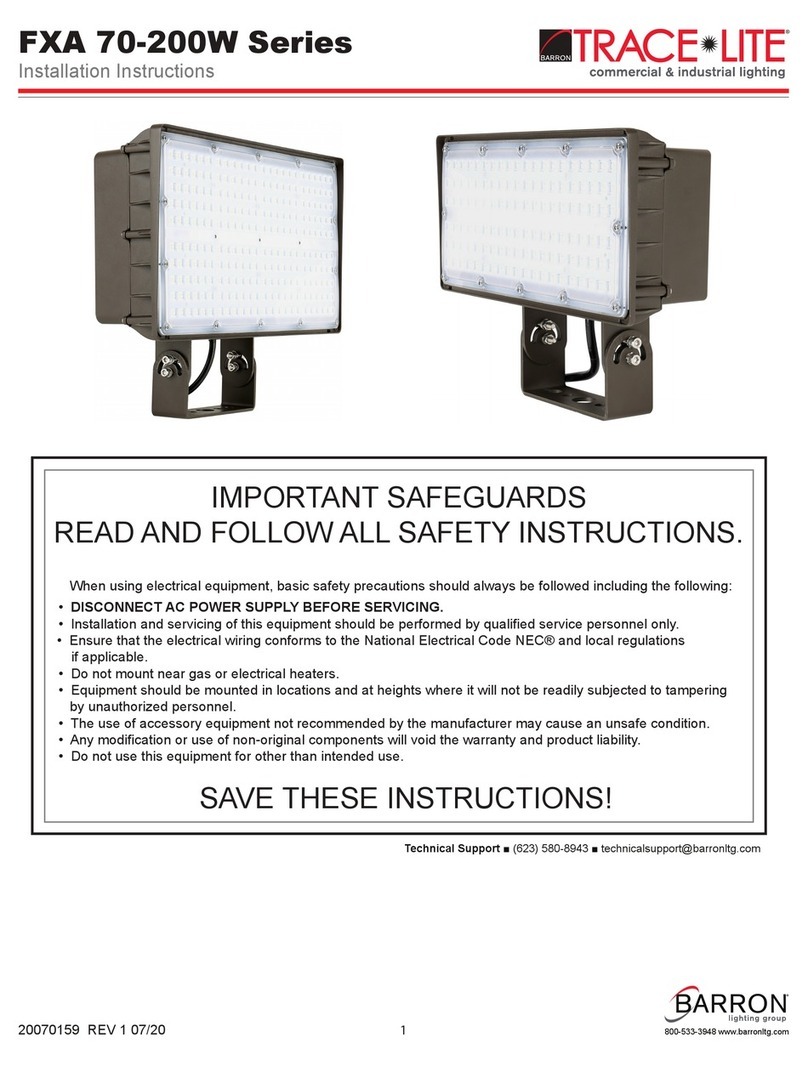

IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When using electrical equipment, basic safety precautions should always be followed including the following:
•DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel only.
• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations
if applicable.
• Do not mount near gas or electrical heaters.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering
by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Any modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.
SAVE THESE INSTRUCTIONS!
Technical Support ■ [phone] ■ [email protected]
FXA 15-45W Series
Installation Instructions
20070168 REV 1 07/20 1 800-533-3948 www.barronltg.com

Knuckel Mount
1. Thread knuckle into the 1/2" NPS hole and secure it with 1/2" locknut (Figure 1).
Note: Allow for proper line cord slack for adjusting the angle.
2. Make electrical connections, refer to Wiring section (Figure 4).
3. Set the desired fixture angle by loosening the positioning screw and rotating the
Yoke to the desired angle, then re-tighten to secure (Figure 1).
FXA 15-45W Series
Installation Instructions
20070168 REV 1 - 07/20 2800-533-3948 www.barronltg.com
1/2'' locknut
Water tight gasket
Screw
Silicon rubber
waterproof gasket
1/2'' NPS
threaded knuckle
Figure 1
Figure 2
L
N
8.17"
.35"
.98"
5.55"
2.0"
Ø.47"
Yoke Mount
1. Mount fixture’s bracket to surface using expansion bolts or appropriate hardware (provided by others)
(Figure2). Note: Allow for proper line cord slack for adjusting the angle.
2. Make electrical connections, refer to Wiring section (Figure 4).
3. Set the desired fixture angle by loosening the positioning bolt and rotating
the Yoke to the desired angle, then re-tighten to secure (Figure 3).
Screw
Figure 3

NEUTRAL
NEUTRAL
LINE
FXA 15-45W Series
Installation Instructions
20070168 REV 1 - 07/20 3800-533-3948 www.barronltg.com
Wiring
Electrical connections should be made inside J-box.
Cap all unused leads to prevent shorting.
Make electrical connections as follows:
Black - Line
White - Neutral
Green/Yellow Green - Ground
Note: This fixture auto adjusts for voltages from
120VAC-277VAC
Important: Weatherproof your outdoor installation, be sure to
seal all holes in the housing such as the mounting, conduit, plugs,
sensors, photocontrols, etc. with silicone sealant.
1. Check incoming voltage to the LED driver. Must be at least a minimum
of 120VAC and no greater than 277VAC.
2. Are all the LEDs on the light engine “OFF”? If so, LED driver may be defective. Using a voltmeter, check to see if
voltage is present at the output of the power supply. If low or no voltage, then replace the power supply.
3. If any individual LEDs are “OFF” the LED light engine is defective. Please have the serial number off the light engine
available when you contact technical support.
4. If the unit is equipped with a photocell, check the photocell to make sure it’s functioning properly.
Wire Connection - Standard
Photocontrol
Troubleshooting
If unit does not turn “ON”
Green/Yellow Green
%ODFN Line
White Neutral
Ground
Figure 4
