STUDIO PAR 64 CAN
18 X 8W QUAD COLOUR LED PAR CAN RGBW CLPST64Q8W

2 3
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
Thank you for choosing Cameo Lights!
We have designed this product to give you reliable operation over many years.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new Cameo Lights
products quickly and to the fullest.
Further information about Cameo Lights check our website WWW.CAMEOLIGHT.COM

2 3
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

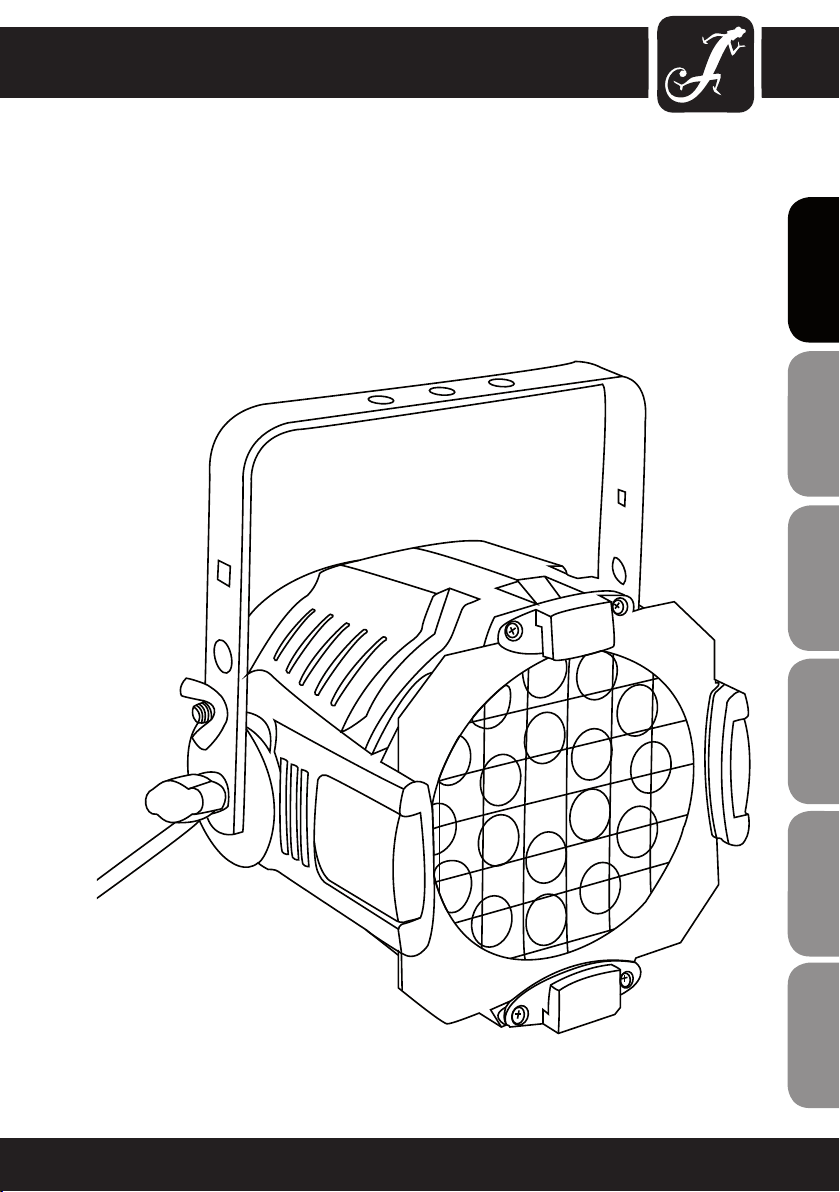

STUDIO PAR 64 CAN
18 X 8W QUAD COLOUR LED PAR CAN RGBW CLPST64Q8W

4 5
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
PREVENTIVE MEASURES:
1. Please read this information carefully.
2. Keep all information and instructions in a safe place.
3. Please follow the instructions.
4. Please observe all warnings. Don‘t remove safety instructions or any other information located on the device.
5. Use the device only in the intended manner.
6. Use only stable and appropriate stands and/or mounts when the device is permanently installed. Make certain
that wall brackets are firmly secured. Make certain that the unit is installed securely and cannot fall down.
7. When installing please observe the corresponding safety standards for your country.
8. Do not install the device near radiators, heat accumulators, ovens or other sources of heat. Make certain that
the device is always installed so that is cooled sufficiently and cannot overheat.
9. Do not place open sources of ignition, e.g., burning candles, on the device.
10. Do not cover ventilation slots.
11. Do not operate the device in the immediate vicinity of water. Do not expose this equipment to combustible
materials, liquids or gases.
12. Please make certain that dripping or splashing water cannot get inside the device. Do not put objects filled
with fluids, such as vases or drinking vessels, on top of the device.
13. Make certain that objects cannot fall into the device.
14. Use the device only with accessories with which the manufacturer intends the device to be used.
15. CAUTION: If this device has a mains connector equipped with protective earth, it must be connected to a
mains socket with a protective ground connection. Never disable the function of the protective ground connection
of the included power cord.
16. Do not turn on the device immediately if it was exposed to strong temperature fluctuations (for example after
transportation). Moisture and condensation may damage the device. Leave the device switched off until it has
reached room temperature.
17. Do not open the device and do not make any changes to the device.
18. Before connecting to mains power, make certain that the mains voltage and the mains frequency are the
same as the operating values of the device (see type label). If the device is equipped with a supply voltage selec-
tor switch, make certain that the values of the device match the values of the mains power before connecting.
If the plug on the included cord does not fit your mains outlet, contact your electrician.
19. Make certain that the power cord is not stepped on. Protect the power cord against pinching, especially at
the device plug and the power plug.
20. In order to prevent damage or accidents, for example, due to tripping hazards, check all connections once
you have connected the device.
21. When connecting the device, make certain that the power plug remains readily accessible.
Always pull out the power plug when the device is not in use or when you clean the device. Disconnect the
power cord by pulling the plug not the cable.
22. Avoid switching the device on and off at short intervals, because it may shorten the durability of the device.
23. IMPORTANT: Replace fuse only by fuse of same type and rating! If fuse blows repeatedly please contact
authorized service center!
24. In order to disconnect the device completely from the mains voltage, the power plug must be unplugged.
25. If your device is equipped with a Volex power connector, the matching Volex device plug must be unlocked
in order to disconnect it. This also means that a tug on the power cord can pull the device out of place, thus
causing personal injuries and/or property damage. Thus please make certain to route your cables carefully.

4 5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
26. If there is a risk of lightning strike or during extended periods of disuse, unplug the power plug.
27. During transport, make certain that the equipment being transported cannot fall down and possibly
cause personal injuries and/or property damage.
28. If your device no longer works properly, if it has been exposed to liquids or an object has fallen inside it or
if it has been damaged in some other manner, turn the device off immediately und unplug the power plug. This
device should be repaired only by authorized experts.
29. Use only a dry cloth to clean the device.
30. Comply with all of the disposal laws that are applicable in your country. During disposal, please separate
plastic and paper/cardboard.
31. Plastic bags must be kept out of the reach of children.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer
damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks, lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
WARNING!
1. Do not look into the beam from a distance of less than 40 cm (16 inches).
2. Do not stare into the beam for extended periods at a short distance.
3. Do not view the beam directly with optical instruments such as magnifiers.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be of
sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

6 7
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
INTRODUCTION:
CONTROL FEATURES
18 X 8W QUAD COLOUR LED PAR CAN RGBW
(CLPST64Q8W)
• 2 CH, 3 CH1, 3 CH2, 4 CH, 7 CH DMX Modes
• Individual control of Red, Green, Blue and White colour (RGBW in 1)
FEATURES
• 18 Ultra bright 8W QUAD colour LEDs
• Sound control via internal microphone
• Colour jumping speed and strobe effect adjustable via control panel
• Multi-colour changes
• Master/Slave functions
• Rugged compact housing
• Power consumption: 170 W
• Beam angle 25°
• Long life LEDs
OPERATING INSTRUCTIONS
The Cameo LED CAN is a DMX-512 controllable, colour mixing spot made up of high efciency and super bright
LED’s. There are four colours (red, green, blue and white) whose intensity can be controlled individually allowing
the creation of an unlimited range of colours. The Cameo LED light will operate in Stand-alone, Master/Slave,
Sound controlled and via DMX-512 control.

6 7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
POWER
110V-250V AC
50Hz~60Hz
F2A / 250V

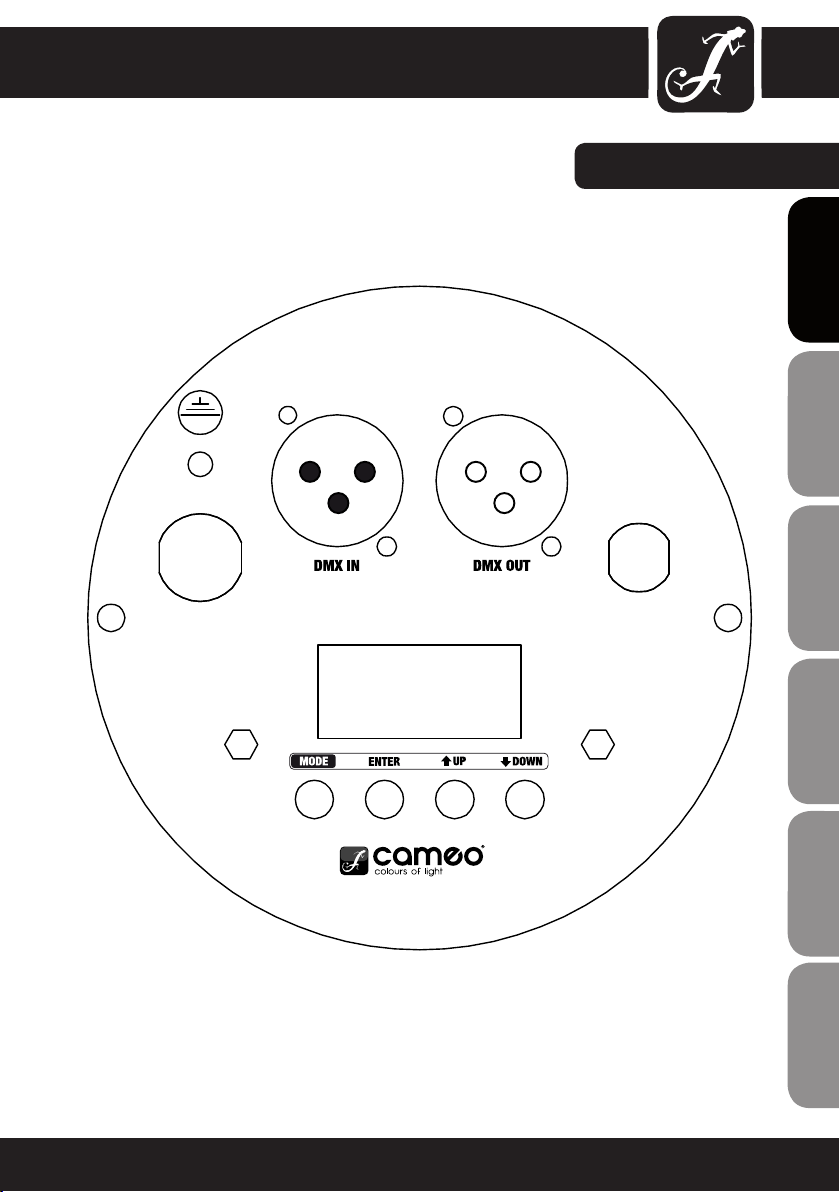

BACK PANEL:

8 9
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
MODE SELECTION:

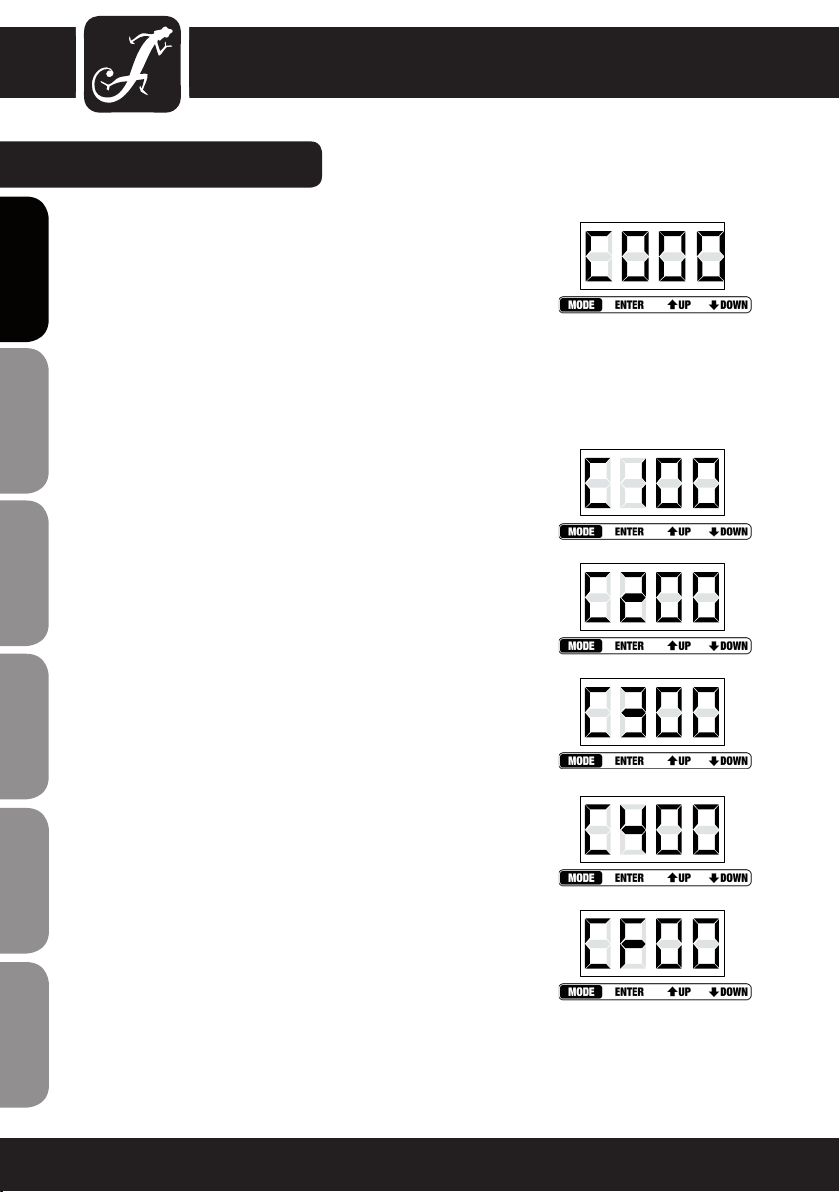

STATIC COLOUR MODE
Press the MODE button repeatedly if necessary to select the Static Colour
Mode (CXXX), then press the ENTER button (2. digit blinks) to choose one of
the static colours or the strobe function by using the UP and DOWN buttons.
C1 represents Red, C2 = Green, C3 = Blue, C4 = White and CF = Strobe.
Press ENTER again (3. and 4. digit blink) to adjust the brightness of the pre-
selected colour (CX00 - CX99) and the strobe speed (CF00 - CF99) by using
the UP and DOWN buttons. Press ENTER to conrm.
Examples: If you set C1, C2, C3 and C4 to zero, the Quad Par Can will have
no LEDs on (blackout).
If you set C1 to 99 and C2, C3 and C4 to zero, the colour will be 100% Red.
RED
Brightness C100 - C199
GREEN
Brightness C200 - C299
BLUE
Brightness C300 - C399
WHITE
Brightness C400 - C499
STROBE
Speed CF00 - CF99

8 9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
MODE SELECTION:
COLOUR JUMPING MODE
Press the MODE button repeatedly if necessary to select the Colour Jumping
Mode (JXXX). Press ENTER (2. digit blinks) to select the 15 colour jumping
function (JUXX) or the strobe function (JFXX) by using the UP and DOWN
buttons.
Press ENTER again (3. and 4. digit blink) to adjust jumping speed (JU00 -
JU99) and strobe speed (JF00 - JF99) by using the UP and DOWN buttons.
Press ENTER to conrm.
Note: It is possible to use the colour jumping function and the strobe function
simultaneously.
RGBW 15 COLOUR
Jumping speed JU00 - JU99
STROBE
Speed JF00 - JF99
COLOUR FADING MODE
Press the MODE button repeatedly if necessary to select the Colour Fading
Mode (FXXX). Press ENTER (2. digit blinks) to select the 15 colour fading
function (FAXX) or the strobe function (FFXX) by using the UP and DOWN
buttons. Press ENTER again (3. and 4. digit blink) to adjust fading speed
(FA00 - FA99) and strobe speed (FF00 - FF99) by using the UP and DOWN
buttons. Press ENTER to conrm.
Note: It is possible to use the colour fading function and the strobe function
simultaneously.
RGBW 15 COLOUR
Fading speed FA00 - FA99
STROBE
Speed FF00 - FF99

10 11
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
MODE SELECTION:

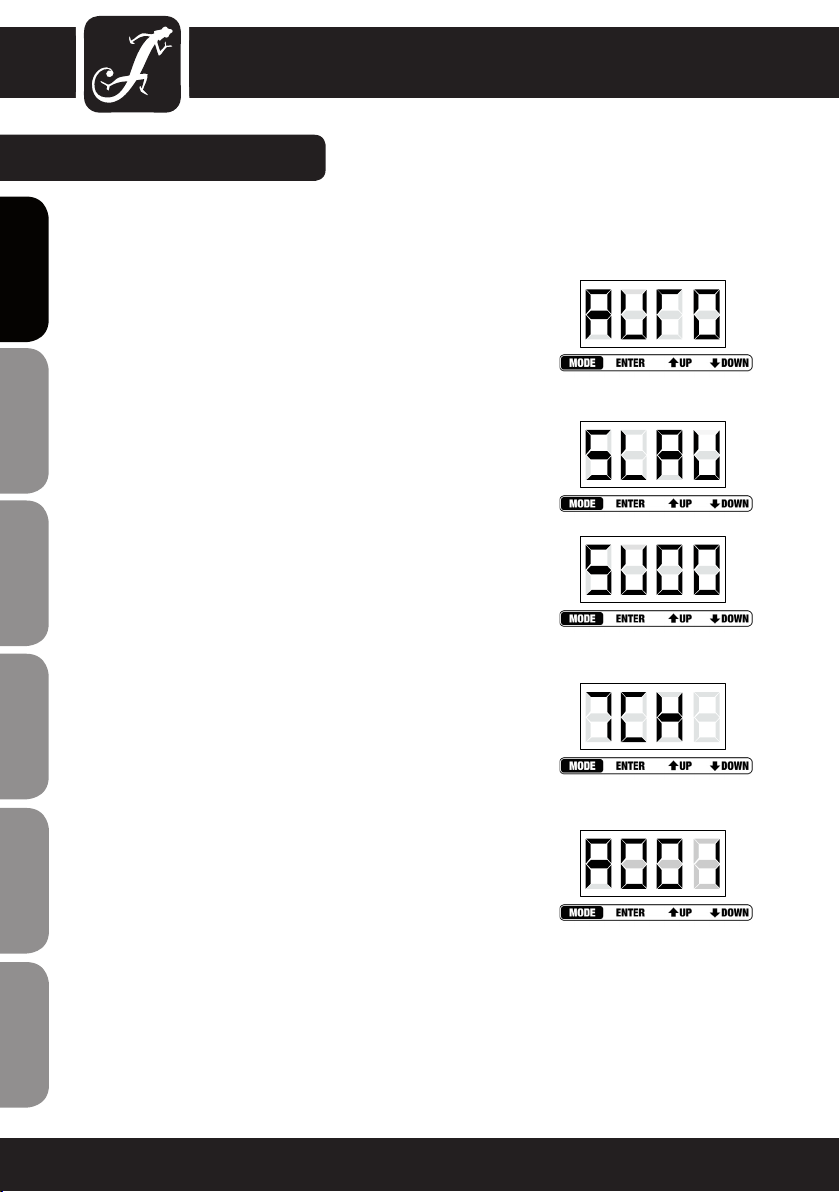

AUTO MODE
Press the MODE button repeatedly if necessary to select the Auto Mode.
The unit changes between Colour Jumping Mode and Colour Fading Mode
automatically. The colour jumping and fading speed can be preadjusted by
using the speed settings of the Colour Jumping and Colour Fading Modes.
SLAVE MODE
Press the MODE button repeatedly if necessary to enter the Slave Mode.
Link slave units and the master unit (exclusively standalone modes) via
DMX cables. The slave unit will follow in sequence with the master unit.
SOUND CONTROL MODE
Press the MODE button repeatedly if necessary to select the Sound Control
Mode (SUXX). The unit will follow the beat of the music thanks to the built
in microphone. Press ENTER again (3. and 4. digit blink) to adjust the sensi-
tivity of the microphone (SU00 - SU99) by using the UP and DOWN buttons.
Press ENTER to conrm.
DMX MODE SELECTION
Press the MODE button to enter DMX MODE SELECTION (repeatedly if ne-
cessary). Press ENTER (1st digit blinks) and select the desired DMX mode
by using the UP and DOWN buttons. Press ENTER again to conrm.
Note: See the description of the different DMX modes on the following
pages of this manual.
DMX ADDRESS SETTING MODE
Press the MODE button repeatedly if necessary to enter the DMX Address
Setting Mode (AXXX).
Press ENTER to access edit mode (the last 3 digits blink) and select the
desired DMX start address by using the UP and DOWN buttons (A001 -
A512). Press ENTER to conrm.
NOTE:
The LED display automatically turns off after about 1 minute and turns on
again by pressing any of the 4 buttons.

10 11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
2 CHANNEL MODE
CHANNEL VALUE FUNCTION
CH1 000 - 255 Master dimmer (0-100 %)
CH2 000 - 016
017 - 033
034 - 050
051 - 067
068 - 084
085 - 101
102 - 118
119 - 135
136 - 152
153 - 169
170 - 186
187 - 203
204 - 220
221 - 237
238 - 255
Red
Green
Blue
White
Orange
Cyan
Lavender
Pink
Bright Green
Magenta
Pale Pink
Amber
Bright Magenta
Pale Cyan
Warm White
3 CHANNEL MODE 1
CHANNEL VALUE FUNCTION
CH1 000 - 255 Master dimmer (0-100 %)
CH2 000 - 255 Strobe (0-100%)
CH3 000 - 004
005 - 080
081 - 150
151 - 220
221 - 255
Blackout
Colour Macro
Colour Jumping
Colour Fading
Sound Control
3 CHANNEL MODE 2
CHANNEL VALUE FUNCTION
CH1 000 - 255 RED (0-100%)
CH2 000 - 255 GREEN (0-100%)
CH3 000 - 255 BLUE (0-100%)
DMX CONTROL MODE:

12 13
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
7 CHANNEL MODE
CHANNEL VALUE FUNCTION
CH1 000 - 255 Master dimmer (0-100 %)
CH2 000 - 255 Strobe (0-100%)
CH3 000 - 255 RED (0-100%)
CH4 000 - 255 GREEN (0-100%)
CH5 000 - 255 BLUE (0-100%)
CH6 000 - 255 WHITE (0-100%)
CH7 001 - 004
005 - 080
081 - 150
151 - 220
221 - 255
Blackout
Colour Macro
Colour Jumping
Colour Fading
Sound Control
4 CHANNEL MODE
CHANNEL VALUE FUNCTION
CH1 000 - 255 RED (0-100%)
CH2 000 - 255 GREEN (0-100%)
CH3 000 - 255 BLUE (0-100%)
CH4 000 - 255 WHITE (0-100%)
DAISY CHAIN CONNECTION
1) Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the rst xture
2) Connect the end of the cable coming from the rst xture which will have a (female) 3 pin connector to the
input connector of the next xture consisting of a (male) 3 pin connector. Proceed to connect from the output as
stated above to the input of the following fixture and so on.
DMX CONTROL MODE:

12 13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
18 X 8W QUAD COLOUR LED PAR CAN RGBW WEIGHT & DIMENSIONS (WITHOUT BRACKET)
Length 255 mm
Width 230 mm
Height 220 mm
Weight 4,5 kg
Beam angle 25 °
POWER
Power consumption 170 W
AC input 110 V AC - 250 V AC / 50 Hz - 60 Hz
FUSE
Main F2A, 250V
CONTROL & PROGRAMMING
DMX input 3-pin XLR male socket
DMX output Locking 3-pin XLR female socket
Protocols DMX-512 USITT
DMX channel modes 2 CH, 3 CH1, 3 CH2, 4 CH, 7 CH
SPECIFICATIONS:

14 15
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
DMX LINKING:
DMX is a language allowing all makes and models of different manufactures to be linked together and operate
from a single controller, as long as all xtures and the controller are DMX compliant. To ensure proper DMX data
transmission, when using several DMX xtures try to use the shortest cable path possible. The order in which
xtures are connected in a DMX line does not inuence the DMX addressing. For example a xture assigned to a
DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the midd-
le. When a xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Please check out our comprehensive DMX cable choices out of our Adam Hall product lines 3 STAR, 4 STAR and 5 STAR
Keep in mind that DMX connections must be daisy chained. To avoid malfunction, DMX cabling should not be
divided in several lines without the use of an active splitter.
DMX LINKING:
DMX-512
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent xtures
and controllers. A DMX controller sends DMX data instructions from the controller to the xture. DMX data
are sent as serial data that travel from xture to xture via the “DMX IN“ and “DMX OUT” XLR terminals
located on all DMX xtures (most controllers only have a “DMX OUT” terminal).

14 15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
NOTICE:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to
the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behaviour.
SPECIAL NOTE: LINE TERMINATION:
• When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behaviour.
Using a cable terminator (Art. No. K3DMXT3) will decrease the possibilities of erratic behaviour.
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin XLR xtures may
be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable
adaptor must be used. The chart below details the correct cable conversion.
common
DMX-512 out
3-pin XLR
DMX-512 in
3-pin XLR
Termination reduces signal transmission prob-
lems and interference. It is always advisable to
connect a DMX terminator, (resistance 120 Ohm
1/4 W) between pin 2 (DMX-) and pin 3 (DMX+)
of the last fixture.
5-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
5-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)

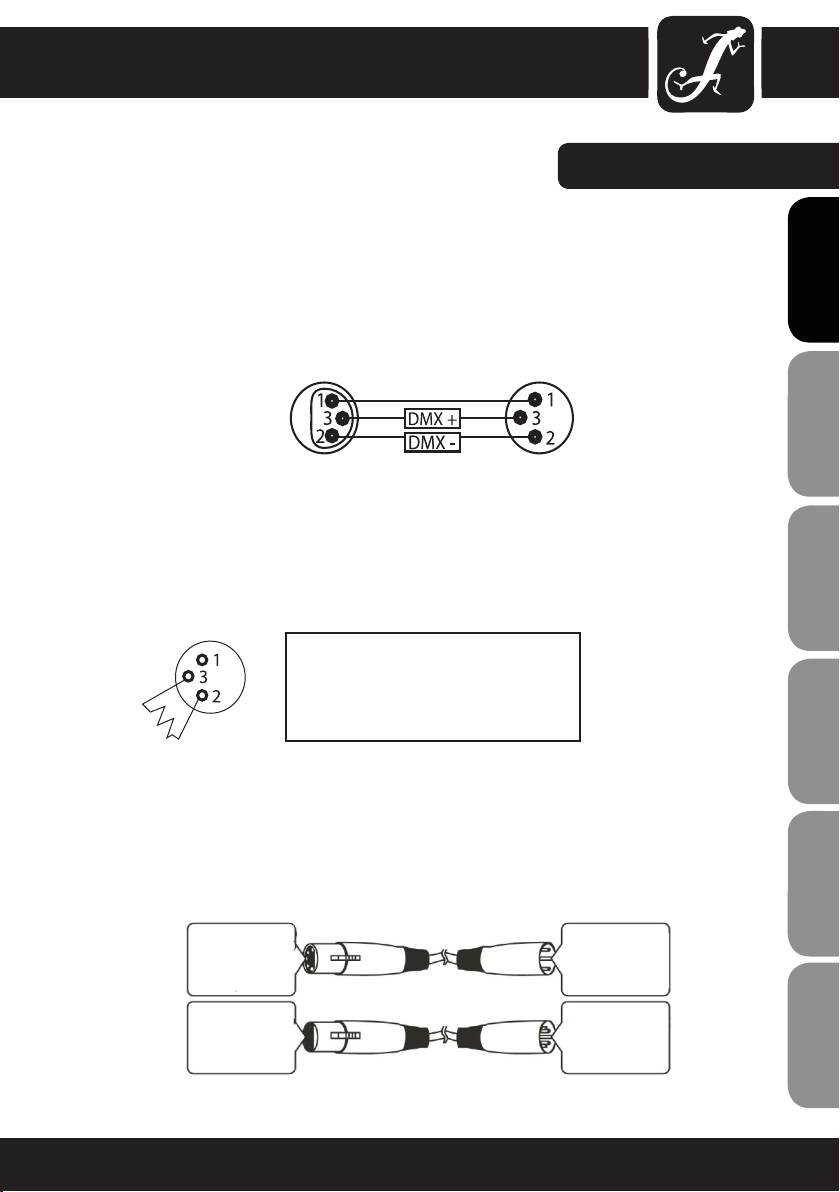

DMX CABLES:

16 17
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo and Eminence
branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defecti-
ve as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the product by use
of spare parts not manufactured or sold by Adam Hall
- by modication or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DECLARATIONS:

16 17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
prots or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EC DECLARATION OF CONFORMITY
These devices meet the essential requirements and further relevant specications of Directives 2004/108/EC
(EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.

18 19
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components wich can
be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of
separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return
them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
ECOLOGY AND ENERGY SAVING
Saving electric energy helps to protect the environment. Please turn off all electrical equipment when it is not in
use. To avoid power consumption in idle mode, disconnect all electrical equipment from mains when not in use.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to
modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrality of
this user’s manual is prohibited.
MANUFACTURER´S DECLARATIONS:

18 19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

20 21
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
Wir freuen uns, dass Sie sich für ein Produkt von Cameo Light entschieden haben!
Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen reibung-
slosen Betrieb zu gewährleisten.
Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihren neuen Scheinwerfer von Cameo Light
schnell optimal einsetzen können.
Weitere Informationen über Cameo Light erhalten Sie auf unserer Website WWW.CAMEOLIGHT.COM.
