Owner's Manual
Barronett Hub Blinds
Check for parts online at www.barronettblinds.com or call 800-345-6007 M-F 8-5 CST
We at Barronett Blinds appreciate your purchase of one of our world
class Hub Blinds. Follow these few simple instructions and your Hub
Blind will be sure to give you many years of trouble-free pleasure. In-
structionsshouldbekeptsafeandreviewedatleastannually.
Ifforanyreasonyouhaveaproblemwithyourproduct,DONOTreturn
to the retailer; contact the Barronett Blinds customer service de-
partment at 800-345-6007, Monday through Friday from 8 a.m.
to 5 p.m., for assistance.
SETUP INSTRUCTIONS:
1. Remove the ground blind from
backpack carrying bag.
2. Lay the blind at on the ground
and be completely sure there is
no material twisted or overlap-
ping the ends of any poles.
SEE FIGURE 1.
3. Grab the pull handle on the
eyelet located in the center of
the roof and pull upward so the
roof portion pops open. SEE
FIGURE 2.
4. Lift the roof up so that you can
grab any one of the hubs located
in the center of each wall. Grab
the tie-down rope on the eyelet
and pull out as you did in step 3.
SEE FIGURE 3.
NOTE: Place your foot on the
ground skirt to help hold the
blind in place when popping open
the walls. (Ground skirt is not
included in all models).
5. Proceed by walking around
entire blind and pulling on
each of the wall’s tie -down
ropes to pop out each wall
until all sides are popped out.
SEE FIGURE 4 .
6. Your blind should be standing
up completely. You may now
proceed by anchoring the blind
to the ground using the ground
stakes and tie-down ropes pro-
vided. Ground stakes for your
Barronett Blind are located in a
pouch inside of the blind. The
pouchissewninatgroundlevel
onto the interior wall near the
door. Anchor loops are sewn in
each corner and each side. Use
the provided tie-down ropes
and tie free end to ground stake.
SEE FIGURE 5.
NOTE: Window congurations can now be set. Native brush
can be placed in brush holders located around the blind. (Brush
holders not included on all models.)
ASSEMBLY AND USE INSTRUCTIONS
FOR THE FOLLOWING MODELS:
SNAKE EYES (SE250BA, SE250BW, SE350BA, SE350BW)
GROUNDER (GR150BT, GR250BT, GR350BT)
BIG MIKE (BM275BT)
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
INSPECTION, AND USE INSTRUCTIONS PROVIDED
BEFORE EACH USE. FAILURE TO FOLLOW WARN
INGS AND INSTRUCTIONS COULD RESULT IN SERI
OUS INJURY OR DEATH.
KNOW THE LOCATION OF EACH HUNTER IN YOUR
PARTY AT ALL TIMES AND BE AWARE OF ANY
ONE ELSE HUNTING IN THE AREA TO AVOID AC
CIDENTS.
USE CAUTION WHEN SETTING UP. KEEP AWAY
FROM BODY AND FACE. KEEP CLEAR OF OTHER
PEOPLE WHILE SETTING UP.
THIS PRODUCT IS NOT FIREPROOF. THE FABRIC
WILL BURN IF IT COMES INTO CONTACT WITH AN
OPEN FLAME OR FUEL SOURCE. NO HEATER OR
OPEN FLAME SHOULD BE USED INSIDE OR NEAR
THIS BLIND.
NEVER ALLOW CHILDREN OR ADULTS TO USE
LIGHTED CANDLES, MATCHES, OR OTHER SOURC
ES OF FIRE NEAR THIS PRODUCT.
NEVER USE ANY DEVICES THAT PRODUCE FUMES
WHILE INSIDE OF BLIND. SUCH DEVICES COULD
RESULT IN CARBON MONOXIDE POISONING, IN
JURY, OR DEATH.
WHEN GUN HUNTING, YOU SHOULD ALWAYS AT
TACH THE BLAZE ORANGE SAFETY CAP NOT IN
CLUDED PART NO. AV180 TO THE ROOF OF BLIND
FOR ADDED SAFETY FROM OTHER HUNTERS.
UV WARNING
ULTRAVIOLET LIGHT BREAKS DOWN LIGHTWEIGHT FAB
RIC FIBERS. THE MATERIAL WILL FADE, LOSE STRENGTH
AND EVENTUALLY DISINTEGRATE IF LEFT IN PROLONGED
SUNLIGHT. TO EXTEND THE LIFE OF YOUR GROUND
BLIND, AVOID LEAVING IT OUT IN DIRECT SUNLIGHT FOR
EXTENDED PERIODS OFTIME. SET IT UP IN A SHADY AREA
WHENEVER POSSIBLE. FADING OR DISCOLORING OF
BLIND IS NOT COVERED UNDERYOUR WARRANTY.
OMHUBS
Rev. 04/05/10
© 2010 Ardisam, Inc.
All Rights Reserved.

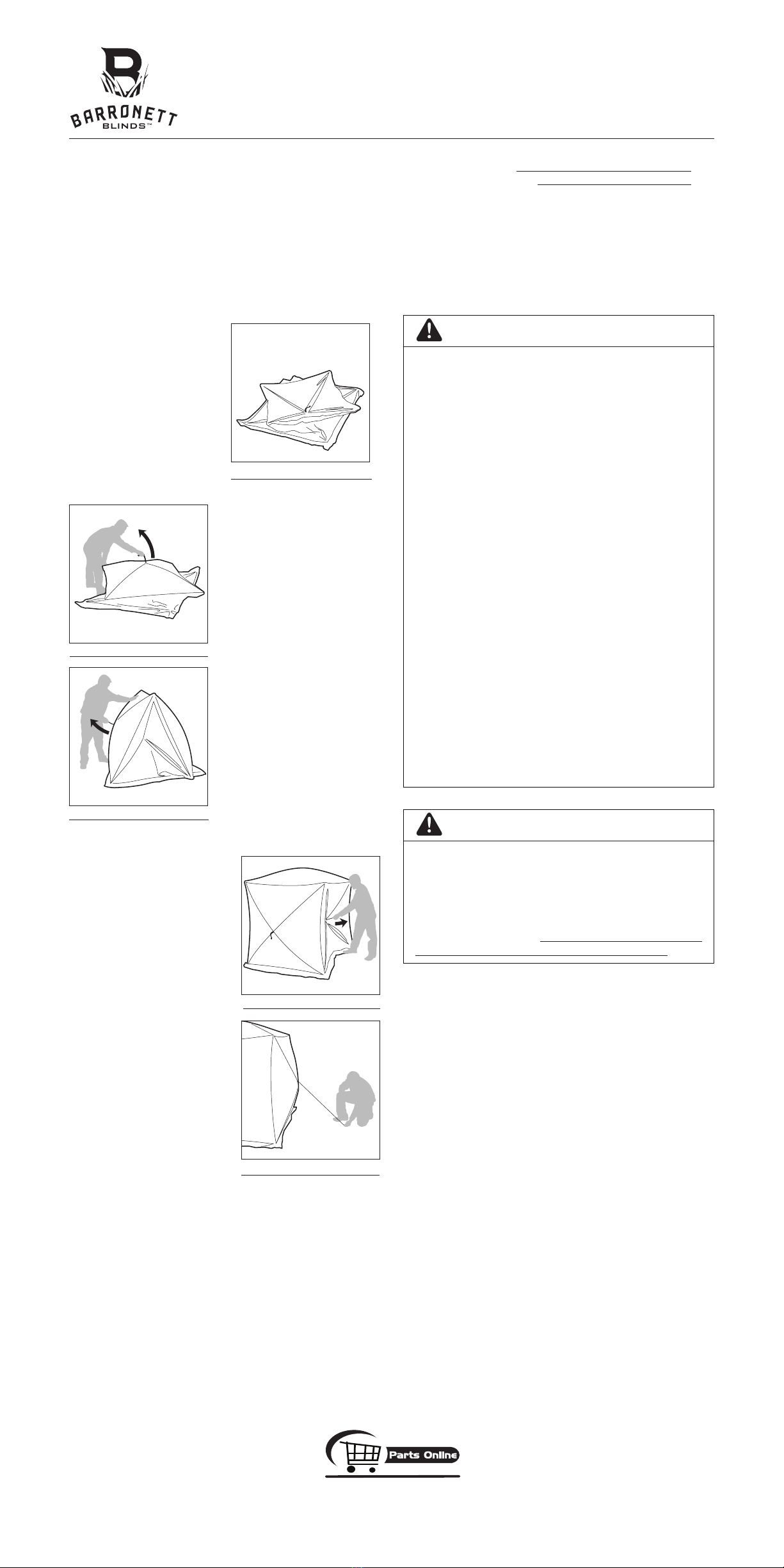

FIGURE 1
ROOF
FIGURE 2
ROOF
FIGURE 3
ROOF
WALL
FIGURE 4
FIGURE 5

Barronett Blinds, Division of Ardisam, Inc.
1160 Eighth Ave; P.O. Box 666
Cumberland, Wisconsin 54829
BarronettBlinds.com
BarronettBlinds.com
800-345-6007 • Fax [phone]
E-mail: [email protected]om
Owner's Manual
Barronett Hub Blinds
Check for parts online at www.barronettblinds.com or call 800-345-6007 M-F 8-5 CST
TAKEDOWN INSTRUCTIONS:
1. Remove all ground stakes and store them in the provided pouch
(tie-down ropes should stay tied to the hub eyelits). Close all
windows. Remove all native brush (if applicable).
2. Using your hand, push the center hub in on roof and walls until
they collapse inward. SEE FIGURES 6 & 7.
3. Blind will be back in its flat
stage just as it was when it was
unfolded out of the backpack
bag. Gather all corners of the
blind and fold together. SEE
FIGURE 8. Do not force the
blind when folding. Watch for
entanglement of poles.
4. Place folded blind back into the
backpack carrying case with
the hubs towards the bottom
end of bag always.
MAINTENANCE INSTRUCTIONS:
1. Never put blind away wet. Always put away dry to avoid mil-
dew.
2. Take down blind when not in use to avoid unnecessary damage
and fading.
3. Seal the seams with seam sealer and the walls and roof with
silicon spray if leaking occurs.
4. Use extra tie-downs during excessive winds.
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
INSPECTION, & USE INSTRUCTIONS PROVIDED BE
FORE EACH USE. FAILURE TO FOLLOW WARNINGS
AND INSTRUCTIONS COULD RESULT IN SERIOUS IN
JURY OR DEATH.
THIS PRODUCT IS FOR HUNTING PURPOSES ONLY! IT
IS NOT TO BE USED AS A CAMPING TENT OR FOR ANY
OTHER FUNCTION.
THIS BLIND IS DESIGNED FOR PORTABILITY. DO NOT
LEAVE BLIND SETUP OUTDOORS WHEN NOT IN USE.
DO NOT USE FIREARMS TO SHOOTTHROUGH THE RE
MOVABLE SHOOTTHROUGH MESH WINDOWS. THE
SHOOTTHROUGH WINDOWS ARE INTENDED FOR
ARCHERY USE WITH FIXED BLADE BROAD HEADS
ONLY!
NEVER ALLOW CHILDREN TO PLAY IN THIS PRODUCT
WITHOUT ADULT SUPERVISION. TO DO SO COULD
CAUSE SERIOUS INJURY OR DEATH.
NEVER ALLOW THE MATERIAL TO COVER YOUR FACE.
THIS MATERIAL CAN CAUSE SUFFOCATION AND
DEATH IF IT IS PLACED OVER FACE.
*All weights, specications and features are approximate and are subject to change
without notice. Due to continuous product improvements, product images may not
be exact. Warning labels in some product images may have been removed for pho-
tography purposes only. Props shown in photos not included. Some assembly may
be required.
WINDOWS
45001 WINDOW, MESH, GR150BT, 20” X 46”
45004 WINDOW, MESH, GR250BT, 23” X 54”
45006 WINDOW, MESH, GR350BT, 28” X 65”
45008 WINDOW, MESH, BM275BT, LEFT
45009 WINDOW, MESH, BM275BT, CENTER
45010 WINDOW, MESH, BM275BT, RIGHT
45012 WINDOW, MESH, SE250BA, LEFT
45013 WINDOW, MESH, SE250BA, CENTER
45014 WINDOW, MESH, SE250BA, RIGHT
45016 WINDOW, MESH, SE350BA, LEFT
45017 WINDOW, MESH, SE350BA, CENTER
45018 WINDOW, MESH, SE350BA, RIGHT
45020 WINDOW, MESH, SE250BW, LEFT
45021 WINDOW, MESH, SE250BW, CENTER
45022 WINDOW, MESH, SE250BW, RIGHT
45024 WINDOW, MESH, SE350BW, LEFT
45025 WINDOW, MESH, SE350BW, CENTER
45026 WINDOW, MESH, SE350BW, RIGHT
FIGURE 6
WALL
FIGURE 7
ROOF
FIGURE 8
BACKPACK CARRYING CASES
48706 BACKPACK, GROUNDER 150
48712 BACKPACK, GROUNDER 250
48718 BACKPACK, GROUNDER 350/BIG MIKE 275
48506 BACKPACK, SNAKE EYES 250 WEST
48507 BACKPACK, SNAKE EYES 350 WEST
48902 BACKPACK, SNAKE EYES 250 ADRENALINE
48903 BACKPACK, SNAKE EYES 350 ADRENALINE
POLES, STAKES AND ROPE
48701 POLE FIBERGLASS 37” (150 models)
48707 POLE FIBERGLASS 42” (250 and 275 models)
45027 POLE FIBERGLASS 46” (275 models)
48713 POLE FIBERGLASS 49.5” (350 models)
48722 GROUND STAKE
48723 TIE-DOWN ROPE
HUB BLIND ACCESSORY:
AV180 BLAZE CAP
HUB BLIND COMPONENTS:
ONE YEAR LIMITED WARRANTY
Ardisam,Inc.,amanufacturingcompany,warrantsthisBarronettGround
Blindtobefreefromdefectsinthematerialorworkmanshipforaperiod
of one year from the date of purchase. During the one year warranty of
this product, Ardisam will furnish 100% parts and labor to correct any
defect caused by faulty material or workmanship. The warranty does
notcoverfadingordiscoloringofcamofabric,tenttears,orbroken
polesduetohighwindconditionsorunattendeduse.Warrantywork
must be sent directly to Ardisam, Inc. or to an authorized service center.
To obtain warranty service and/or replacement instructions, you
must have prior approval before shipping package by calling our
customerservicedepartmentat1-800-345-6007Mondaythrough
Friday from 8 a.m. to 5 p.m. for a return material authorization
number (RMA#). All items must be shipped prepaid. Ardisam, Inc. will
at no charge, repair or replace, at their discretion, any defective part
which falls under the conditions stated above. Ardisam retains the
right to change models, specications and price without notice. This
product if used as intended, will give you years of trouble free service.
We hope you will enjoy the quality of our products for years to come.
For replacement parts, phone [phone] or go online to
BarronettBlinds.com.
This warranty applies to the original owner with a proof of purchase and
is not transferable. It supersedes all other warranties either expressed or
impliedandallotherobligationstoliabilitiesonourpart. Ardisam,Inc.does
notassume,anddoesnotauthorizeanyotherpersontoassumeforus,any
liability in connection with the sale of our products. The warranty applies
only to products which have not been subjected to negligent use, misuse,
alteration, accident or repairs made by anyone not certied by Ardisam,
Inc.Thisguaranteeisvoidunlessthewarrantycardisproperlylledoutand
received by Ardisam, Inc., within 30 days of purchase.
*Left and right window panels are determined by looking at the windows from the “in-use”
position from inside of the blind.
