ZANE ARTS ROGA-4 User manual

ENG/Ver 1.00
COMPACT TWO ROOM TENT
DT-004 / ROGA-4
OwnersManual

Fly sheet x 1
Footprint x 1
Bridge frame x 2
Double cross
frame (long) x 2
Double cross frame (short) x 2
Carry bag x1 Pole case x1
Peg & rope
case x1
V-Peg×24 Repair pipe
x 1
2.5 m rope
x 12
Inner tent x 1

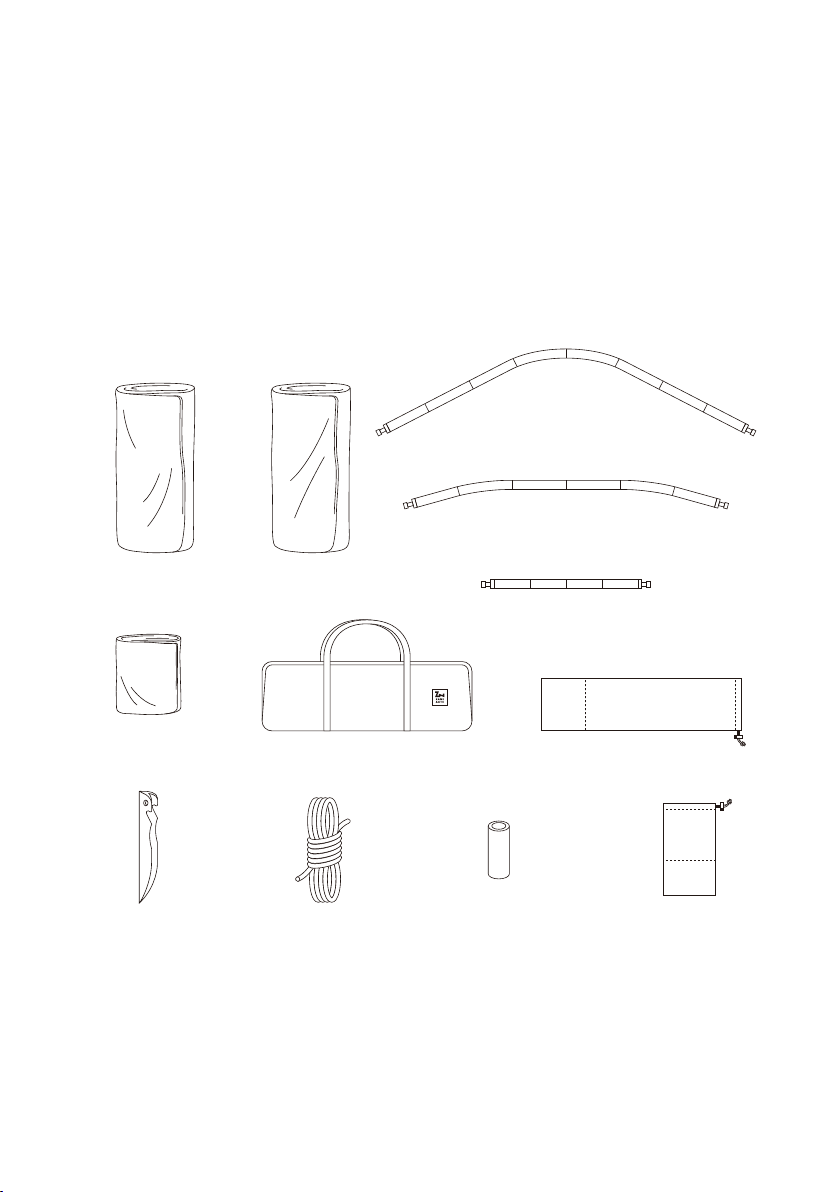

■Items Included
Please check the contents of the set before fully
opening the tent. If you find something missing,
please contact the store where you purchased it or
us directly.
2
*We recommend preparing spare (commercially available) pegs
and extra rope in case of unforeseen circumstances.

Chemically treated fibers are used in the fabric of this
product. Chemically treated fibers may liquefy when
burned, the liquefied fabric may stick to skin and cause
serious burns. Never bring fire close to tents, shelters or
tarps.
Wrinkles caused by folding are noticeable
Commonly used chemically treated fibers used in tents,
shelters and tarps are prone to creases. In particular, the
fabric in this product has noticeable wrinkles due to the
color, thickness, and surface processing of fabric. Please
note that it does not affect performance in any way.
Use of a wood stove is absolutely prohibited
■About this product
Please take some time to understand the
characteristics of this product before using it.
3

Waterproofing performance is reduced
The surface is treated with silicone water repellent, but after
use, the water repellent performance will deteriorate and
rain will eventually penetrate the fabric. Please note that the
water repellency cannot be maintained long term.
Waterproof performance of the back side is not affected,
so even if water repellency deteriorates, there is no issue
using it as it is.
Discoloration of seam tape
Please note that the seam tape will gradually discolor, but
this will not affect the performance of the product.
Thoroughly dry and store
If tent is stored while wet, the polyurethane coating on the
back of the fabric will react with the moisture and may
decompose or peel off, causing the seam tape to come off
and diminish its waterproofness. After using, dry
4

For 3 seasons of use
This product is not designed to withstand snowfall or low
temperatures. Do not use in low temperatures where the
zippers may freezes or in snow.
Do not remove the fire prohibition tag
Do not cut or remove the fire-prohibited tag sewn into the
product. Products without a fire-prohibited tag cannot be
guaranteed or repaired.
dry thoroughly and store away from hot or humid places.
Be extra careful to wipe any moisture from the seams.
5

■Precautions for setup and use
Danger
Indicates content that may result
in death or serious injury.
Be sure to read and understand the following
contents before use to prevent harm to the user and
others, and damage to property.
●Fire is not allowed in tents, shelters, and tarps. It is
extremely dangerous as there is a risk of fire, oxygen
deficiency, carbon monoxide poisoning, etc. Do not use
firearms and keep fire away from tents, shelters, and
tarps.
●If the weather is bad, such as a typhoon or storm, or if
you anticipate such weather, stop camping immediately.
●Do not set up in a place that is easily affected by wind
or where there is a risk of falling rocks, avalanches, or
rising water.
6
!

●
Not for permanent use. If this product is set up
permanently, it will deteriorate and be damaged in a
short period of time due to the effects of ultraviolet
rays and other elements.
●Set up on a flat surface with good drainage.
Moisture and dirt can lead to deterioration, and
rough terrain can lead to damage to product.
●Remove any items that may damage the product,
such as rocks and branches, before setting up.
●When setting up the product, be sure to have two or
more people, and pay attention to surroundings.
●
Do not set up when the wind is strong. The main body
may blow away or product may be damaged by the
force of the wind.
7
Indicates content that may cause
injuries or property damage.
!
Warning

●When setting up, be prepared for wind gusts and be
sure that the main body and frame don’t fly away by
keeping your hands on the frame and main body while
working.
●When extending poles or frames, make sure each
section is inserted securely. Assembling the product
incorrectly can lead to damage.
●When handling poles or frames, be careful not to hit or
damage something around you and pay attention to
your surroundings.
●After setup, secure the tent, shelter, and tarp to the
ground with pegs and ropes to prevent them from being
blown away by the wind.
●If the weather suddenly changes hold on to the product
for as long as needed to keep it down.
8

9
!
■
Precautions for teardown and after use care
Indicates content that may cause
minor injuries or property damage.
Be sure to read and understand the following
contents before use to prevent harm to the user and
others, and damage to property.
●When taking down the product, be sure to have two or
more people.
●Please take down the product in the reverse order of the
setup. Not following the instructions properly may
damage the product.
●
When removing poles or frames, be careful not to hit or
damage something around you and pay attention to your
surroundings.

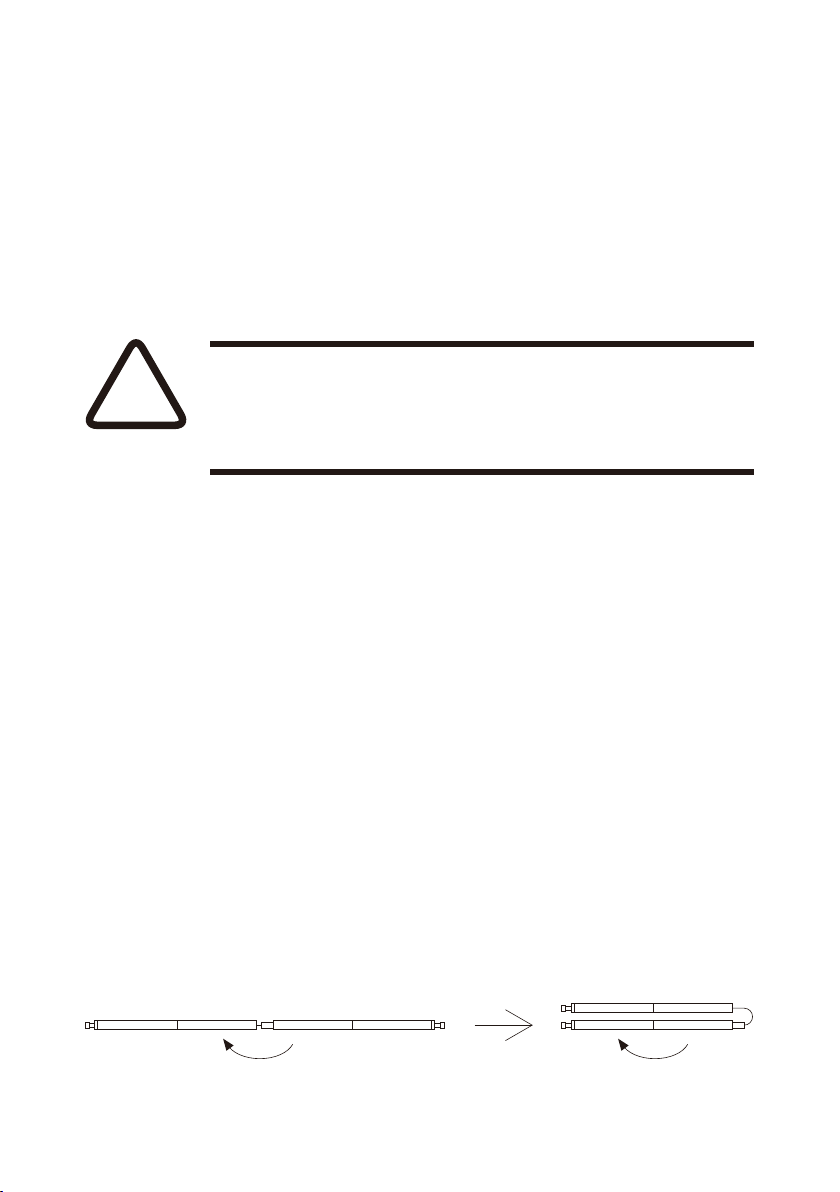

●When folding a frame or pole with a built-in cord
(cord), begin folding from the center, this will reduce the
wear on the bungee cord by not applying extra tension
to the cord.
Warning

●After use, clean the fabric and allow it to dry thoroughly
before storing. If it is stored with dirt or moisture
uncleaned, it may cause colors to transfer or mold odors
to form, and may cause the seam tape to come off and
diminish its waterproofness.
●Frames, poles, and other metal parts should also be
thoroughly dried before storage. If stored while moist or
uncleaned, they may be damaged by corrosion.
●Salt can accelerate the deterioration of fabrics. If used
near the sea, rinse with fresh water and dry well before
storing.
●Use a soft towel to gently clean or wipe moisture off
fabrics. Rubbing can damage the coating of the fabric.
●
Do not use solvents such as paint thinners. There is a risk
of delaminating or discoloration of the water-repellent
finish.
●Please do not wash. It will lead to deterioration of the
fabric and damage to other parts.
●
Please keep out of reach of infants and children.
10

Double cross
frame set
1
Installation of inner tent
5Footprint installation 6
Drive tent pegs
into the ground.
4
Rope
attachment
3
Bridge frame set
2

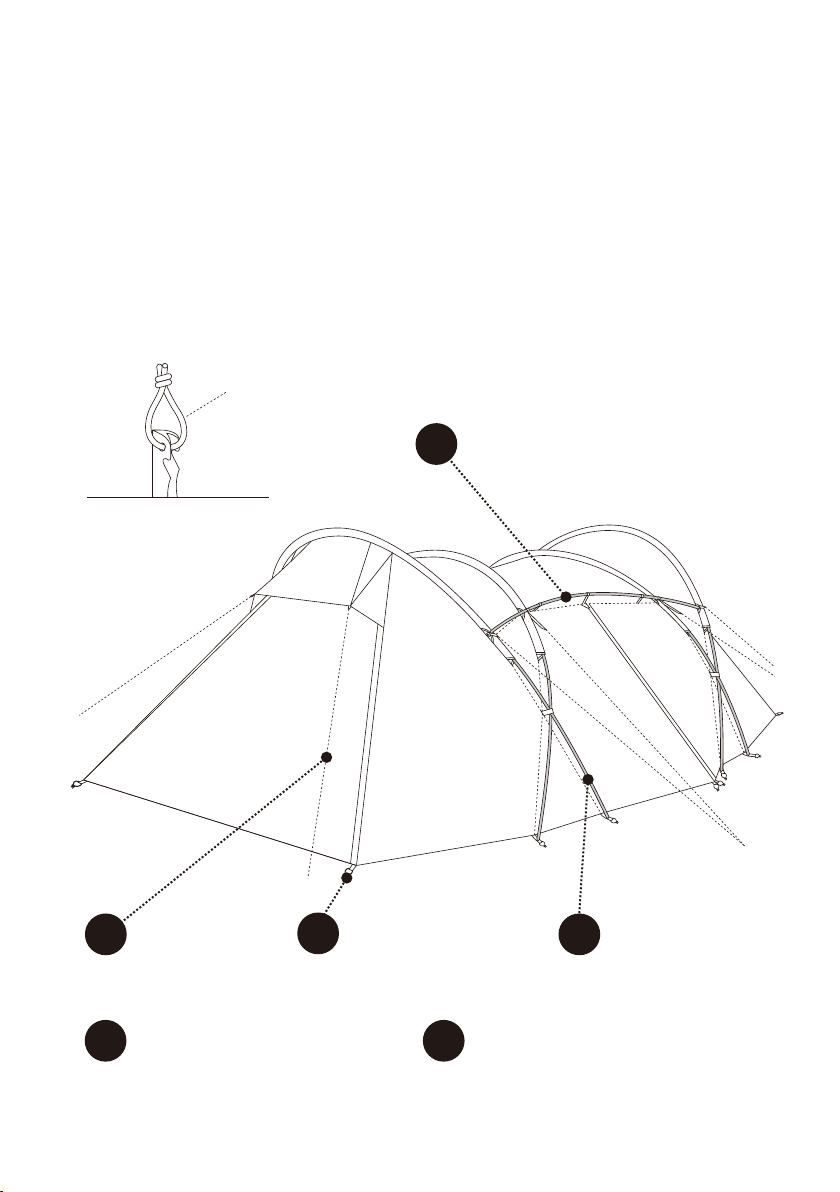

■Setup procedures
Set up according to the numerical order.
【Prepare in Advance】
*Make a loop on pegs with commercially available rope
φ2mm ・
20cm
*Close all zippers
11

Assemble all frames (6 in total).
A
：
Slip the gray ended frame (double cross frame (short)) into
the sleeve with the gray trim.
B
：
Insert the end of the frame into
the grommet in the webbing
with grey rope (both ends).
Double cross frame set
1
Frames
with gray
ends
Gray
trim
A
Insert into the inner grommet
The outer grommet is a spare
Gray
rope B
12

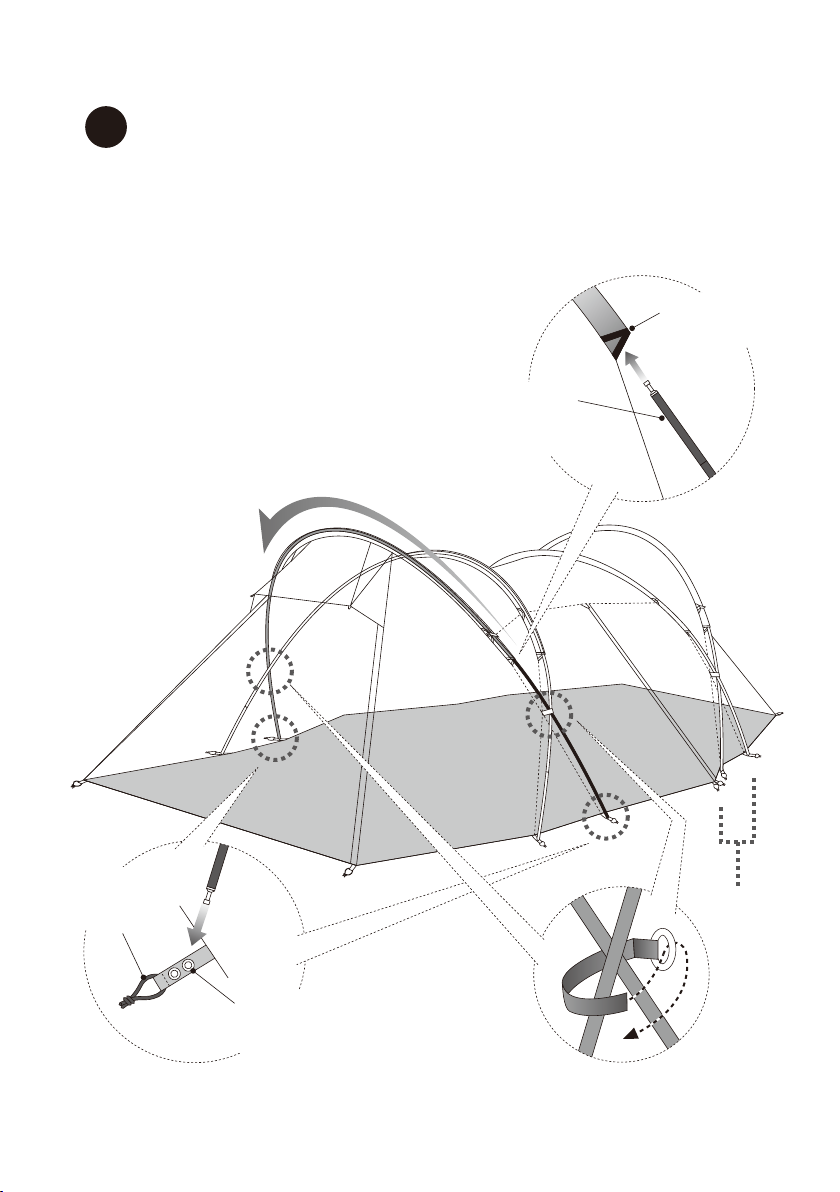

C
：
Slip the longer frame (double cross frame (long))
into the sleeve with the black trim.
D
：
Insert the end of the frame into the
grommet in the webbing with
black rope (both ends).
E
：
Fix straps where frames cross.
F
：
Do the same for the other.
Longest
frame
Black
trim
C
Black
rope DF
E
Double cross frame set
1
Insert into the inner grommet
The outer grommet is a spare
13

A
：
Pull the tent body back and forth to spread it out.
B
：
Insert the end of the shortest frame (bridge frame) into
the grommets attached to the sleeves (both ends).
C
：
Hook (3 places).
D
：
Wrap the webbing
loop around the frame.
A
A
B
B
C
D
Hook
×3
Bridge frame set
2
14

A
：

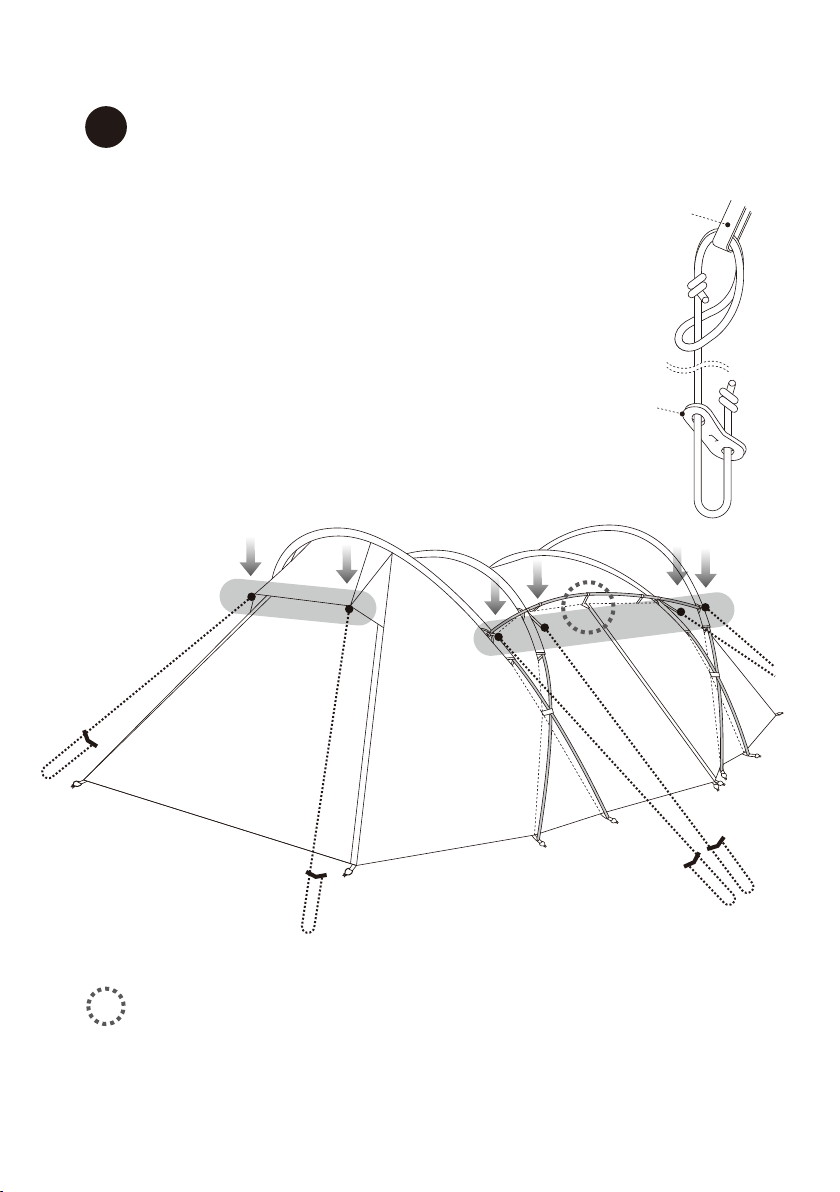

Use ropes (in 2 places) for ventilation
(same ventilation on both ends).
B
：
Attach ropes to 4 points
(attach the the same way on opposite side).
Mounting
loop
Stopper
Rope setting
AB
The webbing loops inside are spare loops for use during
strong winds.
Rope attachment
3
15

Drive the pegs into the ground in numerical order.
Drive tent pegs into the ground.
4
Drive
pegs at
45˚ angle
45˚
12
87
56
910
1211
1314
15 16
18
19 20
22 21
17
43
Use one peg with
two ropes for 15-18
16

A
：
Check the front and back of the inner tent.
The side with the logo near the
doorway faces the room.
B： Pass the toggle on the ceiling through
the O-ring of the main body and
hook it (6 places).
*The main body has a symmetrical design,
so it can be installed in the front or back.
The side with the logo on
should face the room
A
B
Toggle
Ring
【View from the front】
Installation of the inner tent (ceiling)
5
17

18
A
：
Pass the toggle through the O-ring
of the main body and hook it
(left and right).
B
：
Drive the pegs into the ground
through the loops (left and right).
C
：
Hook webbing loop around tent peg
(left and right).
*Adjust the tension with A and C adjusters.
A
B
Adjustment
【View from behind】
C
Peg
Drive the pegs
into the ground
through the
loops
Thread the
toggle through
the ring
Hook the webbing
loop around the
tent peg at
the corner of the body

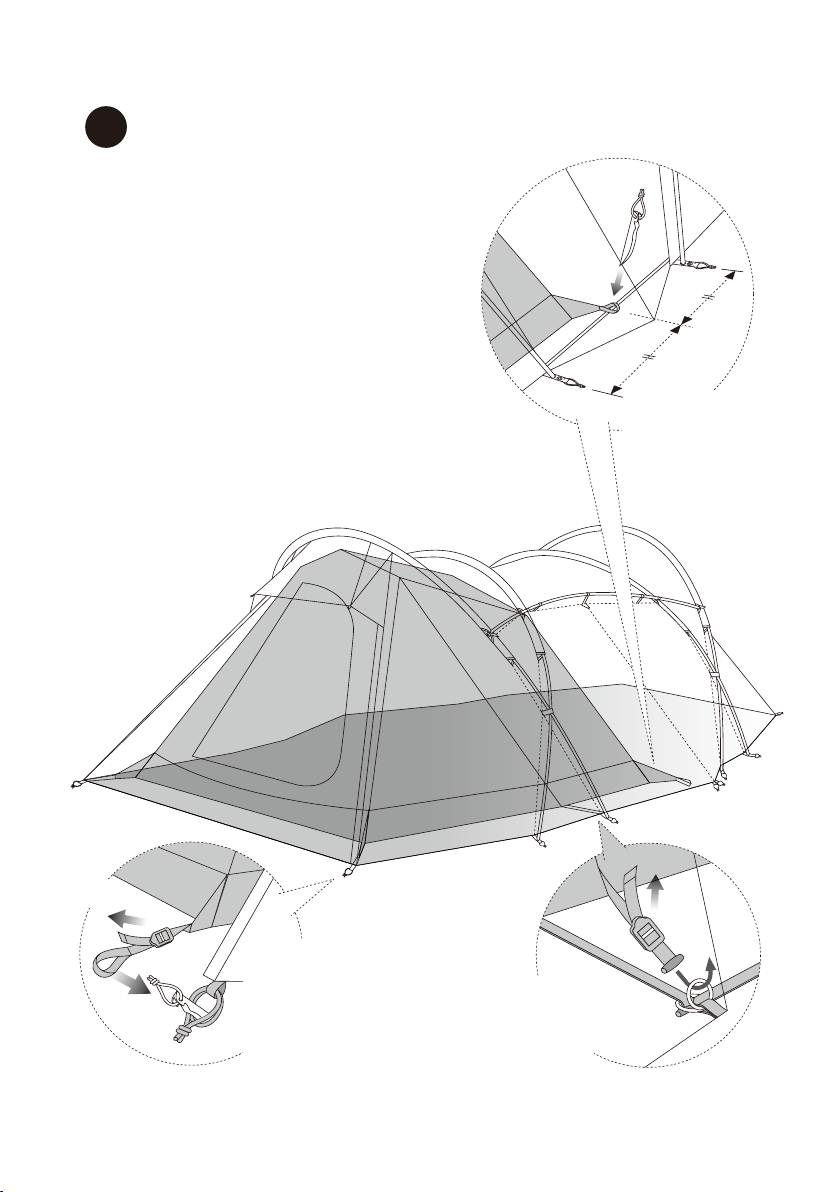

Installation of inner tent (bottom part)
5
Adjustment

19
A
：
Check the front and back of the footprint.
B
：
When using as a protective sheet
for the inner tent, install under the
inner tent. When using it as a
living sheet, install in the front
room of the tent.
C
：
Hook the bungie cords to the
tent pegs in the corners.
A
B
C
・
The side with
the logo is the front
・
The shiny side is the top
Living sheet Protective sheet
Peg
Bungee
cord loop

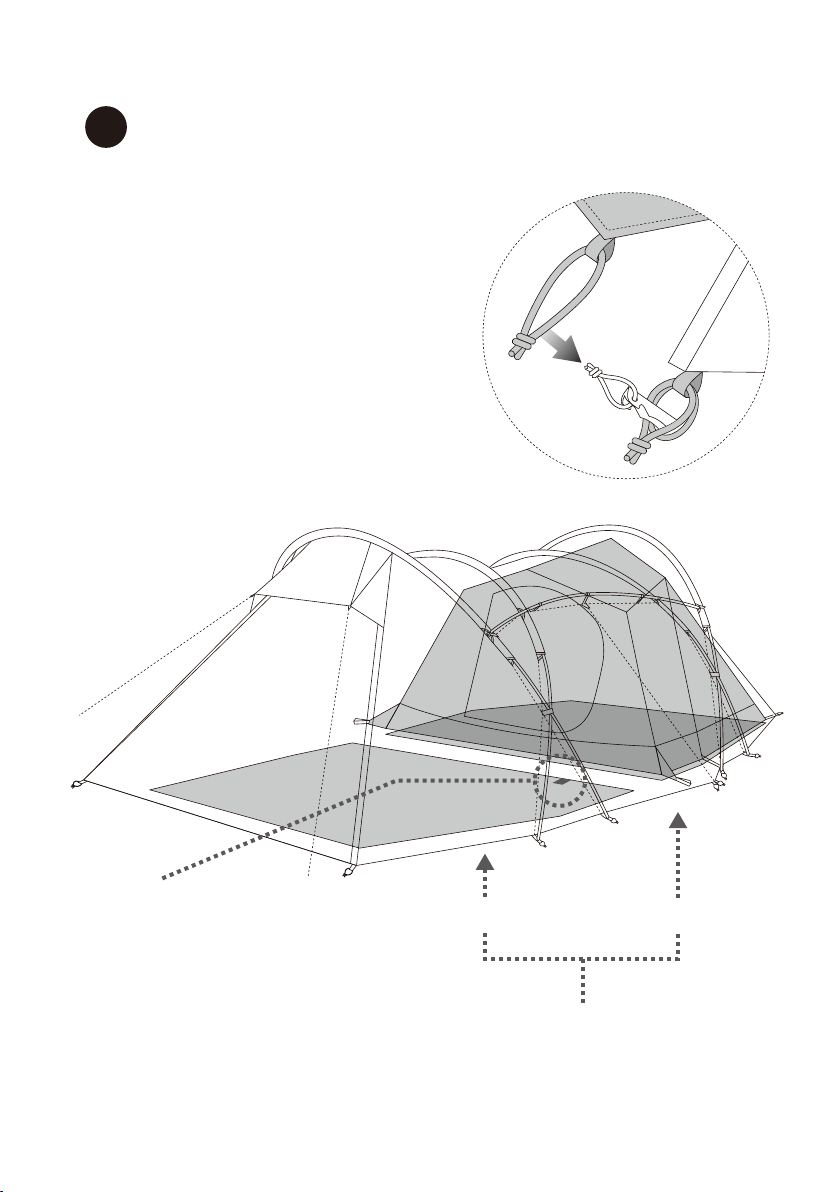

Footprint installation
6

■Warranty and repair
20
If you find any defects in the product, please contact the
store where you purchased it or us directly.We will replace
or repair any item found to have a manufacturing defect
free of charge.We will repair products with damage
caused by wear and aging at a reasonable price.Please
note that it may be difficult to obtain some materials due
to the discontinuation of products and parts, and repairs
may not be possible based on the condition of the
product.
*When sending a product for repair, please remove dirt
and moisture from the product before sending it.Moisture
and dirt may interfere with repairs.Items that are not
clean and dry upon arrival for repair will incur additional
charges at their own expense for cleaning.Thank you for
your understanding.
ZANE ARTS, Inc.
7168-13 Shimauchi, Matsumoto, Nagano 390-0851
[email protected]
