Bartec Xbeam LTE EX User manual

Installation Instruction Xbeam LTE EX Antenna
BARTEC
TECHNOR AS
Vestre Svanholmen 24
4313 SANDNES
NORWAY
Tel.: [phone]
Fax: [phone]
[e-mail]
www.bartec-technor.no
Reservation Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
EN 1/4
Type Xbeam LTE EX
Explosion protection Technical ata
ATEX
Ex type of protection
0470
II 2 G Ex eb mb IIC, IIB, IIA T6 Gb
II 2 D Ex tb IIIC T85°C Db, IP66 / IP67
EU Type Examination Certificate
CML 22ATEX3353X
IECEx
Ex type of protection
Ex eb mb IIC, IIB, IIA T6 Gb
Ex tb IIIC T85°C Db, IP66 / IP67
Certificate of Conformity
IECEx CML 22.0050X
Ambient temperature range
-40°C Ta +60°C
Ingress Protection
IP66 / IP67
Supply ata
U
n
: Max 20 Vpp
P :
Frequency:
IIC: 2 W
IIB: 3,5 W
IIA: 6 W
0,5 – 6 GHz
Pro uction year
As stated on the marking label of the product
Serial number
As stated on the marking label of the product
Marking label
Please refer to notes on the marking label
Text label
‘POTENTIAL ELECTROSTATIC
CHARGING HAZARD - SEE
INSTRUCTIONS’
Depending on the technical execution
240
2- v1 Installation Instructions Xbeam LTE EX
Note to instructions
When working in hazardous areas, the safety of
personnel and equipment depends on
compliance with the relevant safety regulations.
Personnel
in charge of installation and
maintenance bear a special responsibility
and
must have required competence and knowl
edge
of the applicable rules and regulations.
The instructions provide a summary of the most
important safety measures and must be read by
all personnel to ensure
correct handling of the
product.
The instructions have to be kept for future
reference and mu
st be available throughout the
lifetime of the product.
Description
The Xbeam LTE EX is an ATEX
and IECEx
approved RF
antenna for creating wireless
networks and wireless telemetry systems in
hazardous area. The antenna is optimized for
use in steel and concrete
structure
environments where multipath effects and
reflections are present.
The Xbeam LTE EX is an ideal solution if the
access point is placed in safe zone, and the
antenna shall provide coverage in hazardous
areas.
Due to power loss in the Coax cables, the
cable length should not exceed 30 m.
The antenna must be mounted
by its base using
the 4 off Ø11 holes for this. The base
has to be
connected to earth. The antenna is constructed
with a permanently connected, un
terminated
coax
cable that must be properly protected and
the connection must be carried out in an
appropriate certified Ex-e or Ex-d enclosure,
or
in safe area. Additional clamping of the
cable
shall be installed,
to ensure that pulling and
twisting is not transferred
to the terminations
inside the antenna.
Other applicable ocuments
Xbeam LTE EX Datasheet.
The retention of these documents is mandatory.
Increase Safety Pro uct, BARTEC
Technor Xbeam LTE EX
Read these installation
instructions carefully
before mounting, installation, commissioning
and maintenance.
Notes on the marking label
Specific conditions of
use which are important
for the installation, the use or the maintenance
of the product will be unabbrev
iated adopted into
this manual.
In case of loss always mention the
type and
serial/batch number at BARTEC office.

Installation Instruction Xbeam LTE EX Antenna
BARTEC
TECHNOR AS
Vestre Svanholmen 24
4313 SANDNES
NORWAY
Tel.: [phone]
Fax: [phone]
[e-mail]
www.bartec-technor.no
Reservation Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
EN 2/4
240 2
- v1 Installation Instructions Xbeam LTE EX
Safety Instructions
The technical data, which are on the marking
label need to be maintained just like all possible
warning (caution) texts on the outside of the
product.
On the basis of the Category or EPL
marking
you’ll have to verify that the product is
installed
in the correct zone.
Zone
Category
EPL
Suitability
0
1
G
only
Ga only

1
2
G
Gb

2
3
G
or 2G
Gc or Gb

20
1D only
Da only

21
2D
Db

22
3D or 2
D
Dc or Db

This table gives only information about main
Equipment Protection Level
which is applicable
for the product. The marking label is leading.
The table shows in which zone this product may
be installed under application of the belonging
EU-Type Examination Certificate
or IECEx
Certificate of Conformity.
Rebuilds and changes to the product
are not
permitted.
Use explosion proof products in good shape
only, which means;
undamaged, healthy
maintenance condition.
Take care of all national applicable safety & work
instructions and all safety instructions
mentioned in this manual whenever work is
necessary to Ex products.
For installation requirements we redirect you to:
EN 60079-14: 2014 or IEC 60079-14: 2013.
Marking
Particularly important points in these instructions
are marked with a symbol:
DANGER indicates a hazardous situation
which,
if not avoided, will result in death
or serious
injury.
WARNING indicates a hazardous
situation
which, if not avoided, could
result in death or
serious injury.
CAUTION indicates a hazardous situation
which, if not avoided, could result in minor
or
moderate injury.
NOTICE is used to address practices not
related to personal injury.
Note
Important instructions and information on
effective, economical and environmentally
compatible handling.
Conformity to stan ar s
The explosion proof control panels
have been
examined according following standards
(depending on tec
hnical execution and
application more than one standard may be
applicable).
Main stan ar s
EN 60079-0:2018 / IEC 60079-0:2017 Ed 7.0
EN IEC 60079-7:201 +A1:2018 /
IEC 60079-7:2017 Ed .1
EN 60079-31:2014 / IEC 60079-31:2013 Ed 2.0
EN 60 29:1991/A1:2000/A2:2013/AC:2016-12
EN 0 81:2012, EN 0419:2006
Technical ata
Page 1 of these installation instructions
describes the exact technical execution. Below
follows an overview of possible variants and the
general technical data.
Marking accor ing EN-IEC 60079-0
The marking on page 1 is leading.
Type(s) of Protection against ignition
Ex eb mb IIC, IIB, IIA T6 Gb
Ed tb IIIC T8 °C Db, IP66 / IP67
Gas group
This product is certified for gas: IIC, IIB, IIA.
Dust group
This product is certified for dust: IIIC.
Temperature class or maximum surface
temperature
The temperature class for this product is: T6.
Equipment Protection Level
The EPL for this product is: Gb and Db.
Ingress Protection egree
The product has an IP66 / IP67
rating according
to EN / IEC 60 29.
Ambient temperature range
-40°C to +60°C.
Maximum ambient temperature range
-40°C to +60°C.
Note
For deviating ambient conditions, please consul
t
BARTEC.

Installation Instruction Xbeam LTE EX Antenna
BARTEC
TECHNOR AS
Vestre Svanholmen 24
4313 SANDNES
NORWAY
Tel.: [phone]
Fax: [phone]
[e-mail]
www.bartec-technor.no
Reservation Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
EN 3/4
240 2
- v1 Installation Instructions Xbeam LTE EX
Enclosure material
Seawater resistant anodized Aluminium and
POM.
Max. input voltage
20 Vpp (peak to peak)
Max. input power
IIC = 2 W, IIB = 3, W, IIA = 6 W
Impe ance
0 Ω
Coax Cable Types
Contact Bartec Technor for further info
Transport, Storage
Damage to the control panel through incor-
rect transport or incorrect storage.
Transport and storage are
permissible in
original packaging only.
Assembly / Disassembly
Risk of injury ue to incorrect procee ings.
When installing and operating Ex equip-
ment, take care of the applicable safety
standards and generally known electrical
safety standards.
WARNING – POTENTIAL
ELECTROSTATIC CHARGING HAZARD.
Important Note:
The Xbeam LTE EX Antenna
cannot be
opened and has no physical wiring termi-
nals. The Coax C
able that must be properly
protected and the connection must be car-
ried out in an appropriate certified Ex-
e or
Ex-
d enclosure or in safe area. Additional
clamping of cable shall be installed to en-
sure that pulling and twisting is not trans-
ferred
to the terminations inside the
antenna.
Mounting an Installation
Mounting
The Xbeam LTE EX Antenna shall
be mounted
as a free standing component with a flying lead
Coax Cable. It shall be mounted using the dedi-
cated fixing holes, 4 off Ø11, in the base of the
antenna. It may be mounted in any orientation.
The fixing bolts must have a length of minimum
3 mm.

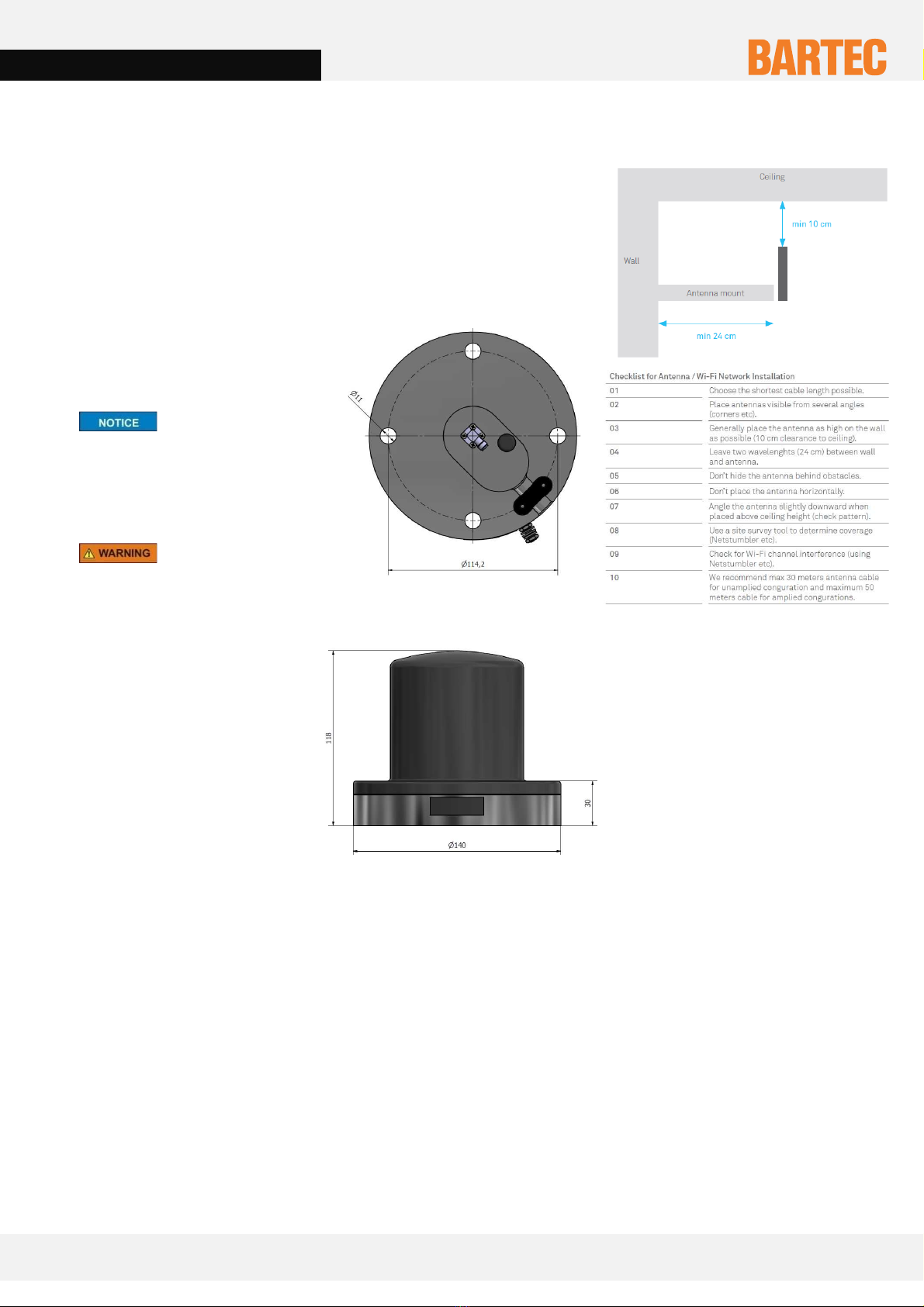

Fig 1. Fixing holes for the Xbeam LTE EX An-
tenna (all dimensions in mm).
Fig 2. Physical dimensions of the
Xbeam LTE
EX Antenna (approx. dimensions in mm).
Installation

Find an appropriate installation point where
the radio waves can most freely reach and
be transmitted from the antenna:
On a rigid surface:
Use the four Ø11 mm holes on the base
t of
the antenna and fix the antenna
to a rigid
surface.
Connect a ≥ 4 mm2 PE wire for equipoten-
tial bonding from the M earth bolt on the
antenna base to ground. A corrosion re-
sistant Crimp Ring Terminal, Ø , and with a
cross section that equals the PE wire must
be used.
Clamp the Coax Cable securely so
that the
Coax Cable is without tension as it enters
the antenna and to avoid any pulling and
twisting of the Coax Cable.
Connect the Coax Cable
in an appropriate
certified Ex-e or Ex-
d enclosure or in safe
area.

Installation Instruction Xbeam LTE EX Antenna
BARTEC
TECHNOR AS
Vestre Svanholmen 24
4313 SANDNES
NORWAY
Tel.: [phone]
Fax: [phone]
[e-mail]
www.bartec-technor.no
Reservation Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
EN 4/4
240 2
- v1 Installation Instructions Xbeam LTE EX
Commissioning
Before commissioning, check that:
The product has been installed in compli-
ance with the manufacturer instructions.
The product is not damaged.
The device functions perfectly.

Perform an ‘Initial Inspection’ according to
EN IEC 60079-14.
Operation
Death or serious injury through improper
use.
The Xbeam LTE EX
may be operated only
within the technical limits that apply to it (see
page 1).
The Xbeam LTE EX
Antenna is a sealed
device with a flying lead Coax Cable. It is
not possible to take the antenna apart.
If the
antenna for some reason breaks, it must be
replaced with a new antenna.
Due to potential electrostatic charging haz-
ard of the black polycarbonat
e housing of
the antenna, cleaning must only be done
with a clean, wet cloth.
Maintenance an Fault Clearance
Risk of injury ue to incorrect procee ings.
The national valid regulatory for mainte-
nance, inspection, and
repair is applicable
for electrical equipment for the use in haz-
ardous areas.

Damaged Ex components must be directly
replaced by genuine BARTEC parts.
Maintenance cycles
The Xbeam LTE EX Antenna
does not require
any specific maintenance at regularly scheduled
intervals. One must make sure that the antenna
is kept free of dust.
In case of malfunction,
it must be replaced with
a new antenna.
Inspection of the Xbeam LTE EX Antenna is lim-
ited to ensuring that encapsulation, seals and
mounting are tight and secure. There are no
moving parts or adjustments possible, nor can
the housing be opened.
Any attempts ma e to open the housing, may
voi the warranty.
Inspection
Follow the national law and regulatory for in-
spection of explosion proof equipment. This
should be done by skilled and qualified person-
nel only.
Replacing the Xbeam LTE EX
•In case of a fatal error of a Xbeam LTE EX
,
the antenna
must be replaced by a new
unit. Repair or maintenance are not al-
lowed by unauthorized personnel.
Troubleshooting
•Troubleshooting involves
checking the
functionality of the antenna.
If you require
assistance, contact your distributor.
Specific con itions
The Xbeam LTE EX Antenna
shall be marked
with the following warning text:
‘POTENTIAL ELECTROSTATIC CHARGING
HAZARD - SEE INSTRUCTIONS’
The use of the device in case of excessive de-
posits of dusts superior of 0mm
according to EN / IEC 60079-31 is not allowed.
Disposal
The sensor contains metal, electronic compo-
nents and plastic parts. Therefore,
the statutory
requirements for disposing of electronic scrap
(WEEE)
must be observed (e.g. disposal by an
approved disposal company).
The sensor is also
marked with the wheeled bin symbol for WEEE:
Service A resses
BARTEC TECHNOR AS
Vestre Svanholmen 24, N 4313 Sandnes
Norway
BARTEC Explosion Proof Appliances
(Shanghai) Co., Lt .
New Building 7, No. 188 Xinjun Ring Road
Caohejing Pujiang Hi-tech Park
CN 201114 Shanghai
China
BARTEC GmbH
Max-Eyth-Str. 16, D 97980 Bad Mergentheim
Germany
BARTEC Mi le East FZE
RA-08, HB-01, Jebel Ali Free Zone, Dubai
Unite Arab Emirates
BARTEC NEDERLAND B.V.
Boelewerf 2 , NL 2987 VD Ridderkerk
Netherlan s
BARTEC Pte. Lt .
63 Hillview Avenue, #07-20/23 Lam Soon Build-
ing, SG 669 69 Singapore
Singapore
BARTEC US Corp.
6 0 Century Plaza Drive, Suite D120
Houston, TX 77073
USA
BARTEC Varnost .o.o.
Cesta 9. Avgusta 9, SI 1410 Zagorje ob Savi
Slovenia
