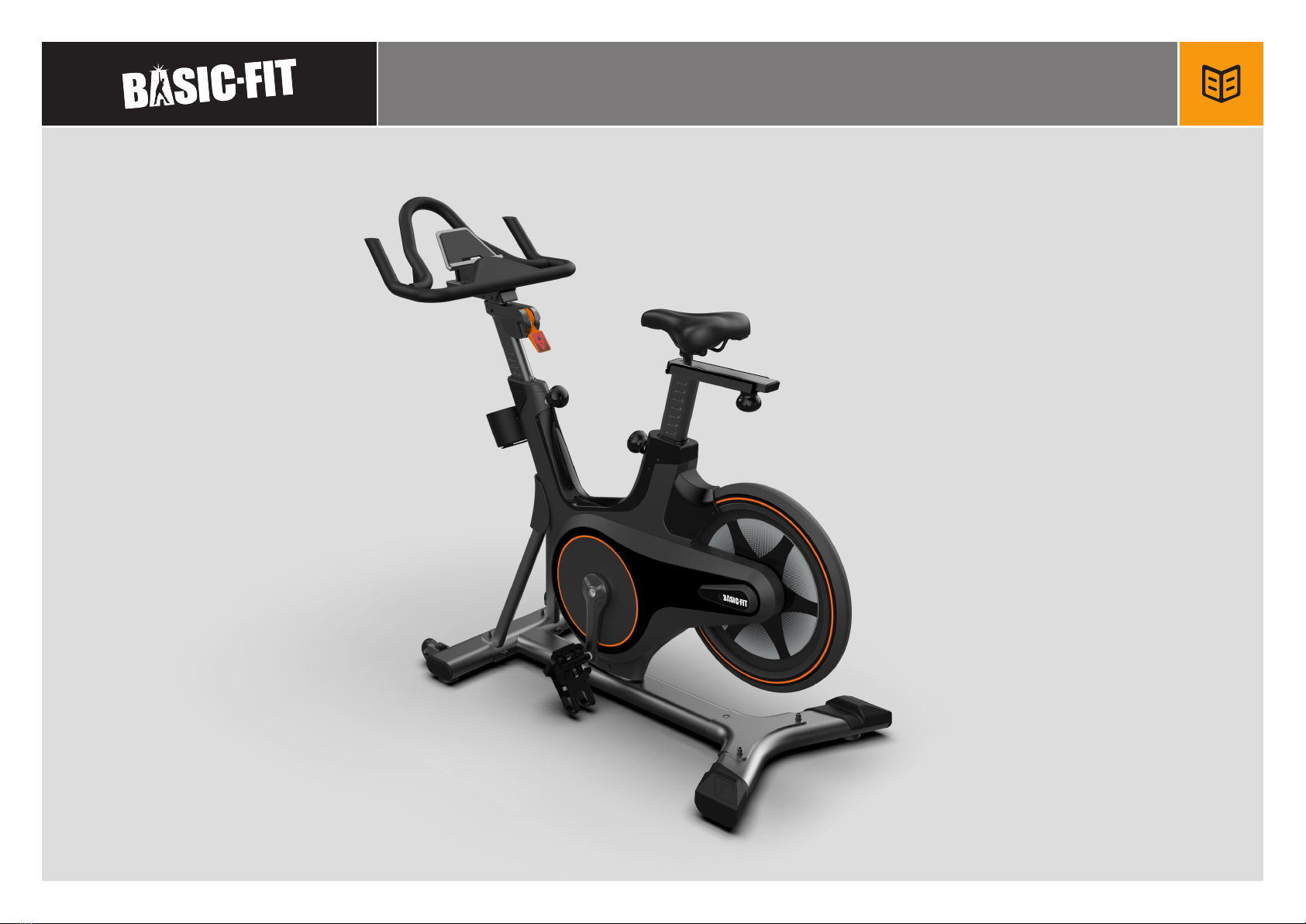

BASIC-FIT ICR-BF User manual

BASIC-FIT CYCLE |ICR-BF

2 3
ENGLISH
TO REDUCE THE RISKOF BURNS, FIRE, ELECTRICAL
SHOCK OR INJURY TO PERSONS:
•Use the Basic-Fit Cycle for its intended purpose as described in this manual. Do not use
attachments that have not been recommended by the manufacturer.
•Never operate the Basic-Fit Cycle if it is not working properly, or if it has been damaged.
Contact Customer Service of Basic-Fit for examination and repair.
•Do not use the Basic-Fit Cycle without proper footwear. NEVER operate the Basic-Fit Cycle with
bare feet.
•Do not wear any clothing that might catch on any moving parts of the Basic-Fit Cycle.
•Keep hands and feet clear at all times from moving parts to avoid injury. Never turn the pedal
cranks by hand.
•Do not dismount the Basic-Fit Cycle until the pedals are at a complete STOP.
•Do not insert any object, hands or feet into any openings, or expose hands, arms or feet to the
drive mechanism or other potentially moving part of the Basic-Fit Cycle.
•Do not use any equipment that is damaged or has worn or broken parts. Use only replacement
parts supplied by Customer Service of Basic-Fit.
•Do not operate where aerosol (spray) products are being used or when oxygen is being
administered.
•Close supervision is necessary when used near children.
•The Basic-Fit Cycle is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the Basic-Fit Cycle by a person responsible for their safety.
•Ensure that adjustment levers (seat and handlebar fore-and-aft) are properly secured and do
not interfere with range of motion during exercise.
•Incorrect or excessive exercise may result in serious injury or death. If you experience any kind
of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
•Do not jump on the Basic-Fit Cycle.
•At no time should more than one person be on the Basic-Fit Cycle while in operation.
•The Basic-Fit Cycle should not be used by persons weighing more than specified in the
PRODUCT SPECIFICATIONS SECTION. Failure to comply will void the warranty.
•Do not use other attachments that are not recommended by the manufacturer. Attachments
may cause injury.
•To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents.
(See MAINTENANCE)
•At NO time should pets or children under the age of 14 be closer to the Basic-Fit Cycle than 10
feet.
•At NO time should children under the age of 14 use the Basic-Fit Cycle.
•Children over the age of 14 should not use the Basic-Fit Cycle without adult supervision.
•Heart rate monitoring systems may be inaccurate.
•After exercising, push down on the resistance lever to slow the flywheel down and decrease the
potential for injury.
•The Basic-Fit Cycle does not have an independently moving flywheel; the pedals will continue
to move together with the flywheel until the flywheel stops.
•Use the Basic-Fit Cycle in a supervised environment.
WARNING
It is essential that the Basic-Fit Cycle is used only indoors, in a
climate controlled room. If the Basic-Fit Cycle has been exposed
to colder temperatures or high moisture climates, it is strongly
recommended that the Basic-Fit Cycle is warmed up to room
temperature before first time use. Failure to do so may cause
premature electronic failure.
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Never operate the Basic-Fit Cycle if it appears damaged, or has been
immersed in water. Contact Customer Service of Basic-Fit for
replacement or repair.
DANGER
SAVE THESE INSTRUCTIONS
Read the OWNER’S GUIDE before use. When using an electrical product,
basic precautions should always be followed, including the following:
Read all instructions before using the Basic-Fit Cycle. It is the
responsibility of the owner to ensure that all users of the Basic-Fit Cycle
are adequately informed of all warnings and precautions. If you have any
questions after reading this guide, contact Customer Service of Basic-Fit.
The Basic-Fit Cycle is intended for in-home use only. Do not use the
Basic-Fit Cycle in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
3
12
ENGLISH
NEDERLANDS

4 5
ASSEMBLY
UNPACKING
Unpack the Basic-Fit Cycle where you will be using it. Place the carton
on a level flat surface. It is recommended that you place a protective
covering on your floor. Never open the box when it is on its side.
IMPORTANT NOTES
During each assembly step, ensure that ALL nuts and bolts are in
place and partially threaded.
Several parts have been pre-lubricated to aid in assembly and usage.
Please do not wipe this off. If you have difficulty, a light application of
lithium grease is recommended.
WARNING!
There are several areas during the assembly process that special
attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened.
If the assembly instructions are not followed correctly, the Basic-Fit
Cycle could have parts that are not tightened and will seem loose and
may cause irritating noises.
To prevent damage to the Basic-Fit Cycle, the assembly instructions
must be reviewed and corrective actions should be taken.
TOOLS REQUIRED:
F2.5 mm Allen Wrench
F5 mm Allen Wrench/Screwdriver
F6 mm Allen Wrench
FFlat Wrench (17mm)
PARTS INCLUDED:
F1 Main Frame
F1 Front StabilizerTube
F1 Rear StabilizerTube
F1 Handlebar Set
F1 Bicycle Saddle
F2 Pedals
F2 Levelers
F1 Hardware Kit
SERIAL NUMBER
MODEL: ICR-BF
* Use the information above when calling for service.
ENGLISH
ENGLISH
RESISTANCE LEVER
HANDLEBAR HEIGHT ADJUSTMENT KNOB
SADDLE
HORIZONTAL SADDLE
ADJUSTMENT KNOB
SADDLE HEIGHT
ADJUSTMENT KNOB
FLYWHEEL
MAIN FRAME
REAR STABILIZER TUBE
DEVICE HOLDER
HANDLEBARS
WATER BOTTLE HOLDER
PEDALS
CRANK
TRANSPORT WHEELS
FRONT STABILIZER TUBE
LEVELERS
SPINNING PEDALS CAN CAUSE
INJURY. THIS BASIC-FIT CYCLE DOES
NOT HAVE A FREEWHEEL, SO PEDAL
MOTION IS DIRECTLY TIED TO
MOTION OF FLYWHEEL. USE BRAKE
TO STOP MOTION OF PEDALS AND
FLYWHEEL.
MAX USER WEIGHT - 136 KG/300 LBS.
1
2
3
4
5
6
7
WARNING
KEEP CHILDREN UNDER THE AGE OF 14
AWAY FROM EXERCISE EQUIPMENT
APPLY MAXIMUM BRAKE RESISTANCE
TO BIKE WHEN NOT IN USE TO
PREVENT INJURIES CAUSED BY
MOVING CRANK ASSEMBLY AND
FLYWHEEL.
ALL WARNINGS AND INSTRUCTIONS
SHOULD BE READ AND PROPER
INSTRUCTION OBTAINED PRIOR TO
USE. USE THE BASIC-FIT CYCLE FOR
ITS INTENDED PURPOSE ONLY.
CONSULT A PHYSICIAN BEFORE USING
THE BASIC-FIT CYCLE.
SET UP AND OPERATE THE BASIC-
FIT CYCLE ON A SOLID LEVEL
SURFACE. CARE SHOULD BE TAKEN
IN MOUNTING AND DISMOUNTING
THE BASIC-FIT CYCLE. BEFORE
DISMOUNTING, BRING THE PEDALS
TO A COMPLETE STOP.
WARNING — LOCK THE BASIC-FIT
CYCLE WHEN NOT IN USE BY
SETTING BRAKE TO MAXIMUM
RESISTANCE.

6 7
ENGLISH
1Hardware Qty
A
B
C
Bolt (M8x20L)
Flat Washer (M8)
Arc Washer (M8)
7
5
2
3Hardware Qty
F
G
H
Screw (remove and discard)
Screw (M4x10L)
Flat Washer
2
2
2
ASSEMBLY COMPLETE
LEVELING THE BASIC-FIT CYCLE
It is extremely important that the levelers are correctly adjusted
for proper operation.Turn leveling foot clockwise to lower and
counter-clockwise to raise unit. Adjust each side as needed until the
Basic-Fit Cycle is level. An unbalanced Basic-Fit Cycle may cause
belt misalignment or other issues. Use of a level is recommended.
BEFOREYOU BEGIN
LOCATION OF THE BASIC-FIT CYCLE
Place the Basic-Fit Cycle on a level and stable surface away from direct sunlight.The intense UV light can cause
discoloration on the plastics. Locate your Basic-Fit Cycle in an area with cool temperatures and low humidity.
Please leave a clear zone on all sides of the Basic-Fit Cycle that is at least 60 cm (2 ft).
This zone must be clear of any obstruction and provide the user a clear exit path from the Basic-Fit Cycle.
Do not place the Basic-Fit Cycle in any area that will block any vent or air openings.
MOVING THE BASIC-FIT CYCLE
Your Basic-Fit Cycle has a pair of transport wheels built into the front stabilizer tube.To move, firmly
grasp the steel portion of the rear stabilizer tube, carefully lift and roll on the transport wheels.
WARNING!
The Basic-Fit Cycle is heavy, use care and additional help if necessary when moving.
Failure to follow these instructions could result in injury.
PROPER USAGE
1. Sit on the Basic-Fit Cycle facing the
handlebars. Both feet should be on the
floor one on each side of the frame.
2. To determine proper seat position, sit
on the seat and position both feet on the
pedals.Your knee should bend slightly at
the furthest pedal position.You should be
able to pedal without locking your knees
or shifting your weight from side to side.
3. Adjust pedal straps to desired tightness.
4. To get off of the Basic-Fit Cycle, follow
the proper usage steps in reverse.
ENGLISH
FREE AREA
0.6 m(2 ft)
Torque Value
30 Nm / 22 lb-ft.
2Hardware Qty
D
E
Bolt (M6x15L)
Flat Washer (M6)
6
6
Torque Value
12 Nm / 9 lb-ft.
4Hardware Qty
D
E
I
J
Bolt (M6x15L)
Flat Washer (M6)
Bolt (M6x20L)
Screw (M4x12L)
2
4
2
3
A
B
C
B
B
A
A
D
E
FG
H
J
E
I
D

8 9
ENGLISH
HOW TO ADJUST THE BASIC-FIT CYCLE
The Basic-Fit Cycle can be adjusted for maximum comfort and exercise
effectiveness.The instructions below describe one approach to adjusting
the Basic-Fit Cycle to ensure optimal user comfort and ideal body
positioning; you may choose to adjust the Basic-Fit Cycle differently.
SADDLE ADJUSTMENT
Proper saddle height helps ensure maximum exercise efficiency
and comfort, while reducing the risk of injury. Adjust the saddle
height to make sure it’s in proper position, one that keeps a slight
bend in your knee while your legs are in the extended position.
HANDLEBAR ADJUSTMENT
Proper position for the handlebar is based primarily on comfort.
Typically, the handlebar should be positioned slightly higher than
the saddle for beginning cyclists. Advanced cyclists could try
different heights to get the arrangement most suitable for them.
A) SADDLE HORIZONTAL POSITION
Turn the adjustment knob counterclockwise while
sliding the saddle forward or backward as desired.
Turn the adjustment knob clockwise to lock saddle
position.Test the saddle slide for proper operation.
B) SADDLE HEIGHT
Carefully pull the adjustment knob away from the Basic-Fit
Cycle and turn it counterclockwise while sliding the saddle
up and down with the other hand.Turn the adjustment
knob clockwise to lock the saddle position.
C) HANDLEBAR HEIGHT
Carefully pull the adjustment knob away from the Basic-Fit
Cycle and turn it counterclockwise while raising or
lowering the handlebar with the other hand.Turn the
adjustment knob clockwise to lock handlebar position.
D) PEDAL STRAPS
Place the ball of the foot into the toe cage until the ball of
the foot is centered over the pedal, reach down and pull
the pedal strap up to tighten prior to use.To remove your
foot from the toe cage, loosen the strap and pull out.
A
BC
D
RESISTANCE LEVER / EMERGENCY BRAKE
The resistance lever is located in front of the handlebars and provides 11 levels of pedaling resistance.To increase the
resistance, push the lever towards the ground.To decrease the resistance, push the lever upwards.
IMPORTANT:
•To stop the flywheel while pedaling, push down hard on the lever.
• The flywheel should quickly come to a complete stop.
• Make sure your shoes are fixed into the toe clipsor pedal straps.
• Apply full resistance load when the Basic-Fit Cycle is not in use to prevent injuries from moving drive
gear components.
WARNING
The Basic-Fit Cycle does not have a free moving flywheel; the pedals will continue to move together with the
flywheel until the flywheel stops. Reducing speed in a controlled manner is required.To stop the flywheel
immediately, push down the orange resistance lever. Always pedal in a controlled manner and adjust
your desired cadence according to your own abilities. Push the orange lever down = emergency stop.
The Basic-Fit Cycle uses a fixed flywheel that builds momentum and will keep the pedals turning even after the
user stops pedaling or if the user’s feet slip off. DO NOT ATTEMPTTO REMOVEYOUR FEET FROMTHE PEDALS
OR DISMOUNTTHE BASIC-FIT CYCLE UNTIL BOTHTHE PEDALS ANDTHE FLYWHEEL HAVE COMPLETELY
STOPPED. Failure to follow these instructions may lead to loss of control and the potential for serious injury.
ENGLISH
BATTERY REPLACEMENT
If you are not getting workout readings while using the app, you may need to change the battery (AA).

10 11
TROUBLESHOOTING
COMMON PRODUCT QUESTIONS
ARE THE SOUNDS MY BASIC-FIT CYCLE MAKES NORMAL?
Our Basic-Fit Cycles are some of the quietest available
because they use belt drives and friction free magnetic
resistance. We use the highest grade bearings and belts to
minimize noise. However, because the resistance system
itself is so quiet, you will occasionally hear other slight
mechanical noises. Unlike older, louder technologies, there
are no fans, friction belts, or alternator noises to mask
these sounds on our Basic-Fit Cycle.These mechanical
noises, which may or may not be intermittent, are normal
and are caused by the transfer of significant amounts of
energy to a rapidly spinning flywheel. All bearings, belts
and other rotating parts will generate some noise which
will transmit through the casing and frame. It is also normal
for these sounds tochange slightly during a workout and
over time because of thermal expansion of the parts.
WHY IS THE BASIC FIT CYCLE I HAD DELIVERED
LOUDER THAN THE ONE AT THE SHOWROOM?
All fitness products seem quieter in a large showroom
because there is generally more background noise than
in your home. Also, there will be less reverberation
on a carpeted concrete floor than on a wood overlay
floor. Sometimes a heavy rubber mat will help reduce
reverberation through the floor. If the Basic-Fit Cycle is
placed close to a wall, there will be more reflected noise.
ENGLISH
PROBLEM: The Basic-Fit Cycle makes a squeaking or chirping noise, verify the following:
1) The Basic-Fit Cycle is on a level surface
2) Loosen all bolts attached during the assembly process, grease the threads, and tighten again
PROBLEM: Seat or handlebar post move after locked into position
• Make sure the adjustment knob is tightened
PROBLEM: Clicking noise with each pedal revolution
1) Check shoelaces to make sure the aglet is not tapping the Basic-Fit Cycle as the pedals turn
2) Assure the Basic-Fit Cycle is level by checking the leveling feet on the bottom of the front
and rear stabilizers
3) Assure that pedals are tight on crank arms
PROBLEM: Clicking noise when flywheel rotates
1) Ensure nothing is touching flywheel
2) Please, contact Customer Service of Basic-Fit
PROBLEM: Knocking noise or play felt in pedals/cranks
1) Make sure pedals are tight on crank arms
2) Make sure crank bolts are tight. If loose, contact Customer Service of Basic-Fit
PROBLEM: Rocking or movement while in use
1) Using a hex wrench, check the attachment bolts on the front and rear stabilizers and make sure
they are tight
2) Assure the bike is level by checking the leveling feet on the bottom of the front and rear stabilizers
ENGLISH
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
Minimal maintenance and cleaning is required. Adhering to this schedule will extend the life of your Basic-Fit Cycle. We use sealed bearings throughout our
Basic-Fit Cycles so lubrication is not needed.The most important maintenance step is to simply wipe your perspiration off the Basic-Fit Cycle after each use.
HOW DO I CLEAN MY BASIC-FIT CYCLE?
Clean with mild soap and water cleaners only. Never use solvents on plastic parts. Cleanliness of your Basic-Fit Cycle and its operating environment will keep
maintenance problems and service calls to a minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.
MAINTENANCE
MAINTENANCE SCHEDULE
ACTION FREQUENCY
Clean the Basic-Fit Cycle using soft cloths or paper towels
or other Basic-Fit approved solution (cleaning agents
should be alcohol and ammonia free). Disinfect the saddle
and handlebars and wipe off all bodily residues.
AFTER EACH USE
Make sure that the Basic-Fit Cycle is level and does not
rock. Ensure that the pedals are tight in crank arms and not
crossthreaded, all screws on pedals are tight, and pedal
straps are not frayed.
BEFORE EACH
USE
Clean the entire Basic-Fit Cycle using water and a mild
soap or other Basic-Fit approved solution (cleaning agents
should be alcohol and ammonia free). Clean all exterior
parts, the steel frame, front and rear stabilizers, seat
and handlebars.
WEEKLY
Test the emergency brake to make sure it is functioning
properly.To do this, press down the orange resistance
lever while pedaling. When functioning properly, it should
immediately slow down the flywheel until it comes to a
complete stop.
BI-WEEKLY
Inspect all assembly bolts and pedals on the Basic-Fit Cycle
for proper tightness. MONTHLY
NEED ASSISTANCE?
If this troubleshooting section does not remedy the problem, discontinue use.
Please, contact Customer Service of Basic-Fit
The following information may be asked you when calling Customer
Service of Basic-Fit. Pleasehave these items readily available:
• Model Name
• Serial Number
• Proof of Purchase (receipt or credit card statement)
Some common troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front or the back? What
kind of noise is it (thumping, grinding, squeaking, chirping etc.)?
• Has the Basic-Fit Cycle been maintained per the MAINTENANCE schedule?
Answering these and other questions will give the technicians
the ability to send proper replacement parts and the service
necessary to get you and your Basic-Fit Cycle running again!
You may find more troubleshooting suggestions on the customer
support section of our website: www.basic-fit.com

13
NEDERLANDS
OM HET RISICO VAN VERBRANDING, BRAND, ELEKTRISCHE
SCHOKKEN OF LICHAMELIJK LETSEL TE VERMINDEREN:
•Gebruik de Basic-Fit Cycle voor het beoogde doel zoals beschreven in deze gebruikershandleiding.
Gebruik geen toebehoren die niet aanbevolen zijn door de fabrikant.
•Gebruik de Basic-Fit Cycle nooit als deze niet naar behoren werkt of beschadigd is. Neem contact
opmet de klantenservice van Basic-Fit voor inspectie en reparatie.
•Gebruik de Basic-Fit Cycle niet zonder geschikt schoeisel. Gebruik de Basic-Fit Cycle NOOIT
op blote voeten.
•Draag geen kleding die aan een bewegende onderdelen van de Basic-Fit Cycle kan blijven haken.
•Houd handen en voeten altijd uit de buurt van bewegende onderdelen om letsel te voorkomen.
Draai de pedaalcranks nooit met de hand.
•Stap niet van de Basic-Fit Cycle voordat de pedalen helemaal STILSTAAN.
•Steek geen voorwerpen, handen of voeten in openingen en stel je handen, armen of voeten niet
bloot aan het aandrijfmechanisme of andere onderdelen van de Basic-Fit Cycle die kunnen
bewegen.
•Gebruik geen apparatuur die beschadigd is en/of versleten of kapotte onderdelen heeft. Gebruik
uitsluitend vervangende onderdelen die worden verstrekt door de klantenservice van Basic-Fit.
•Gebruik de Basic-Fit Cycle niet waar aerosols (spuitbussen) worden gebruikt of zuurstof wordt
toegediend.
•Er moet streng toezicht worden gehouden indien de Basic-Fit Cycle in de buurt van kinderen
gebruikt wordt.
•De Basic-Fit Cycle is niet bedoeld voor gebruik door personen met verminderde lichamelijke,
zintuiglijke of geestelijke vermogens, of gebrek aan ervaring of kennis, tenzij zij dit onder toezicht
doen of instructies hebben ontvangen over het gebruik van de Basic-Fit Cycle door iemand die
verantwoordelijk is voor hun veiligheid.
•Zorg dat stelhendels (zadel en stuur voor- en achterzijde) correct beveiligd zijn en het
bewegingsbereik niet beperken tijdens de training.
•Onjuist of overmatig trainen kan leiden tot ernstig letsel of de dood. Als je pijn ervaart,
met inbegrip van- maar niet beperkt tot - pijn op de borst, misselijkheid, duizeligheid of
kortademigheid, stop dan direct je training en raadpleeg je arts voor je verder gaat.
•Spring niet op de Basic-Fit Cycle.
•Er mag zich nooit meer dan een persoon tegelijk op de Basic-Fit Cycle bevinden
als deze in gebruik is.
•De Basic-Fit Cycle mag niet worden gebruikt door personen die meer wegen dan gespecificeerd
inde PRODUCTSPECIFICATIES. Als je je hier niet aan houdt, komt de garantie te vervallen.
•Gebruik geen toebehoren die niet zijn aanbevolen door de fabrikant.Toebehoren kunnen letsel
veroorzaken.
•Wrijf oppervlakken alleen schoon met zeep en een licht vochtige doek; gebruik nooit
oplosmiddelen. (zie ONDERHOUD)
•Huisdieren of kinderen jonger dan 14 jaar mogen NOOIT dichter dan 3 meter (10 ft) bij de Basic-Fit
Cycle komen.
•Kinderen jonger dan 14 jaar mogen de Basic-Fit Cycle NOOIT gebruiken.
•Kinderen ouder dan 14 mogen de Basic-Fit Cycle niet gebruiken zonder toezicht van een
volwassene.
•Hartslagmonitorsystemen kunnen onnauwkeurig zijn.
•Duw na de training de weerstandhendel naar beneden om het vliegwiel af te remmen en het
mogelijke risico op letsel te verminderen.
•De Basic-Fit Cycle heeft geen onafhankelijk bewegend vliegwiel; de pedalen zullen samen met het
vliegwiel blijven bewegen tot het vliegwiel stopt.
•Gebruik de Basic-Fit Cycle in een omgeving met toezicht.
WAARSCHUWING
Het is essentieel dat de Basic-Fit Cycle alleen binnen gebruikt
wordt, in een klimaatgecontroleerde ruimte. Als de Basic-Fit
Cycle is blootgesteld aan koudere temperaturen of een
vochtige omgeving wordt het ten zeerste aangeraden om de
Basic-Fit Cycle voor gebruik op kamertemperatuur te brengen.
Als je dit niet doet, kan dit leiden tot voortijdige elektronische
storingen.
OM HET RISICO OP ELEKTRISCHE SCHOKKEN TE VERKLEINEN:
Gebruik de Basic-Fit Cycle nooit als deze beschadigd lijkt of in
water is ondergedompeld. Neem contact op met de klantenservice
van Basic-Fit voor vervanging of reparatie.
GEVAAR
BEWAAR DEZE INSTRUCTIES
Lees de GEBRUIKSAANWIJZING voor gebruik. Bij het gebruik van een
elektrisch product dienen altijd basisvoorzorgsmaatregelen genomen te
worden, inclusief het volgende:
Lees alle instructies alvorens de Basic-Fit Cycle te gebruiken. De eigenaar is
verantwoordelijk dat alle gebruikers van deze Basic-Fit Cycle afdoende
geïnformeerd worden over alle waarschuwingen en voorzorgsmaatregelen.
Als je na het lezen van deze handleiding nog vragen hebt, neem dan contact
op met de technische klantenservice van Basic-Fit.
De Basic-Fit Cycle is uitsluitend bedoeld voor gebruik binnenshuis. Gebruik
de Basic-Fit Cycle niet voor commerciële of verhuurdoeleinden, in scholen of
instellingen. Als je je hier niet aan houdt, komt de garantie te vervallen.

1415
MONTAGE
UITPAKKEN
Pak de Basic-Fit Cycle uit waar je deze gaat gebruiken. Zet de doos
op een vlakke ondergrond. We raden aan de vloer ergens mee te
beschermen. Open de doos nooit als deze op zijn kant ligt.
BELANGRIJKE OPMERKINGEN
Controleer tijdens iedere stap van de montage of ALLE bouten en
moeren op de juiste plek zitten en deels zijn aangedraaid.
Verschillende onderdelen zijn vooraf gesmeerd om montage en
gebruik te vergemakkelijken. Veeg dit alstublieft niet weg. Als je
moeilijkheden ondervindt, raden wij je aan wat lithiumvet aan te
brengen.
WAARSCHUWING!
Verschillende stappen tijdens het montageproces vereisen speciale
aandacht. Het is zeer belangrijk dat de montage instructies
opgevolgd worden en dat alle onderdelen goed zijn vastgedraaid.
Alsje de montagehandleiding niet goed opvolgt, kunnen
onderdelen in de Basic-Fit Cycle zitten die niet vastgedraaid zijn, die
los lijken te zitten en die storende geluiden kunnen veroorzaken. Om
schade aan de Basic-Fit Cycle te voorkomen dienen de montage
instructies te worden doorgenomen en corrigerende maatregelen te
worden genomen.
BENODIGD GEREEDSCHAP:
F2,5 mm inbussleutel
F5 mm inbussleutel/schroevendraaier
F6 mm inbussleutel
FMoersleutel (17mm)
MEEGELEVERDE ONDERDELEN:
F1 basisframe
F1 stabilisatiestang voorzijde
F1 stabilisatiestang achterzijde
F1 stuurset
F1 fietszadel
F2 pedalen
F2 stelvoeten
F1 hardware-kit
SERIENUMMER
MODEL: ICR-BF
*Gebruik bovenstaande informatie als je de klantenservice belt.
NEDERLANDS
NEDERLANDS
WEERSTANDHENDEL
STUURHOOGTEVERSTELKNOP
ZADEL
HORIZONTALE
ZADELVERSTELKNOP
ZADELHOOGTE-
VERSTELKNOP
VLIEGWIEL
HOOFDFRAME
ACHTERSTABILISATOR
TOESTELHOUDER
STUUR
BIDONHOUDER
PEDALEN
CRANK
TRANSPORTWIELEN
VOORSTABILISATOR
STELVOETEN
RONDDRAAIENDE PEDALEN KUNNEN
LETSEL VEROORZAKEN. DE BASIC-FIT
CYCLE HEEFT GEEN VRIJ BEWEGEND
VLIEGWIEL. GEBRUIK DE
WEERSTANDSHENDEL OM
BEWEGING VAN DE PEDALEN EN HET
VLIEGWIEL TE STOPPEN.
1
2
3
4
5
6
7
WAARSCHUWING
STEL DE HOOGSTE WEERSTAND IN
WANNEER DE BASIC-FIT CYCLE NIET
IN GEBRUIK IS OM LETSEL DOOR
BEWEGING VAN DE CRANK EN HET
VLIEGWIEL TE VOORKOMEN.
PLAATS EN GEBRUIK DE BASIC-FIT
CYCLE OP EEN STEVIGE EN
STABIELE ONDERGROND. WEES
VOORZICHTIG BIJ HET OP- EN
AFTSTAPPEN VAN DE BASIC-FIT
CYCLE. ZORG DAT DE PEDALEN
VOLLEDIG TOT STILSTAND ZIJN
GEKOMEN VOOR U VAN DE BASIC-
FIT CYCLE AFSTAPT.
ALLE WAARSCHUWINGEN EN
INSTRUCTIES DIENEN
VOORAFGAAND AAN GEBRUIK VAN
DE BASIC-FIT CYCLE GELEZEN EN
ONTVANGEN TE ZIJN. GEBRUIK DE
BASIC-FIT CYCLE UITSLUITEND VOOR
HET BEOOGDE DOEL. RAADPLEEG
EEN ARTS VOOR U DE BASIC-FIT
CYCLE GEBRUIKT.
HOUD KINDEREN JONGER DAN 14
JAAR UIT DE BUURT VAN
FITNESSTOESTELLEN
MAX. GEWICHT GEBRUIKER - 136 KG.
WAARSCHUWING - VERGRENDEL
DE BASIC-FIT CYCLE WANNEER
DEZE NIET IN GEBRUIK IS DOOR
DE MAXIMALE WEERSTAND IN TE
STELLEN.

1617
NEDERLANDS
1Hardware Aantal
A
B
C
Bout (M8x20L)
Platte ring (M8)
Gebogen sluitring (M8)
7
5
2
3Hardware Aantal
F
G
H
Schroef (verwijderen
en weggooien)
Schroef (M4x10L)
Platte ring
2
2
2
MONTAGE VOLTOOID
DE BASIC-FIT CYCLE WATERPAS ZETTEN
Voor goed functioneren is het uiterst belangrijk dat de stelvoeten
correct zijn ingesteld. Draai de stelvoet met de klok mee om deze te
verlagen, en tegen de klok in om de Basic-Fit Cycle te verhogen.
Pas iedere kant naar behoefte aantot de Basic-Fit Cycle waterpas
staat. Wanneer de Basic-Fit Cycle uit balans is, kan dit scheeflopen
van de riem of andere problemen veroorzaken. We raden aan een
waterpas te gebruiken.
VOOR JE BEGINT
LOCATIE VAN DE BASIC-FIT CYCLE
Plaats de Basic-Fit Cycle op een vlak, stabiel oppervlak, buiten bereik van direct zonlicht. Intense uv-straling kan verkleuring
van het kunststof veroorzaken. Plaats je Basic-Fit Cycle in een koele ruimte met een lage luchtvochtigheidsgraad. Zorg dat
aan alle kanten van de Basic-Fit Cycle ten minste 60 cm (2 ft) ruimte overblijft. Deze zone dient vrij van obstakels te zijn
zodat de gebruiker vrije toegang heeft tot Basic-Fit Cycle. Plaats de Basic-Fit Cycle niet op een plek waar het ventilatie- of
luchtopeningen blokkeert.
VERPLAATSEN VAN DE BASIC-FIT CYCLE
De Basic-Fit Cycle heeft twee transportwielen ingebouwd in de voorstabilisator. Om te verplaatsen, pak je het stalen
gedeelte van de achterstabilisator stevig vast, til je het voorzichtig op en rol je de Basic-Fit Cycle op de transportwielen.
WAARSCHUWING!
De Basic-Fit Cycle is zwaar, wees voorzichtig en vraag indien nodig om hulp bij het verplaatsen.
Het niet opvolgen van deze instructies kan leiden tot letsel.
CORRECT GEBRUIK
1. Ga op de Basic-Fit Cycle zitten met je gezicht
naar het stuur. Beide voeten moeten op de
grond staan, elk aan één kant van het frame.
2. Om de juiste zadelpositie te bepalen, ga je
op het zadel zitten en zet je beide voeten op de
pedalen. Je knie moet, met het pedaal
in de laagste positie, nog iets gebogen zijn.
Jemoet kunnen trappen zonder je knieën door
te strekken of je gewicht van de ene naar de
andere kant te hoeven verschuiven.
3. Zet de pedaalriemen zo strak als wenselijk.
4. Volg de stappen voor correct gebruik in
omgekeerde volgorde om van de Basic-Fit
Cycle af te stappen.
NEDERLANDS
VRIJE RUIMTE
0,6 m(2 ft)
Aanhaalmoment
30 Nm / 22 lb-ft.
2Hardware Aantal
D
E
Bout (M6x15L)
Platte ring (M6)
6
6
Aanhaalmoment
12 Nm / 9 lb-ft.
4Hardware Aantal
D
E
I
J
Bout (M6x15L)
Platte ring (M6)
Bout (M6x20L)
Schroef (M4x12L)
2
4
2
3
C
A
A
A
B
B
B
D
E
FG
H
D
E
I
J

1819
NEDERLANDS
DE BASIC-FIT CYCLE AANPASSEN
De Basic-Fit Cycle kan worden aangepast voor maximaal comfort en
maximale trainingseffectiviteit. De instructies hieronder beschrijven
methodes om de Basic-Fit Cycle aan te passen om maximaal
gebruikerscomfort en een ideale lichaamspositie te garanderen; mogelijk
wil je de Basic-Fit Cycle op een andere manier aanpassen.
AANPASSING ZADELSTAND
De juiste zadelhoogte helpt om de maximale trainingseffectiviteit en
het maximale comfort te garanderen. Daarnaast verminderd de juiste
zadelhoogte het risico op letsel. Pas de zadelhoogte aan om zeker te zijn
dat het zadel in de juiste positie staat, waarbij je knie licht gebogen is als
de pedalen zich in de laagste positie bevinden.
AANPASSING STUUR
De juiste positie voor het stuur is voornamelijk gebaseerd op comfort.
Normaal gesproken dient het stuur voor beginnende fietsers iets hoger
dan het zadel te staan. Gevorderde fietsers kunnen verschillende hoogten
proberen om de meest geschikte positie te vinden.
A) HORIZONTALE ZADELPOSITIE
Draai de verstelknop tegen de richting van de klok in en schuif het
zadel naar wens naar voren of naar achteren. Draai de verstelknop
in de richting van de klok om de zadelpositie te vergrendelen.Test
of de zadelslede naar behoren functioneert.
B) ZADELHOOGTE
Trek de verstelknop van de Basic-Fit Cycle weg en draai deze tegen
de richting van de klok in terwijl je het zadel met de andere hand
omhoog en omlaag schuift. Draai de verstelknop met derichting
van de klok mee om de zadelpositie te vergrendelen.
C) STUURHOOGTE
Trek de verstelknop van de Basic-Fit Cycle weg en draai deze tegen
de richting van de klok in terwijl je het stuur met de andere hand
omhoog en omlaag schuift. Draai de verstelknop met derichting
van de klok mee om de stuurpositie te vergrendelen.
D) PEDAALRIEMEN
Zet de bal van je voet in de toe cage tot de bal van de voet midden
op het pedaal staat, reik naar beneden en trek aan de pedaalriemen
om deze voor gebruik strak te trekken. Maak de riem los en haal je
voet uit de toe cage.
A
BC
D
WEERSTANDHENDEL / NOODREM
De weerstandshendel bevindt zich voor het stuur en biedt 11 niveaus van trapweerstand. Om de
weerstand te verhogen, duw je de hendel richting de vloer. Om de weerstand te verlagen, duw je de
hendel omhoog.
BELANGRIJK:
• Duw de hendel hard naar beneden om het vliegwiel te stoppen terwijl je trapt.
• Het vliegwiel komt dan snel volledig tot stilstand.
• Zorg dat je schoenen in de toeclips of pedaalriemen vastzitten.
• Stel de hoogste weerstand in als de Basic-Fit Cycle niet in gebruik is om letsel als gevolg van
bewegende aandrijvingscomponenten te voorkomen.
WAARSCHUWING
De Basic-Fit Cycle heeft geen vrij bewegend vliegwiel; de pedalen zullen samen met het vliegwiel blijven
bewegen tot het vliegwiel stopt. Je moet de snelheid op gecontroleerde wijze verlagen. Om het vliegwiel
onmiddellijk te stoppen, druk je de oranje weerstandhendel omlaag. Trap altijd op gecontroleerde wijze en pas
de gewenste cadans aan je eigen capaciteiten aan. Druk de oranje hendel stevig naar beneden = noodstop.
De Basic-Fit Cycle heeft een vast vliegwiel dat momentum opbouwt en de pedalen laat doordraaien zelfs als de
gebruiker stopt met trappen of als zijn voeten van de pedalen glijden. PROBEER JE VOETEN NIET VAN DE
PEDALEN TE HALEN OF VAN DE BASIC-FIT CYCLE AF TE STAPPEN TOT ZOWEL DE PEDALEN ALS HET
VLIEGWIEL VOLLEDIG STILSTAAN. Het niet opvolgen van deze instructies kan leiden tot controleverlies en het
risico op ernstig letsel.
NEDERLANDS
BATTERIJ VERVANGEN
Als je geen trainingsmetingen ontvangt terwijl je de app gebruikt, moet je mogelijk de batterij (AA) vervangen.

2021
FOUTOPSPORING
VEEL VOORKOMENDE VRAGEN
ZIJN DE GELUIDEN DIE MIJN BASIC-FIT CYCLE MAAKT
NORMAAL?
Onze Basic-Fit Cycles behoren tot de stilste die er zijn omdat
ze gebruikmaken van riemaandrijvingen en wrijvingsvrije
magnetische weerstanden. Wij gebruiken lagers en riemen
van de hoogste kwaliteit om geluid tot een minimum
te beperken. Omdat het weerstandsysteem zelf
zo stil is, zul je af en toe andere, lichte, mechanische
geluiden horen. Anders dan bij oudere, minder stille
technologieën zijn er geen ventilatoren, wrijvingsbanden
of alternatorgeluiden die deze geluiden op onze Basic-Fit
Cycle maskeren. Deze mechanische geluiden, die al
dan niet wisselend kunnen zijn, zijn normaal en worden
veroorzaakt door de overbrenging van significante
hoeveelheden energie naar een snel draaiend vliegwiel.
Alle lagers, riemen en andere draaiende onderdelen
veroorzaken geluid, dat doorgegeven wordt door
de behuizing en het frame. Het is ook normaal dat deze
geluiden veranderen gedurende een training en mettertijd
door de thermische expansie van de onderdelen.
WAAROM MAAKT DE BASIC-FIT CYCLE DIE BIJ MIJ
BEZORGD IS MEER GELUID DAN DE BASIC-FIT CYCLE IN
DE SHOWROOM?
Alle fitnessproducten lijken stiller in een grote showroom
omdat hier, over het algemeen, meer achtergrondgeluid
aanwezig is dan bij je thuis. Ook is minder nagalm op een
betonnen vloer met tapijt dan op een houten dekvloer.
Soms helpt een zware rubber mat de nagalm door de vloer
te verminderen. Als de Basic-Fit Cycle dicht bij een muur
geplaatst wordt, zal meer geluid weerkaatst worden.
NEDERLANDS
PROBLEEM: De Basic-Fit Cycle maakt een piepend of fluitend geluid, controleer het volgende:
1) De Basic-Fit Cycle staat op een vlakke ondergrond
2) Maak alle bouten die je tijdens de montage bevestigd hebt los, vet de schroefdraden
in en draai ze weer vast
PROBLEEM: Zadel- of stuurpen bewegen nadat ze in positie zijn vergrendeld
• Controleer of de stelknop is vastgedraaid
PROBLEEM: Klikgeluid bij elke pedaalomwenteling
1) Controleer de pedaalriemen om zeker te zijn dat het uiteinde ervan niet tegen de Basic-Fit Cycle tikt als
de pedalen draaien
2) Zorg dat de Basic-Fit Cycle waterpas staat door de stelvoeten aan deonderkant van de voor- en
achterstabilisator te controleren
3) Controleer of de pedalen stevig op de crankarmen zitten
PROBLEEM: Klikgeluid wanneer het vliegwiel draait
1) Zorg dat niets het vliegwiel raakt
2) Neem contact op met de klantenservice van Basic-Fit
PROBLEEM: Kloppend geluid of speling in de pedalen/cranks
1) Controleer of de pedalen stevig op de crankarmen zitten
2) Controleer of de crankbouten stevig zijn vastgedraaid. Als deze los zijn, neem dan contact op met
de klantenservice van Basic-Fit
PROBLEEM: Schommelen of bewegen tijdens het gebruik
1) Controleer met een inbussleutel de bevestigingsbouten op de voor- en achterstabilisator en zorg
dat deze goed vastzitten
2) Zorg dat de Basic-Fit Cycle waterpas staat door de stelvoeten aan deonderkant van de voor- en
achterstabilisator te controleren
NEDERLANDS
ONDERHOUD
WELK ROUTINEONDERHOUD MOET WORDEN UITGEVOERD?
Minimaal onderhoud en reiniging is vereist. Als je je aan dit schema houdt, zal dit de levensduur van je Basic-Fit Cycle verlengen. We gebruiken afgedichte lagers in onze
Basic-Fit Cycles zodat smering niet nodig is. De belangrijkste stap is dat je na elk gebruik het transpiratievocht van de Basic-Fit Cycle afveegt.
HOE REINIG IK MIJN BASIC-FIT CYCLE?
Reinig de Basic-Fit Cycle alleen met milde zeep en reinigingsmiddelen op basis van water. Gebruik nooit oplosmiddelen op plastic onderdelen. Je Basic-Fit Cycle en de omgeving
ervan schoonhouden beperkt onderhoudsproblemen en servicebezoeken tot een minimum. Daarom raden wij je aan het volgende preventieve onderhoudsschema aan te
houden.
ONDERHOUDSSCHEMA
ACTIE FREQUENTIE
Maak de Basic-Fit Cycle schoon met zachte doeken,
papieren handdoeken of een andere oplossing die door
Basic-Fit is goedgekeurd (schoonmaakmiddelen dienen
geen alcohol of ammoniak te bevatten). Desinfecteer het
zadel en het stuur en veeg zweet e.d. af.
NA IEDER
GEBRUIK
Zorg dat de Basic-Fit Cycle waterpas staat en niet wankelt.
Controleer of de pedalen stevig en recht in de crankarmen
zitten, of alle schroeven op de pedalen goed vastzitten en
of de pedaalriemen niet gerafeld zijn.
VOOR IEDER
GEBRUIK
Maak de gehele Basic-Fit Cycle schoon met water en een
milde zeep of een andere oplossing die door Basic-Fit is
goedgekeurd (schoonmaakmiddelen dienen geen alcohol
of ammoniak te bevatten). Maak alle onderdelen aan de
buitenkant schoon, het stalen frame, de stabilisatiestangen
voor en achter, het zadel en het stuur.
WEKELIJKS
Controleer de noodrem om zeker te weten dat deze correct
functioneert. Druk hiervoor de oranje weerstandhendel
naar beneden terwijl je trapt. Als de noodrem correct
functioneert zou dit het vliegwiel direct moeten vertragen
tot het volledig tot stilstand komt.
OM DE WEEK
Controleer of alle montagebouten en pedalen
op de Basic-Fit Cycle goed vastzitten. MAANDELIJKS
HEB JE HULP NODIG?
Als deze foutopsporingssectie het probleem niet
verhelpt, gebruik de Basic-Fit Cycle dan niet meer.
Neem contact op met de klantenservice van Basic-Fit
Je kunt om de volgende informatie gevraagd worden als je contact opneemt met
de klantenservice van Basic-Fit. Zorg alstublieft dat je deze items bij de hand hebt:
• Modelnaam
• Serienummer
• Aankoopbewijs (bon of creditcardoverzicht)
Veel voorkomende vragen voor foutopsporing die kunnen worden gesteld zijn:
• Hoe lang doet het probleem zich al voor?
• Doet het probleem zich voor iedere keer dat je de Basic-Fit Cycle gebruikt? Met
iedere gebruiker?
• Als je een geluid hoort, komt dit dan van de voorzijde of de achterzijde? Wat voor
geluid is het (bonzen, knarsen, piepen, fluiten etc.)?
• Is de Basic-Fit Cycle onderhouden zoals omschreven in het onderhoudsschema?
Door deze en andere vragen te beantwoorden, geef je de monteurs de mogelijkheid
je de juiste vervangende onderdelen en de benodigde service te sturen zodat jij en je
Basic-Fit Cycle weer aan de slag kunnen!
Je kunt meer suggesties voor foutopsporing vinden op de
klantenservice-sectie van onze website: www.basic-fit.com

Rev 1.0
ICR-BF
Table of contents
Languages:
Popular Exercise Bike manuals by other brands

Sunny Health & Fitness
Sunny Health & Fitness SF-RB4958 user manual

Christopeit Sport
Christopeit Sport AL 2 Assembly and exercise instructions

Insportline
Insportline Halimed user manual

Stamina
Stamina Conversion II9003 owner's manual

Monark
Monark LT2 Product guide

NordicTrack
NordicTrack NTEX71015.1 user manual
