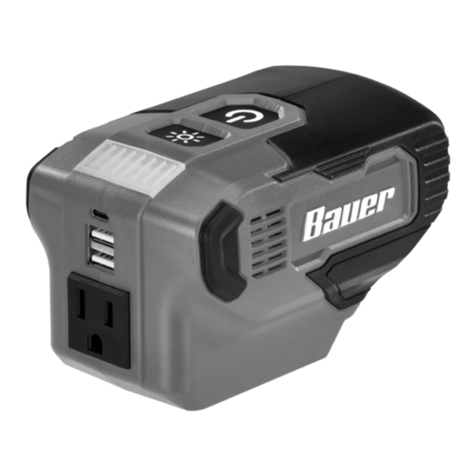

Bauer HYPERMAX LITHIUM 2209C-B User manual

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 22e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2022 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product
described herein. Tools required for assembly and service may not be included.
Read this material before using this
product. Failure to do so can result in
serious injury. SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 59299
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
Read all safety warnings, instructions, illustrations and specifications provided with this tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
1. Output non-sinusoidal.
2. Do not obstruct ventilation openings or mount in
zero clearance compartment. Overheating may
increase the risk of fire and electric shock.
3. Do not expose to rain or use in damp locations.
4. Remove the battery before servicing.
5. Neutral floating.
6. For use with Bauer 20V Li-Ion battery
packs (sold separately).
7. Do not use inverter if it has been dropped
or impacted sharply. Use of a damaged
device increases the risk of fire.
8. Remove the battery pack from the
inverter when not in use.
9. Do not disassemble the battery inverter.
10. Keep out of the reach of children.
11. Store power inverter indoors and
out of the reach of children.
12. AC Output must be used for powering
devices of 150W or less. Connecting large
loads to the inverter can lead to damage.
13. Plugs must properly fit the outlet without
being forced. Do not insert any plug into the
inverter if it does not fit easily into place.
14. Power inverter must be kept in cool
environment. Keep away from heat.
15. Do not use power inverter near flammable
gases or fumes. Do not power medical
equipment with this power inverter.
16. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
17. Use inverter only with specifically designated
battery packs. Use of any other battery
packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
19. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
20. Do not use a battery pack or inverter that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.

Page 3For technical questions, please call 1-888-866-5797.Item 59299
21. Do not expose a battery pack or power inverter to
fire or excessive temperature. Exposure to fire or
temperature above 140°F may cause explosion.
22. Follow all charging instructions and do not charge
the battery pack outside of the temperature range
specified in the instructions. Charging improperly or
at temperatures outside of the specified range may
damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the product is maintained.
24. Do not modify or attempt to repair the inverter
or the battery pack except as indicated
in the instructions for use and care.
25. The battery Charger gets hot during use.
The Charger’s heat can build up to
unsafe levels and create a fire hazard if
it does not receive adequate ventilation,
due to an electrical fault, or if it is used in a
hot environment. Do not place the Charger on a
flammable surface. Do not obstruct any vents on
the Charger. Especially avoid placing the
Charger on carpets and rugs; they are not only
flammable, but they also obstruct vents under
the Charger. Place the Charger on a stable, solid,
nonflammable surface (such as a stable metal
workbench or concrete floor) at least 1 foot away
from all flammable objects, such as drapes or walls.
Keep a fire extinguisher and a smoke detector in
the area. Frequently monitor the Charger and
Battery Pack while charging.
Lithium Battery Safety Warnings
LITHIUM BATTERIES STORE
A LARGE AMOUNT OF ENERGY AND
WILL VENT FIRE OR EXPLODE
IF MISTREATED:
a. Keep Battery Pack dry.
b. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
• Open,
• Drop,
• Short-circuit,
• Puncture,
• Incinerate, or
• Expose to temperatures
greater than 140°F.
c. Charge Battery Pack only according
to its Charger’s instructions.
d. Inspect Battery Pack before every use;
do not use or charge if damaged.
Symbology
VVolts
Direct Current
~Alternating Current
AAmperes
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.

Page 4 For technical questions, please call 1-888-866-5797. Item 59299
Specifications
Battery Type Bauer 20V Li-Ion (sold separately)
Charger Type Bauer 20V Li-Ion (sold separately)
DC Input 20VDC, 11A
AC Output 120VAC, 60Hz, 150W
Output Wave Modified Sine Wave
USB-A Output 5VDC, 2.4A (total)
USB-C with PD Output 5VDC, 3A; 9VDC, 3A; 12VDC, 2.5A; 15VDC, 2A
Integrated LED Work Light Yes
Operation Temperature Range 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature Range -4°F ~ 140°F (-20°C ~ 60°C)

Page 5For technical questions, please call 1-888-866-5797.Item 59299
Functions
Backlit
Inverter
Power
Button
Worklight
Button
USB-C
Port
USB-A
Ports
120VAC
Outlet
LED Work
Light
Power Button - Inverter Status
Green Normal Function
Red AC Overload
Red Blinking Overheating
Green Blinking
Recovering from
overheating. Press
Power Button to reset.
Orange Blinking Approaching Low Battery
Worklight Button
First Press On
Second Press Blinking
Third Press Off

Page 6 For technical questions, please call 1-888-866-5797. Item 59299
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
General Operation
Only use with:
• Laptops, Tablets, and Cell Phones.
• Fans.
• Lights.
• Other devices of 150W or less.
1. Slide the Battery Pack onto the Inverter.
2. Connect a device to a USB Charging
Port, or the AC Outlet.
Note: If the AC output is overloaded, the power button
backlight will be red, remove the connected load
and press the power Button to restore AC output
3. Turn the Inverter ON/OFF by
pressing the Power Button.
Note: Inverter will shutdown when no
activity is detected for 3 minutes.
Note: Cooling fan will automatically turn ON and OFF
during operation. AC output will shut off if overheated.
Maintenance and Servicing Instructions
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
Cleaning, Maintenance, and Lubrication
1. Li-Ion BATTERY MUST BE RECYCLED OR
DISPOSED OF PROPERLY.
Do not short, incinerate or open battery.
2. Disconnect battery pack and store battery pack,
charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.

Page 7For technical questions, please call 1-888-866-5797.Item 59299
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Replacement parts not available. Refer to UPC 193175465474.
Troubleshooting
Problem Possible Causes Likely Solutions
Inverter will not turn on. 1. Battery Pack not properly
connected.
2. Battery Pack not properly
charged.
3. Battery Pack burnt-out.
1. Remove Battery Pack, make sure there are no
obstructions, reinsert the Battery Pack according
to its shape (it should only fit one way), and press
firmly until the Battery Pack locks in place.
2. Make sure Charger is connected and
operating properly. Give enough time for
Battery Pack to recharge properly.
3. Dispose of old Battery Pack
properly or recycle. Replace Battery Pack.
No AC Output 1. Inverter is overloaded.
2. Defective device connected
1. Check if inverter output rating has been exceeded.
2. Try a different device.
WorkLight not working. Power Switch is OFF. Power Switch must be ON for Worklight to work.
USB-C will not
charge device.
Device may require 20V to
charge, this inverter provides
up to 15V through USB-C.
Check device operator’s manual and verify
that 20V is not required for charging.
Overheating. Blocked vents. Keep all vents clear for proper ventilation.
Wear ANSI-approved safety goggles and
NIOSH-approved dust mask/respirator while blowing
dust out of unit while using compressed air.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery Pack power supply before service.
