Panasonic VF0 Series User manual

Compact Inverter
VF0 Series 400V class
Instruction Manual
Read this manual carefully before
attempting to operate the inverter
and store it for future reference.
Panasonic Electric Works Co., Ltd.

1
The variety of uses for this equipment and difference between this solid state
equipment and electromechanical equipment, means that the user of and those
responsible for the applying of this equipment must ensure that the application
and use of this product is acceptable and safe. Under no circumstances will
Matsusita Electric Works, Ltd. (MEW) be responsible or liable for indirect or
consequential damages resulting from the use of application of this equipment.
The diagrams and illustrations within this manual are solely intended to illustrate
the text of this document. Such are the variables associated with the application
of this product to any given installation, that MEW can not assume responsibility
or liability for actual use based on the illustrated uses and applications shown
herein.
No patent liability is assumed by MEW with concern to the use of information,
equipment or circuits outlined in this text.
Reproduction of this manual in whole/part or otherwise is prohibited without the
express permission of MEW.
Please follow the information and instructions as laid out in this manual carefully
to avoid damage to equipment or risk to personal injury.
ATTENTION ; Indicate situations that could lead to personal injury or death,
property damage or financial loss.
Attention will help the user to :
Identify hazard.
Avoid hazard.
Realize the consequences of ignoring the warnings given.
Important User Information
！

2
1. PREFACE
Important information relative to this manual
# Manufactures and their respective engineering departments responsible for
design and specification of electrical control equipment must refer to applicable
industry standards and codes for specific safety guidelines and interface
requirements.
# The installer/user of this product is responsible to assume compliance with
appropriate machine and operator safety codes or regulations within the factory
environment which are beyond the scope and purpose of this documents.
General precautions
Added to the precautions listed within this document.
The following statements common to the system must be read and understood.
ATTENTION ; Only qualified personnel familiar with the VF0 and its
application should plan, install, start up or maintain the system.
Failure to comply may result in personal injury and/or equipment damage.
ATTENTION ; This assembly contains parts that may be sensitive to static
discharge. Static control precautions will be required if performing repairs,
tests or servicing of this equipment otherwise component damage may
result.
ATTENTION ; A product that has been incorrectly applied or installed could
result in component damage and a reduction in product life. Malfunction of
system may be as a result of wiring or application errors, such as incorrect
or inadequate AC supply, excessive temperature or an undersized motor.
！
！
！

3
Read this manual and related documents before attempting to install, operate,
service or inspect this inverter.
Make sure that you have an understanding of the device, the safety information
and all precautions before starting use.
1. INSTALLATION
ATTENTION
●Install the unit on a non-combustible material such as metal.
Installing it on other material could lead to fires.
●Do not place the unit near flammable materials.
Doing so could lead to fires.
●Do not hold by the terminal cover during transportation.
Doing so could cause the unit to drop and lead to injuries.
●Do not allow foreign matter such as metal swarf enter the unit.
Entry of this type of matter could lead to fires.
●Install the unit according to the instruction manual on a place where the
weight can be withstood.
Failure to do so could lead to dropping of the unit and to injuries.
●Do not install or operate an inverter that is damaged or missing parts.
Doing so could lead to injuries.
CE Mark Conditions
VF-0 inverter meets overvoltage category II of the standard EN50178.
The inverter should be supplied with power from mains via a transformer
with at least basic insulation.
The complete machine has to comply to overvoltage category III of the
standard EN50178.
This inverter is not a self-contained operating unit according to the EMC
directive. Only after integrating the inverter into a machine including filters
can the complete system be evaluated with respect to electromagnetic
compatibility.
Safety Precautions
！！

4
2. WIRING
ATTENTION
●Always confirm that the input power is OFF before starting wiring.
Failure to do so could lead to electric shocks or fires.
●Always connect the earth.
Failure to do so could lead to electric shocks or fires.
●Wiring work must be carried out by a qualified technician.
Failure to do so could lead to electric shocks or fires.
●Always install the unit before wiring.
Failure to do so could lead to electric shocks or fire.
ATTENTION
●Do not connect an AC power supply to the output terminals
(U, V, W).
Doing so could lead to injuries or fire.
●Confirm that the product's rated voltage and the AC power supply voltage
match.
Failure to do so could lead to injuries or fire.
●Tighten the terminal screws to the designated tightening torque.
Failure to do so could lead to fire.
！
！

5
3. OPERATION
ATTENTION
●Always close the terminal cover before turning the input power ON. Do not
open the terminal cover while the power is ON.
Doing so could lead to electric shock.
●Do not operate the switches with wet hands.
Doing so could lead to electric shock.
●Do not touch the inverter terminals when the inverter power is ON or even
when the inverter is stopped.
Doing so could lead to electric shock.
●The STOP button is not designed for emergency stop purposes. Prepare
a separate emergency stop button.
Failure to do so could lead to injury.
●Depending on the start mode and ride-through function settings, if the run
signal is on and the power is turned ON or the power is restored after a
power failure, the unit may start (restart) suddenly. Bear this in mind
before conducting maintenance.
(Design the machine so that personel safety can be ensured even if the
unit starts suddenly.)
Failure to do so could lead to injury.
●Depending on the start mode function setting, if the fault trip is reset with
the run signal present, the unit may restart suddenly.
(Reset the trip after ensuring personel safety.)
Failure to do so could lead to injury.
●When the retry function is used, the unit may automatically start (restart)
suddenly so do not approach the unit.
(Secure personal safety before using this function.)
Failure to do so could lead to injury
！

6
ATTENTION
●The heat sink fins and brake resistor (dedicated option) can reach high
temperatures, so allow to cool before touching.
Doing so could lead to burns.
●The inverter can be easily set to run from low speeds to high speeds.
Confirm the tolerable range of the motor and machine before starting
operation.
Failure to do so could lead to injury.
●Prepare holding brakes when required.
Failure to do so could lead to injury.
4. MAINTENANCE, INSPECTION AND PART REPLACEMENT
ATTENTION
●Wait at least five minutes after turning the input power OFF before starting
inspections.
Failure to do so could lead to electric shock.
●Maintenance, inspection and part replacement must be done by qualified
persons.
[Remove all metal personal belongings (watches, bracelets, etc.) before
starting the work.] (Use tools treated with insulation.)
Failure to do so could lead to electric shocks or injury.
ATTENTION
●Have an electrician periodically tighten the terminal screws.
Loosening of the terminal screws could lead to overheating or fire.
！
！
！

7
5. OTHERS
ATTENTION
●Never modify the unit.
Doing so could lead to electric shock or injury.
General Precautions
All diagrams in this instruction manual show the state with the cover or safety
partitions removed to explain the details. Before operating the product,
replace the covers and partitions to the positions specified, and operate the
unit according to the instruction manual.
！

8
●Points for Handing .................................................................. 9
●Special Precautions ............................................................... 10
●Installation .............................................................................. 12

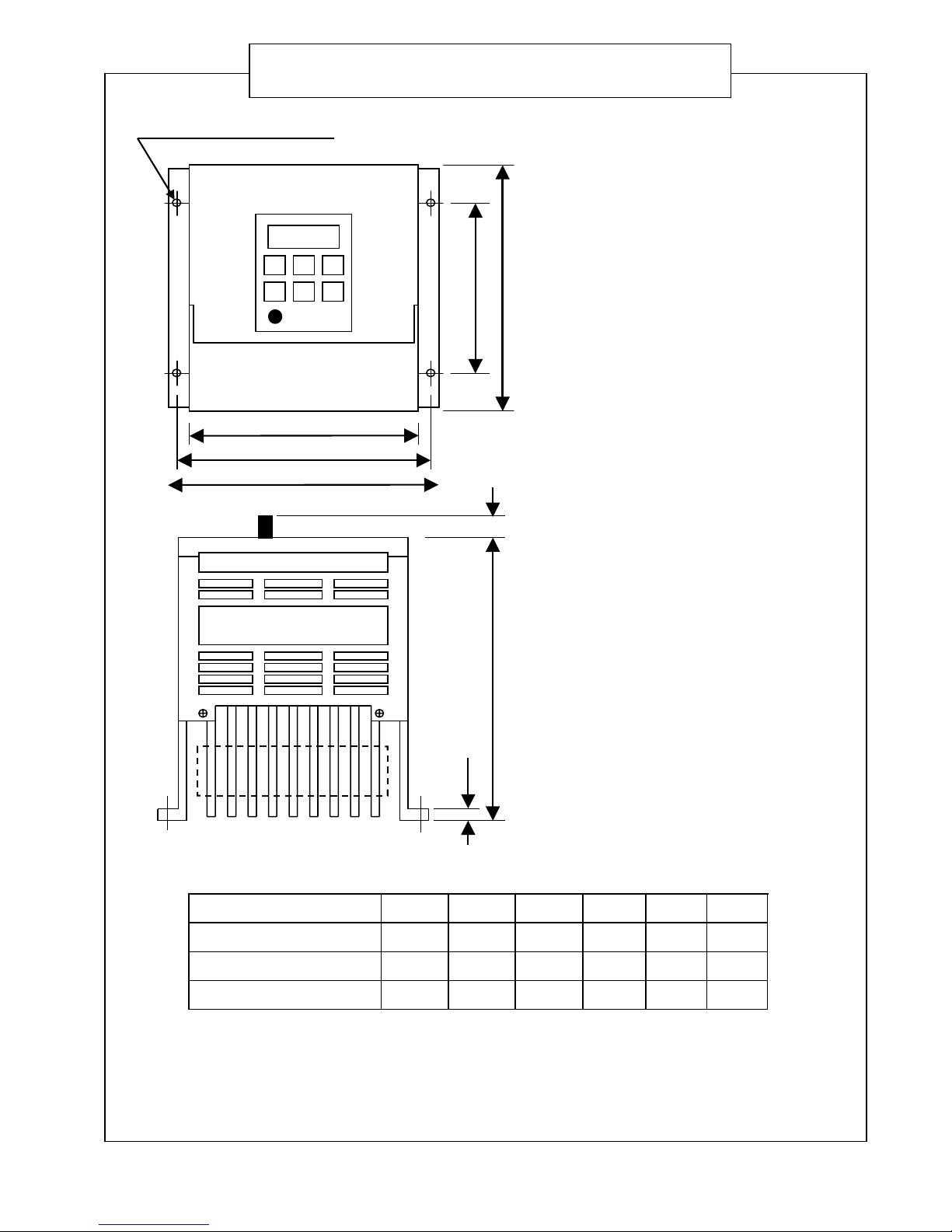

●Outline Dimensions ................................................................ 13

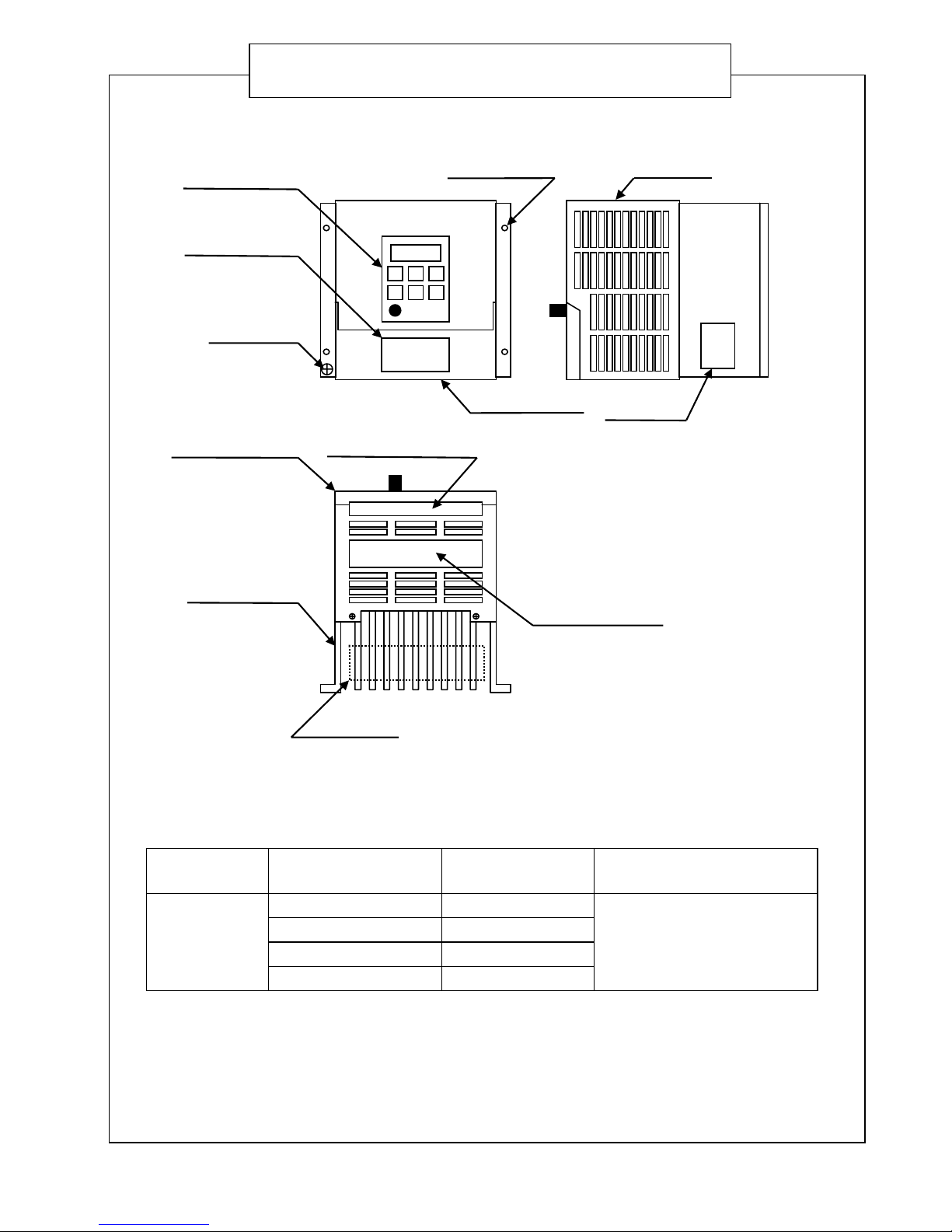

●Parts Identification .................................................................. 14
●Main Circuit Wiring ................................................................. 17
●Control Circuit Wiring ............................................................. 20
●Basic Operation ...................................................................... 22
●Function of each mode ........................................................... 30
●Setting and Changing Functions ............................................ 31
●Functional Descriptions (Parameter Table) ............................ 34
●Functional Descriptions (By Parameter ) ............................... 37
●To Effectively Use the Inverter (contents)............................... 64
◎Changing from Local Control to External Control ............... 65
◎Changing and Setting the Maximum Output Frequency..... 66
◎Boosting Torque at Low Speeds ........................................ 67
◎Supplementary Explanation for Multi-function Terminal
Input.................................................................................... 68
◎0V Stop Function ................................................................ 73
◎Resetting Fault Trips........................................................... 73
●Individual Details and Remedies for Fault Trips...................... 74
●Troubleshooting (1)................................................................. 76
●Troubleshooting (2) ................................................................ 78
●Maintenance and Inspection ................................................... 79
●Specifications ......................................................................... 83
Contents

9
Follow this manual and precautions when handling this unit. Incorrect handling
could lead to inhibited operation or a drop operating life. In the worst case, the
inverter could be damaged.
Power supply Use within +10%, −15% of the tolerable input
voltage range, and within ±5% of the tolerable input
frequency range.
Circuit
breaker Size a breaker from the selection table on
(MCCB) page 19.
Magnet contactor A magnetic contactor is not required in normal
(MC) use. If installed, do not start or stop the inverter with
the magnet contactor.
Power factor Connect this when the power factor must be
improvement improved.
reactor (Option for input side)
Input noise filter Connect this when noise to the peripheral devices
is a problem. (Option for input side)
Inverter The ambient temperature is a particularly important
factor for the installation site.
Make sure that the tolerable value is not exceeded.
(See page 10 to 12.)
Thermal relay The thermal relay built into the inverter is used to
for open phase protect against overloads. Use an open phase
protection protection thermal relay for open phase protection.
Motor 3-phase induction motor
Points for Handling
Ｎ・Ｆ

10
♦
♦♦

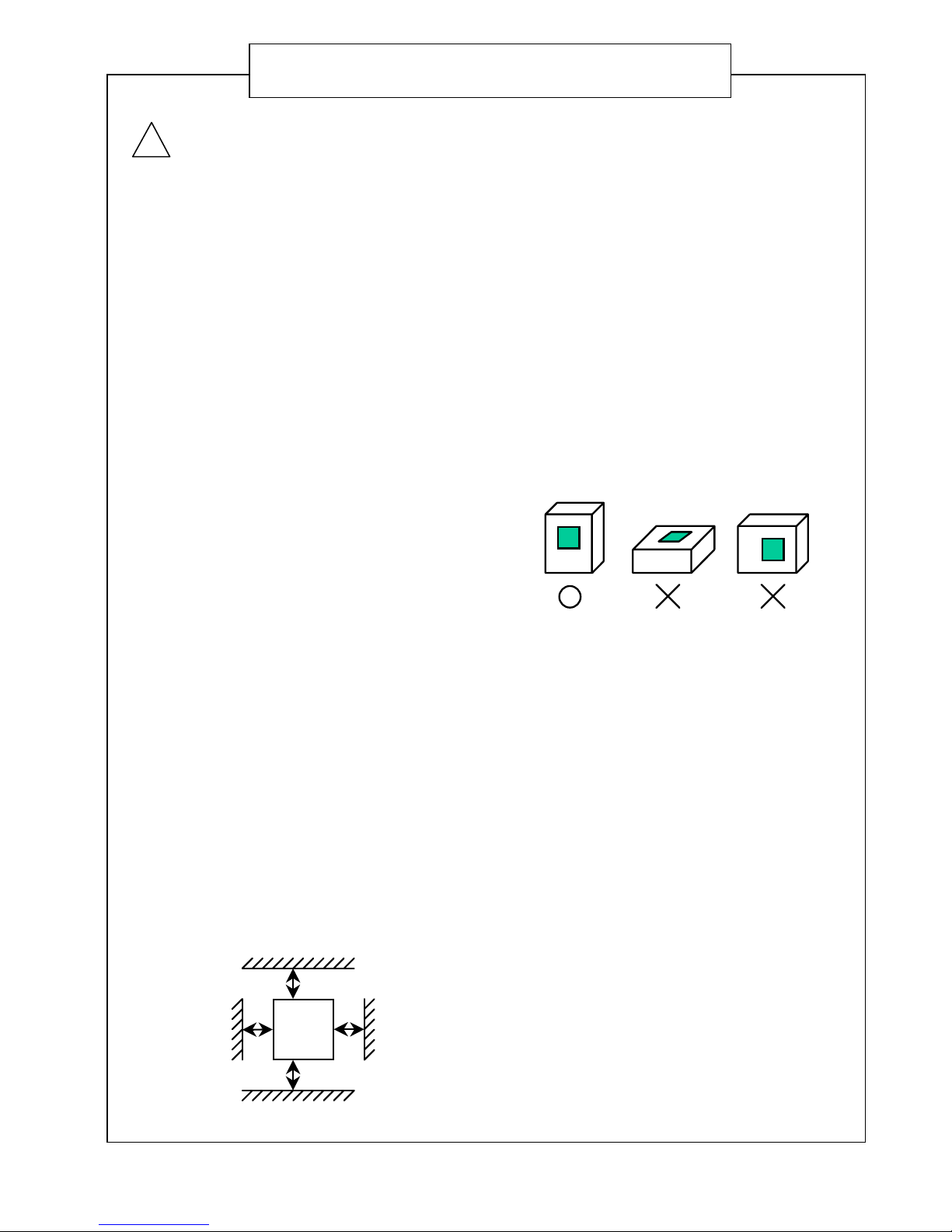

♦Use your inverter only within tolerable ambient temperature range.
(–10°C to 50°C)
Because the life of the inverter is greatly affected by ambient temperature, do
not use it outside the specifications. Also, pay attention to the installation
direction's and conditions. (See page 12.)
♦
♦♦
♦The inverter will be damaged if the power voltage is applied to its
output terminal.
Applying power voltage to the output terminal U, V or W will damage the
inverter. Check for miswiring and operation sequence (commercial
changeover circuit, etc.). Never apply a voltage that exceeds the tolerable
voltage of the inverter.
♦
♦♦
♦Never touch the inside of the inverter during operation.
This is extremely dangerous the inverter contains high-voltage circuit.
Be sure to wait at least 5 minutes after the inverter power has been turned
OFF, before making an internal check.
Do not touch the heat sink fins or brake resistor during operation as these
parts will become hot during operation.
♦
♦♦
♦Radio interference
The main circuit of the inverter contains a higher harmonic component and
may interfere with communications equipment such as AM radios if these are
used nearby. The amount of radio interference depends on the field strength
in the area where the inverter is used. While it is difficult to completely
eliminate radio interference, it may be reduced by changing the angle of your
radio antenna, using a noise filter with the inverter, housing the inverter in a
metallic shield box, or routing inverter cables in metal conduit. (Please inquire
separately.)
♦
♦♦
♦Do not attempt insulation testing between the inverter cables.
To measure the insulation resistance of the power supply cables or the motor
cables, disconnect them from the inverter. Never conduct insulation testing
on the control circuits. However, insulation testing can be performed between
the charging unit and the ground.
♦
♦♦
♦Do not connect a power factor capacitor or suppressor to the output
terminal of the inverter.
Such devices can damage the inverter, its capacitors and other parts.
Remove the device if one is connected.
Special Precautions

11
♦
♦♦
♦If a magnetic contactor is connected to the power supply side or the
load side of the inverter, never use it to start or stop the motor (inverter).
Switching the inverter on the power supply side ON and OFF frequently by a
magnetic contactor, can cause the inverter to malfunction. Do not turn the
inverter on the load side ON and OFF during operation as this causes inverter
fault trips. Start or stop the motor only by means of inverter start input signals.
♦
♦♦
♦Do not use this inverter for loads other than a motor or for single-phase
motors.
♦
♦♦
♦Precautions regarding inverter's protection function
Various protection functions, such as stall prevention, current limiting and
overcurrent protection, are incorporated in the inverter.
These protection functions are used to protect the inverter from unexpected
faults that could occur during use of the inverter, and are not the control
functions normally used.
Thus, during normal usage, avoid applications that activate these protection
functions.
Depending on the state, the inverter life could drop, or damage could occur.
Before using the inverter, measure the output current, etc., with a measuring
instrument, and check the details of the fault trip memory. Make sure that
there are no problems in respect to the all precautions listed in this instruction
manual, including those above, and in respect to the product specifications.
♦
♦♦
♦The CE Mark attached to the inverter complies with the Low Voltage
Directive.
♦
♦♦
♦Measure the electromagnetic compatibility (EMC) in the state assembled
in the machine.
♦
♦♦
♦Only basic insulation (Protection against Electric Shock Class I
II
I,
Overvoltage category II
IIII
II, Pollution degree 2) is provided on the control
circuit terminals.
The supplementary insulation must be provided on the final product to
comply with CE Marking requirements.
♦
♦♦
♦Make sure to ground the supply neutral.
♦
♦♦
♦Always connect protective devices such as fuses for overcurrent, short
circuits and leakage protection to the power supply input.
♦
♦♦
♦Always use a ring crimp terminal for the main circuit wiring (R/L1, S/L2,
T/L3, U, V, W).
♦
♦♦
♦Only for machinery with fixed connection.

12
ATTENTION
●Install the unit on a non-combustible material such as metal.
Installing it on other material could lead to fire.
●Do not place the unit near flammable materials.
Failure to do so could lead to fire.
●Do not hold the terminal cover during transportation.
Failure to do so could cause the unit to drop and lead to injuries.
●Do not allow foreign matter such as metal swarf enter the unit.
Entry of this type of matter could lead to fire.
●Mount the unit according to the instruction manual in a place where the
weight can be withstood.
Failure to do so could lead to dropping of the unit and to injuries.
●Do not install or operate an inverter that is damaged or with parts missing.
Failure to do so could lead to injury.
[Install the inverter vertically.]
Installing the inverter in any other way decreases
its heat dissipation effect and results in malfunction.
[Make sure the ambient temperature
stays within the specification.]
The ambient temperature surrounding the
inverter will increase when it is installed near a
heating unit or housed inside a panel. This may
reduce the life of the inverter. If you want to
house the inverter inside a panel, give careful
consideration to the cooling method and panel
size.
●
●●
●Tolerable ambient temperature
–10°C to 50°C
Note) Ambient temperatures should be
measured at a point 5 cm from the
inverter.
●Space around the inverter
Installation
！
Vertical Horizontal Sideways
[Avoid installing the inverter in
the following locations.]
●Areas subject to direct sunlight.
●Areas subject to water or high levels of
humidity.
●Areas with large amounts of oil mist, dust
or fiber dust.
●Areas where rain water, water drops or
oil drops may come in contact.
●Areas where corrosive gases, explosive
gases or flammable gases are present.
●Installation onto flammable materials
such as wood, or near flammable
materials.
●Areas subject to vibration.
5cm
or more
5cm
or more
10cm or more
10cm or more
Inverter

13
• 3-phase 400V input type Unit: mm
Inverter capacity W W1 W2 H H1 D
0.75kW 130 121 110 130 90 148
1.5, 2.2kW 130 121 110 130 90 161
3.7kW 160 151 140 130 90 161
Outline Dimensions
W1
W
H1
H
W2
Unit: mm
4-ø5 (Mounting holes)
D
7
8
Note) The 1.5, 2.2 and 3.7kW
capacities have a cooling
fan at the broken line
sectionshownontheleft.

14
Input power Applicable motor
capacity (kW) Part No. Brake
0.75 BFV00074
1.5 BFV00154
2.2 BFV00224
3-phase 400V
3.7 BFV00374
Only circuit built in
(Brake resistor is an option)
Parts Identification
∗
∗∗
∗Check the rating nameplate
to confirm that the ordered
product has been delivered.
Mounting hole
Operation panel Frame
Warnin
g
label
Rating
name
p
late
Terminal cover Control wire lead-in hole
Main circuit wire
lead
-
in hole
Heat sink fins
Ground
terminal
Cooling fan Note) The cooling fan is mounted on the 1.5 to
3.7kW capacities. It is not mounted on the
0.75kW capacity.
Terminal cover

15
[Precautions for installation of
brake resistor (option)]
·Wait at least 5 minutes after turning
the power OFF before connecting the
resistor. (There is a risk of electric
shock.)
·Always securely connect the resistor
to the metal plate with metal screws,
etc. (There is a risk of fires.)
·Install the resistor at a position
separated at least 5cm from the
inverter edges and 10cm or more from
the top. (Resistor cannot be installed
at the bottom.)
·Note that the resistor will become very hot.
(1) Opening the terminal cover
Lightly press up the center bottom
edge of the terminal cover.
(2) Closing the terminal cover
Lightly press down on the center top
edge of the terminal cover.
Note) After closing the terminal cover,
confirm that it is securely closed.
(1) (1) (2)
Explanation of inside of terminal cove
r
Opening and closing the terminal cover
Note) This explanatory drawing shows the
state with the terminal cover removed.
During normal use, do not remove the
terminal cover.
Main circuit terminal
(signal input/output: 1-11)
Control circuit terminal
(relay output: A, B, C)
R S T U V W
(Main circuit terminal block layout)
Power supply Motor
DB+ DB－
Brake resistor connection terminal
Mounting holes
Control circuit terminal
Ground terminal
10cm or more
Brake resistor
5cm or more 5cm or more

16
MODE RUN
SET STOP
▲
▼

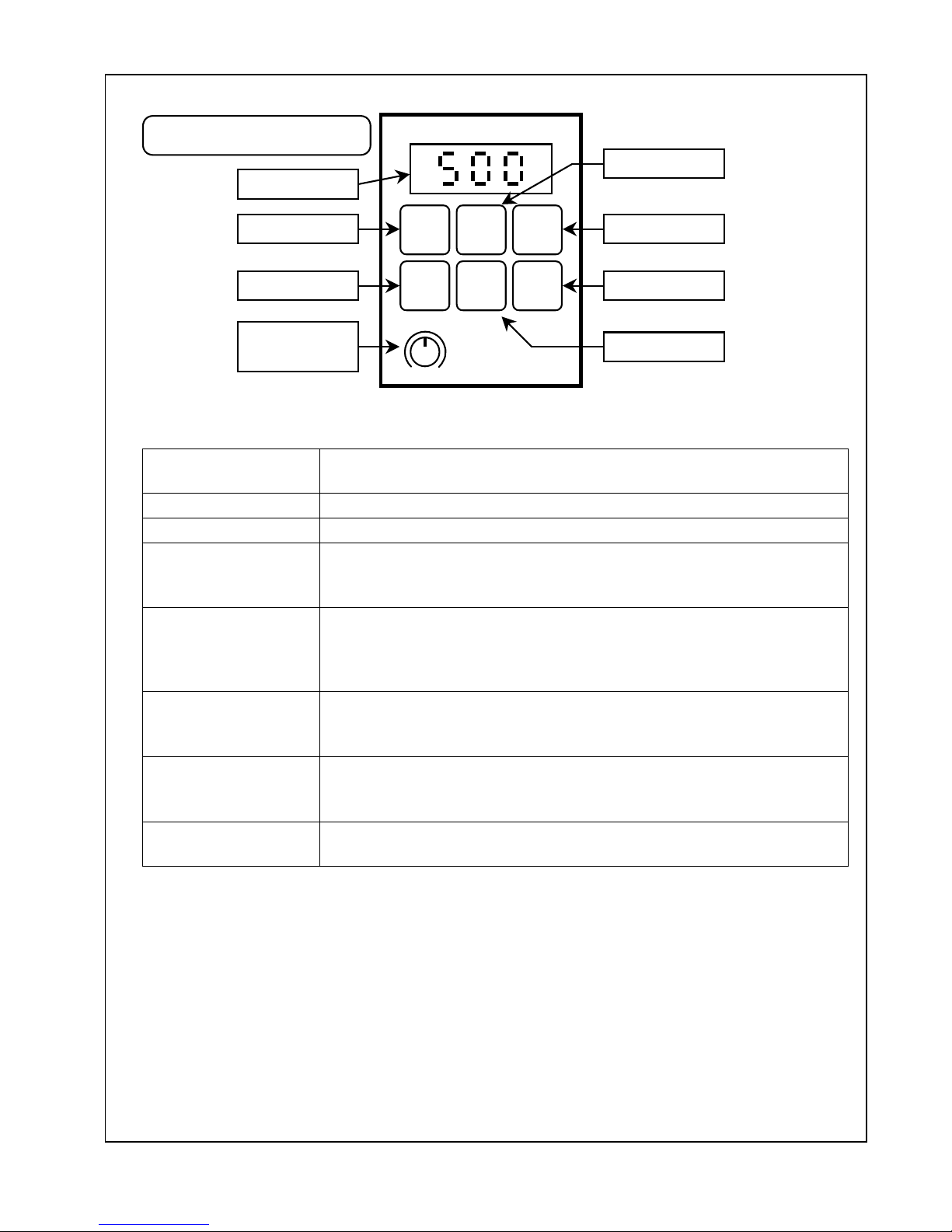

Explanation of operation panel
Mode button
Set button
Frequency
setting dial
Run button
Stop button
▲button
▼button
⋅
Main display Hz
Main display The output frequency, current, line speed, error details, data for function
setting and parameter numbers are displayed.
Run button This switch is used to start the inverter.
Stop button This switch is used to stop the inverter.
Mode button
This switch is used to change to each "output frequency, current display",
"frequency setting, monitor", "rotation direction setting" and "function setting"
mode, and to switch the display from the data to mode display.
Set button
This switch is used to change the display between the parameter No. and
data display, and to save the data.
In the "output frequency, current display mode", this switch changes the
display between the frequency and current.
▲
▲▲
▲(up) button This switch is used to change the data and output frequency, and to set
forward run direction when carrying out forward rotation with the operation
panel.
▼
▼▼
▼(down) button This switch is used to change the data and output frequency, and to set
reverse run direction when carrying out reverse rotation with the operation
panel.
Frequency setting dial This is the dial for the potentiometer used to set the operating frequency with
the operation panel.
[Handling when output current is displayed]
1) The displayed output current is not intended for precise measurement.
Use this only as a guide value. (Use a separate measuring instrument
when precise values are required.)
2) A relatively large value may be displayed especially at approx. 40% or
less of the rated current. (For example, even if there is no output current,
a certain level may be displayed. Note that when the inverter is stopped,
"0A" will be displayed.)

17
CAUTION
●Always confirm that the input power is OFF before starting wiring.
Failure to do so could lead to electric shock or fire.
●Always connect the ground wire.
Failure to do so could lead to electric shock or fire.
●Wiring work must be carried out by a qualified technician.
Failure to do so could lead to electric shock or fire.
●Always install the unit before wiring.
Failure to do so could lead to electric shock or injury.
ATTENTION
●Do not connect an AC power supply to the output terminals (U, V, W).
Failure to do so could lead to injury or fire.
●Confirm that the product's rated voltage and the AC power supply voltage
match.
Failure to do so could lead to injury or fire.
●Tighten the terminal screws to the designated tightening torque.
Failure to do so could lead to fire.
■Precautions
Note the following points carefully to prevent miswiring and misuse of the
inverter. (Devices may be broken.)
1) Connect the power supply to input terminals (R/L1, S/L2, T/L3) and the
motor to output terminals (U, V, W).
2) Make sure to ground the supply neutral.
3) Do not connect anything other than the optional brake resister across
terminals DB+ and DB-. Never short these terminals to each other as this
will damage the internal electronics of the inverter.
4) Use sleeved round crimp terminals for power supply and motor connections.
5) After wiring the main circuit, double check for tightness as access will be
limited once control circuit wiring is in place.
6) When connecting directly to a large capacity power transformer (500kVA
or more), always install a power factor improvement reactor (option) on the
inverter's input side.
7) Select connected devices and wire size according to the table on page 19.
Main Circuit Wiring
！

18
■Wiring
<<Precautions for using regenerative brakes>>
1) When using the regenerative brakes, set the parameter P18 setting data
to "0". The brakes will not operate when the default data "1" is set.
2) Always use the Matsushita-dedicated option for the brake resistor.
Refer to the precautions on page 15 for installing the brake resistor, etc.
3) The regenerative brake specifications are shown below. Always consider
the working conditions carefully before using.
Note that the inverter could be damaged if the specifications are
exceeded during use.
·Maximum duty factor (%ED) : 2%
·Maximum working time : 3 seconds
·Maximum torque : 100%
Always connect protective devices such as fuse for overcurrent, short circuits
and leakage protection to the input.
Power
supply
Circuit breaker
(MCCB)
Moter
IM
Main circuit terminal
Break resistor
(Option)
Main circuit and grounding
terminal screw size: M4
<<VF0 400V class>>
R
/
L1
S
/
L2
T
/
L3
U V W
DB
+
DB
–
Note: Ground marking

19
Connected device, wire size and main circuit terminal tightening
torque
Inverter capacity Circuit breaker
(MCCB) Tightening torque Wire size
0.75 kW 5A
1.5 kW 10A
2.2 kW 15A
3.7 kW 20A
1.2 N·m
(12.2 kgf·cm)
2mm2
(14AWG)
Note 1) If the breaker's overcurrent trip is a magnetic type, the device
could overheat due to higher harmonics. Use a load rate of 50% or
less in this case.
Note 2) When using an installed circuit breaker with motor protection,
remove it.
Note 3) Crimp connectors used must be ring terminals.
