Bauhn ATV40FHDS-0720 User manual

User Manual
MODEL: ATV40FHDS-0720
40”

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
We hope you will enjoy using your purchase for many years to come.

3
On-Screen Set Up 16
Networking 17
TV Setting Menus 19
Channel 21
Picture 23
Sound 25
Network 27
System 29
PVR File System 31
Lock 32
Timer 33
Support 34
Quick Menu 35
Smart TV 37
Smart TV Applications 37
Screencast 38
App Portal 38
Web Browser 39
Contents
Welcome 2
Contents 3
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Attaching the stand 6
Wall-mounting the TV 7
Connect to power 8
Connect your antenna 8
Controls and Connections 9
Get to know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 12
Setup 12
Using the Remote Control 13
Buttons & Functions 14
TV Guide 40
Recording 41
Recording Live TV 42
Scheduled Recording 42
Playback 42
Pause Live TV (Time-shift) 43
USB Mode 44
Set up 44
Troubleshooting 47
Specications 50
Compliance and
Responsible Disposal 51
Warranty Information 52
Repair and Refurbished
Goods or Parts Notice 53

4 | UNPACK AND PREPARE
Unpack and Prepare
What's in the box
Before installing your new TV, check you have everything needed.
In the box you will find:
A. 40" Full HD Smart TV
B. Remote Control
C. AAA Activ Energy Batteries
D. TV Stands
E. Screws for TV Stands
F. Warning Sheet
G. TV Toppling Safety Message
H. Quick Start Guide
I. Warranty Certificate
J. General Safety Warnings
K. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Antenna cable (to watch live TV)
• Internet connection (to access Smart TV apps)
DE
F
GHIJ

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 6 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.

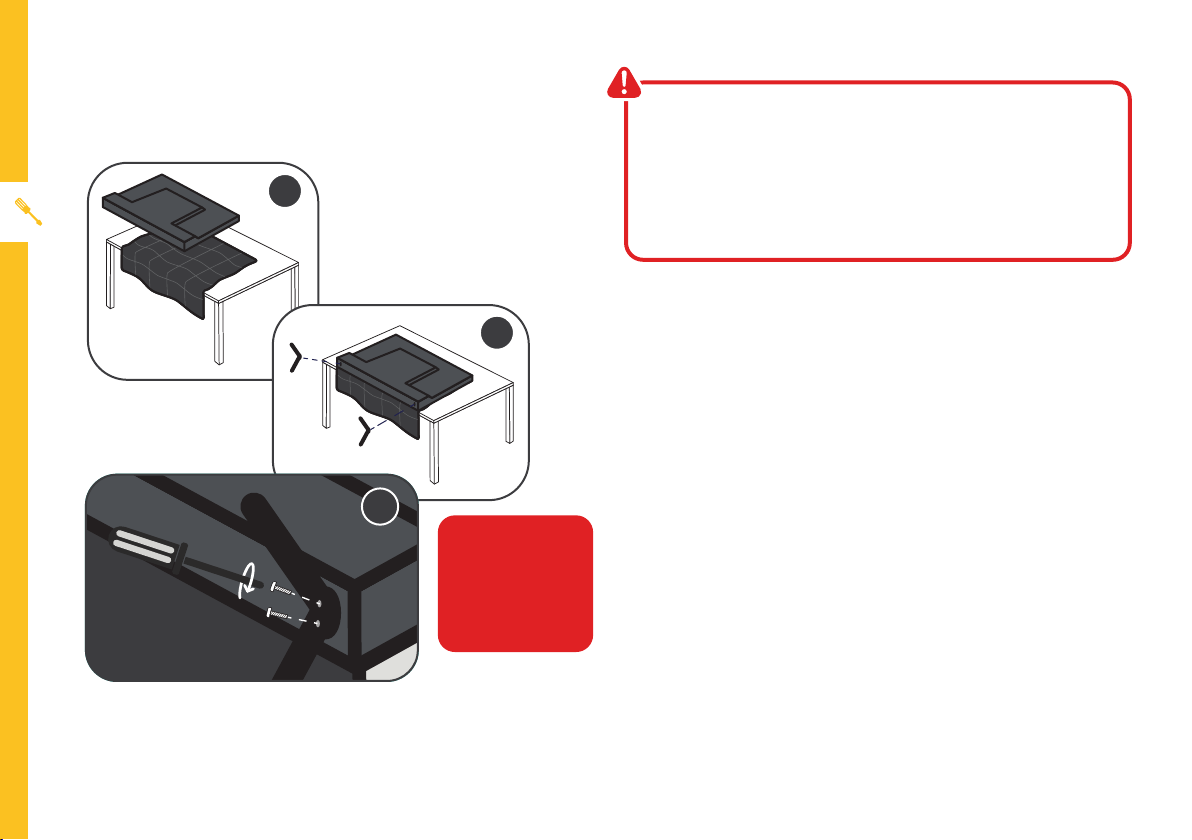

1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit). Make sure the legs are facing away from
each other (not leaning inwards).
Attaching the stand
• Unplug the TV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
1
2
3

UNPACK AND PREPARE | 7
200mm
Back of the TV
200mm
Wall-mounting the TV

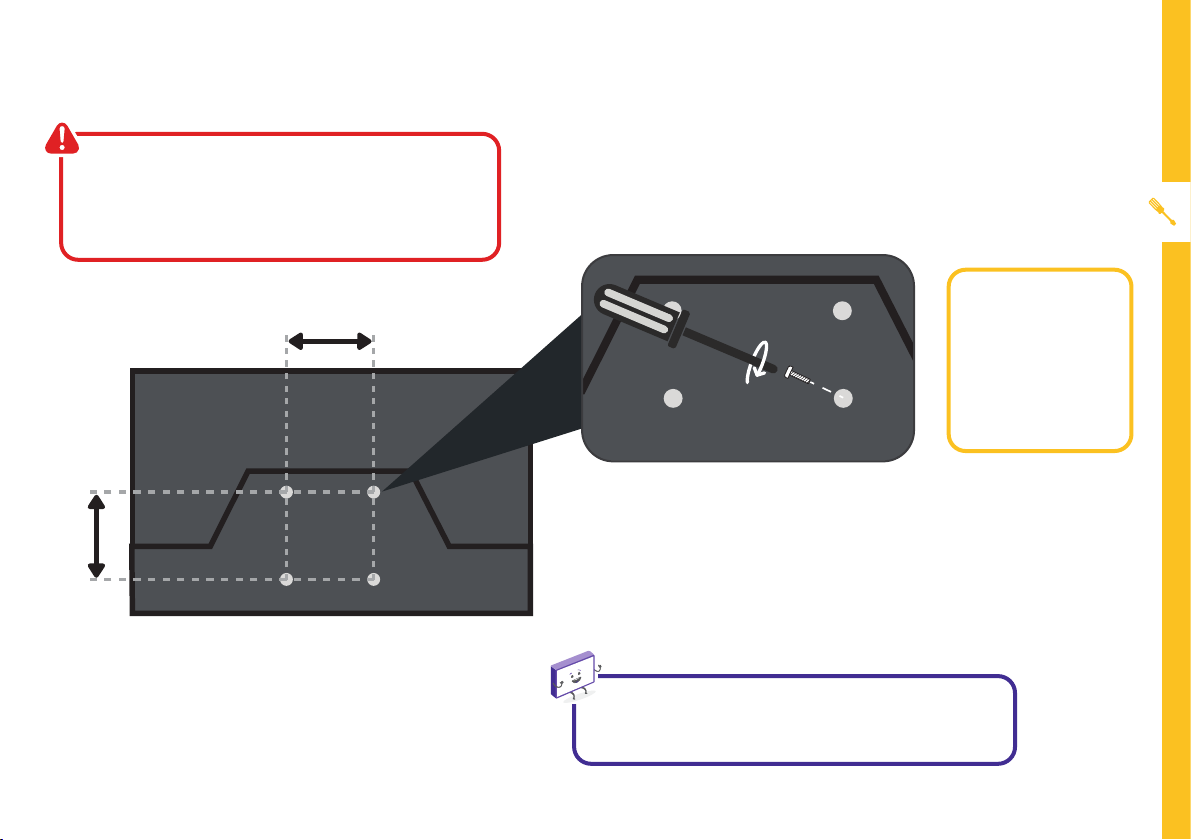

The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer, depending
on the mounting bracket) to wall-mount this TV (screws are
not included).
• Unplug the TV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stands
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
Connect to power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
Image is an example only. Plug on your TV may vary.

CONTROLS AND CONNECTIONS | 9
See next page for more info on the connections.
Controls and Connections

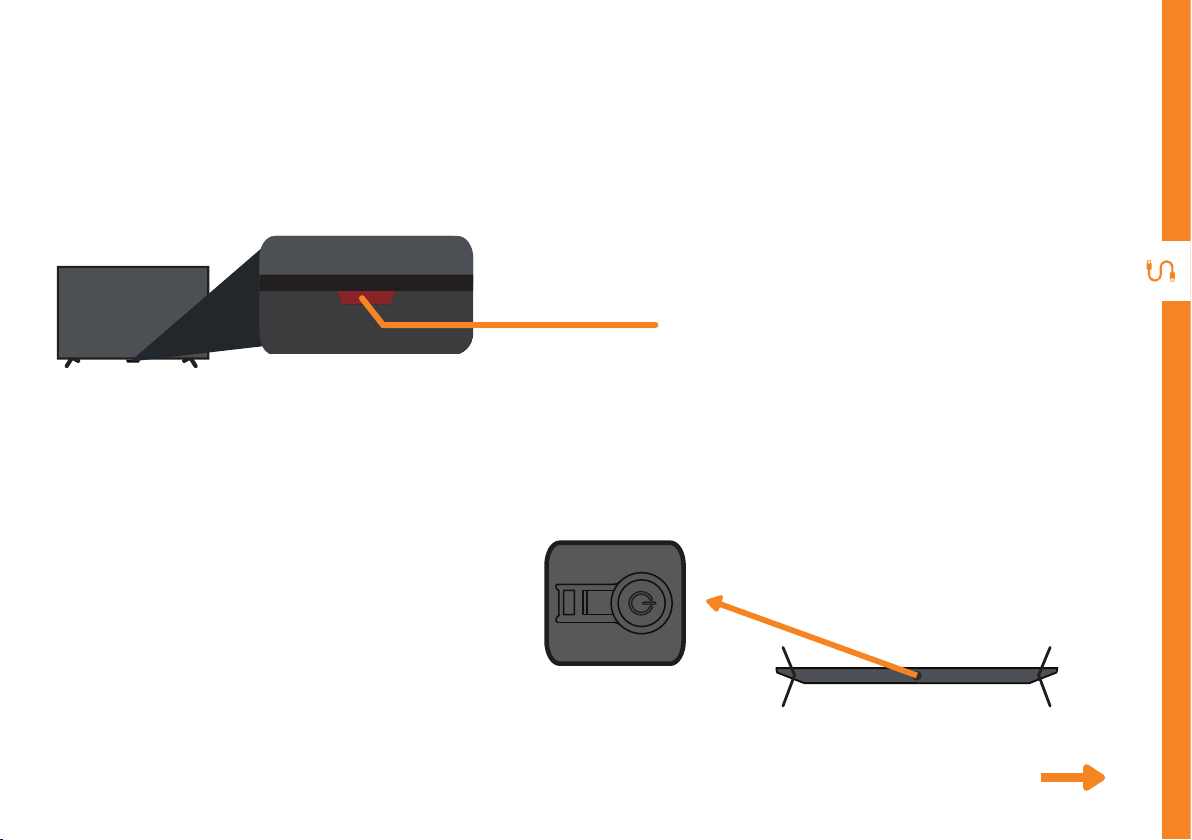

Buttons on the TV
Get to know your TV
On/Standby light and
Remote sensor
Bottom View
• When the TV is on standby, press this
button to turn the TV on.
• When the TV is on, press once to
access the on-screen control menu.
While in this menu, press once to
switch between menu options; press
and hold to select.
• When the TV is on, press and hold
for 5 seconds to turn the TV off.

10 | CONTROLS AND CONNECTIONS

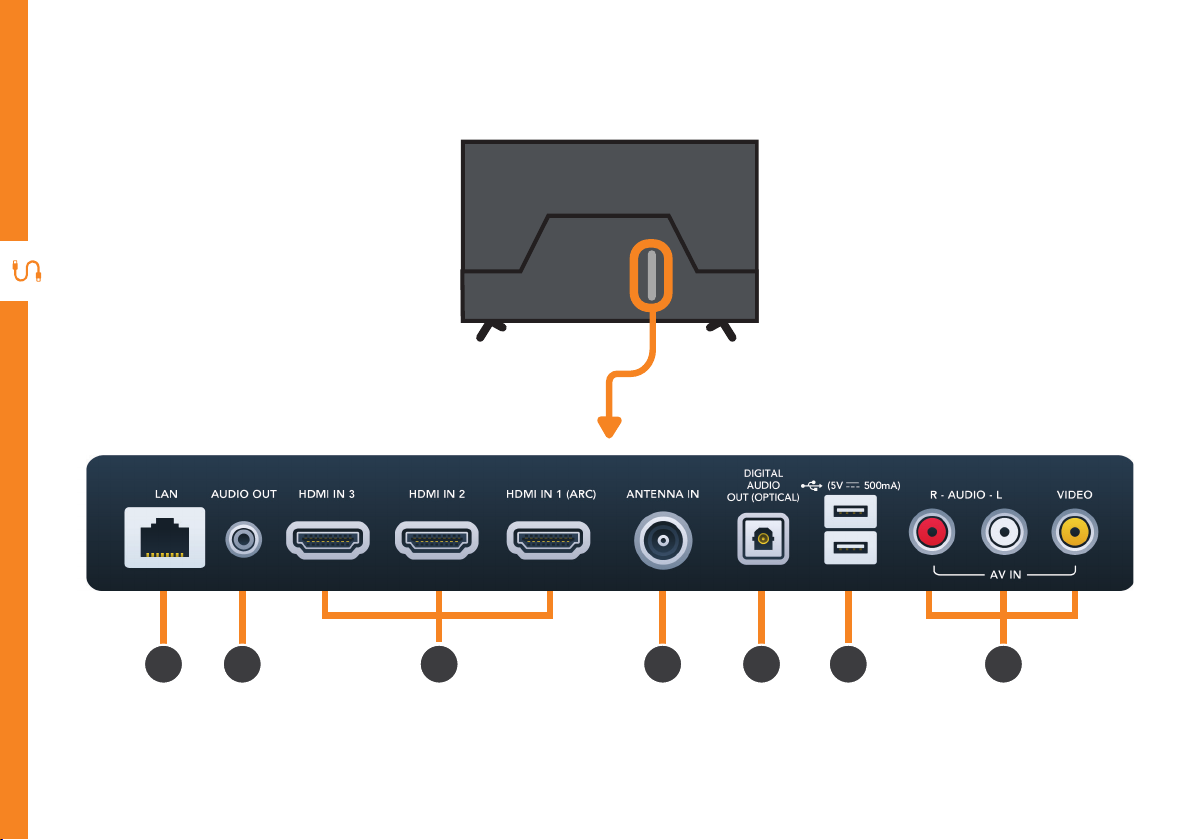

Ports on the TV
37
4 5 6
1 2

CONTROLS AND CONNECTIONS | 11

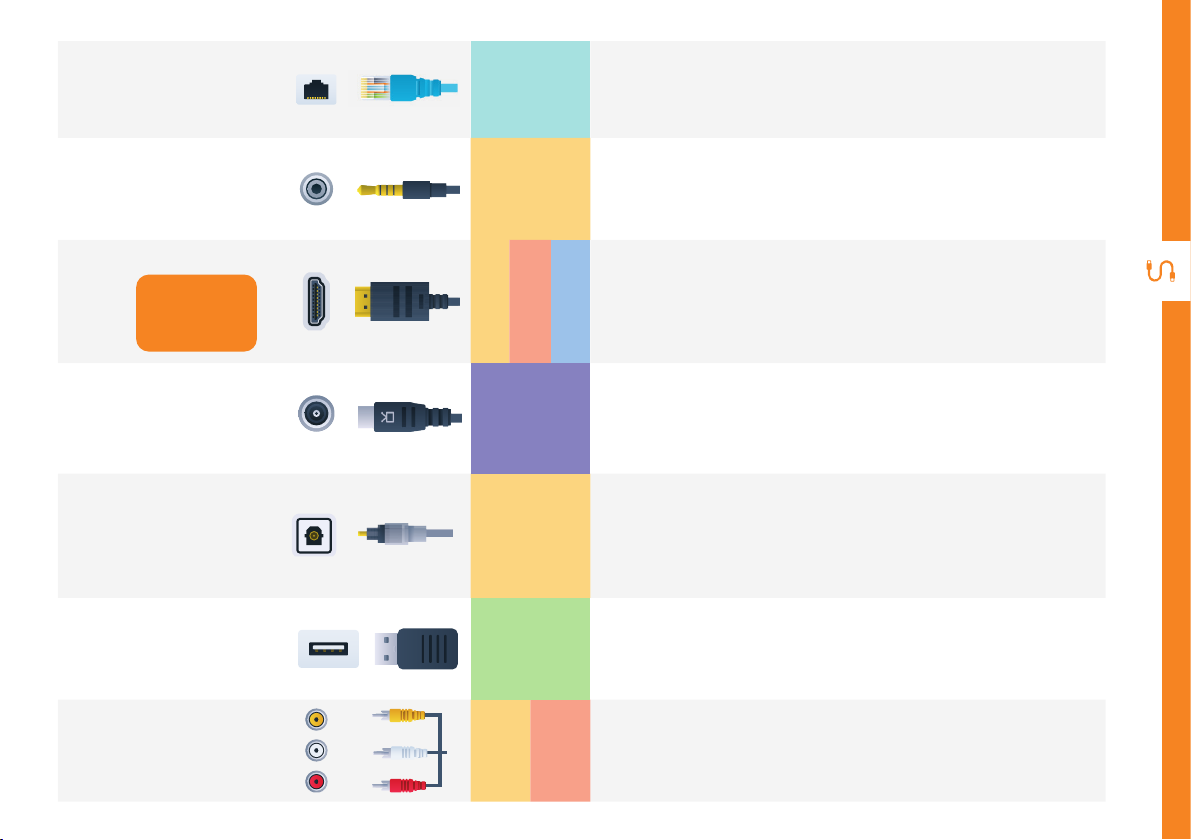

1LAN
INTERNET
Connect to your broadband modem using a network cable
(not included) for the best streaming experience. However, the TV
also has built-in Wi-Fi.
2AUDIO OUT
SOUND
Connect to your amplifier or soundbar using an AUX cable (not
included). Turn down the TV volume to 0 and use your external
device to control the volume.
3
HDMI IN
Use a HDMI
cable for best
picture and
sound quality.
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports Full HD resolution.
4ANTENNA IN
FREE-TO-AIR
TV
Connect your antenna for live TV. (Antenna cable not included).
5
DIGITAL
AUDIO OUT
(OPTICAL)
SOUND
Connect an external digital audio device. Use an Optical cable (not
included) to connect the TV with an amplifier, soundbar or other
audio decoding device for digital audio signal output.
6USB
STORAGE
• Plug in a USB stick to PVR record and pause live TV.
• Play media files stored on your USB storage device (supported
file codecs and extensions may vary).
• Update the TV software via USB.
7AV IN
SOUND
You can use this to connect your DVD player. Supports Standard
Definition (SD) picture quality. (AV cable not included).

12 | REMOTE CONTROL
1
2
3
Setup
Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included

REMOTE CONTROL | 13
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.
The remote has a range of up to about 6 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
6m
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote
sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.

14 | REMOTE CONTROL
123
45
78
0
6
9
INFO
OK
SOURCE
P.MODE S.MODE
LIST
GUIDE
Web Browser
MENU
EXIT

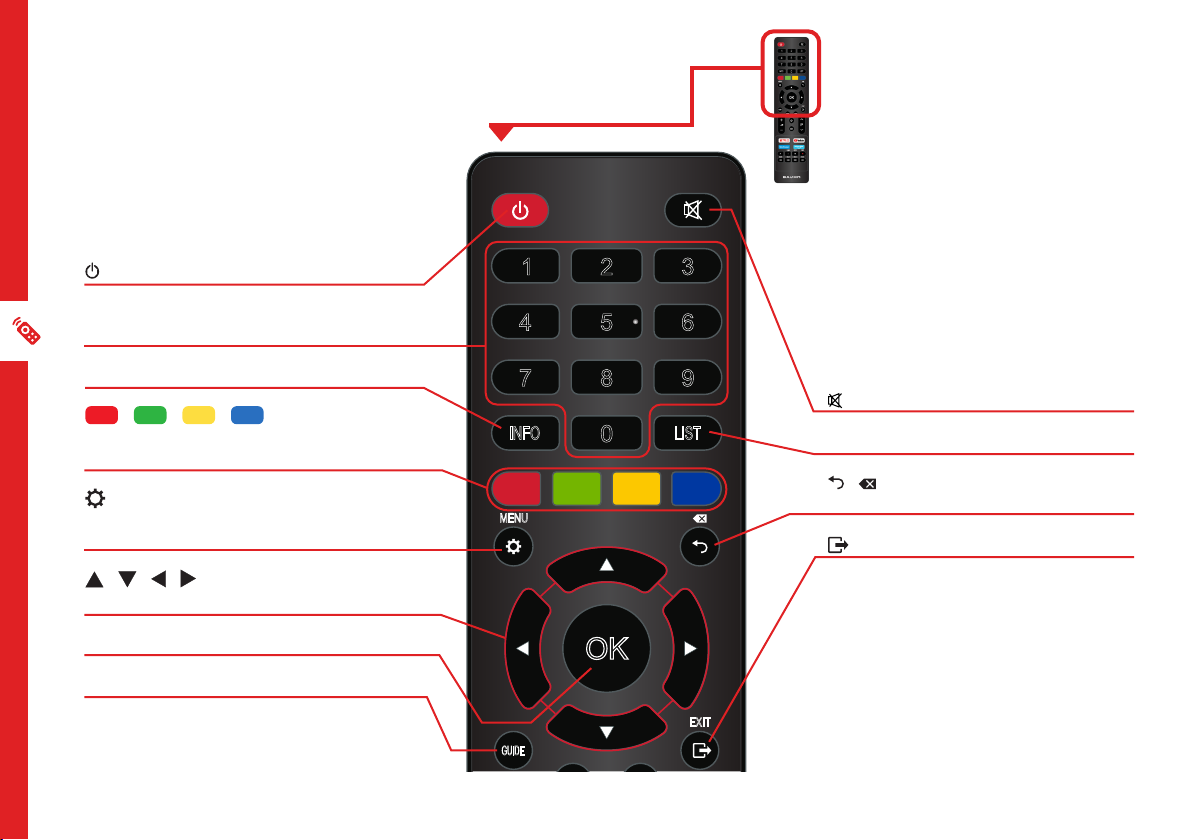

(POWER): Switch the TV to On or Standby
NUMBER BUTTONS : Directly enter channels
or input password
INFO : Display program information
/ / / RED/GREEN/
YELLOW/BLUE: Functions are according to
the on-screen display
(MENU) : Press once to enter the quick
settings menu. Press twice to enter the main
settings menu
/ / / : Press the UP/DOWN/LEFT/
RIGHT buttons to navigate
OK: Confirm your selection
GUIDE: Launch the TV Guide (DTV)
Buttons & Functions
(MUTE): Mute or restore sound
LIST : Display the DTV channel list
/ : Return to the previous screen or
channel
(EXIT) : Exit/Quit the current screen

REMOTE CONTROL | 15
SOURCE
P.MODE S.MODE
GUIDE
Web Browser

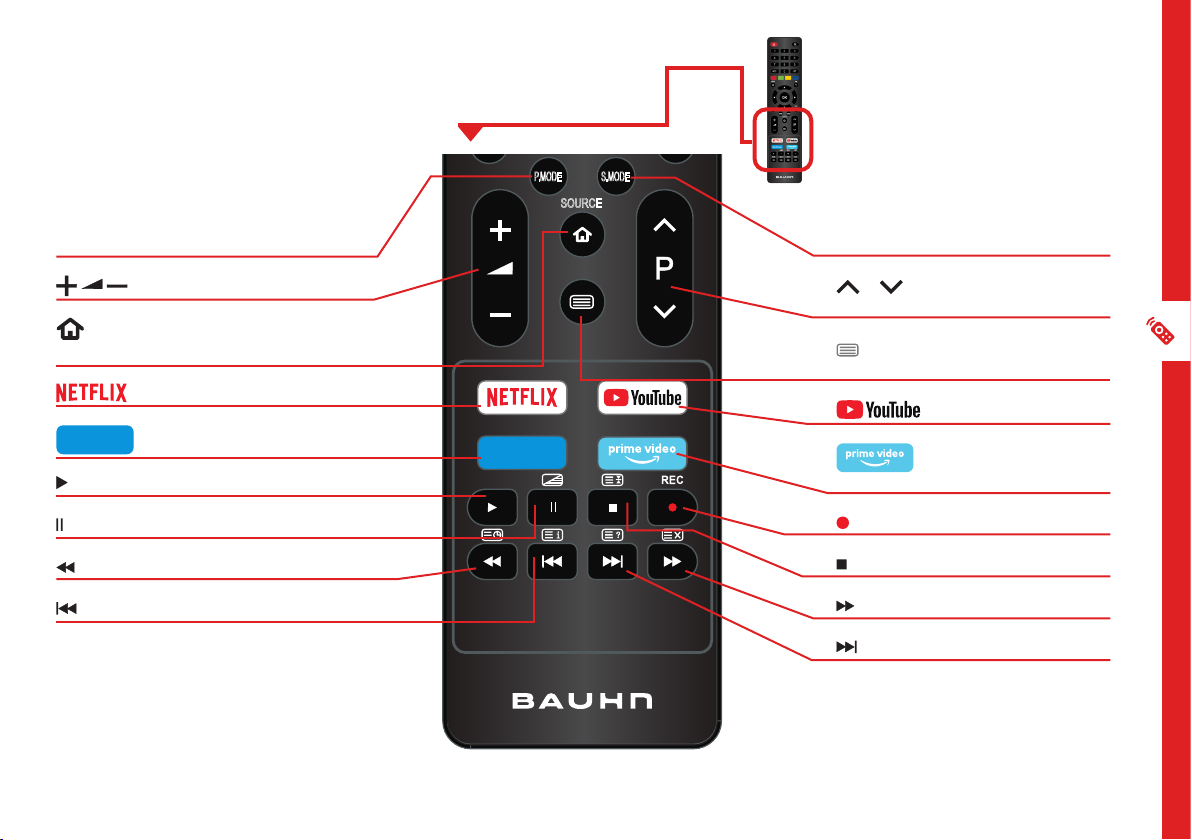

P.MODE : Change the picture to one of
the preset settings
: Turn the volume up or down
(SOURCE) : Access the input sources
and smart apps list
: Launch the Netflix app
Web Browser : Launch the Web Browser app
: Start playback
: Pause playback
: Reverse playback
: Skip to previous chapter/track
S.MODE : Change the sound to one
of the preset settings
P: Go to the next or previous
channel
: Switch between TV and Teletext
mode*
: Launch the YouTube app
:Launch the Amazon Prime
Video app
/ REC : Press to start recording
: Stop playback
: Advance playback
: Skip to next chapter/track
* Teletext is no longer available in
Australia.

16 | ON-SCREEN SET UP
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
10-11) before connecting the TV to power.
On/Standby light is RED
in standby mode.
On/Standby light is OFF
when the TV is on.
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / OK buttons
to select your preferences. You will be guided through:
2. View End-User License Agreement 3. Connect to the Internet
1. Language
4. Set Up Netix 6. Time Zone 7. Select Input Source
8. Select TV Mode
5. Country
When selecting input source, make sure to select DTV to
scan TV channels. If you choose to select an input source
other than DTV or setup Netflix, the setup wizard will
exit and will not let you tune TV channels.
To tune channels, go to: Menu > Channel > Auto Tuning.
If you make an error, you can update your preferences in the settings
menu later.
If you are using a wired network, connect an ethernet cable
to the TV and select 'Wired Mode'. The TV will automatically
connect to the Internet.
If you are using a wireless connection, select 'Wi-Fi Mode'. The
TV will scan for nearby wireless networks. Make sure that the TV
is within the range of your wireless modem/router, and you have
your Wi-Fi password handy.
Or, you can connect to the internet later by going to the User
Menu settings.
Image is an example
only. Plug may vary.
3. Connect to the Internet
Make sure the TV is plugged in at
the power socket and switched
on. Press the (POWER) button
to turn on the TV.

NETWORKING | 17
Networking
You can set up your TV so that it can access the Internet
through your home network using a wired or wireless
connection.
Connecting to a Wireless Network
• Press the (MENU) button on the remote to select
Network.
• Change the Connection Type setting to Wi-Fi. The TV
will automatically search nearby Wi-Fi access points.
When done, it will display a list of available networks.
• In the list of networks, press the / button to select
your home network, then press the OK button.
• When the Wi-Fi password entry screen appears, press
the OK button to bring up the on-screen keyboard.
Use the / / / buttons on the remote control to
select a character and press OK to enter it.
• Input the correct password and press OK to close the
on-screen keyboard. Select ‘Connect’ and press the
OK button to connect to the network. If connection
is successful, a tick will appear next to your Wi-Fi
network's name.
If the TV isn't connecting to the internet check
the troubleshooting section for more info!
Advanced settings:
If you wish to add a hidden Wi-Fi network, go to
Advanced Settings and select Add. Next, enter
the network name, select the encryption type,
enter the network password and click Connect.
If you want to assign your own network settings,
go to Advanced Settings and change IP
Settings to Manual. Enter your personal network
settings, select 'Connect' and press OK.

18 | NETWORKING
Connecting to a Wired Network
• Connect an ethernet cable to the LAN port on the back
of the TV.
• Press the (MENU) button on your remote to select
Network.
• Change the Connection Type setting to 'Wired'. The TV
will automatically pick up the network setting from the
modem and connect to the network. If connection is
successful, you will see 'Connected' on-screen.
• If you want to assign your own network settings, select
the IPv4 or IPv6 protocol and set it to 'Manual'.
• Enter your personal network settings, select 'Connect'
and press OK. If connection is successful, you will see
'Connected' on-screen.
• Press the (EXIT) button to close the menu.
Make sure you have an ethernet
cable on hand if you want to connect
to a wired network.

TV SETTING MENUS | 19
Once you have programmed any
settings, the TV will retain them in
its memory until you change them,
even after turning the TV off.
Menus Index
Channel 21
• Auto Tuning
• DTV Manual Tuning
• ATV Manual Tuning
• Dynamic Rescan
• Channel Edit
• Signal Information
Picture 23
• Picture Mode
• User Mode settings:
• Contrast, Brightness, Colour,
Sharpness, Tint, Backlight

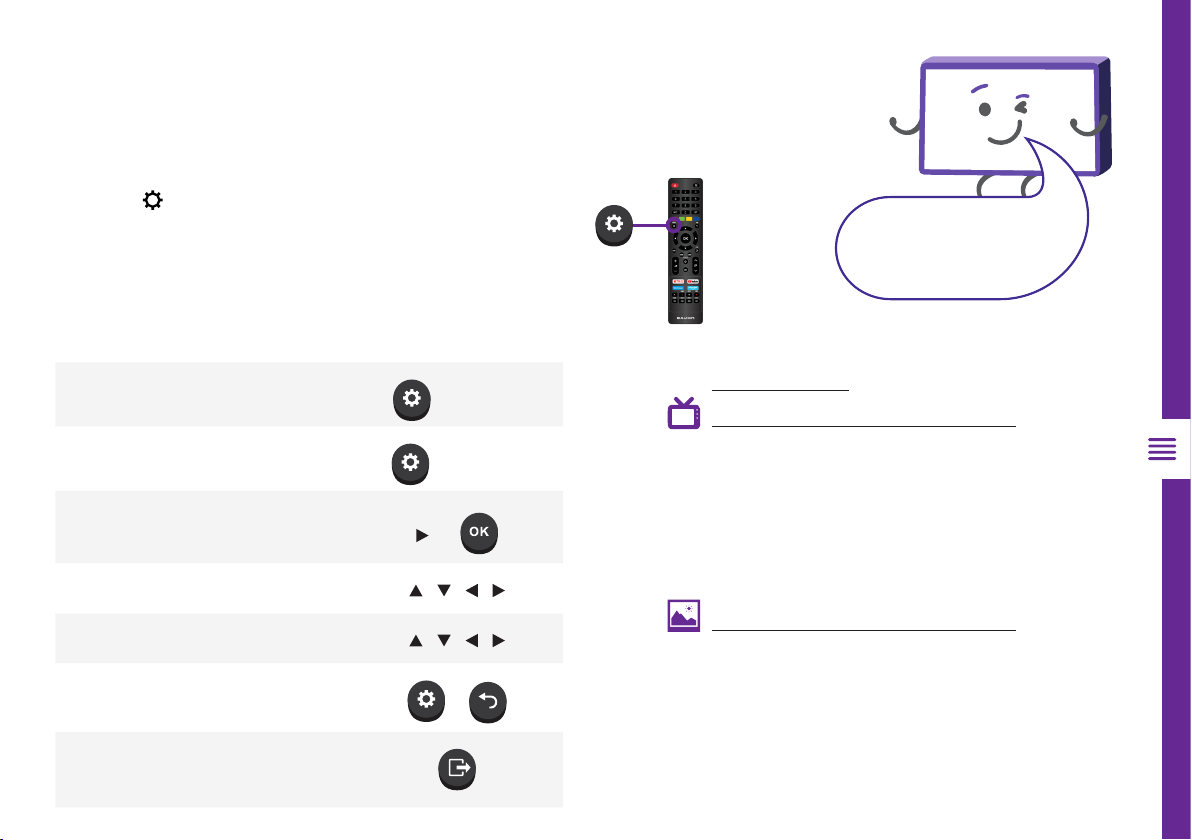

TV Setting Menus
Menu Navigation Buttons
Function Remote Button
Display the quick menu (press once)
Display the main menu (press twice)
Enter a sub menu OR
Select an option / / /
Adjust a value / / /
Return to the previous menu /
Exit a menu
Press the (MENU) button twice to display the TV
main menu settings. See the guide below for all the
other buttons you'll need to use to adjust and change
your settings.
• Aspect Ratio

20 | TV SETTING MENUS
• Advanced Settings:
• Colour Temperature, SDR To
HDR, HDR, Noise Reduction,
MPEG NR, Dynamic Contrast,
Film Mode, PC Mode, Overscan,
Picture Reset
Sound 25
• Sound Mode
• User Settings:
Equalization, Surround, Dialogue
Enhancer, AVC (Auto Volume
Control), Balance, S/PDIF Mode,
AD Switch, AD Volume, Audio
Delay, Sound Reset
Network 27
• Wired Network Settings:
• Connection Type, IPv4, IPv6,
Connect
• Wireless Network Settings:
• Connection Type, Wireless
Networks, Password, Visible,
Connect, Advanced Settings,
WOW, IP Settings
System 29
• Language
• Subtitle
• Subtitle Hearing Impaired
• Audio Languages
• Subtitle Languages
• HbbTV
• Country
• HDMI CEC
• PVR File System
• Environment
• Restore Factory Default
PVR File System 31
• Select Disk
• Format Start
• Speed Check
• Record List
• Time Shift Size
Lock 32
• Lock System
• Set Password
• Block Channel
• Parental Lock
Timer 33
• Auto Sync
• Time Zone
• Clock
• Sleep Timer
• Auto Sleep
• No Signal Power Off
Support 34
• Software Update (USB)
• Internet Update Check
• NetReady Version
• Installation Guide
• View End-User License Agreement
• App Settings
Quick Menu 35
• Picture Mode
• Sound Mode
• TV Radio
• Aspect Ratio
• Subtitle Languages
• Sports Mode
• Audio Languages
• Audio Only
• More
Q
