User Manual
MODEL: ATV65UHDS-1020
65”

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
We hope you will enjoy using your purchase for many years to come.

3
TV Setting Menus 21
Picture 23
Sound 25
Setting 26
Time 28
Lock 29
PVR Option
(Personal Video Recording) 30
Program 31
Network 32
About 34
High Dynamic Range (HDR) 35
Smart TV 36
Smart TV Applications 36
Screencast 37
App Portals 37
Web Browser 38
TV Guide 39
Contents
Welcome 2
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Attaching the stand 6
Wall-mounting the TV 7
Connect to power 8
Connect your antenna 8
Controls and Connections 9
Get to know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 13
Setup 13
Using the Remote Control 14
Standard Remote 15
Easy Remote 17
On-Screen Set Up 18
Networking 19
Connecting to a Wireless Network 19
Connecting to a Wired Network 20
Recording 40
Recording Live TV 41
Scheduled Recording 41
Playback 41
Pause Live TV (Time-shift) 42
USB Mode 43
Set up 43
Troubleshooting 45
Specications 48
Compliance and
Responsible Disposal 49
Warranty Information 50
Repair and Refurbished
Goods or Parts Notice 51

4 | UNPACK AND PREPARE
See the flap of the box
for how to handle the TV
without damaging it!
Unpack and Prepare
What's in the box

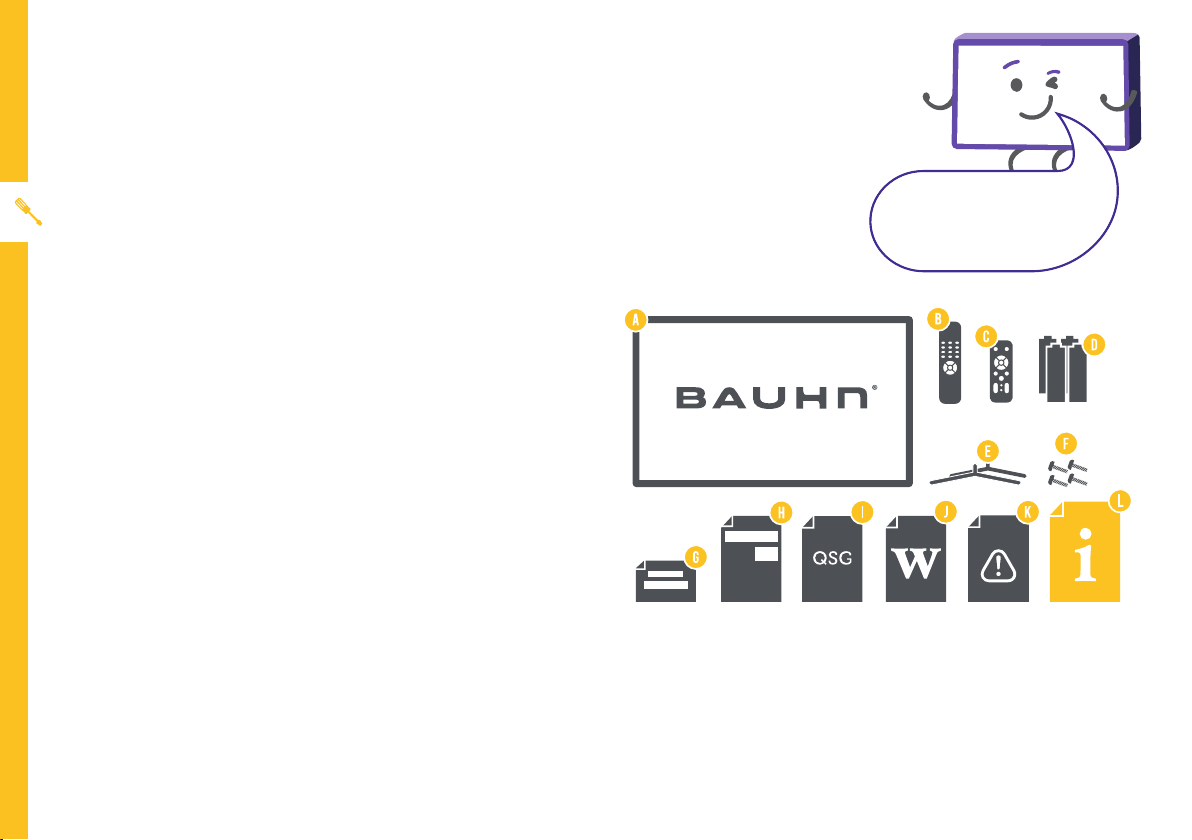

In the box you will find:
A. 65" 4K Ultra HD Smart TV
B. Remote Control
C. Easy Remote Control
D. AAA Activ Energy Batteries
E. TV Stands
F. Screws for TV Stands
G. Warning Sheet
H. TV Toppling Safety Message
I. Quick Start Guide
J. Warranty Certificate
K. General Safety Warnings
L. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Someone to help you lift and install your TV
• Antenna cable (to watch live TV)
• Broadband internet connection (to use smart apps)
Before installing your new TV, check you have everything needed.

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit).
Attaching the stand
• This TV is heavy! We recommend asking
someone to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• DO NOT place the TV standing upright without
its stand attached; it could damage the remote
sensor at the bottom of the TV.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.

UNPACK AND PREPARE | 7
400mm
Back of the TV
200mm
Wall-mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*12mm screws (or longer,
depending on the mounting bracket) to wall-mount this
TV (screws are not included).
• Unplug the TV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*12mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HD TV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on an HD TV.

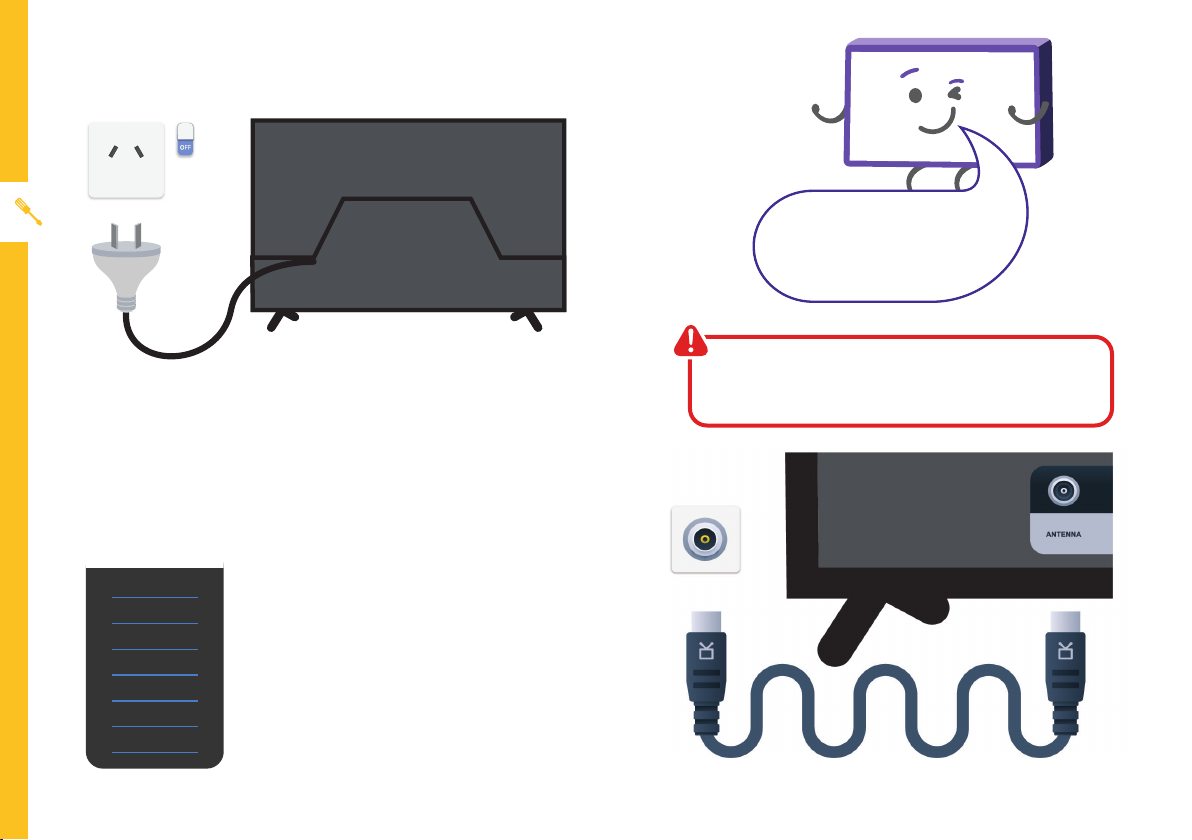

Connect to power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Connect your antenna
Antenna cable not included.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels

CONTROLS AND CONNECTIONS | 9
Controls and Connections
Buttons on the TV
Back view
Get to know your TV
On/Standby light and Remote sensor
• When the TV is on standby, press this button to
turn the TV on.
• When the TV is on, press to turn the TV off.

10 | CONTROLS AND CONNECTIONS

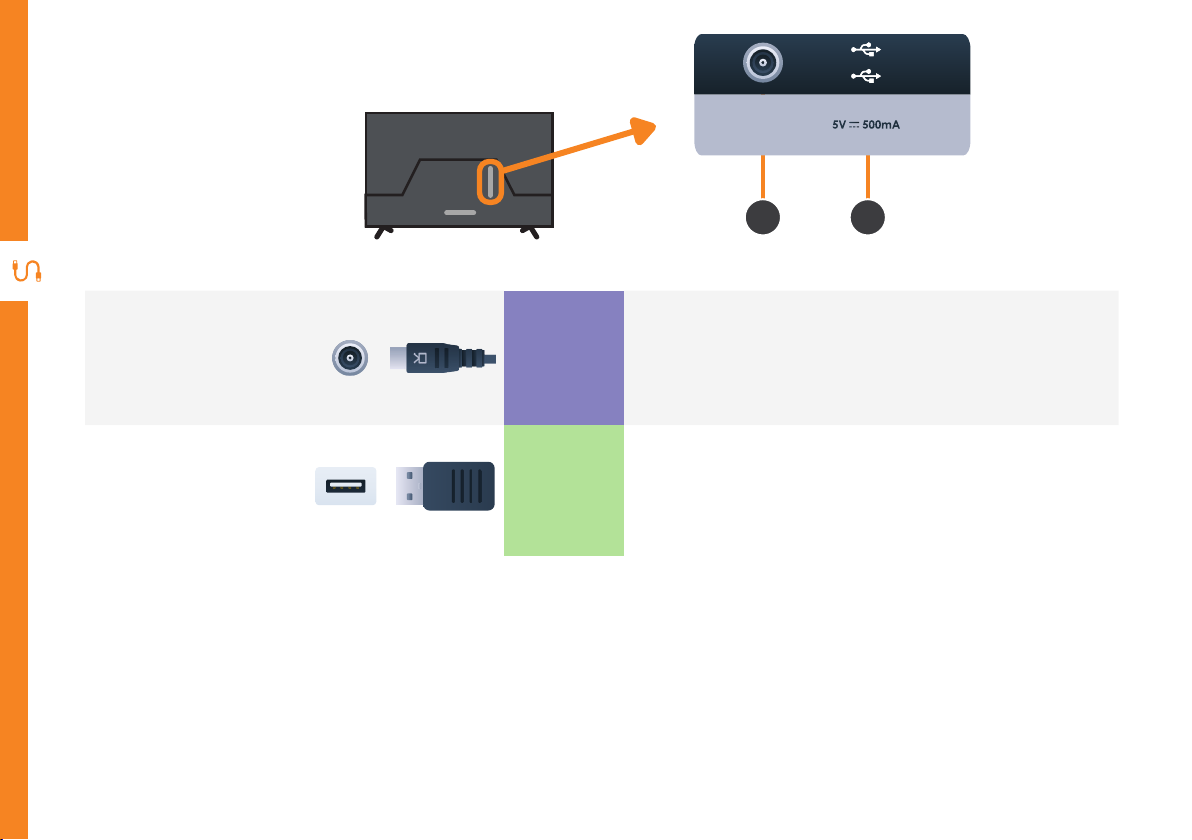

Ports on the TV
1 2
1ANTENNA IN
FREE-TO-AIR TV
Connect your antenna for live TV. (Antenna cable not included).
2USB
STORAGE
• PVR record and pause live TV
• Play your stored media files (supported file codecs and
extensions may vary)
• Software updates
ANTENNA IN
22
11

CONTROLS AND CONNECTIONS | 11
3 4 5 76 8
LAN HDMI 1 HDMI 2 HDMI 3
(ARC)
(CVBS)
VIDEO IN
DIGITAL AUDIO
OUT (OPTICAL)
3LAN
INTERNET
Connect to your broadband modem using an Ethernet cable
(not included) for best streaming experience. However, the TV
also has built-in wifi.
4DIGITAL AUDIO
OUT (OPTICAL)
SOUND
Connect an external digital audio device. Use an Optical cable
(not included) to connect the unit with an amplifier, soundbar
or other audio decoding device for digital audio signal output.
5Headphone Jack
SOUND
Connect to your headphones, amplifier or audio device, using
an AUX cable (not included).
6
HDMI
Use a high-speed
HDMI cable for
best picture and
sound quality.
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports Ultra HD resolution. Requires a high-speed HDMI
cable not included).
More on next page

12 | CONTROLS AND CONNECTIONS

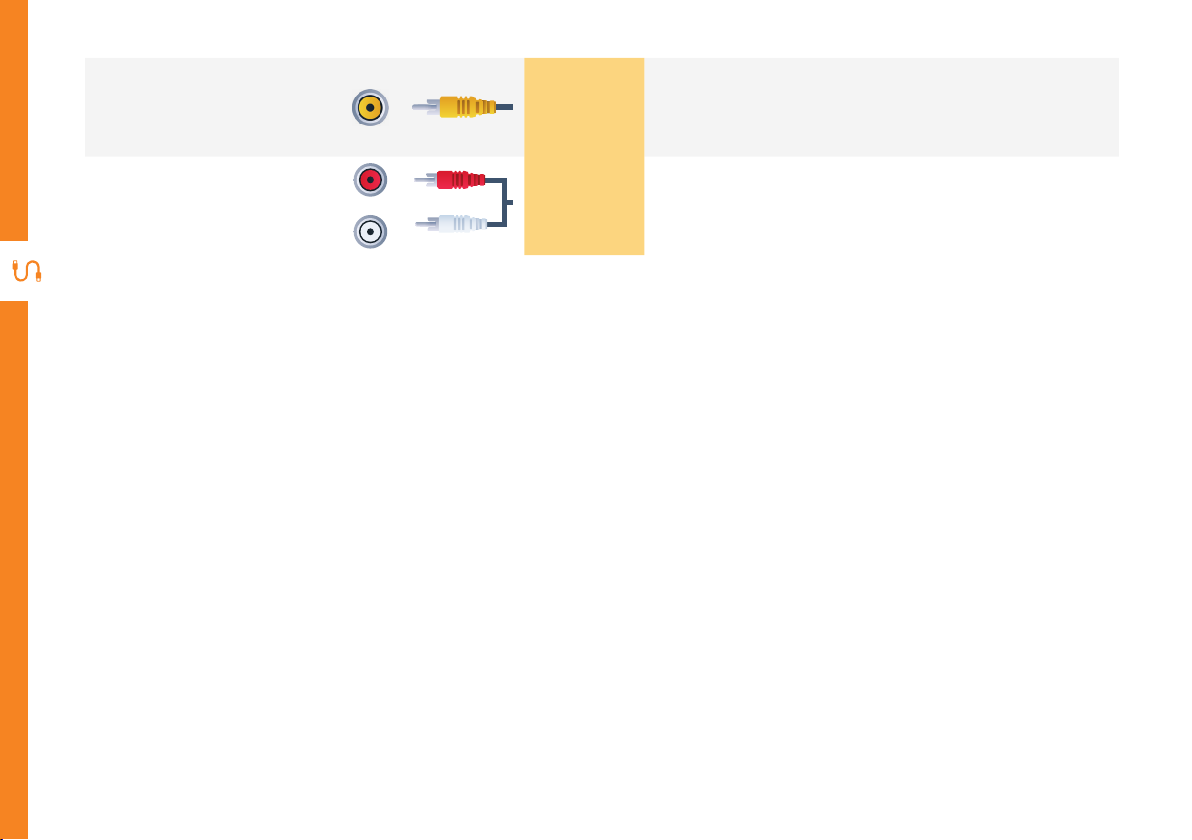

7VIDEO IN
SOUND
You can use this to connect your DVD player. Supports
Standard Definition (SD) picture quality. Requires an AV cable
(not included).
8AUDIO IN
SOUND
You can use this to connect Audio to your TV for AV or
Component video inputs. Requires an AV cable (not included).

REMOTE CONTROL | 13
Setup

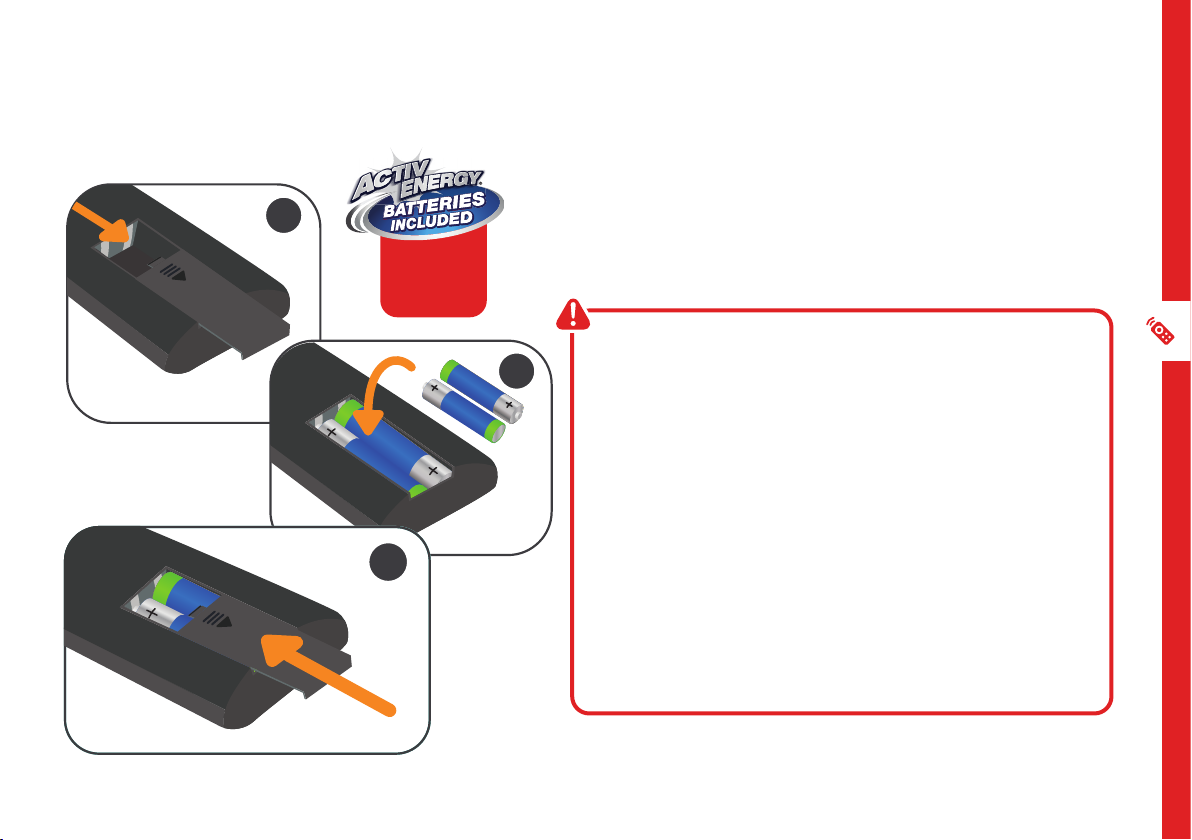

Insert two AAA size batteries according to the polarity
markings (+/-) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included
1
2
3

14 | REMOTE CONTROL
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.
The remote has a range of up to about 5 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote
sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.
5m

REMOTE CONTROL | 15
Standard Remote
(ON):Switch the TV to On or
Standby
NUMBER BUTTONS: Key in a TV
channel number
EPG: Display Electronic Program Guide
(SOURCE): Select the input source
+ V - : Increase/decrease volume level
(MUTE) :Mute or restore sound
:Enter teletext*
P :Go to the next or
previous program
:Enter the Home page
* Teletext is no longer available
in Australia

16 | REMOTE CONTROL
: Access TV settings, Menu
/ / / : Press the UP/DOWN/
LEFT/RIGHT buttons to navigate
BACK: Return to the previous screen/
menu
: Launch the Netflix app
: Launch the Amazon Prime Video
app
/ / / RED/GREEN/
YELLOW/BLUE: Functions are according
to the on-screen display.
: Rewind the track
(RECORD): Record live TV
(INFO): Display program information
OK: Confirm your selection
EXIT: Exit/quit the current screen
: Launch the YouTube app
USB : Enter USB mode
: Fast forward the track
: Play/pause content
AUDIO: Change language
:Stop playback

REMOTE CONTROL | 17
HOME
Easy Remote
(POWER):Switch the TV to On
or Standby
/ / / :Press the UP/
DOWN/LEFT/RIGHT buttons to
navigate
BACK:Return to previous
screen/menu
HOME: Access streaming apps,
TV settings
VOL : Turn the volume up or
down
GUIDE: Launch the TV Guide (DTV)
SOURCE: Switch the input
source
OK: Confirm your selection
EXIT: Exit/Quit the current
screen
CH : Go to the next or
previous channel
: Mute the sound. Press again
or press VOL+ to restore the sound

18 | ON-SCREEN SET UP
Make sure the TV is plugged in at
the power socket and switched
on. Press the (ON) button to
turn on the TV.
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
10-12) before connecting the TV to power.
On/Standby light is RED
in standby mode.
On/Standby light is OFF
when the TV is on.
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / OK buttons
to select your preferences. You will be guided through:
1. L3. Country2. Data Collection and Firmware Update
4. Connect to the Internet 5. Select Input Source 6. Channel Tuning
anguage
Note: If you choose to setup Netflix or select an input source other
than DTV, the set up wizard will exit and will not let you tune TV
channels.
To tune channels, go to Menu >Program > Auto Tuning.
If you make an error, you can update your preferences
in the settings menu later.
If you are using a wired network, connect an ethernet cable to the
TV and select 'wired'. The TV will automatically connect to the
Internet.
If you are using a wireless connection, select 'Wireless'. The TV will
scan for nearby wireless networks. Make sure that the TV is within
the range of your wireless modem/router, and you have your Wi-Fi
password handy.
Or, you can connect to the internet later by going to the User Menu
settings.
4. Connect to the Internet

NETWORKING | 19
Networking
You can set up your TV so that it can access the Internet
through your home network using a wired or wireless
connection.
Connecting to a Wireless Network
• Press the button on the remote to select TV Settings
> Network.
• Change network type to 'Wireless' and press ok. The
TV will automatically search nearby Wi-Fi access points.
When done, it will display a list of available networks.
• In the list of networks, press the / button to select
your home network, then press the OK button.
• When the Wi-Fi password entry screen appears, use the
on-screen keyboard. Use the / / / buttons on
the remote control to select a character and press OK to
enter it.
• Input the correct password, select ‘Connect’ and press
the OK button to connect to the network. If connection
is successful, a tick will appear next to your Wi-Fi
networks's name.
If the TV isn't connecting
to the internet check the
troubleshooting section for
more info!

20 | NETWORKING
Connecting to a Wired Network
• Connect an ethernet cable to the LAN port on the
back of the TV.
• Press the button on your remote to select TV
Settings > Network.
• Change the Network Type setting to 'Wired'. The
TV will automatically pick up the network setting
from the modem and connect to the network. If
connection is successful, you will see 'Connected'
on-screen.
• Press the EXIT button to close the menu.
Make sure you have an ethernet
cable on hand if you want to
connect to a wired network
