Baumalight MS972 User manual

iMS760, MS960, MS972 And MS1160 Brush Mulcher
OPERATOR’S MANUAL
Issue Date: October 2022

TABLE OF CONTENTS
1 INTRODUCTION����������������������������������������������������������������������������������������������������������������������������������� 1
1�1 Overview�������������������������������������������������������������������������������������������������������������������������������������� 1
1�2 Intended Use And Foreseeable Misuse ������������������������������������������������������������������������������������ 1
2 SAFETY ������������������������������������������������������������������������������������������������������������������������������������������������ 2
2�1 Safety Alert Symbol And Safety Words������������������������������������������������������������������������������������ 2
2�2 Operational Hazards������������������������������������������������������������������������������������������������������������������� 2
Prepare for Emergencies ����������������������������������������������������������������������������������������������������������� 3
Replace Safety Signs ����������������������������������������������������������������������������������������������������������������� 3
Do Not Allow Riders ������������������������������������������������������������������������������������������������������������������� 3
Lower Operating Speed ������������������������������������������������������������������������������������������������������������� 3
Avoid Rollover ���������������������������������������������������������������������������������������������������������������������������� 4
Avoid Powerlines & Underground Utilities ������������������������������������������������������������������������������ 4
Detach Brush Mulcher Safely���������������������������������������������������������������������������������������������������� 4
Hazards From Modifying Equipment ���������������������������������������������������������������������������������������� 5
2�3 Maintenance Hazards����������������������������������������������������������������������������������������������������������������� 6
3 SAFETY SIGNS ������������������������������������������������������������������������������������������������������������������������������������ 8
4 INITIAL SETUP ����������������������������������������������������������������������������������������������������������������������������������� 10
4�1 Hydraulics ��������������������������������������������������������������������������������������������������������������������������������� 10
4�2 Motor Pressure Port ����������������������������������������������������������������������������������������������������������������� 10
4�3 Maximum Allowable Case Pressure ��������������������������������������������������������������������������������������� 10
4�4 Optional Two Speed Motor Setup ������������������������������������������������������������������������������������������� 10
5 OPERATION ��������������������������������������������������������������������������������������������������������������������������������������� 12
5�1 Preparation For Use ����������������������������������������������������������������������������������������������������������������� 12
5�2 Pre-Operation Check List �������������������������������������������������������������������������������������������������������� 13
5�3 Machine Components �������������������������������������������������������������������������������������������������������������� 14
5�4 Attach To Skidsteer ������������������������������������������������������������������������������������������������������������������ 15
5�5 Detach From Skidsteer ������������������������������������������������������������������������������������������������������������ 15
5�6 Transporting������������������������������������������������������������������������������������������������������������������������������ 16
5�7 Carbide Teeth Break-In������������������������������������������������������������������������������������������������������������� 16
5�8 First Time User Tips ����������������������������������������������������������������������������������������������������������������� 17
5�9 Field Operation ������������������������������������������������������������������������������������������������������������������������� 18
5�10 Clearing Jams ������������������������������������������������������������������������������������������������������������������������� 20
6 SERVICE AND MAINTENANCE��������������������������������������������������������������������������������������������������������� 21
6�1 Maintenance������������������������������������������������������������������������������������������������������������������������������ 21
6�2 Inspections�������������������������������������������������������������������������������������������������������������������������������� 21
6�3 Check Belt Tension������������������������������������������������������������������������������������������������������������������� 22
6�4 Replace Belt ������������������������������������������������������������������������������������������������������������������������������ 23
6�5 Replace Cutting Teeth�������������������������������������������������������������������������������������������������������������� 24
6�6 Zero Leak Case Drain Relief Valve������������������������������������������������������������������������������������������ 25
6�7 Lubricate Rotor Bearings �������������������������������������������������������������������������������������������������������� 26
7 TROUBLESHOOTING������������������������������������������������������������������������������������������������������������������������ 27
8 STORAGE������������������������������������������������������������������������������������������������������������������������������������������� 28
8�1 Storing Mulcher ������������������������������������������������������������������������������������������������������������������������ 28
8�2 Removing Mulcher From Storage ������������������������������������������������������������������������������������������� 28
BAUMALIGHT ATTACHMENT WARRANTY ���������������������������������������������������������������������������������������� 29
ii

1 INTRODUCTION
Congratulations on your choice of a Baumalight
Brush Mulcher to complement your mulching
operation. This equipment has been designed and
manufactured to meet the needs of a discriminating
buyer for efcient mulching of brush.
The rotor is hydraulic powered by the hydraulic
system on your skidsteer.
Replaceable bearings are provided at major pivot
points for extended service life.
Safe, efcient and trouble free operation of your
brush mulcher requires that you and anyone
else who will be operating or maintaining the
brush mulcher, read and understand the Safety,
Operation, Maintenance and Troubleshooting
information contained within the Operator’s
Manual.
This manual covers the Baumalight 900 Series
Brush Mulchers. Use the Table of Contents as a
guide to locate required information.
Keep this manual handy for frequent reference
and to pass on to new operators or owners. Call
your Baumalight dealer, distributor or the factory
if you need assistance, information or additional
copies of the manuals.
When this machine is worn out and no longer in
use, it should be returned to the retailer or other
party for recycling.
OPERATOR ORIENTATION - The directions left,
right, front and rear, as mentioned throughout this
manual, are as seen from the skidsteer driver’s
seat and facing in the direction of travel.
1�1 Overview
The brush mulcher is designed to be used
by experienced operators, trained in the safe
operation of a skidsteer and trained in the hazards
related to using the brush mulcher and the safe use
of the mulcher for the intended purpose. Operators
will require personal protective equipment to
reduce the risk from some hazards that cannot be
completely eliminated or controlled by the design
of the tool.
Care is required to ensure that the brush mulcher
tool will not come across metallic objects, stones
or other materials.
Brush mulcher tools are not designed for use in
hazardous atmospheres where there is a risk
of re or explosion due to ammable gases or
vapors. Use in hazardous, explosive atmospheres
is prohibited.
Serious injury or death of the operator or bystanders
may be caused if the tool is misused. Misuse may
also cause damage to the machine carrying the
implement.
1�2 Intended Use And Foreseeable
Misuse
1

2 SAFETY
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted
by the safety alert symbol:
^
This symbol means ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury�
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury�
^ CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury�
NOTICE
NOTICE - Indicates a situation that could
result in damage to the equipment or
other property�
2�1 Safety Alert Symbol And Safety
Words
2�2 Operational Hazards
^ WARNING
Prevent serious injury or death�
Read and understand this manual before
operating brush mulcher�
Always stop engine and remove key
before leaving operators seat�
Never allow anyone near the brush
mulcher during operation�
Travel at a safe speed�
^ WARNING
Prevent serious injury or death from
moving parts�
Moving parts can crush and dismember�
Do not operate without guards and
shields in place�
Disconnect and lock out power source
before adjusting or servicing�
^ WARNING
Use brush mulcher only for the designed
applications�
Any other use may result in personal
injury, damage to equipment and may
void the warranty�
2

^ WARNING
Prevent serious injury or death�
Verify brush mulcher is attached to
skidsteer before operation or transport�
^ WARNING
Protect from ying debris.
Wear proper safety glasses, goggles,
or a face shield to protect from ying
debris�
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety signs
in good condition and replace missing or damaged
safety signs.
New equipment components and repair parts must
include the current safety decal.
Learn how to properly operate equipment.
NEVER operate or work around this equipment
without proper instruction, while fatigued or under
the inuence of alcohol, prescription or non-
prescription medication or if feeling ill.
Keep your equipment in proper working condition.
Know the regulations and laws that apply to you
and your industry. This manual is not to replace
any regulations or laws. Additional information
may be found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Baumalight at 866-820-5603.
Prepare for Emergencies

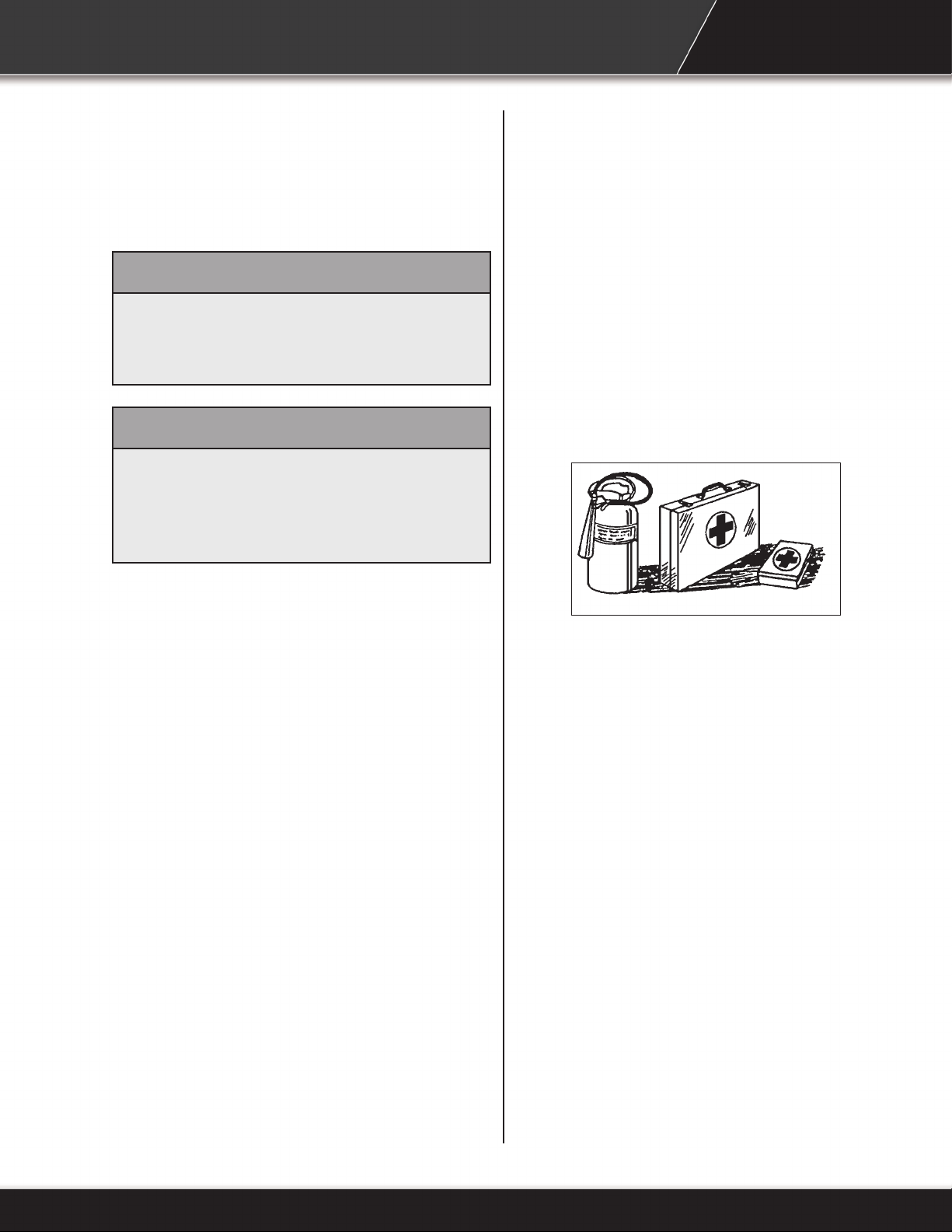

• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close
to the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services
can locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Baumalight dealer.
Do Not Allow Riders
• NEVER lift or carry anyone with brush mulcher.
• NEVER use brush mulcher as a work
platform.
• NEVER allow passengers on brush mulcher.
Lower Operating Speed
• Lower operating speed while loading,
unloading or performing heavy operations.
• Keep load low and move at slow speeds on
rough or uneven terrain.
3

Avoid Rollover
The equipment may rollover, resulting in death or
serious injury. To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on
slopes.
• Carry loads close to the ground.
• Avoid holes, ditches and other obstructions
which may cause equipment to rollover.
• Balance load so weight is evenly distributed
and load is stable.
• Use caution when operating on slopes and do
not operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines & Underground
Utilities
^^ DANGER
Prevent electrocution�
Death or serious injury can result if
equipment comes near or contacts
power lines�
Electrocution can occur without direct
contact�
DO NOT leave the operator’s seat if any part of the
equipment contacts electric lines or cables.
Detach Brush Mulcher Safely
Detach brush mulcher on a rm and level surface.
Brush mulcher may fall over if detached on sloping
or soft surface. Be sure people, livestock and pets
are clear of machinery.
Relieve hydraulic pressure before disconnecting
hydraulic hoses. See your skidsteer Operator’s
Manual.
Raised Attachment
^ WARNING
Crushing hazard�
Raised, unsupported brush mulcher can
fall, resulting in death or serious injury�
Never enter the area under a raised
brush mulcher�
A raised brush mulcher can lower unexpectedly,
resulting in death or serious injury.
NEVER enter area under a raised brush mulcher.
Lower brush mulcher to ground, engage parking
brake, shut off engine and remove key before
servicing.
4

Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing�
Wear a suitable hearing protective
device such as earmuffs or earplugs
to protect against objectionable or
uncomfortable loud noises�
Hazards From Modifying Equipment
Do not make any alterations to your brush
mulcher. Altering the equipment may cause unsafe
conditions and may void the manufacturer’s
warranty.
Avoid Wood Dust Inhalation
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
Avoid High Pressure Fluids
^ WARNING
Pressurized uids can penetrate the
skin�
Hydraulic hoses can fail from age,
damage and exposure�
Use body and face protection while
searching for leaks� A tiny, almost
invisible leak can penetrate the skin,
thereby requiring immediate medical
attention�
Use wood or cardboard to detect
hydraulic leaks, never use your hands�
Escaping uid under pressure can penetrate the
skin causing serious injury.
Prevent the hazard by relieving pressure (See
skidsteer Operator’s Manual.) before connecting
or disconnecting hydraulic lines. Verify all
connections are tight before applying pressure.
Search for leaks with a piece of cardboard or wood.
Protect hands and body from high pressure uids.
If an accident occurs, see a doctor immediately.
Any uid injected into the skin must be surgically
removed within a few hours or serious infection
may result.
5

2�3 Maintenance Hazards
Before servicing, park machine on a rm and
level surface, set parking brake, chock wheels,
and place a “Do Not Operate” tag on control
panel. Read and understand this manual. If you
do not understand any part of the manual, contact
Baumalight at 866-820-5603.
Always wear face and/or eye protection, safety
shoes, and other protective equipment appropriate
for the job.
Do not make unauthorized modications. Contact
Baumalight at 866-820-5603 before you weld, cut/
drill holes, or make any other modications.
Always use Baumalight replacement parts.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
^WARNING
Entanglement hazard�
Keep clear of moving components�
Wear proper protective equipment
appropriate for the job�
^WARNING
Burn hazard�
Hot and high pressure hydraulic oil�
Allow oil to cool before servicing�
^WARNING
Crushing hazard�
Before performing inspections, service
or maintenance:
Park machine on rm, level surface.
Engage parking brake�
Turn engine off and remove key�
Place “Do Not Operate” tag on control
panel�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
6

7

A. D005253 ^ WARNING - Pressurized uid
hazard. Pressurized uids can penetrate the
skin. Do not check for leaks with your hands.
Keep back a safe distance when pressurized.
D005126
B. D005262 ^WARNING - P65 warning
information.
WARNING: This product can expose you to chemicals
including 1,3-Butadiene and lead, which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
D005262
The two and four panel safety decals are pictorial
and have a yellow background. The panel with a
triangle indicates the potential hazard. The panel
without a triangle indicates how to avoid the
hazard.
If any of the decals are missing, are damaged, or
if you do not understand the decal, please contact
your dealer.
A
B
C
D
F
D
E
E
D
3 SAFETY SIGNS
8

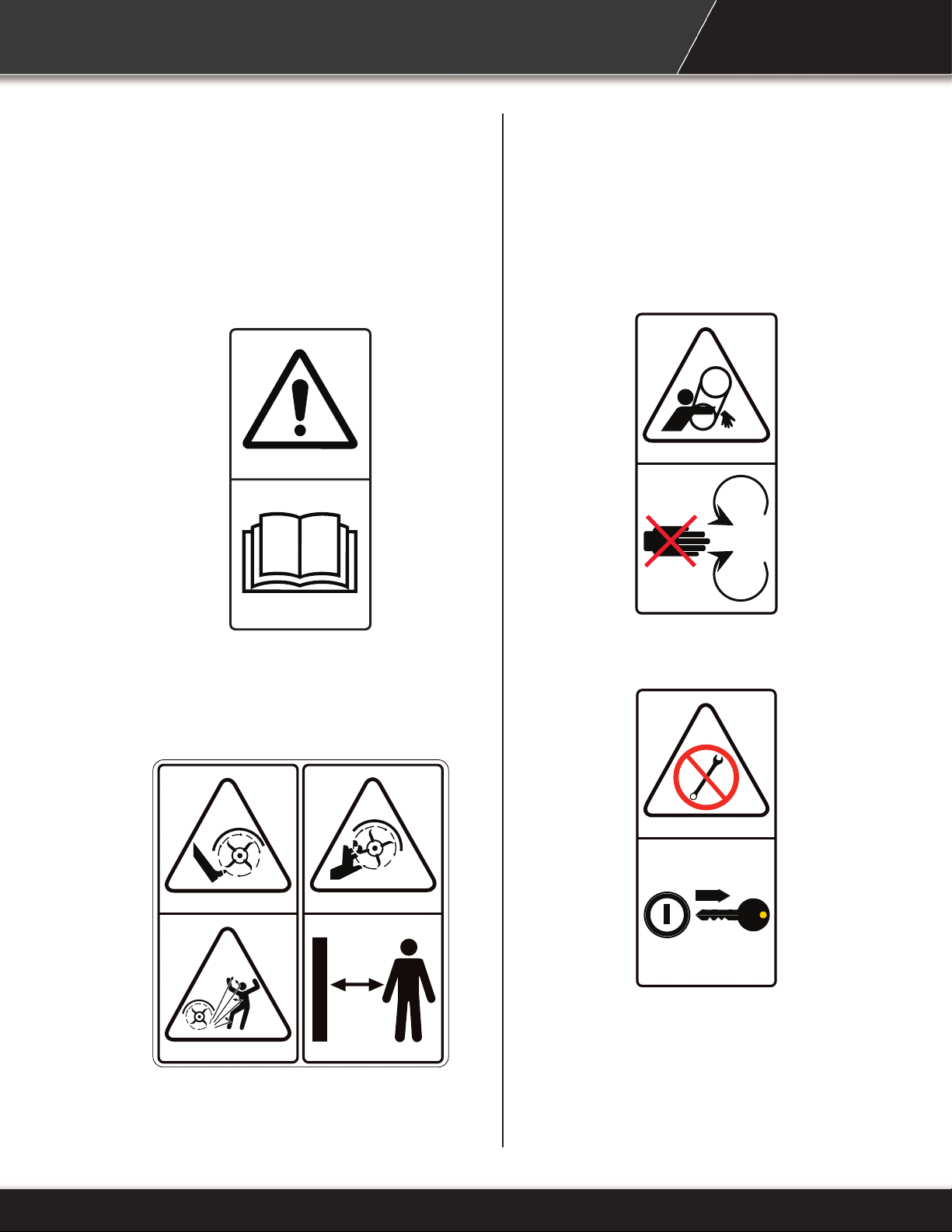

C. D005252 ^WARNING - Read and understand
safety signs on the machine and operating
instructions in this manual before operating
machine.
D005125
D. D005255 ^WARNING - Rotating blade
hazard. Keep back 75 m while machine
is operating. Wait for blade to stop before
approaching machine.
D005223
75 M
E. D005120 ^WARNING - Rotating parts
hazard. Do not reach into machine. Keep away
from machine.
D005129
F. D005521 ^WARNING - Remove key before
servicing.
D005517
9

^ WARNING
Pressurized uids can penetrate the
skin�
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses�
The mulcher is equipped with short hoses that
are connected to the hydraulic motor. You must
connect your skidsteer hoses to these hoses.
Hydraulic couplers are not provided with the
mulcher. You must install couplers and connect
your skidsteer pressure, return and case drain
hoses to the mulcher hoses. Install your couplers
to the hoses listed in the table below.
Fitting Size Hose Description Qty.
3/4 JIC FM Pressure & Return 2
3/8 JIC FM Case Drain 1
Identify the pressure port hose and connect your
hoses to the brush mulcher hoses.
4�2 Motor Pressure Port
C930 - A port on block (B port on motor)
C940 - A port on block (B port on motor)
C950 - A port on block (B port on motor)
C970 - A port on block (B port on motor)
4�3 Maximum Allowable Case
Pressure
C930 - 100 psi, case drain required.
C940 - 100 psi, case drain required.
C950 - 100 psi, case drain required.
C970 - 100 psi, case drain required.
4 INITIAL SETUP
4�1 Hydraulics 4�4 Optional Two Speed Motor Setup
The optional two speed motor requires ne tuning
to the ow provided by the carrier machine.
The ne tuning will need to be performed in the
eld while operating in conditions where normal
work will be performed.
Baumalight recommends this be done by the
Dealer or Territory Sales Rep.
^ WARNING
Moving parts can crush and cut�
Entanglement hazard�
Keep clear of moving components�
1. An RPM meter is required. Open cover and
place reective tape (A) on bearing end of
shaft. Measuring shaft speed on the bearing
end will provide the most accurate results.
RPM setting from factory is 1525 RPM with 36
GPM.
A
10

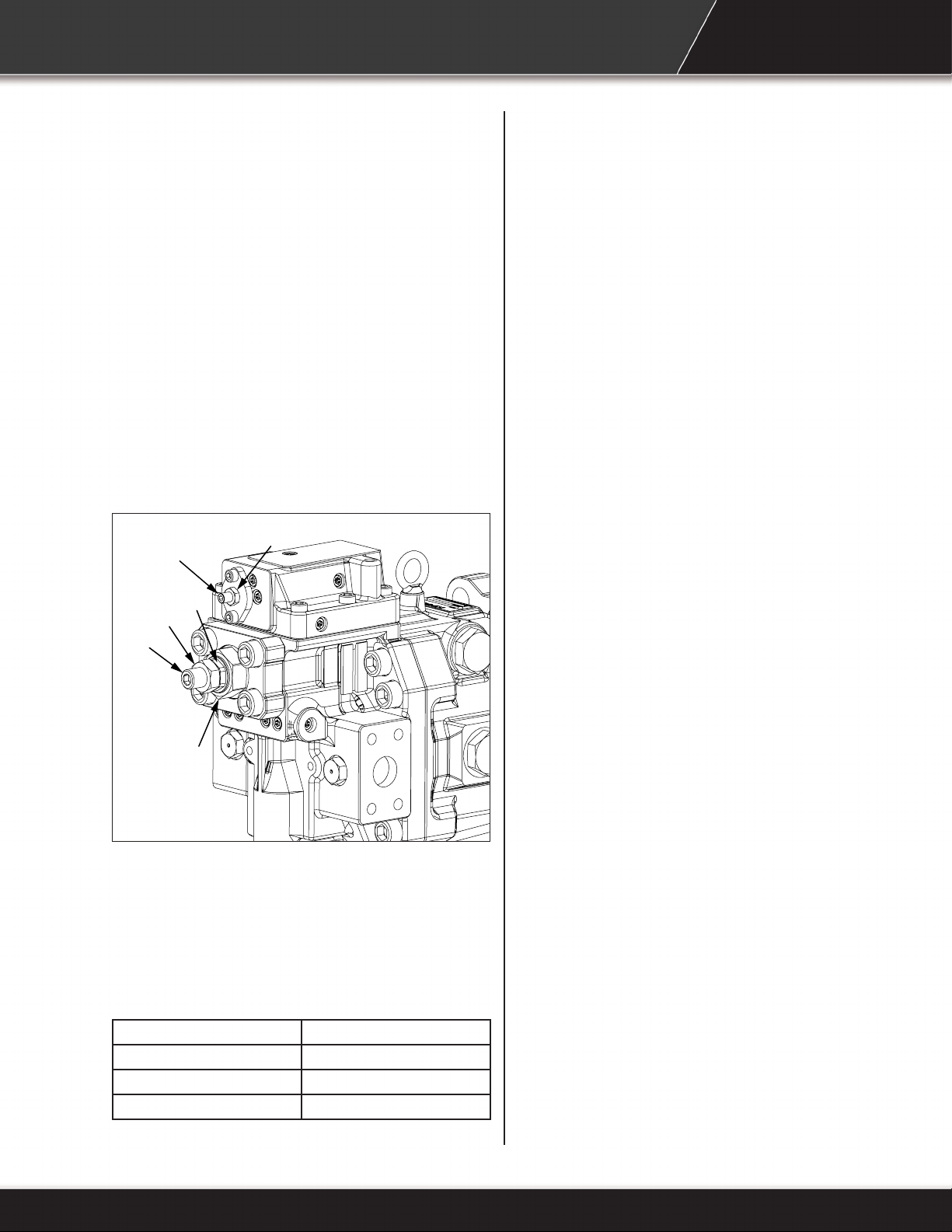

2. Loosen nut (B).
3. For high speed setting (1st speed), 1900 RPM
is recommended. To adjust high speed, turn
nut (C).
4. For low speed high torque setting (2nd speed),
1750 RPM is recommended. To adjust low
speed, loosen nut (D) and turn nut (E).
5. Tighten nuts (B) and (D) and test operation.
Adjust again if necessary.
B
C
E
F
G
D
6. Adjust pressure trip point setting with screw
(F). Trip pressure is the setting where the motor
switches down to the low speed high torque
speed. Loosen nut (G) and turn screw (F) to
adjust trip point. See table below for suggested
setting.
Skidsteer Pressure Trip Point Pressure
3000 psi (207 bar) 2200 psi (193 bar)
3500 psi (241 bar) 2700 psi (214 bar)
4000 psi (276 bar) 3200 psi (241 bar)
7. Tighten nut (G) and check pressure. Adjust
again if necessary.
8. Install or close all covers.
11

^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
Although the brush mulcher has been carefully
inspected and checked prior to shipment from
manufacturer, it is recommended that the unit be
thoroughly inspected.
Check all bolts for tightness and remove all
shipping tags, bags, skids, and blocking.
Review and understand this manual and operating
unit manual.
Remove any masking materials afxed during
painting. Inspect the mulcher and any accessory
equipment to verify that nameplates and all safety
warning, caution signs and decals provided with
the equipment are in place and clearly visible.
Visually inspect the unit before each start up.
Check for loose or missing parts and any damage
that may have occurred during moving or shipping.
Review all skidsteer pre-start instructions, and be
sure that all recommended steps and procedures
have been followed.
5 OPERATION
5�1 Preparation For Use
Note: Always keep the weight of the machine in
mind. Never position body in line of impact.
12

Check-mark Check these items: Frequency
Verify that mulcher is properly attached to skidsteer. Each operation.
Verify that hydraulic hoses are connected to skidsteer
hydraulic couplers.
Each operation.
Check for entangled material on rotor. Each operation.
Verify all guards, doors and covers are installed and secured. Each operation.
Verify cutting teeth on the rotor are tight. Every 4 hours.
Check belt chamber. Every 4 hours.
5�2 Pre-Operation Check List
13

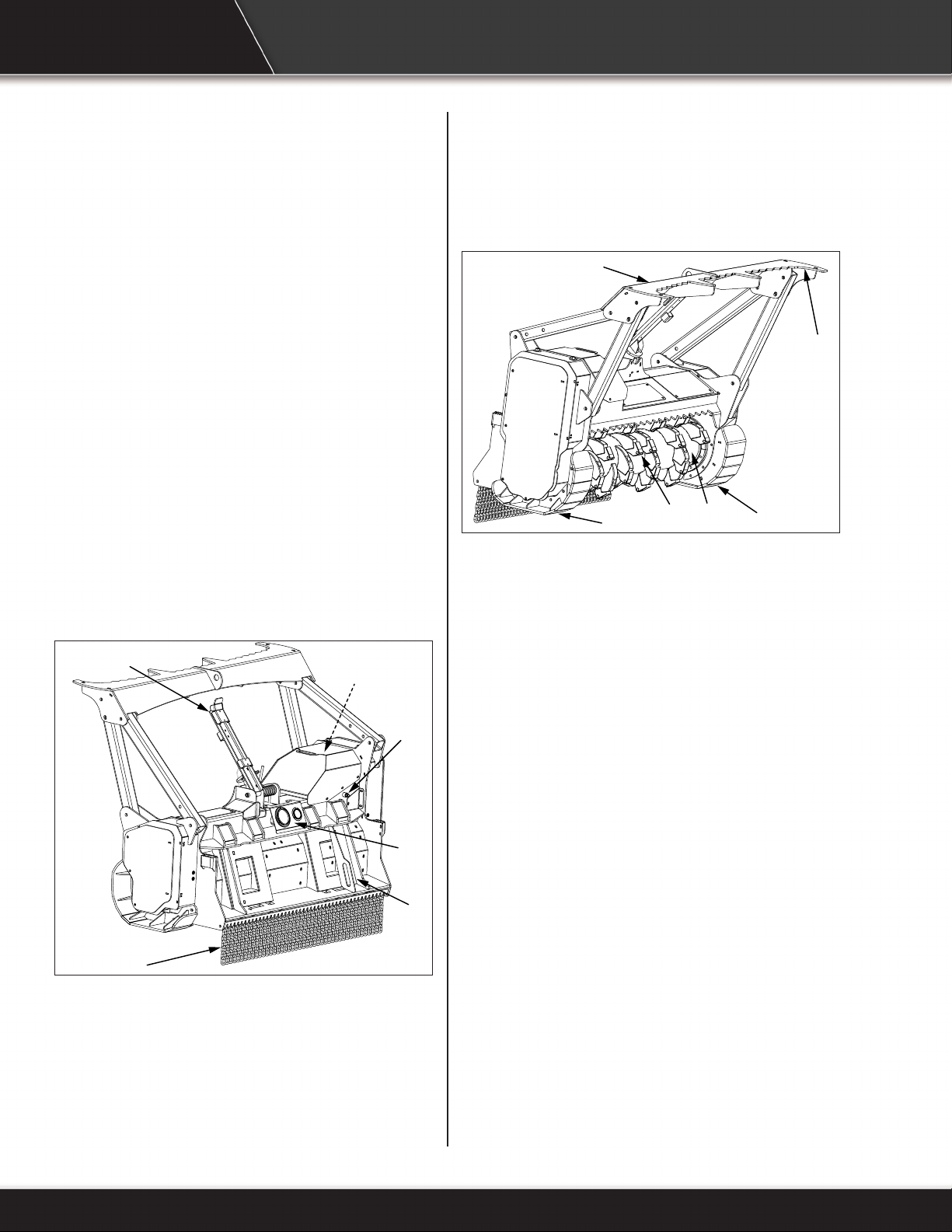

5�3 Machine Components
Dashed line indicates item hidden from view unless
cover is removed.
A. Spring Loaded Hose Support
B. Hydraulic Motor
C. Case Drain Burst Disk
D. Hydraulic And Case Drain Pressure Gauges
E. Quick Attach
F. Chain Curtain
G. Push Bar
H. Directional Felling Hook
I. Rotor
J. Cutting Teeth
K. Adjustable Skid Shoes
A
B
C
D
E
F
G
K
H
I
J
K
14

5�4 Attach To Skidsteer
^WARNING
To prevent injury or machine damage
put transmission in “Park”�
Never position yourself between
skidsteer and brush mulcher�
Only experienced and properly trained
operator’s should operate the skidsteer
and brush mulcher�
1. Read and follow all safety instructions.
2. Attach mulcher to skidsteer. See skidsteer
Operator’s Manual.
3. Verify pins are secure in the correct position.
4. Connect hydraulic hoses. Verify hydraulic
hoses are clear of pinch areas and moving
parts.
5. Move to a clear open area to test functions
5�5 Detach From Skidsteer
^WARNING
Prevent serious injury or death caused
by unexpected movement:
1� Park skidsteer on a level surface�
2� Engage skidsteer park brake�
3� Disconnect hydraulic drive�
4� Shut off engine and remove key�
1. Park skidsteer on a level surface.
2. Lower mulcher to the ground.
3. Shut off engine and remove key.
4. Disconnect hydraulic hoses.
5. Detach mulcher from skidsteer. See skidsteer
Operator’s Manual
15

5�6 Transporting
1. Verify all reectors and Slow Moving Vehicle
(SMV) sign are visible.
2. Raise brush mulcher slightly off ground.
3. Verify hydraulics are disengaged.
4. Travel at a reasonable and safe speed.
^WARNING
To prevent bodily injury from rotating
cutting wheel, be sure to disengage
hydraulics before transporting mulcher�

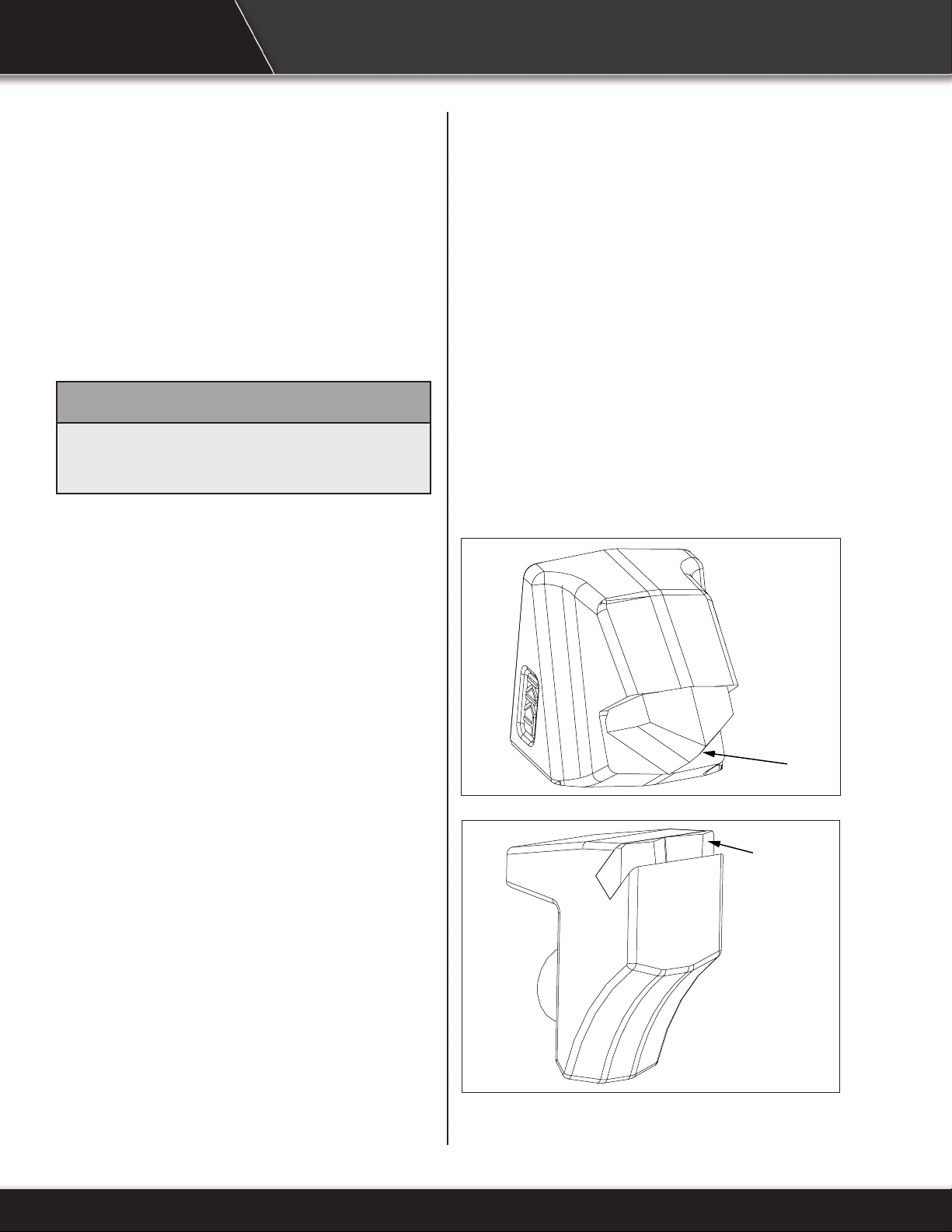

5�7 Carbide Teeth Break-In
During the rst few hours of use, avoid hitting
stones as much as possible to allow the carbide
teeth (A) to wear slightly. This can be done by
keeping the cutting wheel above ground level.
Brand new carbide tips are razor sharp and can
chip and shatter easily when they hit hard objects.
Once the razor sharpness has worn away, the tips
do not chip as easily. Observing these precautions
will extend the life of the carbide teeth and reduce
operating expenses.
The teeth bolts must be retighten every ten minutes
for the rst hour of use on a new mulcher.
A
700 Series Teeth
A
900 Series Teeth
16

A
1100 Series Teeth
5�8 First Time User Tips
• First, operate all functions in a clear area with
skidsteer at idle speed to get a good feel for
the controls before you actually move into any
brush.
• Choose low density brush and move into it
slowly, do not expect to get the rst area done
fast.
• Slow travel speed if pressure surges up close
to max psi, doing this will greatly reduce rotor
jams, and with practice, will almost eliminate
jams.
• Run throttle only at half speed for rst time
users.
• Operate with mulcher slightly raised until you
have a better feel how much the unit can take.
• The machine is equipped with a push bar and
a felling hook to push brush or small trees over.
This will allow the mulcher teeth to contact the
lower portion of the brush and mulch it or cut
it off. The rest of the plant will be mulched as
the machine moves through the working area.
• For tall brush, you can use the push bar to
push the brush over and cut it off close to
ground. Each operator must experiment to
nd a technique that works for them in their
application.
• Although it is best to mulch when it is dry, the
machine works well in wet conditions. However,
you must travel slower to do the same quality
mulching. It will also be necessary to clean the
machine more frequently to prevent caking
and clogging of the rotor area.
^WARNING
Always turn off the skidsteer and
disengage hydraulic drive before
getting off the seat and approaching the
cutting wheel�
17

^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
5�9 Field Operation
^ WARNING
Prevent serious injury or death caused
by unexpected movement:
1� Park skidsteer on a level surface�
2� Engage skidsteer park brake�
3� Disengage hydraulic drive�
4� Shut off engine and remove key�
^ WARNING
Never operate brush mulcher when
other people are in the vicinity�
Do not allow riders on skidsteer�
^WARNING
Never operate brush mulcher when
other people are in the vicinity� Debris
can be thrown several feet from cutting
area� Keep all shields in place�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
18
This manual suits for next models
3
Table of contents
Other Baumalight Farm Equipment manuals
