DSM230 And DSM530 Tree Saw
OPERATOR’S MANUAL
Issue Date: October 2021
DSM230
DSM530

TABLE OF CONTENTS
1 INTRODUCTION ����������������������������������������������������������������������������������������������������������������������������������� 1
1�1 Overview���������������������������������������������������������������������������������������������������������������������������������������� 1
1�2 Intended Use And Foreseeable Misuse�������������������������������������������������������������������������������������� 1
2 SAFETY�������������������������������������������������������������������������������������������������������������������������������������������������� 2
2�1 Safety Alert Symbol And Safety Words�������������������������������������������������������������������������������������� 2
2�2 Operational Hazards��������������������������������������������������������������������������������������������������������������������� 2
Prepare For Emergencies ������������������������������������������������������������������������������������������������������������ 3
Replace Safety Signs ������������������������������������������������������������������������������������������������������������������� 3
Do Not Allow Riders ��������������������������������������������������������������������������������������������������������������������� 3
Lower Operating Speed ��������������������������������������������������������������������������������������������������������������� 3
Avoid Rollover ������������������������������������������������������������������������������������������������������������������������������ 4
Avoid Powerlines & Underground Utilities �������������������������������������������������������������������������������� 4
Detach Tree Saw Safely���������������������������������������������������������������������������������������������������������������� 4
Hazards From Modifying Equipment ������������������������������������������������������������������������������������������ 5
2�3 Maintenance Hazards������������������������������������������������������������������������������������������������������������������� 7
3 SAFETY SIGNS������������������������������������������������������������������������������������������������������������������������������������� 8
4 OPERATION ���������������������������������������������������������������������������������������������������������������������������������������� 10
4�1 Preparation For Use ������������������������������������������������������������������������������������������������������������������� 10
4�2 Pre-Operation Check List ���������������������������������������������������������������������������������������������������������� 10
4�3 Machine Components �����������������������������������������������������������������������������������������������������������������11
4�4 Attach Tree Saw �������������������������������������������������������������������������������������������������������������������������� 12
4�5 Detach Tree Saw ������������������������������������������������������������������������������������������������������������������������� 12
4�6 Transporting�������������������������������������������������������������������������������������������������������������������������������� 13
4�7 Carbide Teeth Break-In��������������������������������������������������������������������������������������������������������������� 13
4�8 Hydraulic Connections �������������������������������������������������������������������������������������������������������������� 14
4�9 First Time User Tips ������������������������������������������������������������������������������������������������������������������� 14
4�10 Rotate Cutting Head ����������������������������������������������������������������������������������������������������������������� 15
4�11 Field Operation ������������������������������������������������������������������������������������������������������������������������� 17
5 SERVICE AND MAINTENANCE�������������������������������������������������������������������������������������������������������� 19
5�1 Maintenance�������������������������������������������������������������������������������������������������������������������������������� 19
5�2 Inspections���������������������������������������������������������������������������������������������������������������������������������� 19
5�3 Rotate Cutting Teeth������������������������������������������������������������������������������������������������������������������� 20
5�4 Replace Cutting Teeth���������������������������������������������������������������������������������������������������������������� 20
5�5 Motor Shaft Seal ������������������������������������������������������������������������������������������������������������������������� 21
5�6 Zero Leak Case Drain Relief Valve�������������������������������������������������������������������������������������������� 21
6 TROUBLESHOOTING ������������������������������������������������������������������������������������������������������������������������ 23
7 STORAGE�������������������������������������������������������������������������������������������������������������������������������������������� 24
7�1 Storing Tree Saw ������������������������������������������������������������������������������������������������������������������������ 24
7�2 Remove Tree Saw From Storage����������������������������������������������������������������������������������������������� 24
8 WARRANTY����������������������������������������������������������������������������������������������������������������������������������������� 25
ii

1 INTRODUCTION
Congratulations on your choice of a Baumalight
Tree Saw to complement your pruning, trimming
and clearing operation. This equipment has been
designed and manufactured to meet the needs
of a discriminating buyer for ecient clearing of
brush, shrubs and trees.
The blade is hydraulic powered by the hydraulic
system on your skidsteer.
Replaceable bearings are provided at major pivot
points for extended service life.
Safe, ecient and trouble free operation of your
Tree Saw requires that you and anyone else
who will be operating or maintaining the Tree
Saw, read and understand the Safety, Operation,
Maintenance and Troubleshooting information
contained within the Operator’s Manual.
This manual covers the DSM230 and DSM530
Baumalight Tree Saw. Use the Table of Contents
as a guide to locate required information.
Keep this manual handy for frequent reference
and to pass on to new operators or owners. Call
your Baumalight dealer, distributor or the factory
if you need assistance, information or additional
copies of the manuals.
When this machine is worn out and no longer in
use, it should be returned to the retailer or other
party for recycling.
OPERATOR ORIENTATION - The directions left,
right, front and rear, as mentioned throughout this
manual, are as seen from the operator’s seat and
facing in the direction of travel.
1�1 Overview
The Tree Saw is designed to be used by
experienced operators, trained in the safe
operation of a skidsteer and trained in the hazards
related to using the tree saw and the safe use of
the tree saw for the intended purpose. Operators
will require personal protective equipment to
reduce the risk from some hazards that cannot be
completely eliminated or controlled by the design
of the tool.
Care is required to ensure that the Tree Saw will
not come across metallic objects, stones or other
materials.
Tree Saw are not designed for use in hazardous
atmospheres where there is a risk of re or
explosion due to ammable gases or vapors. Use
in hazardous, explosive atmospheres is prohibited.
Serious injury or death of the operator or bystanders
may be caused if the tree saw is misused. Misuse
may also cause damage to the machine carrying
the implement.
1�2 Intended Use And Foreseeable
Misuse
1

2 SAFETY
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted
by the safety alert symbol:
^
This symbol means ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury�
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury�
^ CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury�
NOTICE
NOTICE - Indicates a situation that could
result in damage to the equipment or
other property�
2�1 Safety Alert Symbol And Safety
Words
2�2 Operational Hazards
^ WARNING
Prevent serious injury or death�
Read and understand this manual before
operating the tree saw�
Always stop engine and remove key
before leaving operators seat�
Never allow anyone near the tree saw
during operation�
Travel at a safe speed�
^ WARNING
Prevent serious injury or death from
moving parts�
Moving parts can crush and dismember�
Do not operate without guards and
shields in place�
Disconnect and lock out power source
before adjusting or servicing�
^ WARNING
Use tree saw only for the designed
applications�
Any other use may result in personal
injury, damage to equipment and may
void the warranty�
2

^ WARNING
Prevent serious injury or death�
Verify tree saw is attached to skidsteer
before operation or transport�
^ WARNING
Protect from ying debris.
Wear proper safety glasses, goggles,
or a face shield to protect from ying
debris�
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety signs
in good condition and replace missing or damaged
safety signs.
New equipment components and repair parts must
include the current safety decal.
Learn how to properly operate equipment.
NEVER operate or work around this equipment
without proper instruction, while fatigued or under
the inuence of alcohol, prescription or non-
prescription medication or if feeling ill.
Keep your equipment in proper working condition.
Know the regulations and laws that apply to you
and your industry. This manual is not to replace
any regulations or laws. Additional information
may be found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Baumalight at 866-820-5603.

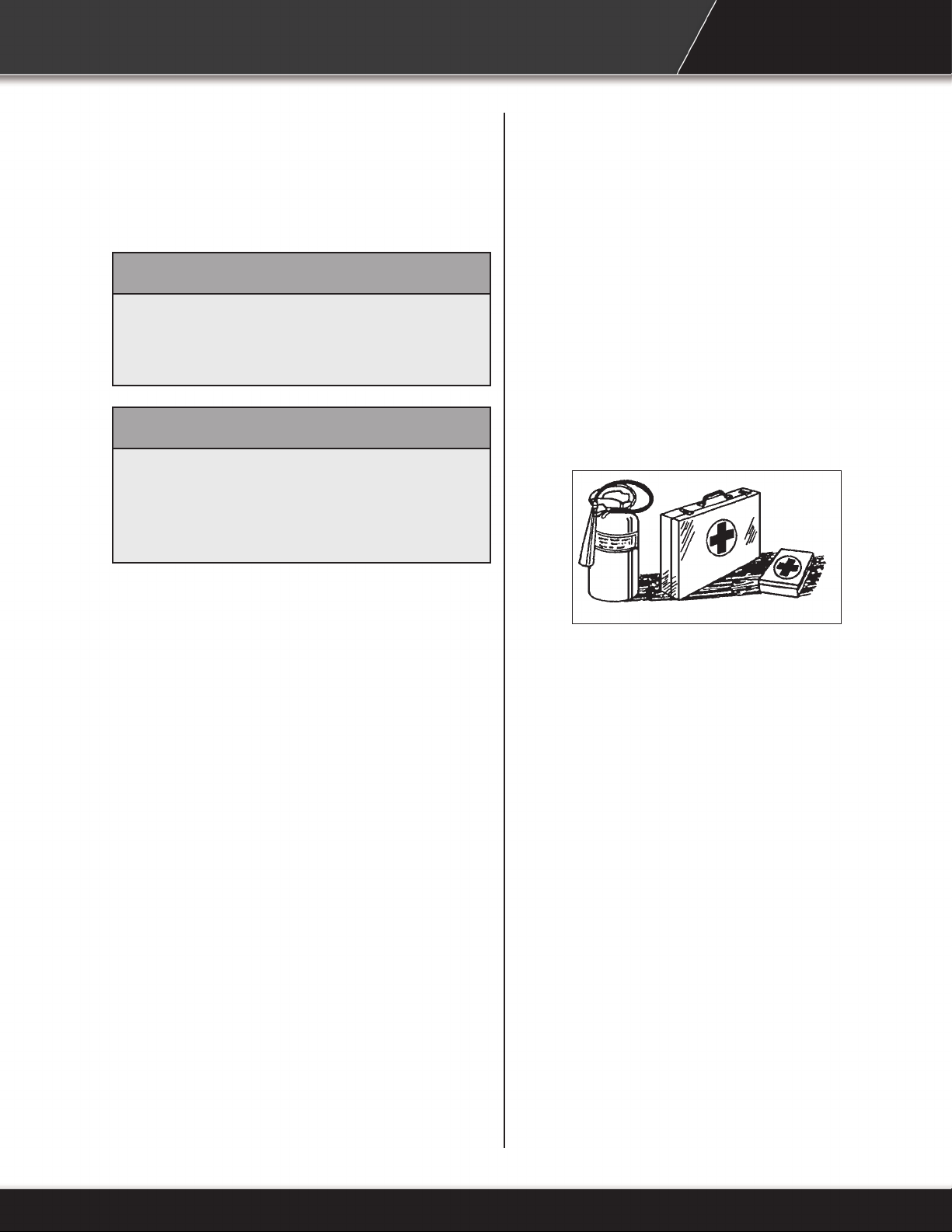

Prepare For Emergencies
• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close
to the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services
can locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Baumalight dealer.
Do Not Allow Riders
• NEVER lift or carry anyone on the Tree Saw.
• NEVER use Tree Saw as a work platform.
• NEVER allow passengers on the Tree Saw.
Lower Operating Speed
• Keep tree saw low and move at slow speeds
on rough or uneven terrain.
3

Avoid Rollover
The equipment may rollover, resulting in death or
serious injury. To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on
slopes.
• Carry tree saw close to the ground.
• Avoid holes, ditches and other obstructions
which may cause equipment to rollover.
• Use caution when operating on slopes and do
not operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines & Underground
Utilities
^^ DANGER
Prevent electrocution�
Death or serious injury can result if
equipment comes near or contacts
power lines�
Electrocution can occur without direct
contact�
DO NOT leave the operator’s seat if any part of the
equipment contacts electric lines or cables.
Detach Tree Saw Safely
Detach Tree Saw on a rm and level surface. Tree
Saw may fall over if detached on sloping or soft
surface. Be sure people, livestock and pets are
clear of machinery.
Relieve hydraulic pressure before disconnecting
hydraulic hoses. See your skidsteer Operator’s
Manual.
4

Raised Attachment
^ WARNING
Crushing hazard�
Raised, unsupported tree saw can fall,
resulting in death or serious injury�
Never enter the area under a raised Tree
Saw�
A raised Tree Saw can lower unexpectedly,
resulting in death or serious injury.
NEVER enter area under a raised Tree Saw.
Lower Tree Saw to ground, engage parking brake,
shut o engine and remove key before servicing.
Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing�
Wear a suitable hearing protective
device such as earmus or earplugs
to protect against objectionable or
uncomfortable loud noises�
Hazards From Modifying Equipment
Do not make any alterations to your Tree Saw.
Altering the equipment may cause unsafe
conditions and may void the manufacturer’s
warranty.
5

Avoid Wood Dust Inhalation
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
Avoid High Pressure Fluids
^ WARNING
Pressurized uids can penetrate the
skin�
Hydraulic hoses can fail from age,
damage and exposure�
Use body and face protection while
searching for leaks� A tiny, almost
invisible leak can penetrate the skin,
thereby requiring immediate medical
attention�
Use wood or cardboard to detect
hydraulic leaks, never use your hands�
Escaping uid under pressure can penetrate the
skin causing serious injury.
Prevent the hazard by relieving pressure (See
skidsteer Operator’s Manual.) before connecting
or disconnecting hydraulic lines. Verify all
connections are tight before applying pressure.
Search for leaks with a piece of cardboard or wood.
Protect hands and body from high pressure uids.
If an accident occurs, see a doctor immediately.
Any uid injected into the skin must be surgically
removed within a few hours or serious infection
may result.
6

2�3 Maintenance Hazards
Before servicing, park machine on a rm and
level surface, set parking brake, chock wheels,
and place a “Do Not Operate” tag on control
panel. Read and understand this manual. If you
do not understand any part of the manual, contact
Baumalight at 866-820-5603.
Always wear face and/or eye protection, safety
shoes, and other protective equipment appropriate
for the job.
Do not make unauthorized modications. Contact
Baumalight at 866-820-5603 before you weld, cut/
drill holes, or make any other modications.
Always use Baumalight replacement parts.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
^ WARNING
Entanglement hazard�
Keep clear of moving components�
Wear proper protective equipment
appropriate for the job�
^ WARNING
Burn hazard�
Hot and high pressure hydraulic oil�
Allow oil to cool before servicing�
^ WARNING
Crushing hazard�
Before performing inspections, service
or maintenance:
Park machine on rm, level surface.
Engage parking brake�
Turn engine o and remove key.
Place “Do Not Operate” tag on control
panel�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
7

3 SAFETY SIGNS
The two and four panel safety decals are pictorial
and have a yellow background. The panel with a
triangle indicates the potential hazard. The panel
without a triangle indicates how to avoid the
hazard.
If any of the decals are missing, are damaged, or
if you do not understand the decal, please contact
your dealer.
A
D
E
CB
A
A. D005223 ^WARNING - Rotating blade
hazard. Keep back 75 m while machine
is operating. Wait for blade to stop before
approaching machine.
D005223
75 M
B. D005125 ^WARNING - Read and understand
safety signs on the machine and operating
instructions in this manual before operating
machine.
D005125
8

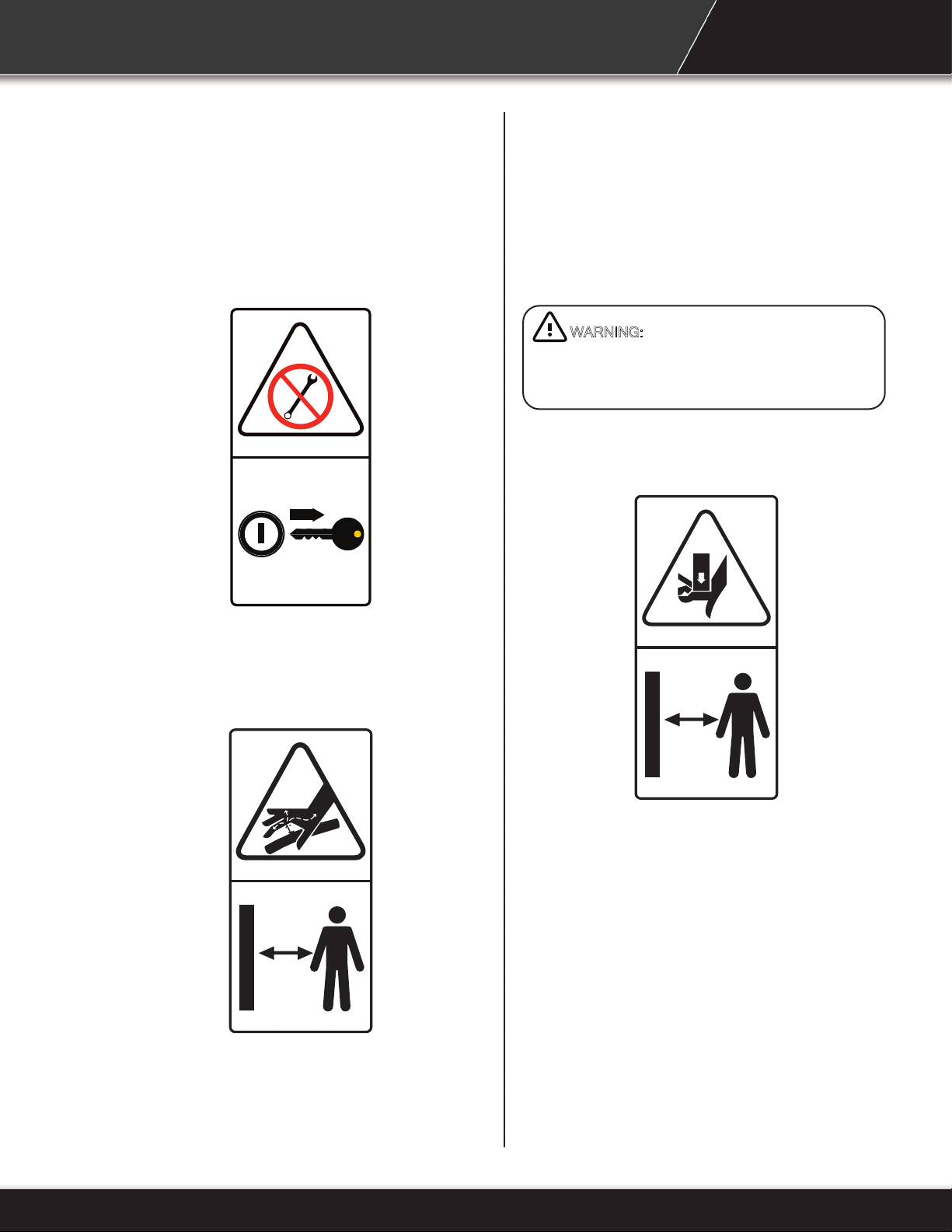

C. D005517 ^WARNING - Remove key before
servicing.
D005517
D. D005126 ^ WARNING - Pressurized uid
hazard. Pressurized uids can penetrate the
skin. Do not check for leaks with your hands.
Keep back a safe distance when pressurized.
D005126
E. D005262 ^WARNING - P65 warning
information.
WARNING: This product can expose you to chemicals
including 1,3-Butadiene and lead, which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
D005262
F. D005405 ^ Pinch hazard. Keep back while
machine is operating.
D005127
9

^Keep bystanders, livestock, pets, etc away
from work area.
^ Always wear protective equipment appropriate
for the job.
^Do not operate, work on or around this machine
while under the influence of alcohol, drugs or if
feeling ill.
^Keep clear of moving machinery at all times.
^Stop skidsteer engine before leaving operators
area.
^It is your responsibility to operate this equipment
safely. You must be familiar with the equipment
and all safety practices before use.
^ Do not allow untrained or unqualied people to
operate this equipment.
4 OPERATION
4�1 Preparation For Use 4�2 Pre-Operation Check List
• Verify that tree saw is properly attached to
skidsteer.
• Verify that hydraulic hoses are properly
connected.
• Check for entangled material on blade.
• Verify all guards, doors and covers are installed
and secured.
• Verify cutting teeth are in good condition and
are tight.
10

4�3 Machine Components
Dashed line indicates item hidden from view unless
cover is removed.
A. Blade
B. Cutting Teeth
C. Hydraulic Motor
D. Angled Push Bar
E. Protective Mesh
F. Operators Manual Tube
G. Quick Attach
H. Hydraulic Hose Holder
I. Blade Guard
J. Zero Leak Relief Valve
K. Front Push Bar
A
C
E
B
D
F
G
H
I
J
K
11

4�4 Attach Tree Saw
^ WARNING
To prevent injury or machine damage
put transmission in park�
Never position yourself between
skidsteer and tree saw�
Only experienced and properly trained
operator’s should operate the skidsteer
and tree saw�
1. Read and follow all safety instructions.
2. Attach tree saw to skidsteer. See Operator’s
Manual.
3. Verify pins are secure in the correct position.
4. Connect hydraulic hoses. Verify hydraulic
hoses are clear of pinch areas and moving
parts.
5. Move to a clear open area to test functions.
4�5 Detach Tree Saw
^ WARNING
Prevent serious injury or death�
1� Park machine on rm, level surface.
2� Engage parking brake�
3� Disconnect hydraulic drive�
4� Shut o engine and remove key.
1. Park on a level surface.
2. Lower tree saw to the ground.
3. Shut o engine and remove key.
4. Disconnect hydraulic hoses.
5. Detach tree saw from skidsteer.
6. See Operator’s Manual.
12

1. Verify all reectors and Slow Moving Vehicle
(SMV) sign are visible.
2. Raise tree saw slightly o ground.
3. Verify hydraulics are disengaged.
4. Travel at a reasonable and safe speed.
^ WARNING
To prevent bodily injury from rotating
blade, be sure to disengage hydraulics
before transporting tree saw�
4�6 Transporting 4�7 Carbide Teeth Break-In
During the rst few hours of use, avoid hitting
stones as much as possible to allow the carbide
teeth to wear slightly. This can be done by keeping
the cutting wheel above ground level. Brand new
carbide tips are razor sharp and can chip and
shatter easily when they hit hard objects. Once
the razor sharpness has worn away, the tips do
not chip as easily. Observing these precautions
will extend the life of the carbide teeth and reduce
operating expenses.
The teeth bolts must be retightened every ten
minutes for the rst hour of use on a new tree saw.
13

• First, operate all functions in a clear area with
throttle at low idle to get a good feel for the
controls before you actually move into any
brush.
• Slow cutting speed if pressure surges up close
to max psi, doing this will greatly reduce blade
stoppage.
• Run throttle only at half speed for rst time
users.
• Move the tree saw slowly until you have a
better feel how much the unit can take.
• The machine is equipped with a front push bar
and an angled push bar to push brush or small
trees over. This will allow the tree saw teeth to
contact the lower portion of the brush and the
blade to cut it o.
• For tall brush, you can use the angled push
bar to push the brush over and cut it o close
to ground. Each operator must experiment to
nd a technique that works for them in their
application.
^ WARNING
Always turn o the skidsteer and
disengage hydraulic drive before
getting o the seat and approaching the
blade�
4�9 First Time User Tips
4�8 Hydraulic Connections
^ WARNING
Pressurized uids can penetrate the
skin�
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses�
The tree saw is equipped with three hoses,
pressure, return and case drain. Hydraulic
couplers are not provided with the tree saw. You
must install couplers and connect your skidsteer
pressure, return and case drain hoses to the tree
saw hoses.
Skidsteer hoses must be the same size as the
tree saw hoses. Using smaller diameter hoses will
decrease hydraulic ow.
D005405
14

^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
4�10 Rotate Cutting Head
^ WARNING
Prevent serious injury or death�
1� Park machine on rm, level surface.
2� Engage parking brake�
3� Lower tree saw to the ground�
4� Disconnect hydraulic drive�
5� Shut o engine and remove key.
1. Park on a level surface.
2. Lower tree saw to the ground.
3. Shut o engine and remove key.
^WARNING
Prevent serious injury�
Cutting head will be loose from mounting
frame and can fall when mounting
hardware is removed in step 5�
Support as needed to prevent injury�
4. Adequately support cutting head.
5. Remove mounting hardware from eight
locations (A) around cutting head.
A
A
A
15

6. Support cutting head as needed and rotate 90
degrees clockwise or counter clockwise.
7. Install mounting hardware at eight locations
(A) around cutting head and tighten securely.
8. Remove cover (B).
B
9. Verify that hose connections on motor are tight
and that hoses are not pinched.
10. Install cover (B). Do not operate saw with cover
(B) removed.
16

4�11 Field Operation
^ WARNING
Prevent serious injury or death�
1� Park machine on rm, level surface.
2� Engage parking brake�
3� Disconnect hydraulic drive�
4� Shut o engine and remove key.
^ WARNING
Prevent serious injury or death�
Never operate tree saw when other
people are in the vicinity�
Debris can be thrown several feet from
cutting area�
Keep all shields in place�
Keep away from moving parts�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
1. Attach tree saw to skidsteer. See Attach Tree
Saw in this section.
^ WARNING
Prevent serious injury or death�
Operating unit must be equipped with a
forestry guard to protect the operator�
2. Set engine speed to low idle and engage
hydraulics.
3. Slowly increase engine speed to high idle.
Verify tree saw is operating smoothly.
4. If equipped with a rotating cutting head, rotate
cutting head as needed to obtain the closest
cut to trunk or ground. See 4.10 Rotate Cutting
Head.
If equipped with a stationary cutting head,
position tree saw as needed to obtain the
closest cut to trunk or ground.
17

5. Operate hydraulics to move tree saw blade
into brush, shrubs or tree.
6. If blade stalls, stop movement, slightly raise
tree saw and allow blade to regain speed. Slow
movement to prevent further stalling.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Lockout operating unit before clearing
jams�
^ WARNING
Never approach tree saw before blade
has come to a complete stop�
7. When cutting is completed, disengage
hydraulics and allow blade to stop.
8. Lower tree saw to ground and stop skidsteer
engine.
18
