BX-3 MASONRY SAW
OWNER'S MANUAL
& PARTS LIST
Caution: Read all safety and operating instructions
before using this equipment. This owners manual MUST
accompany the equipment at all times.
Revision 108
Manual Part No. 158168
www.mkdiamond.com
MODELS PART #
BX-3 (Dry) 157721X
BX-3 (Wet) 157721WX

2
Congratulations on your purchase of a BX-3 Masonry Saw. We are certain that you will be pleased
with your purchase. We take pride in producing the finest construction power tools and diamond
blades in the industry.
Operated correctly, your Saw should provide you with years of service. In order to help you, we have
included this manual. This owners manual contains information necessary to operate and maintain
your Saw safely and correctly. Please take a few minutes to familiarize yourself with the BX-3
Masonry Saw by reading and reviewing this manual.
If you should have questions concerning your BX-3 Masonry Saw, please feel free to call our friendly
customer service department at: 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
INTRODUCTION
WARRANTY: For your (1) one year warranty to be effective, complete the online Product
Registration as soon as possible. Visit www.mkdiamond.com/registration/

3
TABLE OF CONTENTS
SAFETY
Safety Message/Alert Symbols 4
Damage Prevention Message 5
General Safety Precautions 5-7
California Proposition 65 Message 8
Electrical Requirements and Grounding Instructions 9-12
Safety Decal Locations 13
Product Specications 14
UNPACKING AND ASSEMBLY
Contents 15
Transport 16
Assembly 16-17
SETUP, ADJUSTMENT AND OPERATION
Setup 18-19
Adjustment and Operation 19-21
Cleanup 22
MAINTENANCE AND TROUBLESHOOTING
Maintenance 23-27
Troubleshooting 28-29
EXPLODED VIEW AND PARTS LIST
Exploded View & Parts List 30-39
ACCESSORIES
Accessories and Replacement Parts 40
ORDERING AND RETURN INSTRUCTIONS
Ordering Information 42
Return Materials Policy 42
Contact Information and Limited Warranty 43

4
BX-3 SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5
BX-3 SAFETY
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
BX-3 SAFETY
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibra-
tions or noises occurs, turn o machine immediately and have the problem corrected
before further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands
free to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cov-
ering to contain long hair.
ON
(
(
))

7
BX-3 SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations. (cut/ground)

8
BX-3 SAFETY
CALIFORNIA PROPOSITION 65 MESSAGE
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•Lead, from lead-based paints
•Crystalline silica, from bricks and cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
http://www.P65warnings.ca.gov
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.

9
BX-3 SAFETY
WARNING
In order to prevent electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
If permanently connected this tool should be connected to a grounded metal permanent
wiring system; or to a system having an equipment - grounding conductor.
In case of a malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electric shock. This tool is equipped with an electric cord which has an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• DO NOT modify the plug provided - if it will not t the outlet, have the proper outlet
installed by a qualied electrician.
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric
cord or plug is necessary, DO NOT connect the equipment-grounding conductor to a live
terminal.
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles
that accept the tool’s plug.
• Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, plug, and the like, extending from the adapter, must be connected
to a permanent ground, such as a properly grounded outlet box.
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
NOTE:
ON
(
(
))
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
Use of a temporary adapter is not permitted in Canada.NOTE:

10
WARNING
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
The water pump requires a GFCI. To reduce risk of electrical shock when operating the machine
with the pump plugged into the 3-pole receptacle on the motor, connect the machine to a GFCI
outlet. See the pump manual and informational tags enclosed separately for all pump information.
ON
(
(
))
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
BX-3 SAFETY

11
To avoid the possibility of the appliance or plug receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping into the receptacle or plug. A
"drip loop," shown in the picture below, should be arranged by the user to properly position the power
cord relative to the power source. Use the drip loop as a way to prevent GFCI and plug from getting
wet.
The "drip loop" is that part of the cord below the level of the receptacle (or the connector, if an exten-
sion cord is used). This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
Drip Loop Information
WARNING
ON
(
(
))
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking "Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. DO NOT use damaged extension cords. Examine extension cords before using and
replace if damaged. DO NOT abuse extension cords and DO NOT yank on any cord to dis-
connect. Keep cords away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
ALWAYS make certain that the power source required for the electric motor is correct and always
use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make
certain that the correct size grounded (3-wires) extension cord is used.
ON
(
(
))
ON
(
(
)
)
BX-3 SAFETY

12
BX-3 SAFETY
MOTOR SPECS EXTENSION CORD LENGTH
Motor Voltage Amps 25' 50' 100'
157801 120V 1 Ph 15 14 ga 10 ga 8 ga
WARNING
Use of undersized extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords,will be repaired or replaced
totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
ON
(
(
))

13
BX-3 SAFETY

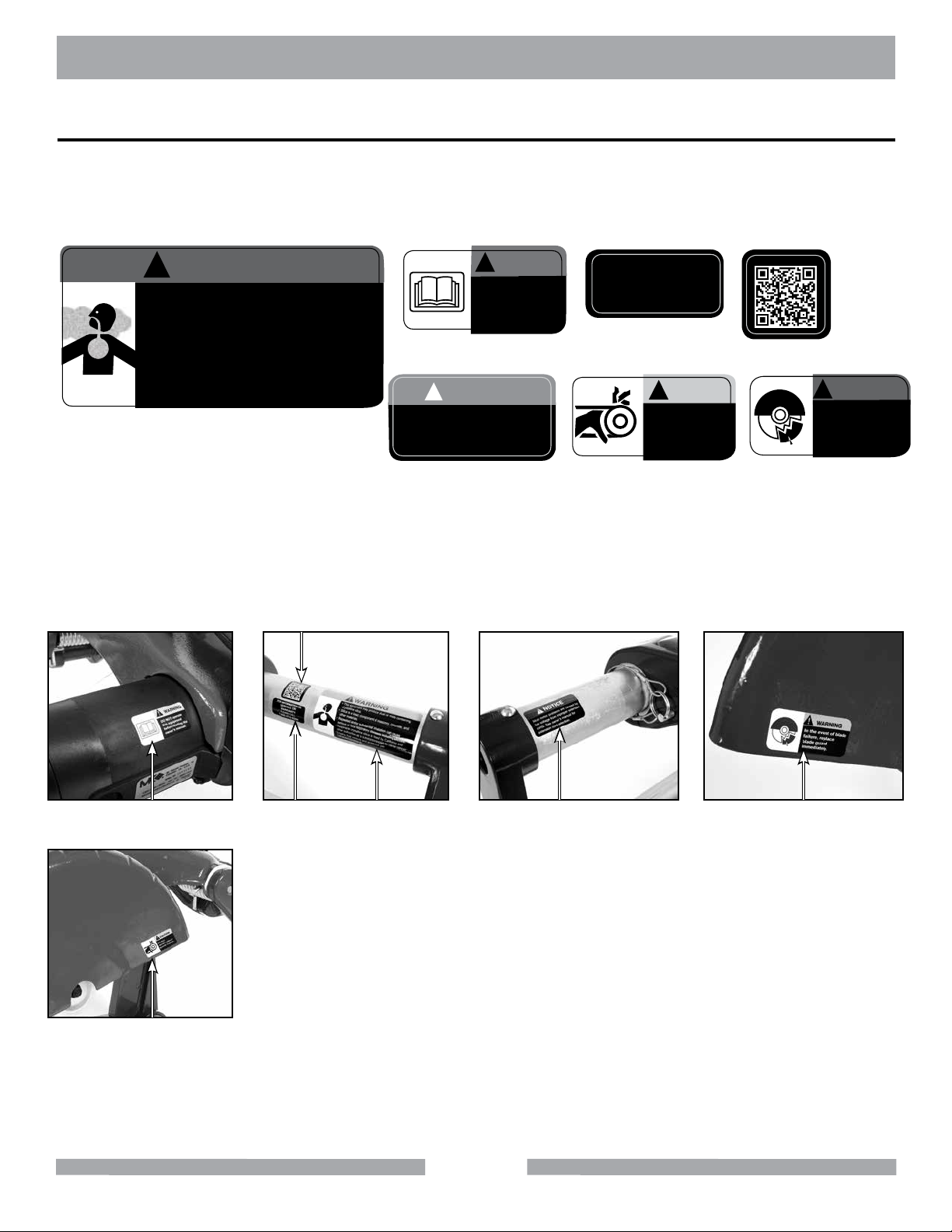

Decal/Label Location Description
A Arm Warning - Silica
B Motor Warning - Read Manual
C Arm Service/ Warranty
D Arm QR Code for Manual
E Arm Notice - Extension Cord
FBlade Guard Caution - Guards in Place
GBlade Guard Warning - Replace Blade Guard
SAFETY LABEL LOCATIONS
Safety labels contain important safety information. Please read the information contained on each
safety label. These labels are considered a permanent part of your saw. If a label comes off or
becomes hard to read, contact MK Diamond or your dealer for a replacement.
Part # 164202
A
B
F
C
EG
D
Part # 154398
Part # 154398
Part # 155038
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
Part # 155672 Part # 155588
NOTICE
Most motor problems are caused by
low voltage from improper extension
cords. See owner’s manual for
extension cord selection.
!
Part # 170480
Scan for manuals
CAUTION
DO NOT
operate without
guards in place.
!
DO NOT operate
this equipment
before reading the
owner’s manual.
WARNING
!
WARNING
• Use of this equipment can expose you to chemicals
including nickel and crystalline silica which are known to
the State of California to cause cancer.
• For more information go to www.P65Warnings.ca.gov.
• Repeated and/or substantial inhalation can cause
serious or fatal respiratory diseases including silicosis.
• Employ dust controls and protection per
OSHA/NIOSH/MSHA.
!
Label Part #164202
WARNING
In the event of blade
failure, replace
blade guard
immediately.
!
B
F
AE GC
D

14
BX-3 PRODUCT SPECIFICATIONS
The BX-3 is a versatile lightweight masonry saw. Operated and used according to this manual, the
BX-3 will provide years of dependable service.
The BX-3, Brick Xtreme, is engineered as a 14" saw, consisting of a powerful 120V motor in a hard
plastic case. The saw is capable of cutting brick and masonry up to 8" x 8" x 16" in size; blade has a
ve (5) inch cutting depth.
Motor and Weight specications for the BX-3 are listed in the Table below.
The BX-3 uses a 14-inch diameter segmented dry MK diamond blade with a .110-inch cutting width.
The BX-3 can cut a variety of masonry types including, cinder black, slump stone block, wall brick,
paver brick, concrete block and cylinders, roong tile, marble, granite, decoration rock or almost any
other nonferrous material.
The BX-3 is designed with a spring assisted Cutting Head to allow easier step cutting. The Cutting
Head can be locked in the down position when cutting smaller pieces.
The BX-3 is designed with a lockable trigger-operating switch in the handle to allow for ease of operation.
The BX-3 is designed with replaceable motor brushes to extend operating life.
The BX-3 is not designed to cut plastic or ferrous (metals) material.
General Description
Specications
Blade Capacity
Masonry Types
Spring Assisted Cutting Head
Lockable Trigger Switch
Replaceable Motor Brushes
NOTE:
PRODUCT SPECIFICATIONS
Motor 120V/60Hz
Horsepower 1-3/4Hp
RPM 3500
Blade Capacity 14"
Arbor Size 1"
Depth of Cut 5" (406mm)
Length of Cut 16" (22.7kg)
LxWxH
LxWxH (mm)
30" x 22" x 18"
762 x 559 x 457
Weight 50 lbs.
Part# 157751X (Dry)
157721WX (Wet)
The BX-3 is designed with an easy clean motor air lter to extend the life of the motor.
Removable Motor Air Filter

15
BX-3 UNPACKING
Your BX-3 has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
If not already done, remove the BX-3 from the carton and place it on a at surface. Remove Strpping.
Remove the Accessories box from the main carton and place along side the BX-3 .
UNPACKING
In the containers, you will nd one (1) BX-3, one (1) 14 inch segmented dry diamond blade (or
segmented block blade), one (1) movable cutting table, one (1) adjustable cutting guide, one (1)
blade wrench, one (1) shaft wrench, one (1) owner's manual and one (1) warranty card.
CONTENTS
BX-3 Blade Wrench Segmented Dry
Diamond Blade
Shaft Wrench Owner's Manual
Adjustable
Cutting Guide
Adjustable
Cutting Guide
or
07.2018
BX-3 MASONRY SAW
OWNER'S MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
Caution:
Read all safety and operating instructions
before using this equipment.
This owners manual MUST
accompany the equipment at all times.
Revision 106
ManualPart No. 158168
www.mkdiamond.com
MODELS PART #
BX-3 (Dry) 157721X
BX-3 (Wet) 157721WX
Warranty Card Water Pan
(Wet Cutting Saw)

16
BX-3 CONTENTS
Due to its lightweight construction, the BX-3 is designed to be carried by the durable aluminum
frame. Simply lock the spring assisted cutting head in the DOWN position, grasp the frame by the
lower front and upper back cross members, lift and transport the BX-3 to the desired work location.
Lock the Cutting Head in the DOWN position, and remove the Movable Cutting Table
when transporting the BX-3.
NOTE:
Locking Pin Inserted
Lift Point
Lift Point
Cutting Head
Locked Down
The BX-3 weighs approximately fty (50) pound, making transport easy.
Always observe safe lifting practices when lifting the BX-3.
TRANSPORT
CAUTION
ON
(
(
))
Follow the assembly instructions to prepare your BX-3 for operation.
MOVABLE CUTTING TABLE INSTALLATION
ASSEMBLY
(A)
Place saw in Water Pan
(if applicable).
(B)
Position Movable Cutting
Table. Seat Roller Wheels on
Guide Rails.
(C)
Verify correct seating by mov-
ing table back and forth.

17
BX-3 ASSEMBLY
Diamond Blades improperly used are dangerous. Comply with
American National Standards Institute Safety Code, B7.1 and,
Occupational Safety and Health Act covering Speed, Safety
Guards, Flanges, Mounting Procedures, General Operating
Rules, Handling, Storage and General Machine Conditions.
CAUTION
ADJUSTABLE CUTTING GUIDE INSTALLATION
DIAMOND BLADE INSTALLATION
(A)
Loosen Thumbscrew. Position
adjustable Cutting Guide on
Ruler/Stop.
(B)
Seat and tighten adjustable
Cutting Guide.
(A)
Place wrenches on retaining
screw and Inner Flange.
(D)
Install retaining screw and
Outer Flange - tighten.
(B)
Remove retaining screw
and Outer Flange.
(C)
Install and seat blade-
Verify Rotation.

18
BX-3 SETUP
• Before powering or starting, check for damage that could prevent this equipment from proper
operation or performing its intended function. Check for binding and alignment of moving parts.
Check for damaged, broken, or missing parts.
• Verify the trigger switch, locking button is in the "RELEASE" position.
• Before connecting the BX-3 to a power supply, be sure the voltage, cycle and phase of the job site
power source meet the requirements.
• If using an extension power cord, make sure the length and wire gauge corresponds to the
requirements listed in the table on page 12. An extension power cord that is too small in wire
gauge (diameter), or too long in length, will cause the motor to overheat and could cause
premature failure.
• Use an approved Ground Fault Circuit Interruptter (GFCI)
• Do not cover the motor vents as this could lead to motor overheating.
SETUP
Pre-Start Inspection
CAUTION
CAUTION
NOTE:
ON
(
(
))
ON
(
(
))
Motor 120V/60Hz
Horsepower 1-3/4Hp
RPM 3500
Phase single phase
If using a portable generator to provide power, ensure the generator meets the following minimum
requirements:
The pre-start inspection should be performed before beginning any job.
In order to avoid breaker tripping, a 20 amp circuit breaker should be used.
If the Diamond Blade shows signs of fatigue cracking, replace the blade
before starting work.
Portable Generator
8kw 120/240V 66.7/33.3 Amps Single Phase
(A)
Inspect blade for damage
- Verify blade correct for
material being cut.
(B)
Inspect Wooden Strip for
excessive grooves.
(C)
Movable Cutting Table
moves freely.

19
BX-3 OPERATION
CAUTION
CAUTION
ON
(
(
))
ON
(
(
))
If an extension cord is used, rst verify it meets the requirements on page
12. Plug the BX-3 into the extension cord; plug the extension cord into a
GFCI. Finally, plug the GFCI into the power source in that order.
DO NOT FORCE the blade to cut, it will do the job better and safer at rate
for which it was designed.
CUTTING SETUP
(A)
Inspect for damage.
(A)
Set edge of Cutting Guide to
desire cut length on Ruler/
Stop.
(A)
Plug GFCI into BX-3.
(B)
Inspect Motor Air Filter
for cleanliness.
(B)
Position masonry piece. Set
against Cutting Guide and
Ruler/Stop.
(B)
Plug GFCI into
Power Source.
(C)
Verify Trigger Switch is work-
ing. Push white button to lock.
Push trigger switch to unlock.
(C)
Attach waterhose. Turn Water
Valve on when preparing to cut.
(Wet Cutting Saw only)

20
BX-3 ADJUSTMENT
CHOP CUTTING
A Step Cut is performed when a series of small cuts of increasing depth are used to complete a
single cut. Step Cuts are used for large objects or for hard objects such as Firebrick and Pavers.
A Chop Cut is performed by cutting completely through an object in one pass.
NOTE 1. Step Cutting is the preferred cutting method for all cuts.
2. When Cutting hard material Step Cutting should always be used.
3. Step Cutting will extend the life of the Diamond Blade.
STEP CUTS
(A)
Depress Trigger Switch to
start cut.
(A)
Position work below
Cutting Head. Depress
Trigger Switch to start.
(D)
Repeat Steps B and C until
cut complete.
Turn OFF saw.
(B)
Lower Cutting Head 1/4 -
1/2 inch during push stroke.
(B)
Lower Cutting Head to
begin cutting.
(C)
Lower Cutting Head addi-
tional 1/4 - 1/2 inch during
pull stroke.
(C)
Continue lowering head
until cut complete.
Turn OFF saw.
