DXM530 Tree Saw
OPERATOR’S MANUAL
Issue Date: March 2022

TABLE OF CONTENTS
1 INTRODUCTION ����������������������������������������������������������������������������������������������������������������������������������� 1
1�1 Overview���������������������������������������������������������������������������������������������������������������������������������������� 1
1�2 Intended Use And Foreseeable Misuse�������������������������������������������������������������������������������������� 2
2 SAFETY�������������������������������������������������������������������������������������������������������������������������������������������������� 3
2�1 Safety Alert Symbol And Safety Words�������������������������������������������������������������������������������������� 3
2�2 Operational Hazards��������������������������������������������������������������������������������������������������������������������� 3
Prepare For Emergencies ������������������������������������������������������������������������������������������������������������ 4
Replace Safety Signs ������������������������������������������������������������������������������������������������������������������� 4
Do Not Allow Riders ��������������������������������������������������������������������������������������������������������������������� 5
Lower Operating Speed ��������������������������������������������������������������������������������������������������������������� 5
Avoid Rollover ������������������������������������������������������������������������������������������������������������������������������ 5
Avoid Powerlines & Underground Utilities �������������������������������������������������������������������������������� 5
Detach Tree Saw Safely���������������������������������������������������������������������������������������������������������������� 6
Hazards From Modifying Equipment ������������������������������������������������������������������������������������������ 7
2�3 Maintenance Hazards������������������������������������������������������������������������������������������������������������������� 9
3 SAFETY SIGNS����������������������������������������������������������������������������������������������������������������������������������� 10
4 OPERATION ���������������������������������������������������������������������������������������������������������������������������������������� 12
4�1 Machine Components ���������������������������������������������������������������������������������������������������������������� 12
4�2 Preparation For Use ������������������������������������������������������������������������������������������������������������������� 12
�������������������������������������������������������������������������������������������������� 12
���������������������������������������������������������������������������������������������������������� 14
4�3 Pre-Operation Check List ���������������������������������������������������������������������������������������������������������� 15
4�4 Attach Tree Saw �������������������������������������������������������������������������������������������������������������������������� 15
4�5 Initial Startup������������������������������������������������������������������������������������������������������������������������������� 16
4�6 Rotate Cutting Head ������������������������������������������������������������������������������������������������������������������� 16
4�7 Detach Tree Saw ������������������������������������������������������������������������������������������������������������������������� 18
4�8 Transporting�������������������������������������������������������������������������������������������������������������������������������� 18
4�9 Carbide Teeth Break-In��������������������������������������������������������������������������������������������������������������� 19
4�10 First Time User Tips ����������������������������������������������������������������������������������������������������������������� 20
4�11 Field Operation ������������������������������������������������������������������������������������������������������������������������� 21
5 SERVICE AND MAINTENANCE�������������������������������������������������������������������������������������������������������� 23
5�1 Maintenance�������������������������������������������������������������������������������������������������������������������������������� 23
5�2 Inspections���������������������������������������������������������������������������������������������������������������������������������� 23
5�3 Rotate Cutting Teeth������������������������������������������������������������������������������������������������������������������� 24
5�4 Replace Cutting Teeth���������������������������������������������������������������������������������������������������������������� 24
5�5 Motor Shaft Seal ������������������������������������������������������������������������������������������������������������������������� 25
5�6 Zero Leak Case Drain Relief Valve�������������������������������������������������������������������������������������������� 26
6 TROUBLESHOOTING ������������������������������������������������������������������������������������������������������������������������ 27
7 STORAGE�������������������������������������������������������������������������������������������������������������������������������������������� 28
7�1 Storing Tree Saw ������������������������������������������������������������������������������������������������������������������������ 28
7�2 Remove Tree Saw From Storage����������������������������������������������������������������������������������������������� 28
BAUMALIGHT ATTACHMENT WARRANTY��������������������������������������������������������������������������������������� 29
ii

1 INTRODUCTION
Congratulations on your choice of a Baumalight
Tree Saw to complement your pruning, trimming
and clearing operation. This equipment has been
designed and manufactured to meet the needs
of a discriminating buyer for ecient clearing of
brush, shrubs and trees.
The blade is hydraulic powered by the hydraulic
system on your excavator.
Replaceable bearings are provided at major pivot
points for extended service life.
Safe, ecient and trouble free operation of your
Tree Saw requires that you and anyone else
who will be operating or maintaining the Tree
Saw, read and understand the Safety, Operation,
Maintenance and Troubleshooting information
contained within the Operator’s Manual.
This manual covers the DXM530 Baumalight Tree
Saw. Use the Table of Contents as a guide to
locate required information.
Keep this manual handy for frequent reference
and to pass on to new operators or owners. Call
your Baumalight dealer, distributor or the factory
if you need assistance, information or additional
copies of the manuals.
When this machine is worn out and no longer in
use, it should be returned to the retailer or other
party for recycling.
OPERATOR ORIENTATION - The directions left,
right, front and rear, as mentioned throughout this
manual, are as seen from the operator’s seat and
facing in the direction of travel.
1�1 Overview
1

TheTreeSaw is designedto be usedbyexperienced
operators, trained in the safe operation of an
excavator and trained in the hazards related to
using the tree saw and the safe use of the tree saw
for the intended purpose. Operators will require
personal protective equipment to reduce the risk
from some hazards that cannot be completely
eliminated or controlled by the design of the tool.
Care is required to ensure that the tree saw will
not come across metallic objects, stones or other
materials.
Tree saw is not designed for use in hazardous
atmospheres where there is a risk of re or
explosion due to ammable gases or vapors. Use
in hazardous, explosive atmospheres is prohibited.
Serious injury or death of the operator or bystanders
may be caused if the tree saw is misused. Misuse
may also cause damage to the machine carrying
the implement.
1�2 Intended Use And Foreseeable
Misuse
2

2 SAFETY
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted
by the safety alert symbol:
^
This symbol means ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury�
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury�
^CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury�
NOTICE
NOTICE - Indicates a situation that could
result in damage to the equipment or
other property�
2�1 Safety Alert Symbol And Safety
Words
2�2 Operational Hazards
^ WARNING
Prevent serious injury or death�
Read and understand this manual before
operating the tree saw�
Always stop engine and remove key
before leaving operators seat�
Never allow anyone near the tree saw
during operation�
Travel at a safe speed�
^ WARNING
Prevent serious injury or death from
moving parts�
Moving parts can crush and dismember�
Do not operate without guards and
shields in place�
Disconnect and lock out power source
before adjusting or servicing�
^ WARNING
Use tree saw only for the designed
applications�
Any other use may result in personal
injury, damage to equipment and may
void the warranty�
3

^ WARNING
Prevent serious injury or death�
Verify tree saw is attached to excavator
before operation or transport�
^ WARNING
Wear proper safety glasses, goggles,
debris�
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety signs
in good condition and replace missing or damaged
safety signs.
New equipment components and repair parts must
include the current safety decal.
Learn how to properly operate equipment.
NEVER operate or work around this equipment
without proper instruction, while fatigued or under
the inuence of alcohol, prescription or non-
prescription medication or if feeling ill.
Keep your equipment in proper working condition.
Know the regulations and laws that apply to you
and your industry. This manual is not to replace
any regulations or laws. Additional information
may be found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Baumalight at 866-820-5603.
Prepare For Emergencies
• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close
to the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services
can locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Baumalight dealer.
4

Do Not Allow Riders
• NEVER lift or carry anyone on the Tree Saw.
• NEVER use Tree Saw as a work platform.
• NEVER allow passengers on the Tree Saw.
Lower Operating Speed
• Keep tree saw low and move at slow speeds
on rough or uneven terrain.
Avoid Rollover
The equipment may rollover, resulting in death or
serious injury. To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on
slopes.
• Carry tree saw close to the ground.
• Avoid holes, ditches and other obstructions
which may cause equipment to rollover.
• Use caution when operating on slopes and do
not operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines & Underground
Utilities
^^ DANGER
Prevent electrocution�
Death or serious injury can result if
equipment comes near or contacts
power lines�
Electrocution can occur without direct
contact�
DO NOT leave the operator’s seat if any part of the
equipment contacts electric lines or cables.
5

Detach Tree Saw Safely
Detach tree saw on a rm and level surface. Tree
saw may fall over if detached on sloping or soft
surface. Be sure people, livestock and pets are
clear of machinery.
Relieve hydraulic pressure before disconnecting
hydraulic hoses. See your excavator Operator’s
Manual.
Raised Attachment
^ WARNING
Crushing hazard�
Raised, unsupported tree saw can fall,
resulting in death or serious injury�
Never enter the area under a raised Tree
Saw�
A raised tree saw can lower unexpectedly, resulting
in death or serious injury.
NEVER enter area under a raised tree saw.
Lower tree saw to ground, engage parking brake,
shut o engine and remove key before servicing.
6

Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing�
Wear a suitable hearing protective
to protect against objectionable or
uncomfortable loud noises�
Hazards From Modifying Equipment
Do not make any alterations to your tree saw.
Altering the equipment may cause unsafe
conditions and may void the manufacturer’s
warranty.
Avoid Wood Dust Inhalation
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
7

Avoid High Pressure Fluids
^ WARNING
skin�
Hydraulic hoses can fail from age,
damage and exposure�
Use body and face protection while
searching for leaks� A tiny, almost
invisible leak can penetrate the skin,
thereby requiring immediate medical
attention�
Use wood or cardboard to detect
hydraulic leaks, never use your hands�
Escaping uid under pressure can penetrate the
skin causing serious injury.
Prevent the hazard by relieving pressure (See
Excavator Operator’s Manual.) before connecting
or disconnecting hydraulic lines. Verify all
connections are tight before applying pressure.
Search for leaks with a piece of cardboard or wood.
Protect hands and body from high pressure uids.
If an accident occurs, see a doctor immediately.
Any uid injected into the skin must be surgically
removed within a few hours or serious infection
may result.
8

^WARNING
Crushing hazard�
Before performing inspections, service
or maintenance:
Engage parking brake�
Place “Do Not Operate” tag on control
panel�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
2�3 Maintenance Hazards
Before servicing, park machine on a rm and level
surface, remove key, set parking brake and place
a “Do Not Operate” tag on control panel. Read and
understand this manual. If you do not understand
any part of the manual, contact Baumalight at 866-
820-5603.
Always wear face and/or eye protection, safety
shoes, and other protective equipment appropriate
for the job.
Do not make unauthorized modications. Contact
Baumalight at 866-820-5603 before you weld, cut/
drill holes, or make any other modications.
Always use Baumalight replacement parts.
^WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
^WARNING
Entanglement hazard�
Keep clear of moving components�
Wear proper protective equipment
appropriate for the job�
^WARNING
Burn hazard�
Hot and high pressure hydraulic oil�
Allow oil to cool before servicing�
9

A. D005223 ^WARNING - Rotating blade
hazard. Keep back 75 m while machine
is operating. Wait for blade to stop before
approaching machine.
D005223
75 M
B. D005125 ^WARNING - Read and understand
safety signs on the machine and operating
instructions in this manual before operating
machine.
D005125
A
C
B
A
E
D
3 SAFETY SIGNS
The two and four panel safety decals are pictorial
and have a yellow background. The panel with a
triangle indicates the potential hazard. The panel
without a triangle indicates how to avoid the
hazard.
If any of the decals are missing, are damaged, or
if you do not understand the decal, please contact
your dealer.
10

C. D005517 ^WARNING - Remove key before
servicing.
D005517
D. D005126 ^ WARNING - Pressurized uid
hazard. Pressurized uids can penetrate the
skin. Do not check for leaks with your hands.
Keep back a safe distance when pressurized.
D005126
E. D005262 ^WARNING - P65 warning
information.
WARNING: This product can expose you to chemicals
including 1,3-Butadiene and lead, which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
D005262
11

^Keep bystanders, livestock, pets, etc away
from work area.
^ Always wear protective equipment appropriate
for the job.
^Do not operate, work on or around this machine
while under the influence of alcohol, drugs or if
feeling ill.
^Keep clear of moving machinery at all times.
^Stop excavator engine before leaving operators
area.
^It is your responsibility to operate this equipment
safely. You must be familiar with the equipment
and all safety practices before use.
^ Do not allow untrained or unqualied people to
operate this equipment.
^WARNING
skin�
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses�
Baumalight does not provide the hydraulic
pressure and return hoses that connect to
control valve, and motor case drain hose to
excavator�
The installer must determine a safe routing for
the hydraulic hoses to prevent damage�
Installer provided hoses are not covered by the
Baumalight warranty�
4 OPERATION
4�2 Preparation For Use

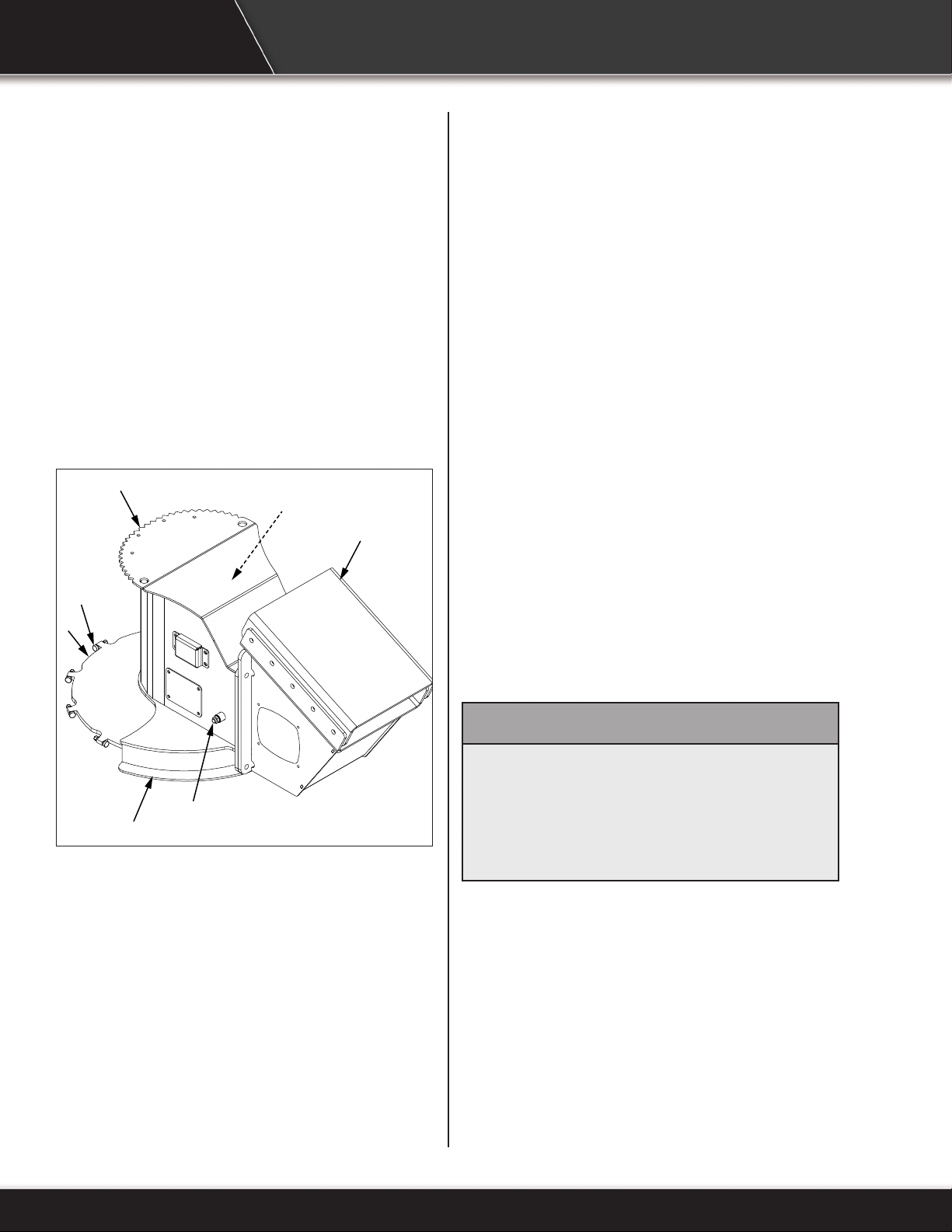

Dashed line indicates item hidden from view unless
cover is removed.
A. Blade
B. Cutting Teeth
C. Front Push Bar
D. Hydraulic Motor
E. Excavator Adapter
F. Zero Leak Relief Valve
A
B
C
D
E
G
F
4�1 Machine Components
12

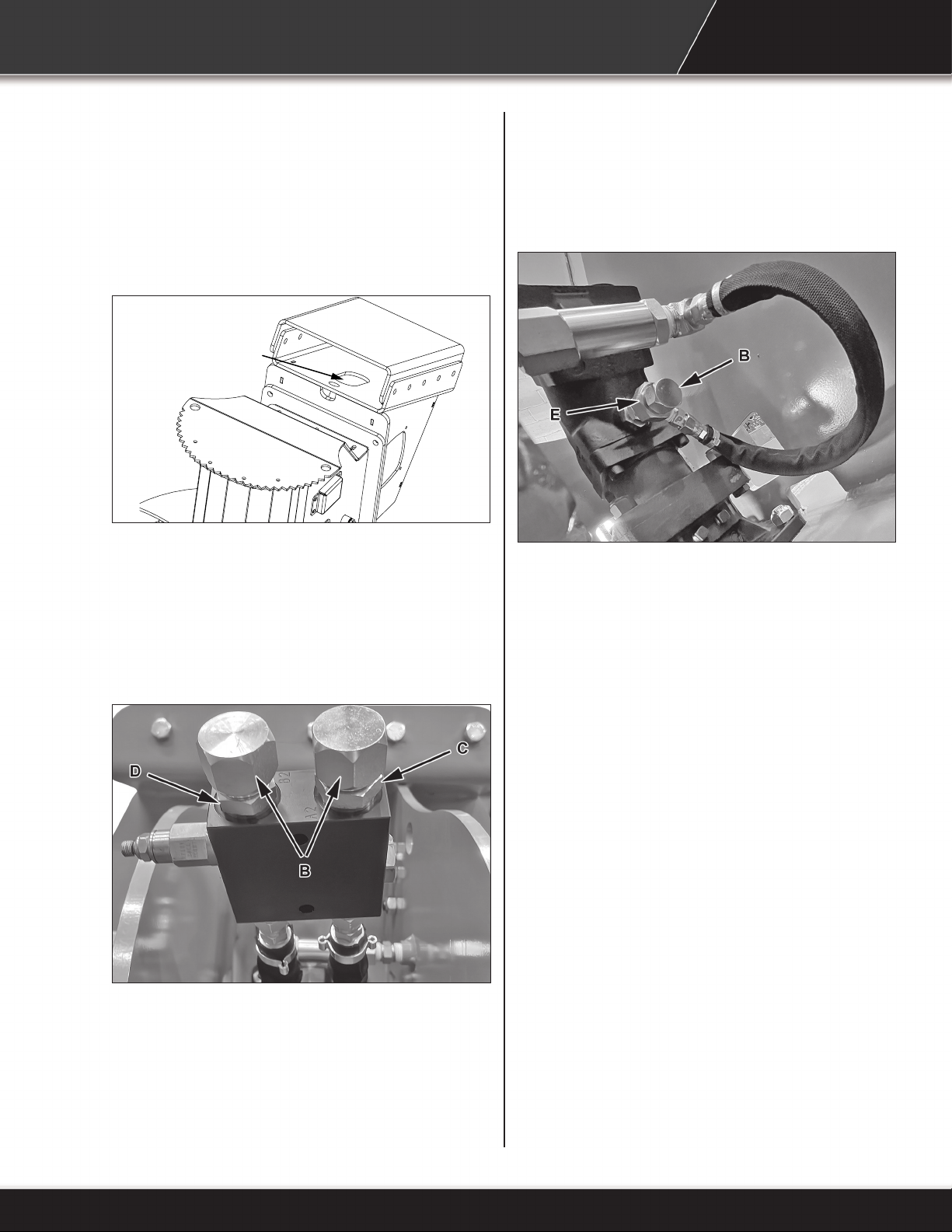

1. Route pressure, return and case drain hoses
through opening (A) in frame.
A
Note: Covers have been removed for illustration
purposes only. Do not operate with covers
removed.
2. Remove caps (B) and connect your pressure
hose to connector (C), return hose to connector
(D) and case drain hose to connector (E).
Starting with model year 2022, tree saws will be
equipped with a zero leak relief valve plumbed into
the T tting on the motor case drain.
If the case drain line is not connected or becomes
obstructed, the zero leak relief valve will vent the
pressurized hydraulic uid to the atmosphere,
protecting the motor from damage.
The zero leak relief valve will self reset after
hydraulic pressure in the case drain line is reduced.
Do not alter the plumbing circuit to the zero leak
relief valve.
13

3. Route hoses out the top (F) or bottom (G) of
mount, along boom and connect to excavator
hydraulic system. Connect case drain hose to
excavator reservoir.
Other installed attachments may interfere
with tree saw operation and may need to be
removed. Routing the hoses out the top or
bottom of mounting plate will depend on the
excavator and other installed attachments.
Baumalight does not provide these hoses
and they are not covered by the Baumalight
warranty�
F
G
NOTICE
Prevent equipment damage�
Route hydraulic hoses away from pinch
points�
During initial startup, carefully move
tree saw and boom to all positions to
verify hoses will not be damaged�
4�2�2 Excavator Adapter
1. Install excavator adapter (A) on either side of
machine mounting bracket (B) as shown.
2. Install and tighten mounting hardware.
Tightening the mounting hardware will pull the
anges into place.
14

4�3 Pre-Operation Check List
• Verify that tree saw is properly attached to
excavator.
• Verify that hydraulic hoses and electrical cable
are properly connected.
• Check for entangled material on blade.
• Verify all guards, doors and covers are installed
and secured.
• Verify cutting teeth are in good condition and
are tight.
4�4 Attach Tree Saw
^WARNING
To prevent injury or machine damage
put transmission in park�
Never position yourself between
excavator and tree saw�
Only experienced and properly trained
operator’s should operate the excavator
and tree saw�
1. Read and follow all safety instructions.
2. Attach tree saw to excavator. See Operator’s
Manual.
3. Verify pins are secure in the correct position.
4. Connect hydraulic hoses. Verify hydraulic
hoses are clear of pinch areas and moving
parts.
^WARNING
skin�
Keep bystanders away from machine
during operation�
Atiny, almost invisible leak can penetrate
the skin, thereby requiring immediate
medical attention�
If hydraulic uid is coming out of the zero leak relief
valve, shut down machine immediately. Inspect
the case drain line connection and lines. Contact
your dealer if case drain lines and connection are
good.
5. Move to a clear open area to test functions.
15

4�5 Initial Startup
Perform an initial startup and carefully move tree
saw and boom to all positions to verify hoses and
wires will not be damaged.
Carefully watch the circled areas in below images
to be sure hoses and wires are not pinched or
kinked. Reroute if damage may occur.
Baumalight does not provide these hoses
and wires, and they are not covered by the
Baumalight warranty�
4�6 Rotate Cutting Head
^ WARNING
Prevent serious injury or death�
1�
2� Engage parking brake�
3� Lower tree saw to the ground�
4� Disconnect hydraulic drive�
5�
1. Park on a level surface.
2. Lower tree saw to the ground.
3. Shut o engine and remove key.
^WARNING
Prevent serious injury�
Cutting head will be loose from mounting
frame and can fall when mounting
hardware is removed in step 5�
Support as needed to prevent injury�
4. Adequately support cutting head.
5. Remove mounting hardware from four locations
(A) around cutting head.
A
A
16

6. Support cutting head as needed and rotate 90
degrees clockwise or counter clockwise.
7. Install mounting hardware at four locations (A)
around cutting head and tighten securely.
8. Remove cover (B).
B
9. Verify that hose connections on motor are tight
and that hoses are not pinched.
10. Install cover (B). Do not operate saw with cover
(B) removed.
17

1. Verify all reectors and Slow Moving Vehicle
(SMV) sign are visible.
2. Raise tree saw slightly o ground.
3. Verify hydraulics are disengaged.
4. Travel at a reasonable and safe speed.
^WARNING
To prevent bodily injury from rotating
blade, be sure to disengage hydraulics
before transporting tree saw�
4�8 Transporting
4�7 Detach Tree Saw
^WARNING
Prevent serious injury or death�
1�
2� Engage parking brake�
3� Disconnect hydraulic drive�
4�
1. Park on a level surface.
2. Lower tree saw to the ground.
3. Shut o engine and remove key.
4. Disconnect hydraulic hoses and remote
pendent connector (if equipped).
5. Detach tree saw from excavator. See
Operator’s Manual.
18
Table of contents
Other Baumalight Saw manuals
