Baumatic BDI631 User manual

77
BDI631 60 cm Fully
integrated full height
dishwasher

2
USER M NU L FOR YOUR B UM TIC
BDI631 60 cm Fully
integrated full height dishwasher
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance
DD 04/09/12

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 - 9
Description of the appliance 9 – 10
Control panel 10
Using your dishwasher 10 - 22
Before first use 10
Filling with ishwasher salt 10 – 11
Setting the water softener level 12
Filling with rinse ai 13
Setting the rinse ai level 13 - 14
Filling with ishwasher etergent 14
Loa ing the upper basket 15
Loa ing the lower basket 16
The cutlery basket 17 - 18
Loa ing ishes an cutlery 18 - 19
Program table 19
Setting a wash program 19 – 20
Changing a wash program 20
At the en of a wash program 20
Rinse ai an salt in icator neons 21
Cleaning and maintenance 21 - 24
The filter system 21 - 22
Cleaning the filters 22
Cleaning the spray arms 23
Cleaning the control panel 23
Cleaning the oor 24
Error code failure system 24 – 26
General troubleshooting 26 – 27
Installation 28 - 37
Aperture requirements 28
Preparing an connecting the furniture oor 29 – 30
A justing the tension of the oor spring 31
Connecting to the mains water supply 32
Connecting to the water outlet 33
Connecting to the power supply 33 - 34
Applying the con ensation strip 34 - 35
Positioning the ishwasher 35
Levelling the appliance 36
Securing the ishwasher 37
Before first use 37
Baumatic consumables 38
Technical data 39
Contact details 40

4
ENVIRONMENT L NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
frien ly an can be recycle .
oPlease iscar all packaging material with ue regar for the
environment.

5
IMPORT NT S FETY INFORM TION
Your safety is of the utmost importance to Baumatic.
Please make sure that you rea this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information containe in this
booklet, please contact the Baumatic A vice Line.
General Safety
oRepairs to your appliance must only be carrie out by a
Baumatic engineer or one of its authorise service agents. Any
attempt by an inexperience person to repair the appliance,
coul result in injury or amage to your ishwasher.
oIf you notice that the mains cable is amage . The appliance
must not be used The same applies if you notice that the
worktop, control panel or base area is amage . As this coul
allow access to the internal components of the machine.
oThe appliance shoul be turne off an isolate from the mains
supply, before either cleaning or maintenance work is attempte .
oThe mains cable must not be use to pull the plug out of the
electrical socket.
oThe machine shoul not be spraye with water.
oThe external surface of the appliance may become hot whilst
your ishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which coul cause an electric shock hazar .
Installation
oThe installation instructions containe within this user manual
shoul be followe .
oIt is obligatory for the complete installation to comply with all
relevant buil ing regulations an local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 10
and page 38 of this manual

6
oCare shoul be taken not to trap the power supply cable
un erneath the appliance whilst installing it.
oNo attempt shoul be ma e to alter or mo ify the specifications
of this appliance.
In daily use
oThis appliance is only esigne to wash normal omestic
washloa s. If you use your ishwasher in any other way or it is
incorrectly use , then Baumatic accepts no liability for any
amage that might be cause an any guarantee will be voi .
oIt is recommen e that the appliance is unplugge an the
water supply is turne off after the machine is use .
oThe etergents, rinse ai an salt that you place in this appliance
shoul be suitable for automatic ishwashers. With regar s to
osage levels, the etergent manufacturer’s recommen ations
shoul be followe .
oSharp knifes or ones with long bla es are a potential safety
hazar when place in an upright position in the cutlery basket.
We woul recommen that these items are place horizontally in
the upper basket.
oYou should not wash any items that have come into contact
with corrosive, aci ic or alkaline chemicals, paint, petrol, iron or
steel ebris.
oYou should not open the oor whilst the appliance is set on a
wash program. Depen ing on which stage that the wash
program is at, hot water coul escape the machine.
oYou should not leave the oor of the appliance open, unless
you are loa ing or unloa ing the ishwasher.
oYou should not stan or sit on the oor when it is open.

7
Child Safety
oYour ishwasher shoul only be use by a ults. You shoul not
allow chil ren in the area of the machine unsupervise . You
shoul not let them touch the controls or play with the appliance.
oIt coul be possible for a chil or pet to gain access to the
ishwasher if the oor is left open. Therefore please check the
insi e of the appliance before setting it on a wash cycle.
oAny packaging that is remove from the machine shoul be kept
away from chil ren.
oAll etergents shoul be kept out of chil ren’s reach in a safe
place.
oSome water will remain insi e the ishwasher when it has
complete a wash cycle. This water is not suitable for rinking
an may contain resi ues from the etergents that are use in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 ate 19/02/1973 Low Voltage Directive an subsequent
mo ifications.
-89/336 ate 03/05/1989 Electromagnetic Compatibility Directive an
subsequent mo ifications.
For future reference please recor the following information which can
be foun on the rating plate an the ate of purchase which can be
foun on your sales invoice. The rating plate of your ishwasher is
locate on the right han si e of the rop own oor.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

8
Specifications
Product dimensions
Height: 820 - 850 mm
Wi th: 595 mm
Depth: 540 mm
perture dimensions
Height: 820 mm (min)
Wi th: 600 mm
Depth: 580 mm (min)
Product specifications
o12 Place settings
o5 Functions: Normal
Intensive
Economy
Rinse
Rapi
o5 Temperatures: 40°C, 50°C, 55°C, 60°C, 65°C
oLED isplay
oSelf-cleaning stainless steel micro-filter
oAnti-leak evice
oAnti-floo evice
oCollapsible plate racks
oA justable feet
oResi ual rying
Energy efficiency details
Energy efficiency class: A+
Washing performance class: A
Drying performance class: A

9
Electrical details
Rated voltage: 230 Vac 50 Hz
Supply connection: 13 A ( ouble pole switche fuse outlet with
3 mm contact gap)
Optional extra
oDWD600SS- Stainless steel oor with mark resistant coating
Power consumptions
Off mo e: 0.00 W
Left on mo e: 0.40 W
Description of the appliance
1) Upper basket
2) Spray arms
3) Lower basket
4) Water softener
5) Main filter
6) Detergent ispenser
7) Cup shelf
8) Cutlery basket
9) Coarse filter
10) Rinse ai ispenser
11) Drain pipe connector
12) Inlet pipe connector

10
Control panel
1) ON/OFF button
2) ON/OFF in icator neon
3) Rinse ai an salt in icator neons
4) Program in icator neons
5) Program selection button
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions containe
within this booklet.
oFill the water softener with 1 litre of tap water an then fill with
specialist ishwasher salt. After this you shoul set the water
softener level.
oFill the rinse ai ispenser an then set the rinse ai osage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher If any other type of
salt is used in the appliance (in particular table salt),
it will damage the water softener
oI eally you shoul fill the water softener with salt, just before
you are about to run a wash program. This will help to clear any
salt that may have overflowe from the water softener uring
the salt filling process.

11

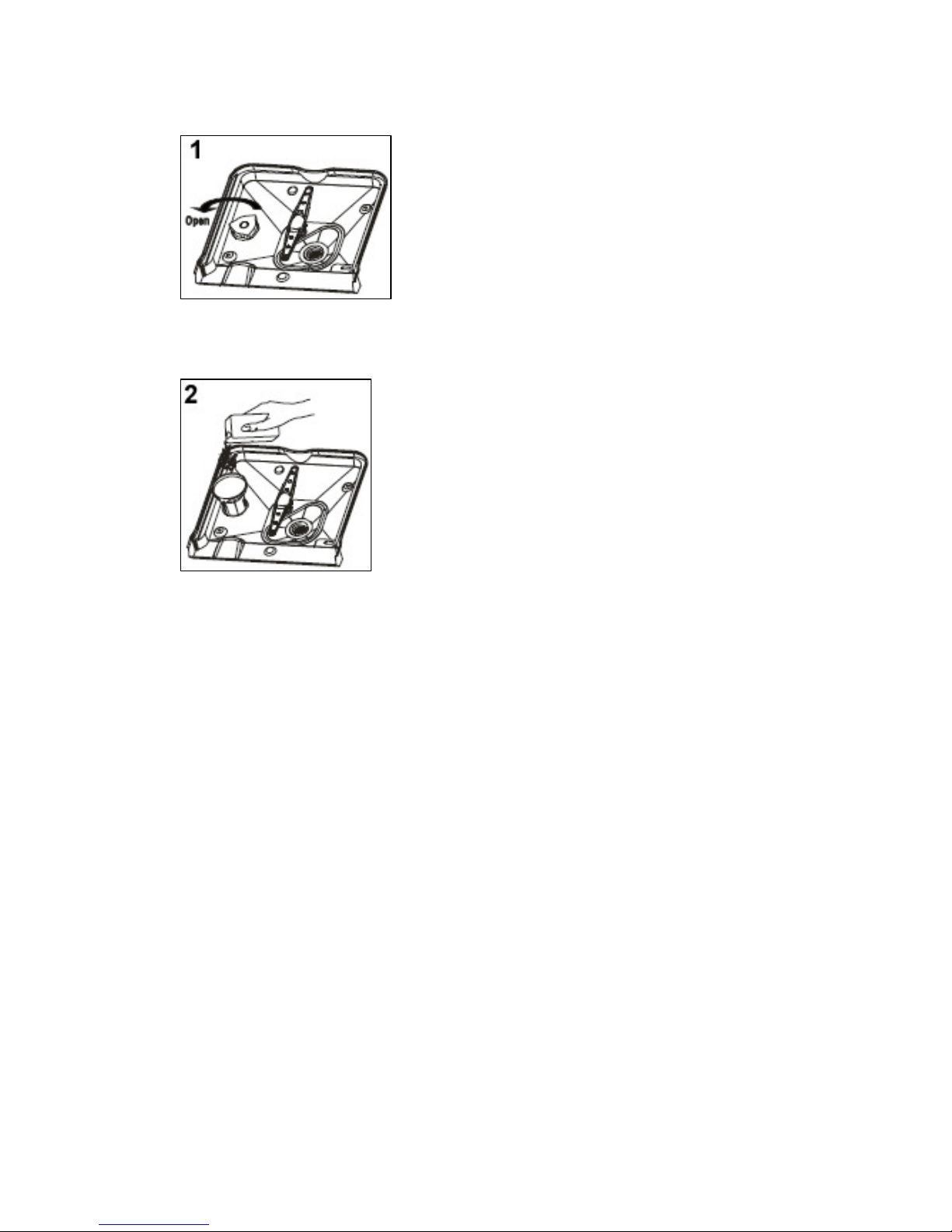

oOpen the oor of the ishwasher an then remove the lower
basket. The basket shoul be empty when you remove it.
oTurn the water softener cap
anticlockwise an remove it.
oPour 1 litre of water into the water
softener.
IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time
oPour salt into the water softener, using
the funnel that is supplie with the
appliance. You shoul a
approximately 1.2 kg of salt into the
water softener.
oIt is perfectly normal for a small amount of water to come out of
the water softener, whilst you are filling it with salt. This oes
not mean that the water softener is fille with the correct
amount of salt.
oRefit an fully tighten the water softener cap.
oThe salt require warning light will go out approximately 2-6
hours after you have fille the water softener with salt. When
the salt in icator neon lights on the control panel, then you
shoul follow the filling with ishwasher salt proce ure again.
oIMPORTANT: You do not need to pour 1 litre of water into
the container when you subsequently fill the water
softener with salt

12

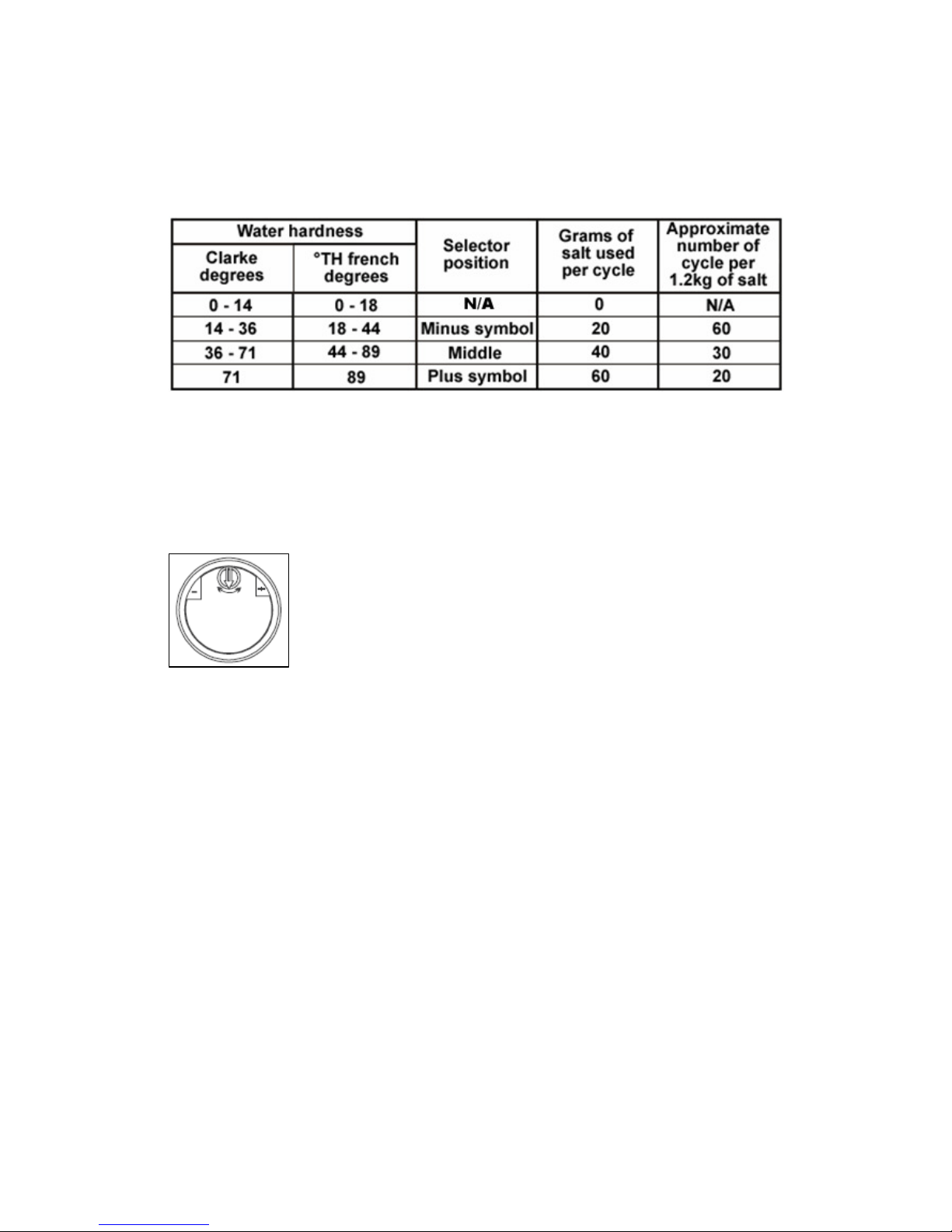

Setting the water softener level
It is possible to regulate the amount of salt that the water softener will
release uring a wash cycle. The water softener shoul be set to a
level that is appropriate for the har ness of your water (please refer to
the table below).
To alter the amount of salt that is release by the water softener, you
shoul :-
oRemove the lower basket an unscrew the cap from the water
softener.
oLocate the ring with an arrow on it that is locate
on the water softener. (See figure opposite).
oWhen you first receive your appliance, the arrow
will be pointing to the minus symbol. Using the
water har ness chart, you shoul turn the arrow
to the setting that is appropriate for your water
har ness.
oThe “mi le” selector position is halfway between the minus an
plus symbols.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets and live
in a medium or hard water area, then you should still fill the
water softener with salt. The water softener arrow should be
turned to the minus setting.

13

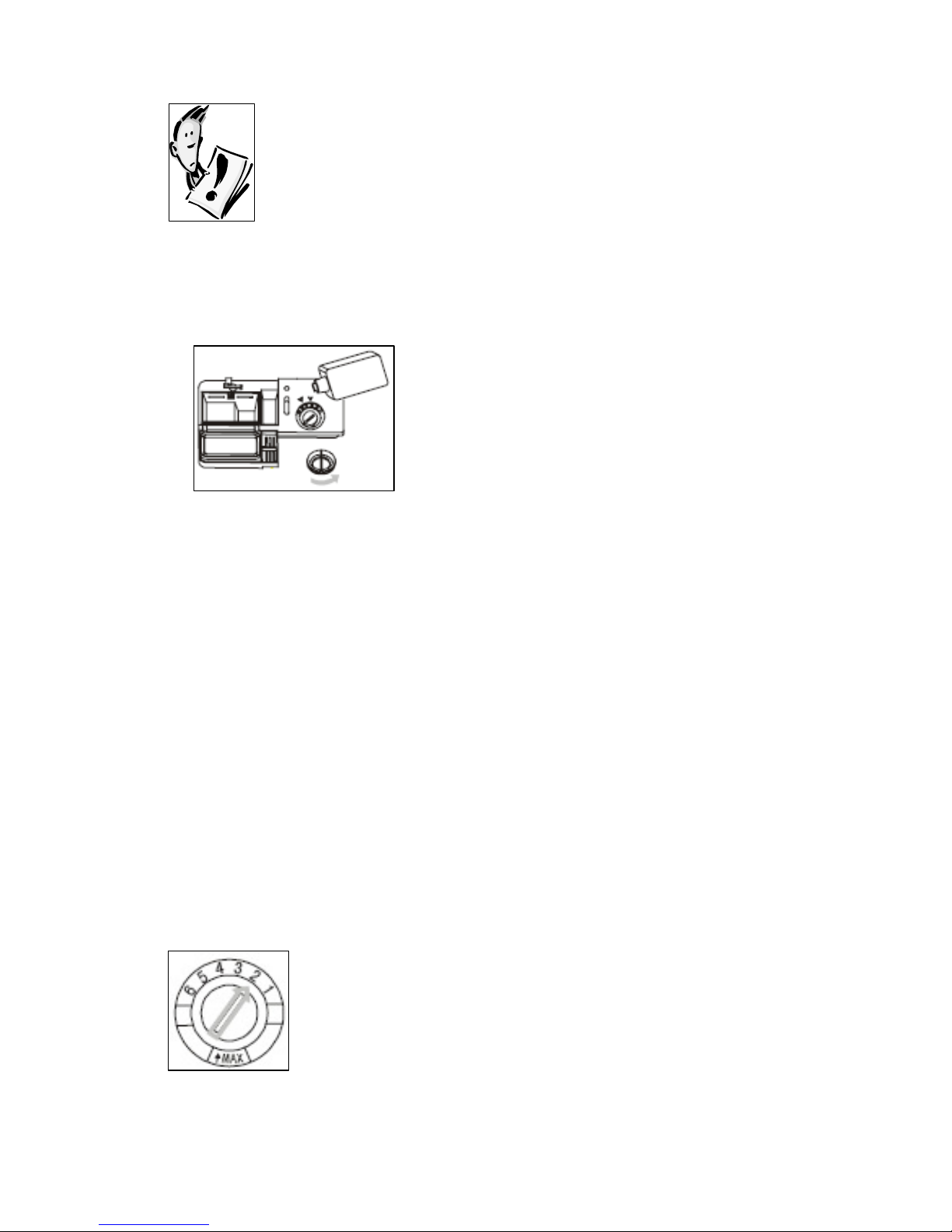

Filling with rinse aid
The rinse ai is release uring the final rinse an it helps
to prevent water from forming roplets on your ishes.
These roplets will lea to spots an streaks being left on
items after the wash program has complete .
oYour ishwasher is esigne to utilise liqui rinse ai .
oThe rinse ai ispenser is locate insi e the rop own oor,
next to the etergent ispenser.
oTo access the rinse ai ispenser,
you shoul turn the cap anticlockwise
an it will pop out of the hole. Then
slowly pour in liqui rinse ai , the
rinse ai ispenser will hol
approximately 140 ml of rinse ai .
oYou shoul continue to fill with rinse ai , until the level in icator
turns completely black.
oBe careful not to overfill the ispenser, as this coul cause
oversu sing when a wash program is selecte . Wipe away any
rinse ai excess or spillages with a amp cloth.
oReplace the cap an turn it clockwise until it locks into position.
oYou shoul refill the rinse ai ispenser when the rinse ai
in icator neon lights on the control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then
you should still fill the rinse aid dispenser.
Setting the rinse aid level
The amount of rinse ai that the ishwasher requires also epen s on
the har ness of your water. You shoul experiment with the rinse ai
setting, until you fin a level that gives the best results.
oOn the first wash cycle, we woul recommen
that the rinse ai level is set to number 2.
oIf you get water spots an poor rying
performance, then you shoul turn the arrow
anticlockwise an increase the setting to the next
number.

14
oYou shoul continue to a just the rinse ai level upwar s until
you get no water spots.
oIf you get clou iness or streaking on your ishes, the rinse ai
level is set too high an it is causing foaming uring the wash
cycle. Turn the arrow clockwise an lower the setting to the next
number.
Filling with dishwasher detergent
The etergent ispenser must be refille at the start of each wash
cycle (apart from the Rinse wash program).
oOpen the li that closes over the etergent ispenser an place
the etergent insi e of the ispenser.
oThe section marke 1 in the iagram is for the main wash cycle
etergent. Only one etergent tablet shoul be place in the
ispenser at any one time. If you are using etergent pow er or
liqui , you shoul follow the etergent manufacturer’s
recommen ations.
oThe section marke 2 in the iagram can have separate
etergent place in it for any wash cycle that has a pre-wash
element to it, however this is optional. This must be a liqui or
pow er etergent, not another etergent tablet.
oShut the etergent ispenser li an position the clip on the
outer e ge, so that it hol s the li shut.
oAt the beginning of a wash cycle the clip will open an the
tablet/pow er/liqui will enter the ishwasher.

15
Loading the upper basket
The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee & tea cups, saucers, plates, bowls
and shallow pans (that are not heavily soiled .
1. Cups
2. Small serving bowl
3. Large serving bowl
4. Glasses
5. Saucers
6. Dish
7. Dessert ishes
oYou shoul position the ishes an cookware in such a way that
they are not move by the spray of water uring the wash cycle.
oUse the iagram above as a gui e to the most appropriate way
to loa the upper basket.

16
Loading the lower basket
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes. You
can also load bowls and a variety of plates into the lower basket.
7. Dessert ishes
8. Serving plate
9. Dinner plates
10. Si e plates
11. Cutlery basket
oSaucepans an serving bowls must always be place with their
bases upwar s.
oDeep saucepans shoul be slante , to allow water to run off.
oThe bottom rack has prongs at the rear of the basket that can be
fol e ownwar s, to allow for easier loa ing of larger
saucepans an serving bowls.

17
The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
basket should then be placed in the appropriate position in the lower
basket.
1. Forks
2. Soup spoons
3. Dessert spoons
4. Teaspoons
5. Knives
6. Serving spoon
7. Gravy la le
8. Serving fork
oFor the best washing
performance, cutlery shoul be
place through the slots in the top
of the cutlery basket.
IMPORTANT: Do not allow items of cutlery to fall through
the bottom of the cutlery basket, as this may cause
damage to the spray arm and/or the cutlery. If the bottom
of the basket begins to deteriorate and allows items to fall
through, you should replace the cutlery basket.
Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher
oRemove leftovers an soften the remnants of burnt foo in pans,
prior to loa ing ishes in the appliance.
oOnce the ishwasher has been loa e , check that the spray arms
can move freely. If the spray arm comes into contact with any
item, then you shoul rearrange the wash loa .
oCups, glasses, pans etc shoul all be loa e with their bases
upwar s, so that water oes not collect insi e of them.
oCutlery an ishes shoul not cover each other; otherwise you
may get poor wash results.

18
oDo not allow glasses to touch insi e the ishwasher, otherwise
amage may occur.
oSmall objects can be place insi e of the cutlery basket.
The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a han le of mother-of-pearl, woo , horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glue parts that are not resistant to heat.
oCutlery items or crockery that are bon e .
oCopper or pewter items.
oLea crystal glass.
oWoo en platters.
oSynthetic fibre items.
The following items are not always suitable for
washing inside a dishwasher:-
oStoneware shoul only be washe if the manufacturer of the
item has marke it as ishwasher safe.
oPlastic items (such as lunchboxes) shoul only be washe if the
manufacturer has marke it as ishwasher safe.
oGlaze crockery may fa e with repeate washing insi e of a
ishwasher.
oItems ma e of silverware or aluminium can iscolour when
washe insi e a ishwasher.
oAny foo resi ue shoul be remove from silver items
imme iately, as this can also result in iscolouration.
oCertain types of glass may become ull or clou y after a large
number of washes.

19
Program table
oThe ECONOMY program is suitable for cleaning a typical loa of
irty ishes an is the most efficient in terms of its combine
energy an water consumption.
Program
Cycle Program
information
Description
of cycle
Detergent
pre/main
Program
times*
Energy
(kWh)
Water
(L)
Normal
For normally
soile loa s,
such as pots,
plates,
glasses an
lightly soile
pans.
Pre-wash
(50°C)
Wash (55°C)
Rinse
Rinse (65°C)
Drying
5 grams
(pre-rinse)
25 grams
(main
wash)
160
Minutes
(2:40
hours on
isplay)
1.30 16
Intensive
For the
heaviest
soile loa s,
such as pots,
pans,
casserole
ishes an
ishes that
have been
sitting with
rie foo on
them for
awhile.
Pre-wash
(50°C)
Wash (65°C)
Rinse
Rinse
Rinse (55°C)
Drying
5 grams
(pre-rinse)
25 grams
(main
wash)
125
Minutes
(2:05
hours on
isplay)
1.36 19.5
Economy
**
For lightly
soile loa s,
such as
plates,
glasses, bowls
an lightly
soile plates.
A stan ar
aily cycle.
Pre-wash
Wash (50°C)
Rinse (65°C)
Drying
5 grams
(pre-rinse)
25 grams
(main
wash)
165
Minutes
(2:45
hours on
isplay)
1.02 12
Rinse
For ishes
that nee to
be rinse an
rie only.
Wash (40°C)
Rinse
Rinse (65°C)
Drying
30 grams
(main
wash)
60
Minutes
(1:00
hours on
isplay)
0.95 12
Rapi
A shorter
wash for
lightly soile
loa s that o
not nee
rying.
Wash (40°C)
Rinse
Rinse (40°C)
20 grams
(main
wash)
30
minutes
0.50 11
* The wash program times that are quote are inten e as a gui e
only. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc. can affect
the time it takes for the wash program to complete.
** Economy is the testing program for EN 50242 (12 place settings,
top basket in upper position an rinse ai setting: 6).

20
Setting a wash program
Make sure that the before first use section has been
followed
oCheck whether the appliance nee s rinse ai or salt a ing to it.
oPull out the top an bottom baskets, then loa them in
accor ance with the loa ing instructions.
oPush the top an bottom baskets fully back into position.
oA etergent
oTurn the appliance on by using the ON/OFF button.
oIMPORTANT: Wait for 5 seconds before pressing the
program selection button, otherwise the appliance may
not function correctly
oPress the program selection button to choose an appropriate
wash program for the loa that you are washing. The relevant
program in icator neon will light to show which program you
have selecte .
oClose the oor firmly, so that you hear the oor lock click shut.
oAfter a few secon s, you will hear the appliance begin to fill with
water an the wash program will have starte .
Changing the wash program
IMPORTANT: This should only be attempted when the cycle has
only just started, otherwise the detergent tablet may have
already released or you could have hot water escaping
oSlightly open the oor of the appliance an turn off the power
using the ON/OFF button.
oWait for a minute before fully opening the oor of the appliance.
oTurn the appliance on by using the ON/OFF button an wait for 5
secon s before pressing the program selection button.
oPress an hol own the program selection button for 3 secon s
to cancel the wash program. Then use the program selection
button to choose the correct wash program.
