Baumatic BKDW45SS User manual

BKDW45SS/W
45 cm
Freestanding
dishwasher

USER MANUAL FOR YOUR BAUMATIC
BKDW45SS/W 45 cm
Freestanding dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 27/01/11
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 - 10
Productdimensions 8
Product specifications 8 - 9
Energyefficiencydetails 9
Electricaldetails 9
Description of the appliance 9
Controlpanel 10
Usingyourdishwasher 10-22
Before first use 10
Fillingwithrinseaid 10-11
Settingtherinseaidlevel 12
Filling with dishwasher detergent 12-13
Concentrateddetergent 13
Detergenttablets 14
Loading the upper basket 14
Adjusting the upper basket 15-16
Loadingthelowerbasket 16-17

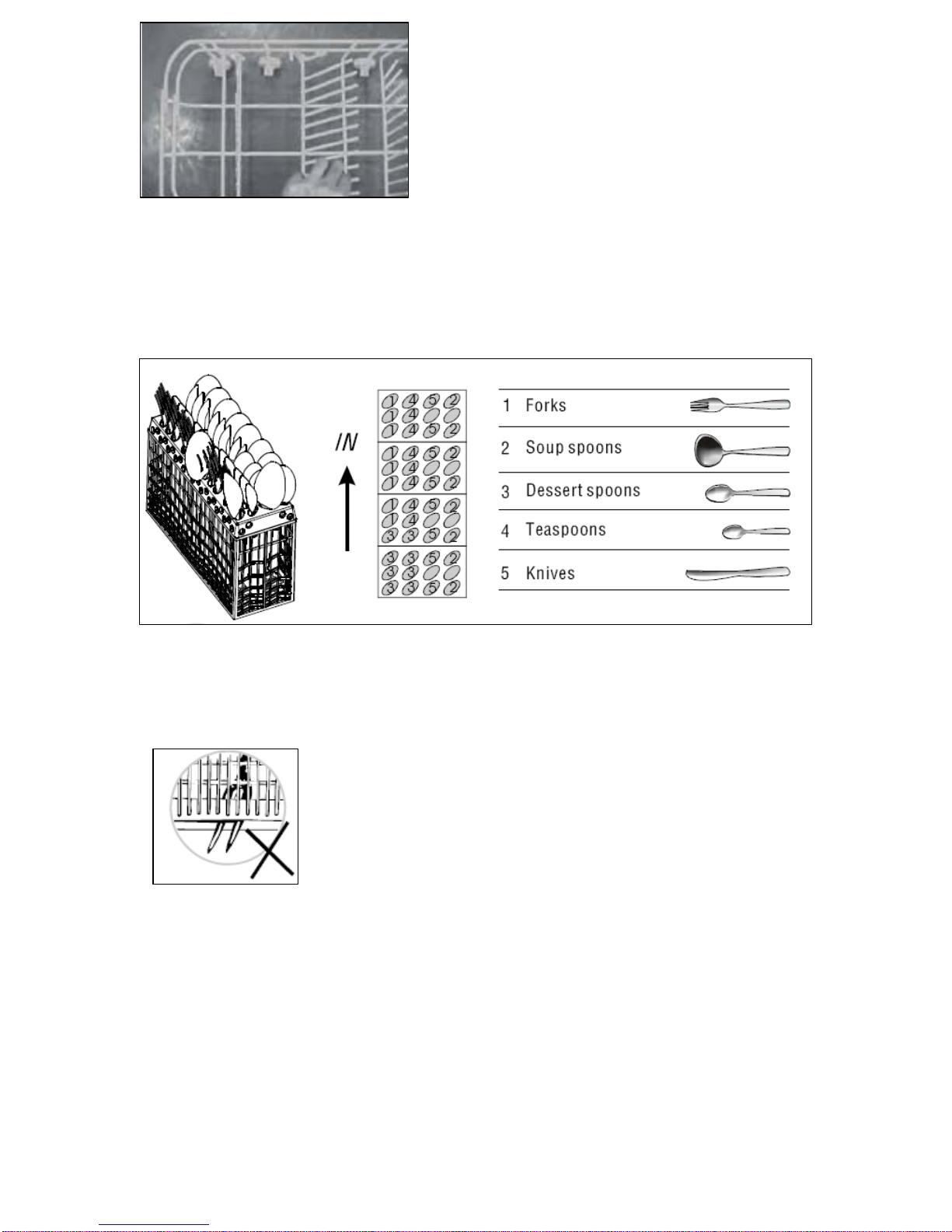

Thecutlerybasket 17
Loadingdishesandcutlery 18-19

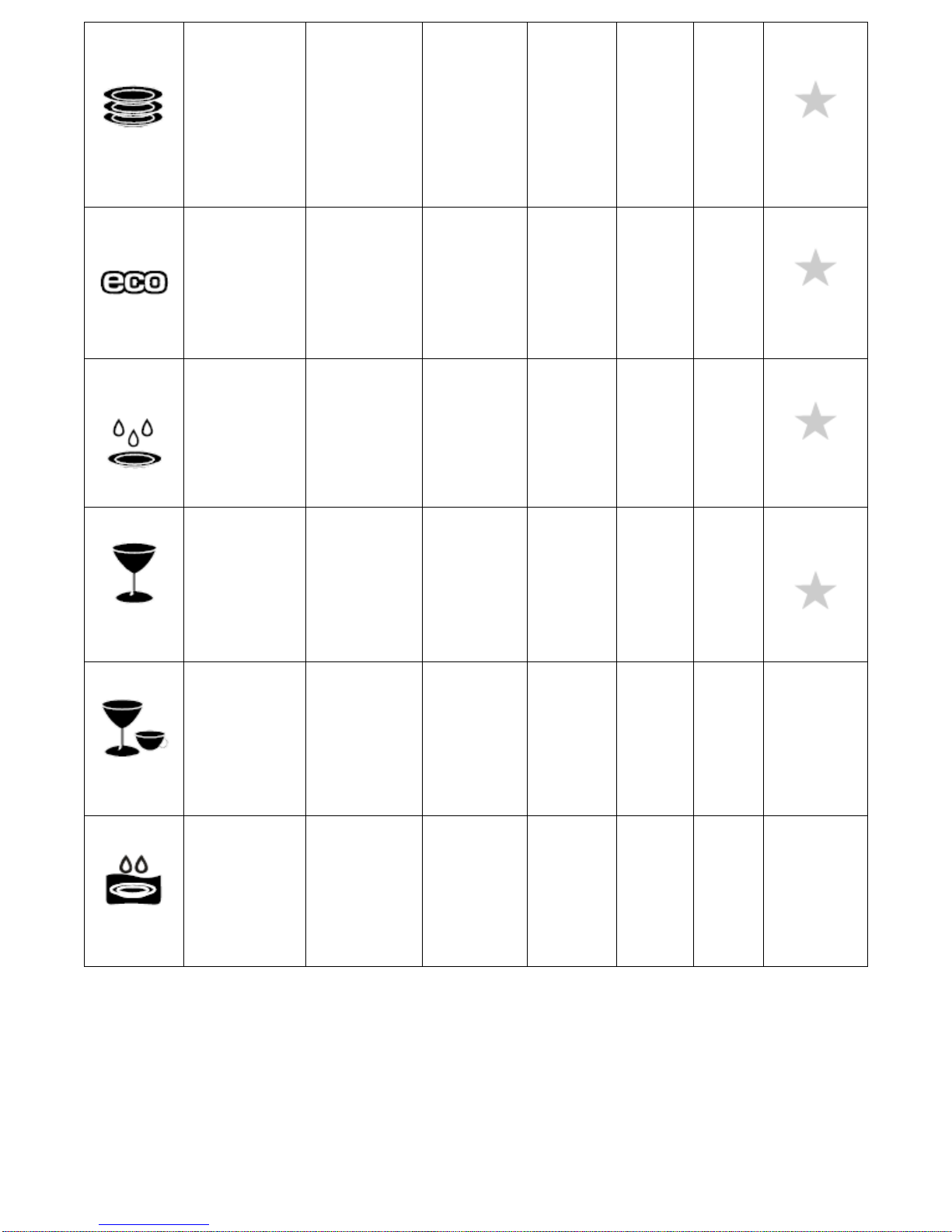

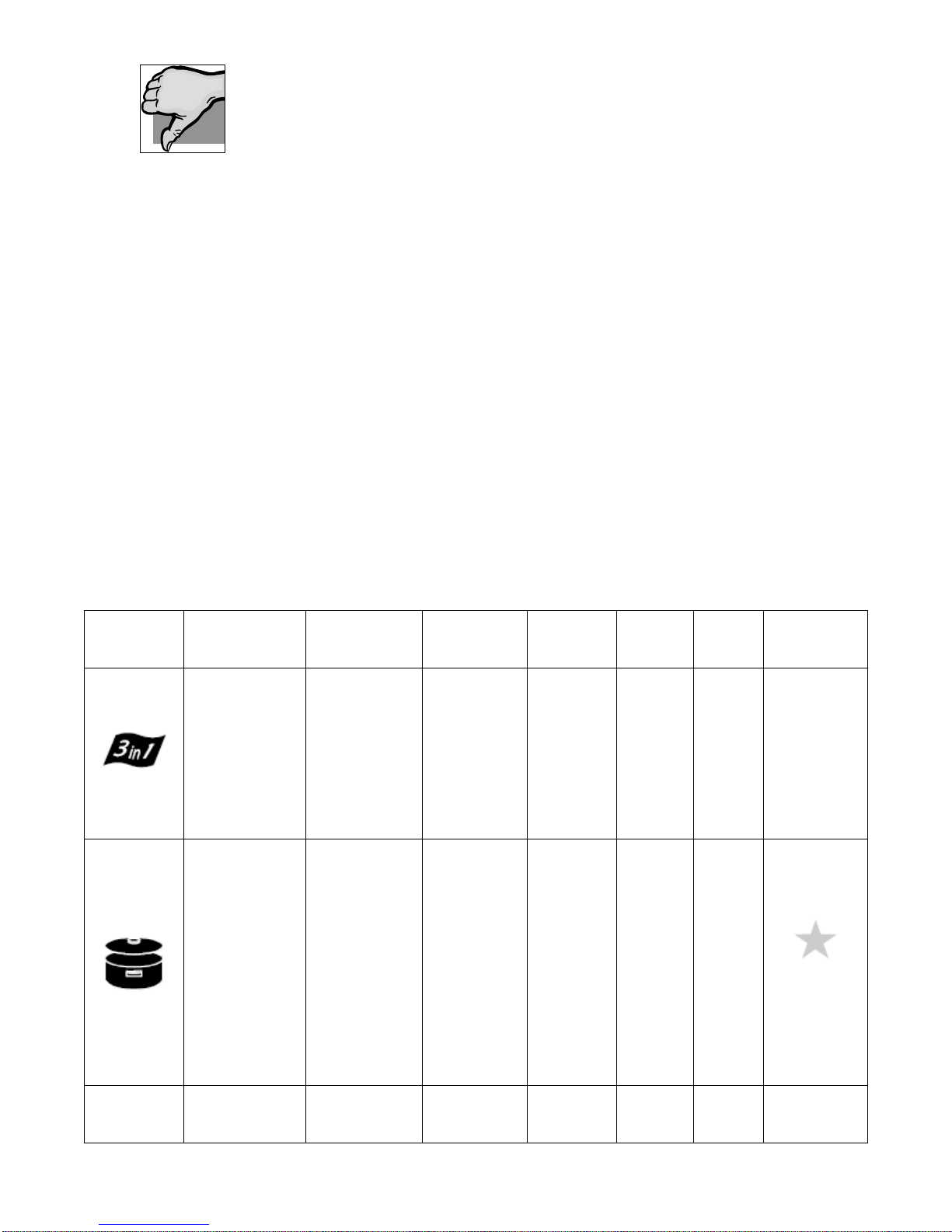

Program table 19-20
Settingawashprogram 21
Changingawashprogram 21-22
Pausingawashprogram 22
Attheendofawashprogram 22
Using the 3 in 1 function 23
Cleaning and maintenance 24 -27
Thefiltersystem 24
Cleaningthefilters 25
Cleaningthesprayarms 26
Cleaning the control panel 26
Cleaningthedoor 27
Errorcodefailuresystem 27-31
General troubleshooting 29-31
Installation 32 -35
Positioning and levelling the appliance 32 -33
Connecting to the mains water supply 33
Wateroutlet 34
Powersupply 34-35
Before first use 35
Warrantycard 36-37

ENVIRONMENTAL NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Retailer where you purchased
your unit from.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
oRepairs may only be carried out by an Authorised Service
Agent. Log onto www.applico.co.nz to locate a Service
Agent nearest to you.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
5

6
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” sections on page 10
and 34.
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents and rinse aid that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knifes or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the upper basket.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.

7
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and
subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Specifications

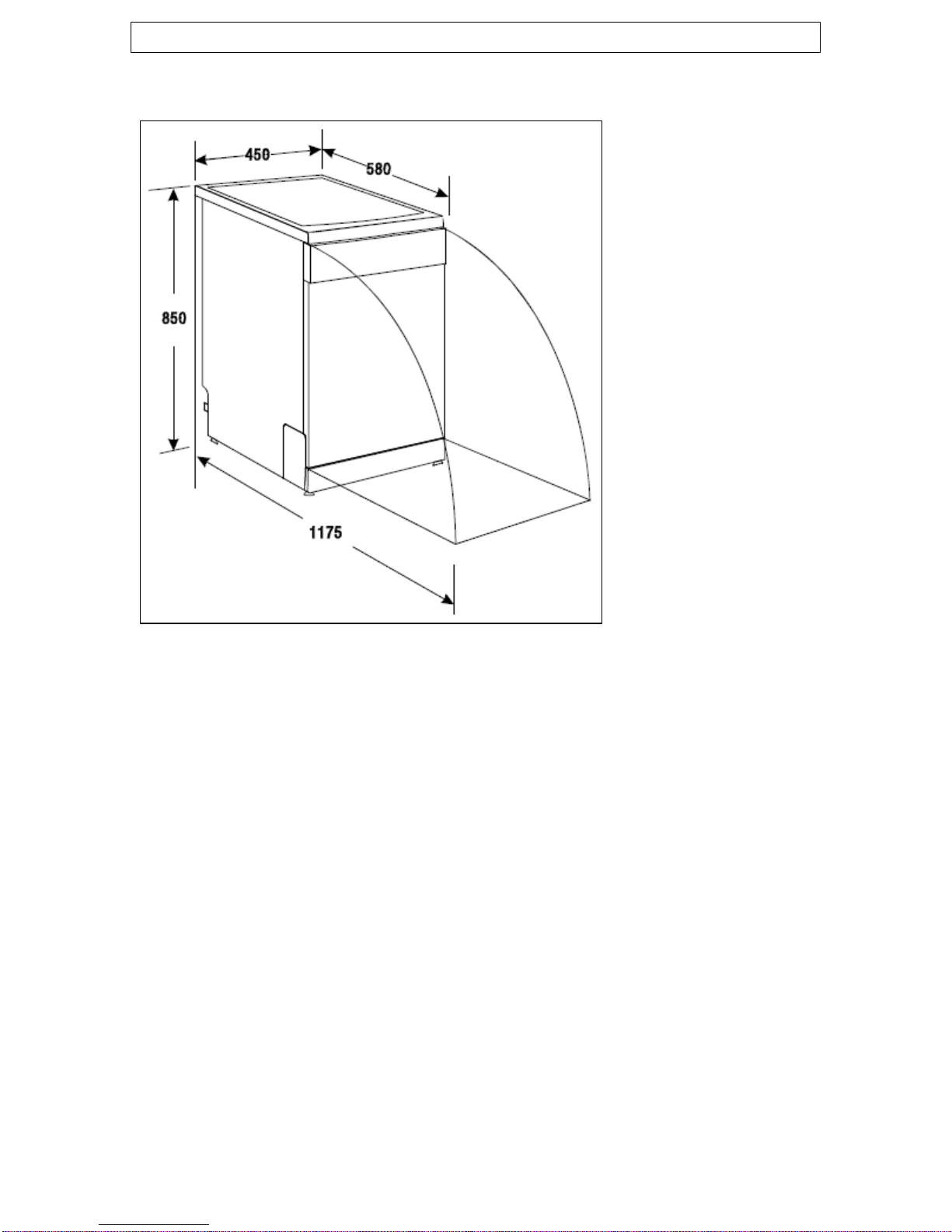

Product dimensions
Height: 850 mm
Width: 450 mm
Depth: 580 mm
Product specifications
o8 Place settings
o8 programs: Normal
Intensive
Economy
Glass
Rinse
Rapid
Soak
3 in 1
o5 temperatures: 40°C, 45°C, 50°C, 60°C, 70°C
oLED display
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oConcealed heating element
oHeight adjustable upper basket
oCollapsible plate racks
8

oAdjustable feet
oResidual drying
Energy efficiency details
Energy efficiency class: A
Washing performance class: A
Drying performance class: A
Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Supply connection: 10 A (double pole switched fused outlet with
3mmcontactgap)

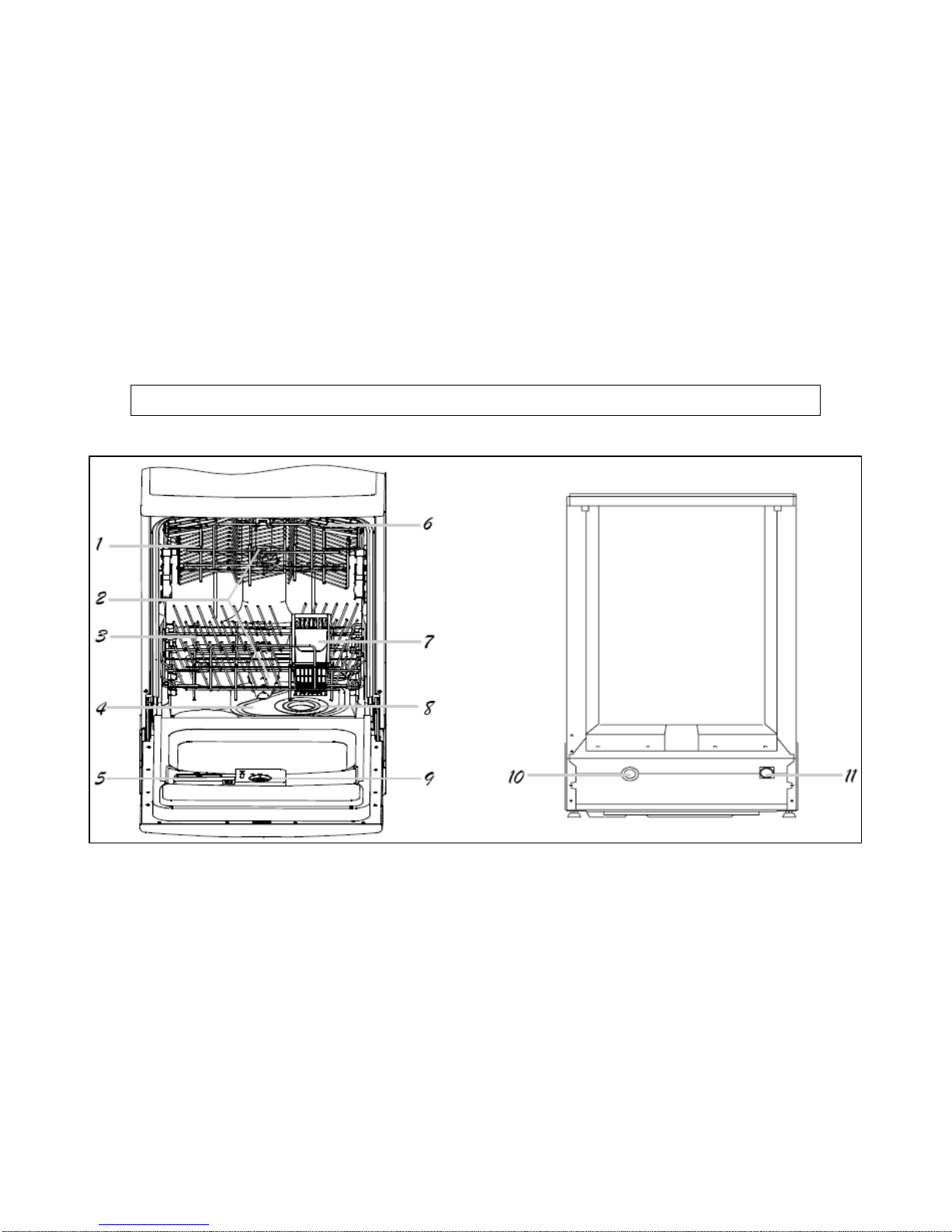

Description of the appliance
1) Upper basket
2) Spray arms
3) Lower basket
4) Main filter
5) Detergent dispenser
6) Cup shelf
7) Cutlery basket
8) Coarse filter
9) Rinse aid dispenser
10) Drain pipe connector
11) Inlet pipe connector
9

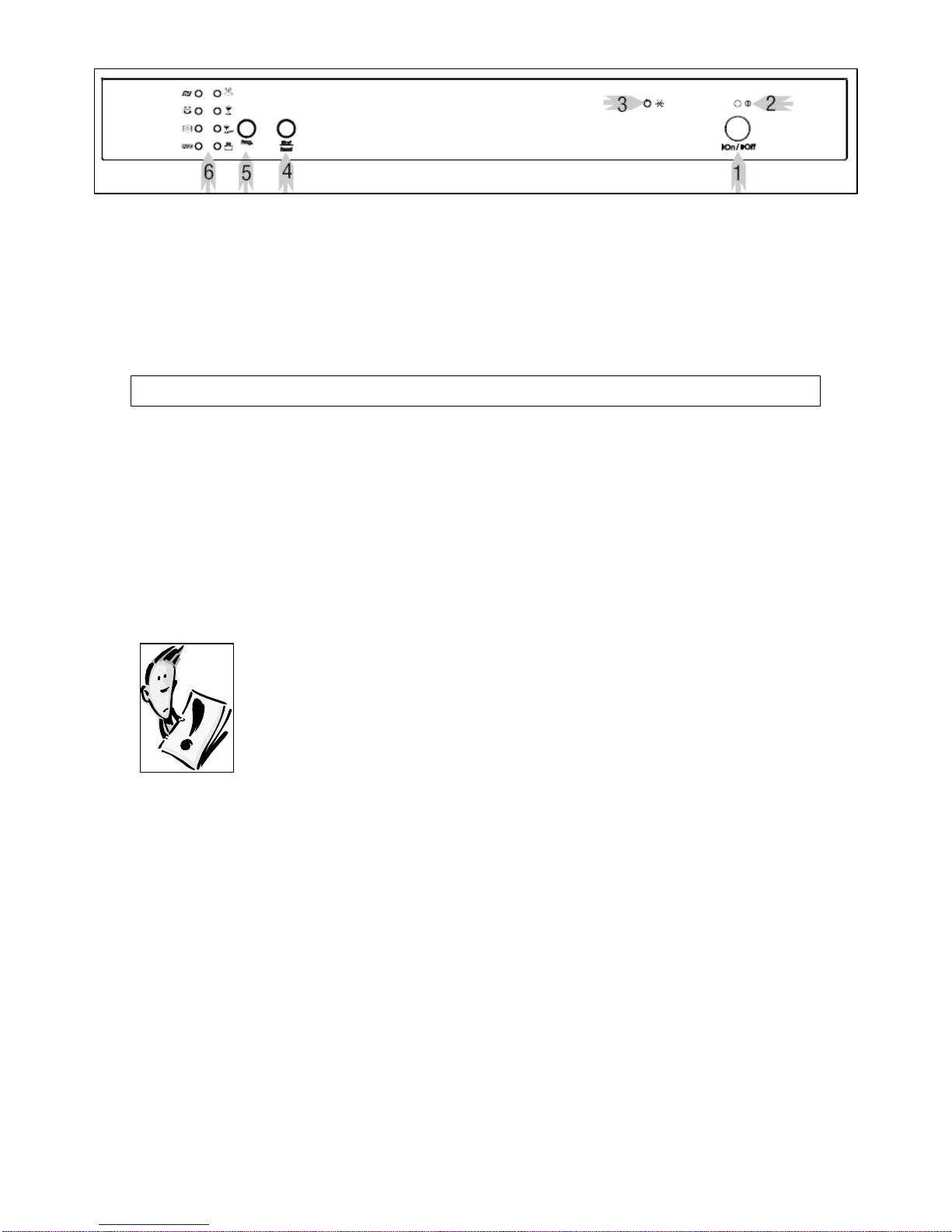

Control panel
1) ON/OFF button
2) Power on light
3) Rinse aid indicator light
4) Start / Reset button
5) Program selection button
6) Program indicator lights
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet on pages 31-34.
oFill the rinse aid dispenser and then fill the detergent dispenser.
Please refer to pages 10-13 for information.
Filling with rinse aid
The rinse aid is released during the final rinse and it helps
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid dispenser is located inside the drop down door,
next to the detergent dispenser.
10

oTo access the rinse aid dispenser, you should turn the cap
anticlockwise to remove it and then slowly pour in liquid rinse
aid. The rinse aid dispenser will hold approximately 110 ml of
rinse aid.
oYou should continue to fill with rinse aid, until the rinse aid
indicator (C) turns completely black. The black dot on the
indicator changes as the rinse aid diminishes.
oBe careful not to overfill the dispenser, as this could cause
oversudsing when a wash program is selected. Wipe away any
rinse aid excess or spillages with a damp cloth.
oReplace the cap securely into position.
oYou should refill the rinse aid dispenser when the rinse aid
indicator (3) lights on the control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then
you should still fill the rinse aid dispenser.
11

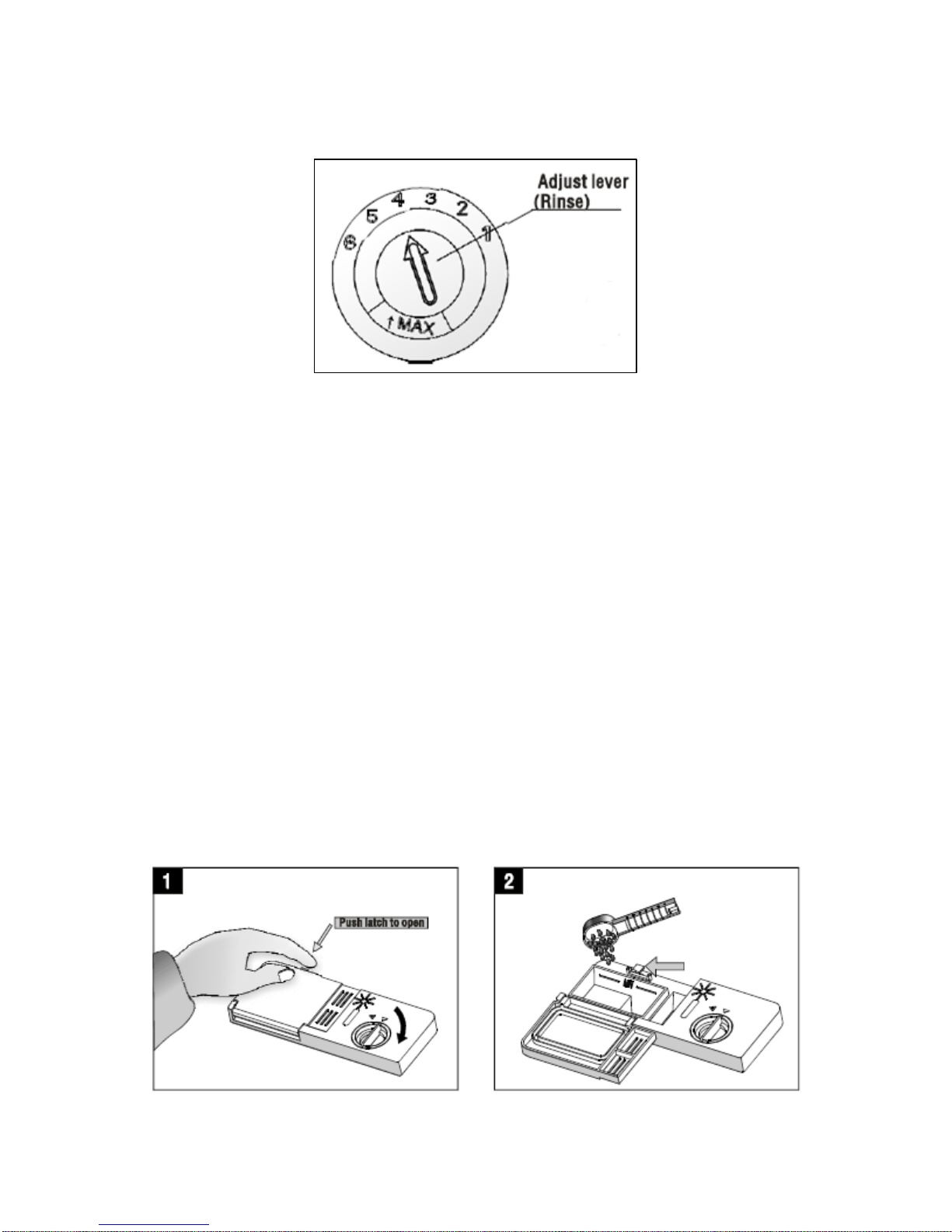

Setting the rinse aid level
The amount of rinse aid that the dishwasher requires also depends on
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
oOn the first wash cycle, we would recommend that the rinse aid
level is set to number 4.
oIf you get water spots and poor drying performance, then you
should turn the arrow anticlockwise and increase the setting to
the next number.
oYou should continue to adjust the rinse aid level upwards until
you get no water spots.
oIf you get cloudiness or streaking on your dishes, the rinse aid
level is set too high and it is causing foaming during the wash
cycle. Turn the arrow clockwise and lower the setting to the next
number.
Filling with dishwasher detergent
The detergent dispenser must be refilled at the start of each wash
cycle (apart from the RINSE wash program).
12

oOpen the lid that closes over the detergent dispenser, by
pushing the latch, and place the detergent inside of the
dispenser.
oThe section marked A in the diagram is for the main wash cycle
detergent. Only one detergent tablet should be placed in the
dispenser at any one time. If you are using detergent powder or
liquid, you should follow the detergent manufacturer’s
recommendations. The MIN position indicates about 20g of
detergent.
oThe section marked B in the diagram can have separate
detergent placed in it for any wash cycle that has a pre-wash
element to it, however this is optional. This must be a liquid or
powder detergent, not another detergent tablet. This
compartment holds about 5g of detergent.
oShut the detergent dispenser lid and press it down until it locks
in place.
oAt the beginning of a wash cycle the clip will open and the
tablet/powder/liquid will enter the dishwasher.
Concentrated detergent
oThe use of the NORMAL wash program in combination with
concentrated detergents is economical and good for your dishes.
oThis wash program is specifically matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For
this reason a NORMAL wash program, in which concentrated
detergents are used, can achieve the same results as an
INTENSIVE program.
13

Detergent tablets
oDifferent brands of detergent tablets dissolve at different speeds.
For this reason, some detergent tablets cannot dissolve and
develop their full cleaning power during short programs.
oTherefore, longer programs should be selected when using
detergent tablets to ensure the complete removal of detergent
residues.
o3 in 1 tablets should only be used during a 3 in 1 wash program.
If 3 in 1 tablets are used in other wash programs, the
performance will be far less effective.
Loading the upper basket
The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee & tea cups, saucers, plates, bowls
and shallow pans (that are not heavily soiled).
oYou should position the cups and dishes in such a way that they
are not moved by the spray of water during the wash cycle.
oUse the diagram above as a guide to the most appropriate way
to load the upper basket.
14

Adjusting the upper basket
Your dishwasher has an adjustable upper basket which you can alter to
the most suitable position for the items you are going to wash in the
upper basket.
oThe height of the upper basket can be adjusted by removing the
upper basket from the guide supports.
oIMPORTANT: The upper basket must be empty when you are
removing it from the guide supports.
Lower position
oIf the upper wheels are placed in the
guide supports, then the basket is in
the lower position.
oFor accommodating additional tumblers, cups and mugs. You can
also place small, espresso sized cups on top of the side racks.
You should take care to ensure that there is enough clearance
between the top of the cups placed on top of the side racks and
the underneath of the dishwasher interior.
IMPORTANT: Care should be taken when placing long
stemmed glassware, such as champagne glasses in the
upper basket. If they are not positioned correctly, then
there is a risk that they may topple over when the upper
basket is pushed in or pulled out.
15

Upper position
oIf the lower wheels are placed in
the guide supports, then the basket
is in the upper position.
oFor accommodating items such as glass tumblers and wine
glasses. Wine glasses should be placed upside down, so that the
stem of the glass rests in one of the grooves on the side flap.
oPlease note that when the basket is in the upper position, you
cannot have the side flaps in a raised position. Otherwise the
basket will not slide back into the interior of the dishwasher.
IMPORTANT: Care should be taken to make sure that the spray
arms can move freely when items have been loaded into the
baskets.
Loading the lower basket
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes. You
can also load bowls and a variety of plates into the lower basket.
oSaucepans and serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
16

oThe bottom rack has prongs at the
rear of the basket that can be
folded downwards, to allow for
easier loading of larger saucepans
and serving bowls.
The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
basket should then be placed in the appropriate position in the lower
basket.
oFor the best washing performance, cutlery should be placed
through the slots in the top of the cutlery basket.
IMPORTANT: Do not allow items of cutlery to fall
through the bottom of the cutlery basket, as this
may cause damage to the spray arm and/or the
cutlery. If the bottom of the basket begins to
deteriorate and allows items to fall through, you
should replace the cutlery basket.
17

Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arms
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
oSmall objects that are suitable for washing can be placed inside
of the cutlery basket.
The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a handle of mother-of-pearl, wood, horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glued parts that are not resistant to heat.
oCutlery items or crockery that are bonded.
oCopper or pewter items.
oLead crystal glass.
oWooden platters.
oSynthetic fibre items.
18

The following items are not always suitable for
washing inside a dishwasher:-
oStoneware should only be washed if the manufacturer of the
item has marked it as dishwasher safe.
oPlastic items (such as lunchboxes) should only be washed if the
manufacturer has marked it as dishwasher safe.
oGlazed crockery may fade with repeated washing inside of a
dishwasher.
oItems made of silverware or aluminium can discolour when
washed inside a dishwasher.
oAny food residue should be removed from silver items
immediately, as this can also result in discolouration.
oCertain types of glass may become dull or cloudy after a large
number of washes.
Program table
Program Information Description
of cycle Detergent
Pre/Main Running time
(mins)
Energy
(Kwh) Water (l) Rinse aid
3 in 1
For normally
soiled loads,
such as pots,
plates,
glasses and
lightly soiled
pans. A
standard
daily cycle.
Pre-wash
Pre-wash
Wash
(45°C)
Rinse
(70°C)
Drying
3 in 1
160
0.95
14.7
Intensive
For the
heaviest
soiled loads,
such as pots,
pans,
casserole
dishes and
dishes that
have been
sitting with
dried food on
them for a
while.
Pre-wash
Pre-wash
(50°C)
Wash
(60°C)
Rinse
(70°C)
Drying
4/20g
160
1.10
12.9
19

Normal
For normally
soiled loads,
such as pots,
plates,
glasses and
lightly soiled
pans. A
standard
daily cycle.
Pre-wash
Pre-wash
Wash
(50°C)
Rinse
(65°C)
Drying
4/20g
155
0.74
12.9
Economy
For lightly
soiled loads,
such as
plates,
glasses,
bowls and
lightly soiled
pans.
Pre-wash
Wash
(45°C)
Rinse
(60°C)
Drying
20g
105
0.65
10.2
Rinse
For dishes
that need to
be rinsed
and dried
only.
Wash
(45°C)
Rinse
(70°C)
Drying
N/A
95
0.75
7.5
Glass For lightly
soiled loads
such as
glasses,
crystal and
fine china.
Pre-wash
Wash
(40°C)
Rinse
(70°C)
Drying
15g
110
0.75
10.2
Rapid
A shorter
wash for
lightly soiled
loads that do
not need
drying.
Wash
(40°C)
Rinse
(45°C)
15g
30
0.35
6.5
Soak
To rinse
dishes that
you plan to
wash later
that day.
Pre-wash
N/A
8
0.01
2.8
* The wash program times that are quoted are intended as a guide
only. Please note that factors external to the machine, e.g. the
temperature of your water supply, your water pressure etc. can affect
the time it takes for the wash program to complete.
** Normal is the testing program for AS/NZS2007.1
20
