Baumatic BDI450SS User manual

wha
BDI450SS
60 cm drawer-line
dishwasher

USER MANUAL FOR YOUR BAUMATIC
BDI450SS
60 cm drawer-line dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 18/03/13
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 11
Product and aperture dimensions 8
Product specifications 8 - 9
Electricaldetails 9
Descriptionoftheappliance 10
Controlpanel 11
Usingyourdishwasher 11 -23
Before first use 11
Filling with dishwasher salt 11-12
Fillingwithrinseaid 13
Settingtherinseaidlevel 14
Filling with dishwasher detergent 14 -15
Concentrateddetergent 15
Detergenttablets 15
Loadingthebasket 16-17
Thecutlerybasket 18
Loadingdishesandcutlery 19-20
Programtable 20-21
Setting a wash program 21 -22
Changingthewashprogram 22
Addingmoredishes 22-23
Settingadelaystart 23
At the end of a wash cycle 23
Saving energy using your dishwasher 24
Cleaning and maintenance 25 -28
Thefiltersystem 25
Cleaningthefilters 26
Cleaningthesprayarm 26-27
Cleaning the control panel 27
Cleaningthedoor 27
Cleaning the door gasket 27
Not using the appliance for prolonged periods? 27 -28
Reconnecting the appliance after a period of disuse 28
Installation 28 -37
Installing the dishwasher into a kitchen cabinet 29 -30
Positioningtheappliance 30
Installing the aesthetic panel 30 -32
Placingthedishwasher 33-34
Connecting to the mains water supply 34
Wateroutlet 35-36
Powersupply 36-37
Before first use 37
Troubleshooting 38 -40
Errorcodes 40
Baumaticconsumables 41
Technicaldata 42
Contact details 43

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section of this
manual.
5

6
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic wash
loads. If you use your dishwasher in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the main basket.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.

7
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and
subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Specifications
Product and aperture dimensions
Product dimensions Aperture dimensions*
Height: 475 mm Height: 443 mm
Width: 590 mm Width: 555 mm
Depth: 530 mm Depth: 550 mm
* Please refer to the installation instructions for more detailed
information on the aperture required.
Product specifications
o6 Place settings
6 functions: Normal
Intensive
Economy
Rapid
Glass
1 hour
8

9
o6 Wash temperatures: 40°C, 45°C, 55°C, 60°C, 65°C, 70°C
oDelay start
oAnti-leak device
oAnti-flood device
oSelf-cleaning stainless steel micro-filter
oConcealed heating element
oSalt light indicator
oRinse aid light indicator
oResidual drying
oLow water consumption (7 litres – Economy program)
oNoise level (53 dB)
Energy efficiency details
Energy efficiency class: A+
Washing performance class: A
Drying performance class: A
Power consumption
Off mode: 0.00 W
Left on mode: 0.40 W
Electrical details
Rated voltage: 220 - 240 Vac, 50 Hz
Maximum rated input: 1.28 kW
Supply connection: 3 A (double pole switched fused outlet
with 3 mm contact gap)

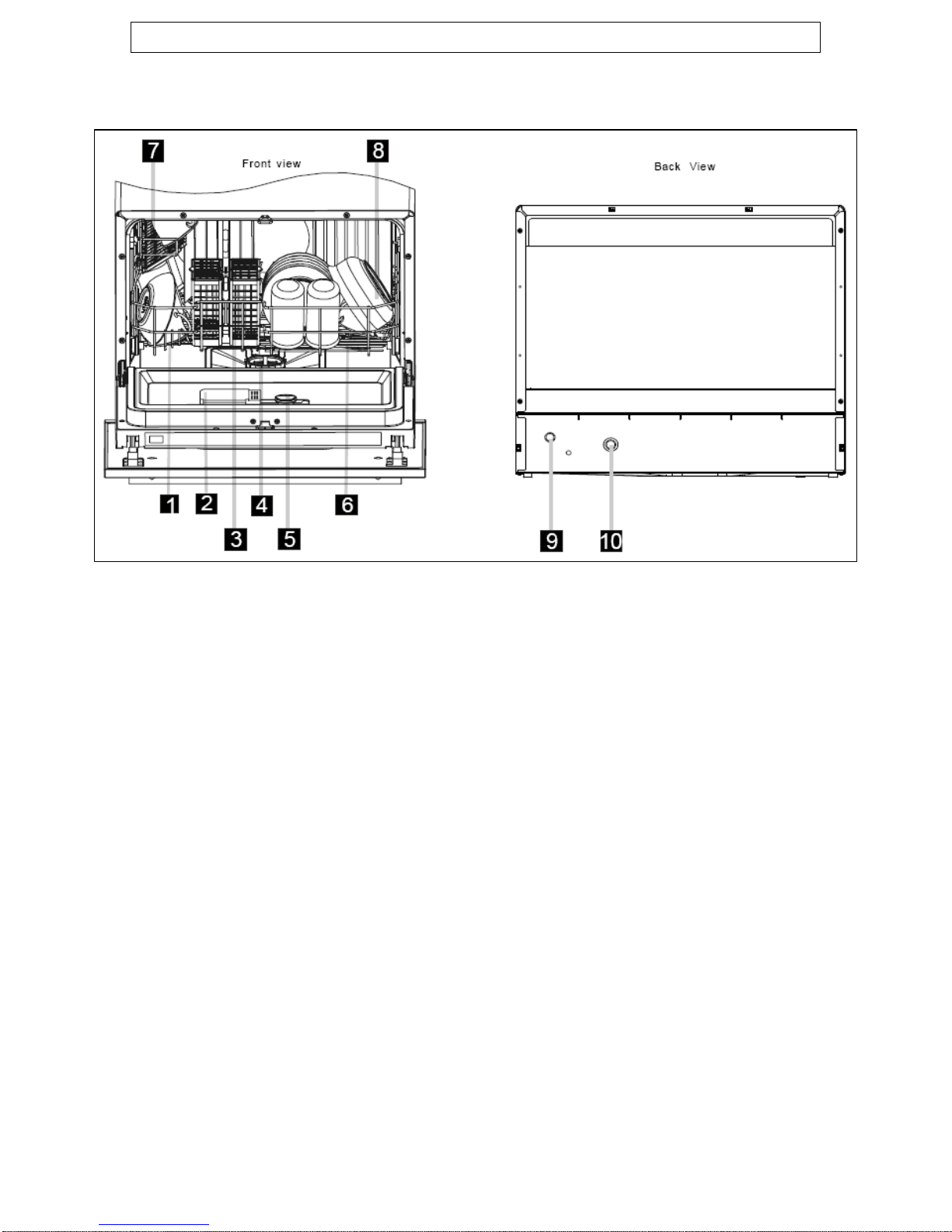

Description of the appliance
Dishwasher features
1) Salt container
2) Detergent dispenser
3) Cutlery basket
4) Filter assembly
5) Rinse aid dispenser
6) Spray arms
7) Cup shelf
8) Basket
9) Drain pipe connector
10) Inlet pipe connector
10

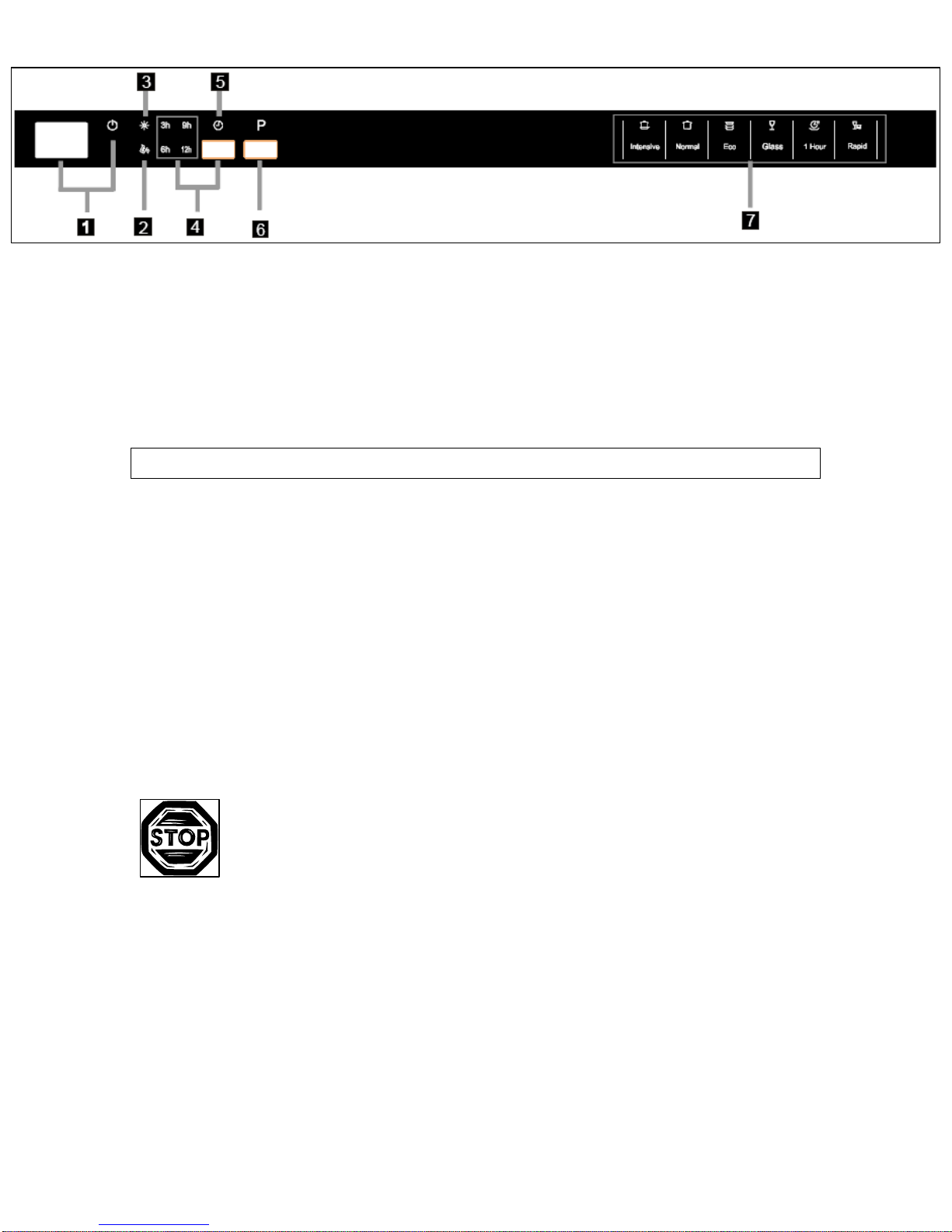

Control panel
1) Power indicator light and switch.
2) Salt warning indicator
3) Rinse aid warning indicator
4) Delay start button and LEDS
5) Delay start indicator
6) Program button
7) Program indicator LEDS
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet.
oFill the water softener with 1 litre of tap water and then fill with
specialist dishwasher salt. After this you should set the water
softener level.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher. If any other type of salt is
used in the appliance (in particular table salt), it will damage
the water softener.
oIdeally you should fill the water softener with salt, just before
you are about to run a wash program. This will help to clear any
salt that may have overflowed from the water softener during
the salt filling process.

oOpen the door of the dishwasher and remove the basket. The
basket should be empty when you remove it.
oTurn the water softener cap anticlockwise and remove it (1).
oPour 1 litre of water into the water softener.
IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time.
oEnsure that the supplied funnel is positioned correctly.
oPour salt into the water softener, you should add approximately
1 kg of salt into the water softener (2).
oIt is perfectly normal for a small amount of water to come out of
the water softener, whilst you are filling it with salt. This does
not mean that the water softener is filled with the correct
amount of salt.
oRefit and fully tighten the water softener cap.
oTo remove any excess salt that may have spilled out of the
water softener, we would recommend that the RAPID wash
program is completed afterwards.
oWhen the salt required neon (2) lights on the control panel, then
you should follow the “filling with dishwasher salt” procedure
again.
oIMPORTANT: You do not need to pour 1 litre of water into
the container when you subsequently fill the water
softener with salt.
12

13
lling with rinse aid
he rinse aid is released during the final rinse and it helps
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid container is located on the inside of the dishwasher

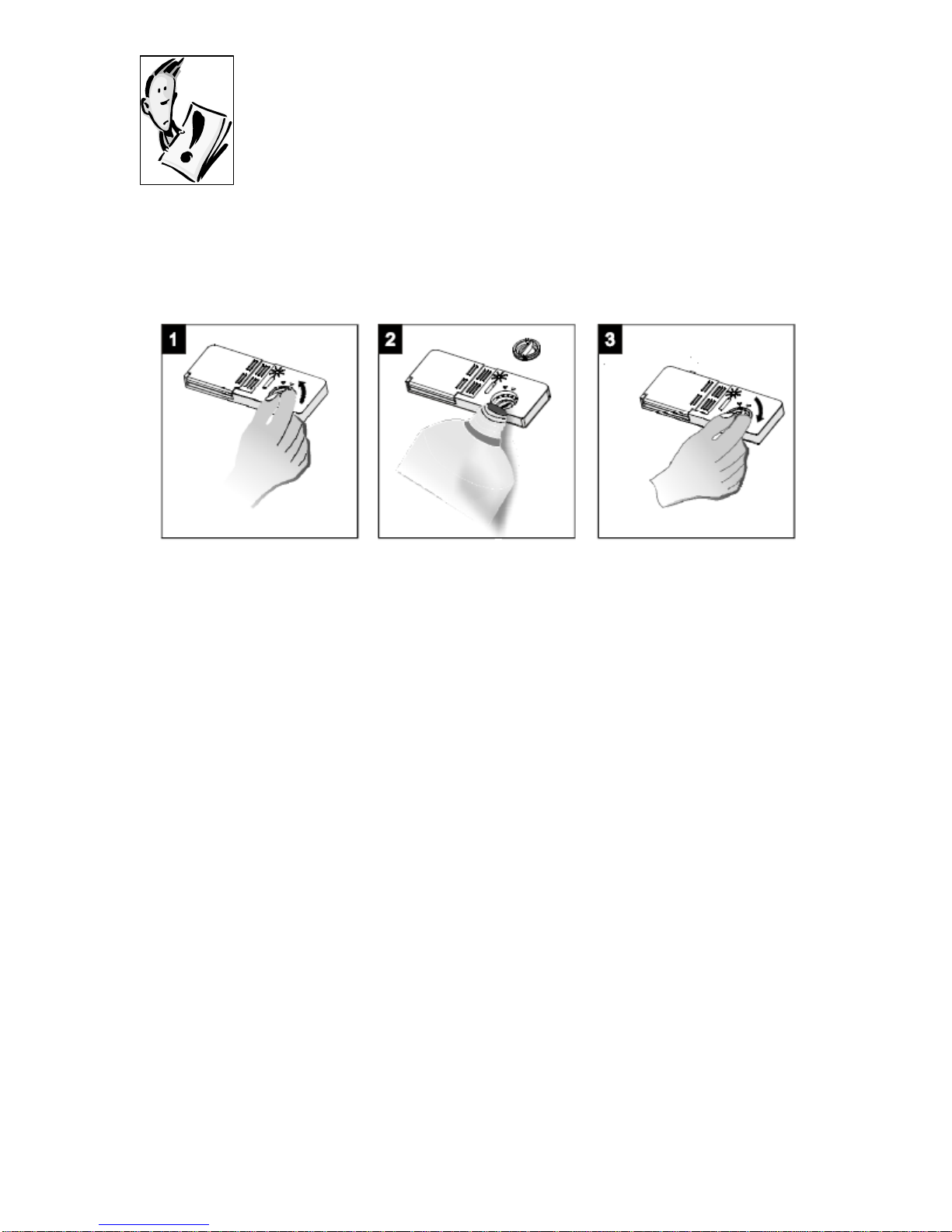

oTo access the rinse aid dispenser, you should turn and remove
oSlowly pour in liquid rinse aid, the rinse aid dispenser will hold
oYou should continue to fill with rinse aid until the level indicator
oReplace the cap and turn it until it locks into position (3).
oWhen the rinse aid required neon (3) lights on the control panel,
Fi
T
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
door next to the detergent dispenser.
the cap to reveal the spout (1).
approximately 110ml of rinse aid (2).
turns completely black. Be careful not to overfill the dispenser,
as this could cause oversudsing when a wash program is
selected. Wipe away any rinse aid excess or spillages with a
damp cloth.
then you should follow the “filling with rinse aid” procedure
again.

14
etting the rinse aid level
he amount of rinse aid that the dishwasher requires also depends on
oUse the dial, located on
oYou should always start
oYou can increase or decrease the level according to individual
illing with dishwasher detergent
he detergent dispenser must be refilled at the start of each wash
oOpen the lid that closes over the detergent dispenser (1) and
S
T
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
the rinse aid dispenser,
to set the level.
with the dispenser set
on level 4. If you find
spots on your dishes or
the drying results are
poor, increase the
l to level 5.
amount of rinse aid by rotating the dia
needs and results.
F
T
cycle (apart from the Rinse wash program).
place the detergent inside of the dispenser (2).

oThe left section displayed in the
diagram (A) is for the main wash
cycle detergent. Only one
detergent tablet should be placed
in the dispenser at any one time.
If you are using detergent powder
or liquid, you should follow the
detergent manufacturer’s
recommendations.
oThe right section displayed in the diagram (B) can have separate
detergent placed in it for any wash cycle that has a pre-wash
element to it, however this is optional. This must be a liquid or
powder detergent, not another detergent tablet.
oShut the detergent dispenser lid firmly to ensure that it clips into
place
oAt the relevant stage of a wash cycle the lid will open and the
tablet/powder/liquid will enter the dishwasher.
Concentrated detergent
oThe use of the NORMAL washing program, in conjunction with
concentrated detergents, reduces pollution and is good for your
dishes.
oThis wash program is specifically matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For
this reason, the NORMAL wash program, in which concentrated
detergents are used, can achieve the same results as the
INTENSIVE program.
Detergent tablets
oDetergent tablets of different brands dissolve at different
speeds. For this reason, some detergent tablets cannot dissolve
and develop their full cleaning power during short programs.
oTherefore, longer programs should be selected when using
detergent tablets to ensure the complete removal of detergent
residues.
15

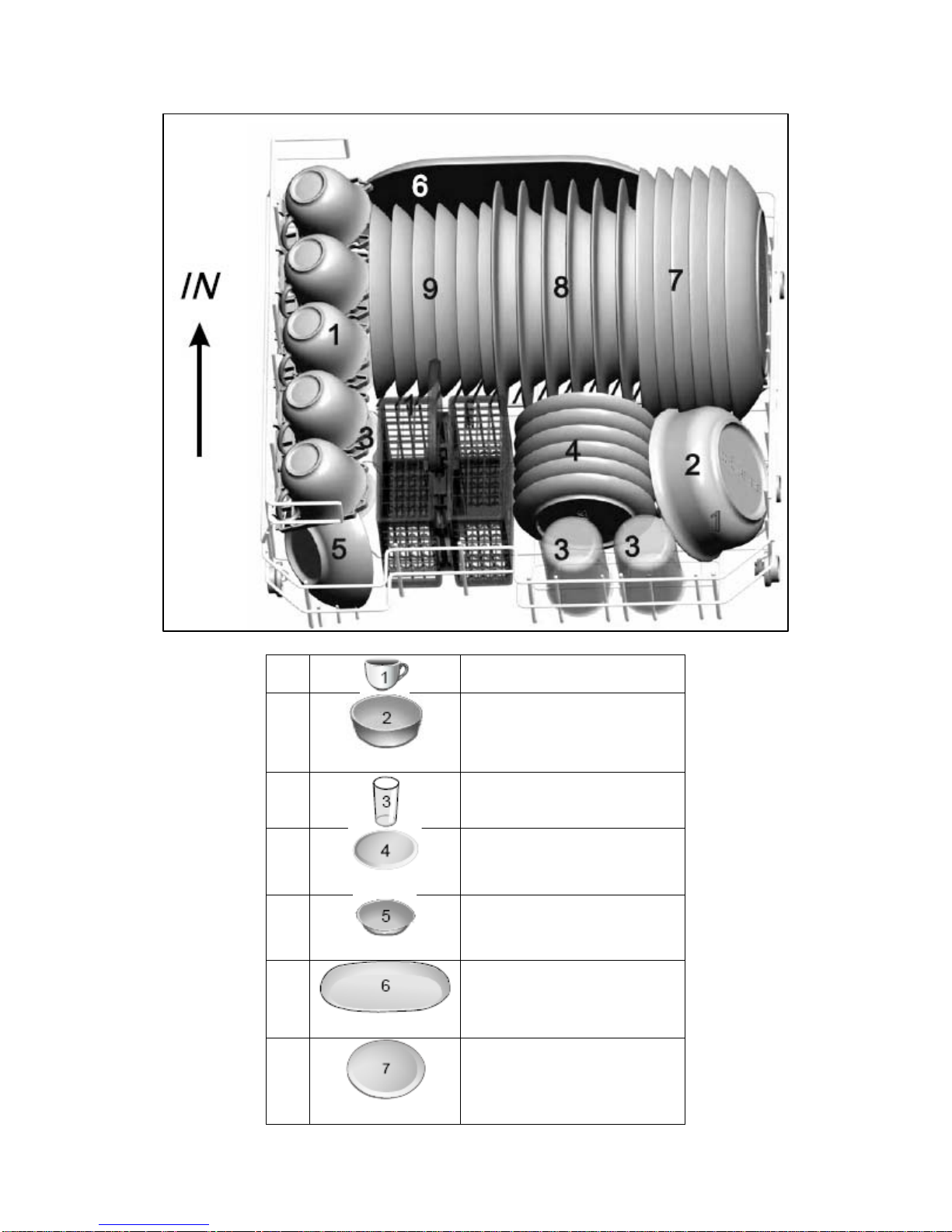

Loading the basket
The appropriate way to load the basket is shown in the picture below.
16
Cups
1
2 Medium serving bowls
3 Glasses
4 Saucers
5 Dishes
6 Oval platters
7 Dinner plates

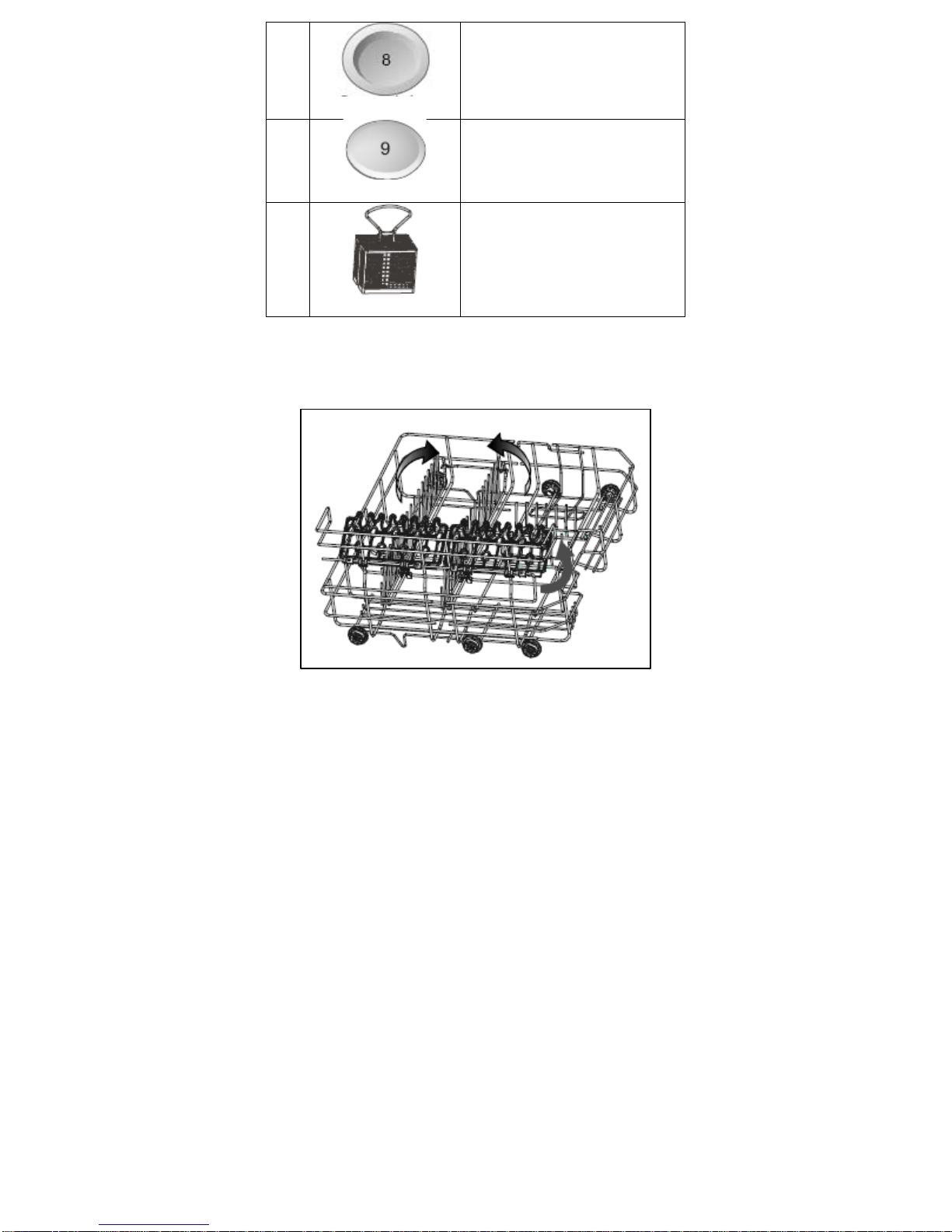

8 Soup plates
9 Dessert dishes
10 Cutlery basket
oThe basket is fitted with plate racks which can be stowed
horizontally if required.
oThe cup shelf can be rotated upwards if no cup is placed on it to
make more space in the basket.
oSaucepans and serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
IMPORTANT: Care should be taken to make sure that the spray
arm can move freely when items have been loaded into the
basket.
17

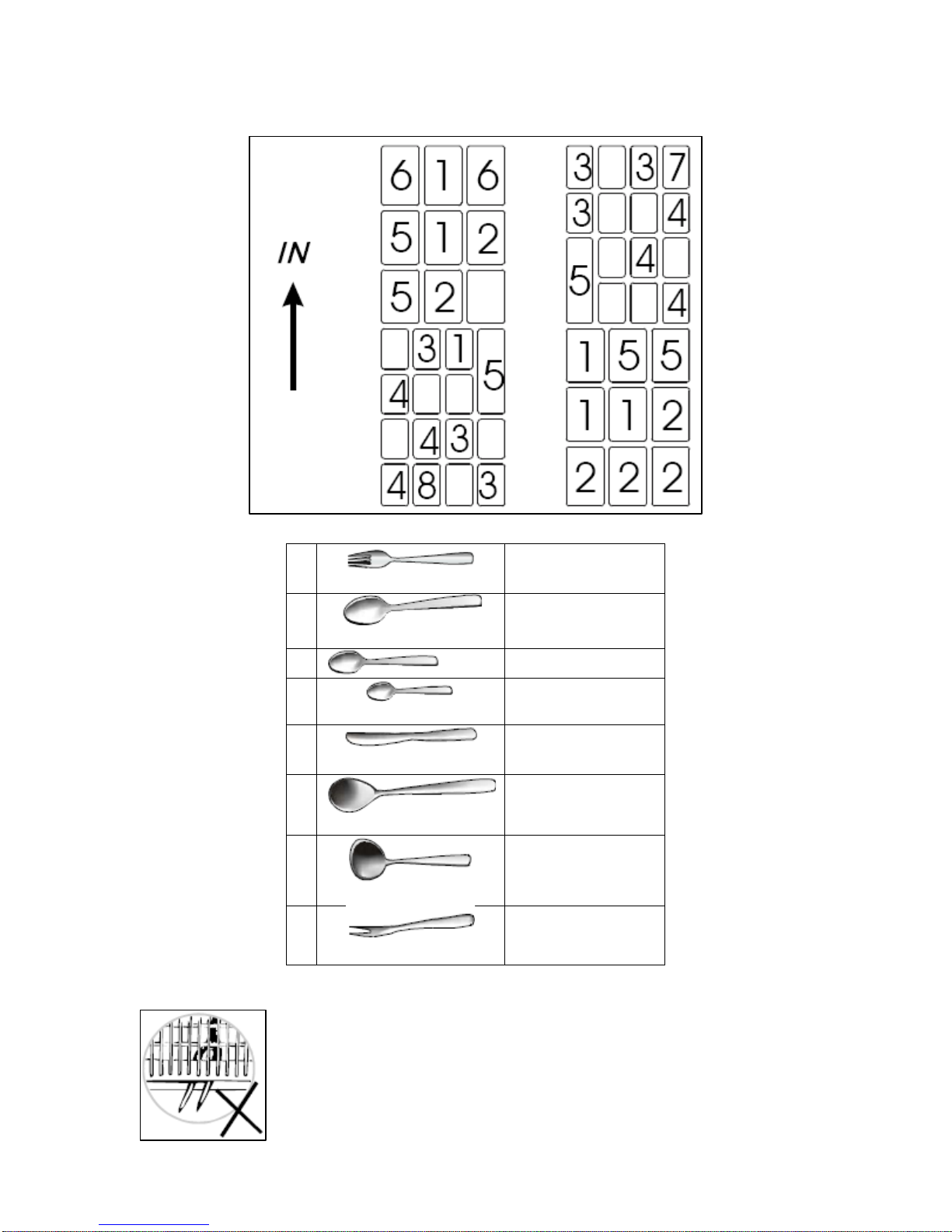

The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
basket should then be placed in the appropriate position in the basket.
18
1
Forks
2
Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Ladles
8 Serving forks
IMPORTANT: Do not allow items of cutlery to fall
through the bottom of the cutlery basket, as this may
cause damage to the spray arm and/or the cutlery. If
the bottom of the basket begins to deteriorate and
allows items to fall through, you should replace the
cutlery basket.

Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arm
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
oSmall objects can be placed inside of the cutlery basket.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the main basket.
The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a handle of mother-of-pearl, wood, horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glued parts that are not resistant to heat.
oCutlery items or crockery that are bonded.
oCopper or pewter items.
oLead crystal glass.
oWooden platters.
oSynthetic fibre items.
19

The following items are not always suitable for washing
inside a dishwasher:-
oStoneware should only be washed if the manufacturer of the
item has marked it as dishwasher safe.
oPlastic items (such as lunchboxes) should only be washed if the
manufacturer has marked it as dishwasher safe.
oGlazed crockery may fade with repeated washing inside of a
dishwasher.
oItems made of silverware or aluminium can discolour when
washed inside a dishwasher.
oAny food residue should be removed from silver items
immediately, as this can also result in discolouration.
oCertain types of glass may become dull or cloudy after a large
number of washes.
Program table
oThe ECONOMY program is suitable for cleaning a typical load of
dirty dishes and is the most efficient in terms of its combined
energy and water consumption.
Program Cycle
selection
information
Description
of cycle Detergent
Pre/main
Running
time
(min)**
Energy
(Kwh) Water (L) Rinse aid
Intensive
For the
heaviest
soiled loads,
such as
pots, pans,
casserole
dishes and
dishes that
have been
sitting with
dried food
on them for
a while.
Pre-wash
(50°C)
Wash
(70°C)
Rinse
Rinse
Rinse
(70°C)
Drying
3/15 g
145
minutes
(2:25
hours on
display)
0.94
11
Normal
For normally
soiled loads,
such as
pots, plates,
glasses and
lightly soiled
pans.
Pre-wash
Wash
(60°C)
Rinse
Rinse
(70°C)
Drying
3/15 g
125
minutes
(2:05
hours on
display)
0.70
8.4
20
