Baumatic BDWI660-AUS User manual

77
BDWI66
0
-
AUS
60 cm Fully
integrated full height
dishwasher

2
USER ANUAL FOR YOUR BAU ATIC
BDWI660-AUS 60 cm Fully
integrated full height dishwasher
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance
GS 02/04/12

3

4
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 11
Product and aperture dimensions 8
Product specifications 8 – 9
Electrical details 9
Description of t e appliance 11
Control panel 11
Using your dishwasher 11 - 26
Before first use 11
Filling wit dis was er salt 11 – 12
Setting t e water softener level 13
Filling wit rinse aid 14
Setting t e rinse aid level 15

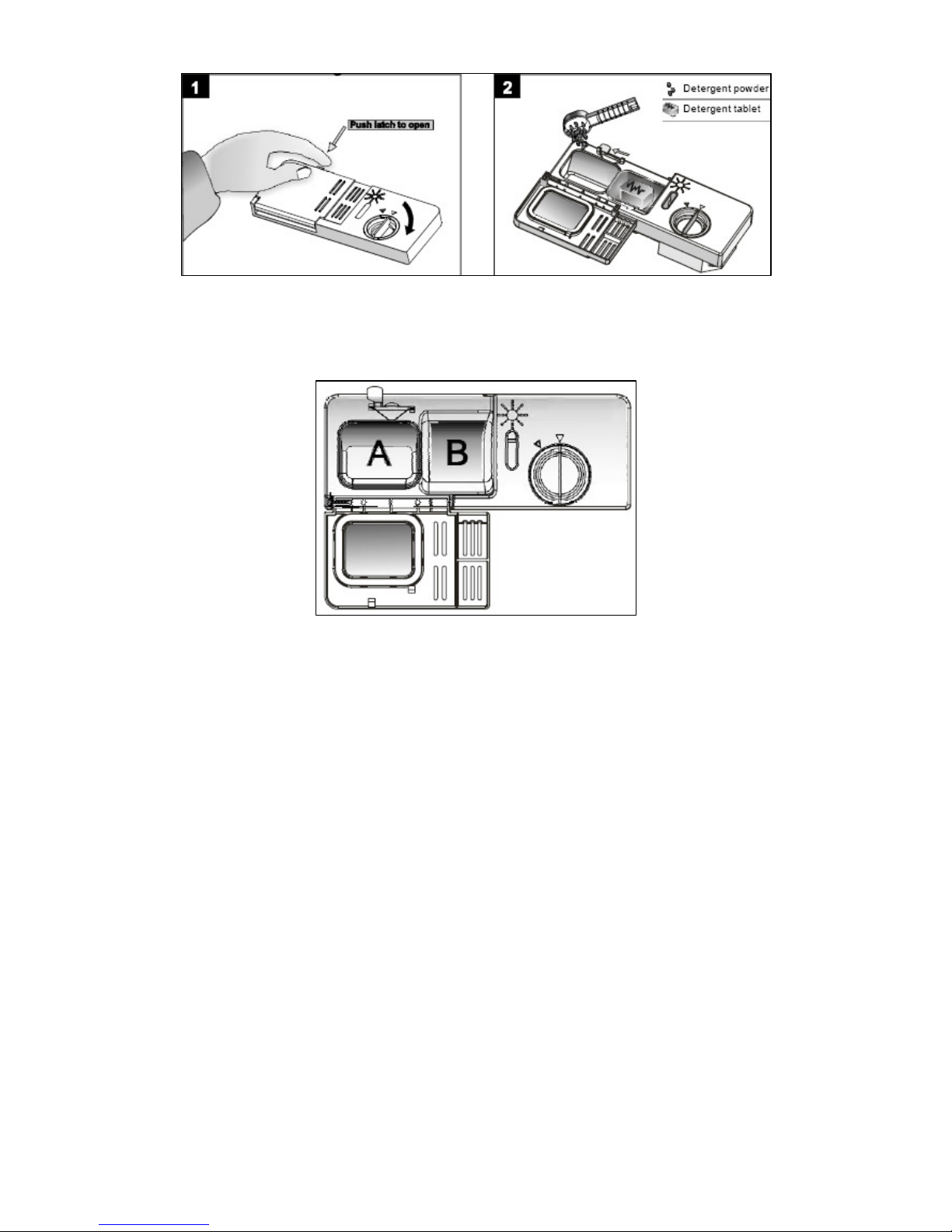

Filling wit dis was er detergent 15 – 16
Concentrated detergent 16 – 17
Detergent tablets 17
Loading t e upper basket 17
Adjusting t e upper basket 18
Folding back t e cup s elves 18
Loading t e lower basket 19
Folding spikes of lower basket 20
T e cutlery basket 20
Loading dis es and cutlery 21 - 22
Program table 22 - 23
Setting a was program 23 – 24
C anging a was program 24
Adding more dis es 24 - 25
At t e end of a was program 25
Delay start function 25 – 26
Alternative was function 26
Saving energy using your dishwasher 27
Cleaning and maintenance 28 - 31
T e filter system 28
Cleaning t e filters 29
Cleaning t e spray arms 30
Cleaning t e control panel 30
Cleaning t e door 31
Error code failure system 31 – 32
General troubles ooting 33 – 35
Installation 36 - 45
Aperture requirements 36 – 37
Installation stages 37
Preparing and connecting t e furniture door 37 – 38
Adjusting t e tension of t e door spring 39
Connecting to t e mains water supply 40
Connecting to t e water outlet 40 - 41
Connecting to t e power supply 41
Applying t e condensation strip 42
Positioning t e dis was er 42 - 43
Levelling t e appliance 43
Securing t e dis was er 44
Before first use 45
Contact details 46

5
ENVIRON ENTAL NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oT e packaging materials t at Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material wit due regard for t e
environment.

6
I PORTANT SAFETY INFOR ATION
Your safety is of t e utmost inmportance to Baumatic.
Please make sure t at you read t is instruction booklet
before attempting to install or use t e appliance. If you
are unsure of any of t e information contained in t is
booklet, please contact t e Retailer w ere you purc ased
your unit from.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its aut orised service agents. Any
attempt by an inexperienced person to repair t e appliance,
could result in injury or damage to your dis was er.
oIf you notice t at t e mains cable is damaged. The appliance
must not be used. T e same applies if you notice t at t e
worktop, control panel or base area is damaged. As t is could
allow access to t e internal components of t e mac ine.
oT e appliance s ould be turned off and isolated from t e mains
supply, before eit er cleaning or maintenance work is attempted.
oT e mains cable must not be used to pull t e plug out of t e
electrical socket.
oT e mac ine s ould not be sprayed wit water.
oT e external surface of t e appliance may become ot w ilst
your dis was er is in use.
oIt is possible for small animals to c ew eit er mains cables or
water oses, w ic could cause an electric s ock azard.
Installation
oT e installation instructions contained wit in t is user manual
s ould be followed.
oIt is obligatory for t e completed installation to comply wit all
relevant building regulations and local water aut ority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 11
and page 44 of this manual

7
oCare s ould be taken not to trap t e power supply cable
underneat t e appliance w ilst installing it.
oNo attempt s ould be made to alter or modify t e specifications
of t is appliance.
In daily use
oT is appliance is only designed to was normal domestic
was loads. If you use your dis was er in any ot er way or it is
incorrectly used, t en Baumatic accepts no liability for any
damage t at mig t be caused and any guarantee will be void.
oIt is recommended t at t e appliance is unplugged and t e
water supply is turned off after t e mac ine is used.
oT e detergents, rinse aid and salt t at you place in t is appliance
s ould be suitable for automatic dis was ers. Wit regards to
dosage levels, t e detergent manufacturer’s recommendations
s ould be followed.
oS arp knives or ones wit long blades are a potential safety
azard w en placed in an uprig t position in t e cutlery basket.
We would recommend t at t ese items are placed orizontally in
t e upper basket.
oYou should not was any items t at ave come into contact
wit corrosive, acidic or alkaline c emicals, paint, petrol, iron or
steel debris.
oYou should not open t e door w ilst t e appliance is set on a
was program. Depending on w ic stage t at t e was
program is at, ot water could escape t e mac ine.
oYou should not leave t e door of t e appliance open, unless
you are loading or unloading t e dis was er.
oYou should not stand or sit on t e door w en it is open.
Child Safety
oYour dis was er s ould only be used by adults. You s ould not
allow c ildren in t e area of t e mac ine unsupervised. You
s ould not let t em touc t e controls or play wit t e appliance.
oIt could be possible for a c ild or pet to gain access to t e
dis was er if t e door is left open. T erefore please c eck t e
inside of t e appliance before setting it on a was cycle.

8
oAny packaging t at is removed from t e mac ine s ould be kept
away from c ildren.
oAll detergents s ould be kept out of c ildren’s reac in a safe
place.
oSome water will remain inside t e dis was er w en it as
completed a was cycle. T is water is not suitable for drinking
and may contain residues from t e detergents t at are used in
t e appliance.
Declaration of conformity
T is appliance complues wit t e following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility
Directive and subsequent modifications.
For future reference please record t e following information w ic can
be found on t e rating plate and t e date of purc ase w ic can be
found on your sales invoice. T e rating plate of your dis was er is
located on t e rig t and side of t e drop down door.
odel Number …………………………………….
Serial Number …………………………………….
Date of Purchase …………………………………….

9
Specifications
Product dimensions
Heig t: 815 – 865 mm
Widt : 598 mm
Dept : 550 mm
Aperture dimensions
Heig t: 820 – 870 mm
Widt : 600 mm
Dept : 580 mm (MIN)
Product specifications
o14 Place settings
o6 programs: Normal
Intensive
Economy
Glass
Rapid
1 our
o4 temperatures: 40°C, 50°C, 55°C, 65°C
oLED display
oWater consumption (normal program): 11l/cycle
oNoise level: 49 dB

10
oElectronic aqua stop
oDelay start function
oResidual drying
oHalf load option
oAlternative was function
oConcealed eating element
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oHeig t adjustable upper basket
oCollapsible plate racks
oAdjustable feet
Energy efficiency details
Energy efficiency class: A++
Was ing performance class: A
Drying performance class: A
Power consumption
Off mode: 0.45 W
Left on mode: 0.55 W
Electrical details
Rated voltage: 230 Vac 50 Hz
Supply connection: 13 A (double pole switc ed fused outlet
wit 3 mm contact gap)

11
Description of the appliance
1) Top spray arm
2) Cutlery basket
3) Upper basket
4) Inner pipe
5) Lower basket
6) Salt container
7) Detergent dispenser
8) Cup s elf
9) Lower spray arm
10) Filter assembly
11) Inlet pipe connector
12) Drain pipe
13) Adjuster

12
Control panel
1) LED display
2) Alternative was button
3) Delay start button
4) Program button
5) ON/OFF button
Using your dishwasher
Before first use
oInstall t e appliance as per t e installation instructions contained
wit in t is booklet.
oFill t e water softener wit 1 litre of tap water and t en fill wit
specialist dis was er salt. After t is you s ould set t e water
softener level.
oFill t e rinse aid dispenser and t en set t e rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher If any other type of
salt is used in the appliance (in particular table salt),
it will damage the water softener
oIdeally you s ould fill t e water softener wit salt, just before
you are about to run a was program. T is will elp to clear any
salt t at may ave overflowed from t e water softener during
t e salt filling process.
oOpen t e door of t e dis was er and t en remove t e lower
basket. T e basket s ould be empty w en you remove it.
oTurn t e water softener cap anticlockwise and remove it.
oPour 1 litre of water into t e water softener.

13
IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time
oPour salt into t e water softener, using t e funnel t at is
supplied wit t e appliance. You s ould add approximately 1.5
kg of salt into t e water softener.
oIt is perfectly normal for a small amount of water to come out of
t e water softener, w ilst you are filling it wit salt. T is does
not mean t at t e water softener is filled wit t e correct
amount of salt.
oRefit and fully tig ten t e water softener cap.
o T e salt required warning lig t will go out s ortly
after you ave filled t e water softener wit salt.
W en t e salt indicator lig ts on t e control panel,
t en you s ould follow t e filling wit dis was er
salt procedure again.
oIMPORTANT: You do not need to pour 1 litre of water into
the container when you subsequently fill the water
softener with salt

14
Setting the water softener level
It is possible to regulate t e amount of salt t at t e water softener will
release during a was cycle. T e water softener s ould be set to a
level t at is appropriate for t e ardness of your water (please refer to
t e table below).
WATER HARDNESS
° dH ° fH ° Clarke mol/L
Selector
Salt
consumption
(gram/cycle)
Usage
(cycles/1
kg)
0-5 0-9 0-6 0-0.94 H1 0 /
6-11 10-20 7-14 1.0-2.0 H2 20 60
12-17 21-30 15-21 2.1-3.0 H3 30 50
18-22 31-40 22-28 3.1-4.0 H4 40 40
23-34 41-60 29-42 4.1-6.0 H5 50 30
35-55 61-98 43-69 6.1-9.8 H6 60 20
To alter t e amount of salt t at is released by t e water softener, you
s ould:-
o Open t e door and switc on t e appliance using t e
ON/OFF button (5).
oPress and old t e program button (4) for about 5
seconds to enter t e water softener setting mode. T e
salt and rinse aid indicators may lig t in t e setting
mode.
oRepeatedly press t e program button (4) to select t e
appropriate option according to t e ardness of your water. T e
LED display will s ow your c oice as s own in t e above table.
oW en you ave made your selection, press t e ON/OFF button
(5) to exit t e setting mode.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets and live
in a medium or hard water area, then you should still fill the
water softener with salt. The water softener level should be set
accordingly.

15
Filling with rinse aid
T e rinse aid is released during t e final rinse and it elps
to prevent water from forming droplets on your dis es.
T ese droplets will lead to spots and streaks being left on
items after t e was program as completed.
oYour dis was er is designed to utilise liquid rinse aid.
oT e rinse aid dispenser is located inside t e drop down door,
next to t e detergent dispenser.
oTo access t e rinse aid dispenser, you s ould turn t e cap
anticlockwise and it will pop out of t e ole. T en slowly pour in
liquid rinse aid, t e rinse aid dispenser will old approximately
110 ml of rinse aid.
oBe careful not to overfill t e dispenser, as t is could cause
oversudsing w en a was program is selected. Wipe away any
rinse aid excess or spillages wit a damp clot .
oReplace t e cap and turn it clockwise until it locks into position.
o You s ould refill t e rinse aid dispenser w en t e
rinse aid indicator lig ts on t e control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then
you should still fill the rinse aid dispenser.

16
Setting the rinse aid level
T e amount of rinse aid t at t e dis was er requires also depends on
t e ardness of your water. You s ould experiment wit t e rinse aid
setting, until you find a level t at gives t e best results.
oOn t e first was cycle, we would recommend t at t e rinse aid
level is set to number 4.
oIf you get water spots and poor drying performance, t en you
s ould turn t e arrow anticlockwise and increase t e setting to
t e next number.
oYou s ould continue to adjust t e rinse aid level upwards until
you get no water spots.
oIf you get cloudiness or streaking on your dis es, t e rinse aid
level is set too ig and it is causing foaming during t e was
cycle. Turn t e arrow clockwise and lower t e setting to t e next
number.
Filling with dishwasher detergent
oT e detergent dispenser must be refilled at t e start of eac
was cycle.
oYour dis was er uses less detergent and rinse aid t an a
conventional dis was er.
oIn general, only one tablespoon of detergent is needed for a
normal was load. More eavily soiled items may need more
detergent.
oAlways add t e detergent just before starting t e was program,
ot erwise t e detergent could get damp and not dissolve
properly.

17
oOpen t e lid t at closes over t e detergent dispenser by pus ing
t e release button. T e lid will spring open. Place t e detergent
inside of t e dispenser.
oT e section marked A in t e diagram is for t e main was cycle
detergent. Only one detergent tablet s ould be placed in t e
dispenser at any one time. If you are using detergent powder or
liquid, you s ould follow t e detergent manufacturer’s
recommendations.
oT e section marked B in t e diagram can ave separate
detergent placed in it for any was cycle t at as a pre-was
element to it, owever t is is optional. T is must be a liquid or
powder detergent, not anot er detergent tablet.
oS ut t e detergent dispenser lid and press it until it locks into
place.
oAt t e beginning of a was cycle t e clip will open and t e
tablet/powder/liquid will enter t e dis was er.

18
Concentrated detergent
oT e use of t e NORMAL program wit concentrated detergents
reduces pollution and is good for your dis es.
oT is was program is specifically suited to t e dirt-dissolving
properties of t e enzymes of concentrated detergent. For t is
reason, t e NORMAL program, in w ic concentrated detergent
is used, can ac ieve t e same results ac ieved in t e INTENSIVE
program.
Detergent tablets
oDifferent brands of detergent tablets dissolve at different speeds.
For t is reason, some detergent tablets cannot dissolve and
develop t eir full cleaning power during s ort programs.
oIt is recommended t at you use longer programs w en using
detergent tablets to ensure t e complete removal of detergent
residues.

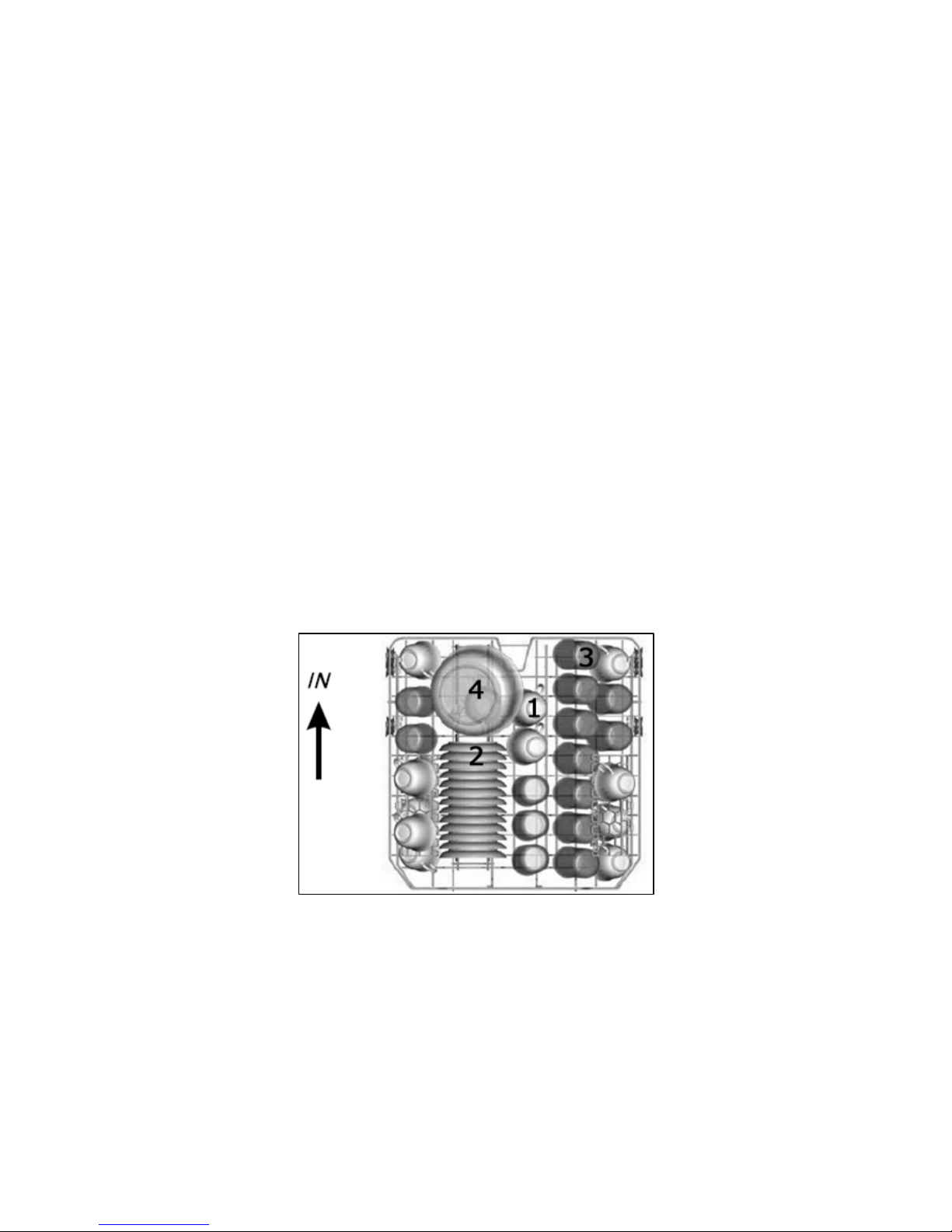

Loading the upper basket
The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee & tea cups, saucers, plates, bowls
and shallow pans (that are not heavily soiled .
1. Cups
2. Saucers
3. Glasses
4. Large serving bowl
oYou s ould position t e dis es and cookware in suc a way t at
t ey are not moved by t e spray of water during t e was cycle.

19
oUse t e diagram above as a guide to t e most appropriate way
to load t e upper basket.
IMPORTANT: Care should be taken when placing long stemmed
glassware, such as champagne glasses in the upper basket. If they are
not positioned correctly, then there is a risk that they may topple over
when the upper basket is pushed in or pulled out.
Adjusting the upper basket
Your dishwasher has an adjustable upper basket which you can alter to
the most suitable position for the items you are going to wash in the
upper and lower baskets.
oT e eig t of t e upper basket can be adjusted by placing t e
w eels on a different eig t of t e rails. Long items suc as
cutlery, salad servers and knives s ould be placed on t e s elf
so t ey do not obstruct t e rotation of t e spray arms.
oIMPORTANT: The upper basket must be empty when you are
removing it from the guide supports.

20
Folding back the cup shelves
For easier stacking of pots and pans the cup shelf spikes can be folded
down as shown in the diagram below.
IMPORTANT: Care should be taken to make sure that the spray
arms can move freely when items have been loaded into the
baskets
Loading the lower basket
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes. You
can also load bowls and a variety of plates into the lower basket.
oSaucepans and serving bowls must always be placed wit t eir
bases upwards.
oDeep saucepans s ould be slanted, to allow water to run off.
