Baumatic TEL06SS User manual

TEL06SS / TEL07SS
Cooker hood

User Manual for your Baumatic
TEL06SS / TEL07SS
Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 09/06/10
2

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 – 9
TEL06SS 8
TEL07SS 9
Using your Baumatic cooker hood 10 - 11
Beforefirstuse 10
To use your cooker hood 10 - 11
Cleaning your Baumatic cooker hood 12 – 13
The grease filter 12 - 13
Maintenance 13 – 15
Removing and cleaning the grease filters 13
Changingalightbulb 14
Fitting the carbon filters 14 - 15
Installation 15 - 21

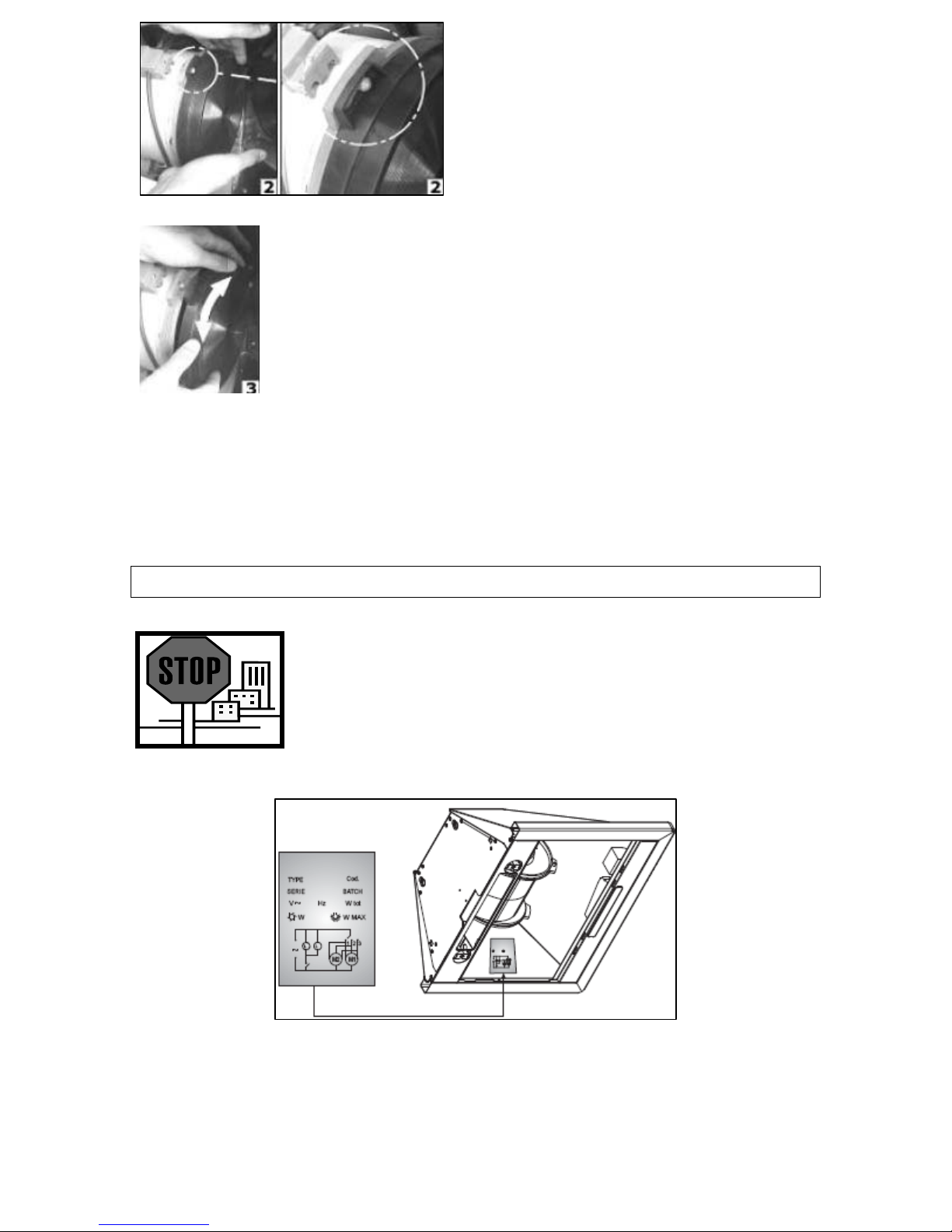

Electricalconnection 16
Before beginning installation 16 - 17

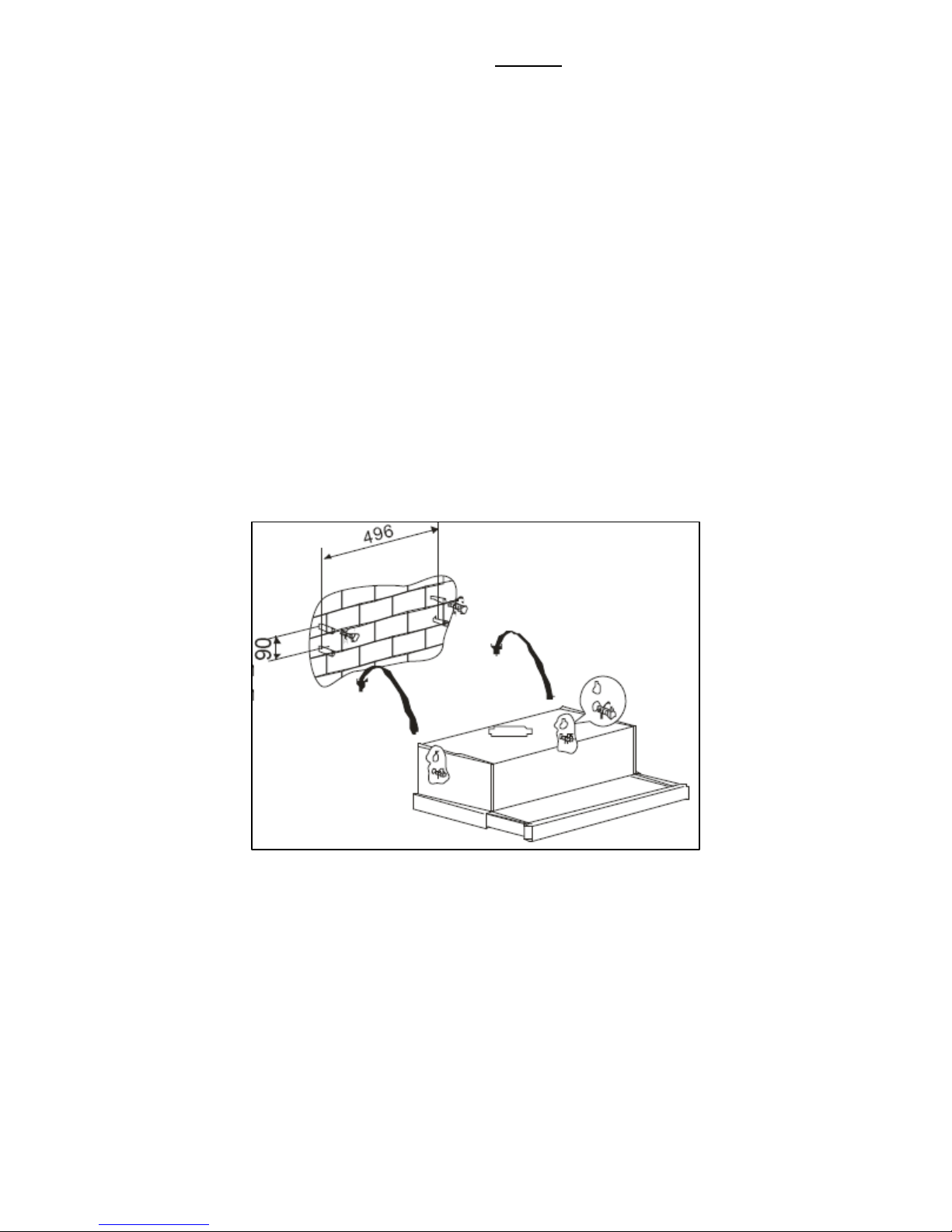

Installing your cooker hood 17 - 19
Connecting to external ducting 20
Completing the installation 20 - 21

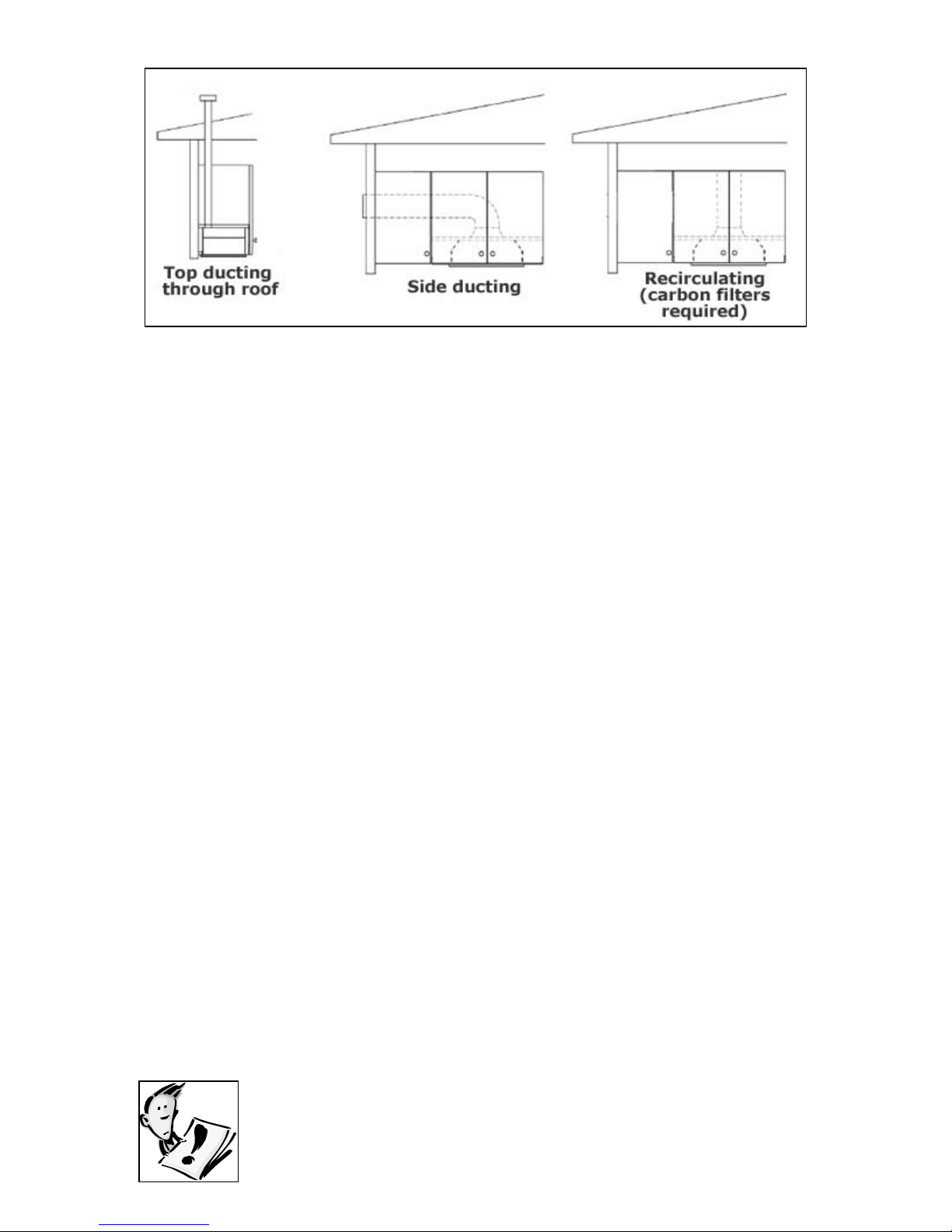

Extraction mode or recirculation mode? 21
Troubleshooting 22 - 23
Contactdetails 24

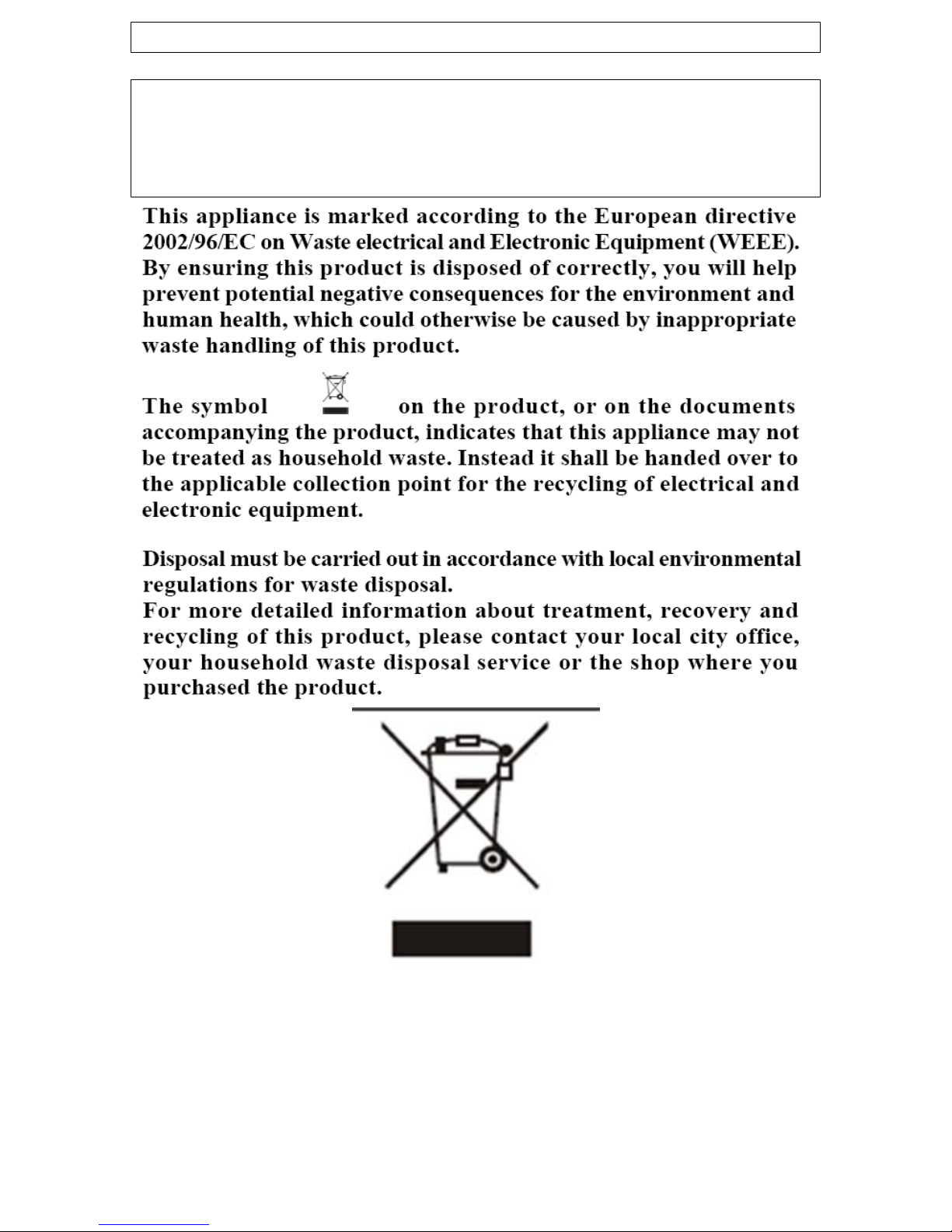

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

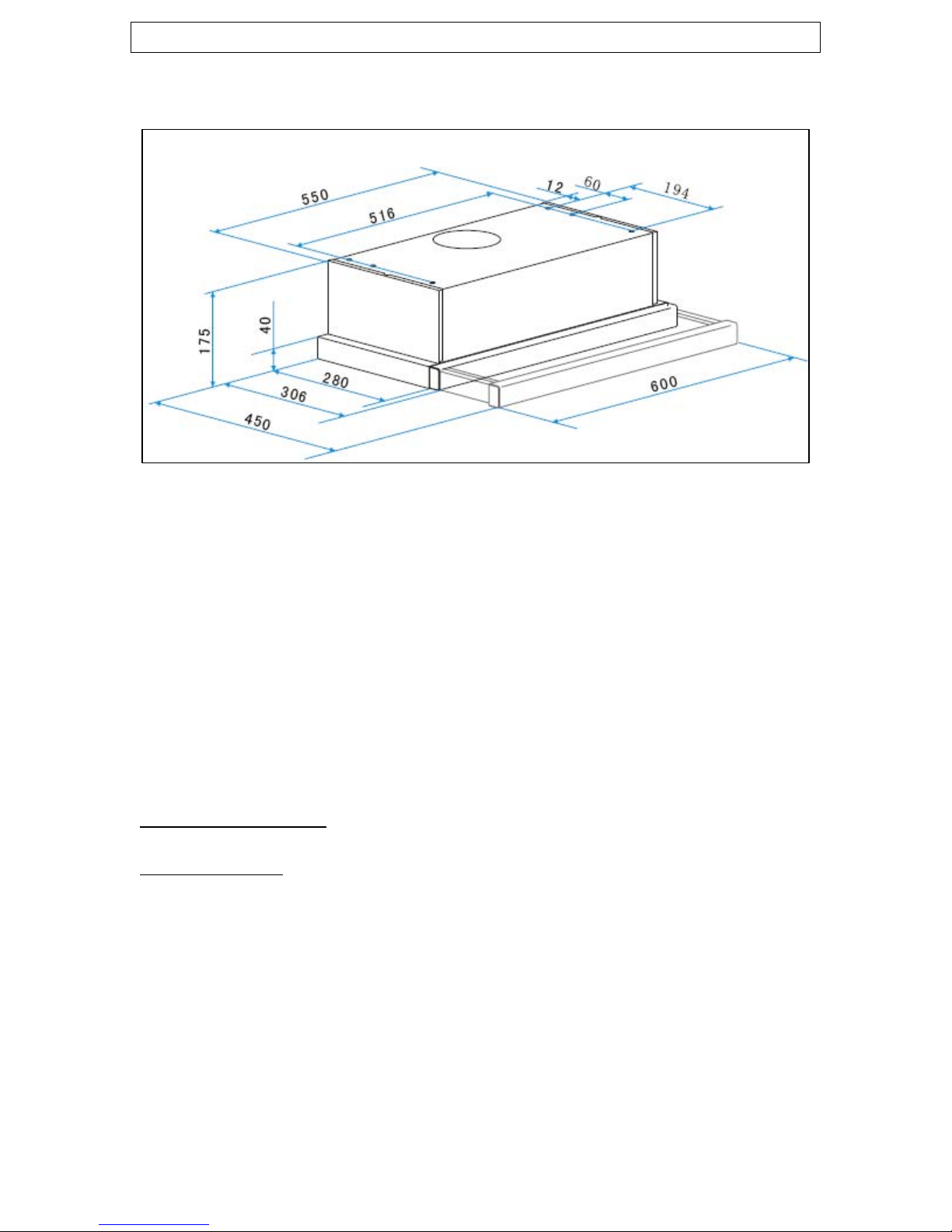

Specifications of your cooker hood
TEL06SS
PRODUCT DIMENSIONS
Height: 175 mm
Width: 600 mm
Depth: 306 mm (encased)
APERTURE DIMENSIONS
Width: 600 mm
Depth: 194 mm (min)
450 mm (extended)
Your cooker hood is fitted with:
oSlider control operation
o3 x speeds
o2 x metallic grease filters
o2 x light
Extraction capacity: 440 m³/hr
Optional extras: 1 x Pair of ST1 Carbon filters for air
recirculation
8

TEL07SS
PRODUCT DIMENSIONS
Height: 270 mm
Width: 600 mm
Depth: 306 mm (encased)
APERTURE DIMENSIONS
Width: 600 mm
Depth: 280 mm MIN
450 mm (extended)
Your cooker hood is fitted with:
oElectronic control operation
o3 x speeds
o2 x washable aluminium grease filters
o2 x light
Extraction capacity: 750 m³/hr
Optional extras: 1 x Pair of ST1 Carbon filters for air
recirculation
All of the optional extras are available from the Baumatic
Spares Department.
9

Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
To use your cooker hood
TEL06SS
oThe control panel contains switches, as shown in the picture
below, which perform separate functions.
Motor speed switch. This switch controls the speed of the motor as
well as turning the hood on and off. You can change the fan speed at
any time during operation.
0 = OFF
I = Low speed
II = Mid-speed
III = High speed
10

Light ON / OFF switch. This switch turns your cooker hood’s light on
and off. Slide the switch to position 1 to turn the light on and position
0 to turn it back off.
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
TEL07SS
oThe control panel contains buttons as shown in the image below,
which perform separate functions.
Motor speed control buttons. Use these buttons to set the motor
speed of the cooker hood. You can adjust the speed of the fan at any
time during operation. To turn the cooker hood off just press the
selected speed button again.
Low speed
Mid-speed
High speed
Light ON / OFF button. This button turns the hood light on and off.
11

Cleaning your cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE
THAT YOU HAVE SWITCHED YOUR COOKER HOOD
OFF AT THE OMNI-POLAR SWITCH, SET AT THE
WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filter.
oIMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood. This will
help to leave a silicone water-resistant film to protect the
stainless steel surfaces and keep them in good condition
for the life of the product.
The grease filter
oYour cooker hood includes grease filters which help to absorb
grease particles to protect your kitchen and furniture from
greasy residues.
oYour cooker hood includes two metal filters which can be
periodically washed depending on usage.
oThese filters may become flammable if they become saturated
with greasy residue.
oTo prevent this fire hazard, the metal filters should be cleaned
regularly. Depending on use, this should be done every two
months, using hot water and normal washing-up detergent.
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
12

Maintenance

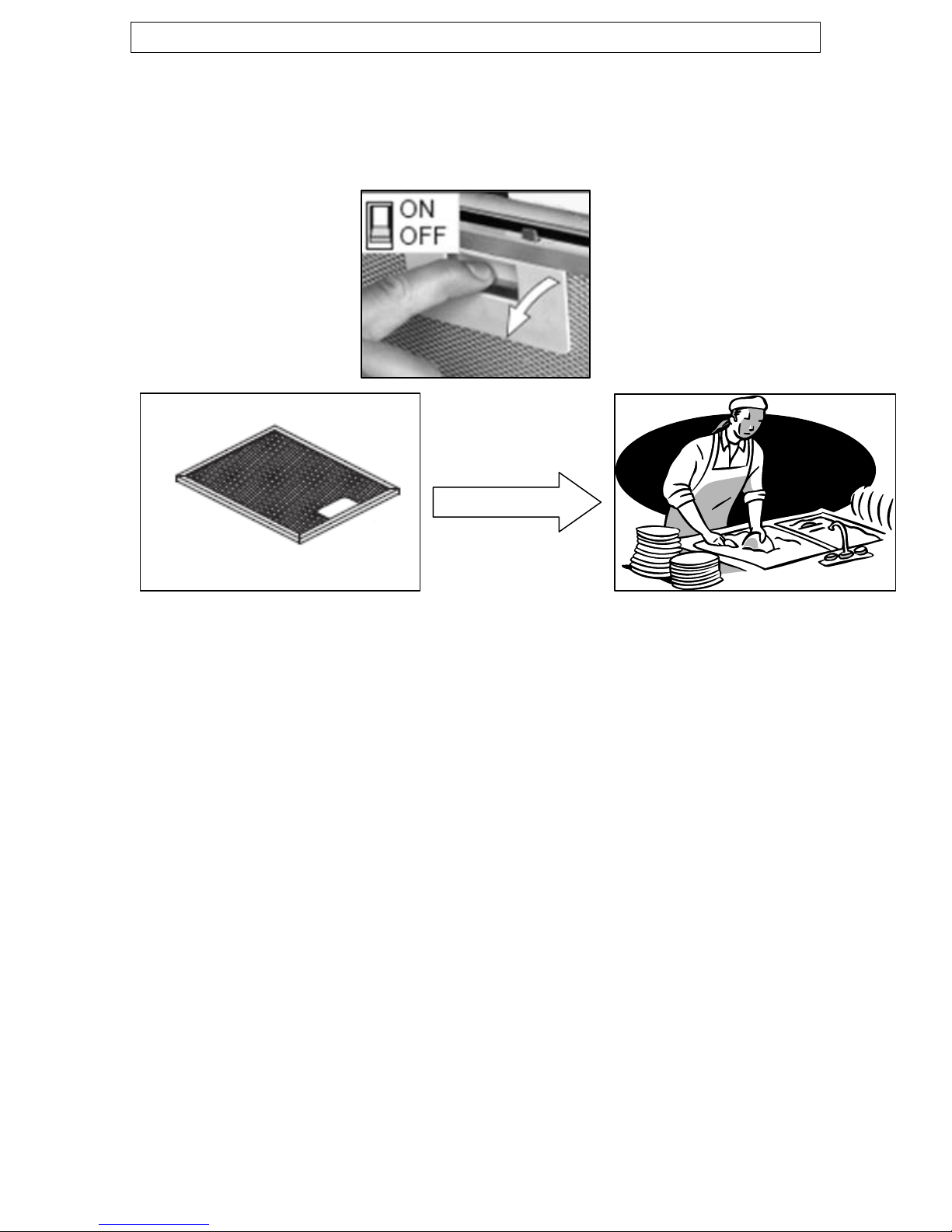

Removing and cleaning the metal filter
oFirst remove the grease filter by pulling down on the handle and
pulling it away from the cooker hood.
oSoak the metal filters in hot water and washing up liquid for
about an hour.
oRinse them off thoroughly with hot water.
oRepeat the process if required.
oRefit the metal filters to the cooker hood once they have dried.
oIMPORTANT: Let the grease filters dry thoroughly before
refitting in the cooker hood.
oNever attempt to use your cooker hood without the
grease filters in place.
13

Changing a light bulb
14
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the metal filters by pulling down on the handle and
pulling them away from the cooker hood. This will allow you
access to the lamp area.
oPrior to touching the light bulb ensure that it has cooled down.
oReplace the bulb using only olive-shaped spares with an E14
coupling, max. 40W. Replace the grease filter support grilles.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
Fitting the carbon filter
If the appliance is going to be used in recirculation mode then it is
necessary to a fit a carbon filter. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
oYou will find that one filter will attach over the front of the fan
motor. The active carbon filter must be replaced at least every
four months depending on usage to allow normal operation when
in recirculation mode.
1) Remove the metal filters by pulling down the
handle and pulling them away from the cooker
hood. This will allow you access to the motor.

2) Hook the carbon filter over the
pins that are located at the end of
the motor.
3) Turn the carbon filter clockwise until you feel it latch
onto the motor’s sides.
4) Replace the grease filters.
oWhen replacing the carbon filter, follow the steps outlined above
and turn the carbon filter anti-clockwise to unlatch it from the
motor.
Installation
IMPORTANT: Before installation read all the
instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on the rating
plate are exactly the same as the voltage and
frequency in your home. The rating plate can be
found behind the grease filters.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
15

Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oIf not supplied the power cable must be connected to the
terminals marked L (live) and N (neutral) in the hood and fixed
with a cable clamp.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm.
WARNING: THIS APPLIANCE MUST NOT BE
EARTHED. It should only be connected by a competent
person, using fixed wiring via a double pole switched fused
spur outlet OR connected using a 13 AMP plug with a 3
AMP fuse fitted.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral
Brown = Live
You will only find two wires in the main’s lead (blue and
brown) which means neither must be connected to the earth
terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
16

then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease
filters should be removed.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
oDo not tile, grout or silicone this appliance to the wall or
cabinetry.
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 21 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
oWe recommend that at two people install this hood.
oThe cooker hood can be fitted to the wall or to the underside of a
kitchen cabinet.
oIt must be positioned at least 700 mm above the hob
underneath it. You cannot fit this product by securing it between
two cupboards.
17

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
INSTALLATION PROCESS HAS BEEN COMPLETED.
Wall installation
NOTE: All the screws mentioned in this section come with your
cooker hood.
1) Position the hood against the wall and mark the positions of 4
holes of 8 mm diameter on a suitable place and according to the
centre distance of the hole on the back of the cooker hood.
2) Drill these holes into the wall. If you intend to use your cooker
hood as an extraction fan, you will need to fit a ducting kit
through this that will connect to your appliance.
3) Insert the rawlplugs into the holes and then insert the screws
part way, so that the screws stick out by 10 mm.
4) Hang the hood up on the screws.
5) Tighten the screws the rest of the way in.
6) For the extraction function, connect the exhaust outlet pipe to
the collar strip. Find the screw holes on the top of the cooker
hood. Tighten the bolts from inside the hood.
18

Installation into the underside of a kitchen cabinet
1) Drill holes of 4 mm diameter on the bottom of the cupboard you
wish to hang the hood from in accordance with the diagram
below:
2) Put the one way valve on the cooker hood and then install the
hood on the bottom of the cupboard. Fasten the hood securely in
place by tightening the screws.
3) Install the adjusted board on the bottom of the hood in order to
keep out the gap between the hood back and the cupboard.
19

Connecting to external ducting
oConnect the coupling to the top of the cooker hood, using two of
the smaller screws provided.
oConnect a 150 mm ducting hose to a discharge outlet that is
suitable for cooking vapours. If you need to fit a 125 mm ducting
hose, then a reducer is supplied with the appliance to allow you
to do this.
oThe discharge outlet should have a cross section of at least 150
cm² (please note that the ducting hose is not supplied with the
appliance but one can be obtained from the Baumatic Spares
Department).
oThe maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
oBefore fixing the cooker hood into the kitchen unit, you should
connect the other end of the ducting hose to the coupling in the
top of the cooker hood.
Completing the installation
If you are setting the appliance to recirculation mode, then you should
now fit the two carbon filters. See the “Fitting the carbon filter”
section.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply.
Refit the metal filter and then switch on the mains supply
to the appliance. Check that the appliance is operating
20
