Baumr-ag Shelf-tek User manual

22 BIN STORAGE RACK

ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP

POINTS AND EDGES

2persons required for assembly. If you have any questions regarding assembly or if you are

missing parts, contact customer service.

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN

INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR

FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly,

inclusions, specifications, description and packaging.

Parts List

Read and understand all instructions and verify that all parts listed have been supplied

before assembly.

A - Frame Leg (4) B - Double Pin Long Rack Support (6)

D - Double Pin Short Rack Support (6)

E- Extra Large Bin Rack (1) F- Large Bin Rack (1)

G - Medium Bin Rack (3) H - Top Panel (1)



�  -L

I - Large Bin (4) J - Medium Bin ( 15) K - Extra Large Bin (3)

L - Locking Caster (2)



M- Caster (2)





N - Leg Cap (4)

Tools required (not included): Rubber mallet

C - Single Pin Long Rack Support (6)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Install the frame cap to thetop of each frame

leg

Step2

68kg 408kg

Step1

Double Pin Long

Rack Support

Double Pin Long

Rack Support

Double Pin Long

Rack Support

Single Pin Long

Rack Support

Single Pin Long

Rack Support

Single Pin Long

Rack Support

Insert the pins in the rack supports into the slots in the

frame le

s and tap them down until they are fully seated.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG



: Step3 ,



G - Medium Bin Rack (3)

F - Large Bin Rack (1)

E - Extra Large Bin Rack (1)



1 l

, Step4 1





Insert the pins in the rack supports into the

slots in the frame le

s and tap them down

until they are fully seated.

�

D - Double Pin

Short Rack

Support (6)

1 Hole

2 Holes

1 Hole

4 Holes

3 Holes

Place bins as shown.

J - Medium Bin (15)

I - Large Bin (4)

K - Extra Large Bin (3)

Place the racks so the bins

can be pulled out from the

front of the racking.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Step5

Step6

L - Lockable Caster

H - Top Panel (1)

Insert top panel into the

recess in the upper support

as shown.

The casters attach to

the nuts at the end of

the frame legs.

L - Lockable Caster

M - Caster

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe the incorrect or prolonged use of almost any

product could causeserious injury or death. For information that

may reduce your risk of serious injury or death consult thepoints

below and additionally, the information available at

www.datastreamserver.com/safety

- Consult all documentation, packaging and

product labelling be fore use. Note that some

products feature online documentation which

should be printed and kept with the product.

-Check product for loose / broken / damaged /

missing parts, wear or leaks (if applicable) be fore

each use. Never use a product with loose / broken

/ damaged / missing parts, wear or leaks (if

applicable).

- Products must be inspected and serviced (if

applicable) by a qualified specialist every 6

months assuming average residential use by a

person of average weight and strength, ab ove

average technical aptitud e, on a property

matching average metropolitan specification.

Intended use outside these guidelines could

indicate the product is not suitable for intended

use or may require more regular inspection or

servicing.

- Ensure all possible users of the p roduct have

completed an industry recognised training course

before being given access to the product.

- The product has been supplied by a general merchandise

retailer that may not be familiar with your specific applic ation or

your description of the application. Be sure to attain third party

approval for your application from a qualified specialist before use

regardless of prior assurances by the retailer or its representatives.

- This product is not intended for use where fail-safe operation is

required. As with any product (take an au tomobile, aircraft,

computer or ball point pen for example) there is always a small

chance of a technical issue that needs to be repaired or may

require replacement of the product or a part. If the possibility of

such failure and the associated time it takes to rectify could in any

situation inconvenience the user, business or employee or could

financially affect the user, business or employee then the product

is not suitable for your requirements. This p roduct is not for use

where incorrect operation or a failure of any kind, including but

not limited to a condition requiring product return, replacement,

service by a technician or replacement of parts could cause a

financial loss, loss of employee time or an in convenience

requiring compensation.

- If this item has been purchased in error considering the points

above simply contact the retailer directly for details of their

returns policies if required.

Table of contents

Popular Storage manuals by other brands

SanDisk

SanDisk Fusion ioMemory ioDrive2 Hardware installation guide

HP POD 20c Maintenance and service guide

HP StorageWorks XP1024 user guide

Quantum

Quantum DXi6900-S Field service manual

QNAP

QNAP TS-435XeU user guide

LaCie

LaCie 8BIG RACK THUNDERBOLT 2 user manual

JVC

JVC SA-K51U instructions

Addonics Technologies

Addonics Technologies RCED256ES user guide

Kanguru

Kanguru Defender V2 user manual

Lexar

Lexar GAMING MEMORY STICK PRO DUO - DATASHEET REV... datasheet

Rocstor

Rocstor Rocport 3CX Quick installation guide

Transcend

Transcend StoreJet 35 Ultra 500GB user manual

Dell

Dell PowerVault Storage Area Network release note

Akitio

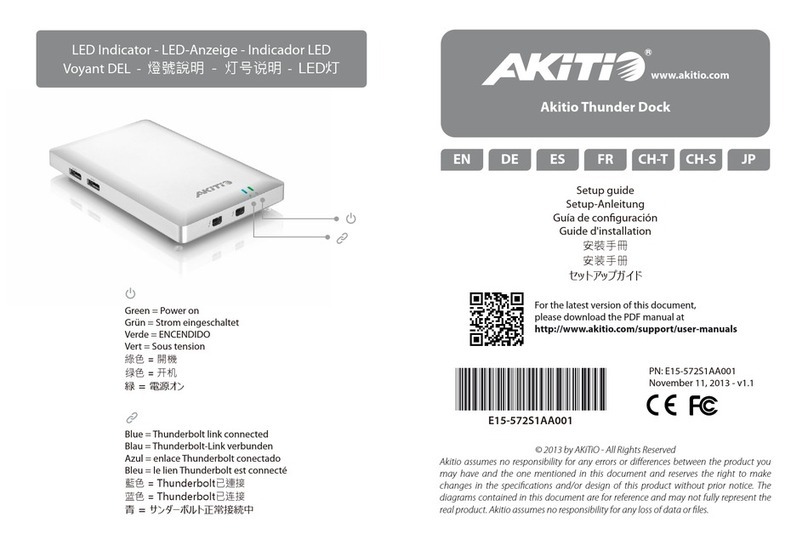

Akitio Thunder Dock Setup guide
