Baxi Fires Division 755 User manual

5115012/02
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
We trust that this guide gives
sufficient details to enable this
appliance to be operated and
maintained satisfactorily. However, if
further information is required, our
Baxi Fires Division Technical
Helpline will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
This guide is intended to help you care
for your Baxi Fires Division gas fire.
Please read thoroughly before using
and keep for future reference.
Model 755
REMOTE CONTROL
INSET LIVE FUEL EFFECT GAS FIRE
Fitted with a
Fascination fascia
(GC No. 32-811-20)
This guide to be left with the owner

© Baxi Heating U.K. Limited 2006.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 05754M1 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
The Highest Standards
Baxi Fires Division is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Baxi Fires Division is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Page 3
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

LIST OF CONTENTS
Section
Page
SAFETY 5
GAS CONSUMPTION 6
APPLIANCE DIMENSIONS 7
OPERATING YOUR FIRE 7
The Oxysafe flame sensing and flue blockage safety system. 7
The remote control handset. 8
Room temperature indicator. 8
To light the fire. 9
To turn off. 9
Burner operation. 9
Locking the remote control handset. 10
Unlocking the remote control handset. 10
Fitting batteries to the remote control handset. 11
Fitting batteries to the heat engine. 11
Glass bowing. 11
CLEANING YOUR FIRE 12
Metal Parts. 12
Glass parts. 12
Ceramic fuel effect. 12
Burner. 13
CERAMIC FUEL EFFECT 13

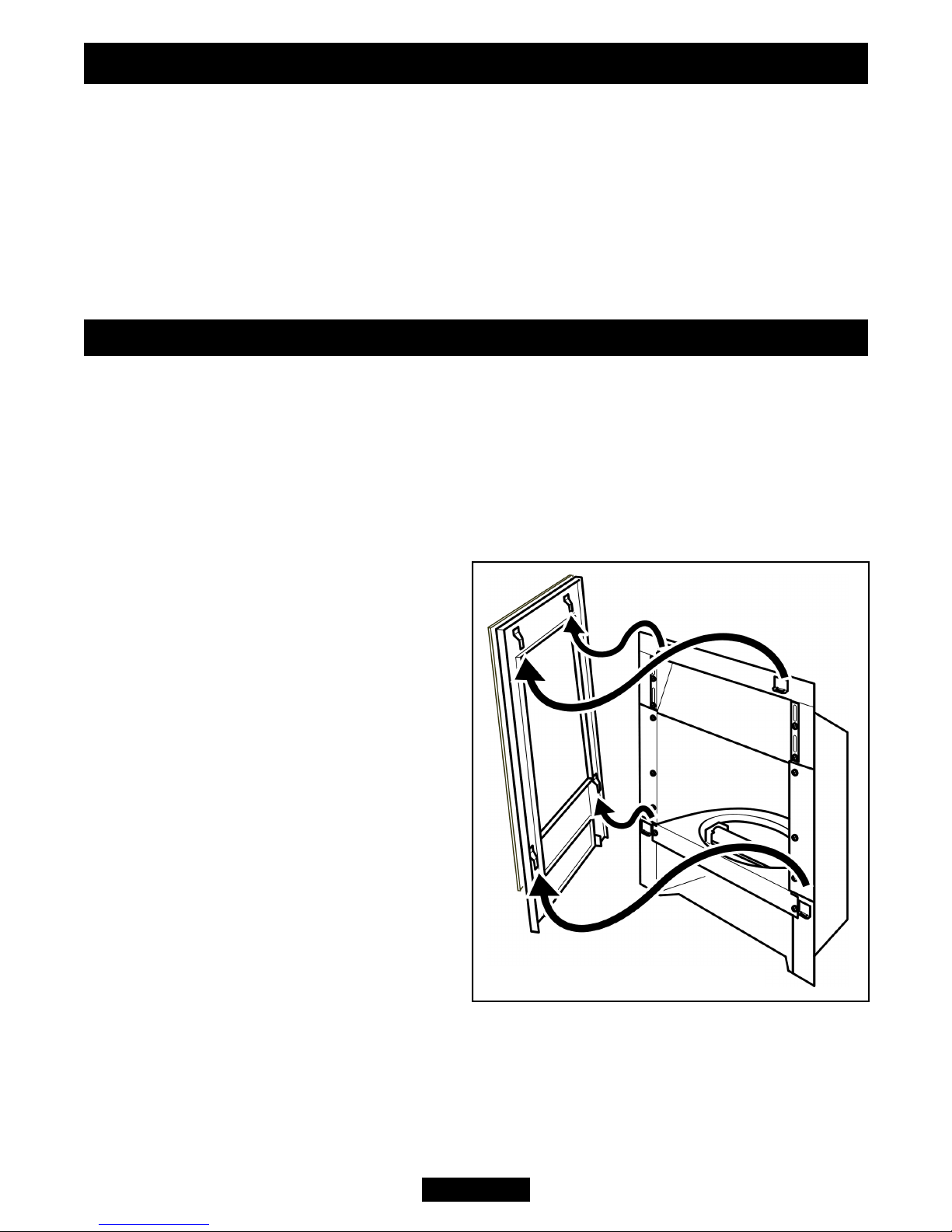

Removing the fascia. 13
MAINTENANCE 14
Regular maintenance. 14
Servicing. 14
USEFUL TELEPHONE NUMBERS 15
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 4
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions.
Do provide a minimum clearance of 700mm from the base of the firplace opening to
any shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth (See graph1).
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason. (Your fire is fitted with a safety device that will
Page 5
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

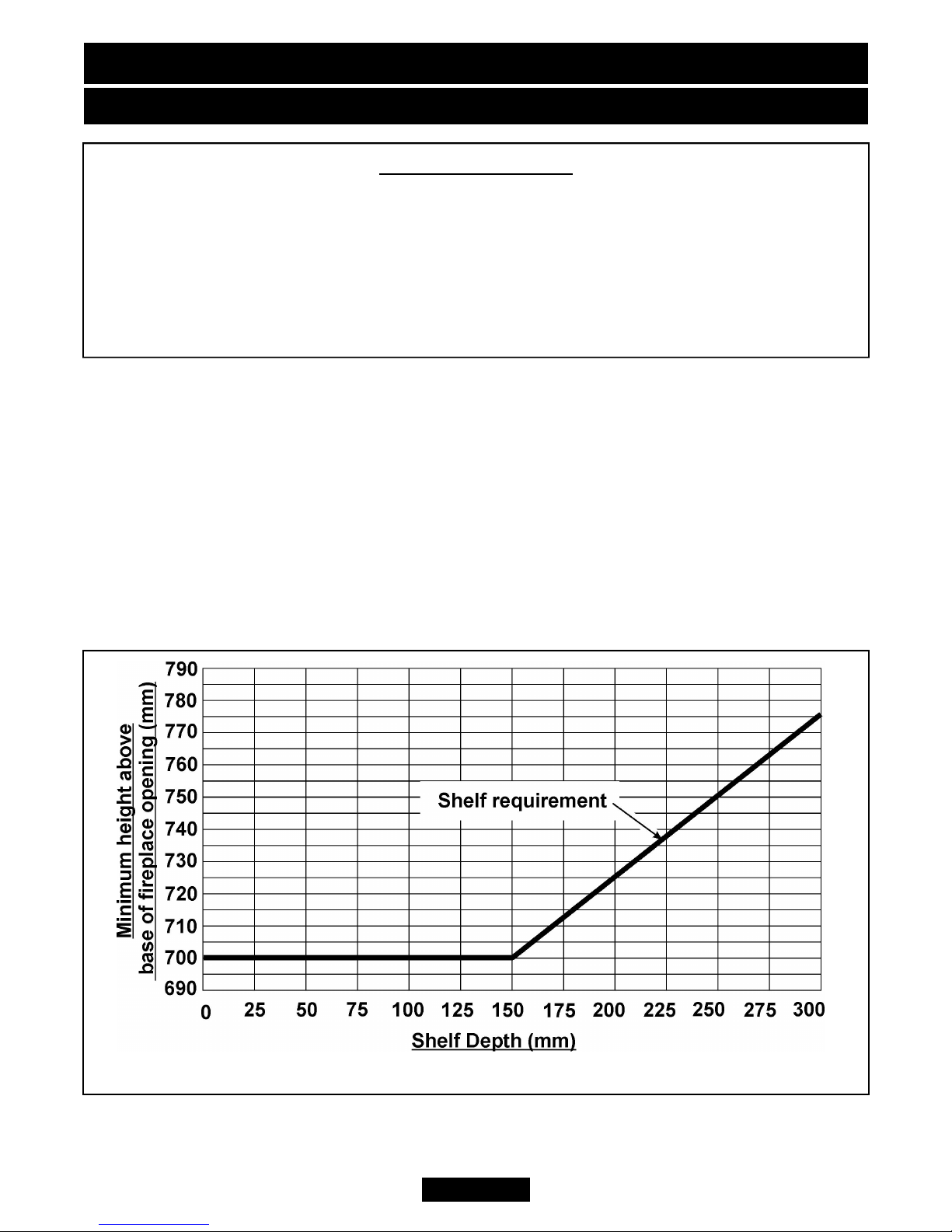

Graph 1. Combustible shelf clearances
IF YOU SMELL GAS
! DON’T SMOKE.
! EXTINGUISH ALL NAKED FLAMES.
! DON’T TURN ELECTRICAL SWITCHES ON OR OFF.
! TURN OFF THE GAS SUPPLY AT THE METER.
! OPEN DOORS AND WINDOWS TO GET RID OF THE GAS.
! IMMEDIATELY CALL THE GAS EMERGENCY SERVICE FROM A
NEIGHBOURS PHONE - SEE YOUR LOCAL TELEPHONE DIRECTORY.

Page 6
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
automatically shut off the gas supply to the fire if, for any reason, the flames go out).
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are considering altering the room.
Do provide a suitable guard that complies with BS 8423 for the protection of
young children, the elderly and the infirm. Such a guard is also recommended
for the protection of pet animals. The glass panel on this model conforms to
the requirements of B.S. 1945:1971 and satisfies the Heating Appliances
(Fireguard) (Safety) Regulations 1991. The glass panel is very hot when the
appliance is in use and should not be touched. It does not give full protection
for young children, the elderly or infirm. The appliance should not be used if
the glass is broken.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t
add any extra ceramic fuel effect pieces above the number stated in the fuel effect
installer and owner guide supplied with the ceramic fuel effect. This could cause
incomplete combustion and safety hazard.
Don’t put paper or any other material on the fire.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth.
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
GAS CONSUMPTION
Natural Gas
Has a maximum natural gas input of 5.5kW (Gross)
Has a maximum natural gas output of 2.4kW
Has a minimum natural gas input of 3.1kW (Gross)
Has a minimum natural gas output of 1.4kW
LPG
Has a maximum natural gas input of 5.0kW (Gross)
Has a maximum natural gas output of 2.3kW
Has a minimum natural gas input of 4.6kW (Gross)
Has a minimum natural gas output of 2.1kW

APPLIANCE DIMENSIONS
OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is held in at the ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Page 7
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.

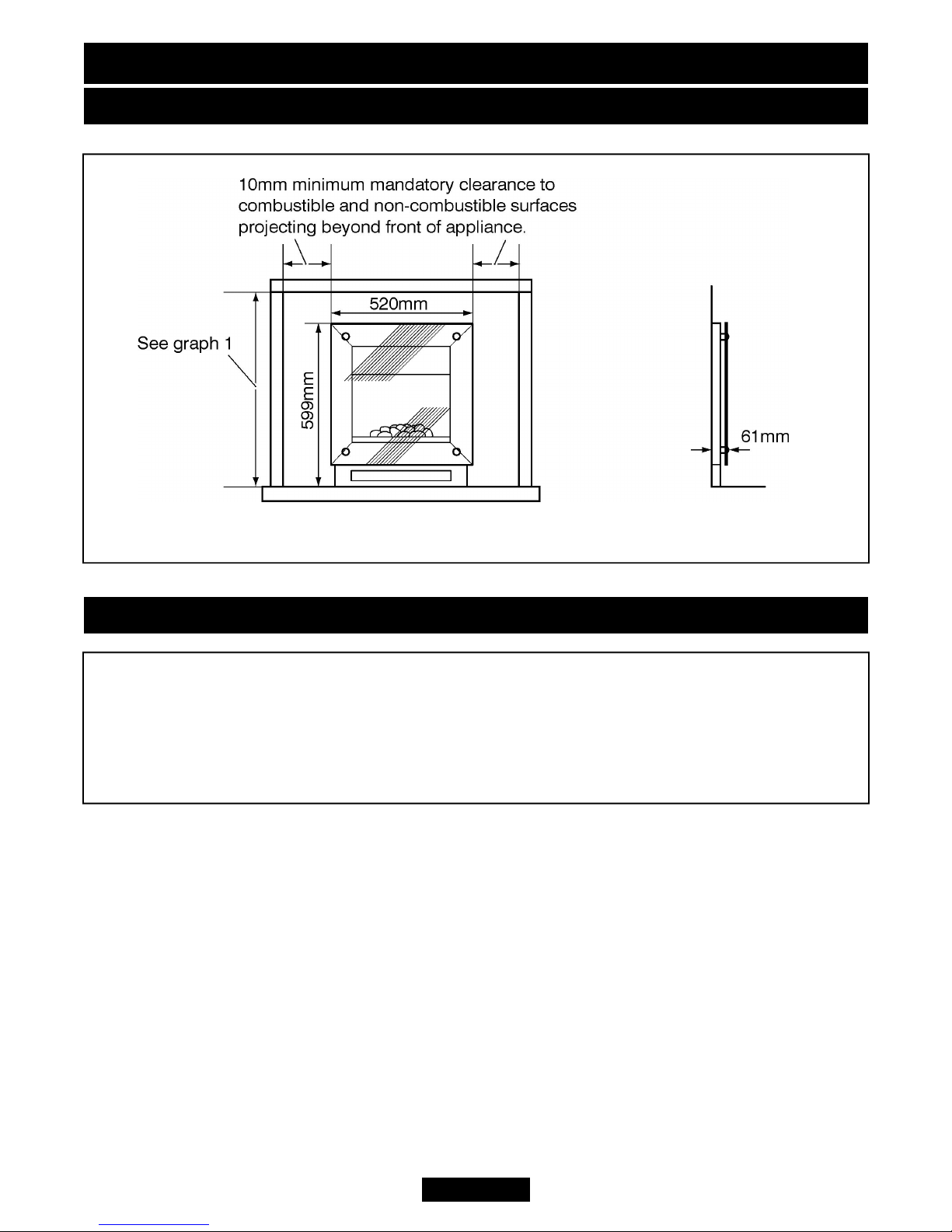

Figure 1. Appliance dimensions and clearances

The remote control handset.
xThe hanset will operate up to a distance of 8 to 10 metres (26 to 33
ft) away from the
fire (Depending upon location). If the batteries in the handset become weak it may be
necessary to be close to the fire to operate it. If this happens replace the handset
batteries as in the section headed ‘Fitting batteries to the remote control handset’ on
page 10.
x
The handset cannot be turned off. If the dislay screen is empty the handset is either
broken or the batteries need changing. See the section headed ‘Fitting batteries to the
remote control handset’ on page 10.
x
The handset must not be placed in a damp atmosphere i.e. where steam or water are
present. In cold weather do not leave the handset by windows where condensation may
form.
xDo not drop the handset.
x
It is advisable to put the handset out of the reach of young children, especially if they
are left unattended.
xDo remove the batteries from the handset if it is not to be used for long periods.
Room temperature indicator.
Please note that the Room Temperature indicator shows the temperature of the air
around the handset and is intended as a guide for persons who have difficultly judging
temperature. The heater does not contain a thermostat and will NOT adjust itself
automatically.
Page 8
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

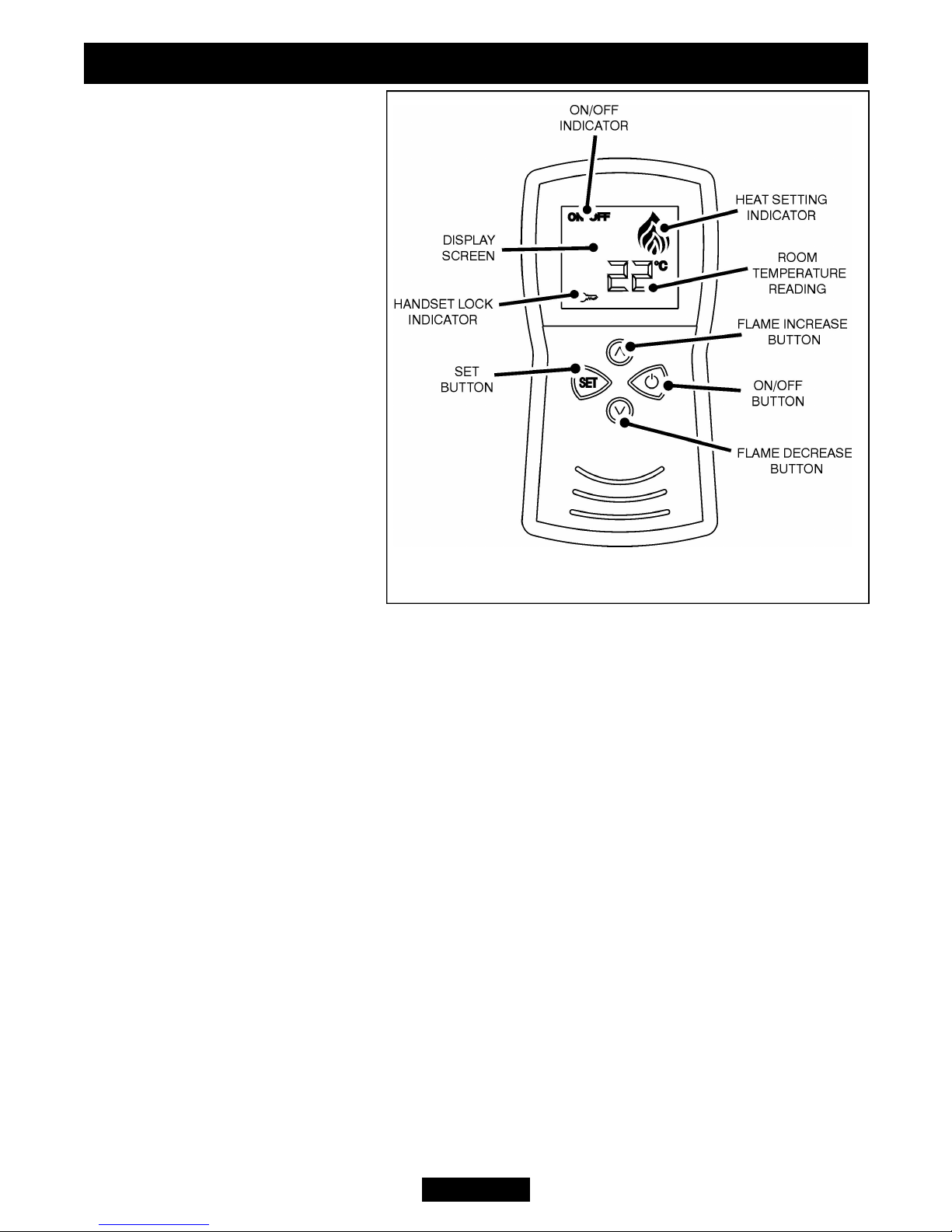

Figure 2. Remote control handset

The display features shown in figure 2 are the only features available on the handset.
Light conditions may cause other display features to be seen on the handset. These are
NOT available on this model and can be ignored.
To light the fire.
xPress the on-off button
(The word ‘ON’ will now start to flash in the top left hand
corner of the display screen).
xPress
the ‘SET’ button. The L.E.D. light on the bottom left hand side of the fire will
illuminate and a
small twin flame symbol will flash on the handset. The flame symbol
will stop flashing when the ignition sequence has been completed. When the ‘SET’
button is pressed there will be a slight delay and several sparks should be seen
between
the electrode and pilot tip. These should ignite the gas at the pilot and burner. The fire
will always light on heat setting 1.
If the pilot and burner do not light then the fire will
have to be turned off before attempting to light again. See ‘To turn off’ section below.
Repeat the lighting procedure. The pilot and burner should now light.
To turn off.
xPress the on-off button (The word ‘OFF’ will now start to flash in the top left
hand corner of the display screen).
xPress
the ‘SET’ button. The L.E.D. light on the bottom left hand side of the fire will
illuminate. The word ‘OFF’ will now be displayed. If the pilot and burner do not
extinguish then the handset will display the word ‘OFF’ even though the fire is still lit.
The handset will have to be set to ‘ON’. To do this follow the steps in the ‘To light the
fire’ section above. Once the handset displays the word ‘ON’ follow the procedure
above to turn off.
! While cooling, the fuel effect may make some crackling noises. This is quite
normal.
The fire is fitted with a manual ‘OFF’ button.
This is located behind the front cover.
To gain access to it
lower the bottom front cover. To do this, support the top edges of
the lower front cover and pull gently (See figure 5). The button is next to the battery
box above the LED light.
If it has been necessary to operate the button due to battery failure in the handset or
heat engine, then ensure that the batteries are replaced as in the ‘Fitting batteries to the
remote control handset’ and ‘Fitting batteries to the heat engine’
sections of this guide.
Burner operation.
Once the fire is lit the hanset will display the word ‘ON’
and a small symbol with two
flames. The burner flame can be increased by pressing the
button and decreased by
pressing the button. There are three heat settings to choose from and these are
shown on the handset by flame size (See figure 3). The L.E.D. light on the bottom left
Page 9
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

hand side of the fire will illuminate to confirm that
each signal has been recieved.
The fire can NOT be turned OFF by repeatedly
pressing the flame decrease button. See the section
headed ‘To turn off’ above.
Note:i) If the flames repeatedly go out have the fire
serviced.
ii) Please note. When first turned on the flames
will appear predominantly blue. The fuel effect
will take time to warm up. Although some glow will be seen after approximately
ten minutes, the full visual effect will only be apparent after a somewhat longer
time.
iii) The appliance will operate to its maximum potential if the flue is primed
during the first 20 – 30 minutes of operation. To do this, simply set the handset to
heat setting 4 (See figure 3). This will also burn off any carbon deposits that may
have formed during previous operations.
iv) If operating the appliance for long periods it is beneficial occasionally to
change the settings. This will also help to remove any carbon deposits that may
form during operation.
Locking the remote control handset.
The handset has a lock feature. This is intended to prevent accidental operation of the
handset. Locking the remote control handset prevents the handset being used until it is
unlocked. The handset can be locked when the fire is on or off.
To lock the handset:
xPress the on-off button
(The word ‘ON’ or ‘OFF’ will now start to flash in the top
left hand corner of the display screen).
xQuickly press and hold the on-off button and the flame decrease buttons
simultaneously.
A key symbol will appear on the bottom left of the display screen and the
remote control handset will now be locked.
Unlocking the remote control handset.
Unlocking the remote control handset will enable it to be used again. To unlock the
handset:
xPress and hold the on-off button and the flame decrease buttons
simultaneously. The key symbol
on the bottom left of the display screen should
Page 10
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 3. Heat setting indicator

disappear and the remote control handset is now ready for use.
Fitting batteries to the remote control handset.
The remote control handset is battery powered.
To replace the batteries remove the rear battery
compartment cover from the remote control
handset. To do this push the tab towards the
bottom of the handset and lift (See figure 4).
Fit the batteries in to the handset taking care to
locate them correctly. It is important that the +
and - symbols on the battery match those of the
illustration inside the battery compartment.
With the batteries inserted the display screen on
the handset will now display the room
temperature in degrees centigrade and the word
‘OFF’ in the top left hand corner. It may take a
few seconds for the display to appear.
Fitting batteries to the heat engine.
Please note: In order to ensure maximum battery
life and optimal performance, we recommend that
only 'Long Life' alkaline type replacement
batteries are used.
The gas valve on the heat engine is battery
powered. To gain access to the battery holder lower
the bottom front cover. To do this, support the top
edges of the lower front cover and pull gently (See
figure 5).
Remove the old batteries and discard. Fit the new
batteries into the battery holder on the front left
hand side of the heat engine. It is important that the
+ and - symbols on the battery match those of the
illustration inside the battery holder (See figure 5).
Glass bowing.
It is normal for the glass panel on the fascia to bow
slightly when hot.
Page 11
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 5. Lower front cover
Figure 4. Battery compartment cover

CLEANING YOUR FIRE
To maintain the high performance and quality finish of your fire please follow these
guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool completely. The fire will retain heat for some time before cleaning
can begin.
!
If any pieces of debris are found in the hotbox, have the chimney inspected before
further use.
Metal Parts.
!
Clean the metal parts with a slightly damp, lint free non-abrasive cloth and then dry.
! Do not use abrasive cleaners, as these will scratch the fire surface.
! Fascia -
Clean the metal parts with a slightly damp cloth and then dry. If this does
not work apply a very small amount of ‘baby oil’ to a lint free, non-abrasive cloth and
wipe over the surface. Use a clean non-abrasive cloth to wipe off the oil.
Glass parts.
! Marks and stains on the glass can be removed using non-abrasive glass cleaner.
Non-abrasive ceramic hob cleaner can be used to remove stains.
! Note: The decorative metal surfaces within the firebox are exposed to high
temperatures. Great care has been taken to ensure that discolouration is kept to a
minimum. However, the combination of heat and variable flue conditions may result in
small amounts of discolouration or staining.
Ceramic fuel effect.
! This product uses fuel effect pieces containing Refractory Ceramic Fibres
(RCF), which are man-made vitreous silicate fibres. Excessive exposure to this
material may cause irritation to eyes, skin and respiratory tract. Consequently, it is
important to take care when handling these articles to ensure that the release of
dust is kept to a minimum.
!
In the unlikely event of soot forming, light coatings will usually be burnt off during
the normal operation of the fire.
! Should any soot accumulation become excessive, the fuel effect pieces should be
removed from the fire for cleaning. To do this the fascia will have to be removed.
Firmly hold the fascia at the sides and lift clear of the hanging brackets (See f
igure 6)
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
! We do not recommend the use of a normal domestic vacuum cleaner which may
blow dust back into the air.
! We suggest that you remove the ceramic fuel effect in the reverse order to that
Page 12
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

shown in the ceramic fuel effect installer and owner guide. This should have been left
inside or attached to this guide by the installer.
Burner.
Remove any deposits of soot or other foreign matter from the solid areas of the burner
with a dry soft brush. Be careful not to brush any particles into the open holes. Remove
any particles from the holes with a vacuum cleaner fitted with a soft brush attachment.
Do not poke wire, etc. into the holes in the burner.
CERAMIC FUEL EFFECT
The installer and owner guide for the ceramic fuel effect is separate from this guide. The
installer may have attached it to this guide or placed it inside. It is important that the
installer and owner guide for the ceramic fuel effect is followed correctly. If replacing
the ceramic fuel effect, where a new guide is supplied, follow the installer and owner
guide supplied with the replacement fuel effect.
Keep the replacement installer and owner guide with this owner guide for future
reference.
Removing the fascia.
The fascia is held in place by four retaining
plates at the back of the fascia. These slot
into four retaining brackets on the hotbox.
Firmly hold the sides of the fascia and lift
upward and forward (See figure 6). After
cleaning / fitting the fuel effect, the fascia
can be replaced.
Page 13
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 6. Fascia removal

MAINTENANCE
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing.
!
In the United Kingdom servicing can be carried out either by a Baxi Fires Division
service engineer or a CORGI registered installer.
! If you require your fire to be serviced, please contact
Baxi Fires Division Service
on 08706 090 081 and quote the following details;
IMPORTANT
To help us quickly help you, please try to have the following information available
before you contact us:
Type of fire.
Model/Name.
Serial Number.
You will also be asked for the fault, problem or request plus your Post Code.
! If you wish to replace any of the ceramic fuel effect pieces, spare parts
are available nationwide via the ‘interpart stockist network’. For your local
stockist consult Yellow pages under Central Heating.
! When fitting replacement parts it is important that only approved parts are
used for maximum safety.
Page 14
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

USEFUL TELEPHONE NUMBERS
General advice about gas and your gas fire:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your fire to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
To order spares
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
Page 15
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
