Baxi Bermuda SP3/VP3
Fireside Gas Central Heating Unit
SP3
VP3
Installation and
Servicing Instructions

Supplied By www.heating spares.co Tel. [phone]
2
Baxi is one of the leading manufacturers of domestic
heating products in the UK.
Our first priority is to give a high quality service to our
customers. Quality is built into every Baxi product -
products which fulfil the demands and needs of
customers, offering choice, efficiency and reliability.
To keep ahead of changing trends, we have made a
commitment to develop new ideas using the
latest technology - with the aim of continuing to
make the products that customers want to buy.
Baxi is also the largest manufacturing partnership in
the country. Everyone who works at the company
has a commitment to quality because, as
shareholders, we know that satisfied customers
mean continued success.
We hope you get a satisfactory service from Baxi. If
not, please let us know.
Natural Gas
Baxi Bermuda SP3
G.C.No. 37 077 63
Baxi Bermuda VP3
G.C.No. 37 077 62
For use with the following boilers:
Baxi Bermuda 45/4 M
G.C.No. 44 077 71
Baxi Bermuda 45/4 E
G.C.No. 44 077 73
Baxi Bermuda 57/4 M
G.C.No. 44 077 72
Baxi Bermuda 57/4 E
G.C.No. 44 077 74
Baxi Bermuda 51/5
G.C.No. 44 075 06
Baxi is a BS-EN ISO 9001
Accredited Company
Renewal
Baxi Bermuda SP3 Renewal
G.C.No. 37 075 05A
Baxi Bermuda VP3 Renewal
G.C.No. 37 075 04A
For use with the following boilers:
Baxi Bermuda 401
G.C.No. 44 077 49
Baxi Bermuda 552
G.C.No. 44 077 50
Baxi Bermuda 45/3 M
G.C.No. 44 077 61
Baxi Bermuda 45/3 E
G.C.No. 44 077 60
Baxi Bermuda 57/3 M
G.C.No. 44 077 63
Baxi Bermuda 57/3 E
G.C.No. 44 077 62
Baxi Bermuda 45/4 M
G.C.No. 44 077 71
Baxi Bermuda 45/4 E
G.C.No. 44 077 73
Baxi Bermuda 57/4 M
G.C.No. 44 077 72
Baxi Bermuda 57/4 E
G.C.No. 44 077 74
Baxi Bermuda 51/5
G.C.No. 44 075 06
Propane Gas
Baxi Bermuda VP3 Propane
G.C.No. 37 077 72
For use with the following boiler:
Baxi Bermuda 553 Propane
G.C.No. 44 077 75

Supplied By www.heating spares.co Tel. [phone]
CONTENTS
PAGE 5
PAGE 6
PAGE 7
Fireplace Opening
Ventilation
Hearth Mounting
Wall Fixing PAGE 8-15
Initial Preparation
Electrical Connections
Gas Supply
Fitting the Fire
PAGE 16-18
Spillage Detection
PAGE 19-20
Bermuda VP3
Bermuda SP3
PAGE 21-25
Cleaning the Pilot / A.S.D. Assembly
Cleaning the Burner / Injectors
PAGE 26-33
Glass Frame
Frame Sealing Rope
Coal Bed
Burners and Injectors
Light Switch
Electrode Lead
Spark Generator
Resistor
Pilot / ASD Assembly
Electro-Magnetic Unit
Control Tap and Micro-switch
PAGE 34-35
PAGE 36
PAGE 37
Supplementary Instructions
Burner Removal
Burner Replacement
PAGE 38-39
Supplementary Kit Instructions
Existing Fire
Boiler Adaptation
Introduction
Technical Data
Site Requirements
Installation
Commissioning the Fire
Fitting the Outer Case
Annual Servicing
Changing Components
Fault Finding
Short Parts List
Propane - IMPORTANT
Read this section before installing propane
appliances
Renewal Firefront
3

Supplied By www.heating spares.co Tel. [phone]
4
IMPORTANT - Installation, Commissioning,
Service & Repair
This appliance must be installed in accordance with
the manufacturer’s instructions and the regulations
in force. Read the instructions fully before installing
or using the appliance.
In GB, this must be carried out by a competent
person as stated in the Gas Safety (Installation &
Use) Regulations.
Definition of competence: A person who works for a
CORGI registered company and holding current
certificates in the relevant ACS modules, or valid
ACoP equivalents, is deemed competent.
In IE, this must be carried out by a competent
person as stated in I.S. 813 “Domestic Gas
Installations”.
Codes of Practice, most recent version
should be used Safe Installation
The appliance is suitable only for installation in GB and IE
and should be installed in accordance with the rules in force.
In GB, the installation must be carried out by a CORGI
Registered Installer. It must be carried out in accordance with
the relevant requirements of the:
•Gas Safety (Installation & Use) Regulations.
•The appropriate Building Regulations either The Building
Regulations, The Building Regulations (Scotland), Building
Regulations (Northern Ireland).
•The Water Fittings Regulations or Water Byelaws in
Scotland.
•The Current I.E.E. Wiring Regulations.
Where no specific instructions are given, reference should be
made to the relevant British Standard Code of Practice.
In IE, the installation must be carried out by a competent
Person and installed in accordance with the current edition of
I.S. 813 ‘Domestic Gas Installations’, the current Building
Regulations and reference should be made to the current
ETCI rules for electrical installation.
These Instructions must be read in conjunction with those for
the Boiler Section before installing or using this appliance.
Information
In GB the following Codes of Practice apply:
Standard Scope
BS 6891 Gas Installation.
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5871 Installation of gas fires, convectors and
fire/back boilers.
BS 5440 Part 1 Flues.
BS 5440 Part 2 Ventilation.
BS 6798 Installation of gas fired hot water boilers.
BS 5449 Part 1 Forced circulation hot water systems.
In IE the following Codes of Practice apply:
Standard Scope
I.S. 813 Domestic Gas Installations.
The following BS standards give valuable additional information;
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5449 Part 1 Forced circulation hot water systems.
IMPORTANT - The addition of anything that may
interfere with the normal operation of the
appliance without express written permission
from the manufacturer or his agent could
invalidate the appliance warranty. In GB this
could also infringe the GAS SAFETY (Installation
and Use) REGULATIONS.

Supplied By www.heating spares.co Tel. [phone]

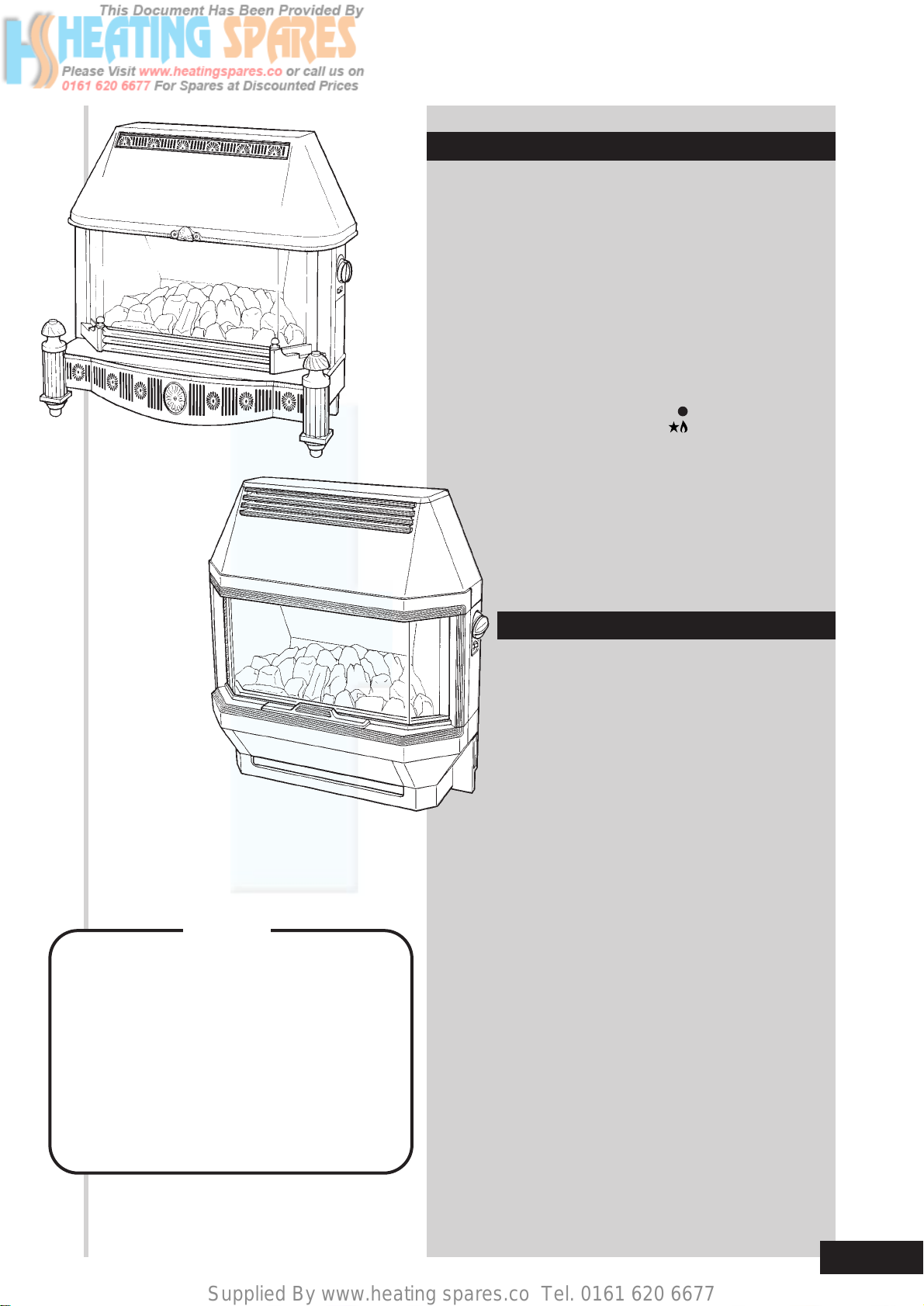

INTRODUCTION
Baxi Bermuda VP3
G.C.No37 077 62
Baxi Bermuda SP3
G.C.No37 077 63
NOTICE
DISCOLOURATION OF WALL SURFACES
Most heating appliances generate warm air convection
currents and transfer heat to any wall surface against which
they are situated.
Some soft furnishings (such as blown vinyl wallpapers) may
not be suitable for use where they are subject to temperatures
above normal room levels and the manufacturer's advice
should be sought before using this type of wall covering
adjacent to any heating appliance.
The likelihood of wall staining from convected air currents will
be increased in environments where high levels of cigarette
smoke or other contaminants exist.
Description
The Baxi Bermuda VP3 and Baxi Bermuda SP3 are
combined gas fired central heating boiler and gas fire
units, designed for installation in a living room. These
boilers and fires are designed to be used on Natural
Gas (For propane see page 35).
The heat input of both fires at their maximum setting is
5.74kW (19,600 Btu/h) with an output of 3.52kW
(12,000 Btu/h). Electronic ignition is provided to light
the main burner. The fires are controlled by a control
knob positioned on the right hand side of the case.
This control knob has six positions giving a choice of
five output settings.
Position - OFF
Position - IGNITION/PILOT
Position 1 - LOW
Position 2 - MEDIUM
Position 3 - MEDIUM/HIGH
Position 4 - HIGH
The artificial coal bed may be illuminated by
concealed bulbs as and when required. The light
effect is operated by a switch situated below the
control knob. It may be used whether the fires
are ON or OFF.
Important Information
This product contains Refractory Ceramic Fibres (R.C.F.)
which are man-made vitreous silicate fibres. Excessive
exposure to these materials may cause temporary irritation
to eyes, skin and respiratory tract. Care must be taken when
handling these articles to ensure the release of dust or fibres
is kept to a minimum. To ensure that the release of fibres
from these articles is kept to a minimum, during installation
and servicing it is recommended that a H.E.P.A. filtered
vacuum is used to remove any dust, soot or other debris
accumulated in and around the appliance. This should be
performed before and after working on the installation. It is
recommended that any replaced item(s) are not broken up but
sealed within heavy duty polythene bags and clearly labelled
“R.C.F. waste”. This is not classified as “hazardous waste”and may
be disposed of at a tipping site licensed for the disposal of industrial
waste. Protective clothing is not required when handling these
articles but it is recommended that gloves are worn and the normal
hygiene rules of not smoking, eating or drinking in the work area are
followed and always wash hands before eating or drinking.
5

Supplied By www.heating spares.co Tel. [phone]
Bermuda VP3 (Natural Gas)
Heat Input (Gross) High Med-High
kW 5.74 4.95
Btu/h 19,600 16,900
Heat Input (Gross) Med Low
kW 3.43 2.07
Btu/h 11,700 7,100
Setting Pressure Cold
mbar 12.8 +0.5
in wg 5.12 +0.2
Gas Connection The gas supply is
provided from the
service cock on the
boiler unit.
Electricity Supply230V~50Hz 3A 120W
External fuse - 3A
Controls Rotary gas tap with
Atmospheric sensing device.
Electronic ignition.
Lifting Weight 27.5 kg (60.6 lbs)
Thermocouple 9.4 - 13mV
Output
Gas Rate 0.57m3/h
(after 10 mins) (20.19ft3/h)
Outercase Height 689mm
Dimensions Width 703mm
Depth 337mm
Heat Output High
kW 3.52
Btu/h 12,000
Heat Input (Gross) High Med-High
kW 5.74 4.95
Btu/h 19,600 16,900
Heat Input (Gross) Med Low
kW 3.43 2.07
Btu/h 11,700 7,100
Setting Pressure Cold
mbar 12.8 +0.5
in wg 5.12 +0.2
Gas Connection The gas supply is
provided from the
service cock on the
boiler unit.
Electricity Supply230V~50Hz 3A 120W
External fuse - 3A
Controls Rotary gas tap with
Atmospheric sensing device.
Electronic ignition.
Lifting Weight 27.5 kg (60.6 lbs)
Thermocouple 9.4 - 13mV
Output
Gas Rate 0.57m3/h
(after 10 mins) (20.19ft3/h)
Outercase Height 689mm
Dimensions Width 680mm
Depth 323mm
Heat Output High
kW 3.52
Btu/h 12,000
Bermuda SP3 (Natural Gas)

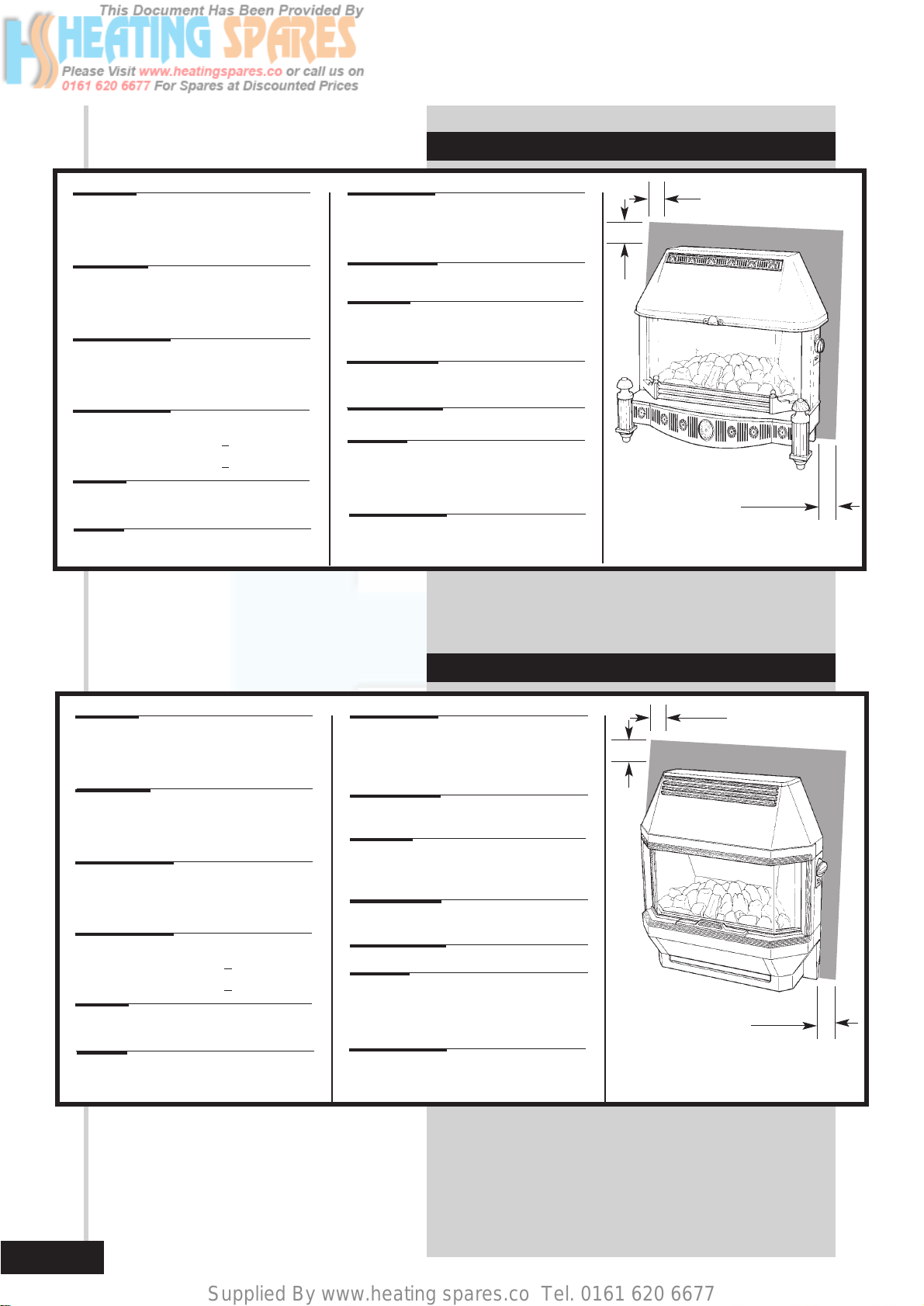

76mm
100mm
100mm
Clearances
76mm
100mm
100mm
Clearances
TECHNICAL DATA
FOR PROPANE TECHNICAL DATA SEE PAGE 35.
6
Injector Fo2
Injector Fo2 Pilot Assembly 9401
Heat Input (Gross) 210W (715 Btu/h)
Pilot Assembly 9401
Heat Input (Gross) 210W (715 Btu/h)

Supplied By www.heating spares.co Tel. [phone]

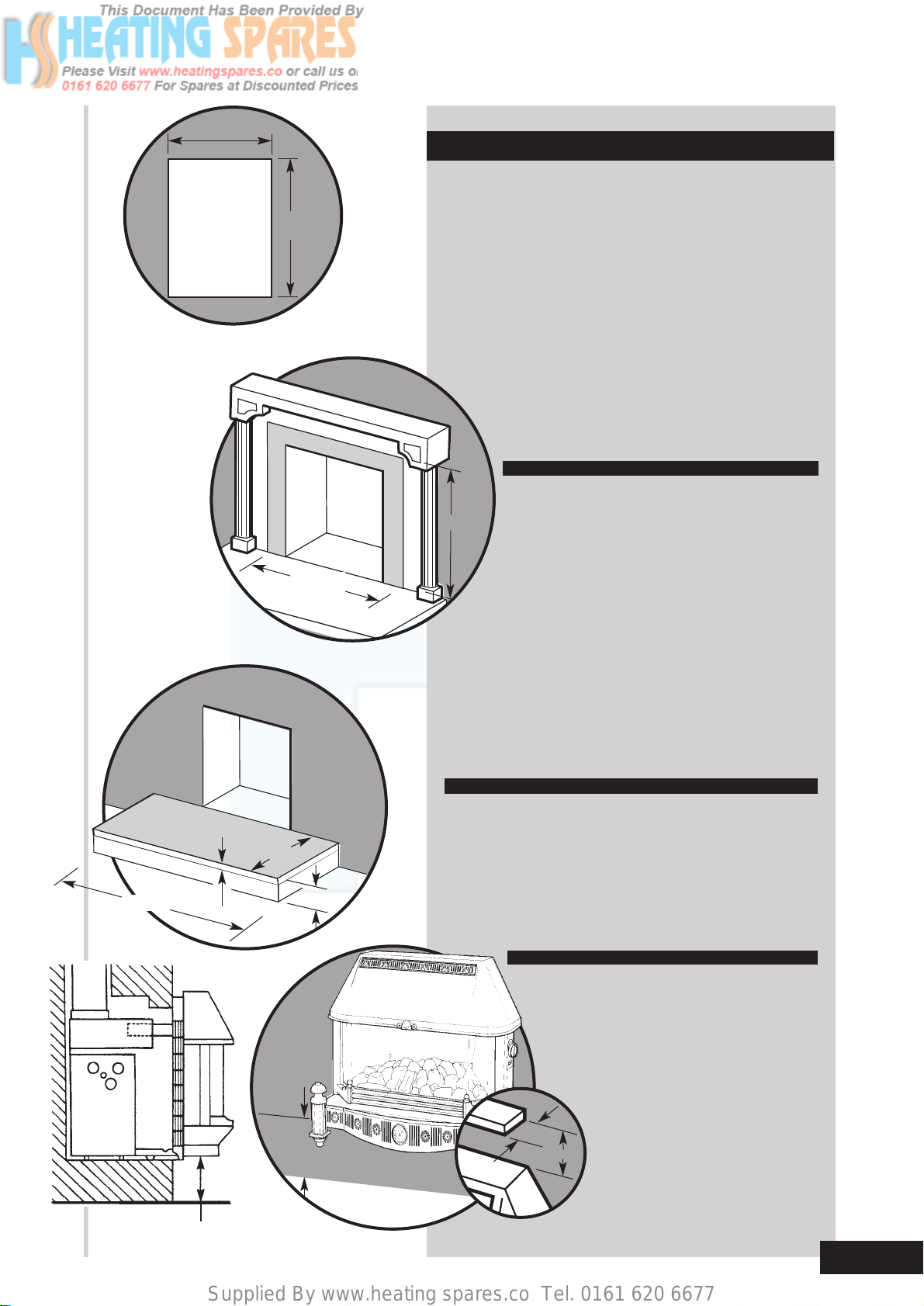

SITE REQUIREMENTS
340mm
13mm
830mm
Fireplace Opening
The principal site requirements are determined by the
boiler unit, but the following details are essential for the
correct installation of the fire unit:
Fireplace Opening: Height: 560mm (22in)
Width: 406mm (16in) min
508mm (20in) max
NOTE: Where possible the fireplace opening
should be made to the maximum width i.e. 508mm
(20in). The wall behind the fire must be non-
combustible.
If a fire surround is to be used, it must have a minimum
rating of 100oC. Any gaps between the wall and the
surround must be sealed. The surround or wall
must have a flat vertical surface, centrally fixed
about the opening measuring a minimum of
765mm (301/8in) high by 765mm (301/8in) wide.
VENTILATION
Ventilation air supply should be in accordance
with the relevant standards. In GB this is BS
5440 Pt. 2. In IE this is I.S. 813 “Domestic
Gas Installations”. The permanent ventilation
area size requirements are:-
SP3/VP3 & 45/4 68.54cm2(10.62in2)
SP3/VP3 & 57/4 89.15cm2(13.82in2)
SP3/VP3 & 51/5 75.63cm2(11.72in2)
The permanent vent may be directly into the room
containing the appliance. The vent may also be sited
in another room provided an interconnecting vent is
used. The vent must not be installed inside the
builders opening. The vent should be sited following
good practice for a habitable room.
We recommend the use of the Stadium BM720 ‘Black
Hole’ventilator which is available from your local
merchant. HEARTH MOUNTING
If the fire unit is to be hearth mounted then the hearth
must be of a non-combustible material at least 13mm
(1/2in) thick and measuring at least 340mm (133/8in)
deep by 830mm (323/4in) wide and fitted centrally
about the fireplace opening. The top surface of the
hearth should be a minimum of 50mm (2in) above floor
level and must be level with the base of the builders
opening. On no account should the fire unit be
fitted directly onto a combustible floor or carpet.
WALL FIXING
NOTE: Whilst the Bermuda VP3 is
intended to be hearth mounted, it may
also be fixed to a wall.
If the fire unit is to be fixed to the wall
then it is strongly recommended that the
fireplace opening is made to the
maximum width i.e. 508mm (20in).
A shelf may be fitted above the
fire unit provided that it is not
less than 76mm (3in) above the
fire canopy and not more than
229mm (9in) in depth. The area
between the shelf and the top of
the fire must be non-combustible.
125mm Max
100mm Min
76mm
229mm
50mm
508mm Max
406mm Min
560mm
Fireplace
Opening
765mm
765mm
125mm Max
100mm Min 7

Supplied By www.heating spares.co Tel. [phone]
Initial Preparation
Unpack the fire unit by removing the polystyrene
packing piece complete with fitments and placing to
one side, then lift the fire from its box.
Electrical Connections
Electricity is supplied to the fire unit via the plug-and-
cable assembly provided with the appliance.
The cable must be connected to the plug and socket
on the boiler base. This connection should be made at
the same time as the boiler electrical connections.
NOTE: The method of connection to the electricity
supply must facilitate complete electrical isolation
of the appliance. Connection may be made via a
fused double pole isolator with a contact
separation of at least 3mm (1/8in) in all poles
and serving the appliance and systems control
only (max. fuse rating 3 amp). A permanent
electricity supply to the boiler is required.
WARNING
THIS APPLIANCE MUST BE EARTHED. 4 core
input cable for connection to the boiler unit must
NOT be less than 0.75mm2(24 x 0.2mm) PVC heat
resistant to 70°C grade 1 to BS 6500 table 15 or 16.
E
E
br
b
b
b
b
b
b
br
b
b
L
N
E
L
N
br
br
br
br
br
br
br
Micro-Switch
Micro-Switch
Resistor
Resistor
Plug and
Socket - 3 pin
KEY
br - Brown
b - Blue
Bulb
Bulbs
Switch
Switch
Spark Generator
Spark Generator
Functional Flow Diagram
Electrode
Electrode
Plug
Bulb
INSTALLATION
8

Supplied By www.heating spares.co Tel. [phone]
Manual Control Models
If the fire supply cable has not been fitted when wiring
the boiler proceed as follows:-
Isolate the electrical supply to the boiler
including the permanent live.
Remove the boiler controls assembly
as described in the boiler Installation
and Servicing Instructions.
The socket should be wired as
described in the boiler Installation and
Servicing Instructions.

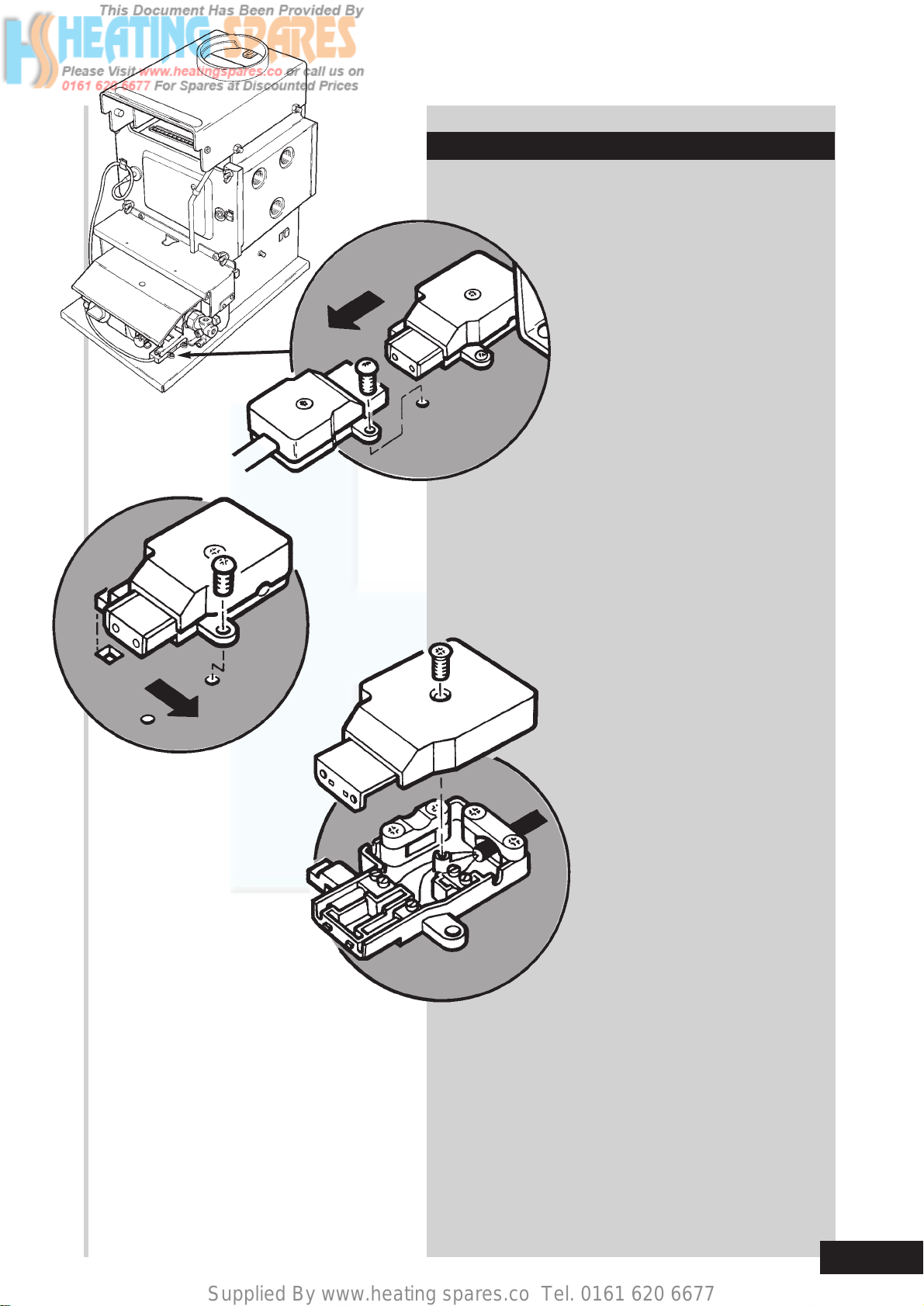

Remove the screw fixing the input socket to the boiler
base. Slide the socket to the right, then lift to remove.
Remove the screw fixing the cover to the
socket housing and remove the plastic
cover, revealing the terminals and cable
clamps and boiler wiring.
9

Supplied By www.heating spares.co Tel. [phone]
From the plug and cable connection supplied with the
fire unit, the following connections should be made,
making sure that the appropriate cable clamp is used
to hold the cable firmly.
Connect the blue wire (neutral) to the remaining
terminal marked ‘N’. Connect the brown wire
(permanent live) to the remaining terminal marked
‘L2’. Route the green & yellow wire (earth) through
the cut-out in the socket housing and connect it to the
earth terminal.
The earth wire should be long enough so that the
live and neutral wires will become taut before the
earth wire if the cable is pulled.
Refit the socket cover and fix in place with the
screw.
Refit the input socket assembly to the boiler base and
fix in place with the securing screw.
Reconnect the controls connection plug to the
input socket and again, fix in place with the
securing screw.
Clamp the input cable in place using the
appropriate clip.
10

Supplied By www.heating spares.co Tel. [phone]
Controls Heat
Shield

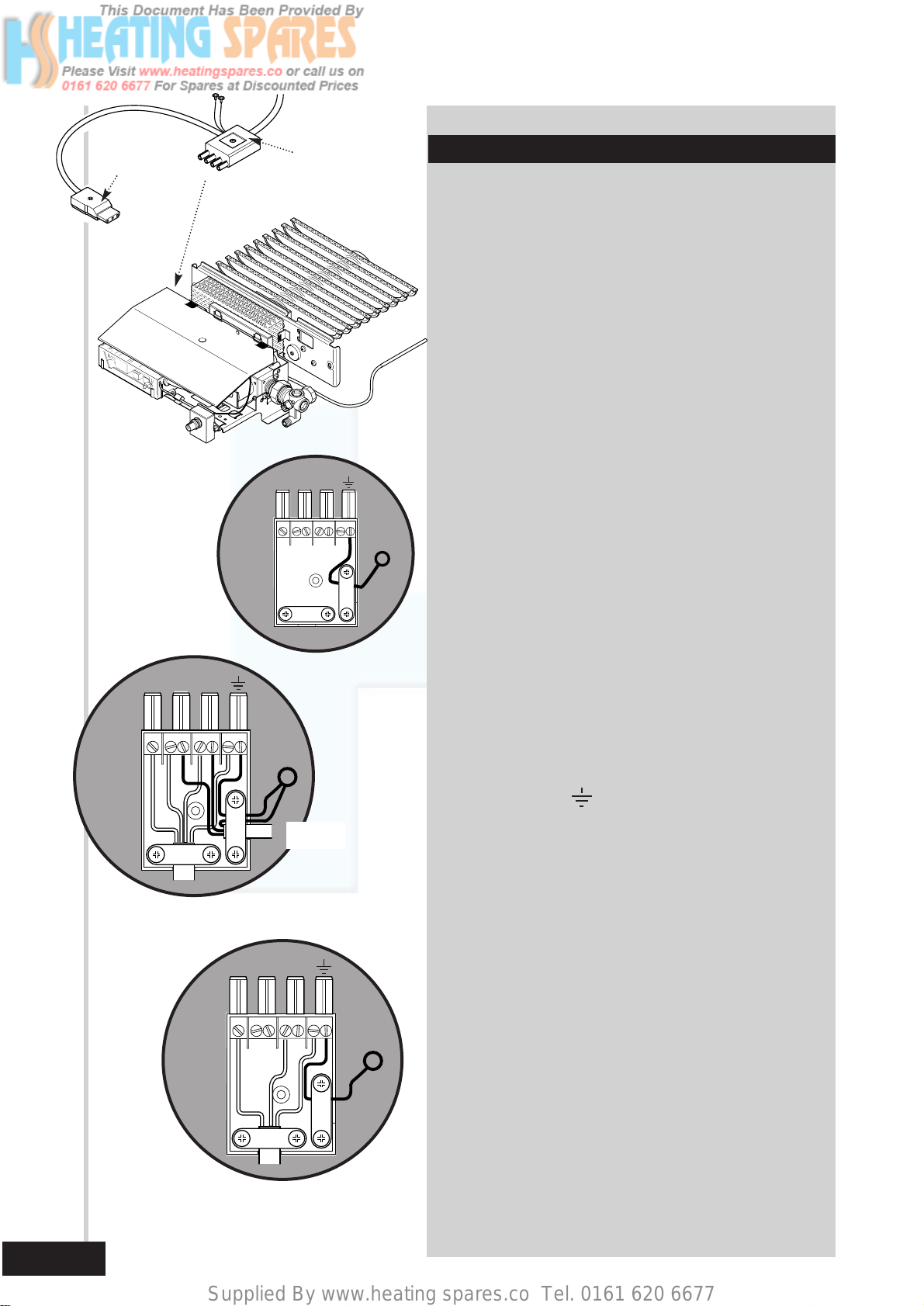

Electronic Controls Models
Remove the controls heat shield
from its retaining clips.
Isolate the electrical supply to the
boiler, including the permanent
live.
Remove the electrical inlet
socket from the PCB at the rear
left hand side of the control box.
Remove the socket cover. The socket should be wired
as described in the boiler Installation and Servicing
Instructions.
If the firefront being installed is
equipped with either lighting
effects or lighting effects and
electronic ignition the plug
must be wired as shown:
Connect the control
switched live to L.
Connect neutral to N.
Connect earth to .
The live of the fire supply
cable must also be connected
to the terminal block.
Neutral and Earth of the fire supply cable can then be
connected to N and respectively.
If the firefront does not require a permanent live feed,
wire the plug as shown. The loose terminal block can
be discarded.
Refit the cable clamp ensuring that the outer
insulation is securely held and refit the socket cover.
Ensure that all cables are routed away from the
boiler casing and hood.
11
SL L N
SL L N
SL L N
Loop
Loose
Terminal
Block Cut the end of the
earth tag from the
fire supply cable
earth wire.
From
Firefront
From Control
System &
Permanent Live

Supplied By www.heating spares.co Tel. [phone]
12
Electronic Controls Model (51/5 only)
Remove the controls heat shield from its retaining
clips.
Isolate the electrical supply to the boiler, including the
permanent live.
Remove the electrical inlet socket from the PCB at the
rear left hand side of the control box.
Remove the socket cover. The socket should be wired
as described in the boiler Installation and Servicing
Instructions. The boiler plug is supplied as shown : An
earth lead connects to the boiler chassis.
If the firefront being installed is equipped with either
lighting effects or lighting effects and electronic
ignition the plug must be wired as shown:
Connect the control switched live to SL.
Connect neutral to N.
Connect earth to .
Connect the permanent live to L.
The fire earth must connect to the chassis.
Neutral and Live of the fire supply cable can then be
connected to N and L respectively.
If the firefront does not require a permanent live feed,
wire the plug as shown. The loose terminal block can
be discarded.
Refit the cable clamp ensuring that the outer
insulation is securely held and refit the socket cover.
Ensure that all cables are routed away from the
boiler casing and hood.
4 Pin Electrical
Inlet Socket
3 Pin Electrical
Plug
SL L N
From Control System
& Permanent Live
SL L N
From
Firefront
SL L N

Supplied By www.heating spares.co Tel. [phone]
Gas Supply
The gas installation should be in accordance with
relevant standards. In GB this is BS 6891. In IE this is
I.S. 813 “Domestic Gas Installations”.
The gas supply to the fire unit is provided from the gas
service cock on the boiler using the supply pipe
supplied with the unit.
The pipe has one flared end (for connection to
the fire) and a plain end (for connection to the gas
service cock by a nut and olive).
It may be necessary to shorten the supply pipe
depending upon the position of the boiler unit
relative to the face of the wall or surround. If this
is the case, then follow the following procedure,
taking care to cut the supply pipe to the correct
length.
Measure the distance from the centre of the front
‘V’mark on the boiler base tray to the face of the
wall or surround. Let this distance be known as
distance ‘D’.
Mark off distance ‘D’from the plain end of the supply
tube, cut and dispose of the unwanted piece of tube.
Care must be taken to ensure that the cut is square
and that the pipe is free from burrs and swarf.
(An alternative method of determining the
length of the supply pipe is to hold the plain end
flush with the face of the wall or surround and mark
the pipe at the position of the front V notch on the
boiler base tray).
Thread the steel flare nut over the supply pipe, then
fix the plain end to the gas service cock on the boiler
using the nut and olive. Ensure that the flared end of
the pipe faces to the right and is parallel with the
hearth or floor, then fully tighten.
Surround Face or
Finished Wall Face
Front "V" Mark
D
Gas Service Cock
13

Supplied By www.heating spares.co Tel. [phone]

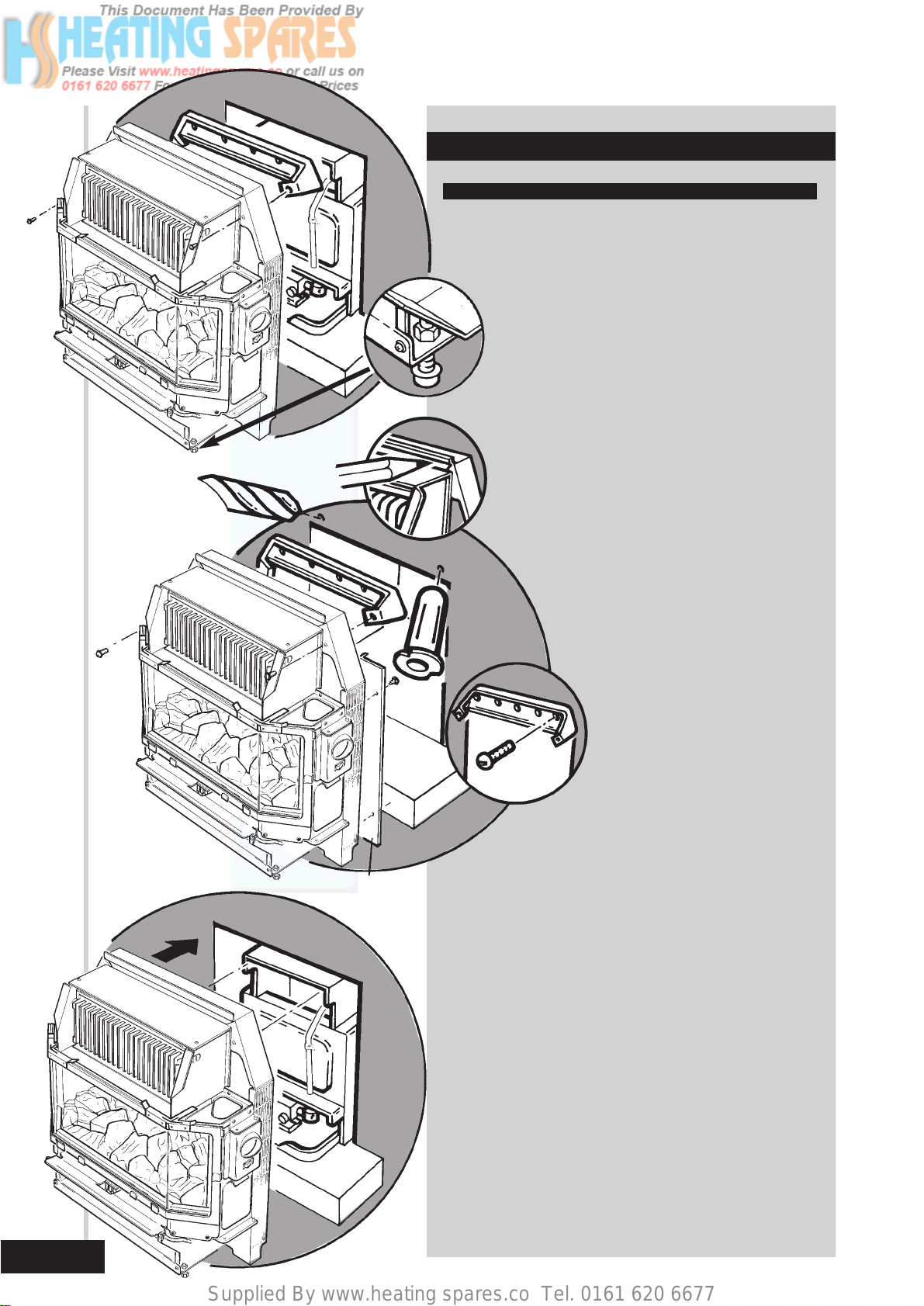

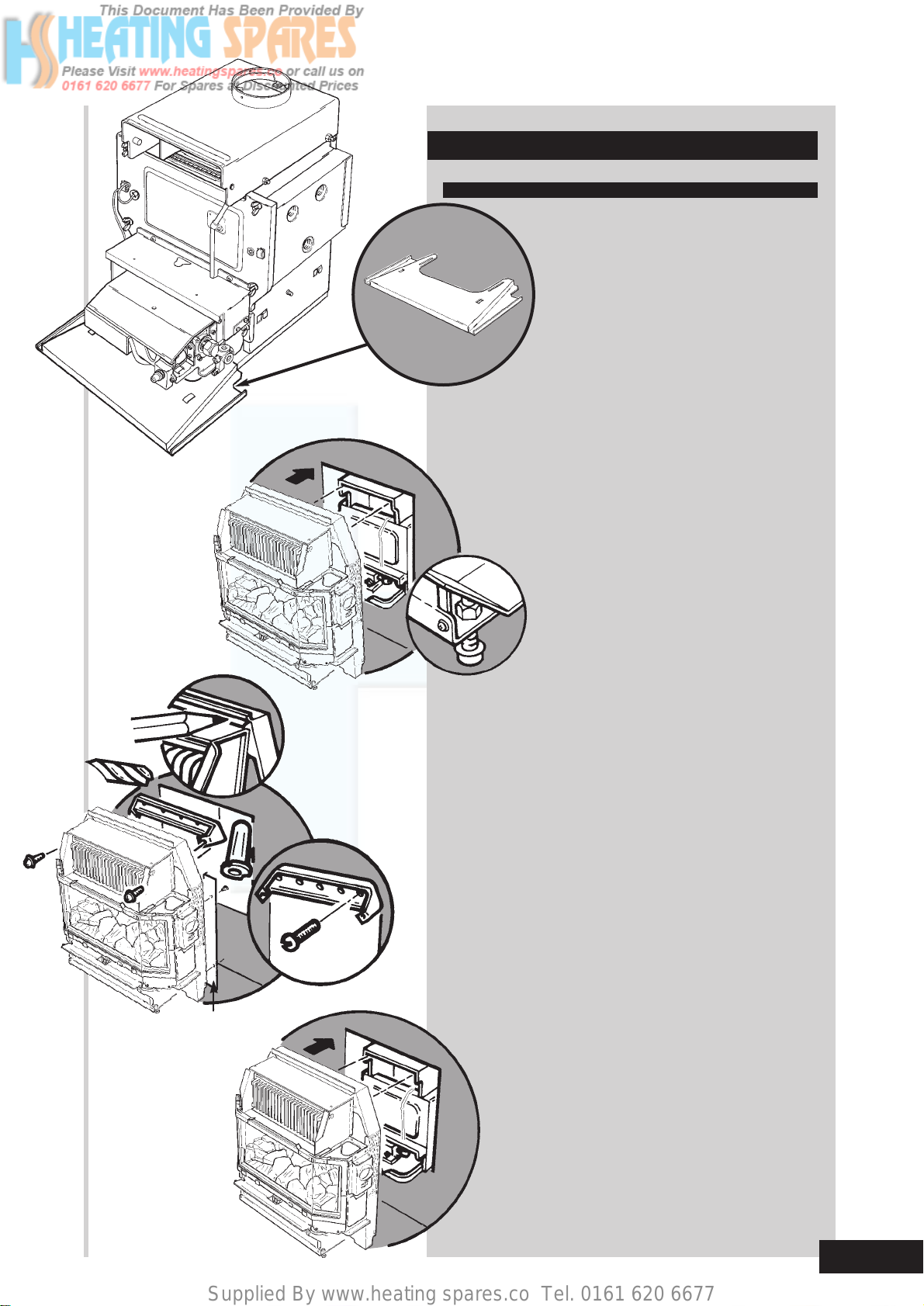

Fitting the Fire
HEARTH FIXING
Take the backing plate and fix it to the fire unit with
two of the 5/8in screws provided. Locate the flue spigot
into the down-draught diverter on the boiler unit. Push
the fire backwards until the backing plate touches
the surround or wall face. Ensure that the down-
draught diverter bottom passes over the
controls heat shield.
Level the fire by adjusting the front feet (check
using a spirit level).
Mark the positions of two suitable fixing holes
in the backing plate. NOTE: Where possible
use the top corner fixing hole positions,
otherwise space the fixing holes as far
apart as possible.
Remove the fire unit from the hearth and
remove the backing plate from the fire
chassis by removing the two screws
holding it in position. Retain the screws.
Drill the fixing holes in the
surround/wall face to accept suitable
wall plugs.
Fix the backing plate in position
on the wall using suitable
screws.
NOTE: (For Bermuda SP3 only)
Fit the two blanking plates in
position using the 3/8in screws
provided.
Relocate the flue spigot in the down draught diverter
and push the fire backwards as far as possible.
Secure the fire to the backing plate using the screws
previously removed.
Connect the supply pipe to the fire inlet connection
and tighten the flared joint.
Blanking Plate
(Bermuda SP3 only)
14

Supplied By www.heating spares.co Tel. [phone]
WALL FIXING
Taking the fire support plate from the fire
unit packaging, place it above the boiler
base protruding from the fireplace
opening. (On electronic control boilers it
will be necessary to remove the inlet
plug from the controls). With the screws
provided, loosely attach the plate to the
boiler base using the slots at each side.
Push the support plate backwards until it
touches the surround/wall face and tighten the
screws to lock it in position.
Take the backing plate and fix it to the fire unit with
two of the 5/8in screws provided. Locate the flue
spigot into the down-draught diverter on the boiler
unit. Push the fire backwards until the backing plate
touches the surround or wall face.
Level the fire by adjusting the front feet
(check using a spirit level).
Mark the positions of the available fixing holes in the
backing plate. NOTE: Where possible use the top
corner fixing hole positions, otherwise space the
fixing holes as far apart as possible.
Remove the fire unit from the support plate and
remove the backing plate from the fire chassis by
removing the two screws holding it in position. Retain
the screws.
Drill the fixing holes in the surround/wall face to
accept suitable wall plugs.
Fix the backing plate in position on the wall using
suitable screws.
NOTE: (For Bermuda SP3 only) Fit the two
blanking plates in position using the 3/8in screws
provided.
Relocate the flue spigot in the down-draught
diverter and push the fire backwards as far as
possible. Secure the fire to the backing plate
using the screws previously removed
Connect the supply pipe to the fire inlet
connection and tighten the flared joint.
Blanking Plate
(Bermuda SP3 only)
Fire Support
Plate
15

Supplied By www.heating spares.co Tel. [phone]
Turn the gas service cock to the boiler and
fire position. Purge according to in GB
BS 6891 and in IE the current edition of
I.S. 813 “Domestic Gas Installations”.
Remove the glass frame by disengaging the retaining
clamps and lifting away. Remove the polystyrene
packing piece securing the coal bed in position.
Lift the coal bed out and remove from its plastic bag.
Carefully place it in position on the burner.
CAUTION: The coal bed is extremely
fragile and must be handled
accordingly.
Gloves must be worn and any
inhalation of the dust should be
avoided. Keep the coals away
from children at all times.
Please read the Important
Information section on page 4.
Remove any labels fixed to the
glass frame assembly and clean both
sides of the glass panels using
a non abrasive cream
cleanser, before replacing
the glass frame.
Replace the glass frame
and lock in place by
engaging the retaining
clamps.
Connect the electricity supply to the fire unit by fixing
the plug in position.
COMMISSIONING THE FIRE
Boiler/Fire
(Manual Controls Boiler shown)
16

Supplied By www.heating spares.co Tel. [phone]
Check the electricity supply to the fire unit by
switching on the illumination bulbs. If
the bulbs light, switch off and continue
with commissioning the fire. If the
bulbs do not light, isolate the
electricity supply and perform
preliminary electrical system checks before proceeding
i.e. earth continuity, polarity, resistance to earth etc.
Remove the electrical cover on the
right hand side of the chassis by
removing the fixing screw.

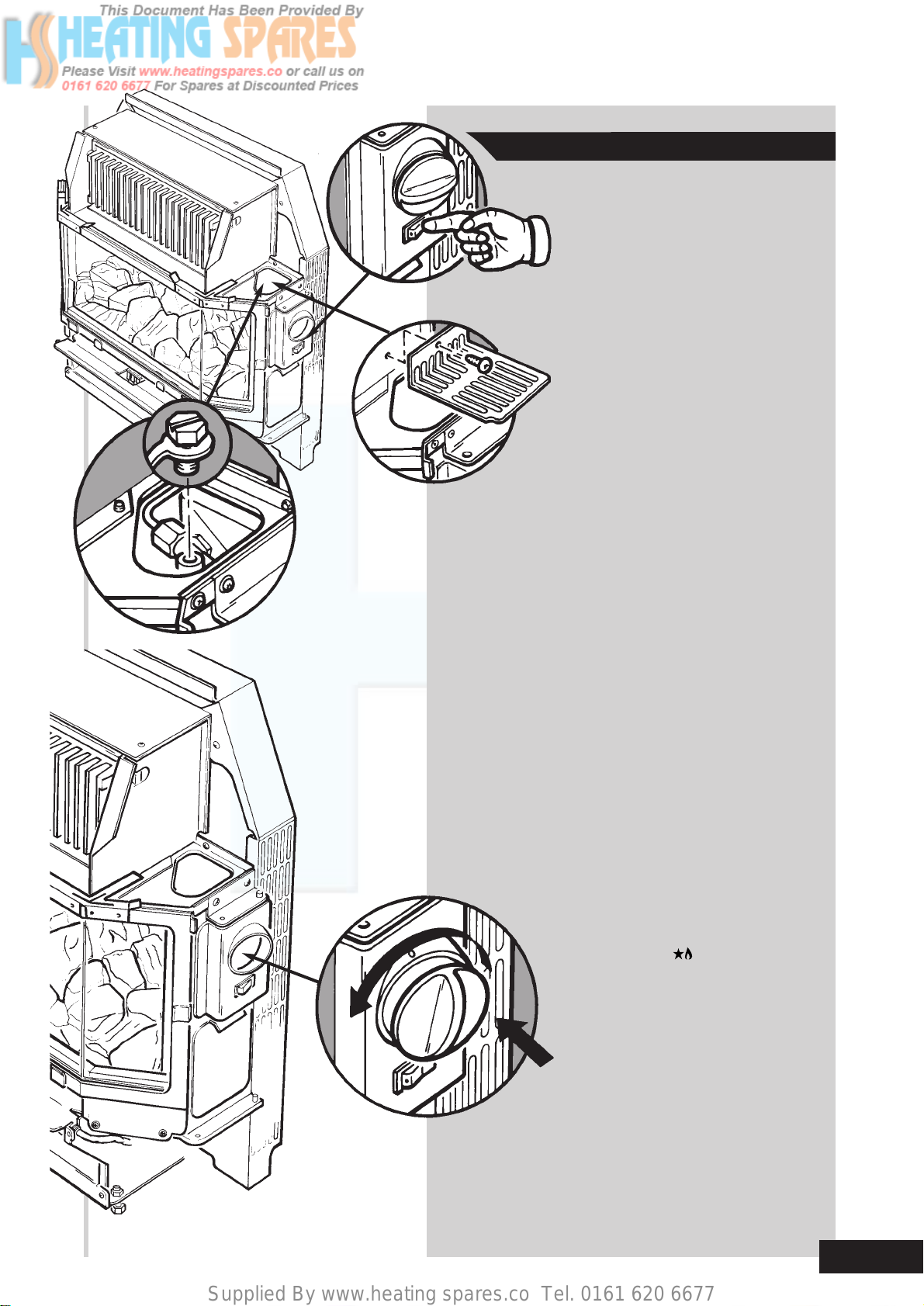

Release the pressure test point sealing screw and
connect a pressure gauge in position.
Push in the control knob, turn to the
IGNITION position ( ) and hold in.
Sparking will commence at the ignition
electrode and the pilot will ignite.
Continue to hold the control knob in for
a further 15 seconds then release. The
sparking will stop and the pilot will
stay alight. If the pilot does not stay
alight, repeat the process after waiting for 2
minutes. (If the pilot still fails to remain alight,
refer to the fault finding chart).
17

Supplied By www.heating spares.co Tel. [phone]
Check the setting pressure at position 4. No
adjustment to the setting pressure is possible.
Turn the control knob to the ‘OFF’( ) position.
Disconnect the pressure gauge and
replace the pressure test point
sealing screw, ensuring a gas-
tight seal.
Refit the electrical cover.
SPILLAGE DETECTION
A test for clearance of flue products is only
possible from the left hand side and must be made
as follows: Ensure that all doors and windows in the
room are closed. (If there is an extractor fan or
ceiling fan in the room or any adjoining room, the
check for spillage must be performed with the
fan turned on and any interconnecting doors
open.) Ignite the fire and turn to setting 4.

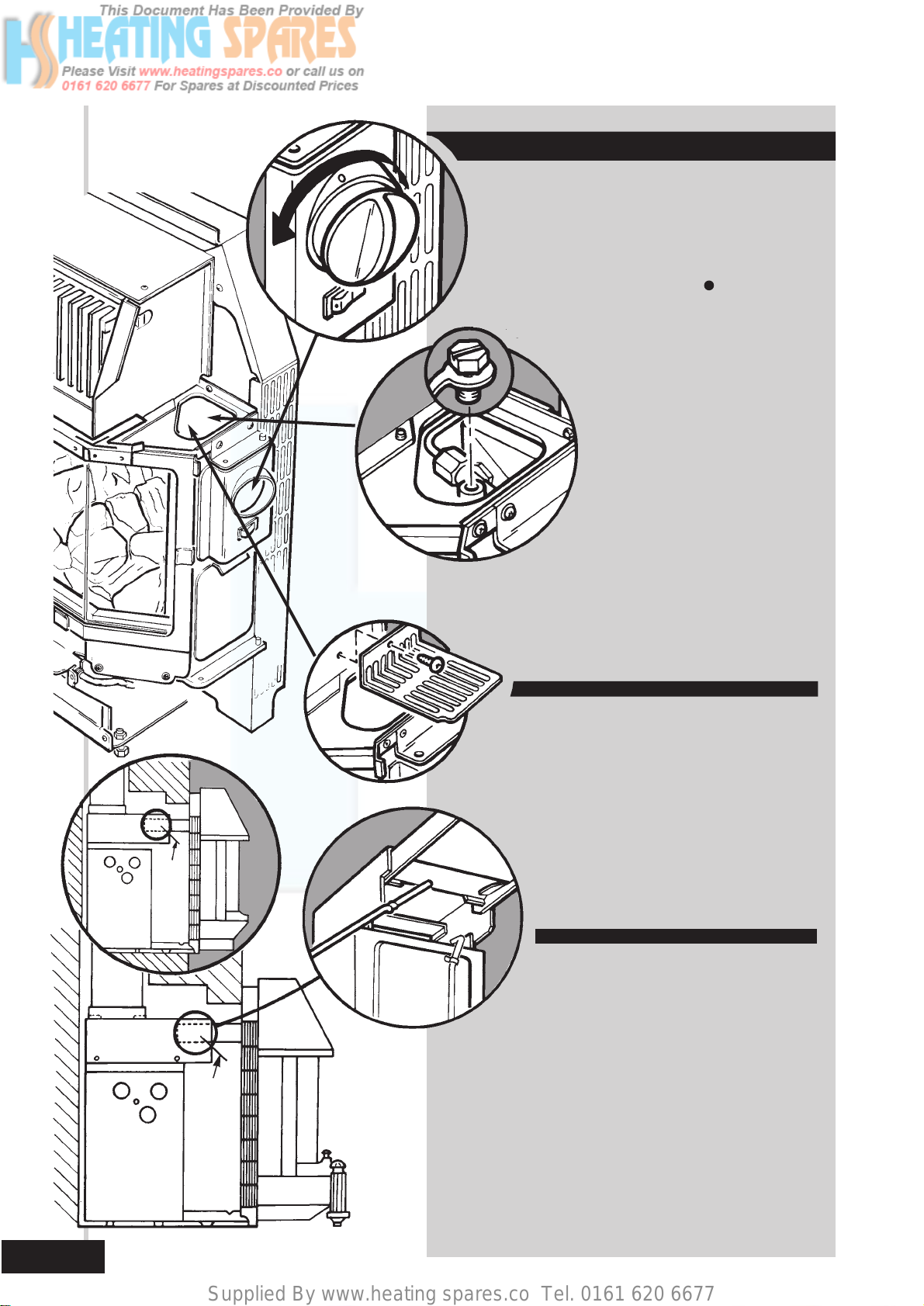

After running for 5 minutes take a lighted
smoke match and insert it into the boiler
down-draught diverter as shown.
WARNING
CARE MUST BE TAKEN TO AVOID
TOUCHING HOT PANELS AT THIS POINT.
If the majority of the smoke is not drawn into the
chimney, then spillage of combustion products is
indicated and further investigations must be carried
out.
Repeat the procedure with both the boiler and the fire
alight (the boiler having been alight for 5 minutes).
Smoke
Match
Smoke
Match
18

Supplied By www.heating spares.co Tel. [phone]
FITTING THE OUTER CASE

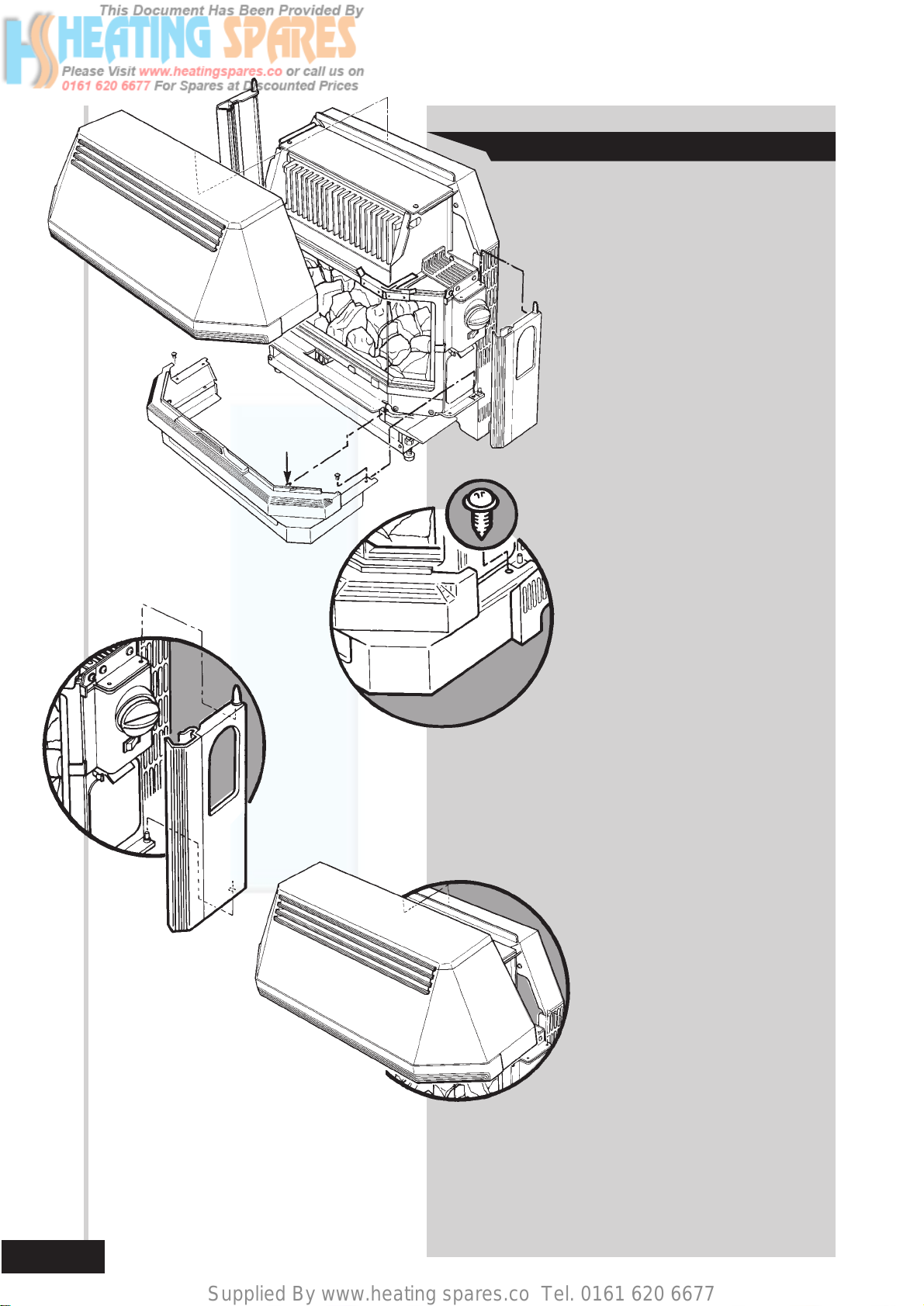

Bermuda VP3
Turn off the fire and fit the outer case
components as follows:
Remove the fender front from the
hearth assembly by pulling forward.
Engage the hearth assembly on
the side ledges as shown and
push home as far as possible.
Adjust the feet to touch the fireplace
hearth. Fix the hearth assembly in
position using the two N°8 x 5/8in
screws in the front and the two
M4 x 8mm thread former screws
in the sides.
Hang the left and right hand side doors on the fittings
as shown and close the doors, ensuring that they lock
in position.
Fix the canopy by lowering it into
position over the top edge and
then by gently easing the sides
inwards, push home to lock in
place.
Locate the fender front in position at the front of the
hearth assembly and push home.
Instruct the user in the operation of the fire controls
and hand over the user’s instructions and installation
instructions, giving advice on the necessity of
regular servicing. 19

Supplied By www.heating spares.co Tel. [phone]
Bermuda SP3
Turn off the fire and fit the outer case
components as follows:
Engage the hearth by guiding the locating
pins through the holes in the innercase
and sliding forward on the side ledges
as far as possible. Fix the hearth in
position using the two 3/8in screws in
the sides.
Hang the left and right hand side doors on the fittings
as shown, leaving them open.
Fix the canopy by guiding the
bottom edge onto the door pins and
then by tilting the back edge over
the locating lip on the innercase.
Close the doors ensuring they lock
in place.
Instruct the user in the operation of the fire controls
and hand over the user’s instructions and installation
instructions, giving advice on the necessity of
regular servicing.
Locating
Pin
20
