Baxi Chester 0581901 Instructions for use

5118237/01
INSTALLER AND OWNER GUIDE
This guide is intended to help you install and care for your Baxi Fires Division electric
stove. Please read carefully before installing and using your stove. However, if further
information is required, our Baxi Fires Division Technical Helpline
will be pleased to help.
Telephone [phone] (National call rates apply in the United Kingdom)
In the Republic of Ireland call 0044 8706 061 065
Important: Please keep your guide in a safe place for future reference
© Baxi Heating U.K. Limited 2006.
Model
0581901
Chester
Log Effect
Electric Stove

© Baxi Heating U.K. Limited 2006.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
CUSTOMER CARE
Thank you for choosing Baxi Fires Division
All Baxi Fires Division stoves are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation of
your new Baxi Fires Division stove, by providing simple and informative instructions to
enable you to install it and to ensure that you benefit from the excellent performance
and features it has to offer.
If you require further assistance, the Baxi Fires Division Technical Helpline
will be
pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom). In the
Republic of Ireland please telephone [phone].
FOR OTHER USEFUL TELEPHONE NUMBERS SEE PAGE 9 OF THIS GUIDE.
Baxi Fires Division, Erdington, Birmingham B24 9QP.
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

Safety First.
Baxi Fires Division stoves are CE Approved and designed to meet the appropriate
British Standards and Safety Marks.
HANDLING AND UNPACKING
Before continuing any further with the installation of this stove please read the
following:
Important instructions.
!The approximate lifting weight of the stove is 13kg.
!
One person should be sufficient to lift the stove. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the stove.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!
Always keep the stove as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

SAFETY
Always
! Always install the stove in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the stove.
! Always disconnect the stove from the electrical supply before carrying out
cleaning, maintenance or replacing the light bulbs.
! Always use a fireguard when young children and infirm persons can come into
contact with the stove.
! Always use genuine Baxi Fires Division spares.
Never
! Never leave children unsupervised in a room where the stove is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into stove openings.
! Never install or use the stove anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the stove.
! Never route the electric cable under carpet etc.
! Never install the stove close to curtains or combustible materials.
! Never use the stove to dry clothes etc.
! Never sit or stand on the stove.
POSITIONING THE STOVE
Please read this guide thoroughly before positioning the stove.
Do I need any tools?
The stove has been designed so that tools are not necessary during installation. A Philips
or cross head screwdriver is required when replacing the bulbs.
Where can I position the stove?
The stove is designed to be free standing on a hard level surface. When positioning
please bear the following points in mind:
!
If you are placing the stove in an alcove, make sure that there is a gap of 150mm to
side walls from the sides of the stove. This will ensure good air circulation (See figure
1).
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

! Keep hearth rugs and other soft furnishings etc. away from the front of the stove.
They could obstruct the free flow of hot air from the fan and damage both soft
furnishings and the stove.
Important Electrical Safety
The stove must not
be located in front of or under an electrical socket, the socket must
always be accessible in order to disconnect the stove from the electrical supply for
maintenance and cleaning.
Important! This stove must be earthed.
!
The stove is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core
cable.
! The wires in the cable are coloured in accordance with the following code: -
Live =Brown
Neutral = Blue
Earth = Green /Yellow
! The electric supply must be safely routed from the stove to an electrical socket.
If the electric cable is damaged, to avoid a hazard it must be replaced by a Baxi Fires
Division authorised service agent, or similarly qualified person (See page 9). All
external wiring between the stove and the electrical supply shall comply with current
IEE regulations.
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

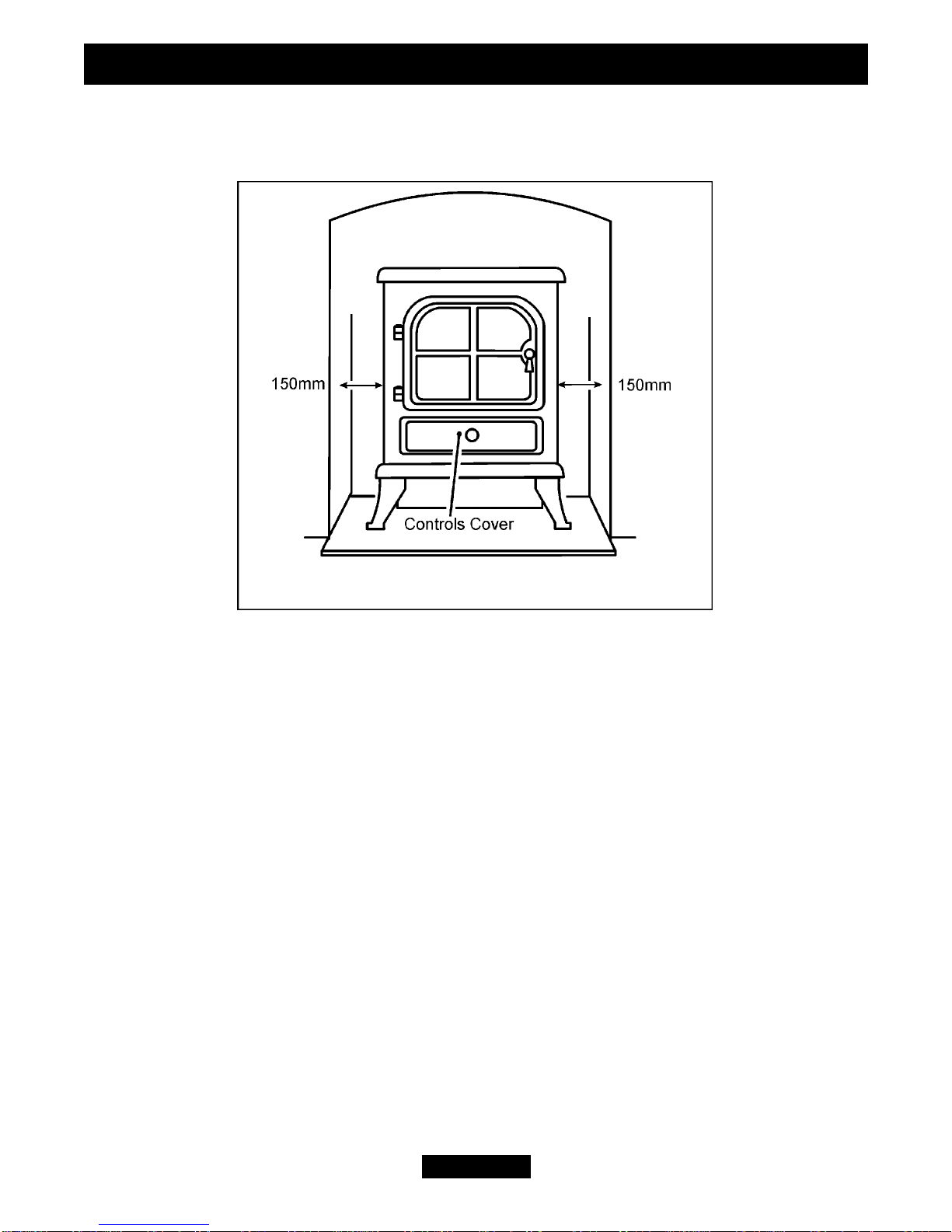

Figure 1. Side clearances

Fitting the door.
The stove is supplied with the door removed in order
to prevent damage during transportation. Unpack the
door and hinge pins. Locate the door over the stove
hinges and secure in place by firmly pushing a hinge
pin into each door hinge.
OPERATING THE STOVE
Never cover the stove or obstruct the opening at the base of the stove, this
could cause overheating and consequent risk of fire.
The appliance can be controlled by the controls located underneath the controls
cover (Pull knob on front of stove).
Stove Controls
The following switches are located under the controls cover.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

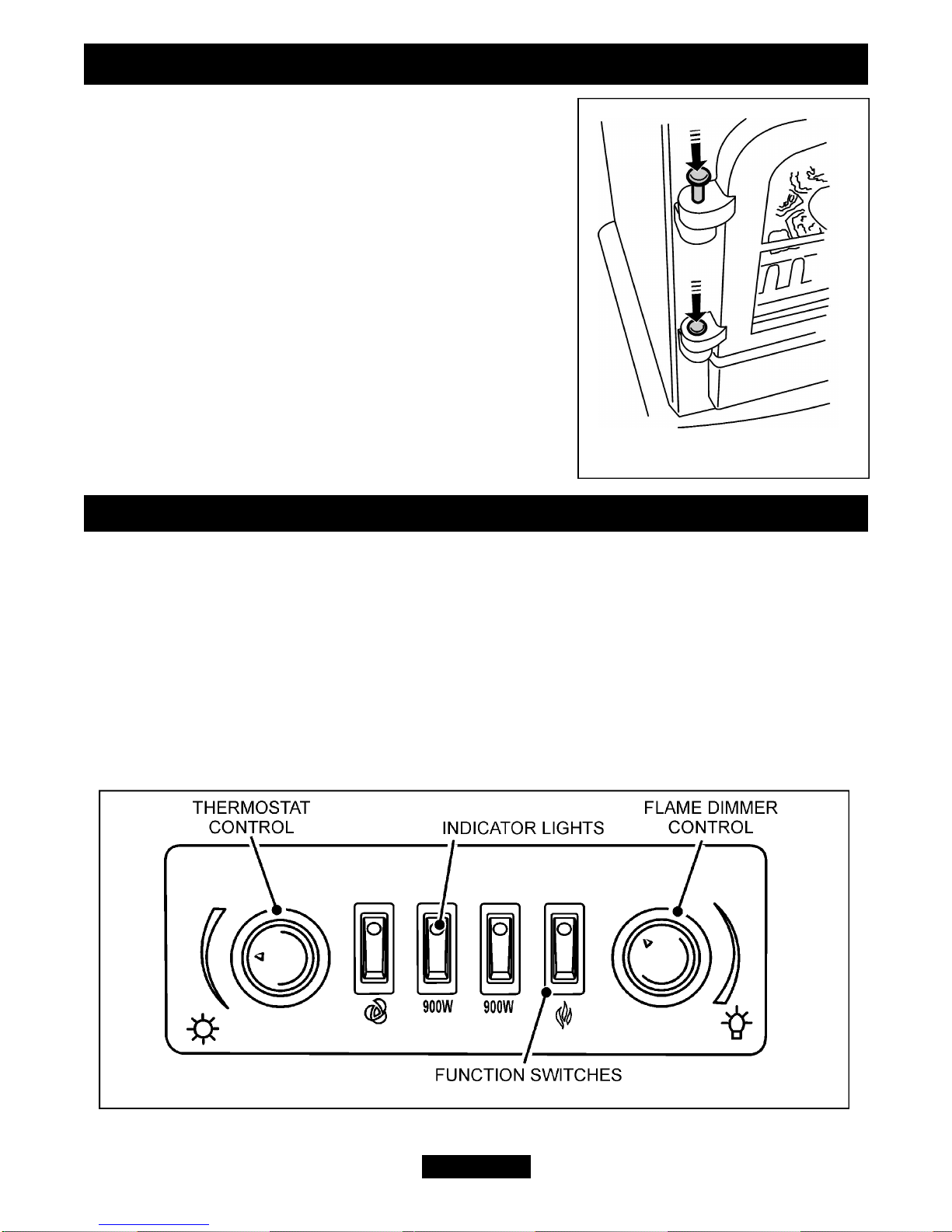

Figure 2. Fitting the door
Figure 3. Stove controls

What do the switches control?
-
Operates FAN. Can you used for cool air without the
heater controls in operation.
900W -Press one 900W switch for Low heat setting.
-Press two 900W switches for High heat setting.
Heater will only work if the fan button has first been
pressed.
-Switches flame and fuel effect on and off.
Flame Dimmer Control - Increases and decreases the brightness of the
flicker effect.
Thermostat Control -
Adjust to maintain room temperature (cycles between
900W and 1800W). The thermostat only operates on
the 1800W setting (Both 900W indicator lights
illuminated).
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

CLEANING AND MAINTAINING THE STOVE
Important Safety.
Before undertaking maintenance or replacing the light bulb(s) always disconnect
the stove from the electricity supply by removing the 3 pin plug and allowing the
stove to cool.
How do I Clean my stove?
The stove and plastic parts need only to be wiped clean with a dry soft cloth, do not use
polishes or abrasive materials.
I have a problem with my stove!
1. My stove is on but there is no light / low light.
!
Try adjusting the flame dimmer control (See figure 3). Alternatively this is possibly
a light bulb failure. Remove the light bulb as in the following section and check it in a
table lamp that is known to work. If it does not work in the table lamp then it needs
replacing as in the following sections.
The light bulbs fitted to this stove are 25Watt E14, 230Volt Edison fitting, candle style
with a clear finish. Due to the indeterminate life span and ease of replacement, they are
specifically excluded from the guarantee.
To replace the light bulb.
! Open the door by pulling on the
handle.
! Remove the three screws on the
front of the fuel basket. Behind the
basket is a black metal strip which
holds the fuel effect in place. Remove
this by lifting up (See figure 4).
! Move the fuel bed forward and
upward out of the way; you will have
to hold the fuel effect up whilst
replacing the light bulbs. It may be
helpful to get another person to do
this for you.
! Remove the faulty bulb by screwing the bulb anti - clockwise (See figure 5).
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

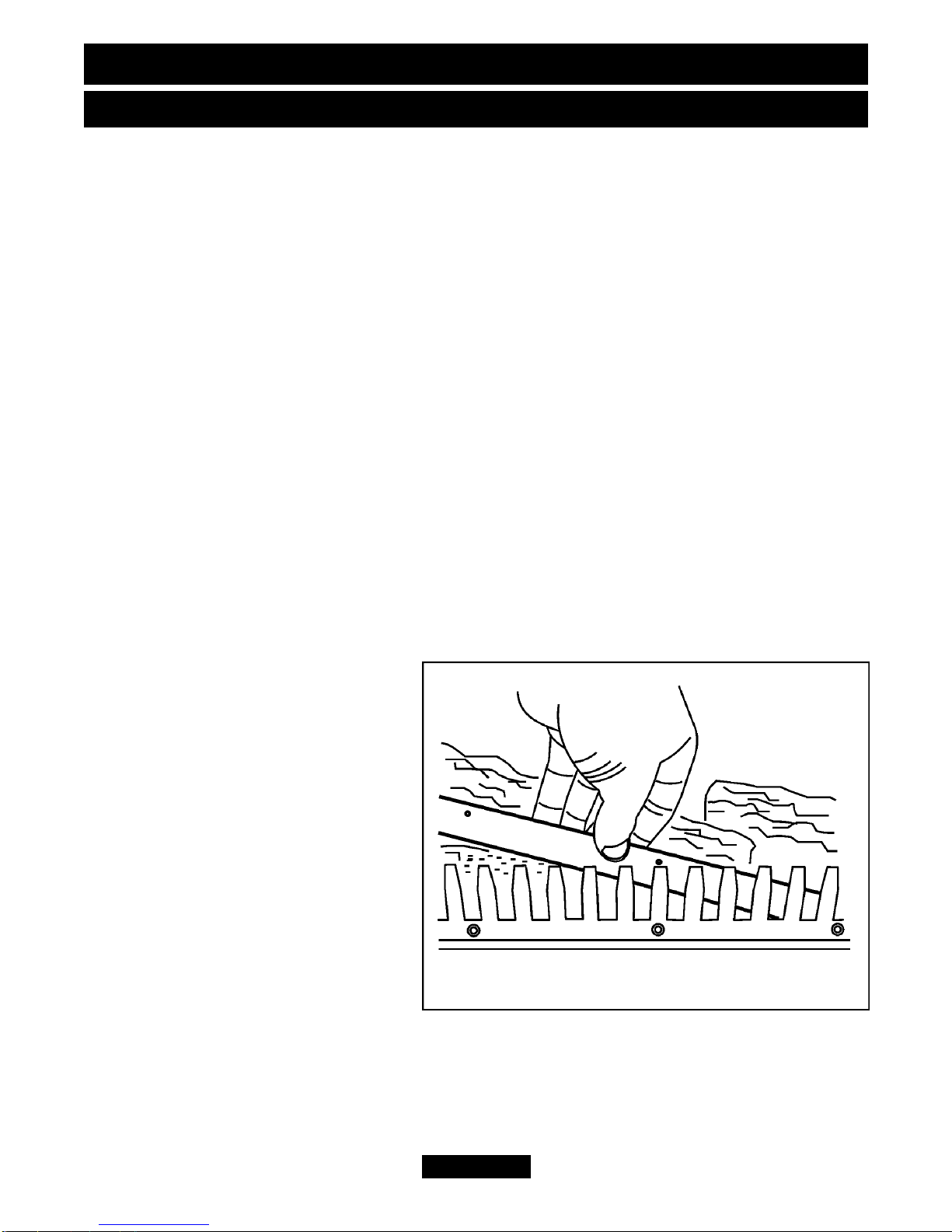

Figure 4. Removing the black metal strip

Fit the new bulb.
! Fit the new bulb by screwing it
clockwise (See figure 5).
! Relocate the fuel effect.
! Relocate the black metal strip. The
folded edge should be on the bottom.
! Secure using the three screws
removed previously.
2. My stove is switched on but there
is no light, fan or heat.
The first thing to do is check the wall
socket. To do this plug in a known
working appliance. If the appliance you
have plugged in works then there is a
good chance that the problem lies with the 13 Amp fuse in the stove plug. If either fuse
or socket is suspected, have them checked by an electrician.
3. My stove is on but there is no heat.
! Check that the thermostat on the stove is set above ambient room temperature.
! Alternatively a cut out device is fitted to the stove to prevent damage due to over
heating. If it operates due to an obstruction in the airflow, the stove must be turned off
and allowed to cool for 15 minutes and the obstruction removed before restarting.
4. I Have a problem that is different to those in the previous examples 1- 3.
Below is a list of Useful Telephone numbers
For general advice about your stove:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your stove to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

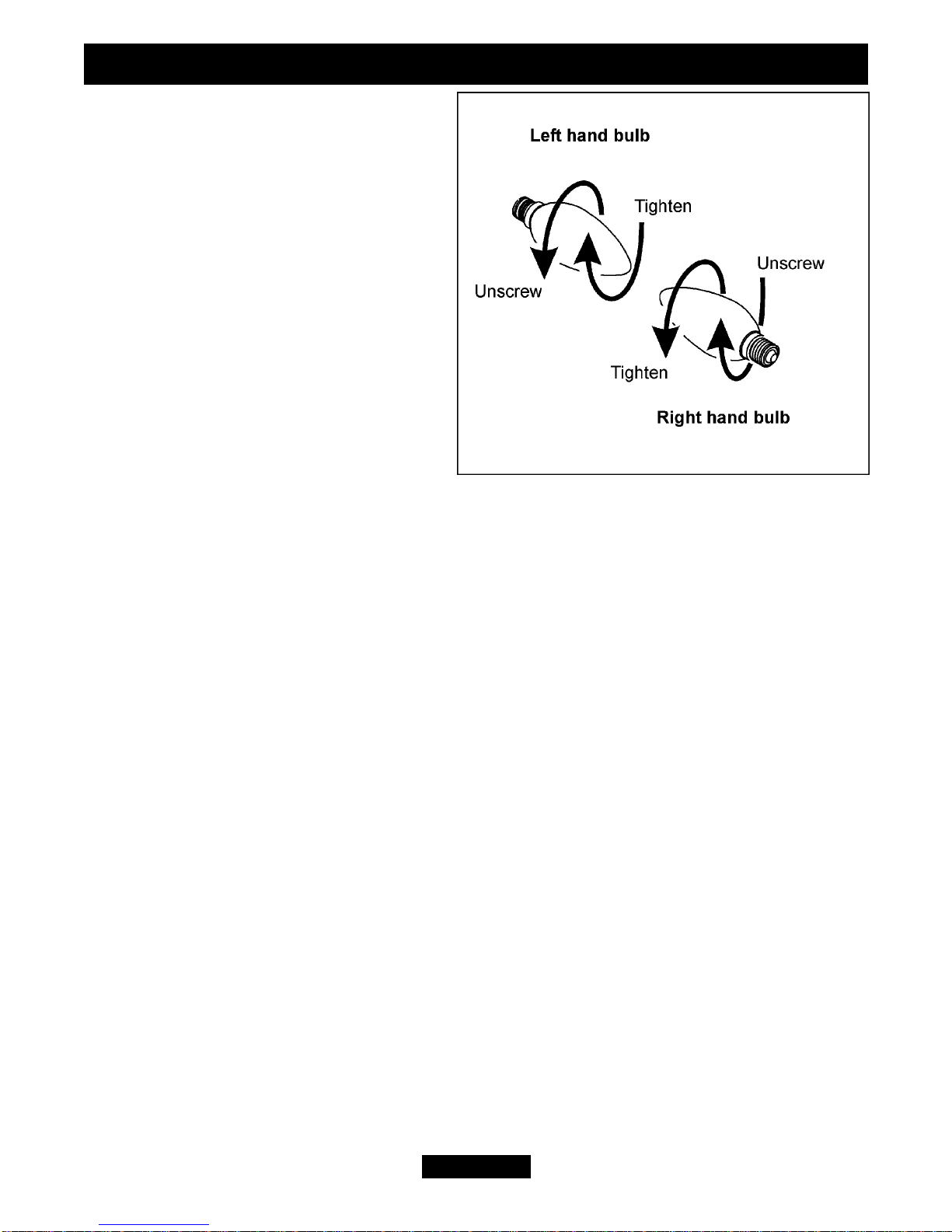

Figure 5. Bulb replacement

For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Stove (Electric or gas)
! The fault, problem or request.
!
Model, Name and serial number (This information can be found on a small label on
the rear of the stove).
What should I do when I’m ready to dispose of my stove?
The plug should be removed from the mains cable and the mains cable cut from the
stove. These should be disposed of with the stove.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
