Bay Supply 1423 User manual

PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING
1-800-221-9705 FOR INSTRUCTIONS
•Astro Pneumatic Tool Co. warrants our products to the original user against
defective material or workmanship for a period of 1 year (except where noted on our
price schedule) from the date of 1st use. Astro reserves the right to determine
whether the product failed because of defective material, workmanship or other
causes and to charge back for missing parts. Astro Pneumatic Tool Co., at its
discretion, will repair products covered under this warranty free of charge. The
distributor should direct the original user to return the product (with the exceptions
listed below) with the distributor’s name, address, adequate proof of date of
purchase or a copy of warranty card, and a short note explaining the problem.
Failures caused by accident, alteration, or misuse are not covered by this
warranty.
•Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and
may not be transferred to subsequent owners.
•This warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose. Some states do
not allow the exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you.
1 YEAR LIMITED WARRANTY
1423 13" HEAVY DUTY HAND RIVETER
13" HEAVY DUTY
HAND RIVETER
Before Use
MADE IN CHINA
• Patented structure increases power and reduces shock
• Shortest long arm riveter which can operate up to
1/4" (6.4mm) stainless steel rivets
• Shorter handle with double compound hinges
that maximize leverage
• One of our most versatile and powerful hand riveters,
taking the hard work out of setting large diameter blind rivets
• Ideal for working in hard-to-reach area
• 3 piece jaws made of Cr-Mo steel provides long lasting tool life
• A one-piece collet case eliminates the need to adjust the
tool when changing rivet diameters
• Includes 5 Nosepieces: 1/8" (3.2mm), 5/32" (4.0mm),
3/16" (4. 8mm), 6mm and 1/4" (6.4mm)
• Ergonomic grip for easy operation
• Core collection bottle for safety and ease of disposal
• Weight: 2.5 lbs. (1.14kg)
PRODUCT INFORMATION:
WARNING
Study, understand and follow all instructions provided
with this product. Read these instructions carefully
before installing, operating, servicing or repairing this
tool. Keep these instructions in a safe accessible place.
INTENDED USE OF THE TOOL
WARNING
• Normal use of this product is likely to expose the user to
dust and/or microscopic particles containing chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm. Always wear appropriate
safety equipment and clothing when using this product.
Study, understand and follow all instructions provided with
this product. Failure to read and follow all warnings and
operating instructions may result in damages and serious
injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and By standers).
• Never use this tool for any application other than for which
it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select the correct accessories of the correct size
and design for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
• Do not begin repairs without assurance that vehicle is in
secure position, and will not move during repair.
The 1423 was designed to set up to 1/4" aluminum,
steel and stainless blind rivets using the appropriate
nose pieces for the corresponding rivet size. Do not
use this tool outside of the designed intent. Never
modify the tool for any other purpose or use.
When unpacking, check the parts diagram and part
number listing on page 3 to make sure all parts are
included. If any parts are missing or damaged, please
call your distributor.
1423 13" HEAVY DUTY HAND RIVETER

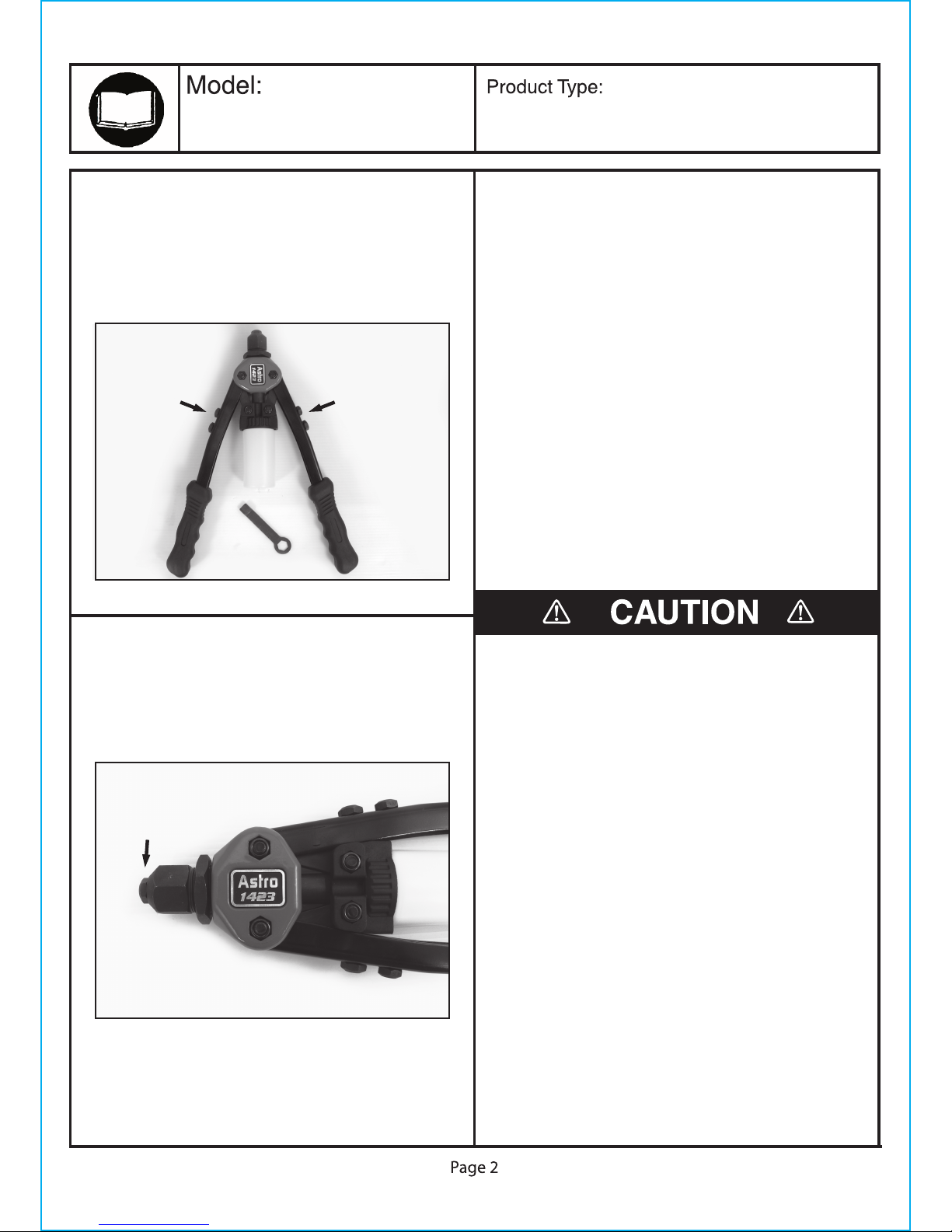

TO CHANGE THE RIVETER NOSE PIECES:
1. Select the proper size desired.
2. Simply remove and replace the one located on the
end of the extension as shown in PHOTO 2
with the wrench supplied.
PHOTO 1
PHOTO 2
A
PHOTO 2
The heavy duty riveter has 5 different size
nosepieces to fit the following size rivets: 1/8",
5/32", 3/16", 6mm and 1/4". They are located 2 on
each side of the handles in PHOTO 1. This set
should also include nosepiece wrench as shown
in PHOTO 1.
TOOL OPERATION:
1. To install a rivet, open the handles outward as
far as they will go.
2. Put the desired size rivet in the end that
corresponds with the installed nose piece.
3. With the handles spread wide, push the rivet into
the pre-drilled hole and put a slight amount of
pressure on the rivet and work piece. Then squeeze
the handles together until the rivet head pops loose
form the mandrel.
4. Sometimes one squeeze will not be sufficient to
separate the rivet from the mandrel as longer and
larger diameter rivets may require more than one
squeeze.
5. Re-spread the rivet handles and slide the nosepiece
against the rivet button and squeeze once again till
the rivet pops loose from the mandrel.
When breaking the riveter loose from
the rivet, please assume a firm stance
as you may lose your balance, which
could result in serious injury.
14
2
3
4
5
6
7
8
9
10
11
19
17
18
16
15
19
17
17
16
13 1
21
16
16 10
9
26
25
24
19
19
21
22
22
20
21
23
18
12
Call 1.800.221.9705 for questions concerning performance of the product
or other inquiries.
1423 13" HEAVY DUTY
HAND RIVETER
Please note the parts with asterisk (*) wear down and are available for replacement.
1423-01*
1423-02
1423-03
1423-04
1423-05*
1423-06*
1423-07*
1423-08
1423-09
1423-10
1423-11*
1423-12*
1423-13*
Nosepiece 3/16" (4.8mm)
Outer Cylinder
Lock Nut
Jaw Carrier
Jaw
Jaw Pusher
Spring
Pulling Bar
Grip
Handle
Nosepiece 5/32" (4.0mm)
Nosepiece 1/8" (3.2mm)
Nosepiece 6mm
1
1
1
1
3
1
1
1
2
2
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
Index No. Part No. Description Q’ty
1423-14*
1423-15
1423-16
1423-17
1423-18
1423-19
1423-20
1423-21
1423-22
1423-23
1423-24
1423-25
1423-26
Nosepiece 1/4" (6.4mm)
Aluminum Body
Screw
Screw Washer
Stainless Washer
Nut
Pin
Washer
Links
Metal Fixture
Core Collector Base
Core Collector Bottle
Wrench
1
1
4
4
4
4
2
8
4
2
1
1
1
14
15
16
17
18
19
20
21
22
23
24
25
26
Index No. Part No. Description Q’ty

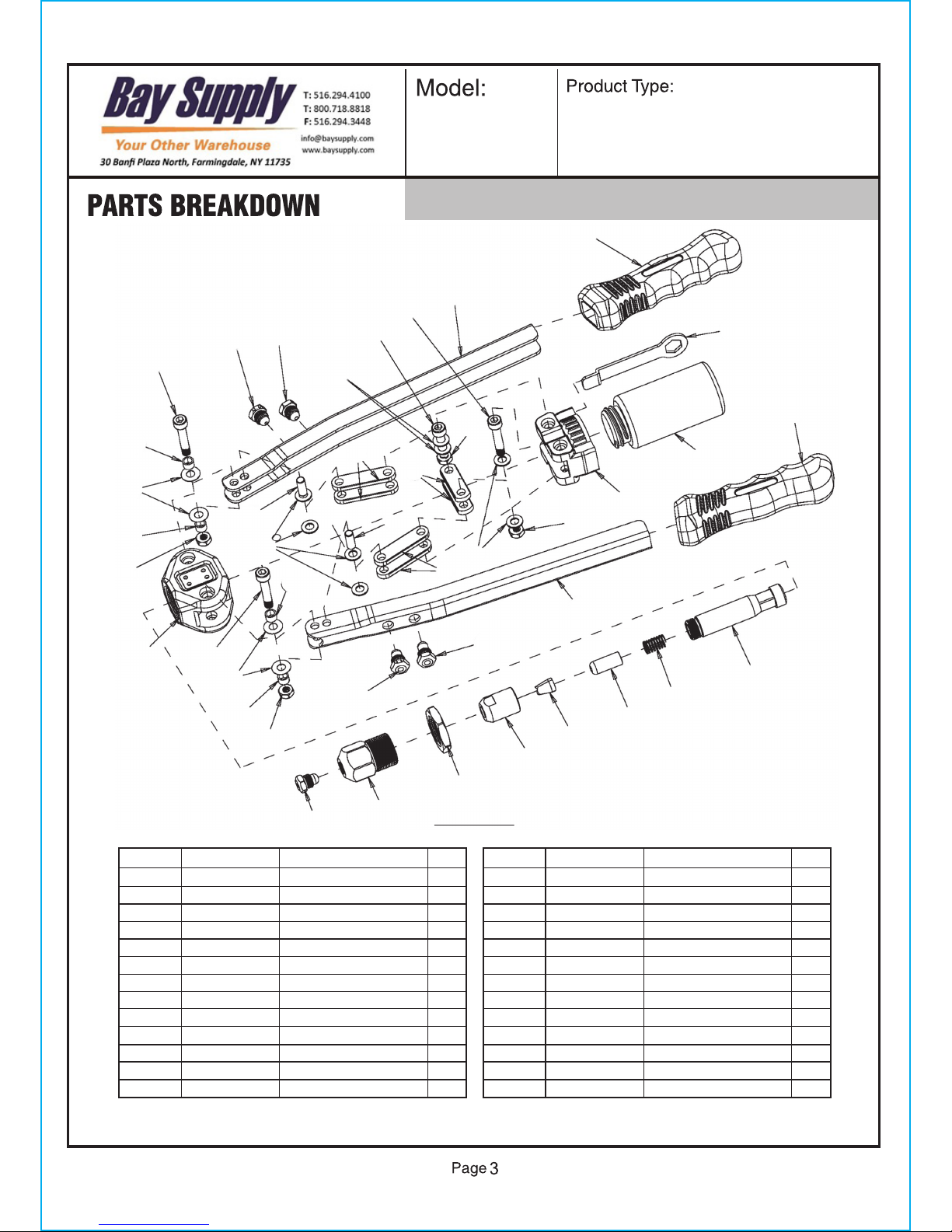

Parts List
