Bayliner 2858 Classic Cruiser Configuration guide

Engine Serial Number:
Hull Identification Number:
Hull Identification Number
•The Hull Identification
Number (HIN) is located
on the starboard side of
the transom.
•Record the HIN (and the
engine serial numbers) in
the space provided above.
•Include the HIN with any
correspondence or orders.
© 2003 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Bayliner.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
All Bayliner products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-
erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to
be returned upon request to Bayliner.
HIN LOCATION

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
1 Warranty Information
2 Boating Experience
2 Engine & Accessories Guidelines
2 Engine & Accessories Literature
3 Safety Standards
3 Qualified Maintenance
4 Structural Limitations
4 Special Care For Moored Boats
4 Sacrificial Anodes (Zincs)
5 Carbon Monoxide (CO)
5 Facts about CO
6 Where and How CO Can Accumulate
6 How to Protect Yourself and Others From CO
7 Trip Checklist
7 Monthly Checklist
7 Annual Checklist
7 Carbon Monoxide Alarm System
8 More Information

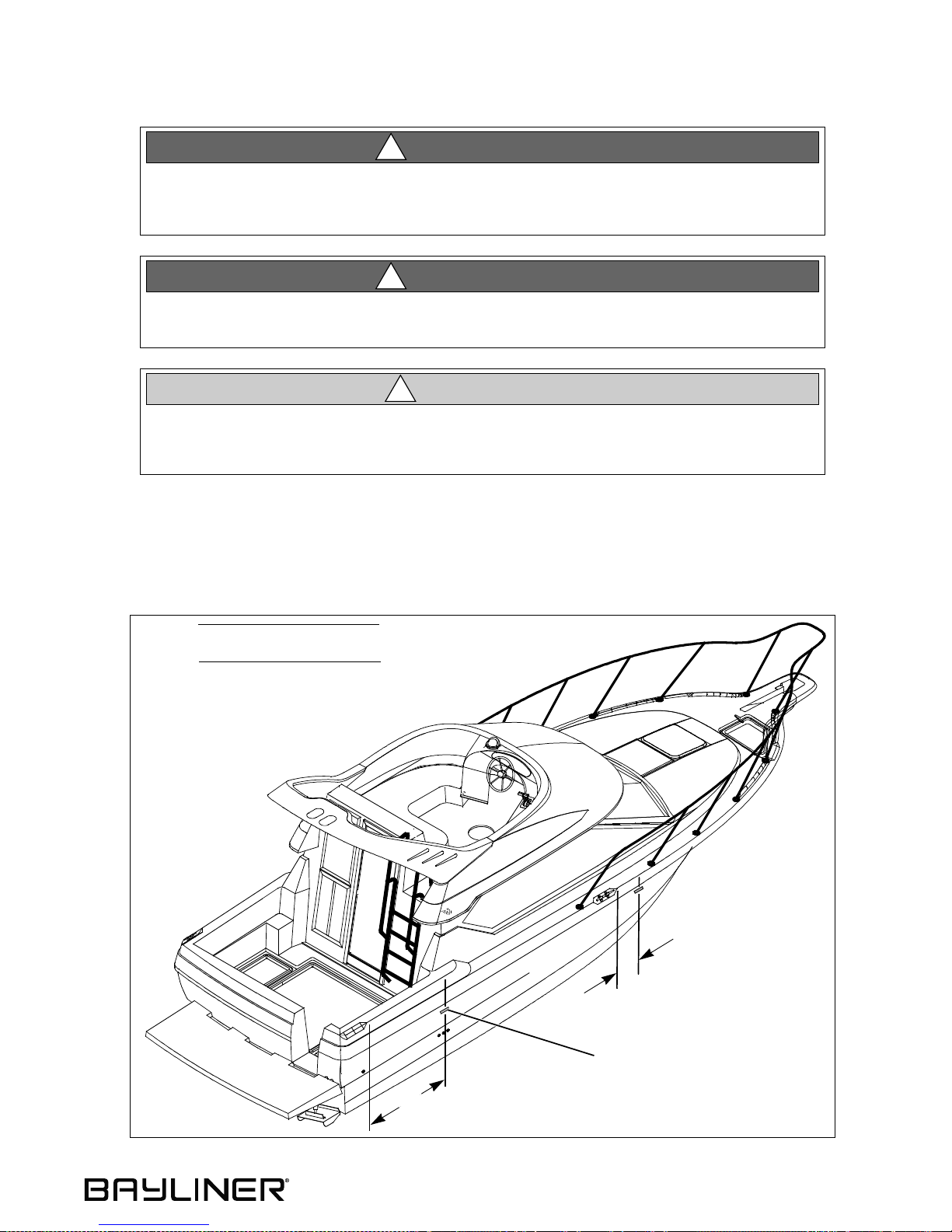

9 Boat Lifting
10 Chapter 2: Features & Systems

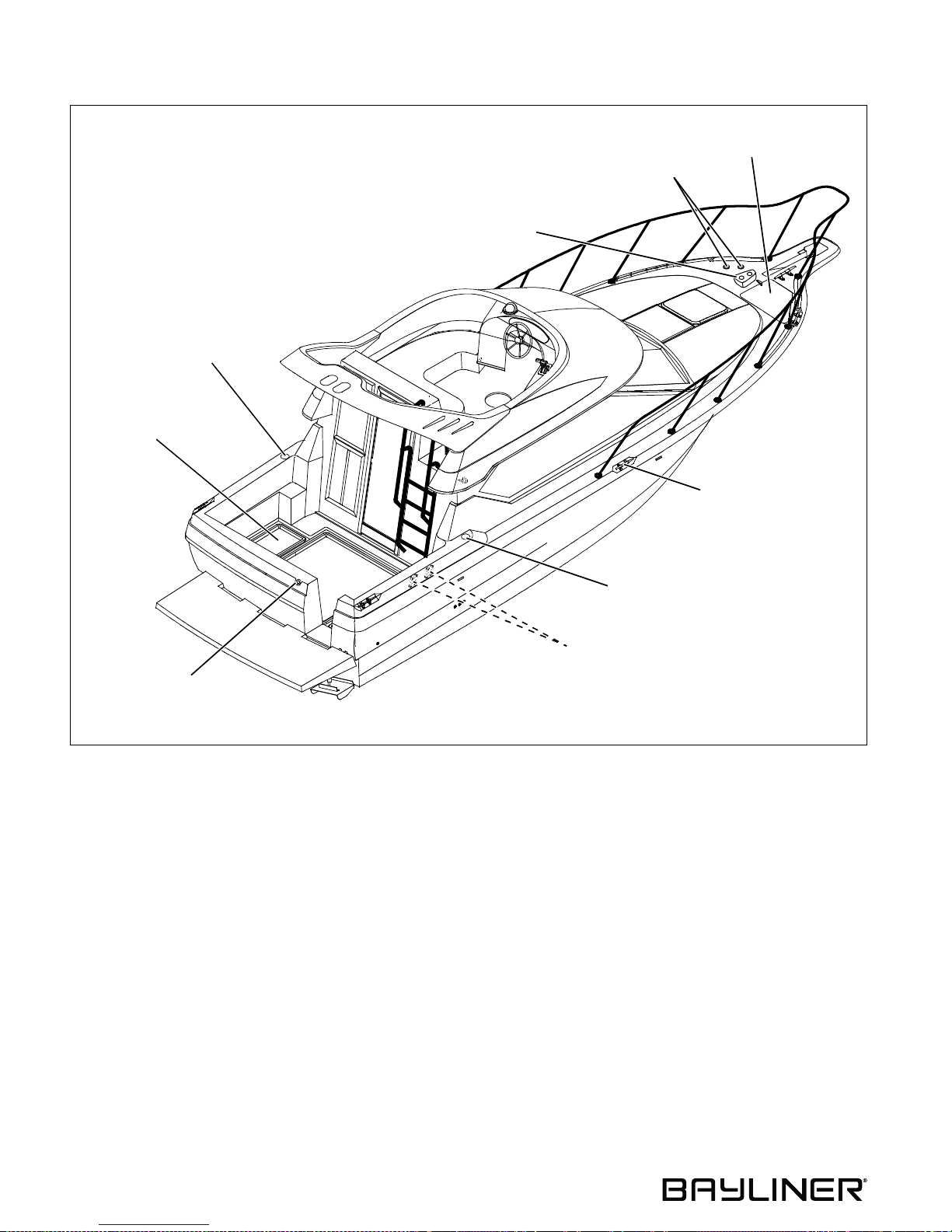

10 Hull Exterior Hardware & Drains
11 Quick Oil Drain System
12 Deck Hardware and Accessories
13 Helm Layout (Command Bridge)
14 Electrical Systems
15 DC Electrical System
15 Fuses and Circuit Breakers
15 Batteries
15 Alternators
15 Battery Charger
16 Battery Switch
16 Battery Switch Positions
17 Shore Power/110 Volt AC System
18 Connecting To Shore Power
19 Navigation & Communication Equipment
19 VHF Radio (Option)
19 Compass (Option)
19 Depth Finder (Option)
20 Lighting
20 Navigation and Interior Lights
20 Audio Equipment
20 Appliances
21 Alcohol/Electric Stove

22 Propulsion
22 Engine
22 Fuel System
22 Fuel Fill and Vent:
22 Fuel Filters:
23 Anti-siphon Valve:
23 Engine Room Ventilation System
24 Trim Tabs
25 Bilge Pumps
26 Autofloat Switches
27 Freshwater System
28 Freshwater System Winterization
29 Water Heater
29 Winterizing the Water Heater
30 Sink & Shower Drain Systems
30 Sump Box Cleaning
30 Sump System Winterization
30 Seawater Systems
30 Seacocks
31 Seawater Strainers
32 Marine Head with Holding Tank
34 Air Conditioning System (Option)
35 Chapter 3: Electrical Routings
35 Hull Wire Harness Routings
36 Deck Wire Harness Routings
37 Battery Cable Routings
38 Chapter 4: Wiring Diagrams
38 AC Electrical System Single Dockside
39 AC Electrical System Dual Dockside
40 Gas Engine Electrical System
41 Diesel Engine Electrical System
42 Important Records
43 Float Plan

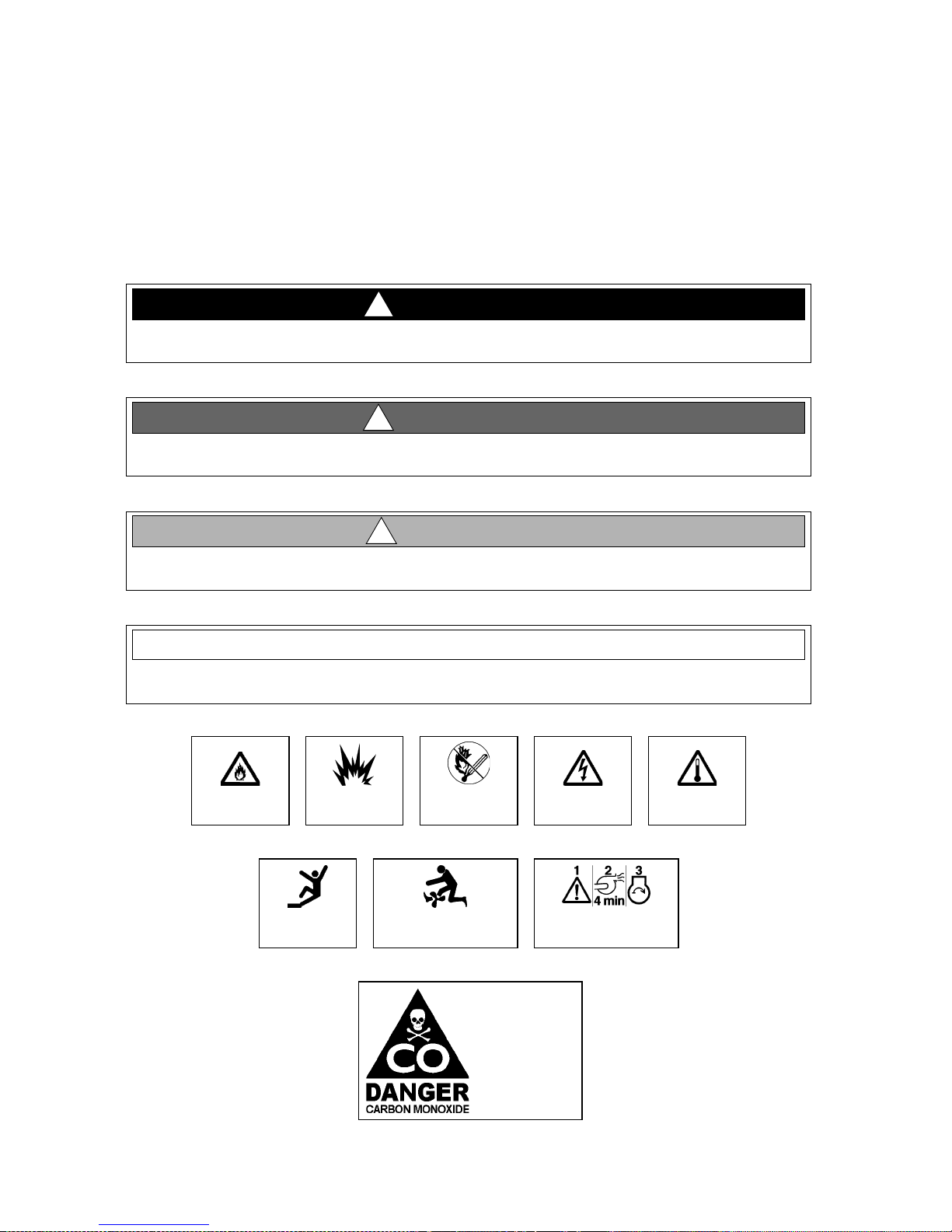

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dan-
gerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and
follow all safety instructions.
DANGER!
!
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION!
!
NOTICE
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
2858 Classic Cruiser •Owner’s Manual Supplement
Chapter 1: Welcome Aboard!
This Owner’s Manual Supplement provides specific information about your boat that is not covered in the owner’s
manual. Please study the Cruiser & Yacht Owner’s Manual and this Supplement carefully. Keep the Cruiser & Yacht
Owner’s Manual and this Supplement on your boat in a secure, yet readily available place.
Dimensions and Tank Capacities
Layout View
Dealer Service
•Ask your dealer to explain all systems before taking delivery of your boat.
•Your dealer is your key to service.
•Contact your dealer if you have any problems with your new boat.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Bayliner dealer.
Warranty Information
•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not receive a copy of the Limited Warranty, please contact your dealer or call 360-435-8957 for a copy.
Overall
Length Bridge Clearance Beam Draft (Drive Up) Draft(Drive Down) Fuel Capacity (gal) Freshwater Capacity (gal.) Waste Holding Tank Capacity (gal.)
30' 6" 10' 3" 9' 10" 1' 8" 113 34 26

Chapter 1: Welcome Aboard! 2858 Classic Cruiser •Owner’s Manual Supplement
2
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and
safety, obtain handling and operating experience before assuming command of the boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary.
For more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Engine & Accessories Guidelines
•Your boat’s engine and accessories were selected to provide optimum performance and service.
•Installing a different engine or other accessories may cause unwanted handling characteristics.
•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your boat again.
Certain modifications to your boat can result in cancellation of your warranty protection. Always check with
your dealer before making any modifications to your boat.
Engine & Accessories Literature
•The engine and accessories installed on your boat come with their own operation and maintenance manuals.
•Read and understand these manuals before using the engine and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your
owner’s packet.
CONTROL HAZARD!
A qualified operator must be in control of the boat at all times. DO NOT operate your boat
while under the influence of alcohol or drugs.
WARNING!
!
When storing your boat please refer to your engine’s operation and maintenance manuals.
NOTICE

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
3
Safety Standards
•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of
other people, vessels and property.
In addition to this owner’s manual supplement, please read the Cruiser & Yachts Owner’s Manual and all
accessory instructions for important safety standards and hazard information.
Qualified Maintenance
•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yachts Owner’s Manual, this Owner’s Manual Supplement, the
engine owner’s manual and all accessory instruction sheets and manuals.

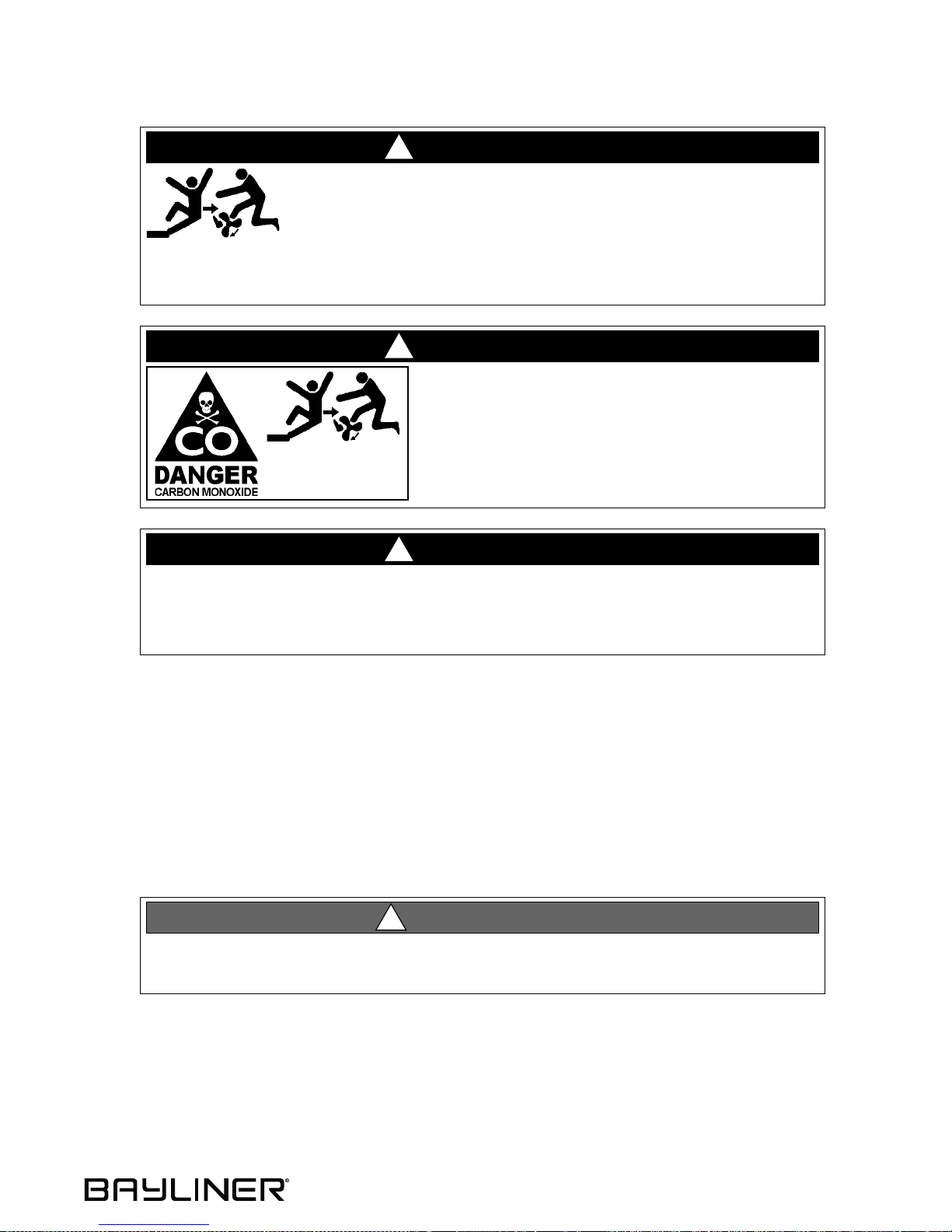

FALLING and ROTATING PROPELLER HAZARD!
NEVER allow anyone to ride on parts of the boat not designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or
occupying the transom platform while underway is especially hazardous and will cause
personal injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are not properly secured can come loose when the boat is moving and cause
personal injury or death.
DANGER!
!
To maintain the integrity and safety of your boat, allow only qualified personnel to perform
maintenance on, or in any way modify: The steering system, propulsion system, engine control
system, fuel system, environmental control system, electrical system or navigational system.
WARNING!
!

Chapter 1: Welcome Aboard! 2858 Classic Cruiser •Owner’s Manual Supplement
4
Structural Limitations
The transom platform and bow platform are designed to be lightweight for proper boat balance. The load limit for
these platforms is 30 pounds per square foot, evenly distributed.
Special Care For Moored Boats
•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.
•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.
•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
•Occasionally re-paint the hull below the waterline with a good grade of anti-fouling paint.
Sacrificial Anodes (Zincs)
Your boat is equipped with sacrificial anodes (zincs) to protect underwater metal parts from excessive deterioration.
Check zincs regularly and replace them if they have deteriorated more than 70%.
There are many factors that determine the rate at which zincs deteriorate, including:
•Water temperature
•Salinity
•Water pollution
Stray current from the boat or dock may cause complete deterioration in just a few weeks. If there is rapid zinc
deterioration, measure the electrolytic corrosion around your boat with a Corrosion Test Meter. If the zincs are not
bonded correctly, they will not provide protection.
•To help sealthe hull bottom and reduce the possibility of gelcoat blistering on moored boats,
apply an epoxy barrier coating. The barrier coating should be covered with several coats of
anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE
Do not paint between the zinc and the metal surface it contacts and do not paint over the zincs.
NOTICE
NEW SACRIFICIAL ANODE DETERIORATED SACRIFICIAL ANODE

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
5
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your boat.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 2858 Classic Cruiser •Owner’s Manual Supplement
6
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your boat away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run boat so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your boat (see above).
•Maintain fresh air circulation throughout the boat at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the boat, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medi-
cal attention—unless you’re sure it’s not CO.
•Install and maintain CO alarms inside your boat. Do not ignore any alarm. Replace alarms as recommended by
the alarm manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine,
generator, or
other fuel burn-
ing device
when boat is
moored in a
confined space. B. Mooring too close to another boat that is using its
engine, generator, or other fuel burning device.
C. Running boat with trim angle of bow too high. D. Running boat without through ventilation (sta-
tion wagon effect).

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
7
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your boat.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Confirm that water flows from the exhaust outlet when the engines and generator are started.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO alarm by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the man-
ifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
Carbon Monoxide Alarm System
•Your yacht features a carbon monoxide (CO) alarm system.
•Do not disconnect the alarm system.
•Read and understand the manufacturer’s instructions for your CO alarm system. If you did not receive an instruc-
tion manual, call [phone] and one will be mailed to you.
If your boat is not equipped with a carbon monoxide alarm, consider purchasing one from your dealer or marine
supply store.
CARBON MONOXIDE POISONING HAZARD!
•The house battery switch must be in the "ON" position for the CO Moni-
tors to work.
DANGER!
!
The stereo memory and CO monitor(s) place a small, but constant drain on the battery. If your
boat will be unattended for an extended amount of time, plug into shore power with the battery
charger turned on, or disconnect the battery if shore power is not an option.
NOTICE

Chapter 1: Welcome Aboard! 2858 Classic Cruiser •Owner’s Manual Supplement
8
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council,
Inc. (ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
9
Boat Lifting
•Always follow the lift equipment’s instructions and requirements.
•If water is present in the bilge, pump or drain the water out of the bilge areas before lifting your boat. Water in the
bilge can shift and change the balance of the load.
•When lifting your boat, always position the lifting slings at the port and starboard lifting sling label positions, as
shown in the illustration below.
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Lifting slings may slip on the hull.
•Avoid serious injury or death by securing the lifting slings together before lifting.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•NEVER lift the boat using the bow and stern eyes.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any boat, always use a spreader bar. The spreader bar must be equal to the
width of the boat at each lifting point.
CAUTION
!
Lifting sling positions shown
typical port and starboard
LIFTING SLING LABEL (TYPICAL)
8 1/2"
46"

10
2858 Classic Cruiser •Owner’s Manual Supplement
Chapter 2: Features & Systems
Hull Exterior Hardware & Drains
HOLDING
TANK VENT
AFT BILGE
PUMP DRAIN
BOW
EYE
FWD BILGE
PUMP DRAIN SHOWER SUMP DRAIN
ANCHOR
WATER TANK
VENT
DECK DRAIN
STERN EYES
GARBOARD DRAIN
MACERATOR OVERBOARD
TRANSOM
VIEW
AIR COND
OVERBOARD
TRIM TABS
DISCHARGE (OPTION)
WELL DRAIN
SWIM STEP
GALLEY SINK
DRAIN
HEAD SINK
DRAIN
ANCHOR
LOCKER
DRAIN
PORT SIDE
VIEW
STARBOARD SIDE
VIEW
FUEL TANK VENT

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 2: Features & Systems
11
Quick Oil Drain System
To drain the engine oil:
1. Remove the boat from the water.
2. Unscrew the garboard drain plug.
3. Pull the draw cord until the oil drain plug and the oil drain hose slide out of the garboard drain.
4. Place the end of the oil drain hose into a suitable container.
5. Unscrew the oil drain plug and drain the engine oil.
6. Replace the oil drain plug.
7. Push the drain hose back into the bilge.
8. Replace the garboard drain plug.
Always dispose of waste oil in accordance with local regulations.
QUICK OIL DRAIN SYSTEM
GARBOARD
DRAW
OIL DRAIN PLUG
OIL DRAIN HOSE
ENGINE OIL PAN
TRANSOM
DRAIN PLUG
CORD
GARBOARD
DRAIN
BILGE

Chapter 2: Features & Systems 2858 Classic Cruiser •Owner’s Manual Supplement
12
Deck Hardware and Accessories
FUEL FILL
FITTING
WATER FILL
FITTING
AFT DECK
STORAGE AREA
DECK CLEAT (TYPICAL)
WASTE PUMP
OUT FITTING
SHORE POWER CONNECTIONS
(DUAL OPTION SHOWN)
ANCHOR WINDLASS (OPTION)
ROPE LOCKER
WINDLASS SWITCHES

2858 Classic Cruiser •Owner’s Manual Supplement Chapter 2: Features & Systems
13
Helm Layout (Command Bridge)
VIEW OF COMMAND BRIDGE HELM LOOKING FORWARD
TYPICAL HELM LAYOUT SHOWN
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
TACHOMETER OIL PRESSURE
TEMPERATURE
VOLTAGE
ENGINE
SPEEDOMETER
COMPASS
DEPTH SOUNDER
GAUGE (OPTION)
TRIM TAB
MACERATOR
CONTROLS
(OPTION)
WINDLASS FIRE SUPPRESSION
SWITCH
(OPTION)
VHF RADIO
(OPTION)
SYSTEM INDICATOR
LIGHT (OPTION)
(OPTION)
HOUR METER
GAUGE
GAUGE
GAUGE
SHIFT/THROTTLE
LEVERS
SWITCHES
ACCESSORY SWITCHES
3
8
1 ENGINE IGNITION
2. ENGINE STOP
3. BILGE BLOWERS
4. FWD BILGE PUMP
5. AFT BILGE PUMP
6. NAVIGATION
LIGHTS
7. ANCHOR LIGHT
8. HORN
9. INSTRUMENT LIGHT
10. COURTESY LIGHTS
11. DEPTH SOUNDER
4 5 6 7
910 11 1221

Chapter 2: Features & Systems 2858 Classic Cruiser •Owner’s Manual Supplement
14
Electrical Systems
EXTREME FIRE, SHOCK & EXPLOSION HAZARD!
•To minimize the risks of fire and explosion, NEVER install knife switches or other arcing
devices in the fuel compartments.
•NEVER substitute automotive parts for marine parts. Electrical, ignition and fuel system
parts were designed and manufactured to comply with rules and regulations that minimize
risks of fire and explosion.
•DO NOT modify the electrical systems or relevant drawings.
•Have qualified personnel install batteries and/or perform electrical system maintenance.
•Make sure that all battery switches are turned Off before performing any work in the
engine spaces.
DANGER!
!
FIRE & EXPLOSION HAZARD!
•Fuel fumes are heavier than air and will collect in the bilge areas where they can be
accidently ignited.
•Visually and by smell (sniff test), check the engine and fuel compartments for fumes or
accumulation of fuel.
•ALWAYS run the bilge blowers for at least four minutes prior to engine starting, electrical
system maintenance or activation of electrical devices.
•Minimize the danger of fire and explosion by not exposing the batteries to open flame or
sparks. NEVER smoke anywhere near the batteries.
WARNING!
!
SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD!
NEVER disconnect the battery cables while the engine is running since it can cause
damage to your yacht’s electrical system components.
CAUTION!
!
Electrical connections are prone to corrosion. To reduce corrosion caused electrical problems,
keep all electrical connections clean and apply a spray-on protectant that is designed to protect
connections from corrosion.
NOTICE
