Advanced Elements Lagoon1 AE1031 User manual

3
TABLE OF CONTENTS
1. Caution/Safety .................................................................. 4
1.1 Boating Safety ........................................................ 5
2. Specification ...................................................................... 6
2.1 Capacity ................................................................. 6
2.2 Features .................................................................. 7
3. Assembly/Inflating/Deflation Instruction .................... 7
3.1 Assembly ............................................................... 7
3.2 Understanding Your Valves................................ 8
3.3 Inflating ................................................................ 10
3.4 Over Inflation ...................................................... 11
3.5 Deflation ............................................................... 11
3.6 Folding ................................................................. 11
4. Guidelines for Usage ..................................................... 12
5. Proper Care and Storage ............................................... 12
6. Repairs ............................................................................. 13
6.1 Repairing Small Punctures and Cuts ............... 13
6.2 Repairing Pinholes ............................................. 13
7. Troubleshooting ............................................................. 14
8. Statement of Origin ....................................................... 17
9. Declaration of Conformity ........................................... 18
10. Warranty and Registration ........................................... 19

TM
4
1. CAUTION - SAFETY WARNING
Users of this product agree by their use to accept the inherent risks involved in this paddlesports
activity and agree to follow all instructions, cautions, and warnings carefully before using this
Kayak.
(PLEASE READ CAUTION STATEMENT CAREFULLY)
SAFETY WARNING
PADDLESPORTS CAN BE VERY DANGEROUS AND PHYSICALLY DEMAND-
ING. THE USER OF THIS PRODUCT SHOULD UNDERSTAND THAT PARTICI-
PATION IN PADDLESPORTS MAY INVOLVE SERIOUS INJURY OR DEATH.
OBSERVE THE FOLLOWING SAFETY STANDARDS WHENEVER USING THIS
PRODUCT.
· GET PADDLESPORTS INSTRUCTIONS SPECIFIC TO THIS TYPE OF CRAFT.
· OBTAIN CERTIFIED FIRST AID TRAINING AND CARRY FIRST AID AND
RESCUE/SAFETY EQUIPMENT.
· ALWAYS WEAR A NATIONALLY APPROVED PERSONAL FLOTATION DEVICE.
· ALWAYS WEAR A HELMET WHERE APPROPRIATE.
· DRESS APPROPRIATELY FOR WEATHER CONDITIONS; COLD WATER AND/OR COLD
WEATHER CAN RESULT IN HYPOTHERMIA. CHECK YOUR EQUIPMENT PRIOR TO
EACH USE FOR SIGNS OF WEAR OR FAILURE.
· NEVER PADDLE ALONE.
· DO NOT PADDLE IN FLOOD CONDITIONS.
· BE AWARE OF APPROPRIATE RIVER WATER LEVELS, TIDAL CHANGES, DANGEROUS
CURRENTS, WEATHER CHANGES, AND STRONG OFF SHORE WINDS.
· SCOUT UNFAMILIAR WATER; PORTAGE WHERE APPROPRIATE.
· DO NOT EXCEED YOUR PADDLING ABILITY; BE HONEST WITH YOURSELF.
· CONSULT YOUR PHYSICIAN PRIOR TO BEGINNING YOUR PADDLESPORTS TRAINING.
· YOU MUST NOT USE ALCOHOL OR MIND ALTERING DRUGS PRIOR TO USING THIS
PRODUCT.
· FOLLOW THE MANUFACTURER’S RECOMMENDATIONS FOR THE USE OF THIS
PRODUCT.
· IF ADDITIONAL OUTFITTING IS REQUIRED, USE MANUFACTURER’S APPROVED
MATERIALS ONLY; DO NOT IMPAIR ENTRY OR EXIT ACCESS.
· READ OWNER’S INFORMATION PACKET PRIOR TO USING THIS PRODUCT.
THE USER OF THIS PRODUCT ACKNOWLEDGES BOTH AN UNDERSTANDING AND AN
ASSUMPTION OF THE RISK INVOLVED IN PADDLESPORTS.
CAUTION
ADVANCED ELEMENTS, INC.
TOLL FREE 866-262-9076
Please read this entire manual for additional safety information. Please pay close aention to items
marked DANGER, WARNING, CAUTION, IMPORTANT, NOTICE, NEVER, and ALWAYS.

Lagoon1™ Inatable Kayak Owner’s Manual
5
1.1 Boating Safety
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury or
substantial property damage.
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury or
property damage.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
CAUTION
Used without the safety alert symbol
indicates a potentially hazardous
situation, which, if not avoided, may
result in property damage.
NOTICE
Indicates installation, operation or
maintenance information which is
important but not hazard-related.
The precautions listed in this manual and on the cra are not all-inclusive. If a procedure,
method, tool or part is not specically recommended, you must satisfy yourself that it is safe
for you and others, and that the cra will not be damaged or made unsafe as a result of your
decision. REMEMBER - always use common sense when paddling YOUR KAYAK!

TM
6
2. SPECIFICATION
Dimensions:
Length: 8’4”
Width: 34”
Weight: 23 lbs (10 kg)
Max. Person Capacity: 250 lbs (113 kg)
Max. Persons & Gear Capacity: 250 lbs (113 kg)
Recommended Pressure:
Main chambers: 2.0 psi (0.14 bar)
2.1 Capacity
The person/load capacity is determined by the availability of proper seating on the kayak.
Acceptable seating determines the number of passengers, not the overall load capacity.

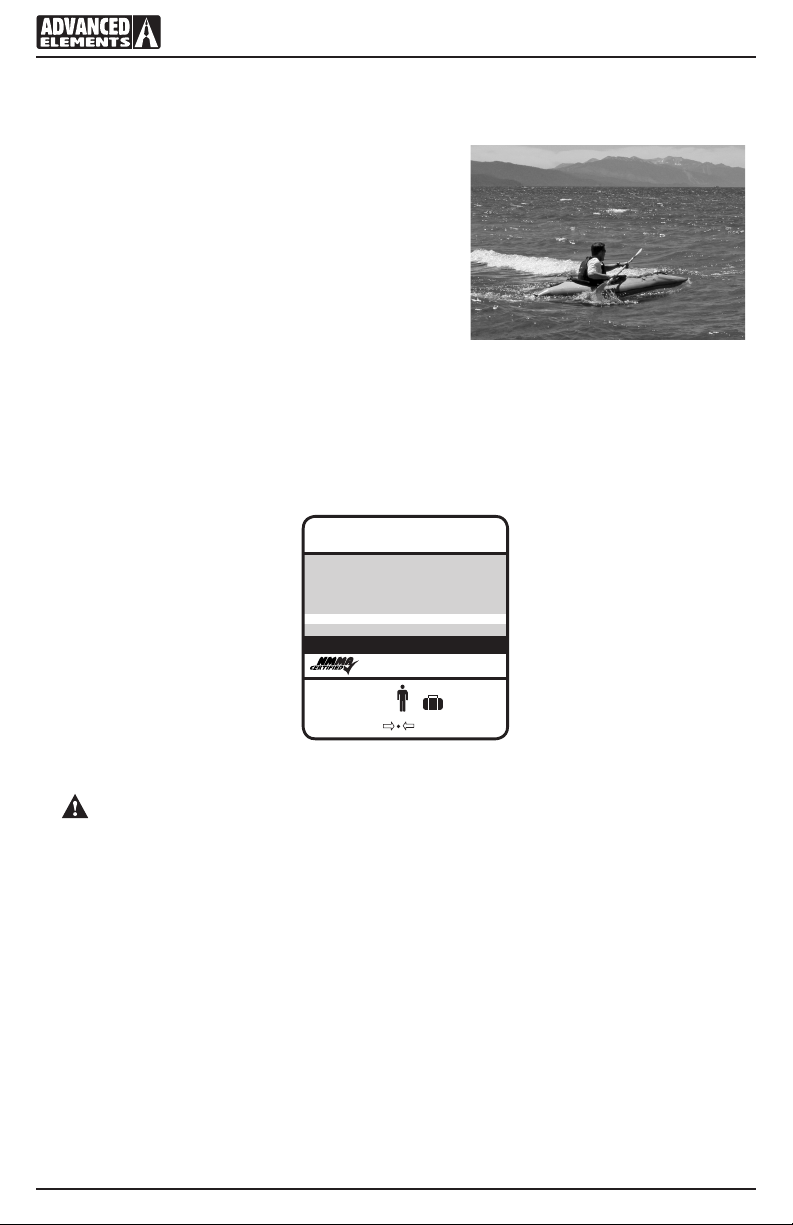

MAXIMUM CAPACITIES
250 LBS PERSON, GEAR
PRESSURE = 2.0 psi (main chambers)
MANUFACTURER: ADVANCED ELEMENTS, INC. CONCORD, CA USA 94524
MODEL AE1031 - LAGOON1™ KAYAK
COMPLIANCE
WITH
ISO 6185-1
TYPE III, B
0123
1+ = 113 kg
0,16 bar (main chambers)
1PERSON OR 250 LBS.
THIS BOAT COMPLIES WITH NMMA STANDARDS OF EFFECT
ON THE DATE OF CERTIFICATION
NATIONAL MARINE MANUFACTURES ASSN.
NOT INTENDED FOR MECHANICAL PROPULSION
Lagoon1™ Kayak Capacity Label
WARNING: Do not exceed the certied maximum capacities under any circumstances.
Overloading will reduce freeboard and increase the likelihood of swamping, especially in heavy
seas. Overloading causes handling to become sluggish, making it dicult to react quickly.

Lagoon1™ Inatable Kayak Owner’s Manual
7
2.2 Features

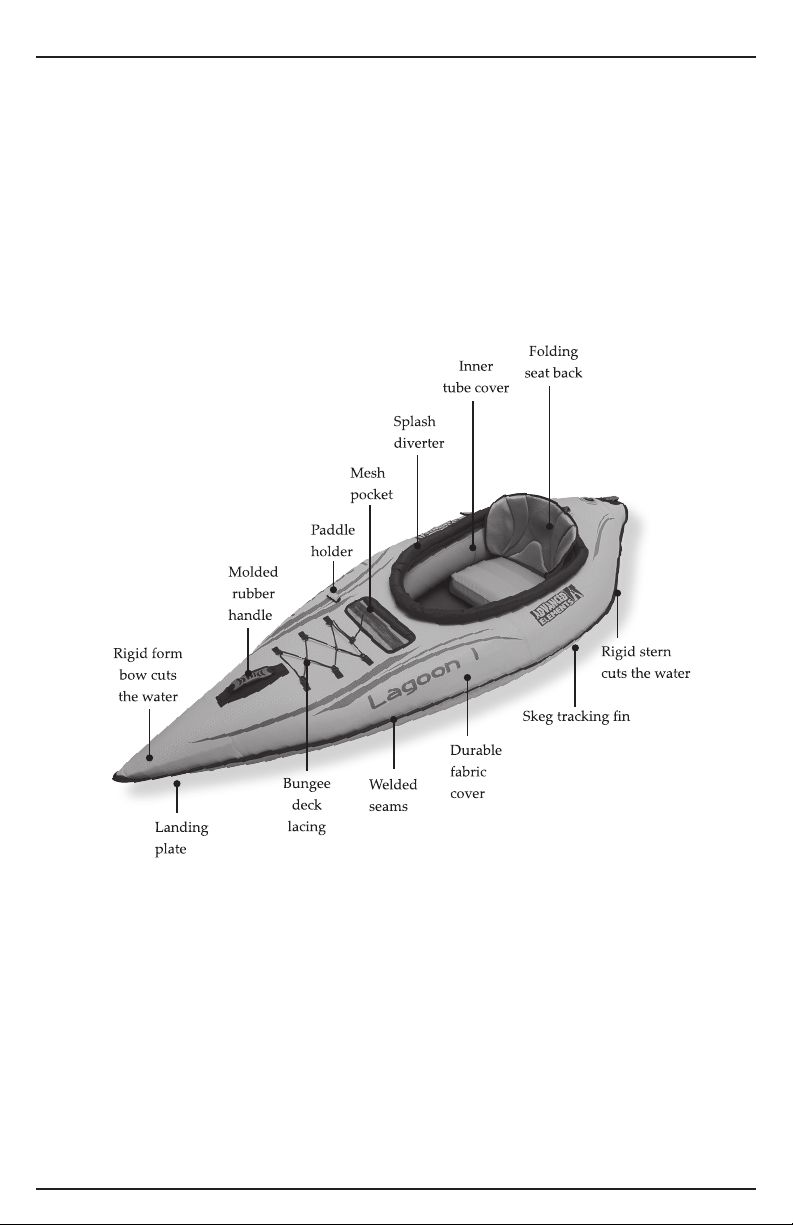

SPECIAL FEATURES:
Tube Cover: Inner tube covers add stiness and abrasion protection.
Rigid Bow and Stern: Built-in rigid panels dene the bow and stern and improve tracking.
Durable and Light: Unique outer cover provides durability in a lightweight design.
Easy to Set Up: New Twist valves and high ow Spring valves allow for quick setup time.
Comfortable: High support seat provides comfort for hours of paddling.
Hull Design: Landing plate and tracking n improve performance.
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
The Lagoon1™ Kayak has a rigid bow and stern that enhances its performance.
3.1 Assembly
Your kayak comes from the factory pre-assembled. The only assembly you should need to do is
aach the adjustable seat.

TM
8
3.2 Understanding Your Valves
Advanced Elements Lagoon1™ kayak uses the following valves. The Advanced Elements spring
valve has the function and durability of other military type valves and is compatible with most
standard pumps. The lock nut holds the valve in place with the cover for easy ination. The
following gures will have details on how to operate the valves.
To Inate: The valve’s plunger stem should be in the up/outward position ush with the valve
threading.
To Deate: The valve’s plunger stem should be set in the down/inward position recessed in the
valve threading.
In order to switch the valve from inate to deate or vice-versa, simply use your nger to
press the valve stem down/inward and rotate it a 1/4 turn to either lock it down for deate, or
unlock it (stem will spring up) for inate.
How the Spring Valve Works:
When the valve is in the inate (up/outward) position, the air being pumped in pushes the
spring-loaded plunger open, allowing air to enter the air chamber, but not leing it escape.
When the valve is in the deate (down/inward) position, the spring loaded plunger is wide open
allowing the air to come rushing out of the air chamber. If the valve is in the inate position, the
valve’s plunger stem will be ush with the rim of the valve. If the valve is in the deate position,
the valve’s plunger stem will be inside, or lower than, the rim of the valve. To change the valve
from the inate position to the deate position, simply use your nger to press the valve plunger
stem down/inward, and give it a 1/4 turn. This will lock the plunger open and allow the air to
rush out. Use the same procedure in reverse to unlock the valve plunger, allowing it to spring up
into the inate position.
Special Note: If you are using a 12v inator, like those that come with most inatable maresses
or those that plug into car cigaree lighters, you may need to have the valve in the deate (down/
inward) position because these types of pumps typically do not provide enough air pressure
to press the plunger open to allow air into the air chamber. Additionally, 12v inators do not
provide enough pressure to fully inate the kayak, so you will need a secondary pump to nish
the job.
Using the NEW “Screw-on” Spring Valve Adaptor:
The screw-on Spring Valve Adaptor was designed to enable the pump hose to securely connect to
the Advanced Elements Spring Valve without falling o during ination, making ination easier.
The valve adaptor also has a semi-circle protrusion that depresses the valve stem, opening the
valve slightly to allow pumps with pressure gauges to take a constant reading. When inating
the kayak using the Spring Valve Adaptor, the valve should be in the inate position.

Lagoon1™ Inatable Kayak Owner’s Manual
9
Special Note: The Spring Valve Adaptor comes with all current Advanced Elements pumps,
with the exception of the 12v inator, and will aach to any Advanced Elements pump that
does not have the adaptor already included, with the exception of the 12v inator. The Spring
Valve Adaptor will also aach to some other manufacturer’s pumps, but you must check the
aachment style at the end of the pump hose to be sure it will t.


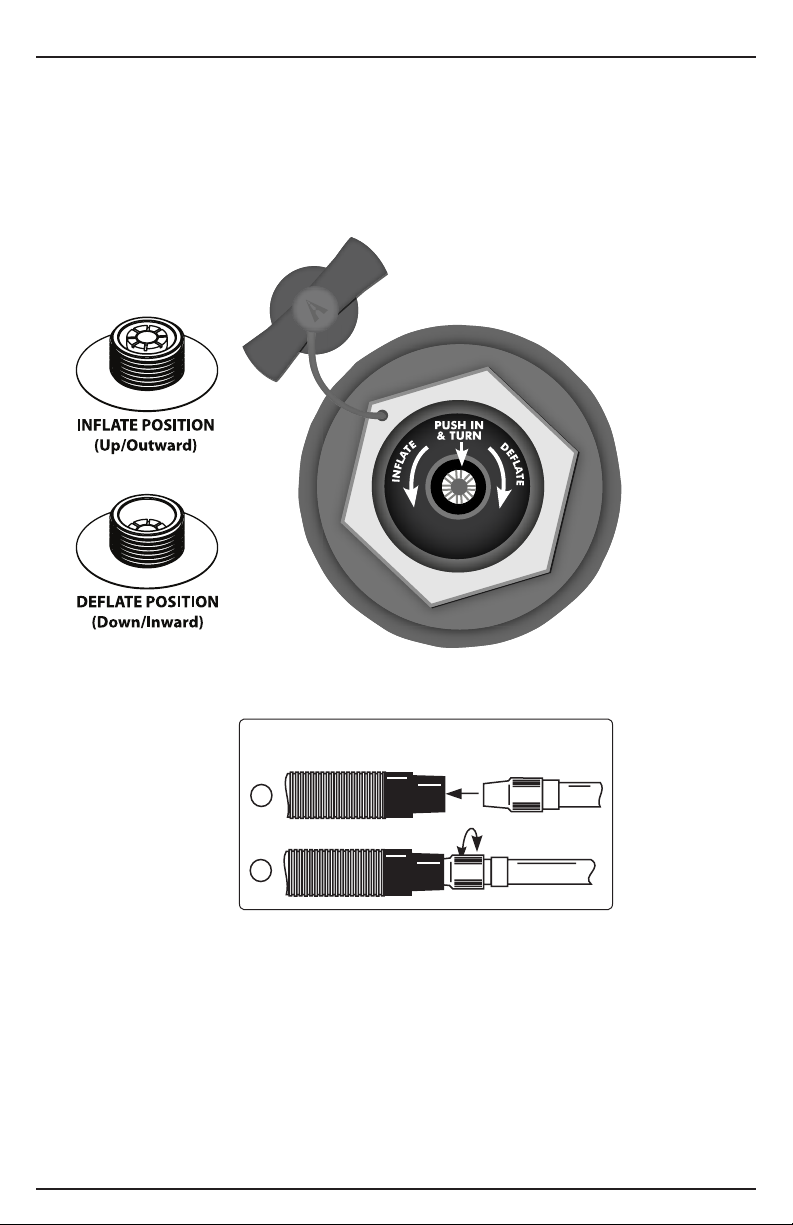

Figure 1. Inate/Deate Spring Valve
OPERATINGTHE“TWIST”VALVES
TWIST TO OPEN / INFLATE / THEN CLOSE
TWIST VALVE
PUMP HOSE
INSERT
1
2
Figure 2. Inate/Deate Twist Valve
To begin inating your kayak, you will need a Bellows Foot Pump or a Double Action Hand
Pump. Never use compressors, CO2 or compressed air as they may damage you kayak.

TM
10
3.3
IMPORTANT Failure to follow these instructions
Be sure to read directions on operating
the spring valves and twist valves located in the section “Understanding your valves”. Before
ak seating area,
place.
1.
2.
There should be just a few wrinkles visible on the side GRAY TUBE COVERS.
3.
4.
5.
6. Make sure all valves are closed tightly and properly.

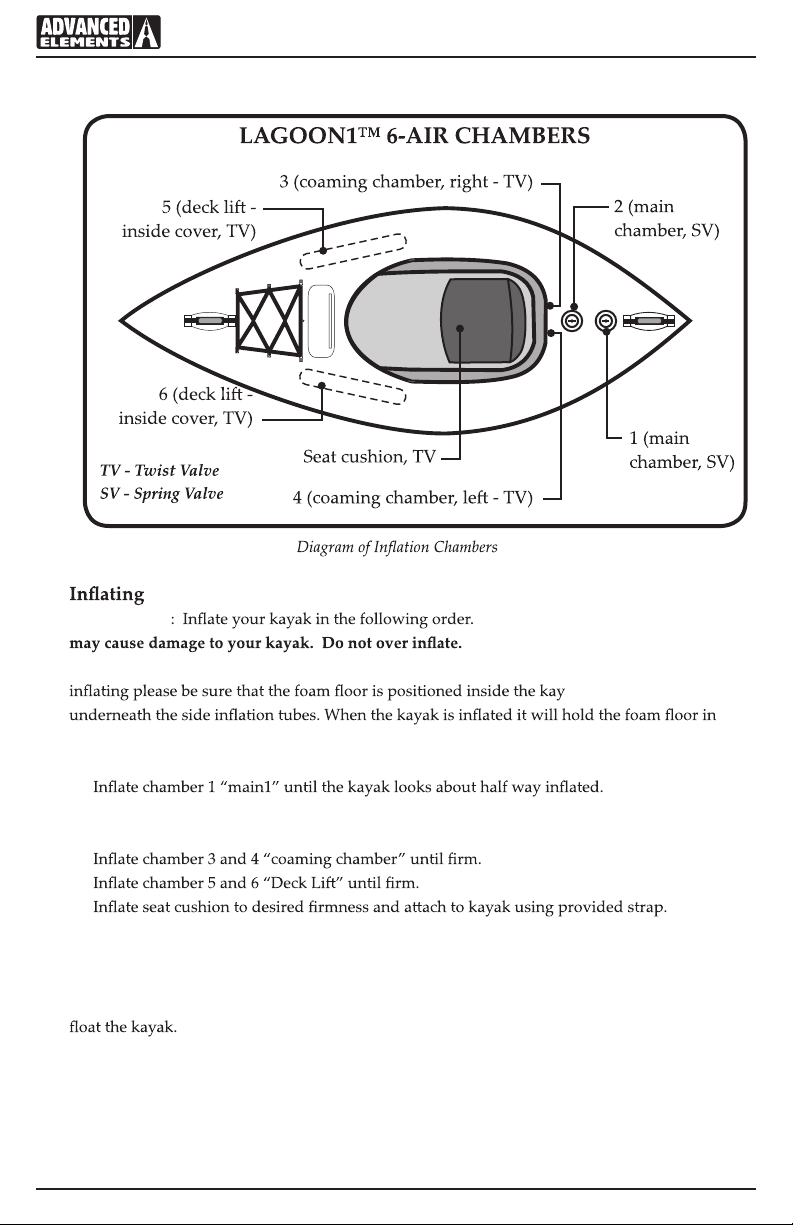

NOTE: Ideally you want to put about half of the air in Chamber 1 and half into chamber 2. This
way if you were to loose pressure in one chamber then you would have the other chamber to
Inflate chamber 2 “main2” until the kayak feels firm to the touch (2.0 psi max).

Lagoon1™ Inatable Kayak Owner’s Manual
11
3.4 Over Ination
CAUTION: Water temperature and weather will aect the air pressure of the kayak. In cold
weather and water your kayak will lose some pressure. If this occurs, you may want to add a
bit more air to the kayak to improve performance. In hot weather or prolonged sunlight, the air
inside the kayak will expand. You must let some air out of the appropriate chambers to prevent
the kayak from failing due to overpressure. You should avoid exposing your kayak to extreme
temperatures (hot or cold).
3.5 Deation
1. Remove the cap from chamber 1 and 2.
2. Push stem inward and rotate to deate position.
3. Twist the valve bodies open on chambers 3, 4, 5 and 6.
4. Once the chambers are deated you can use your pump to vacuum out any additional air for
improve folding.
3.6 Folding
NOTICE: Reverse your pump to completely deate all chambers.
1. Completely deate all air chambers and thoroughly dry the kayak and remove the seat.
2. Fold sides A and B inward.
3. Fold Bow and Stern section
inward (C and D).
4. Fold again at line (E).
5. Place into duel bag.

TM
12
4. GUIDELINES FOR USAGE
Paddlesports can be very dangerous and physically demanding. The user of this product should
understand that participation in paddlesports may involve serious injury or death. Observe the
following safety standards whenever using this product. The user of this product acknowledges
both an understanding and an assumption of the risk involved in paddlesports.
Aer you have inated your kayak and before you put it in the water, inspect your equipment
for obvious signs of wear or failure. Review local rules and regulations and read again the
“CAUTION” statement.
Most areas have local laws and regulations about the use and equipment of small boats. Usually
a phone call to the local authorities will provide you with the needed information. Some areas
may require that you register and display a registration number on the front of your kayak.
Once you have been issued a number, it is best to ax it to the kayak by printing it on the
material with a permanent ink marker. If you are required to display a sticker or vinyl leers, an
inatable boat ID kit can be purchased at most marine stores.
Your kayak is designed to be paddled with a double bladed kayak paddle. Paddle with short
and even strokes. Keep the blade close to the kayak and the paddle almost vertical. Pull with
your lower hand and push with your upper hand. To reduce the amount of swaying at the
front of the kayak, ease o on the force of your stroke. Paddling with a backward stroke can
sometimes oer quick maneuverability.
ALWAYS practice safety and take the time to learn about the area where you are paddling. Get
ocial information about the local tides and currents before paddling there. Be careful that
you do not over estimate your strength, your endurance or your skill. Be careful never to under
estimate weather conditions. Be aware of the dangers before you begin. Be aware of your skill
level. Be sure you understand and accept the risk of these dangers. There are many paddling
clubs all over the world. These can be a great source of information on places to paddle, people
to paddle with and most importantly, continued safety practices.
5. PROPER CARE AND STORAGE
Your inatable kayak is made of very durable materials. However, like anything else, proper
use and care will increase the life of your kayak. Before storing your kayak, make sure it is both
CLEAN and DRY. You may clean your kayak with a mild soap and water. NEVER use strong
solvents to clean your kayak as they will destroy the material.
If your kayak has been used in salt water, rinse it o with fresh water and allow it to dry before
storing. Use a dry towel to wipe up all moisture. It should be deated and kept out of direct
sunlight when stored. Avoid exposure to extreme temperatures (hot or cold). If your boat is
exposed to freezing temperatures while storing, allow it to warm up before unfolding.

Lagoon1™ Inatable Kayak Owner’s Manual
13
6. REPAIRS
All kayaks come with a repair kit that includes glue and several patches. This should remain
with the kayak in the event that you may need it. If service is required for your kayak, please call
866-262-9076 for assistance.
6.1 Repairing Small Punctures and Cuts
1. Cut a rounded patch at least ¼” or ½” larger than the hole or cut.
2. Clean the area where the patch will be placed with water and/or mild soap.
3. Make sure all surfaces are dry.
4. In a well ventilated area, spread a thin layer of glue on both the patch and on the
damaged area. Let it sit for three to ve minutes or until tacky.
6.2 Repairing Pinholes
1. Inate the PVC tube. Locate the pinhole by sponging soapy water over the tube until
you see air bubbles. Mark the location of the pinhole.
2. Deate the tube and dry the aected area. Apply a drop of glue to the pinhole
3. Allow glue to dry completely.
4. Do not inate the kayak for at least twelve hours.
PROBLEM
Does not hold air while
inating
The kayak is sagging.
The kayak will not hold
full pressure for more
than couple of hours.
The kayak still loses air.
SOLUTION
The spring valve uses a plunger system. The only time the plunger
should be in the open position is when you are deating. Make sure
that the plunger is closed to inate. Push the plunger in and rotate
counter-clockwise.
Be sure that the right pump is being used. You need a bellows foot
pump or a double action hand pump. A 12-V electric does not supply
enough pressure to fully inate the kayak. The 12-V can be used to par-
tially inate the kayak but one of the other pumps is needed to top it o.
Make sure that the plunger is in the closed position. It should only
be open when deating. If it is open, the only seal is the black rubber
gasket inside the cap. Even then, a lile air may still leak out.
If you have checked all the previous possible reasons for the kayak los-
ing air, then there may be a pinhole or hole somewhere on the tube. Pull
tube from outer covers. Inate. If you cannot see or hear where a leak
may be, take a clean rag with soapy water and begin rubbing the tube.
If a hole is present, bubbles will continually form. Repair using repair
kit. If it is a very small pinhole, a dab of the glue may be sucient.
7. TROUBLESHOOTING

TM
14
PROBLEM
The tube is kinked or
bent.
The n is bent.
There is water in the
kayak.
The kayak dris to one
side.
SOLUTION
The tube just needs to be adjusted. When kayak is fully deated try
adjusting the position of the tube inside of the outer shell.
Aer inating the kayak, turn upside down and leave out in sun for ap-
proximately ten minutes. Fin will conform to its original shape. Even if
it is slightly bent, it will not aect the kayaks performance.
Water will drip into the kayak o of your paddle. Do not be alarmed.
Simply dry it o before puing kayak away. You can also get a spray
skirt from our accessories list from a dealer. This will help keep the
inside of the kayak dry as well as you.
A kayak will always head in the direction of your last stroke. If the tube
is not aligned inside of the cover, this will also cause dri.

Lagoon1™ Inatable Kayak Owner’s Manual
15
PADDLING NOTES:
It is alway a good idea to keep nots of your paddling experiences. Your notes can serve as a reminder
of what to look out for, as well as what gear to bring along, and what conditions are like.
DATE TIME LOCATION NOTES

16
NOTES:

17
Note: If your state requires the licensing of this boat, please use the form below. If you need any assistance filling
out this form, please contact Advanced Elements Customer Service Department.
MANUFACTURER’S STATEMENT OF ORIGIN
FOR A VESSEL SOLD IN THE STATE OF_____________________________________
The undersigned manufacturer hereby certies that the new boat described below, the property of
said manufacturer, has been transferred this _________day of _____________________, 20_________on
Invoice# _________________to:
Owner’s/Dealer’s Name_____________________________________________________________
Address___________________________________________________________________________
City, State, Zip______________________________________________________________________
Model Name Model Year Manufacturer’s Hull Identication#
m Lagoon1™ Kayak (AE1031) __________ HIN# ___________________________
Type: Kayak Hull Material: PVC/Polyester
Length Overall: 8’4” Beam: 34”
U. S. Coast Guard Capacity Plate Information (where applicable):
Maximum persons capacity in whole persons: 250 lbs (113 kg)
Maximum weight capacity (persons & gear): 250 lbs (113 kg)
The manufacturer further certies that this was the rst transfer of such new boat and that all
information given herein is true and accurate to the best of their knowledge
TM
P.O. Box 5128 Concord, CA 94524
Signature_________________________________________________________________________________
FIRST ASSIGNMENT
FOR VALUE RECEIVED, in the amount of $ __________________________________________________,
the undersigned hereby transfers the Certicate of Origin and the boat described therein
to _______________________________________________________________________________________
Address __________________________________________________________________________________
and certies that the boat is new and has not been registered in this or any other state; Advanced
Elements, Inc. also warrants the title of said boat at time of delivery, subject only to the liens and
encumbrances as set out below:
Amount of Lien Date To whom Due Address
___________________ __________ __________________ ___________________________________
Dates___________________________ 20 _________, at _____________________ ____________________
___________________________ By:___________________________________________________________
Transferrer (Firm name) Sign Here ___________________________________________________________
Before me personally appeared _____________________________ who by me being duty sworn under
oath says the statements set forth above are true and correct. Subscribed and sworn to me before
this __________ day of _____________________________ 20 ___________.
___________________________________Notary Public Date commission expires_______________
(SEAL)

19
LIMITED WARRANTY
Advanced Elements, Inc. warrants this product to be free from defects in material or workmanship for a period of
one year from the date of purchase. Products that prove to be defective under conditions of normal and proper use
during the warranty period because of defective workmanship or faulty material will be replaced or repaired without
charge. For warranty service, contact Advanced Elements, Inc.
Advanced Elements, Inc shall inspect all warranty claims and in the event of a defect, repair or replace the defective
part or entire item, at its option. The purchaser must, before return of a defective product, obtain from Advanced
Elements, Inc, a return authorization number and return center address. Please write or call as listed below. Once an
authorization number is obtained, the purchaser must ship the product, POSTAGE PREPAID, to Advanced Elements,
Inc for repair. Do not ship to P.O. Box address as it may be sent back.
This warranty does NOT cover:
Products used for rental, for hire or in professionally guided tours and other uses not considered normal recreational
purposes; and punctures, cuts and abrasions sustained in normal use; and items involved in accidents; and items
damaged in white water mishaps, and other unreasonable uses or improper storage.
Advanced Elements, Inc shall within (30) days from receipt of an authorized return from purchaser, perform its re-
sponsibilities in conformance with this warranty.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. AD-
VANCED ELEMENTS SHALL NOT BE HELD LIABLE FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES.
THIS WARRANTY IS INCLUSIVE IN LIEU OF ALL OTHER WARRANTIES.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Advanced Elements, Inc.
P.O. Box 5128, Concord, CA 94524
Toll Free - 866-262-9076 - email [email protected] - www.advancedelements.com
(cut along line)
ADVANCED ELEMENTS WARRANTY REGISTRATION
(PLEASE TYPE OR PRINT CLEARLY)
Please complete and mail card to Advanced Elements within 10 days. It will register your product.
Mail to: Advanced Elements, Inc.
P.O. Box 5128, Concord, CA 94524
An: Warranty Department
Owner’s Name _______________________________________________________________
Address _____________________________________________________ Apt.____________
City _________________________________________ State _____________ Zip __________
Model __________________________Serial # (12 characters) XZE_____________________
Purchase Date _______________________________________
Store Name __________________________________________________________________
Store Address ________________________________________________________________
City __________________________________________State ____________ Zip __________
Email __________________________________________________________
Thank you for responding to the following.......
1. How did you rst learn of this product?
m Dealer m Friend m Magazine m Radio m TV m Catalog m Other
2. What most inuenced your decision to purchase this product?
m Price m Features m Style m Quality m Other
(located at rear of boat)
