BBK DL383S User manual

SERVICE MANUAL
DL383S

CONTENTS
1. SAFETY PRECAUTIONS 1
2. PREVENTION OF ELECTRO STATIC DISCHARGE(ESD)TO ELECTROSTATICALLY
SENSITIVE(ES)DEVICES 1
4. PREVERTION OF STATIC ELECTRICITY DISCHARGE 4
5.ELECTRICALCONFIRMATION5
5.1VIDEOOUTPUT(LUMINANCESIGNAL)CONFIRMATION5
5.2VIDEOOUTPUT(CHROMINANCESIGNAL)CONFIRMATION6
6.MPEGBOARDCHECKWAVEFORM7
7.ICBLOCKDIAGRAM&DESCRIPTION8
8.SCHEMATIC&PCBWIRINGDIAGRAM
38
9.SPAREPARTSLIST55
7.1MT13368
7.2MT137916
7.3U214HY29F80032
7.4HY57V641620HG
35
3. CONTROL BUTTON LOCATIONS AND EXPLANATIONS 2

1.1 GENERAL GUIDELINES
1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have
been overheated or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers
shields are properly installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed
to shock hazards.
Some semiconductor(solid state)devices can be damaged easily by static electricity. Such components
commonly are called Electrostatically Sensitive(ES)Devices. Examples of typical ES devices are integrated
circuits and some field-effect transistors and semiconductor chip components. The following techniques
should be used to help reduce the incidence of component damage caused by electro static discharge(ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain
off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially
availabel discharging ESD wrist strap, which should be removed for potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices,place the assembly on a conductive
surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as anti-static
(ESD protected)can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are
ready to install it.(Most replacement ES devices are packaged with leads electrically shorted together by
conductive foam, alminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch
the protective material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can
generate static electricity(ESD).
notice (1885x323x2 tiff)

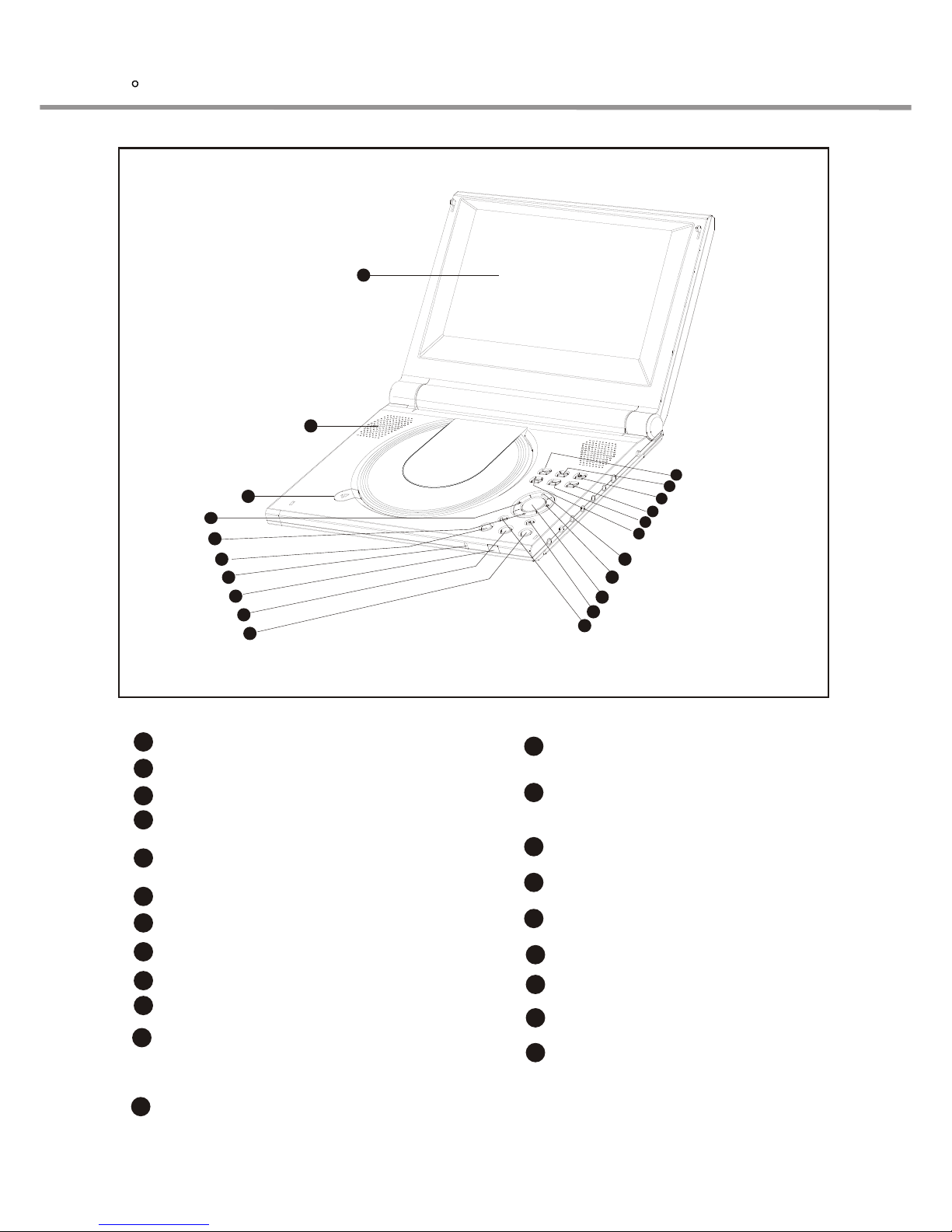

3 Control Button Locations and Explanations
1Color TFT LCD
2Speakers
3
4PREV button / LEFT direction arrow
5
6
9
IR sensor
7Power indicator
8
P/N button
10
PLAY button / SELECT
button
13
NEXT button / RIGHT
direction arrow
14
STOP button / UP direction
arrow
17
15
16
2
1
3
4
516
19
18
17
20
21
7
9
6
8
10
13
15
14
11
12
OPEN/CLOSE button
SETUP button
PAUSE button / DOWN
direction arrow
18
19
Browser Button
PICTURE button
POWER Button
20 TITLE Button
21 MENU Button
11 Vol-
Adjust the volume of headphone an
d speaker.
12 Vol+
Adjust the volume of headphone
and speaker.
Panel/Switch Button
DVD/AUXIN button

3

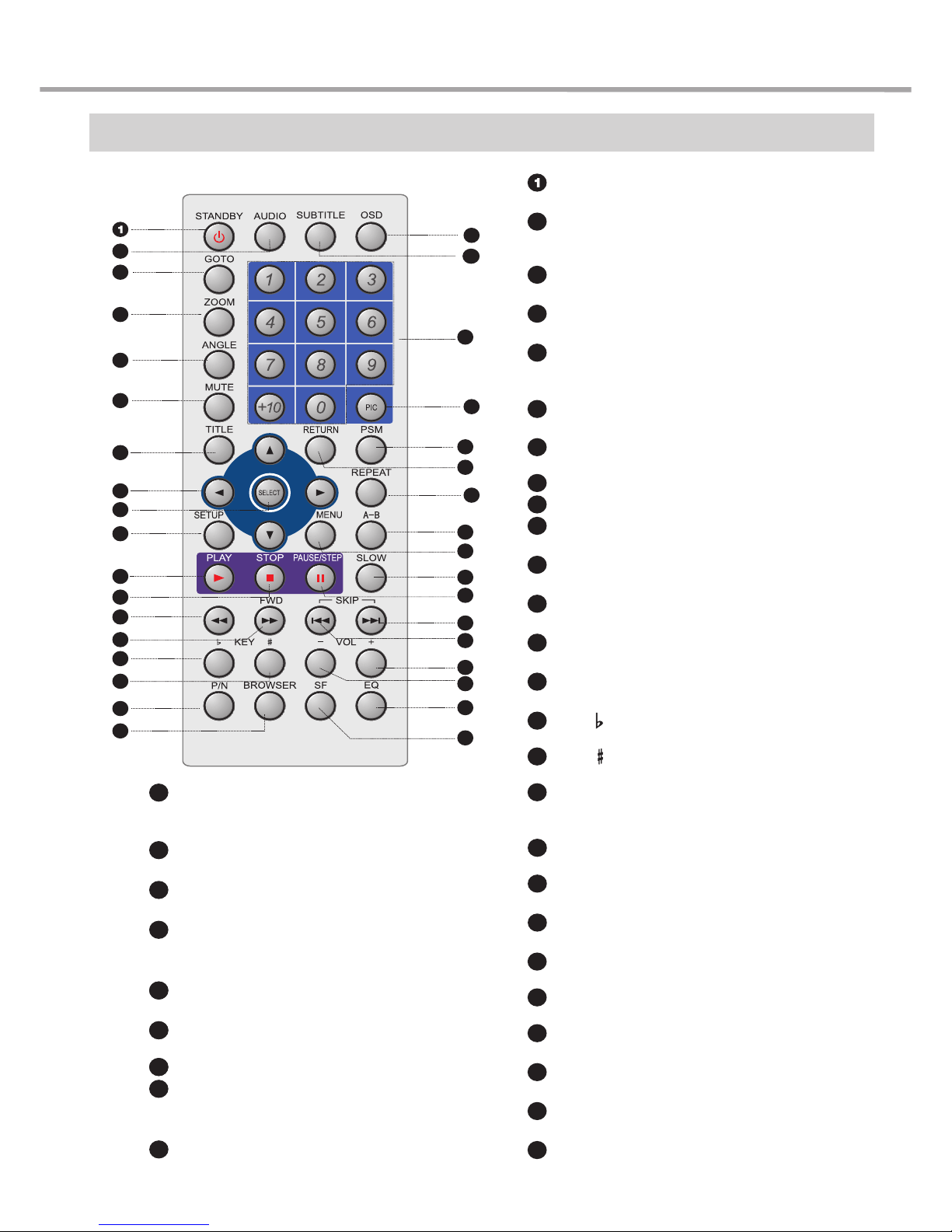

Remote Control Illustration
PREFACE
6
3
2
5
7
8
9
12
11
13
14
16
33
22
20
18
21
19
23
24
28
27
25
26
15
17
4
31
32
30
29
10
35
34
Switch new user interface.
BROWSER
18
Press once to stand by, Press twice to play.
STANDBY Button
Change the audio language or
audio channel.
AUDIO Button
2
Play from the desired location.
GOTO button
3
Zoom in /out the displayed frame.
ZOOM Button
4
Fast forward play.
FWD Button
14
Change camera angles, MP3/JPEG
playback modes switch.
ANGLE Button
5
Press once to mute, twice to unmute.
6
MUTE button
DVD titles.
TITLE button
7
Fast backward play.
REW Button
13
Function setup.
10
SETUP Button
Normal playback.
PLAY Button
11
Stop playback.
STOP Button
12
8
CURSOR Buttons
SELECT Button
9
Fall tone.
KEY Button
15
Switch the TV system between
PAL, NTSC and AUTO.
P/N Button
17
Rise tone.
KEY Button
16
Adjusting sound field effects.
SF Button
19
Adjusting equalization effects.
EQ Button
20
Decrease volume.
VOLUME-
21
Increase volume.
VOLUME+
22
Slow play.
SLOW Button
26
Skip forward.
NEXT Button
24
25
PAUSE/STEP Button
Pause or play frame by frame.
Skip backward.
PREV Button
23
A-B Button
28
Repeat the select.
Display DVD menu or open/close
PBC.
27 MENU Button
Display or hide disc information.
OSD Button
35
REPEAT Button
29
Repeat play.
Power Spectrum Meter on/off.
PSM Button
27
31
NUMBER Buttons
27
33
Change subtitle languages/
Switch JPEG display modes.
SUBTITLE Button
34
Back to the previous menu/
Clearing input numbers.
30
RETURN Button
Set video.
27
32
PIC Button
REW

The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human
body.Use due caution to electrostatic breakdown when servicing and handling the laser diode.
4.1.Grounding for electrostatic breakdown prevention
Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged
by static electricity in the working environment.Proceed servicing works under the working environment where
grounding works is completed.
4.1.1. Worktable grounding
1. Put a conductive material(sheet)or iron sheet on the area where the optical pickup is placed,and ground the
4.1.2.Human body grounding
1 Use the anti-static wrist strap to discharge the static electricity from your body.
4.1.3.Handling of optical pickup
1. To keep the good quality of the optical pickup maintenance parts during transportation and before
installation, the both ends of the laser diode are short-circuited.After replacing the parts with new ones,
remove the short circuit according to the correct procedure. (See this Technical Guide).
2. Do not use a tester to check the laser diode for the optical pickup .Failure to do so willdamage the laser
diode due to the power supply in the tester.
4.2. Handling precautions for Traverse Unit (Optical Pickup)
1. Do not give a considerable shock to the traverse unit(optical pickup)as it has an extremely high-precise
structure.
2. When replacing the optical pickup, install the flexible cable and cut is short land with a nipper. See the
optical pickup replacement procedure in this Technical Guide. Before replacing the traverse unit, remove
the short pin for preventingstatic electricity and install a new unit.Connect the connector as short times as
possible.
3. The flexible cable may be cut off if an excessive force is applied to it.Use caution when handling the cable.
4. The half-fixed resistor for laser power adjustment cannot be adjusted. Do not turn the resistor.
safety_3 (1577x409x2 tiff)
sheet.

5.1. Video Output (Luminance Signal) Confirmation
DO this confirmation after replacing a P.C.B.
Purpose:To maintain video signal output compatibility.
1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.
2.Confirm that luminance signal(Y+S)level is 1000mVp-p±30mV
Measurement point
Video output terminal
Color bar 75%
PLAY(Title 46):DVDT-S15
PLAY(Title 12):DVDT-S01
DVDT-S15
or
DVDT-S01
Mode Disc
Measuring equipment,tools
200mV/dir,10 sec/dir 1000mVp-p±30mV
Confirmation value

Do the confirmation after replacing P.C.B.

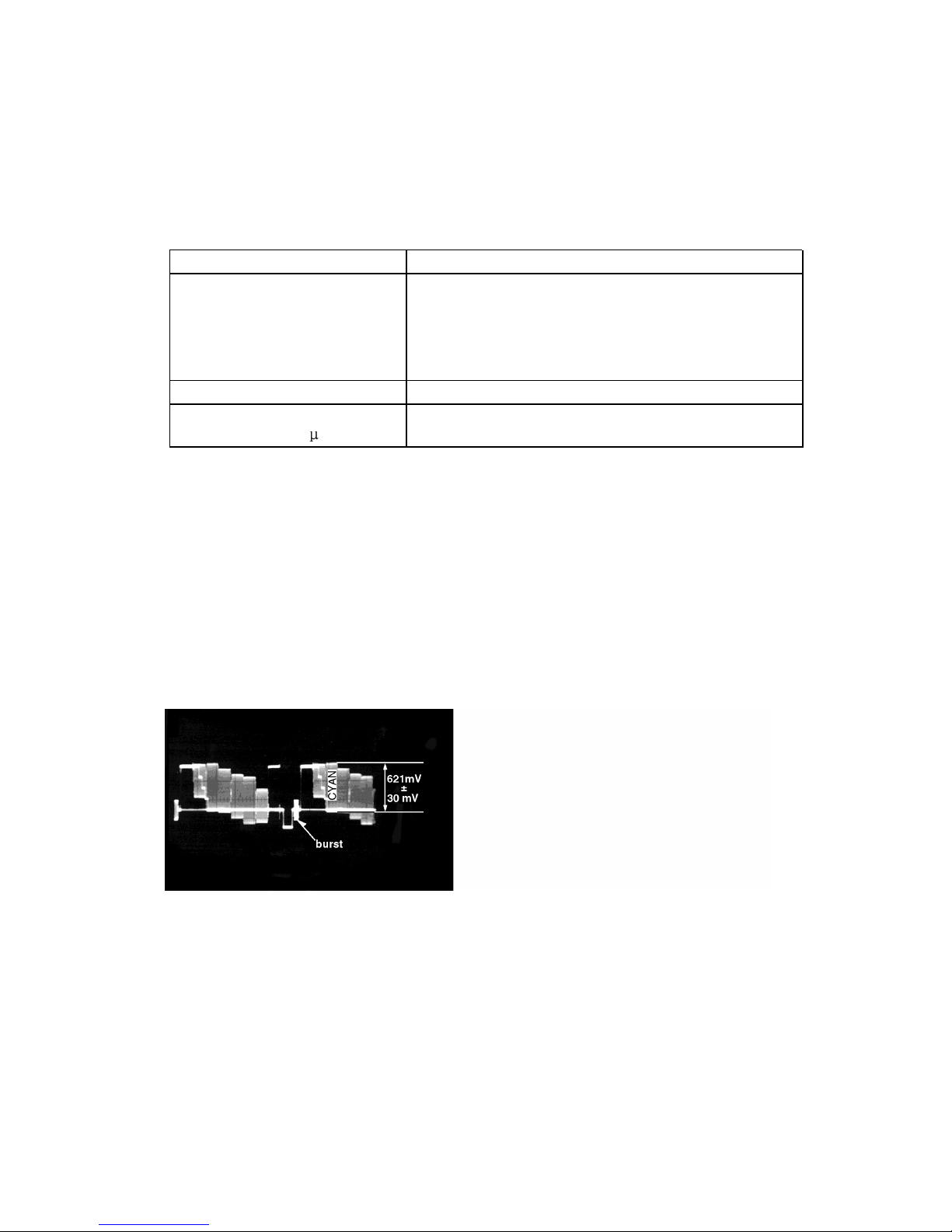

Purpose:To maintain video signal output compatibility.
1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.
2.Confirm that the chrominance signal(C)level is 621 mVp-p±30mV
Measurement point
Video output terminal
Color bar 75%
PLAY(Title 46):DVDT-S15
PLAY(Title 12):DVDT-S01
DVDT-S15
or
DVDT-S01
Mode Disc
Measuring equipment,tools Confirmation value
Screwdriver,Oscilloscope
200mV/dir,10 sec/dir 621mVp-p±30mV

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
GENERALDESCRIPTION
MT1336 is a high performance CMOS analog front-end IC for both CD_ROM driver up to 48XS and
DVD-ROM driver up to 16XS. It also supports DVD-RAM read up to 4XS Version 2. It contains servo amplifiers
to generate focusing error, 3-beam tracking error, 1 beam radial push-pull signal, RF level and SBAD for servo
functions. It also includes DPD tracking error signal for DVD_ROM application. For DVD-RAM disks, there are
also Differential Push-Pull (DPP) method for generating tracking signal and Differential Astigmatic Detection
(DAD) for processing focusing signal. Programmable equalizer and AGC circuits are also incorporated in this
chip to optimize read channel performance. In addition, this chip has dual automatic laser power control circuits
for DVD-ROM (DVD-RAM) and CD -ROM seperately and reference voltage generators to reduce external
components. Programmable functions are implemented by the access of internal register through bi-directional
serial port to configure modes selection.
FEATURES
nRF equalizer with programmable c
ffrom 3MHz to 70 MHz and programmable boost from 3dB to
13dB.
nMT1336 supports at least eight different kinds of pick-up heads with versatile input configuration for
both RF input stages and servo signal blocks.
nVersatile on-line AGC.
n3 beams tracking error signal generator for CD_ROM application.
nOne beam differential phase tracking error (DPD) generator for DVD_ROM application.
nDifferential push pull tracki ng error (DPP) generator for DVD_RAM application.
nFocusing error signal generator for CD-ROM, DVD-ROM and DVD-RAM (DAD method).
nRF level signal generator.
nSub-beam added signal for 3 beams CD_ROM.
nOne beam push-pull signal generator for central servo application.
nHigh speed RF envelop detection circuit with bandwidth up to 400KHz for CD-ROM.
nDefect and Blank detection circuits.
nDual automatic laser power control circuits with programmable level of LD monitor voltage.
nVref=1.4V voltage and V2ref=2.8V voltage generators.
nV20=2.0V voltage for pick-up head reference.
nBi-directional serial port to access internal registers.

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE

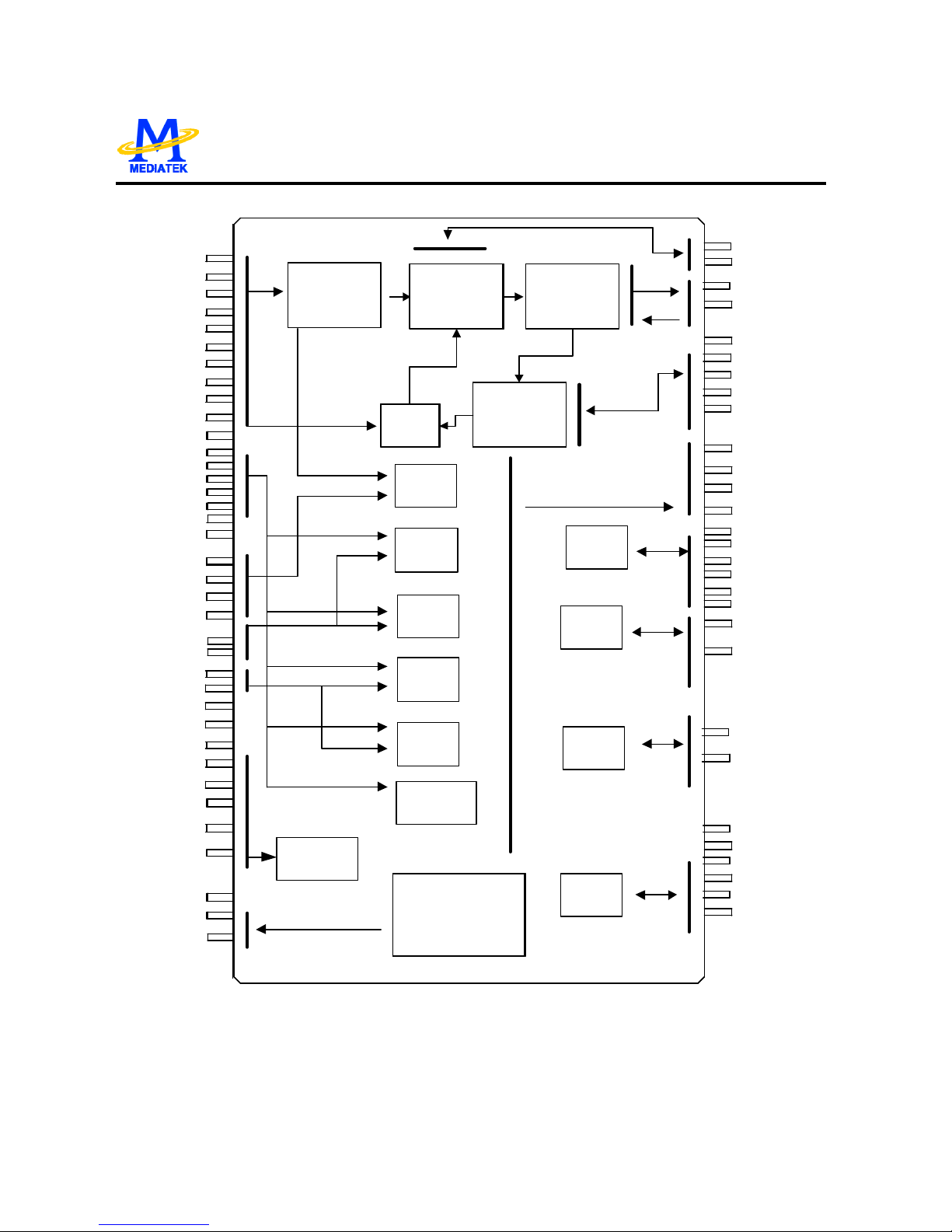

MT1336 FUNCTION BLOCKS DIAGRAM
DVDA
DEFECT
TEO
FEO
MDI2
LDO2
ATTENUATOR
DPD
REF and 2VREF
Voltage Generator
V2REFO
LVL
VGA
ENVELOP
DETECTOR
AGC
RFGCU
LRFRP
INPUT MUX
REF and 2VREF
Voltage Generator
VGA EQ
ENVELOP
DETECTOR
AGC
CDA
DVDB
CDB
DVDC
CDC
DVDD
CDD
DVDRFIN
DVDRFIP
TPI
TNI
RFOP
SBAD
TE
RF
LEVEL
FE
DVD
APC
MDI1
LDO1
CD
APC
VREFO
SLCK
SDEN
SERIAL
PORT
DPFN
DPFO
IR
DPDMUTE
CRTP
OSP
OSN
RFON
CRTPLP
RFGC
MA
CENTRAL
SERVO
RFGCI
AGC3
AGC1
AGC2
CSO
HALLSIN
SINPHI
HRFRP
MB
MC
MD
CDFOP
CDFON
SA
SB
SC
SD
V20
RFSUBO
WOBBLE
DET
WOBSO
COSPHI
REFSIN
REFCOS
HALLCOS
PCS
UDGATE
IDGATE
VFO13
SDATA

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
MT1336 PIN ASSIGNMENT
DPDMUTE
AGNDP AGNDX AVDDP
VCON
SA SB MC MD
DVDB
DVDA
DVDRFIP
DVDC
DVDD
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
101
100
99
98
97
96
102
MT1336
DVD-ROM
With
DVD_RAM
Read
AVDDO
RFOP
RFON
AGNDO
TM1
TM2
TM3
AGNDT
TM4
AVDDT
IO4
SCLK
AGNDX
SW1
SWO
GNDS
CDB
CDA
DVDRFIN
AGNDF
MON
VFO13
AGNDX
AGNDX
TRLPA
TRLP
HTRC
GNDP
DPFN
DPFO
IO1
AGNDX
VDD
IO5 IO7 IO8 IO9
FEO
IOB
SW2
IOA
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
37
38
14
25
36
IO0
AVDDF
IO6
AGNDX
AVDDM
HALLCOS
COSPHI
REFCOS
AGNDM
HALLSIN
UDGATE HDGATE
39 40 41 42 43 45 46 47 49 50 51 52 54 53 55 56 57 58 59 60 61 62 63 64 44 48
IR AVDD SC SD
WGND
LDO2 MDI2 MDI1 CDFOP SVDD TPI TNI SGND
RFSUBO
WOBSO
WVDD
LDO1
WAVDD
AGC1 AGC2 AGC3
WAGND
121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 127 126 125 124 123 122 128
AGND
RST
SDATA
SDEN
V2REFO
LRFRP
HRFRP
CRTP
CRTPLP
DEFECT
VDDP
TEO
CSO
VREFO
V20
LVL
VDDS
MB
RFGC
RFGCU
RFGCI
CEQP
CEQN
AGNDX
XCK16M
IO3
GND
REFSIN
MOP
CDC
CDD
MA
OSN
OSP
IO2
CDFON
SINPHI
AGNDX
AGNDX

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
MT1336 PIN DESCRIPTIONS
Pin Numbers Symbol Type Description
LQFP128
RF Flag Interface
23 DEFECT Digital Output Flag of bad data output status
RF SIO interface
56 SCLK Digital Input RF serial clock input
58 SDEN Digital Input RF serial data enable
59 SDATA Digital IO RF serial data IO
60 RST Digital input Reset (active high)
55 XCK16M Digital Input 16.9MHz for verification
RF SERVO interface
40 UDGATE Digital Input Con trol signal for DVD-RAM
41 IDGATE Digital Input Control signal for DVD-RAM
38 VFO13 Digital Input DVD -RAM Header signal
RF
100 DVDA Analog input AC coupled DVD RF signal input A
99 DVDB Analog Input AC coupled DVD RF signal input B
98 DVDC Analog Input AC coupled DVD RF signal input C
97 DVDD Analog Input AC coupled DVD RF signal input D
95 DVDRFIN Analog Input AC coupled DVD RF signal input RFIN
96 DVDRFIP Analog Input AC coupled DVD RF signal input RFIP
94 CDA Analog Input AC coupled CD RF signal input A
93 CDB Analog Input AC coupled CD RF signal input B
92 CDC Analog Input AC coupled CD RF signal input C
91 CDD Analog Input AC coupled CD RF signal input D
90 OSN Analog RF Offset cancellation capacitor connecting
89 OSP Analog RF Offset cancellation capacitor connecting
85 CEQP Analog RF Offset cancellation capacitor connecting
84 CEQN Analog RF Offset cancellation capacitor connecting
88 RFGC Analog RF AGC loop capacitor connecting for DVD -ROM

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
87 RFGCU Analog RF AGC loop capacitor connecting for DVD -RAM
86 RFGCI Analog RF AGC loop capacitor connecting for DVD -RAM
101 MA Analog Input DC coupled DVD-RAM main-beam RF signal input A
102 MB Analog Input DC coupled DVD-RAM main-beam RF signal input B
103 MC Analog Input DC coupled DVD-RAM main-beam RF signal input C
104 MD Analog Input DC coupled DVD-RAM main-beam RF signal input D
105 SA Analog Input DC coupled DVD-RAM sub-beam RF signal input A
106 SB Analog Input DC coupled DVD-RAM sub-beam RF signal input B
110 SC Analog Input DC coupled DVD-RAM sub-beam RF signal input C
111 SD Analog Input DC coupled DVD-RAM sub-beam RF signal input D
108 IR Analog External current bias resistor (R=20K)
119 AGC1 Analog Wobble AGC loop1 capacitor
121 AGC2 Analog Wobble AGC loop2 capacitor
122 AGC3 Analog Wobble AGC loop3 capacitor
127 RFSUBO Analog output Header push-pull RF output signal
1WOBSO Digital output Wobble signal output
6RFOP Analog output RF positive output
7RFON Analog output RF negative output
TRACKING ERROR
32 DPFN Analog DPD amplifier negative input
33 DPFO Analog DPD amplifier output
61 DPDMUTE Digital input DPD mute control input
116 TNI Analog Input 3 beam satellite PD signal negative input
115 TPI Analog Input 3 beam satellite PD signal positive input
21 TEO Analog Output Trackingerror output
FOCUSING ERROR & RF LEVEL & CENTRAL SERVO SIGNAL
112 CDFOP Analog Input CD focusing error positive input
113 CDFON Analog Input CD focusing error negative input
18 FEO Analog Output Focusingerror output
19 LVL Analog Output RFlevel output
20 CSO Analog output Central servo signal output
ALPC

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
124 MDI1 Analog Input Laser power monitor input
125 LDO1 Analog Ou tput Laser driver output
123 MDI2 Analog Input Laser power monitor input
126 LDO2 Analog Output Laser driver output
RFRIPPLE
26 CRTP Analog RF top envelop filter capacitor connecting
27 CRTPLP Analog Defect level filter capacitor connecting
25 HRFRP Analog output High frequency RF ripple output or Blank detector’s output
24 LRFRP Analog output Low frequency RF ripple output
POWER
67, 69 AVDD Power Master PLL Filter power
65, 73 AGND GND GND for Master PLL Filter
64 AVDD Power DPD Power
62 AGND GND DPD GND
109 AVDD Power RFpath Power
107 AGND GND RFpath GND
114 SVDD Power Servo Power
117 SGND GND Servo GND
2,120 WAVDD Power Wobble Power
128,118 WAGND GND Wobble GND
5 AVDDO Power Power for RF output
8 AGNDO GND GND for RF output
14 AVDDT Power Power for Trimming PAD
12 AGNDT GND GND for Trimming PAD
22 VDDP Power Peak Detection Power
31 GNDP GND Peak Detection GND
37,54 VDD Power Serial I/O Power
39,57 GND GND Serial I/O GND
REFERENCE VOLTAGE
16 VREFO Analog output Reference voltage 1.4V
15 V2REFO Analog output Reference voltage 2.8V
17 V20 Analog Output Reference voltage 2.0V

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
ALPC TRIMMING
9TM1 Analog input Trimming pin for ALPC1
10 TM2 Analog input Trimming pin for ALPC1
11 TM3 Analog input Trimming pin for ALPC2
13 TM4 Analog input Trimming pin for ALPC2
HIGH SPEED TRACK COUNTING
29 TRLP Analog Low-pass filter capacitor connecting
28 TRLPA Analog Low-pass filter capacitor connecting
30 HTRC Digital output High speed track counting digital output
PCS
74 HALLSIN Analog input Negative input of amplifier for hall sensor signal
75 REFSIN Analog input Positive input of amplifier for hall sensor signal
76 SINPHI Analog outputAmplifier output for hall sensor signal
71 HALLCOS Analog input Negative input of amplifier for hall sensor signal
72 REFCOS Analog input Positive input of amplifier for hall sensor signal
70 COSPHI Analog output Amplifier output for hall sensor signal
FOR MONITOR ONLY
81 MON Analog output
80 MOP Analog output
66 VCON Analog output
77 SWO Analog output Output from mux of SW1 & SW2
78 SW2 Analog input External input for servo input select
79 SW1 Analog input External inputfor servo input select
FOR SERIAL I/O
42 IO0
43 IO1
44 IO2
45 IO3
46 IO4
47 IO5

MT1336
PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
48 IO6
49 IO7
50 IO8
51 IO9
52 IOA
53 IOB

MT1379
Specificationsaresubjecttochangewithoutnotice Progressive Scan DVD Player Combo Chip
nSuper Integration DVD player single chip
§Servo controller and data channel processing
§MPEG-1/MPEG-2/JPEG video decoding
§Dolby AC-3/DTS/DVD-Audio audio decoding
§Unified track buffer and A/V decoding buffer
§Video processing for scaling and video quality
enhancement
§OSD & Sub-picture decoding
§Built-in clock generator
§Built-in TV encoder
§Built-inprogressive videooutput
§Video input port and audio/SPDIF input port
nSpeed Performance on Servo and Decoding
§DVD-ROM up to 8XS
§CD-ROM up to 24XS
§Built-in a frequency programmable clock to µP
and RSPC Decoder to optimize the performance
over power
nChannel Data Processor
§Provides interface with analog front-end
processor
§Analog data slicer for small jitter capability
§Built-in high performance data PLL for channel
data demodulation
§EFM/EFM+ data demodulation
§Enhanced channel data frame sync protection &
DVD-ROM sector sync protection
nServo Control and Spindle Motor Control
§Programmable frequency error gain and phase
error gain of spindle PLL to control spindle motor
on CLV and CAV mode
§Provide a varipitch speed control for CLV and CAV
mode
§Built-in ADCs and DACs for digital servo control
§Provide 2 general PWM
§Tray control can be PWM output or digital output
§Built-in DSP for digital servo control
nHost Micro controller
§Built-in 8032 micro controller
§Built-in internal 373 and 8-bit programmable
loweraddress port
§1024-bytes on-chip RAM
§Upto2MbytesFLASH-programming interface
§Supports 5/3.3-Volt. FLASH interface
§Supports power-down mode
§Supports additional serial port
nDVD-ROM/CD-ROM Decoding Logic
§Supports CD-ROM Mode 1, CD-ROM XA Mode 2
Form 1, CD-ROM XA Mode 2 Form 2, and CD-DA
formats
§High-speed ECC logic capable of correcting one
error per each P-codeword or Q-codeword
§Automatic sector Mode and Form detection
§Automatic sector Header verification
§8-bit counter for decode completion check
§Programmable descrambling and error
correction schemes
§Automatically repeated error corrections
§8-bit C2 Pointer counter
§Decoder Error Notification Interrupt that signals
various decoder errors
§Provide error correction acceleration
nBuffer Memory Controller
§Supports 16Mb/32Mb/64Mb/128Mb SDRAM
§Supports 16-bit/32-bit SDRAM data bus interface
§Build in a DRAM interface programmable clock to
optimize the DRAM performance
§Provide the self-refresh mode SDRAM
§Programmable DRAM access cycle and refresh

MT1379
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
cycle timings
§Block-based sector addressing
§Programmable buffering counter for buffer status
tracking
§Maximum DRAM speed is 133MHz
§Support 5/3.3-Volt. DRAM Interface
nVideo Decode
§Decodes MPEG1 video and MPEG2 main level,
main profile video (720/480 and 720x576)
§Maximum input bit-rate of 15Mbits/sec
§Smooth digest view function with I, P and B
picture decoding
§Baseline, extended-sequential and progressive
JPEG image decoding
§RLEand non-RLE BMP image decoding
§Support CD-G titles
nVideo/OSD/SPU/HLI Processor
§Arbitrary ratio vertical/horizontal scaling of video,
from 0.25X to 256X
§65535/256/16/4/2-color bitmap format OSD,
§256/16 color RLC format OSD
§Automatic scrolling of OSD image
§Provides4-color/32x32-pixelhardware cursor
§Fade-in, Fade out, and Wipe functions as
specified in the DVD-Audio Specification and
other slide show transition effects
§Progressive scan output
nAudio Processing
§Decoderformat supports:
-Dolby Digital (AC-3) decoding
-DTS decoding
-MLP decoding for DVD-Audio
-MPEG-1 layer 1/layer 2 audio decoding
-MPEG-2layer1/layer2 2-channel audio decoding
-Dolby Pro Logic decoding
-High Definition Compatible Digital (HDCD)
decoding
§Up to 6 channel linear PCM output for DVD Audio
/ DVD Video
§Downmix function
§Support IEC 60958/61937 output
-PCM / bit stream / mute mode
-Custom IEC latency up to 2 frames
§Pink noise and white noise generator
§Karaokefunctions
-Microphone echo with adjustable echo level,
echo -depth and delay length
-Microphone tone control with three custom
second-order IIR filter
-Vocal mute/vocal assistant
-Key shift up to +/-8 keys controlled by 1/2 key
§Channelequalizer
§3D surround processing include virtual surround
and speaker separation
§Power-down control
§HDCD certified
nTVEncoder
§Six 54MHz/12bit DA converters
§Support NTSC, PAL-BDGHI, PAL-N, PAL-M
interlace TV format and 480p, 576p progressive
TVformat
§Automatically turn off unconnected channel(s).
§Support PC monitor (VGA)
§SupportMacrovision 7.1
nProgressive Output
§Automatic detect film or video source
§3:2 pull down source detection
§Advanced Motion adaptive de-interlace
§Minimum external memory requirement
nAudio/Video Output
§Line-in/SPDIF-in for versatile audio processing
§CCIR601/656 video input port
§Support picture-in-picture for video decoding and
input source
nOutline
§216-pin LQFP package
§3.3/2.5-Volt. Dual operating voltages

MT1379
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
PIN DEFINITIONS
Pin Number Symbol Type Description
1IREF Analog Input Current reference input. It generates reference current for data
PLL.
Connect an external 100K resistor to this pin and PLLVSS.
2PLLVSS Ground Ground pin for data PLL and related analog circuitry
3LPIOP Analog Output Positive output of the low pass filter
4LPION Analog Output Negative output of the low pass filter
5LPFON Analog output Negative output of loop filter amplifier
6LPFIP Analog Input Positive input of loop filter amplifier
7LPFIN Analog Input Negative input of loop filter amplifier
8LPFOP Analog Output Positive output of loop filter amplifier
9JITFO Analog Output RF jitter meter output
10 JITFN Analog Input Negative input of the operation amplifier for RF jigger meter
11 PLLVDD3 Power 3.3V power pin for data PLL and related analog circuitry
12 FOO Analog Output Focus servo output. PDM output of focus servo compensator
13 TRO Analog Output Tracking servo output. PDM output of tracking servo compensator
14 TROPENPWM Analog Output Tray open output, controlled by microcontroller.
This is PWM output for TRWMEN27hRW2=1 or is digital output for
TRWMEN27hRW2=0
15 PWMOUT1 Analog Output The 1st general PWM output
16 PWMOUT2 Analog Output
17 DVDD2 Power 2.5V power pin for internal fully digital circuitry
18 DMO Analog Output Disk motor control output. PWM output
19 FMO Analog Output Feed motor control. PWM output
20 DVSS Ground Ground pin for internal fully digital circuitry
21 FG Input Motor Hall sensor input
22 HIGHA0 Inout
2~16MA,SR
PU
Microcontroller address 8
23 HIGHA1 Inout
2~16MA,SR
PU
Microcontroller address 9
24 HIGHA2 Inout
2~16MA,SR
PU
Microcontroller address 10
25 HIGHA3 Inout
2~16MA,SR
PU
Microcontroller address 11
26 HIGHA4 Inout
2~16MA,SR
PU
Microcontroller address 12
27 HIGHA5 Inout
2~16MA,SR
PU
Microcontroller address 13
28 DVSS Ground Ground pin for internal digital circuitry
