BBK PL945TI User manual

GB
SERVICE MANUAL
Portable DVD
DVD
SERVICE MANUAL
BBK
PL945TI

1. PRECAUTIONS
1-1 Safety Precautions
1) Before returning an instrument to the customer,
always make a safety check of the entire instrument,
including, but not limited to, the following items:
(1) Be sure that no built-in protective devices are
defective or have been defeated during servicing.
(1) Protective shields are provided to protect both
the technician and the customer. Correctly replace
all missing protective shields, including any
remove for servicing convenience.
(2) When reinstalling the chassis and/or other
assembly in the cabinet, be sure to put back in
place all protective devices, including, but not
limited to, nonmetallic control knobs, insulating
fish papers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or permit
it to be operated without all protective devices
correctly installed and functioning.
(2) Be sure that there are no cabinet opening through
which adults or children might be able to insert
their fingers and contact a hazardous voltage.
Such openings include, but are not limited to,
excessively wide cabinet ventilation slots, and an
improperly fitted and/or incorrectly secured
cabinet back cover.

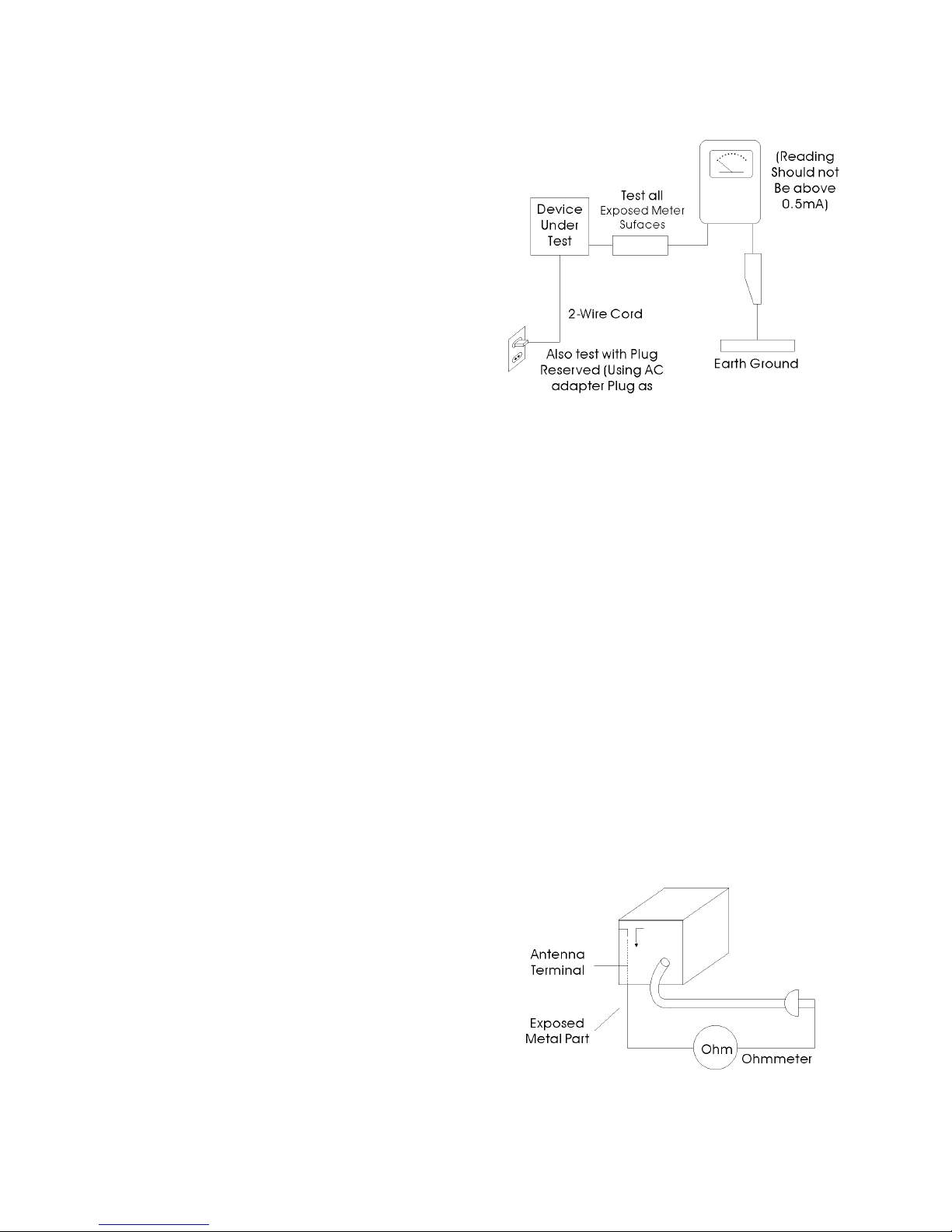

(3) Leakage Current Hot Check-With the instrument
completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a
leakage current tester or a metering system that
complies with American National Standards
institute (ANSI) C101.1 Leakage.
Current for Appliances and underwriters
Laboratories (UL) 1270 (40.7). With the
instrument’s AC switch first in the ON position and
then in the OFF position, measure from a known
earth ground (metal water pipe, conduit, etc.) to all
exposed metal parts of the instrument (antennas,
handle brackets, metal cabinets, screwheads,
metallic overlays, control shafts, etc.), especially
and exposed metal parts that offer an electrical
return path to the chassis.
Any current measured must not exceed 0.5mA.
Reverse the instrument power cord plug in the
outlet and repeat the test.
AC Leakage Test
Any measurements not within the limits specified
herein indicate a potential shock hazard that must
be eliminated before returning the instrument to
the customer.
(4) Insulation Resistance Test Cold Check-(1) Unplug
the power supply cord and connect a jumper wore
between the two prongs of the plug. (2) Turn on
the power switch of the instrument. (3) Measure
the resistance with an ohmmeter between the
jumpered AC plug and all exposed metallic
cabinet parts on the instrument, such as
screwheads, antenna, control shafts, handle
brackets, etc. When an exposed metallic part has
a return path to the chassis, the reading should be
between 1 and 5.2 megohm. When there is no
return path to the chassis, the reading must be
infinite. If the reading is not within the limits
specified, there is the possibility of a shock hazard,
and the instrument must be re-pared and
rechecked before it is returned to the customer.
Insulation Resistance Test

2) Read and comply with all caution and safety related
notes non or inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter of add to the
mechanical or electrical design of this instrument.
Design alterations and additions, including but not
limited to, circuit modifications and the addition of
items such as auxiliary audio output connections,
might alter the safety characteristics of this
instrument and create a hazard to the user. Any
design alterations or additions will make you, the
service, responsible for personal injury or property
damage resulting there from.
4) Observe original lead dress. Take extra care to
assure correct lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts
(be sure that leads and components do not touch
thermally hot parts), (3) the AC supply, (4) high
voltage, and (5) antenna wiring. Always inspect in
all areas for pinched, out-of-place, or frayed wiring.
Do not change spacing between a component and
the printed-circuit board, Check the AC power
cord for damage.
5) Components, parts, and/or wiring that appear to
have overheated or that are otherwise damaged
should be replaced with components, parts and/or
wiring that meet original specifications.
Additionally determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove and potential safety hazard.
6) Product Safety Notice-Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by shading, an ( ) or a ( ) on
schematics and parts lists. Use of a substitute
replacement that does not have the same safety
characteristics as the recommended replacement
part might created shock, fire and/or other
hazards. Product safety is under review
continuously and new instructions are issued
whenever appropriate.
1-2 Servicing Precautions
CAUTION: Before servicing Instruments covered by
this service manual and its supplements, read and
follow the Safety Precautions section of this manual.
Note: If unforeseen circument create conflict between
the following servicing precautions and any of the
safety precautions, always follow the safety
precautions. Remember; Safety First
1-2-1 General Serving Precautions
(1) a. Always unplug the instrument’s AC power cord
from the AC power source before (1) removing or
reinstalling any component, circuit board, module
or any other instrument assembly. (2)
disconnecting any instrument electrical plug or
other electrical connection. (3) connecting a test
substitute in parallel with an electrolytic capacitor
in the instrument.
b. Do not defeat any plug/socket B+ voltage
interlocks with which instruments covered by this
service manual might be equipped.
c. Do not apply AC power to this instrument and/or
any of its electrical assemblies unless all
solid-state device heat sinks are correctly
installed.
d. Always connect a test instrument’s ground lead
to the instrument chassis ground before
connecting the test instrument positive lead.
Always remove the test instrument ground lead
last.
Note: Refer to the Safety Precautions section
ground lead last.
(2) The service precautions are indicated or printed on
the cabinet, chassis or components. When
servicing, follow the printed or indicated service
precautions and service materials.
(3) The components used in the unit have a specified
flame resistance and dielectric strength.
When replacing components, use components
which have the same ratings, by ( ) or by ( )
in the circuit diagram are important for safety or
for the characteristics of the unit. Always replace
them with the exact replacement components.
(4) An insulation tube or tape is sometimes used and
some components are raised above the printed
wiring board for safety. The internal wiring is
sometimes clamped to prevent contact with
heating components. Install such elements as
they were.
(5) After servicing, always check that the removed
screws, components, and wiring have been
installed correctly and that the portion around the
serviced part has not been damaged and so on.
Further, check the insulation between the blades
of the attachment plus and accessible conductive
parts.

1-2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and
turn the power ON. Connect the insulation resistance
meter (500V) to the blades of the attachment plug. The
insulation resistance between each blade of the
attachment plug and accessible conductive parts (see
note) should be more than 1 Megohm.
Note: Accessible conductive parts include metal
panels, input terminals, earphone jacks, etc.
1-3 ESD Precautions
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid static electricity) devices
can be damaged easily by static electricity.
Such compo9nents commonly are called
Electrostatically Sensitive Devices (ESD). Examples of
typical ESD devices are integrated circuits and some
field-effect transistors and semiconductor chip
components. The following techniques of component
damage caused by static electricity.
(1) immediately before handling any semiconductor
components or semiconductor-equipped assembly,
drain off any electrostatic charge on your body by
touching a known earth ground. Alternatively,
obtain and wear a commercially available
discharging wrist strap device, which should be
removed for potential shock reasons prior to
applying power to the unit under test.
(2) after removing an electrical assembly equipped
with ESD devices, place the assembly on a
conductive surface such as aluminum foil, to
prevent electrostatic charge buildup or exposure
of the assembly.
(3) Use only a grounded-tip soldering iron to solder or
unsolder ESD device.
(4) Use only an anti-static solder removal devices.
Some solder removal devices not classified as
“anti-static” can generate electrical charges
sufficient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESD devices.
(6) Do not remove a replacement ESD device from its
protective package until immediately before you
are ready to install it. (Most replacement ES
devices are packaged with leads electrically
shorted together by conductive foam, aluminum
foil or comparable conductive materials).
(7) Immediately before removing the protective
materials from the leads of a replacement ES
device touch the protective material to the chassis
or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis
or circuit, and observe all other safety precautions.
(8) Minimize bodily motions when handling
unpackaged replacement ESD devices.
(Otherwise harmless motion such as the brushing
together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static
electricity sufficient to damage an ESD device).

Version 1.01
Specifications are subject to change without notice
MT1389VQ
Portable DVD Player SO
C
General Datashee
t
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
Revision History
Revised date Contents of revision Reason for revision Page Remarks
2010 3 18 initial Ver 1.0
2010 04 13 update electrical characteristics Ver 1.01
2010 06 03 Update TVE description Ver 1.1
2010 06 03 Update Analog description Ver 1.11
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
2
Contents of Specifications
No Specifications Page
Revision History 1
Contents of Specification 2
1 Applications 3
2 Type 3
3 Usage 3
4 Structure 3
5 Function 4
6 Pin Assignment 19
7 Absolute Maximum Ratings 20
8 Recommend Operation Conditions 20
9 Electrical Characteristics 21
10 Marking on Devices 31
11 Package Description 31
12 Packing Description 33
13 Solder-Reflow Condition 38
14 Manual Solder Condition 39
15 Storage Condition 39
16 Other 39
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
3
1 Applications
This present specifications are applied to IC MT1389VQ.
2 Type
MT1389VQ
3 Usage
Single Chip IC for Portable DVD Player with panel interface
4 Structure
0.11um CMOS process, Silicon material, Monolithic IC, 128pin LQFP, 3.3/1.2 Dual operation voltages.
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
4
5 Function
5-1 General Description
MediaTek MT1389VQis a cost-effective DVD system-on-chip (SOC) which incorporates advanced features like
MPEG-4 video decoder, high quality TV encoder and state-of-art de-interlace processing, back light control, and
high-quality TV Decoder. The MT1389VQ enables consumer electronics manufacturers to build high quality, USB2.0,
MS/SD/MMC reader, feature-rich portable DVD players or any other multimedia portable devices.
World-Leading Technology: Based on MediaTek’s world-leading DVD player SOC architecture, the
MT1389VQ is the New generation of the portable DVD player SOC. It integrates the MediaTek 3
rd generation
front-end digital RF amplifier and the Servo/MPEG AV decoder. To save power consumption for Earth, MediaTek
use the .11um Process to decrease the power consumption.
Rich Feature for High Valued Product: To enrich the feature of DVD player, the MT1389 equips a
simplified MPEG-4 advanced simple profile (ASP) video decoder to fully support the DivX1Home Theater profile. It
makes the MT1389-based DVD player be capable of playback MPEG-4 content which become more and more
popular.
Incredible Audio/Video Quality: The progressive scan of the MT1389VQ utilized advanced motion-adaptive
de-interlace algorithm to achieve the best movie/video playback. The 12-bit video DAC provides users a whole new
viewing experience. And with built-in 2ch audio DACs.
High Performance Memory Storage Device: As the core of Portable DVD players need more capability to
support current multimedia contents. The MT1389VQ provides the interface for the 3-in-1 card reader, which
supports Memory-Stick, Secure Digital Memory Card, and MultiMediaCard, to connect with the mainstream digital
camera FLASH cards. For the USB application, we adopt USB2.0 High speed specification to reach rich-contents
transference. USB 2.0 High speed will support for high-speed devices. USB 2.0 High Speed is suitable for
high-performance devices such as high-density storage devices. In addition, USB 2.0 High Speed supports old
USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers
Integrated Panel Control system: To let the system become more easily, we integrated the TV_Decoder,
Scaler and Programmable Timing Control. Build-in 3-in-1 video controller, we could save the system cost and
reach the high video display quality.
Better Power Consumption: MT1389VQ also build-in DC-DC core power convertor for getting better power
converter efficiency. It can save component cost and get good power design for core power.
1DivX is a trademark of DivXNetworks
2USB High Speed : 480Mbit/sec. USB Full Speed : 12Mbit/sec.
MT1389VQ
FLASH
DRAM
CVBS Output
Panel interface
SDPIF
Portable DVD Player System Diagram
2ch Audio
USB 2.0
High Speed
CVBS Input
DVD
PUH
Module
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
5
5-2 Key Features
RF/Servo/MPEG Integration
Embedded 2ch Audio DAC
High Performance TV decoder
High Performance Audio Processor
High Performance Progressive Video Processor
Support DivX Ultra
High Quality 12-bit Video DAC, TV Encoder
USB 2.0 High-Speed
SSCG for low cost EMI solution
Battery detect
Back light control
Built-in 3-in-1 video controller (TV decoder, Scaler and Timing controller)
Built-in core voltage convertor
5-3 Applications
Portable DVD Players
Portable multimedia Device
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
6
5-4 General Feature lists
Super Integration DVD player single chip
High performance analog RF amplifier
Servo controller and data channel processing
MPEG-1/MPEG-2/JPEG video
Dolby AC-3/DTS Decoder
Unified memory architecture
Versatile video scaling & quality enhancement
OSD & Sub-picture
Built-in clock generator
Built-in high quality TV encoder
Built-in progressive video processor
Audio effect post-processor
Built-in 2ch Audio DAC
USB 2.0 High-Speed
Built-in high quality TV decoder
Built-in panel interface (TCON)
Built back light control
MS/SD/MMC 3-in-1 card reader
Built-in core voltage convertor
Speed Performance on Servo/Channel
Decoding
DVD-ROM up to 4XS
CD-ROM up to 24XS
Channel Data Processor
Digital data slicer for small jitter capability
Built-in high performance data PLL for channel
data demodulation
EFM/EFM+ data demodulation
Enhanced channel data frame sync protection
& DVD-ROM sector sync protection
Servo Control and Spindle Motor Control
Programmable frequency error gain and phase
error gain of spindle PLL to control spindle
motor on CLV and CAV mode
Built-in ADCs and DACs for digital servo
control
Provide 2 general PWM
Embedded Micro controller
Built-in 8032 micro controller
Built-in internal 373 and 8-bit programmable
lower address port
1024-bytes on-chip RAM
Up to 8M bytes FLASH-programming interface
Supports 5/3.3-Volt. FLASH interface
Supports power-down mode
Supports additional serial port
DVD-ROM/CD-ROM Decoding Logic
High-speed ECC logic capable of correcting
one error per each P-codeword or Q-codeword
Automatic sector Mode and Form detection
Automatic sector Header verification
Decoder Error Notification Interrupt that signals
various decoder errors
Provide error correction acceleration
Buffer Memory Controller
Supports 16Mb/32Mb/64Mb/128Mb SDRAM
Supports 16-bit SDRAM data bus
Provides the self-refresh mode SDRAM
Block-based sector addressing
Video Decode
Decodes MPEG1 video and MPEG2 main level,
main profile video (720/480 and 720x576)
Decodes MPEG-4 Advanced Simple Profile
Support DivX 3.11/4.x/5.x Home Theater
Profile
Support DivX Ultra
Smooth digest view function with I, P and B
picture decoding
Baseline, extended-sequential and progressive
JPEG image decoding
Support CD-G titles
Video/OSD/SPU/HLI Processor
Arbitrary ratio vertical/horizontal scaling of
video, from 0.25X to 256X
65535/256/16/4/2-color bitmap format OSD,
256/16 color RLC format OSD
Automatic scrolling of OSD image
Audio Effect Processing
Dolby Digital (AC-3) decoding
DTS decoding
MPEG-1 layer 1/layer 2 audio decoding
High Definition Compatible Digital (HDCD)
Windows Media Audio (WMA)
IEC 60958/61937 output
- PCM / bit stream / mute mode
- Custom IEC latency up to 2 frames
Pink noise and white noise generator
Channel equalizer
3D surround processing include virtual
surround and speaker separation
TV Encoder
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
7
108MHz/12bit DACs
Support NTSC, PAL-BDGHINM, PAL-60
Automatically turn off unconnected channels
Support Macrovision 7.1 L1
CGMS-A/WSS
Closed Caption
TV Decoder
Support CVBS analog video input
Support NTSC, PAL-BDGHIKN, PAL-M,
PAL-Nc, SECAM, NTSC-4.43, PAL-60
Automatic signal detection
Automatic TV standard detection
Automatic gain control
Automatic color control
5H Adaptive 2D comb filter
Video quality adjustments and enhancements
2D Peaking, CTI, and flesh-tone adjustments.
Automatically detect Macrovision protection.
Built-in VBI slicer that support closed-caption,
Teletext, CGMS-A/WSS, and other VBI
services for both 525- and 625-line systems
LCD Interface
Provide gamma correction and sharpness
adjustment
Programmable timing control
RGB triple DAC output
Progressive Scan Video
Automatic detect film or video source
Advanced Motion adaptive de-interlace
Minimum external memory requirement
Serial Flash Interface
Supports 4Mb/8Mb/16Mb/32Mb/64Mb SPI
interface Serial Flash
External Interface
USB2.0 High Speed (Host)
Memory-Stick, Secure Digital Memory Card, and
MultiMediaCard Interface
Outline
128-pin LQFP package
3.3/1.2-Volt. Dual operating voltages
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
8
General Feature – Third Party Proprietary Right
1. Dolby License
Supply of this Implementation of Dolby technology does not convey a license nor imply a right under any patent, or any other
industrial or intellectual property right of Dolby Laboratories, to use this Implementation in any finished end-user or ready-to-use
final product. It is hereby notified that a license for such use is required from Dolby Laboratories.
2. Macrovision License
This device is protected by U.S. patent numbers 4,631,603, 4,577,216, 4,819,098 and other intellectual property rights.
3. DTS License
©1996-2006 DTS, Inc.
4. Microsoft License
This product included technology owned by Microsoft Corporation and cannot be used or distributed without a license from
Microsoft GP.
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
9
5-5 Pin Definitions
Abbreviations:
ySR: Slew Rate
yPU: Pull Up
yPD: Pull Down
ySMT: Schmitt Trigger
y4mA~16mA: Output buffer driving strength.
Pin#MainALTTYPEDescription
1 AVDD12_2  AnalogpowerAnalog1.2Vpower
2 AVDD33_1  AnalogpowerAnalog3.3Vpower
3 XTALI
 Input27MHzcrystalinput
4 XTALO
 Output27MHzcrystalOutput
5 AVSS33
 AnaloggroundAnalogground
6 V20
 AnalogoutputReferencevoltage2.0V
7 V14
 AnaloginputReferencevoltage1.4V
8 KEY  Analog/Digitalinout
1)Keyinput(analog)
2)GPIO
9 MDI1
 AnaloginputLaserPowermonitorinput
10 LDO1
 AnalogoutputLaserdriveroutput
11 AVDD33_2  AnalogpowerAnalog3.3Vpower
12 AVDD33_2  AnalogpowerAnalog3.3Vpower
13 DMO
 AnalogoutputDiskmotorcontroloutputPWMoutput
14 FMO
 AnalogoutputFeedmotorcontrol.PWMoutput
15 TRAY_OPEN
 AnalogoutputTray PWM output/Tray open output
16 TRAY_CLOSE
 AnalogoutputTray PWM output/Tray close output
17 TRO
 Analogoutput
Trackingservooutput.PDMoutputof
trackingservocompensator
18 FOO
 Analogoutput
Focusservooutput.PDMoutputoffocus
servocompensator
19 FG
GPIO2Analog
1)MotorHallsensorinput
2)GPIO2
20 USB_DM
 AnaloginoutUSBportDMINUSanalogpin
21 USB_DP
 AnaloginoutUSBportDPLUSanalogpin
22 VDD33_USB
 USBpowerUSBPowerpin3.3V
23 VSS33_USB
 USBgroundUSBgroundpin
24 PAD_VRT
 AnaloginoutUSBgeneratingreferencecurrent
25 VDD12_USB
 USBpowerUSBPowerpin1.2V
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
10
Pin#MainALTTYPEDescription
26 SF_CS_

InOut
8mA,SR
PU,SMTSerialFlashChipSelect
27 SF_DO

InOut
8mA,SR
PU,SMTSerialFlashDout
28 SF_DI

InOut
8mA,SR
PU,SMTSerialFlashDin
29
SF_CK 
InOut
8mA,SR
PU,SMTSerialFlashClock
30 AVDD33_DCV
 Power3.3VpowerpinforDCV
31 NS_NSW
 AnalogDCVinout
32 AVSS33_DCV
 GroundGroundpinforDCV
33 UP_16

InOut
4mA,SR
PU,SMT
I)SCL
2)RXD
3)UARTRXD
4)Audioswitch
34 UP_17

InOut
4mA,SR
PU,SMT
I)SDA
2)TXD
3)UARTTXD
4)I2SDIN
35 GPIO11

InOut
4mA,PU
1)open_close
2)VSTD
3)UART_RXD
4)RXD
5)I2SDOUT1
6)GPIO11
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
11
Pin#MainALTTYPEDescription
36 GPIO6

InOut
4mA,PU
3.3Vonly
1)SPDIFout
2)HSTR
3)UART_TXD
4)TXD
5)I2SDOUT0
6)GPIO6
37 PRST#

Input
SMT
3.3VonlyPoweronresetinput,active
low
38 IR

Input
SR,SMTIRcontrolsignalinput
39 GPIO3

InOut
8mA,SR
SMT
1)TRIN
2)GPIO3
40 GPIO4

InOut
4mA,PD
1)TROPEN
2)IOA
3)GPIO4
41 DVSS33
 GroundGroundpinforinternaldigitalcircuitry
42 DVDD33
 Power
3.3Vpowerpinforinternaldigital
circuitry
43 RD0
 Inout2mADRAMdata0
44 RD1
 Inout2mADRAMdata1
45 RD2
 Inout2mADRAMdata2
46 RD3
 Inout2mADRAMdata3
47 DVDD12
 Power1.2Vdigitalpower
48 RD4
 Inout2mADRAMdata4
49 RD5
 Inout2mADRAMdata5
50 RD6
 Inout2mADRAMdata6
51 RD7
 Inout2mADRAMdata7
52 DQM0
 Inout2mA,PUDatamask0
53 RD15
 Inout2mADRAMdata15
54 RD14
 Inout2mADRAMdata14
55 RD13
 Inout2mADRAMdata13
56 RD12
 Inout2mADRAMdata12
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
12
Pin#MainALTTYPEDescription
57 RD11
 Inout2mADRAMdata11
58 RD10
 Inout2mADRAMdata10
59 RD9
 Inout2mADRAMdata9
60 RD8
 Inout2mADRAMdata8
61 DQM1
 Inout2mAData mask 1
62 DVDD33
 Power3.3Vdigitalpower
63 RCLK

InOut
4mA,PDDramclock
64
RA11

InOut
2mA,PUDRAMaddressbit11
65 RA9

InOut
2mA,PUDRAMaddressbit9
66 RA8 
InOut
2mA,PUDRAMaddressbit8
67 RA7

InOut
2mA,PUDRAMaddressbit7
68 RA6

InOut
2mA,PUDRAMaddressbit6
69 RA5

InOut
2mA,PUDRAMaddressbit5
70 RA4

InOut
2mA,PUDRAMaddressbit4
71 RWE#

InOut
2mA,PUDRAMWriteenable,activelow
72 DVSS12
 DigitalgroundDigitalground
73 CAS#

InOut
2mA,PUDRAMcolumnaddressstrobe,activelow
74 RAS#

InOut
2mA,PUDRAMrowaddressstrobe,activelow
75 BA0

InOut
2mA,PUDRAMbankaddress0
76 BA1

InOut
2mA,PUDRAMbankaddress1
77 DVDD12
 Power
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
13
Pin#MainALTTYPEDescription
78 RA10

InOut
2mA,PUDRAMaddressbit10
79 RA0

InOut
2mA,PUDRAMaddressbit0
80 RA1

InOut
2mA,PUDRAMaddressbit1
81 RA2

InOut
2mA,PUDRAMaddressbit2
82 RA3

InOut
2mA,PUDRAMaddressbit3
83 DVDD33
 DigitalPower3.3Vdigitalpower
84 GPIO9

InOut
4mA,PD
1)MS_D0
2)SD_D0
3)I2S_MCLK
4)GPIO9
85 GPIO8

InOut
4mA,PD
1)MS_BS
2)SD_CMD
3)I2S_LRCK
4)PanelLR
5)RXD
6)GPIO8
86 GPIO7

InOut
4mA,PD
1)MS_CLK
2)SD_CLK
3)I2S_BCK
4)PanelUD
5)TXD
6)GPIO7
87 VSTU

InOut
4mA,PDTCONinterface
88 VCK

InOut
4mA,PDTCONinterface
89 VOE

InOut
4mA,PDTCONinterface
90 HOE

InOut
4mA,PDTCONinterface
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
14
Pin#MainALTTYPEDescription
91 HSTL

InOut
4mA,PDTCONinterface
92 HCK

InOut
4mA,PDTCONinterface
93 VB3

InOut
4mA,PD
1)Audiomute
2)I2SDOUT2
94 GPIO12

InOut
2mA,PD
1)PWMout1
2)GPIO12
95 GPIO10

InOut
4mA,PD
1)PWMout2
2)GPIO10
96
PWMIN GPIO30Analog
3.3Vonly
1)LEDbackfeedback
2)GPIO30
97 VCOM
GPIO13Analog
1)VCOMout
2)GPIO13
98 DACVDDC
 Power3.3VpowerpinforvideoDACcircuit
99 FS
 Analog
Fullscaleadjustment(suggesttouse560
ohm)
100 DACVSSC
 GroundGroundpinforvideoDACcircuitry
101 CVBS
 AnalogoutputAnalogCVBS
102 DACVDDB
 Power3.3VpowerpinforvideoDACcircuit
103 G
 AnalogpowerGreen
104 B
 AnalogpowerBlue
105 R
 AnalogpowerRed
106 AVIN_VSS
 GroundGroundpinforvideoADCcircuit
107 AVINN
 AnalogCVBSinN
108 AVINP
 AnalogCVBSinP
109 AVIN_VDD
 Power3.3VpowerpinforvideoADCcircuit
110 ADACVSS1
 GroundGroundpinfor2chaudioDACcircuitry
111 AR
GPIO0Analog
1)AudioDACRchannelout
2)GPIO0
112 AVCM
 AnalogAudioDACreferencevoltage
113 AL
GPIO1Analog1)AudioDACLchannelout
114 ADACVDD1
 Power3.3Vpowerpinfor2chaudioDAC
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
15
Pin#MainALTTYPEDescription
circuitry
115 ALIN_R
GPIO19Analog
1)AudioRchannelanaloginput
2)GPIO19
116 ALIN_L
GPIO21Analog
1)AudioLchannelanaloginput
2)GPIO21
117 AVDD12_1
 Power1.2Vanalogpower
118 AVSS12
 GroundAnalogground
119 RFIP
 AnalogInputACcoupledDVDRFsignalinputRFIP
120 RFIN
OPOUTAnalogInput
1)ACcoupledDVDRFsignalinputRFIN
2)GPI36
121 RFG
OPINPAnalogInputMain beam, RF AC input path
122 RFH
OPINNAnalogInputMain beam, RF AC input path
123 RFA
 AnalogInputRF main beam input A
124 RFB
 AnalogInputRF main beam input B
125 RFC
 AnalogInputRF main beam input C
126 RFD
 AnalogInputRF main beam input D
127 RFE
 AnalogInputRF main beam input E
128 RFF
 AnalogInputRF main beam input F
Note:
1. The Main column is the main function, Alt. means alternative function.
2. Dram pad and PRST#/GPIO6/GPIO30/Analog pad support 3.3v Only
MediaTek Confidential
For Vtrek Internal Use Only

Specifications are subject to change without notice
MEDIATEK CONFIDENTIAL, NO DISCLOSURE
16

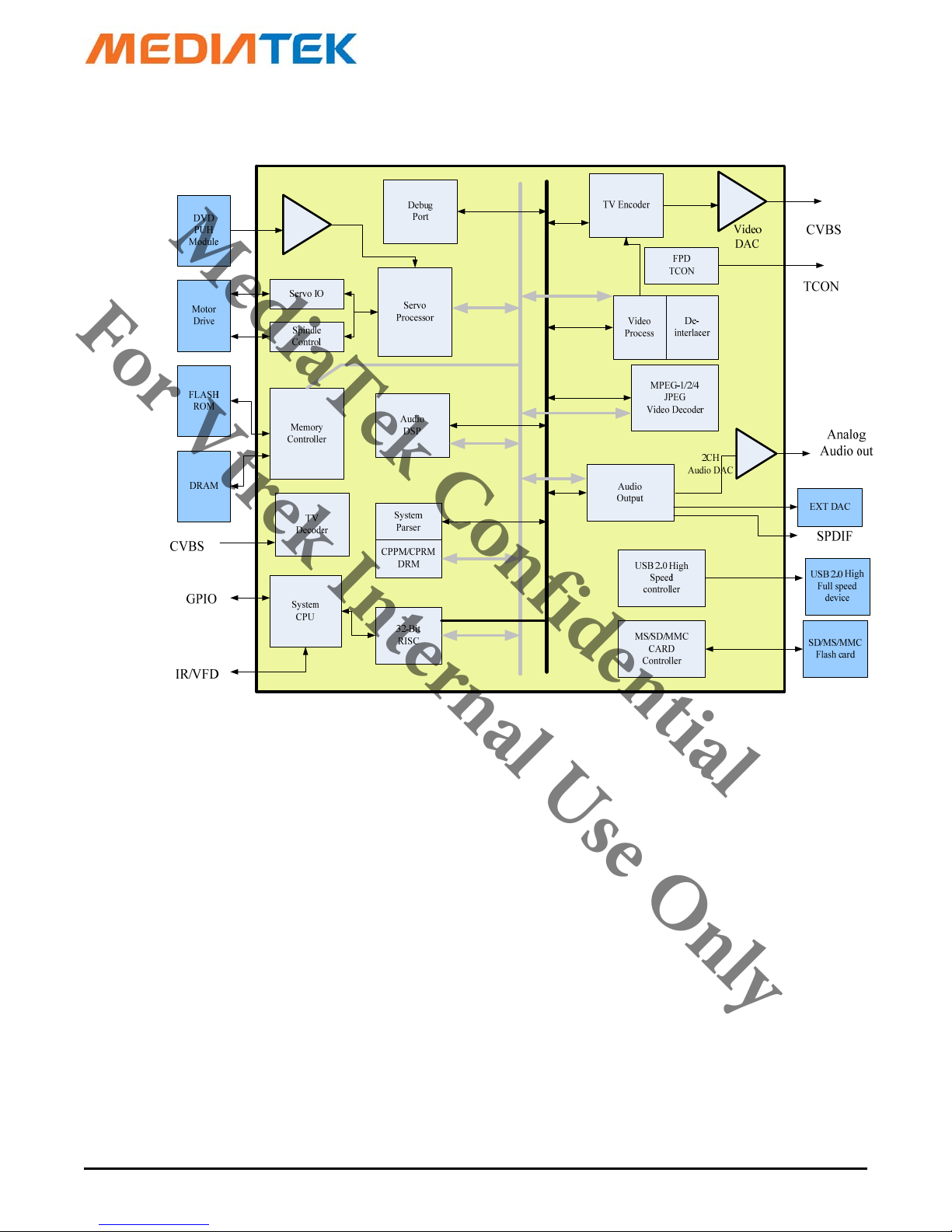

5-6 Functional Bloc
MediaTek Confidential
For Vtrek Internal Use Only
