BCP SKY5565 User manual

SKY5565 + SKY5566
Ver. 3
INSTRUCTION
MANUAL
5-Piece Kids Beginner
Drum Set

2|
HARDWARE
TOOLS REQUIRED
•Do not stand on or use any part of this product as a step ladder.
•Firmly secure all bolts, screws and knobs before use.
•Reconfirm that all bolts, screws, and knobs are secure every 90 days.
•Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
• Be aware that some parts are heavy and have sharp edges
•If any parts are missing, broken, damaged, or worn, stop using this item until repairs are made
and/or factory replacement parts are installed.
•Do not use this item in a way inconsistent with the manufacturer’s instructions as this could void
the product warranty.
NOTICE
DRUM KEY
(PROVIDED)
3 YEARS
OLD AND UP
3+
UP TO 1 HOUR
ASSEMBLY
1 PERSON
ASSEMBLY
PARTS
1 PC
BASS SHELL
A
2 PCS
BASS RIM
B
2 PCS
BASS SKIN
C
PHILLIPS
SCREWDRIVER
1
8 PCS
160MM TENSION
ROD
110MM TENSION
ROD
2
8 PCS
3
16 PCS
WASHER
4
8 PCS
CLAW HOOK

| 3
G
2 PCS
FLOOR TOM SKIN
PARTS
2 PCS
BASS LEG
D
1 PC
FLOOR TOM SHELL
E
1 PC
SMALL TOM
I
H
3 PCS
FLOOR TOM LEG
2 PCS
FLOOR TOM RIM
F
M
1 PC
SNARE
1 PC
LARGE TOM
J
1 PC
TOMS MOUNT
K
N
3 PCS
SNARE ARM
1 SET
CYMBAL
L
1 PC
SNARE BASE
O

4|
S
1 PC
SEAT
PARTS
1 SET
HI-HAT STAND
P
1 SET
HI-HAT CYMBALS
Q
1 SET
DRUMSTICKS
U
T
1 PC
SEAT LEGS
1 SET
PEDAL
R
PRODUCT ASSEMBLY
1Place two part G floor tom skins and two part F floor tom rims on the part E floor tom shell.
F
x2
G
x2
E

| 5
PRODUCT ASSEMBLY
2Attach the tom rims/skins with eight part 2 tension rods and eight part 3 washers.
3Insert three part H floor tom legs. Tighten the wingnuts to secure the legs.
H
x3
3x8
2x8

6 |
PRODUCT ASSEMBLY
4Place two part C bass skins and two part B bass rims on the part A bass shell.
5Attach the bass rims/skins with eight part 1 tension rods, eight part 3 washers, and eight part 4
claw hooks.
B
x2
C
x2
A
4x8
3x8
1x8

| 7
PRODUCT ASSEMBLY

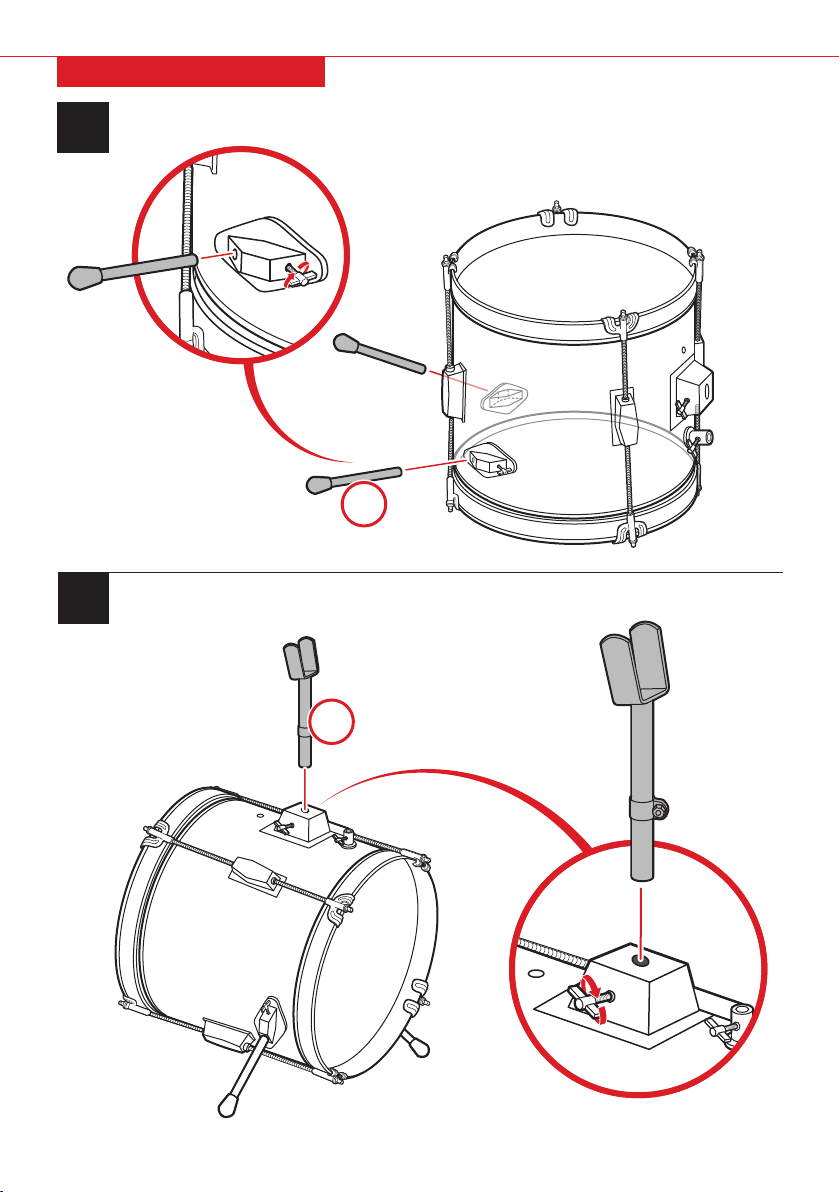

6Insert two part D bass legs into the bass drum. Tighten the wingnuts to secure the legs.
7Stand the bass drum up on its legs. Insert the part K toms mount and tighten the wingnut to
secure it.
D
x2
K

8|
PRODUCT ASSEMBLY

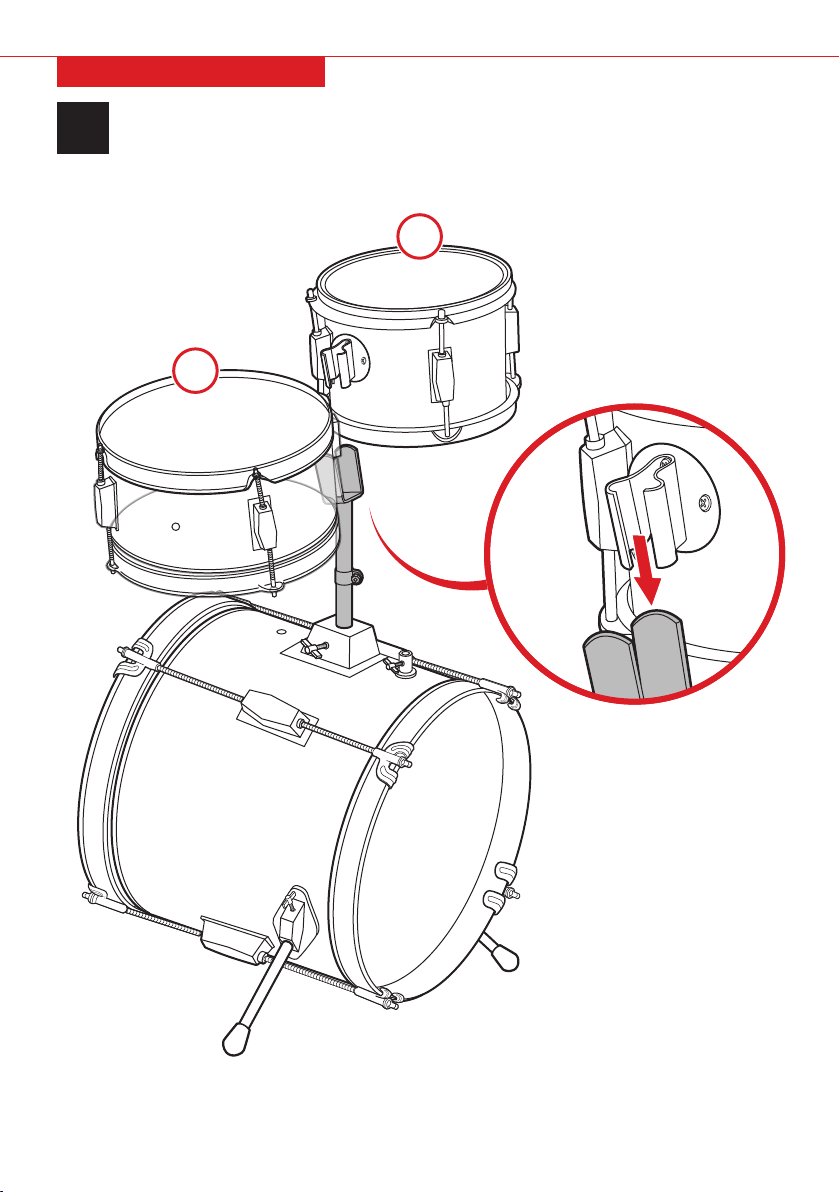

8Slide the part I small tom and part J large tom onto the toms mount.
J
I

| 9
PRODUCT ASSEMBLY

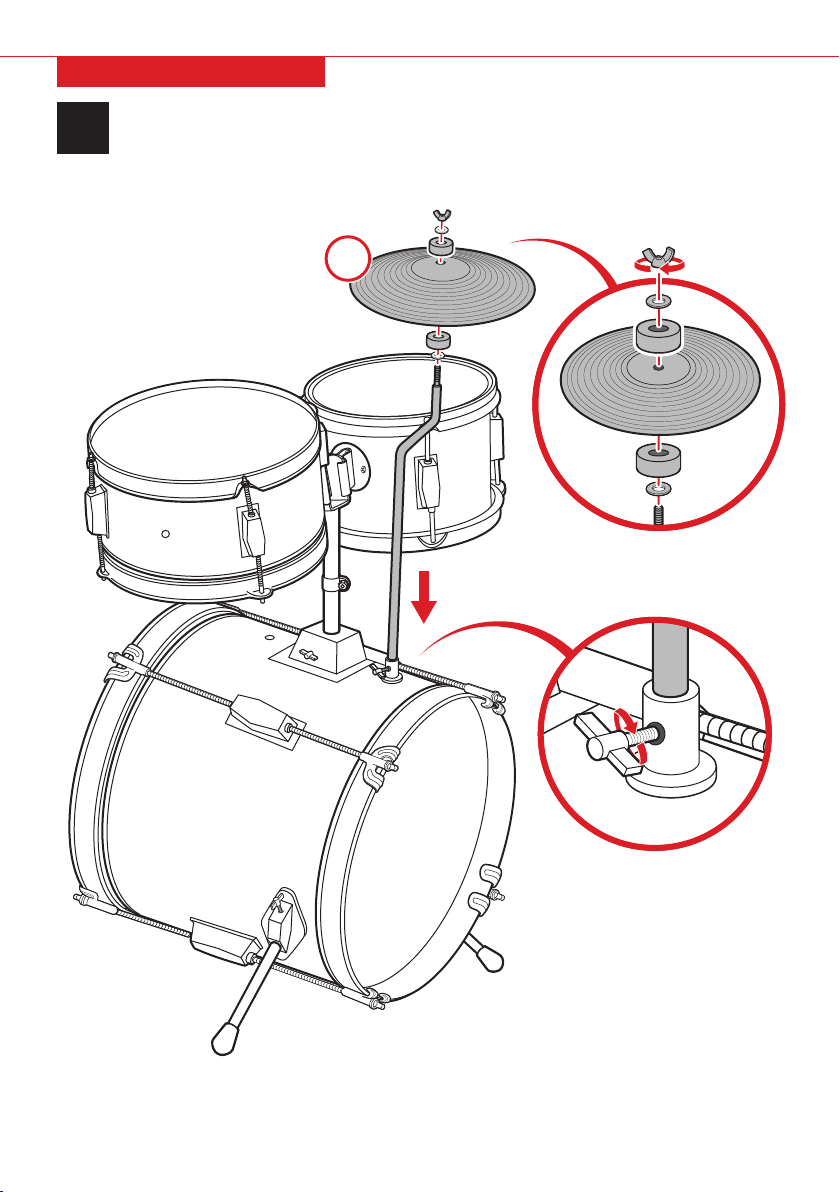

9Insert the stand from the part L cymbal set into the designated slot. Tighten the wingnut to
secure the stand.
Remove the wingnut, washer, and pad from the stand, place the cymbal, then replace the pad,
washer, and wingnut.
L

10 |
PRODUCT ASSEMBLY

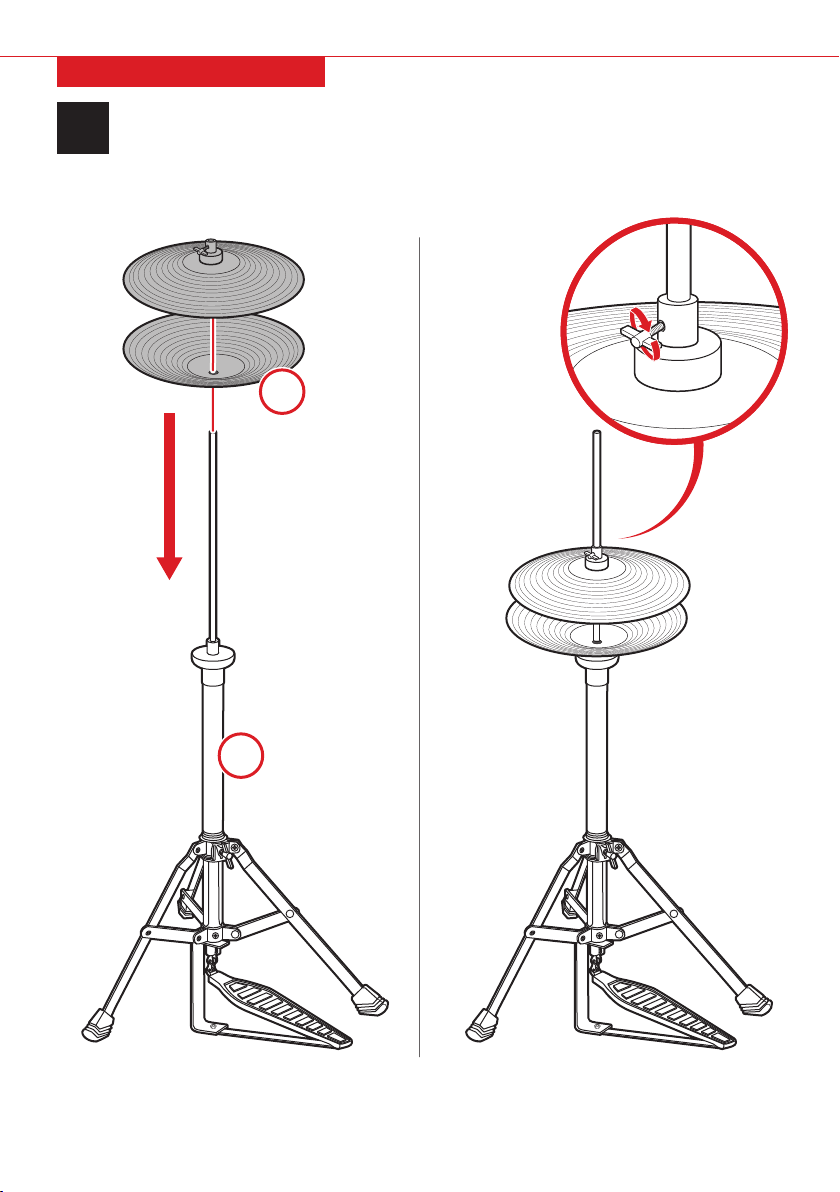

10 Slide the part Q hi-hat cymbals onto the part P hi-hat stand.
Adjust the upper hi-hat to your desired height, then tighten the wingnut to secure it.
Q
P
