BDI VERRA 5640 User manual
1
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to
your BDI products. Register today, and you will be entered to win
free a BINK table from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Verra Mobile Bar Cart is designed for indoor use on level
floors. Clean steel parts with a moist cloth and clean glass with
glass cleaner.
Verra is engineered for easy assembly. Carefully follow this
procedure to prevent any damage. Do not use power tools for
assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly
workspace should be a non-marring surface such as carpet.
For missing hardware pieces, contact BDI Customer Service at:
For all other concerns, please contact your BDI retailer.
Designed by Louis A Lara.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Verra & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in Taiwan & China. 2.22.2017 V2

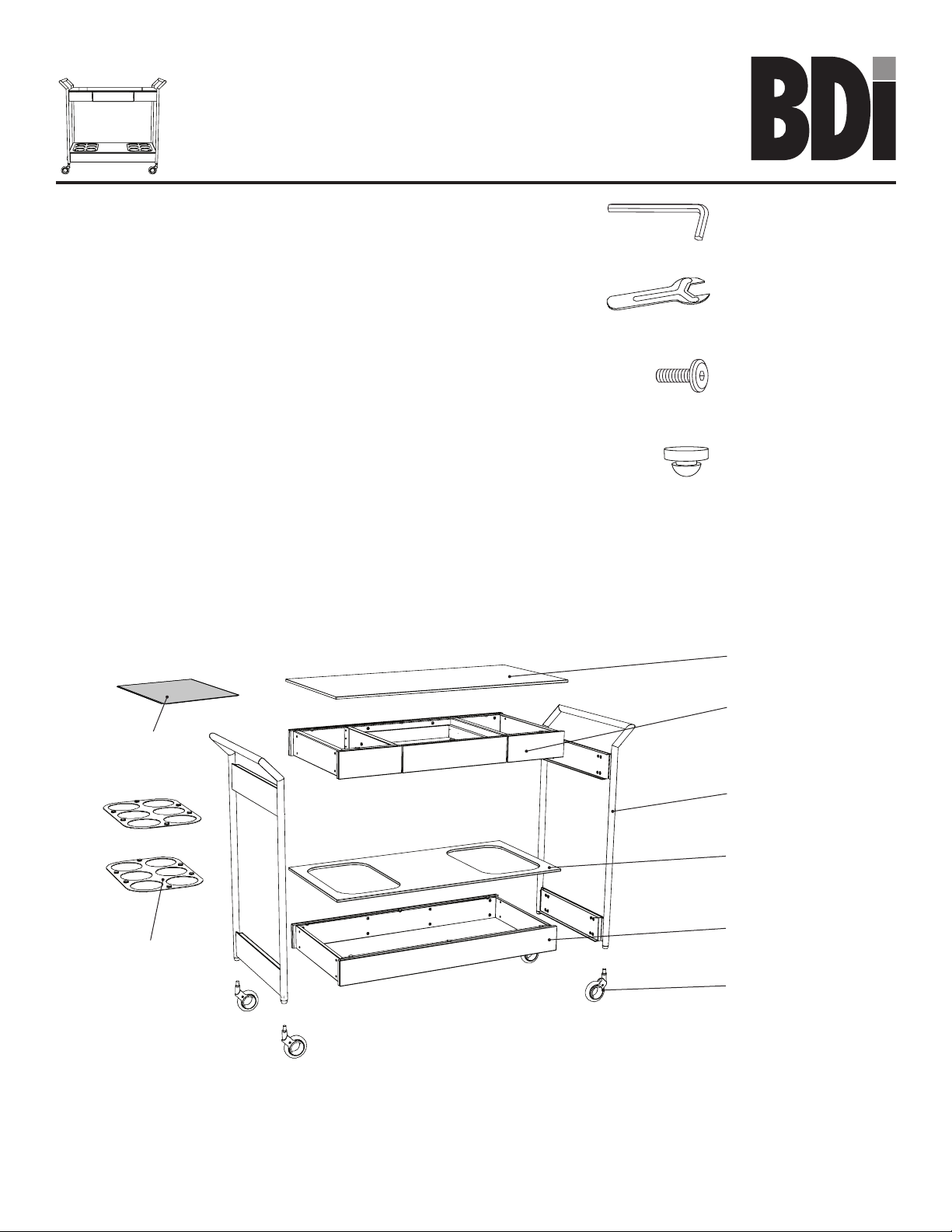

T1 Hex Wrench x 1
T2 Wheel Wrench x 1
A1 Lower Tray Frame x 1
A2 Upper Tray Frame x 1
C1 Lower Glass shelf x 1
C3 Wheel x 4
H1 1/4-20 x 16 mm
Machine Screw x 16
H2 Rubber Stem Bumper
x 12
A3 Leg Frame x 2
C2 Top Glass Shelf x 1
bdiusa.com
customerservic[email protected]om
VERRATM 5640
MOBILE BAR CART
A4 Bottle Spacer x 2
C4 Drawer Liner x 1
2
Step 2 - Insert bumpers onto Upper Tray
Insert 6 rubber stem bumpers H2 into the holes along the top edges of the upper tray frame A2.
Step 3 - Insert bumpers onto Lower Tray
Insert 6 rubber stem bumpers H2 into the holes along the top edges of the lower tray frame A1.
H2 x 6
H2 x 6
bdiusa.com
customerservic[email protected]om
VERRA 5640
MOBILE BAR CART
3
T1

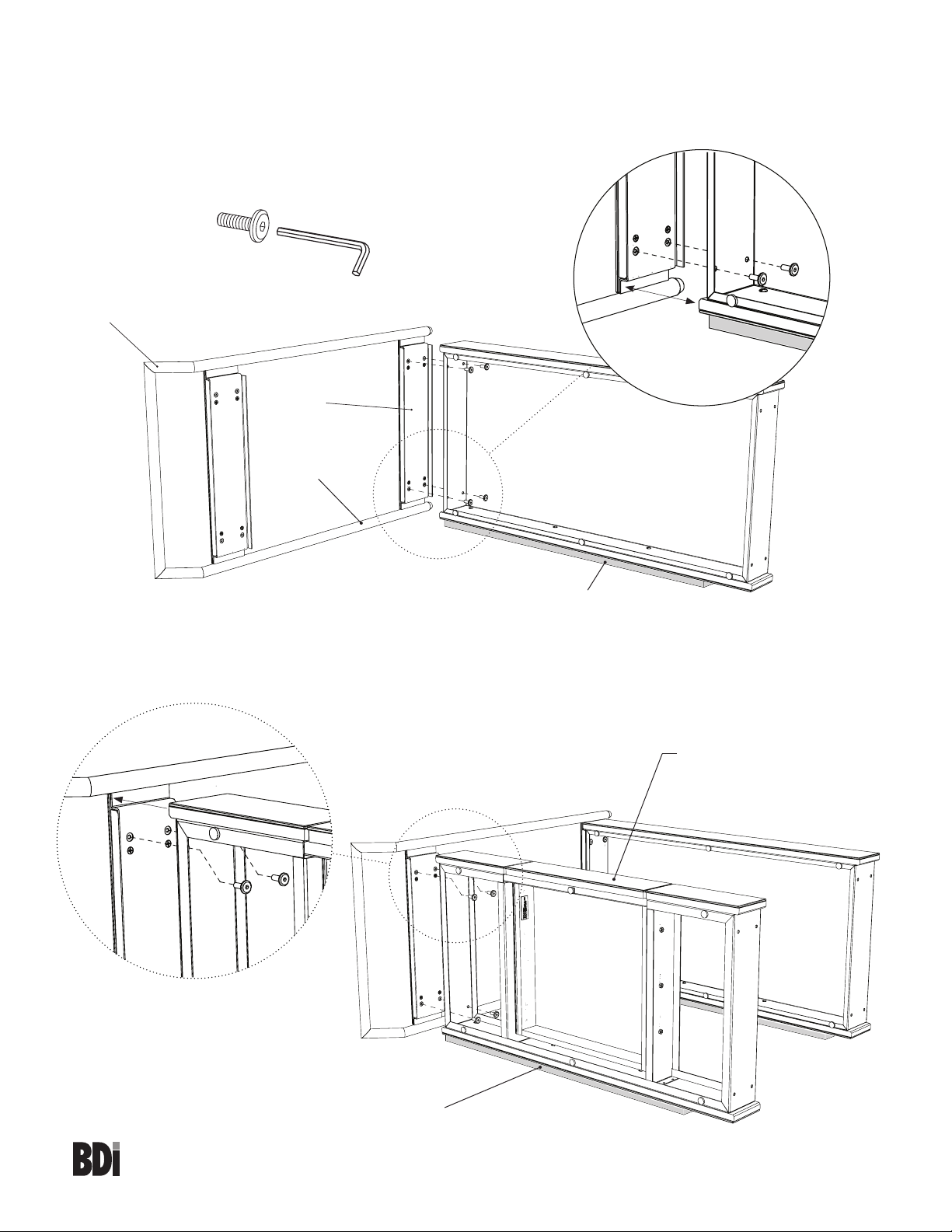

Step 4 - Attach Lower Tray Frame to Leg Frame
Position the lower tray Frame A1 on its long edge on a piece of packing material and with the open side
facing you. Orient 1 of the leg frames A3 as shown with handle facing as shown. Connect the lower tray
frame to the lower rail of the leg frame using 4 screws H1 and hex wrench T1.
Step 5 - Attach Upper Tray Frame to Leg Frame
Elevated with packing material, position the upper tray frame A2 on its long edge with the open side facing
you and the drawer front facing up. Lift the upper tray frame over the round tubing of the leg frame A3 to
mate the 2 parts together. Connect using 4 screws H1 and hex wrench T1.
H1 x 4
H1
Drawer front
H1
Elevate tray with
packing material
A1
A3
A1
A2
A3
Handle
Lower
Rail
Elevate tray with
packing material
bdiusa.com
customerservic[email protected]om
VERRA 5640
MOBILE BAR CART
4
Step 6 - Attach the second Leg Frame
Position the second leg frame A3 as shown. Lift the open end of the lower and upper tray frames to mate
with the leg frame. Connect the lower and upper tray frames to the second leg frame A3 using 8 screws
H1 and hex wrench T1.
Step 7 - Attach the Wheels
Connect the 4 wheels C3 to the bottom of the leg frames by screwing them in clockwise by hand and then
tightening all the way with wheel wrench T2.
T1
H1 x 8
C3 x 4
T2
T2
C3
C3
C3
C3
A1
A3
A2
H1
bdiusa.com
customerservic[email protected]om
VERRA 5640
MOBILE BAR CART
5
Step 8 - Stand upright and add glass shelves.
With help from another person, carefully stand the bar cart onto its wheels. With the frosted side facing up,
position the top glass shelf C2 on the top tray A2 and position lower glass shelf C1 on top of the lower
tray A1 by tilting it slightly to avoid scratching the metal leg frames. Center the glass.
Step 9 - Insert the bottle spacers
With bumpers facing down, insert the 2 bottle spacers A4 into the openings in lower glass shelf C1. Make
sure they are centered and registered properly. When properly positioned, the bottle spacers should sit
flat on top of the lower glass shelf.
C1
2 Person Ta sk
C2
A2
A1
ÆÆ
A4
A4
C1
Tilt to fit
bdiusa.com
customerservic[email protected]om
VERRA 5640
MOBILE BAR CART
6

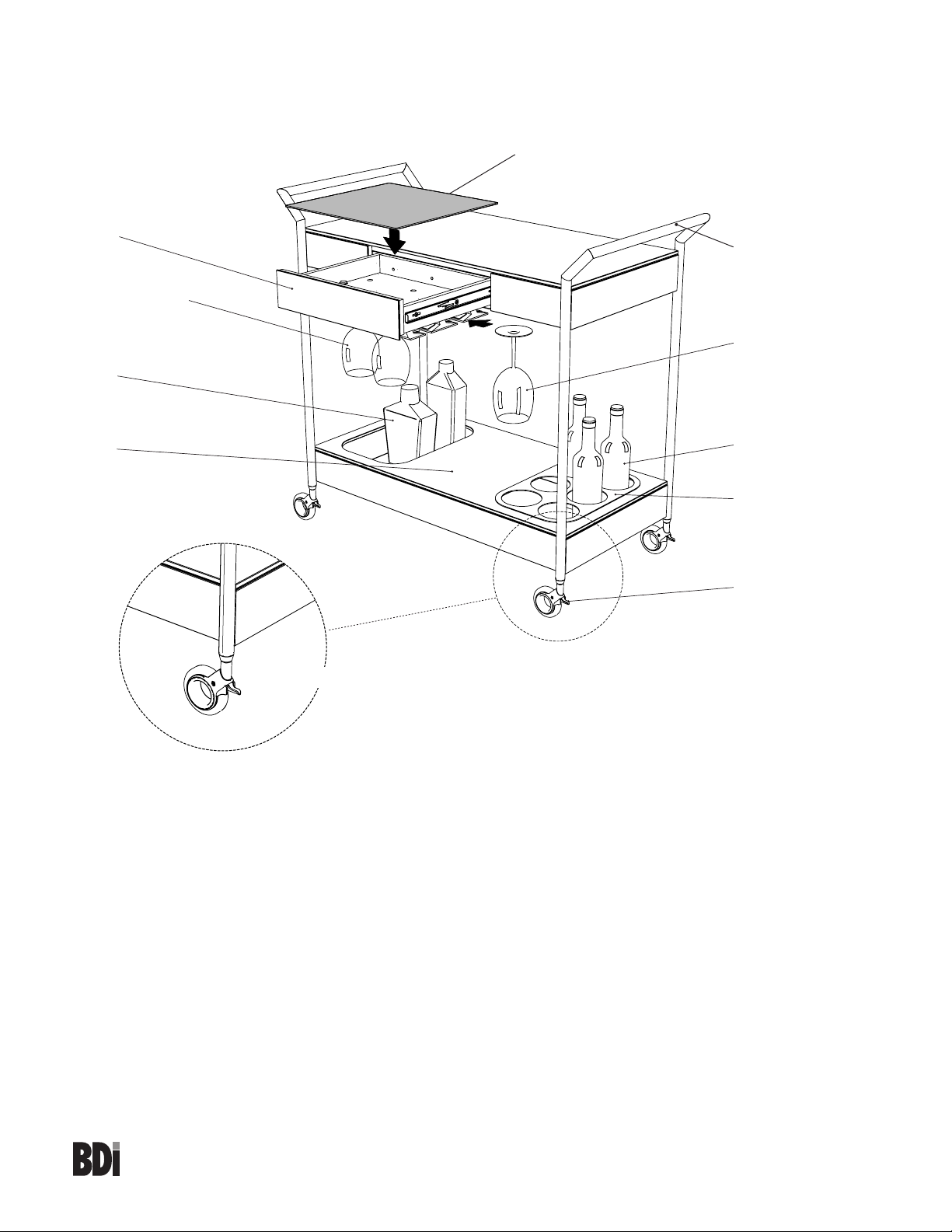

Step 10 - Insert the drawer liner and add bottles
Open the drawer and insert the drawer liner C4. Insert bottles into the round openings in the metal bottle
spacers on the lower shelf. Note: To accommodate larger bottles, or bottles of other shapes, a bottle spacer
may be removed.
C4 Drawer Liner
Wine/round bottles
Handle Bar
Stemware being
inserted into slot on
bottom of the drawer
Bottle spacer
Wheel lock tab
Bottle spacer removed
to fit bottles of other
shapes
Store unused bottle
spacer under glass in
center
Wine glasses in
slot under drawer
Drawer
Æ
Press down to lock
Step 11 - Lock the wheels / Insert stemware
The wheels on your Verra Mobile Bar Cart are lockable. To lock the wheel press the tab down till it "clicks".
To unlock the wheels, lift the tabs up.
Stemware may be hung upside-down on the bottom of the drawer. Open the drawer and insert the base of the
glass into one of the 3 slots accessed from the sides of the drawer. Your Verra Mobile Bar Cart is designed to
hold 9 average sized wine or martini glasses (3 per row). When the drawer is closed the stemware is locked in
place. To remove stemware, first open the drawer.
bdiusa.com
customerservic[email protected]om
VERRA 5640
MOBILE BAR CART
7
Caution / Guidelines
• CAUTION: When hanging stemware, make sure you are not overloading the slot with too many glasses.
Overloading the slots can cause stemware to fall out the back end of the slot.
• CAUTION: Do not tip the bar cart. Tipping the bar cart may cause the drawer to open or items to fall off.
• USE CAUTION when storing or retrieving items under the hanging stemware.
• USE CAUTION when rolling the bar cart over a threshold. It is recommended that two people guide the bar
cart over a threshold (1 at each end).
• The lower tray frame is NOT intended to be used to hold ice. It is NOT water tight.
• A 3rd-party ice bucket may be used with the bar cart, and may be stored in or on the lower tray frame.
• Locking the 4 wheels when the bar cart is not being moved is recommended.
• Enjoy, and entertain responsibly!
Step 12 - Remove protective film
Carefully remove the protective film from around the steel frames.
