BDI Vista 9950 User manual

1
Your Vista®Home Theater Furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Placement and Maintenance
Vista®Home Theater Furniture is designed for indoor use on level floors.
Clean glass with glass cleaner and steel parts with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components. Note that some components are
shipped inside the cabinet. The assembly workspace should be a non-
marring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at [email protected]. For all
other concerns, please contact your BDI Retailer.
Component List
Designed by Louis A. Lara
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws. “Vista” and BDI are trademarks of
Becker Designed, Inc. All Rights reserved. ©2010, BDI
Made in China. 99509960REV03102010v2
Vista®
9950a n d 9960
a s s e m b l y instructions
b d i u s a .c o m customerservice@b d i u s a .c o m
N - Shelf Brackets
2 Left + 2 Right with 9960
Large Hex Wrench x 1
I-5/16 x .75” Pan Head
Screw x 16
Screen Brackets x 4
O - Glass Shelf
x 2 with Model 9960
G -5/8” Long Phillips Head
Screw x 3
E - 3/8 x 1.25” Flat Head
Screw x 4
M - Nut x 4
L - Washer x 4
Q
R
Small Hex Wrench x 1
P - M8 x 1.5” Flat Head Screw
x 4 with 9960
S - Horizontal Mounting Bars x 2
HTL HTR
HBL HBR
T - Small Spacers x 4
U - Large Spacers x 4
Q - Wire Management Strap x 3
R - Plastic Fastening Pin x 3
V - Phillips Head Mounting Screws
(various thread sizes) x 32
FF - Front Panel x 1
FB - Back Cover Panel x 1
B - Adjustable Glides x 5
A - Base x 1
D - Spine x 1
FFFB

2
assembly instructions
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m 3
Step 5
Install glass shelves.
First, position Glass Shelf (O) so that discs are
resting on the ends of the Shelf Brackets (N).
Keeping one hand on the shelf, pick up one M8 x
1.5” Flat Head Socket Screw (P) and thread up
through the bottom of the cylinder into the hole
on the bottom of the glass mounting disc. Thread
second screw into second disc. Using Small Hex
Wrench, fully tighten both left and right discs.
Step 2
Attach Glides
Thread Adjustable Glides (B) into holes on underside
of Base (A) (Figure 1).
Step 3
Attach Spine
Attach Spine (D) to Base (A) using 4 - 3/8 x 1.25”
Flat Head Screws (E) and Large Hex Wrench
provided (Figure 1).
Figure 4
Step 5
Attach Shelf & Screen Brackets
Attach Shelf (N) & Screen Brackets (HTR, HTL,
HBR, HBL) as shown with 3/4” Pan Head Screws
(I) (Figure 3) using Large Hex Wrench. Slots on the
face of the screen brackets should face forward.
Screen brackets may need to be adjusted up or
down to align with horizontal bars.
O - Shelves
x 2
P x 4
Figure 3
I x 16
HTL
N - Shelf Brackets
2 Left & 2 Right
HBL
HTR
HBR
Figure 1
B - Adjustable
Glides x 5
E x 4
A - Base
D - Spine
Step 4
Attach Front Cover Panel
Install Front Cover Panel (F) to front of spine using
5/8” Long Phillips Head Screw (G) as shown (Figure
2). Bottom end of cover panel is attached with hook
and loop pads. Note: The front cover panel has a
flatter curve. Back panel has a notch at the bottom.
G x 1
FF - Front
Panel x 1
Figure 2
Note: Each shelf
will support up to
50 lbs (23 kg).

3
assembly instructions
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m
Step 9
Install Back Cover Panel
When all wires are in place and secured, install
Back Cover Panel (FB) using 2 remaining 5/8” long
Phillips Head Screws (G). Carefully, move Vista into
place by pulling and lifting on lower shelf bracket
elbows. Adjust glides if necessary.
Step 8
Install Wire Management Straps
Wire Management Straps (Q) attach to the
perforated metal panel inside the Vista spine simply
by pushing the Plastic Pin (R) into the hole in the
center of the strap and into one of the holes on
the panel (Figure 7). Wrap straps around cords as
shown (Figure 8). Straps may be relocated simply by
pulling out and pushing plastic pin into another hole.
Q - Wire Management
Strap x 3
Flat Screen TV
(back view)
Short Mounting
Screws (V)
Washers (L)
Threaded stud
Pre-threaded
Nut (M) to
upper UMB
bar.
Nut
(M)

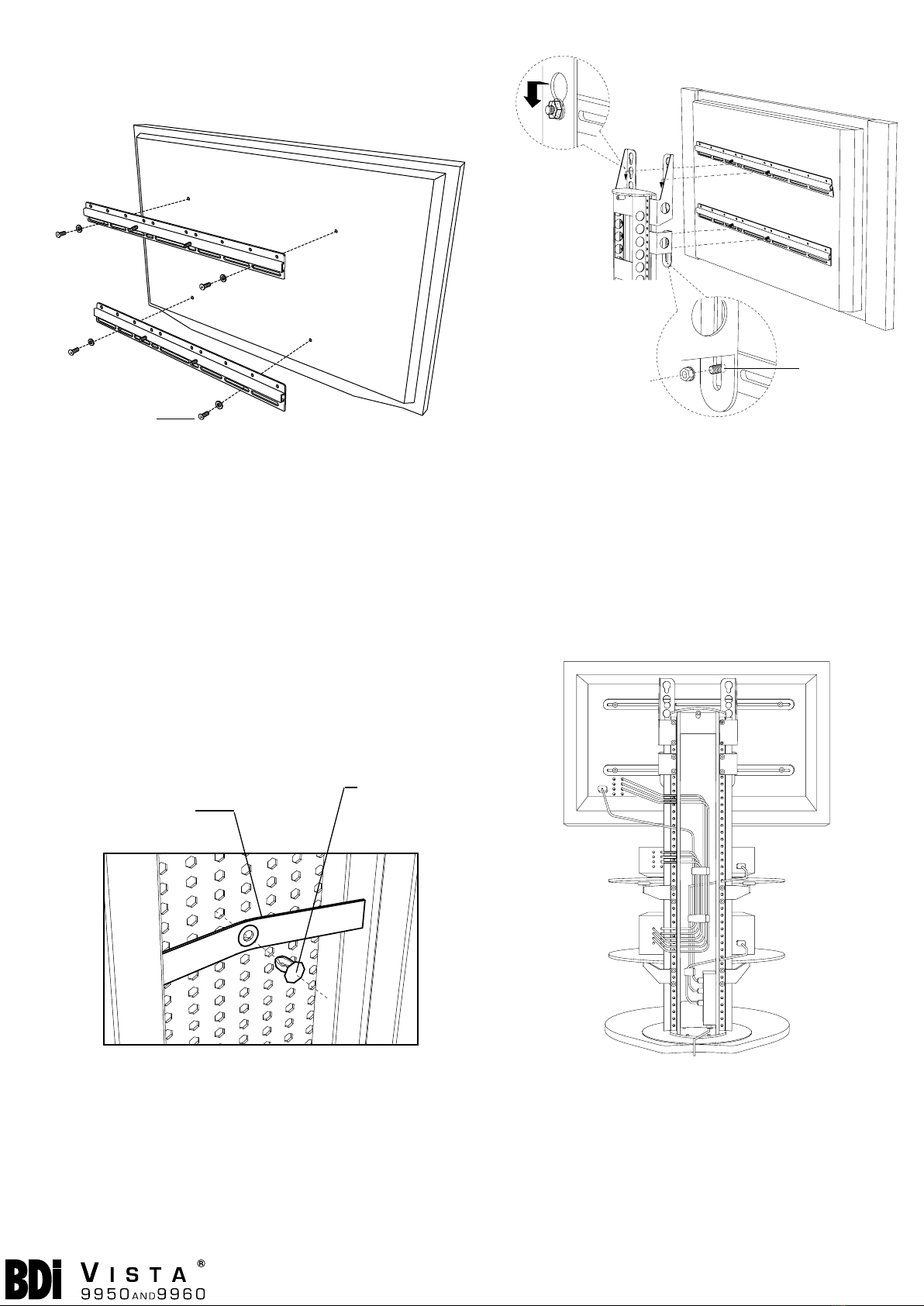

Step 6
Install Horizontal Mounting Bars
Find mounting screws that came with your flat
screen TV. If screws are not available, find the
Short Phillips Head Mounting Screws (V) provided
with Vista that thread cleanly into the mounting
holes in the back of your TV. The following thread
sizes are included: M5, M6, M8, 10-32 & 1/4-28.
Attach both Horizontal Mounting Bar (S) to TV as
shown (Figure 5) using Washers (L) and Phillips
driver. Note: If back of TV has a curved surface, or,
if bars do not sit flat, use Spacers (T or U) and Long
Mounting Screws (V) provided. Make sure bars are
centered left to right! Button hooks should be on top
and threaded studs on bottom. Fully tighten bars to
TV!
Figure 4
Figure 7
Figure 5 Step 7
Attach flat screen TV
Carefully “hook” TV onto screen brackets as shown
(Figure 6). Make sure both pre-threaded nuts drop
into key hole slot and that threaded studs go into slot
on Bottom Screen Brackets (HBL & HBR). Tighten
Nuts (M) using wrench. Note: Vista will support flat
screens up to 225lbs (102kg). Note: Vista is NOT
designed to support televsions greater than 6” in
depth.
Figure 6
R - Plastic Pin
x 3
