ICW SCACC18 User manual

If you have any questions, please call 1-800-558-4435
ICWUSA.com, Inc.
ICWUSA.com, Inc.
SCANNER BRACKET INSTALLATION
SCANNER BRACKET INSTALLATION - 12/4/19
Behind-the-monitor scanner bracket SCACC18
SCCO18CR2500, SCACCCPU1225
• Bracket bar lengths: 12”, 18”, 25”
• Scanner plates vary in size, shape and required fasteners
SCACCCPU1225 Two bracket arms can be
mounted on one VESA plate as shown above.
Bracket for mini-PC
Bracket for scanner
Align bracket
clamps with VESA
plate. Insert
provided screws
and tighten with
Phillips screwdriver.
To adjust location of bracket clamps
on bracket bar, loosen set screws
with 3/32” hex key, move bracket
clamps and retighten set screws.
Bracket arm for mounting mini-PC.
Mounts to VESA plate as shown above.
SCACC18 Bracket arm with
U-shaped scanner plate.
Mounts as shown above.
SCCO18CR2500

If you have any questions, please call 1-800-558-4435
ICWUSA.com, Inc.
ICWUSA.com, Inc.
SCANNER BRACKET INSTALLATION
SCANNER BRACKET INSTALLATION - 12/4/19
Behind-the-keyboard scanner bracket SCHO15X1902
• Bracket bar length: 15”
• Scanner plates vary in size, shape and required fasteners
ADJUST LOCATION OF BRACKET CLAMPS
• To adjust location of bracket clamps on bracket bar,
loosen set screws with 3/32” hex key, move bracket
clamps and retighten set screws.
set screws
ATTACH SCAN BRACKET TO KEYBOARD
• Align screw holes
in bracket clamps
with holes in
mounting plate.
Insert provided
10-24x1/2” fl athead
screws from above
the plate. Tighten
with 1/8” hex key.
ATTACH BRACKET MOUNTING PLATE
• Attach bracket
mounting plate
using provided
1/4-20x1” fl athead
screws. Tighten all
three screws with
5/32” hex key.
ATTACH KEYBOARD TO DROP MOUNT
• Align mounting
holes on the
keyboard with
those on keyboard
drop mount. Insert
middle screw only
and loosely tighten
with provided 5/32”
hex key.
Underside of
keyboard
underside of
keyboard

If you have any questions, please call 1-800-558-4435
ICWUSA.com, Inc.
ICWUSA.com, Inc.
SCANNER BRACKET INSTALLATION
SCANNER BRACKET INSTALLATION - 12/4/19

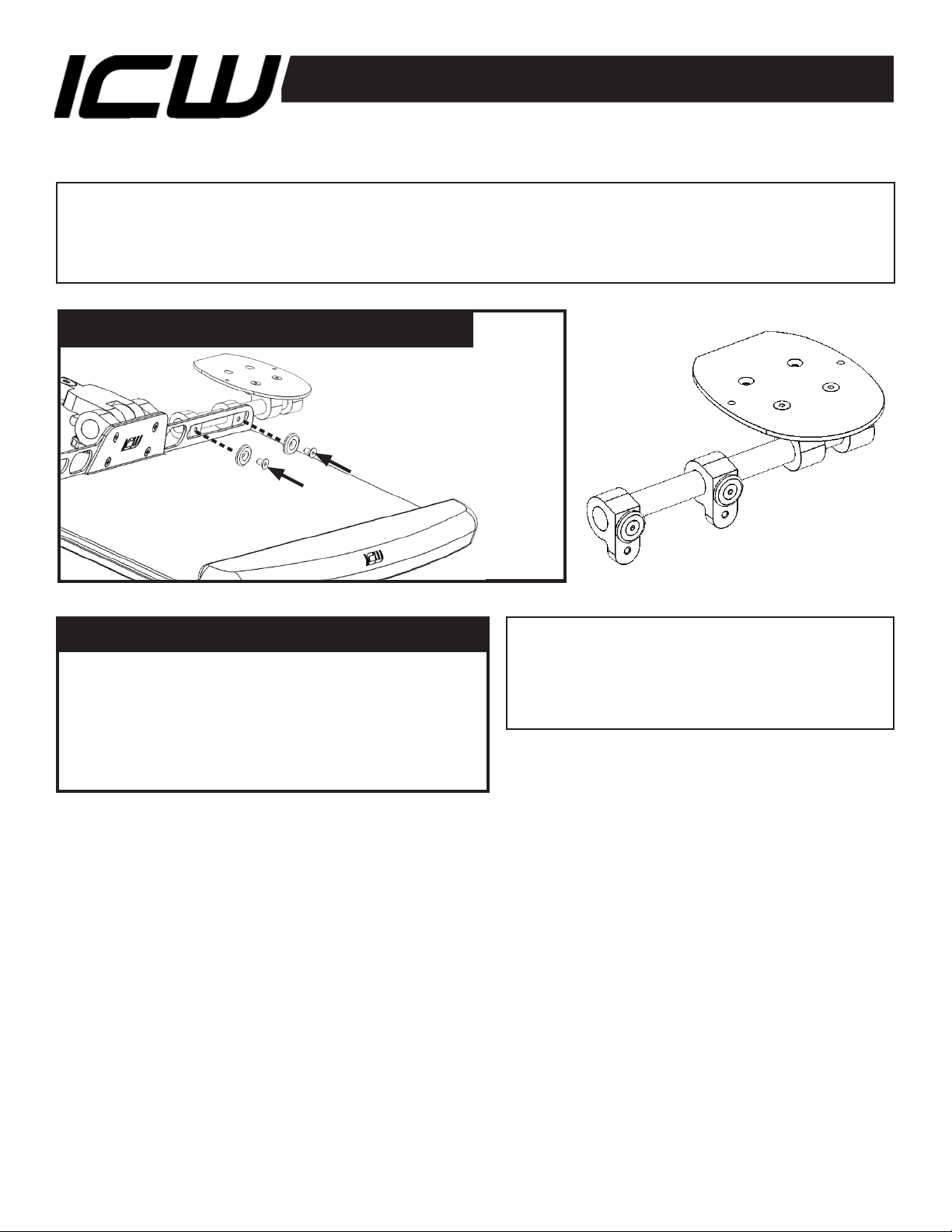

ATTACH BRACKET MOUNT TO KEYBOARD
Align mounting holes in
clamps with slot in keyboard.
Insert screws with Loctite
and tighten using provided
1/8” hex key.
Behind-the-keyboard scanner bracket SCHO8X1902
• Bracket bar length: 8”
• Scanner plates for Honeywell bracket plate
SCH08X1902
NOTICE: ICWUSA.COM, Inc. provides the appropriate hardware fasteners to
match the majority if not all standard monitors and devices. It is the responsibility
of the installer / integrator to ensure that the screws and fasteners have the
adequate thread engagement. The rule of thumb is that the thread depth is
greater than the diameter of the hole or 4 full turns of 360 degrees of thread
engagement. It is also the responsibility of the installer / integrator to ensure that
they do not damage the monitor or device by using a screw or fastener that is too
long for hole and therefore damaging the unit by inserting too far.
When cleaning your ICW mounting unit please follow the points below. Proper
cleaning of the mounting device will help assure proper function and extend the
life of the unit.
1. Any general cleaner is acceptable except degreasers are not recommended near
the bearing entrances.
2. Spray cleaner or water on a soft cloth or paper towel and then wipe down
the mounts.
3. Do not spray directly at the bearing seams (located at all swivel points) as this could
reduce the life of the bearings.
CLEANING OF THE ICW MOUNTING DEVICE
