Secura QLF210 User manual

QLF 210 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!

2

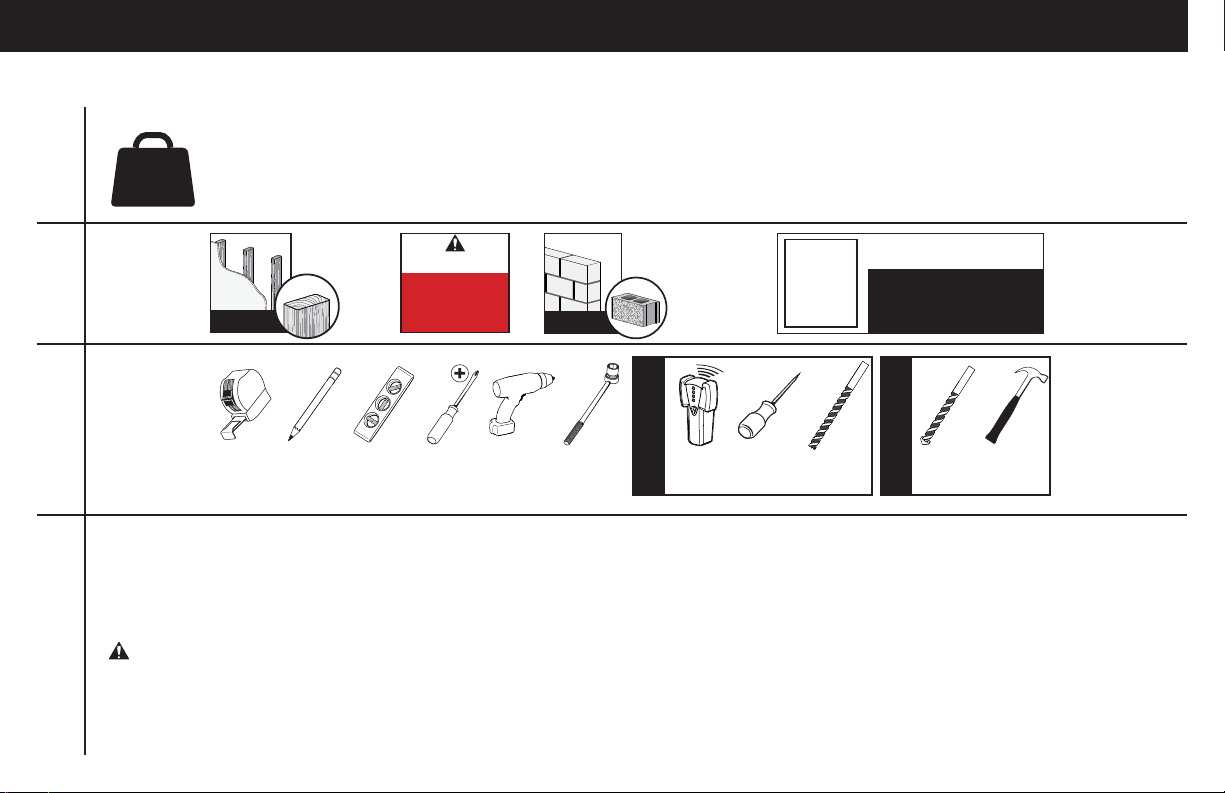

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
1 Does your TV weigh more than 110 lbs. (49.8 kg) including accessories?
No — Perfect!
Yes — This mount is NOT compatible. Visit secura-av.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
2 What is
your wall
made of?
3 Do you
have all
the tools
needed?
4 Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV owner’s manual to
see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer
Service at 1-800-359-5520 (UK: 0800-056-2853).
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
110 lbs.
(49.8 kg)
Solid concrete
or concrete
block?
Perfect!
Drywall with
wood studs?
Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Call Customer Service:
1-800-339-5520
(UK: 0800-056-2853)
?
Wood Stud Install
Concrete Install
Tape
Measure Pencil Level Screw driver
Electric
Drill
Socket
Wrench
Stud
Finder Awl Wood Drill Bit
Masonry
Drill Bit Hammer
3/8 in.
(10 mm)
1/2 in.
(13 mm) 7/32 in.
(5.5 mm)
Before getting started, let’s make sure this mount is perfect for you!

3
Dimensions in. [mm]
TV INTERFACE
WALL PLATE
TV INTERFACE - OPTION 2
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
610mm
24.02in
400mm
15.75in
265mm
10.43in
200mm
7.87in
80mm
3.15in
9mm
.35in
145mm
5.71in
200mm
7.87in
200mm
7.87in
100mm
3.94in
ESTIMATED 55"
25deg 25deg
185mm
7.28in
269.5mm
10.61in
5deg
15deg
84.5mm
3.33in
NOTE: TV shifts 7.28 in. (18.5 cm) to the right
or left when in the home position. Consider this
when selecting the location of your wall mount.

4
M6 x 12mm M6 x 35mm
M8 x 16mm M8 x 35mm
M8 x 20mm
M8 x 14mm M6 / M8 22mm
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!

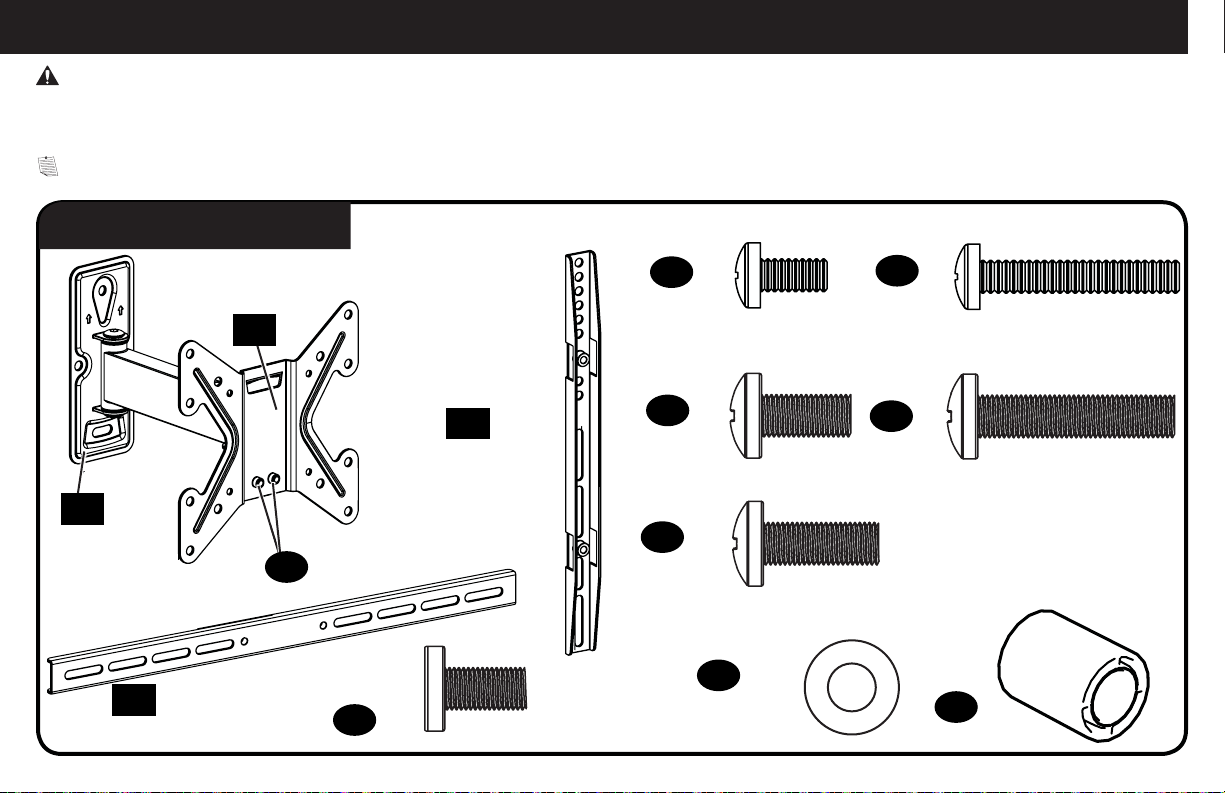

Supplied Parts and Hardware
STEP 1 Parts and Hardware
Horizontal TV
Bracket
TV Plate
Wall Plate
Vertical TV
Bracket
TV Screws
Washers
Spacers
Screws (TV Plate)
TV Bracket
Screws
11 x4
08 x4
07 x4
06 x8
10 x4
09 x4
12 x4
13 x4
04 x2
05 x2
W
W
W
W
W
W
W
02 x1
01 x1
03 x2

5
Adjustments
.695 x .350 x.075 in.
5/16 x 2¾ in.

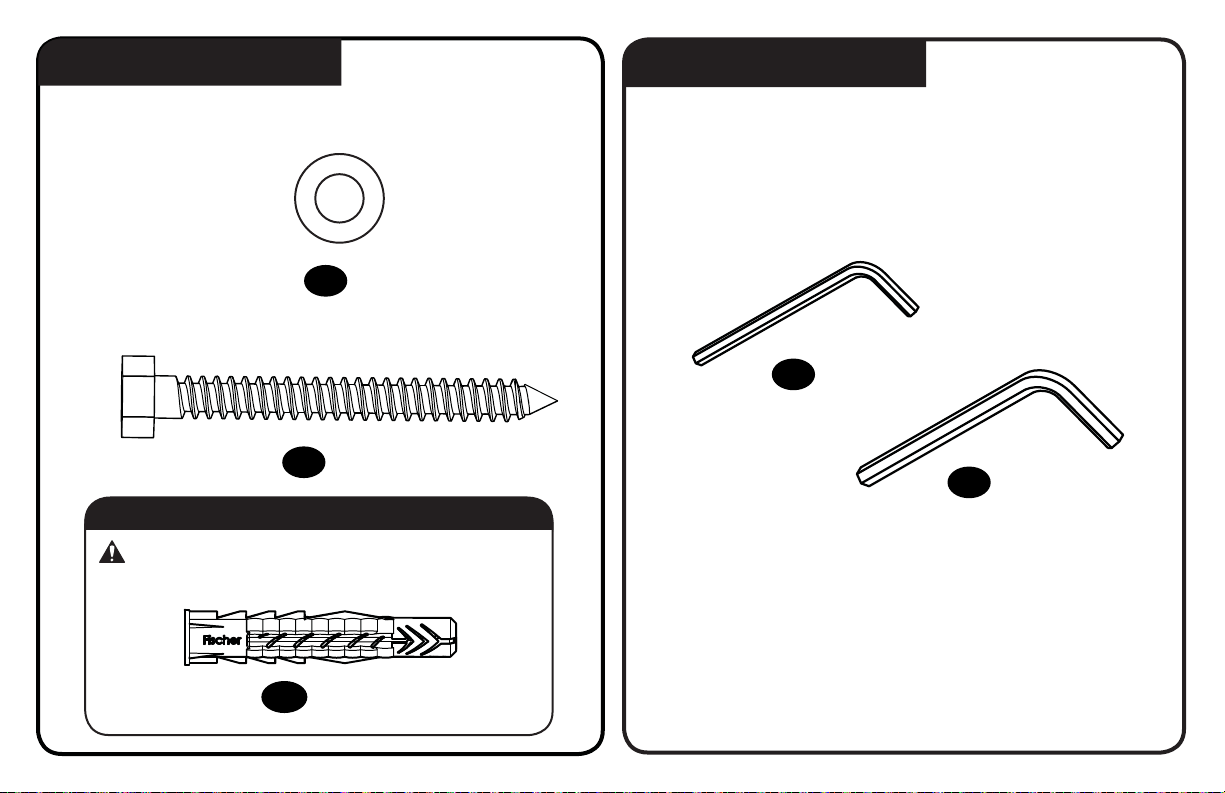

STEP 2 Parts and Hardware
4mm
5mm
Hex Keys
Lag Bolts
Lag Bolt Washers
15 x3
14 x3
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
16 x3
Anchors (Concrete) Ux10x60R
17 x1
18 x1

6

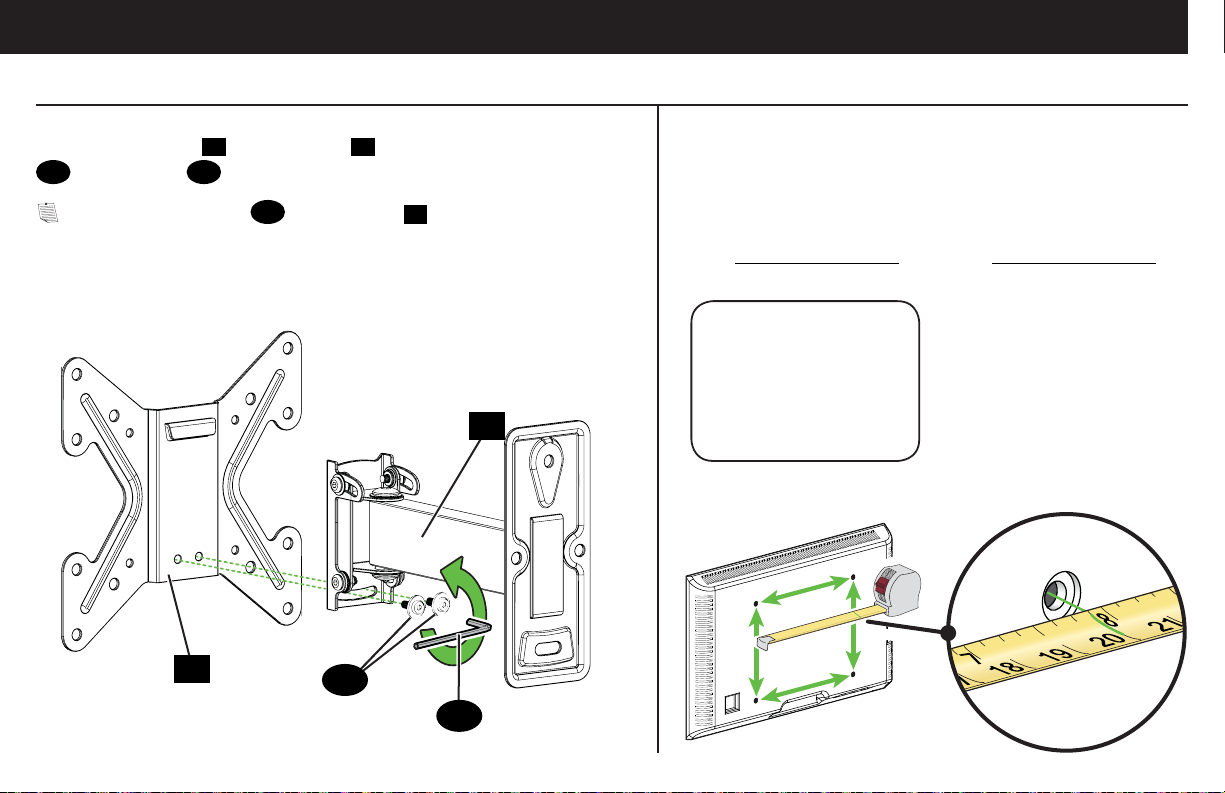

STEP 1 Attach TV Bracket to TV
1.2 Measure Your TV Hole (VESA) Pattern1.1 Prepare the TV Plate
Measure the width and height of your TV hole (VESA) pattern in mm.
Record your measurements:
Separate TV bracket 01 from wall plate 02 by removing the two screws
03 using hex key 17 .
NOTE: Save the screws 03 and wall plate 02 for later installation.
cm
inches
xHeight
Width mm mm
inch dimensions are approximate
75 mm = 7.5 cm ≈ 3 in.
100 mm = 10 cm ≈ 4 in.
200 mm = 20 cm ≈ 7 7/8 in.
300 mm = 30 cm ≈ 11 3/4 in.
400 mm = 40 cm ≈ 15 3/4 in.
600 mm = 60 cm ≈ 23 5/8 in.
01 03
02
17

7

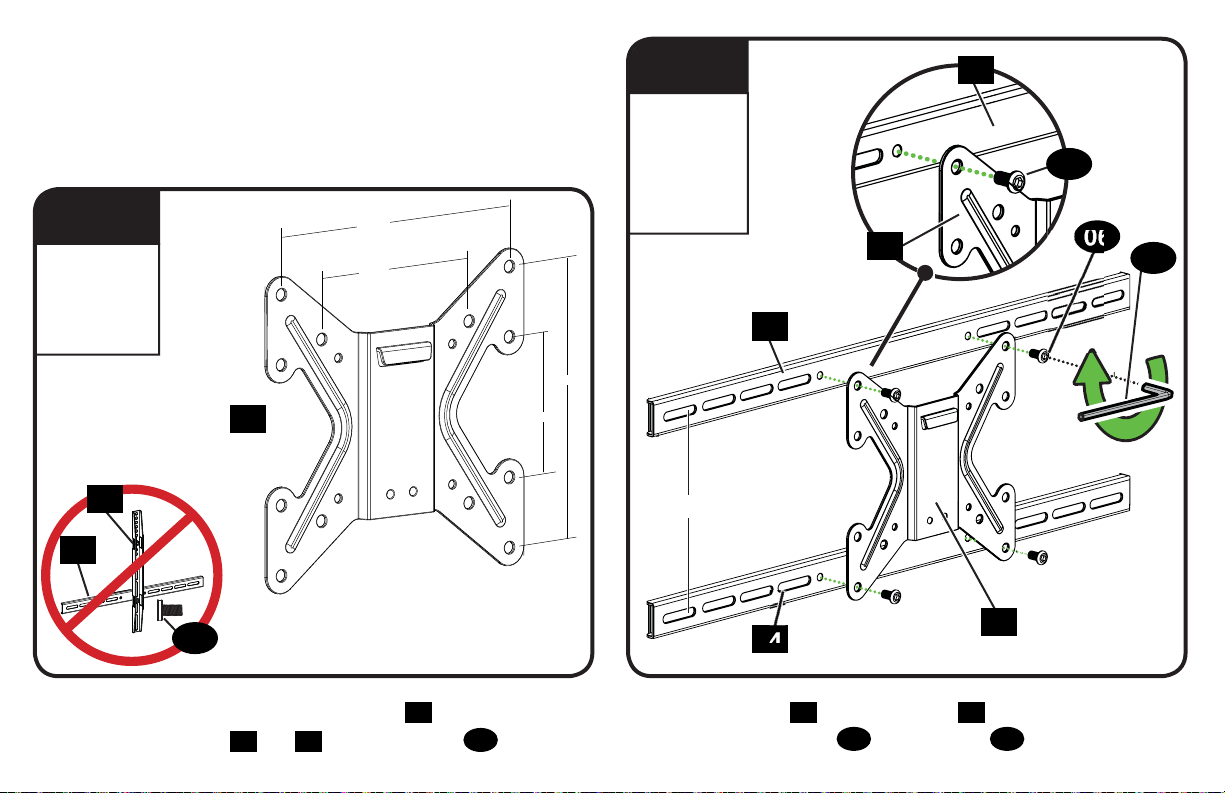

B
A
These smaller hole patterns only use TV plate 01 .
Do not use TV brackets 04 and 05 , and four screws 06 .
Assemble TV plate 01 onto TV brackets 04 as illustrated.
Secure with four screws 06 , using hex key 18 as shown.
100 x 100
200 x 200
300 x 400
400 x 400
600 x 400
01
100
100
200
200
200
1.3 Assemble Your TV Bracket
Determine which TV bracket configuration to use, A or B based
on your TV hole (VESA) pattern measurements.
Dimensions in mm
Dimensions in mm
TV Hole (VESA)
Pattern (in mm)
TV Hole (VESA)
Pattern (in mm)
04
05
06
04
06
06 18
01
04
04 01
200

8
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-800-359-5520.
M6
M8

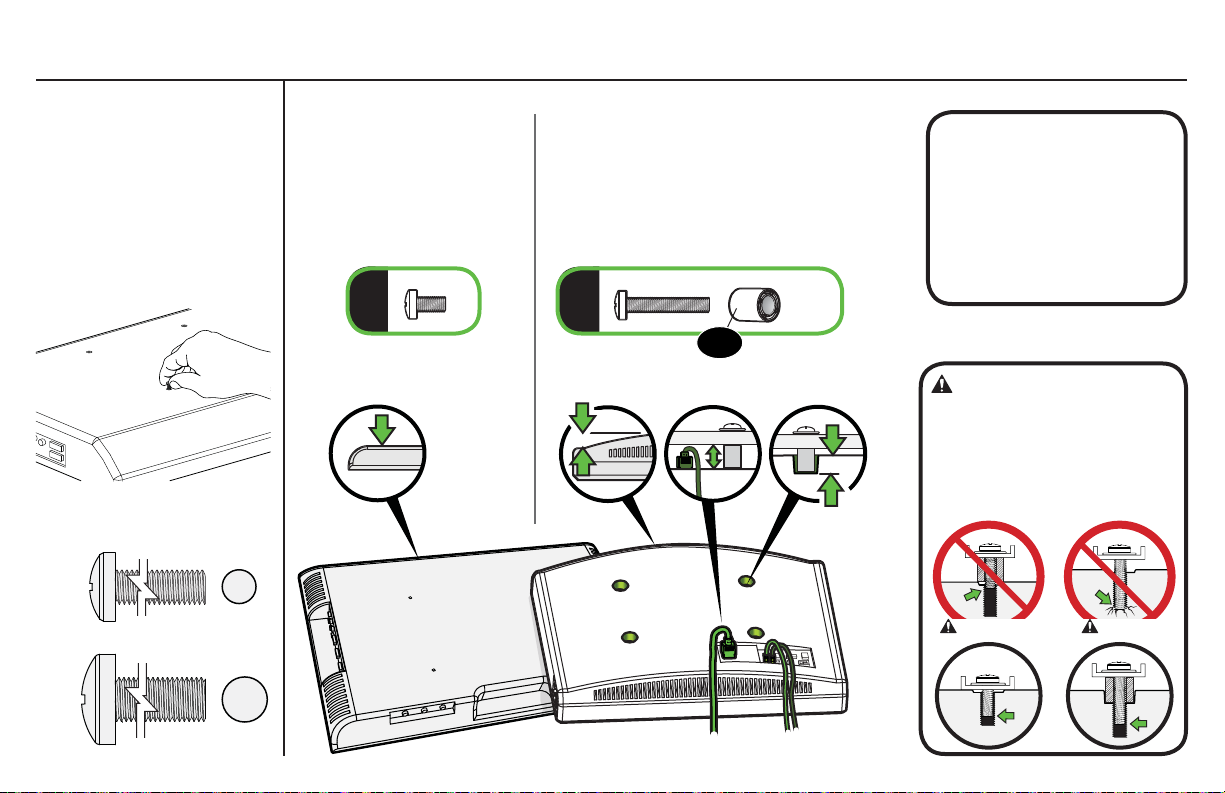

1.4 Screw Diameter 1.5 Determine Spacers and Screw Length
a:Use no spacers for:
Flat back TVs (AND TV
closer to the wall).
ab
CAUTION: Verify adequate
thread engagement with your
screw/washer/spacer combination
AND TV bracket.(STEP 1.3)
-Too short will not hold the TV.
-Too long will damage the TV.
13
Too Short Too Long
Correct
b:Spacers supplied for:
●Round (irregular) back TVs
●Extra space needed (for cables
or inset mounting holes)
FLAT BACK ROUND BACK CABLES INSET HOLES
Hand thread screws into
the threaded inserts on the
back of your TV to determine
which screw diameter (M6,
or M8) to use.

9

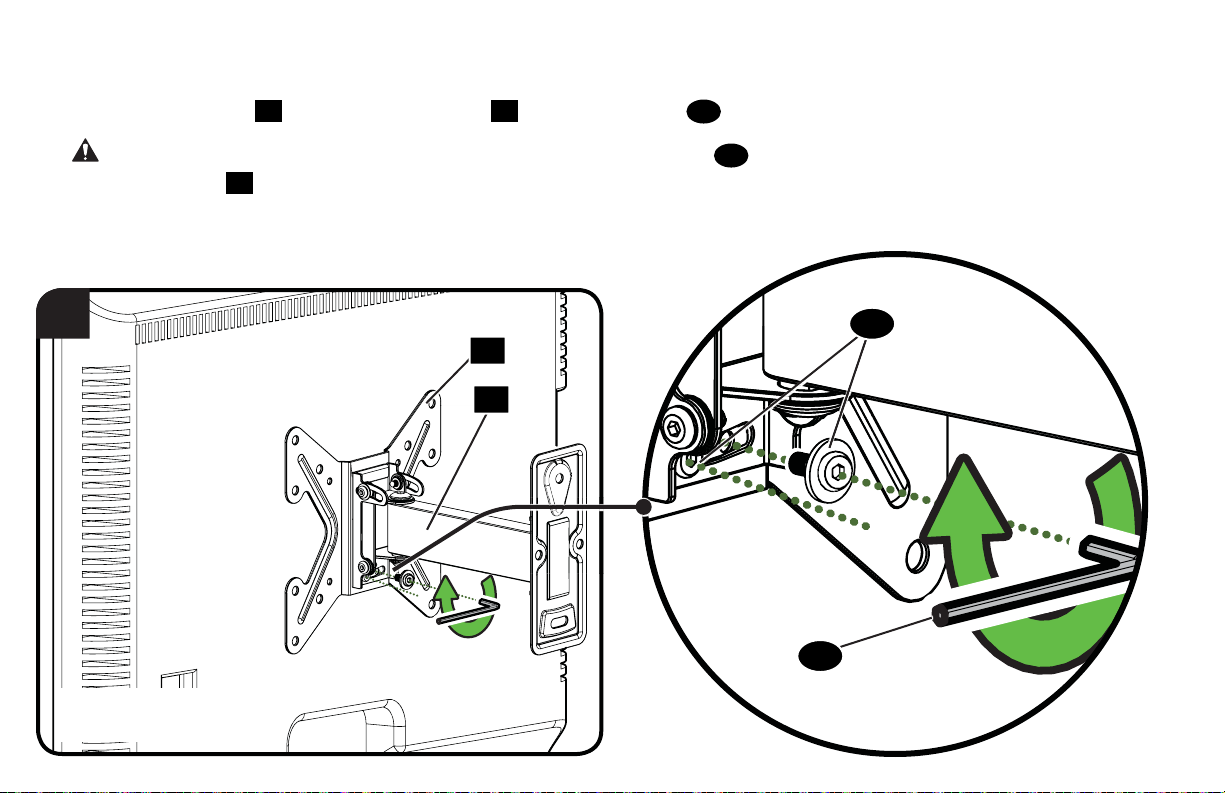

1.6 Attach TV Bracket to TV *
01
Position TV plate 01 over your TV hole pattern and secure using your selection: (a) screw/washer or (b) screw/washer/spacer.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only
enough to secure the TV bracket to the TV. DO NOT overtighten the screws.
For TV Hole
(VESA) Patterns
07 08 09
12
13
10 11
12
aFlat Back
bIrregular Back / Extra Space
0101
100 x 100
200 x 200
*

10

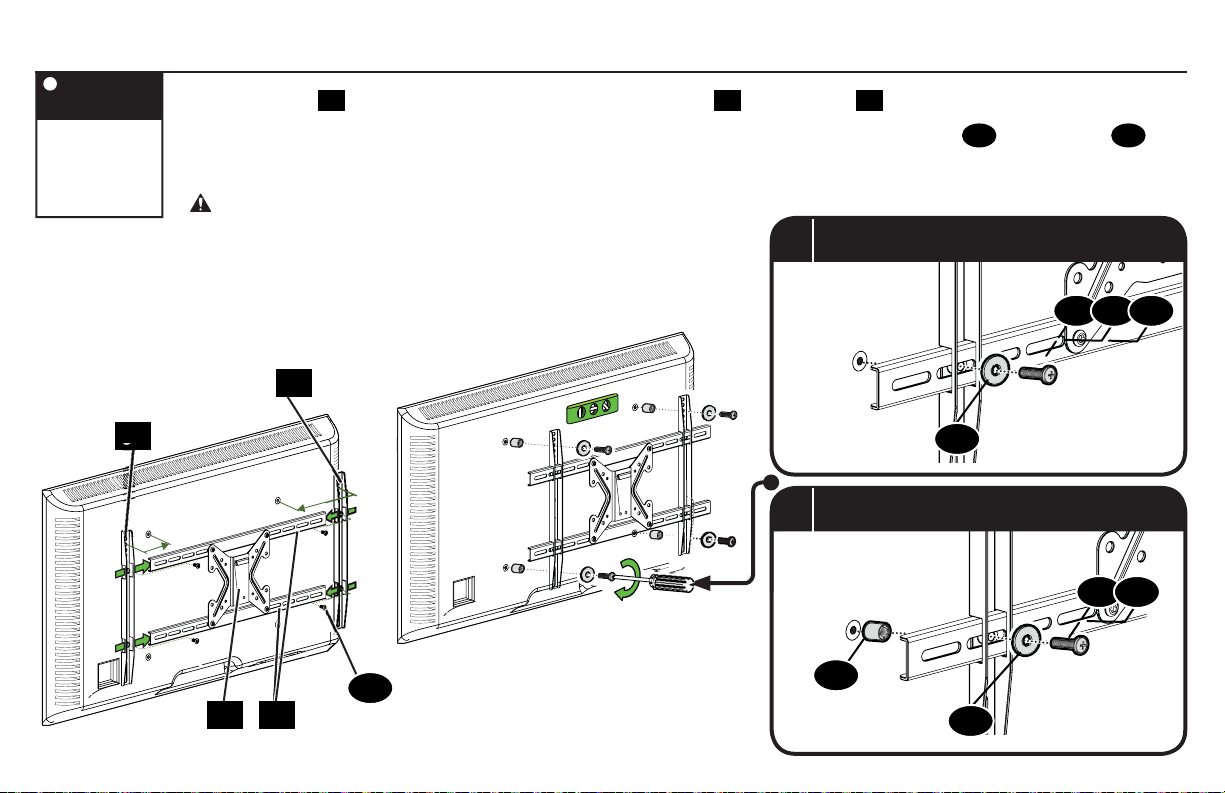

1.6 Attach TV Bracket to TV *
07 08 09
12
13
10 11
12
Slide TV brackets 05 onto the ends of the TV bracket assembly (TV plate 01 and TV bracket 04 ) as shown.
Center all pieces horizontally and vertically over your TV hole pattern and secure together using four screws 06 using hex key 18 .
Secure the entire assembly to your TV using your selection: (a) screw/washer or (b) screw/washer/spacer.
CAUTION: Avoid potential personal injuries and property damage!
DO NOT use power tools for this step. Tighten the screws only enough to
secure the TV bracket to the TV. DO NOT overtighten the screws. aFlat Back
bIrregular Back / Extra Space
05
05
01 04
06
For TV Hole
(VESA) Patterns
300 x 400
400 x 400
600 x 400
*

11
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
●Stud center must be verified

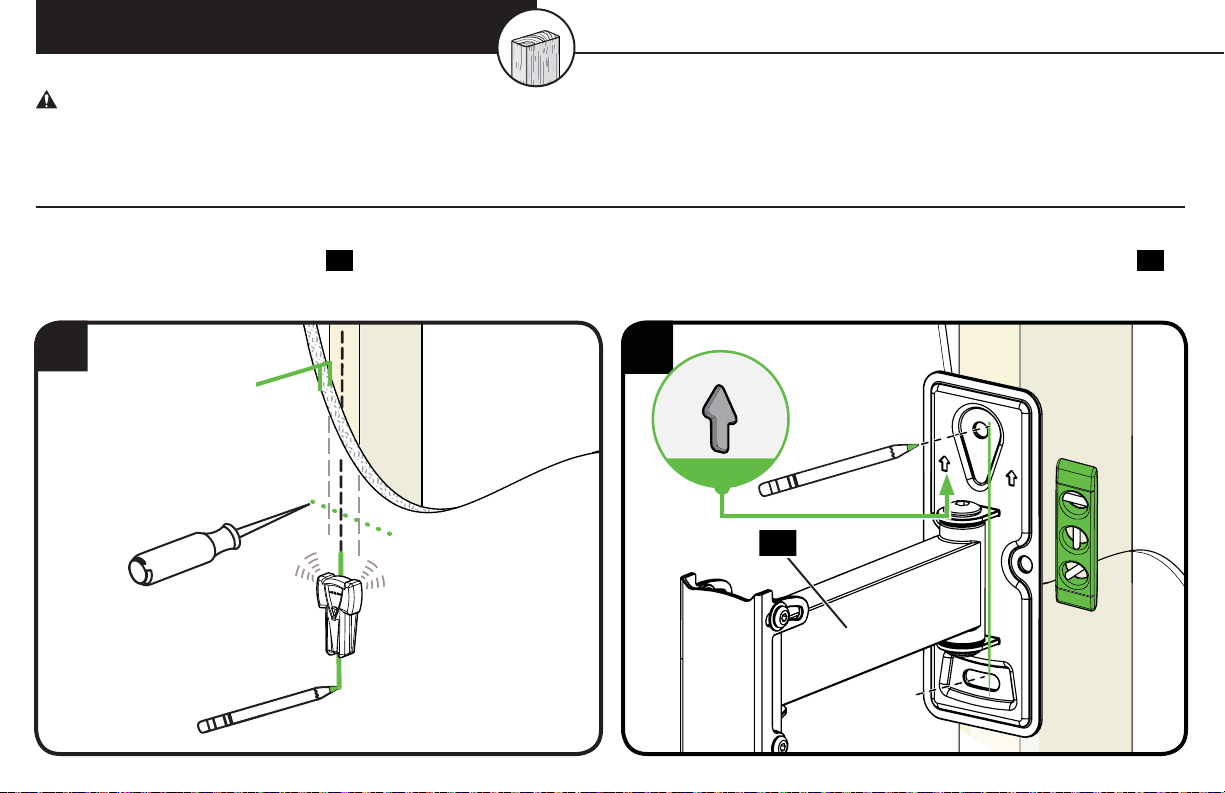

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate assembly 02 at your desired height and line up the holes with your stud center line. Level the wall plate assembly 02
and mark the top and bottom hole locations.
2
≤ 5/8 in.
(16 mm)
1
STEP 2A Attach Wall Plate Wood Stud Installation
02
UP ARROW

12
3. Drill the two pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm). Be sure you mark and drill into the center of the stud.
4. Install wall plate assembly 02 using two lag bolts 15 and two washers 14 Tighten lag bolts 15 only until the washers 14 are pulled
firmly against the wall plate assembly 02 .
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate 02 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
3 4
2 ¾ in. (70 mm)
7/32 in.
(5.5 mm)
UP ARROW
02
14
15

13
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate assembly 02 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)

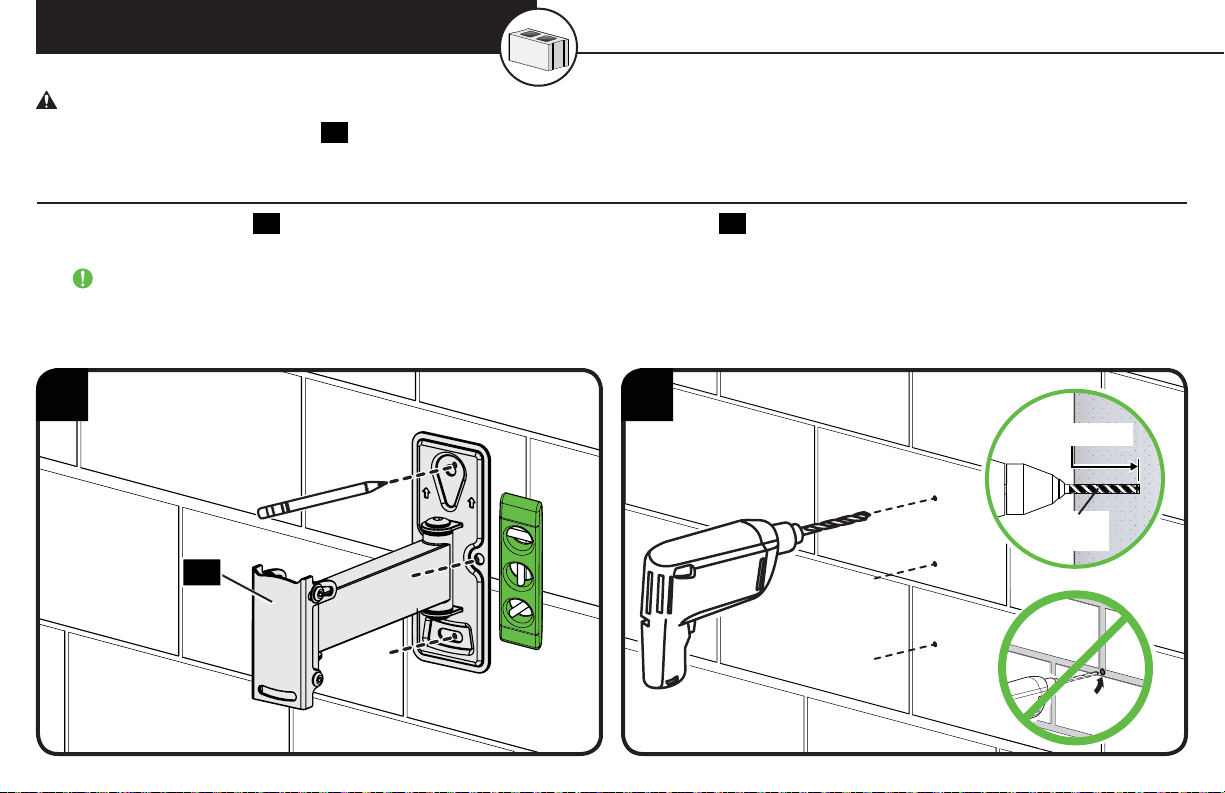

1. Position the wall plate 02 on the wall at your desired height. Level the wall plate 02 and mark the hole locations.
2. Drill three pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
1 2
3/8 in.
(10 mm)
3 in. (75 mm)
STEP 2B Attach Wall Plate Solid Concrete or Concrete Block Installation
02

14

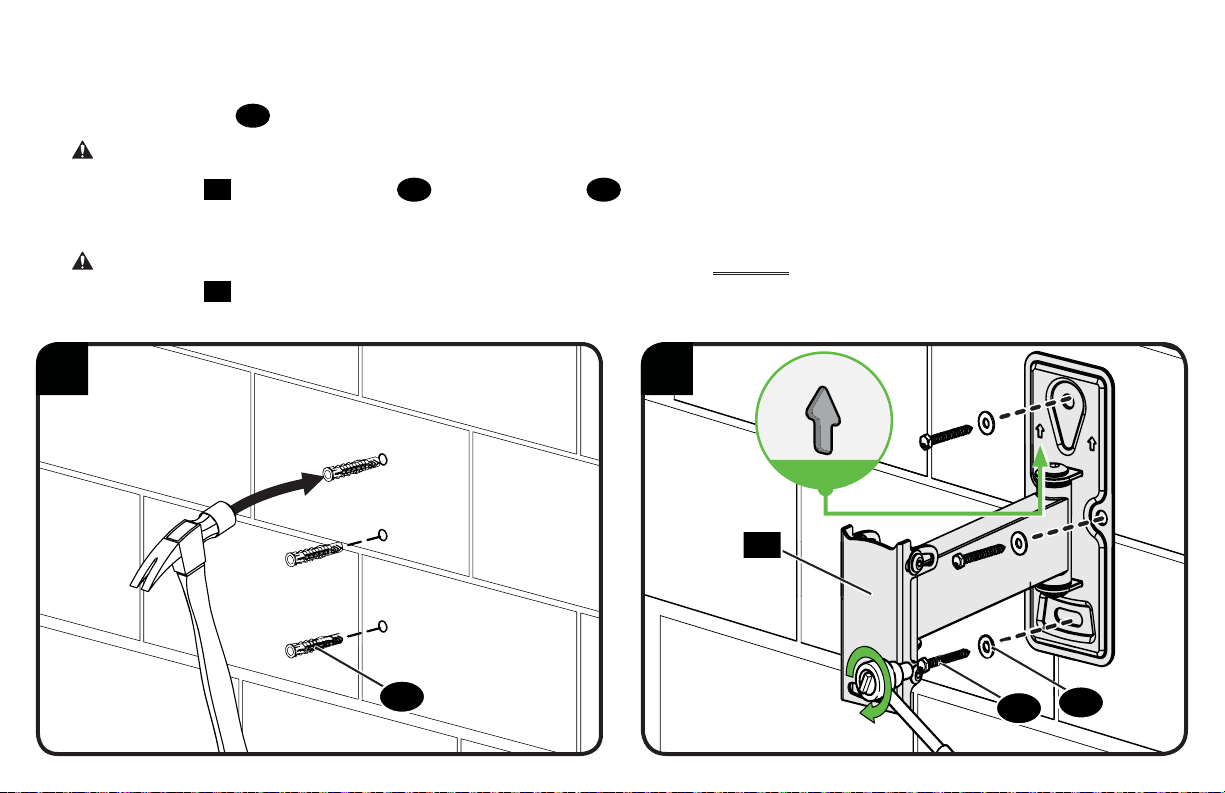

3. Insert three anchors 16 .
CAUTION: Be sure the anchors are seated flush with the concrete surface.
4. Install wall plate 02 using three lag bolts 15 and three washers 14 .Tighten the lag bolts only until the washers are pulled firmly against
the wall plate.
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate 02 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
3 4
UP ARROW
15 14
16
02

15
HEAVY! You may need assistance with this step.
1. Hang the TV bracket
01
onto the wall plate assembly
02
.
2. Allow the TV and bracket assembly to rest against the wall plate assembly
02
.
1 2
01
02
02
01
TV bracket
configuration A shown.
TV bracket
configuration A shown.
STEP 3 Attach TV to Wall Plate

16
3
3. Secure the TV bracket 01 to the wall plate assembly
02 with locking screws 03 that you removed in STEP 1.1 on PAGE 6.
CAUTION: Avoid potential personal injury or property damage! locking screws 03 must be tightened to secure the TV to the
wall plate assembly
02 .
02
01
17
15
TV bracket
configuration A shown.

17
TV Adjustments
TILT ADJUSTMENT
To adjust the tilt level of your TV, loosen the
tilt adjustment screws on both sides of the
arm assembly, adjust the TV to the desired tilt
angle and retighten the tilt adjustment screws.
NOTE: Once your TV is in place,
tighten the tilt adjustment screws to
prevent unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen
the bottom lag bolt 15 , level your TV, then
tighten the bottom lag bolt 15 .
CAUTION: Improper use could reduce
the holding power of the lag bolt. To avoid
potential injuries or property damage Do not
over-tighten the lag bolts 15 .
REMOVING THE TV
To remove your TV from the arm assembly
02 , disconnect all cables and then reverse
the procedures in STEP 3.
HEAVY! You may need
assistance with this step.
02
02
TV bracket
configuration A shown.
TV bracket
configuration A shown.
0202
15

18

19
